Electrolux EOK86030 User manual

user manual
Built-In Electric Oven
EOK86030

We were thinking of you
when we made this product

Welcome to the world of Electrolux
You’ve chosen a first class product from Electrolux,
which hopefully will provide you with lots of pleasure in
the future. Electrolux ambition is to offer a wide variety of
quality products that would make your life even more
comfortable. You can look at some examples on the
cover in this manual. But now it’s time to study this
manual and start using and enjoying the benefits from
your new machine. We promise that it’ll make your life a
little easier. Good luck!
The following symbols are used in this user manual:
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
General information and tips
Environmental information
315 8924 16-18092007
electrolux 3

Contents
Safety instructions 5
Description of the Appliance 9
Before Using for the first time 12
Using the Oven 14
Uses, Tables and Tips 32
Cleaning and Care 59
What to do if … 62
Installation Instructions 63
Disposal 69
Warranty 70
4 electrolux

Safety instructions
Important safety instructions!
Read carefully and keep for future
use!
Electrical safety
• This appliance must only be connec-
ted by a qualified installation engi-
neer.
• In the event of a fault or damage to the
appliance: Take the fuses out or
switch off.
• Should the door seal and the door
seal surfaces be damaged, the appli-
ance must not be operated until they
are repaired.
•Repairs to the appliance must only
be carried out by qualified service
engineers. Considerable danger
may result from improper repairs. If
repairs become necessary, please
contact our Customer Care Depart-
ment or your dealer.
Children’s safety
• Small children must be kept away
from the appliance. Make sure that
children do not touch the appliance
when playing.
WARNING: Accessible parts will be-
come hot during use. To avoid
burns, young children should be
kept away.
• Always heat baby food in jars or bot-
tles with the lid or top off. After heat-
ing, stir or shake well, so that the heat
is equally distributed. Before you give
the baby food to the child, please be
sure to test the temperature.
• When operating the grill (alone or in
combination with the microwave) the
viewing window becomes hot. There-
fore keep small children away from the
door of the appliance.
• Children should be supervised to en-
sure that they do not play with the
appliance.
• The appliance is fitted with a child
safety device.
Safety whilst Using
• This appliance is intended to be used
for cooking, roasting and baking food
in the home.
• Take care when connecting electric
appliances to sockets nearby. Do
not allow connecting leads to come
into contact with or to catch beneath
the hot oven door.
•Warning: Risk of burns! The interior
of the oven becomes hot during use.
• Using ingredients containing alcohol
in the oven may create an alcohol-air
mixture that is easily ignited. In this
case, open the door carefully. Do not
have embers, sparks or naked flames
in the vicinity when opening the door.
safety instructions electrolux 5

• This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless the have been
given supervision or instruction con-
cerning use of the appliance by a per-
son responsible for their safety.
Information on acrylamides
According to the latest scientific
knowledge, intensive browning of
food, especially in products contain-
ing starch, can constitute a health
risk due to acrylamides. Therefore
we recommend cooking at the low-
est possible temperatures and not
browning foods too much.
Microwave
• Only switch the appliance on when
there is food inside it. With no food in
it, the appliance could be overloaded.
•Only use microwave safe cookware
(see section Uses, Tables and Tips:
Suitable Cookware and Materials)
• To protect the interior or the door of
the appliance from corrosion through
escaping steam (condensed water),
please dry the appliance thoroughly
with a cloth after each use.
• Do not leave the appliance unatten-
ded, if food is being heated or cooked
in disposable containers made of
plastic, paper or other flammable ma-
terials.
• If smoke appears, keep the appliance
closed. Switch off the appliance and
disconnect from the power supply. Do
not use the appliance under any cir-
cumstances, if it is no longer working
correctly.
• When heating liquids always put a cof-
fee spoon or a glass rod in the
container to avoid boiling delay. With
boiling delay the boiling temperature is
reached without the typical steam
bubbles rising.
If the container is shaken even slightly
the liquid can suddenly boil over or
spray violently. Risk of burns!
6 electrolux safety instructions

• Prick food with “skin” or “peel”, such
as potatoes, tomatoes, sausages,
with a fork several times before cook-
ing so that the food does not burst.
min 70 C
70
0
• Ensure that a minimum temperature
of 70°C is reached when cooking/
heating food. For this please refer to
the power and time data in the tables.
Never use mercury or liquid
thermometers to measure the
temperature of the food.
• Foods heated with microwaves give
off heat to the cookware. Use oven
gloves or something similar.
• Do not overcook the dishes by using
powers and times that are too high.
The food can dry out, burn or set itself
alight in certain places.
• The interior of the oven, the grill heat-
ing element and the accessories be-
come hot when the appliance is
operating. Please be careful when
handling them and use oven gloves or
similar for this reason. Risk of burns!
• Metal objects must be at least 2 cm
from the walls of the oven interior and
the oven door. Otherwise spark
discharges may be caused and the
appliance can be damaged.
• If not advised otherwise, do not use
aluminium foil.
• Do not get anything caught between
the door and the door frame.
• Always keep the door seal, the door
seal surfaces and the interior clean.
Lack of cleanliness in the appliance
can lead to dangerous situations.
• Do not store any flammable materials
inside the oven. These could ignite
when the oven is switched on.
How to avoid damage to the
appliance
• Do not line the oven with aluminium
foil and do not place a baking tray or
saucepan etc. on the floor, as other-
wise the oven enamel will be dam-
aged by the heat build-up.
• Fruit juices dripping from the baking
tray will leave stains, which you will not
be able to remove. For very moist
cakes, use a deep tray.
• Do not put any strain on the oven door
when open.
• Never pour water directly into the
oven when it is hot. This could cause
damage to and discoloration of the
enamel.
safety instructions electrolux 7

• Rough handling, especially around
the edges of the front panel, can
cause the glass to break.
• Do not store any flammable materials
inside the oven. These could ignite
when the oven is switched on.
• Do not store any moist foods inside
the oven. This could cause damage to
the enamel.
• Do not leave dishes uncovered in the
oven after switching off the cooling
fan. Moisture may form inside the
oven or on the glass door and also get
onto the units.
Information on the oven enamel
Changes to the colour of the oven's
enamel surface as a result of use do
not affect the appliance's suitability
for normal and correct use. They
therefore do not constitute a defect
in terms of warranty law.
Do not use the appliance...
... for cooking eggs in their shells (with
fried eggs, pierce the yolks first) and
snails, as it causes these items to burst.
... for heating large amounts of cooking
oil (fondue, deep frying) and drinks with
high alcohol content: Spontaneous ig-
nition! Risk of explosion!
... for heating tightly closed containers,
e.g. tins, bottles, screw top jars.
... for drying animals, textiles, grain pil-
lows and gel cushions and other flam-
mable materials: Risk of fire!
... for cookware made of porcelain,
ceramic or earthenware that has small
holes, e.g. on handles or unglazed bot-
toms. Moisture penetrating holes can
cause the cookware to crack when it is
heated.
8 electrolux safety instructions

Description of the Appliance
General Overview
1 2
3
4
1Control panel
2Light bar
3Door handle
4Oven door
If no function is selected and noth-
ing is changed on the appliance, the
appliance switches itself off after 2
minutes, but the light bar remains
on.
To switch the light bar off, switch the
appliance on using the Start but-
ton and switch it off again using the
Stop button (press twice).
description of the appliance electrolux 9

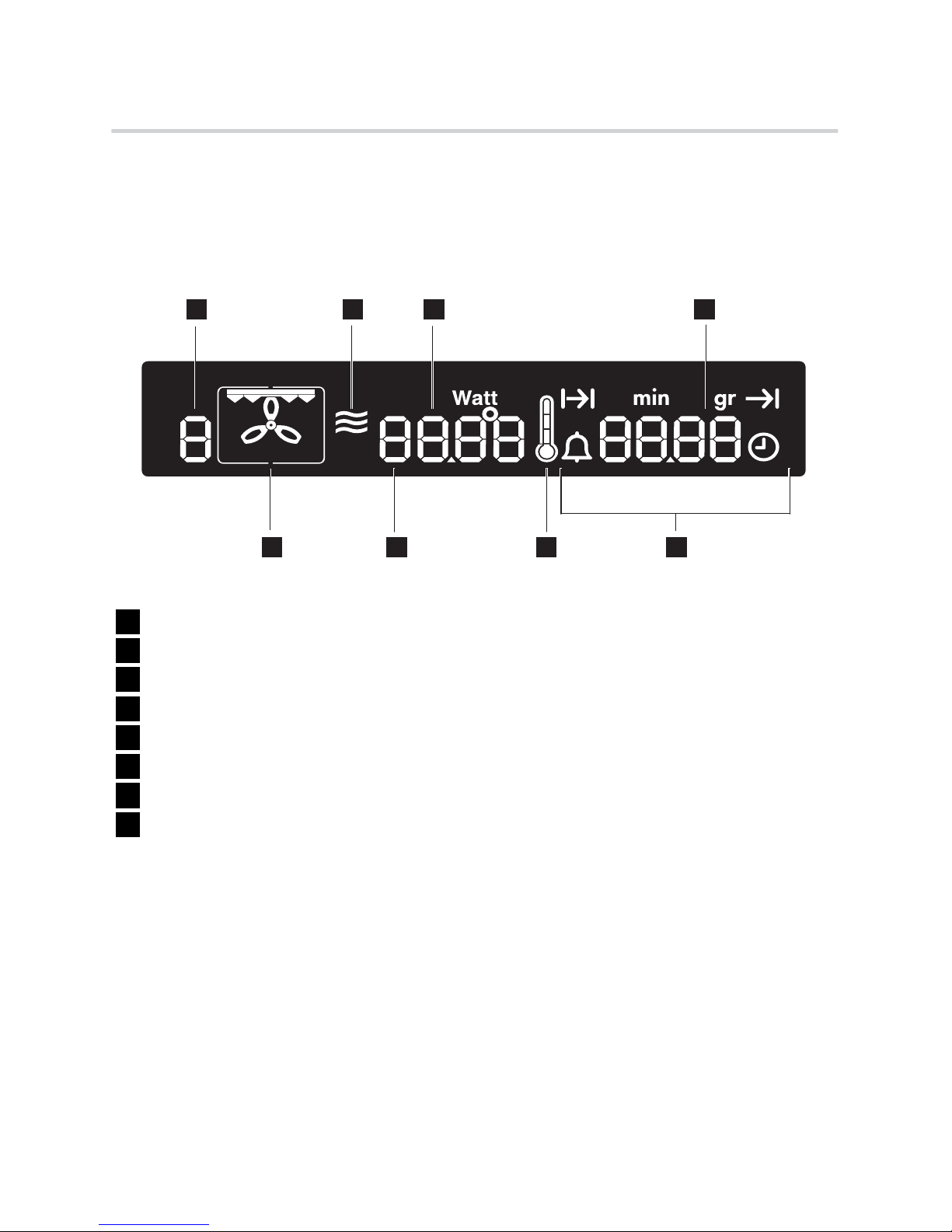

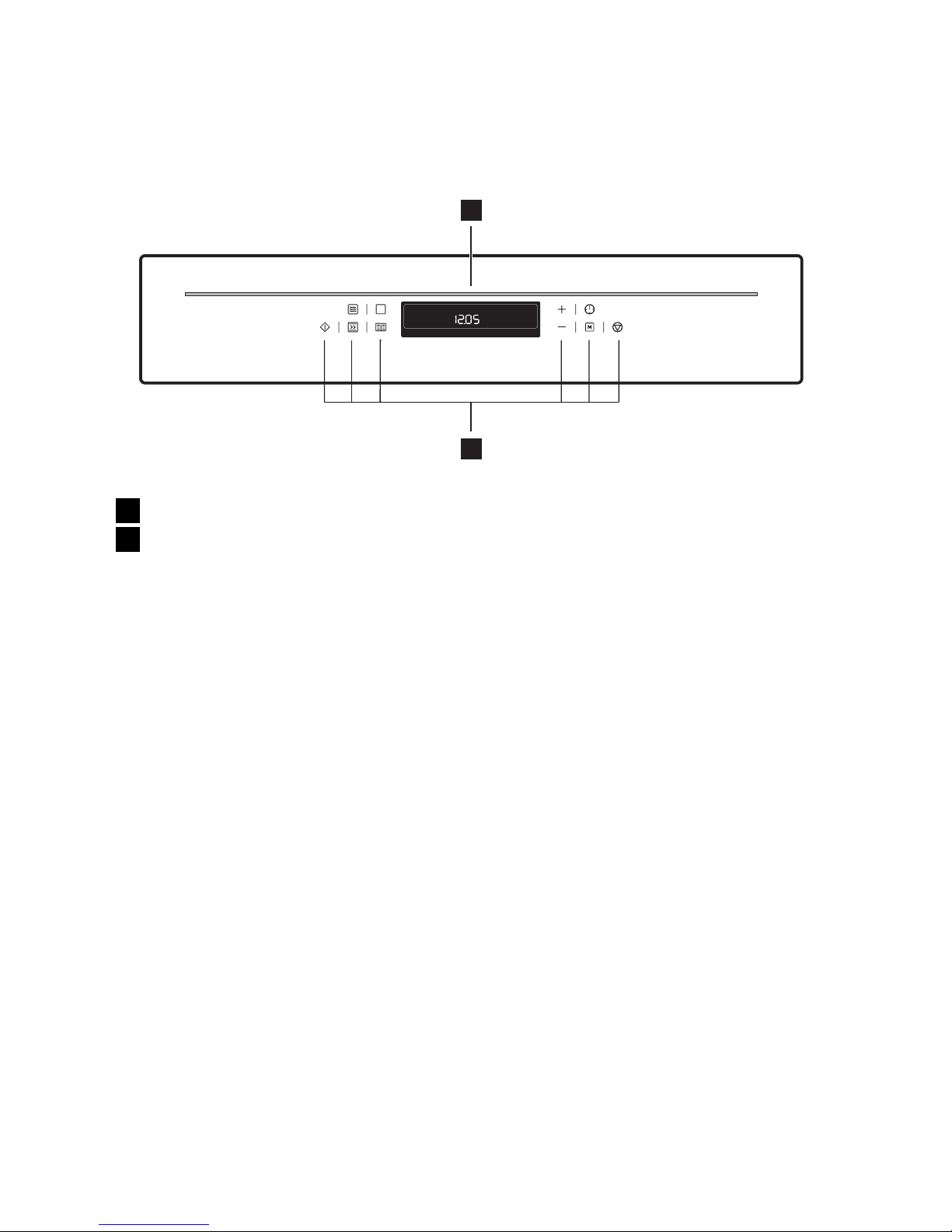

Control Panel
1
2
1Oven display
2Function buttons Oven
10 electrolux description of the appliance

Oven Features
1
2
3
4
5
6
7
1
2
3
1Grill heating element
2Microwave generator
3Oven lighting
4Rear wall heating element
5Glass floor, removable
6Oven shelf runners, removable
7Shelf positions
Oven accessories
Oven shelf
For cookware, cake tins, roasts and gril-
led foods.
description of the appliance electrolux 11

Baking tray
For cakes and biscuits.
Before Using for the first time

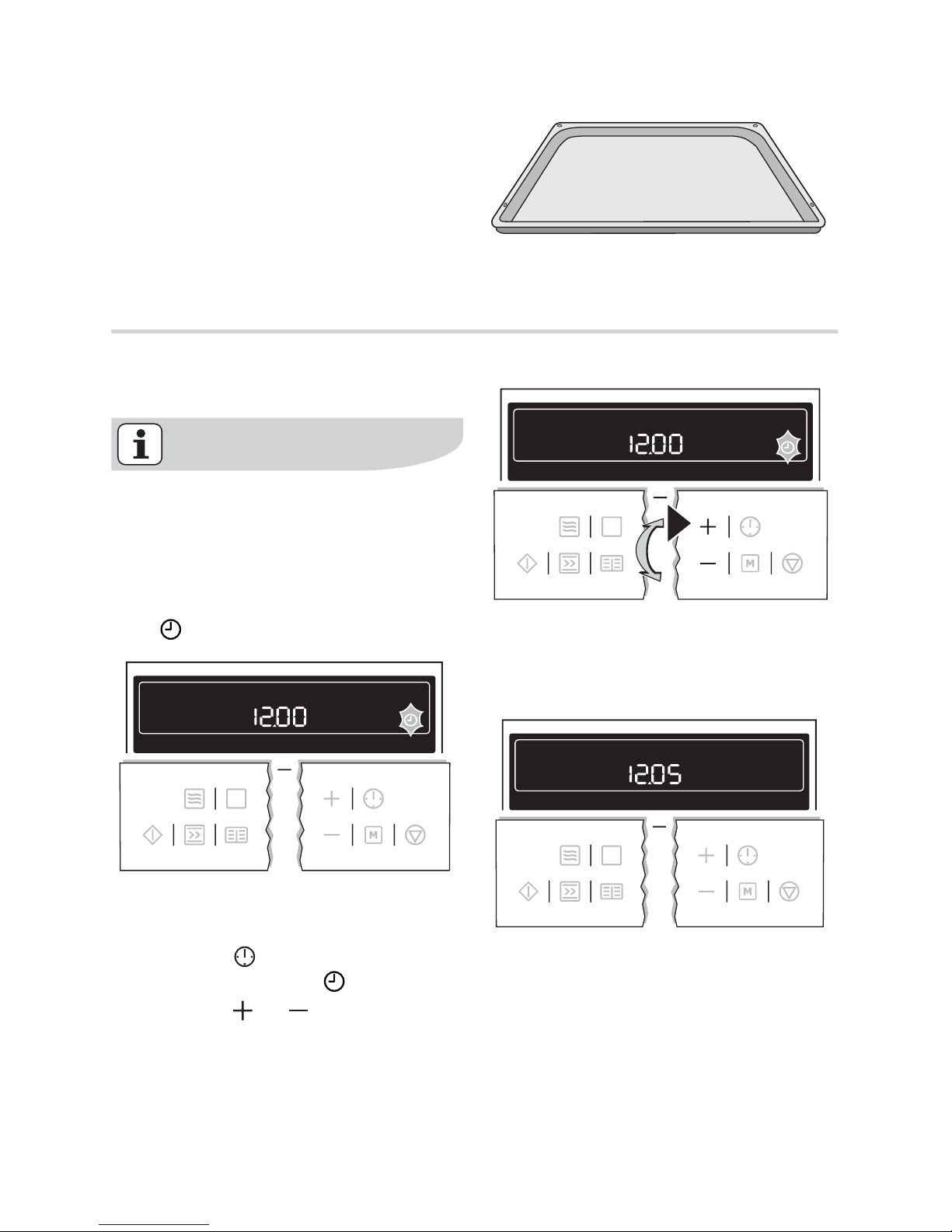

Setting and changing the time
The oven only operates when the
time has been set.
When the appliance has been connec-
ted to the electrical supply or when there
has been a power cut, the symbol for
Time automatically flashes.
1. To change a time of day that has al-
ready been set, press the Clock
Functions button repeatedly until
the symbol for Time flashes.
2. Using the or button, set the
current time.
After about 5 seconds, the flashing
stops and the clock displays the time of
day set.
The appliance is now ready to use.
12 electrolux before using for the first time

The time can only be modified, if the
child safety device is deactivated,
none of the clock functions Count-
down , Cook time or End
time nor any oven functions are
set.
Initial cleaning
Clean the oven before using it for the first
time.
Do not use caustic or abrasive
cleaning agents! These can damage
the oven surfaces.
For the metal surfaces, use
commercially available cleaning
agents.
1. Open the oven door.
The oven light is lit.
2. Remove all oven accessories, and
clean them with warm water and a
scouring agent.
3. Wash the oven in the same way, and
wipe dry.
4. Wipe the front of the appliance with
a damp cloth.

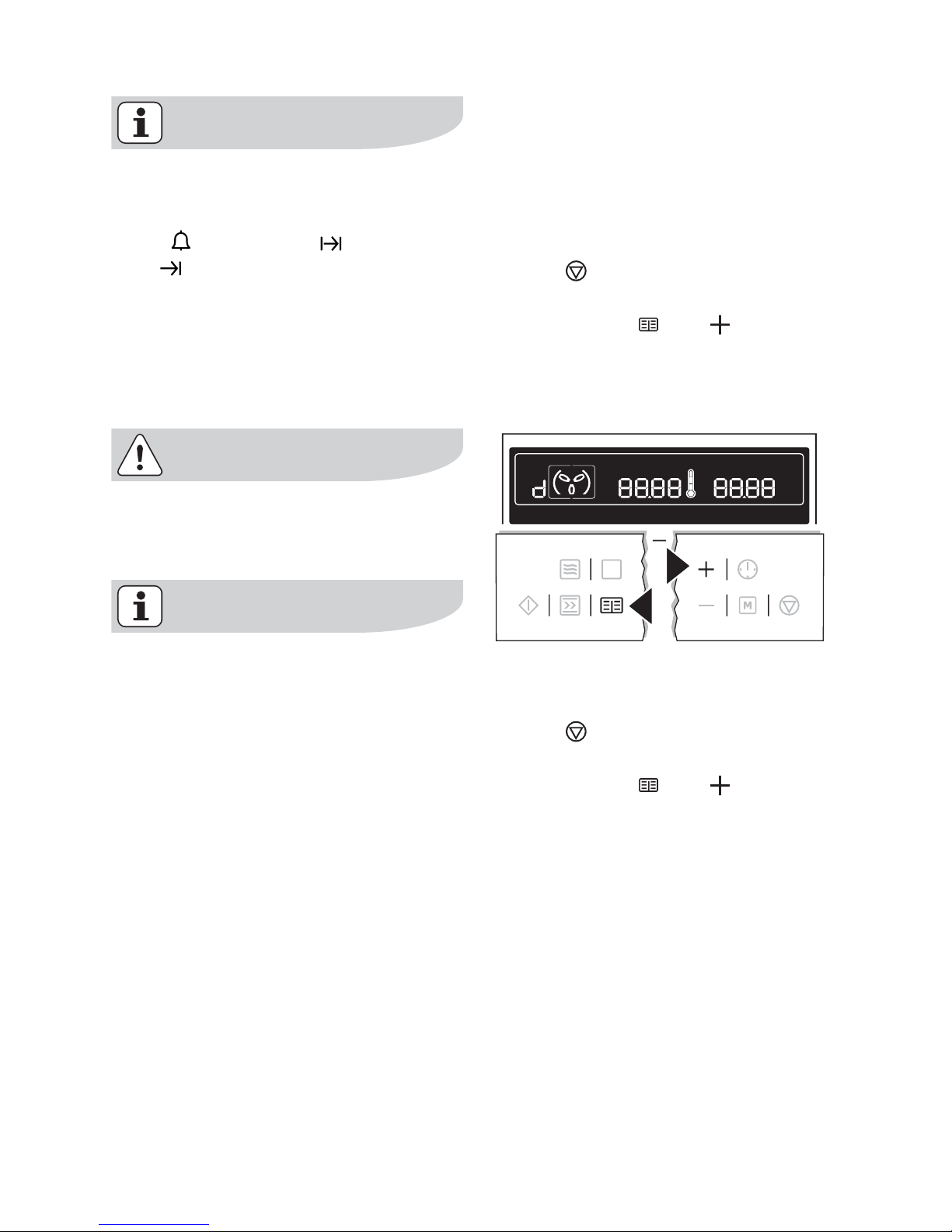

Getting to know the appliance
The appliance can be operated in test
mode for testing or performing all oper-
ating steps. The oven does not heat up.
Switching test mode on
1. Switch off the appliance using the
Stop button.
2. Press and hold Baking/Roasting
Programmes and buttons at
the same time until an acoustic signal
sounds and “d” lights up in the dis-
play.
Switching test mode off
1. Switch off the appliance using the
Stop button.
2. Press and hold Baking/Roasting
Programmes and buttons at
the same time, until a signal sounds
and “d” goes out in the display.
before using for the first time electrolux 13

Using the Oven
The Electronic Oven Control
The display field
1 2 3 4
5678
1Memory: P / Test: d
2Microwave function
3Temperature/Time/Microwave Power
4Weight display
5Clock functions Period of operation
6Thermometer symbol
7Baking/roasting programmes
8Oven Functions
14 electrolux using the oven

The control panel
1 3 4
5
678910
2
1Microwave button
2Oven Functions
3Button
4Clock Functions
5Stop button/ Reset
6Memory function
7Button
8Baking/roasting programmes
9Speedcook
10 Start button
General instructions
• Always confirm the selected function
with the Start button.
If the selected function is not started
within 120 seconds, the appliance
switches itself off.
• When the selected function is started,
the oven begins to heat up or the time
set begins to count down.
using the oven electrolux 15

• If the oven door is opened during
operation, the function stops. After
closing the door continue with the
Start button. If the Start button
is not pressed within 120 seconds,
the appliance switches off.
• The oven light is switched on as long
as an oven function is started or the
oven door is open.
The oven light goes off after 10 mi-
nutes when the door is open and the
appliance switched off.
• Stop operation with the Stop but-
ton, continue with the Start button.
Switch the appliance off by pressing
the Stop button again.

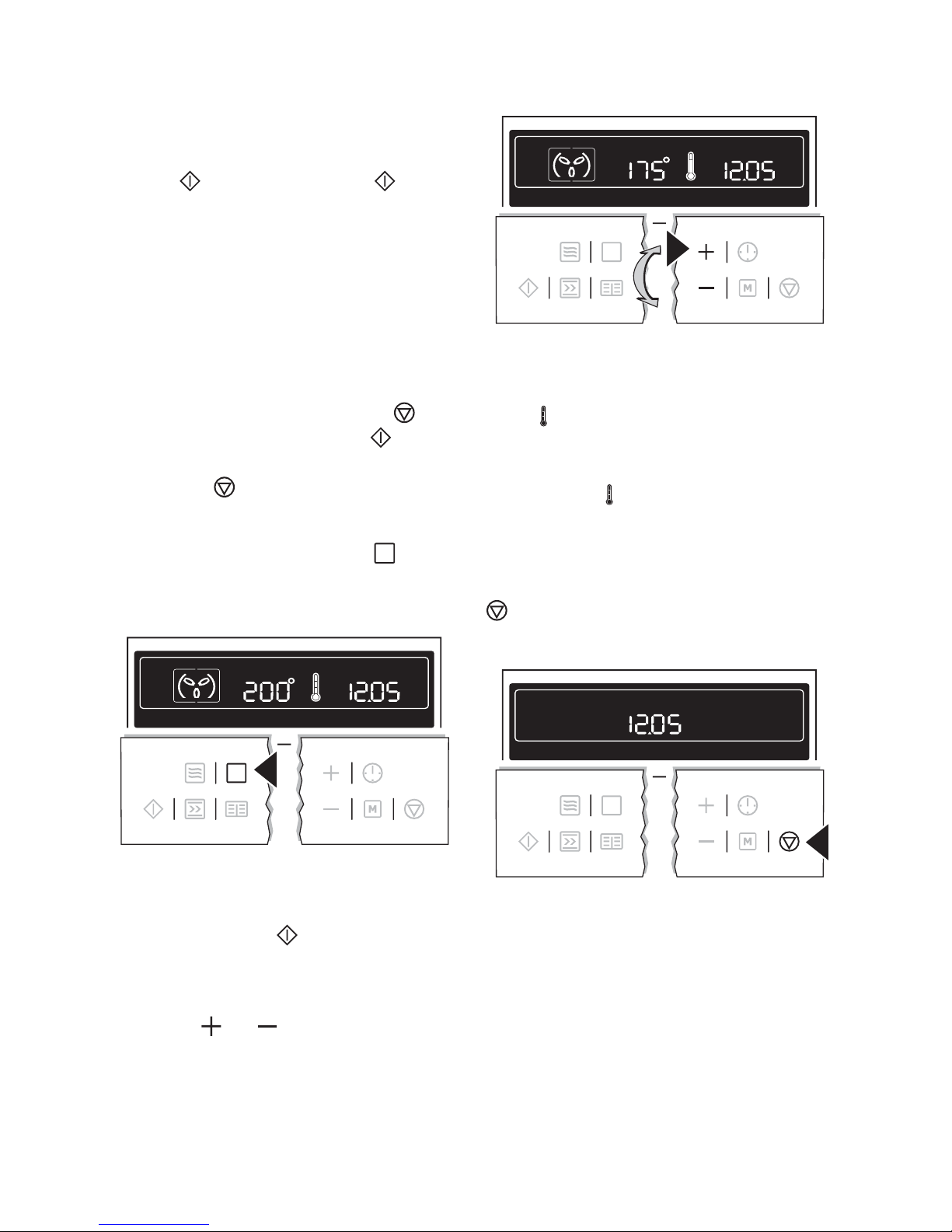

Selecting oven function
1. Press the Oven Functions button
repeatedly until the desired oven
function appears.
– A suggested temperature appears
in the temperature display.
2. Press the Start button to start the
function that has been set.
Changing the oven temperature
Press the or button, to raise or
lower the temperature.
The setting changes in 5 °C steps.
Thermometer symbol
• The slowly rising thermometer sym-
bol indicates how far the oven has
heated up.
• The three segments of the thermome-
ter symbol flashing one after the
other show that Fast Warm Up is on.
Switching the oven off
To switch the oven off, press the Stop
button repeatedly until only the time
and any residual heat is displayed.
16 electrolux using the oven

Cooling fan
The fan switches on automatically in
order to keep the appliance’s surfa-
ces cool. When the oven is switched
off, the fan continues to run to cool
the appliance down, then switches
itself off automatically.

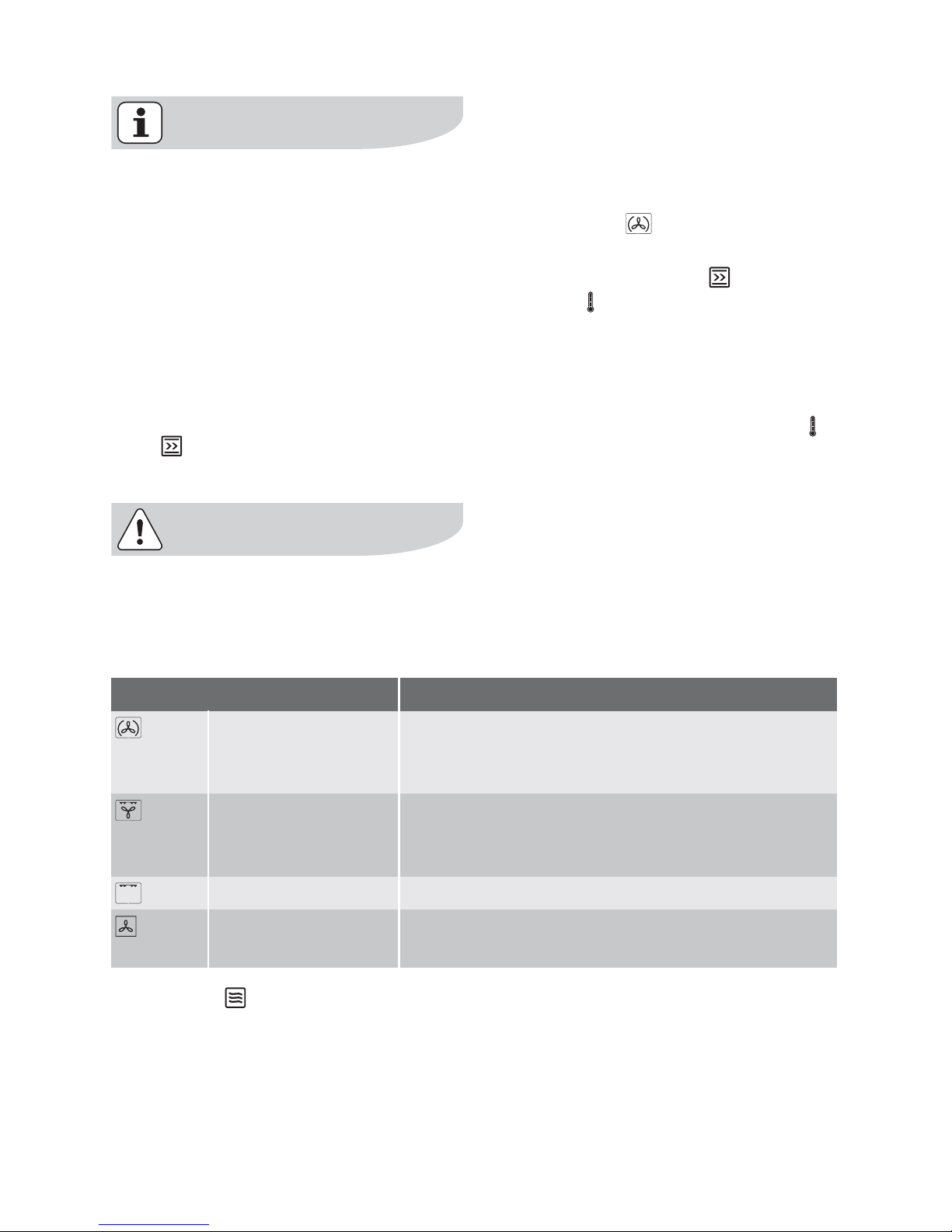

Speedcook
After an oven function has been selec-
ted, using the additional function Speed-
cook the empty oven can be pre-
heated in a relatively short time.
Do not put the food to be cooked
into the oven, until Speedcook is
completed and the oven is operating
using the desired function.
1. Set and start the desired oven func-
tion (e.g. Convection with ring heat-
ing element ). If necessary,
change the suggested temperature.
2. Press the Speedcook button. The
symbol lights up.
When the bars flash one after another it
shows that Speedcook is operating.
When the temperature set is reached,
the bars of the heat indicator are lit. An
acoustic signal sounds. The symbol
goes out.
The oven now continues heating ac-
cording to the pre-set oven function and
temperature. You can now place the
food in the oven.
Oven Functions
Oven function Application
Convection with
ring heating ele-
ment
For roasting and baking on up to two oven
levels at the same time.
Convection grill-
ing
For roasting larger joints of meat or poultry on
one level. This function is also suitable for gratin-
ées and browning dishes on top.
Grill For grilling flat foodstuffs and for toasting.
Drying/Defrost For defrosting and drying herbs, fruit or vege-
tables.
Microwave
In microwave mode, the heat is created
directly in the food. For heating ready
meals and drinks, for defrosting meat or
fruit and for cooking vegetables and fish.
Combi Function
using the oven electrolux 17

For the style of heating for the oven func-
tion(s), the function Microwave can
be switched on. The dishes are cooked
in the shortest time and browned at the
same time.
Microwave Quick Start
Quick Start of the maximum microwave
power when the appliance is switched
off using the Start button.
Operating time from 30 seconds to 7
minutes. Each press of the button adds
30 seconds to the operating time dis-
played.
Microwave
1. If necessary, switch off the appliance
using the Stop button.
2. By repeatedly pressing the Micro-
wave button, set the desired mi-
crowave power.
– The settings options are in 100
Watt steps from 1,000 Watt to 100
Watt.
– Repeatedly pressing the Micro-
wave button makes the power
display begin again at 1,000 Watt.
3. Using the or button set the
desired cook time. The symbol for
Cook time flashes.
– The cooking times can be set as
follows:
– from 0 to 2 mins. in 5 second
steps,
– from 2 to 5 mins. in 10 second
steps,
– from 5 to 10 mins. in 20 second
steps,
– from 10 to 20 mins. in 30 sec-
ond steps,
– from 20 mins. onwards in 1 mi-
nute steps.
– The maximum length of operation
that can be set is:
– At 700 Watt to 1,000 Watt 0 to
7 minutes 40 seconds,
– at 100 Watt to 600 Watt 0 to 59
minutes.
4. When the Start button is pressed,
the time set begins to count down.
The symbol for Cook time lights
up.
18 electrolux using the oven

– While the time counts down, the
power can be changed using the
Microwave button.
– While the time counts down, using
the Clock Functions and
buttons the cooking time can be
increased or reduced.
When the time has elapsed, an acoustic
signal sounds for 2 minutes. The micro-
wave switches itself off. The symbol for
Cook time flashes and the time dis-
play appears.
To turn off the acoustic signal: Press any
button.
Combi Function
You will find a selection of dishes in the
chapter Uses, Tables and Tips: Combi
Function.
1. If necessary, switch off the appliance
using the Stop button.
2. Press the Oven Functions button
repeatedly until the desired oven
function appears.
3. Using the or button set the
desired temperature.
4. By repeatedly pressing the Micro-
wave button, set the desired mi-
crowave power (max. 600 Watt).
5. Using the or button set the
desired cooking time. The symbol for
Cook time flashes.
using the oven electrolux 19

– The cooking times can be set as
follows:
– from 0 to 2 mins. in 5 second
steps,
– from 2 to 5 mins. in 10 second
steps,
– from 5 to 10 mins. in 20 second
steps,
– from 10 to 20 mins. in 30 sec-
ond steps,
– from 20 mins. onwards in 1 mi-
nute steps.
The maximum length of operation
that can be set is 59 mins.
6. When the Start button is pressed,
the time set begins to count down.
Oven and microwave are on. The
symbol for Cook time lights up.
– While the time counts down, the
power can be changed using the
Microwave button.
– While the time counts down, using
the and buttons the cooking
time can be increased or re-
duced.
When the time has elapsed, an acoustic
signal sounds for 2 minutes. The appli-
ance switches itself off. The symbol for
Cook time flashes and the clock dis-
play appears.
To turn off the acoustic signal: Press any
button.
Microwave Quick Start
1. If necessary, switch off the appliance
using the Stop button.
2. Press the Start button repeatedly
until the desired period of operation
appears. The appliance switches it-
self on at maximum microwave
power.
– Each press of the button adds 30
seconds to the period displayed.
Maximum of 7 mins. with maxi-
mum microwave power.
20 electrolux using the oven
