Welcome to the world of Electrolux
Thank you for choosing a first class
product from Electrolux, which hopefully
will provide you with lots of pleasure in
the future. The Electrolux ambition is to
offer a wide variety of quality products
that make your life more comfortable.
You will find some examples on the cov-
er in this manual. Please take a few min-
utes to study this manual so that you
can take advantage of the benefits of
your new machine. We promise that it
will provide a superior User Experience
delivering Ease-of-Mind. Good luck!

4electrolux contents
Contents
Safety instructions 5
Description of the Appliance 10
Before Using for the first time 13
Using the Oven 15
Uses, Tables and Tips 39
Cleaning and Care 65
What to do if … 68
Installation Instructions 69
Disposal 75
Guarantee/Customer Service 76
Index 81
Service 82
T
he following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information

safety instructions electrolux 5
Safety instructions
5
This appliance conforms with the
following EU Directives:
–73/23/EEC dated 19.02.1973 Low
Voltage Directive
–89/336/EEC dated 03.05.1989 EMC
Directive inclusive of Amending Di-
rective 92/31/EEC
–93/68/EEC dated 22.07.1993 CE
Marking Directive
Electrical safety
•This appliance must only be con-
nected by a qualified installation
engineer.
•In the event of a fault or damage to
the appliance: Take the fuses out or
switch off.
•Should the door seal and the door
seal surfaces be damaged, the ap-
pliance must not be operated until
they are repaired.
•Repairs to the appliance must only
be carried out by qualified service
engineers. Considerable danger
may result from improper repairs. If
repairs become necessary, please
contact our Customer Care Depart-
ment or your dealer.
Children’s safety
•Small children must be kept away
from the appliance. Make sure that
children do not touch the appliance
when playing.
•Always heat baby food in jars or bot-
tles with the lid or top off. After heat-
ing, stir or shake well, so that the
heat is equally distributed. Before
you give the baby food to the child,
please be sure to test the tem-
perature.
•When operating the grill (alone or in
combination with the microwave) the
viewing window becomes hot.
Therefore keep small children away
from the door of the appliance.
•The appliance is fitted with a child
safety device.
Safety whilst Using
•This appliance is intended to be
used for cooking, roasting and bak-
ing food in the home.
•Take care when connecting electric
appliances to sockets nearby. Do
not allow connecting leads to come
into contact with or to catch beneath
the hot oven door.
•Warning: Risk of burns! The interi-
or of the oven becomes hot during
use.
•Using ingredients containing alcohol
in the oven may create an alcohol-air
mixture that is easily ignited. In this
case, open the door carefully. Do not
have embers, sparks or naked
flames in the vicinity when opening
the door.
Information on acrylamides
According to the latest scientific
knowledge, intensive browning of
food, especially in products con-
taining starch, can constitute a
health risk due to acrylamides.
Therefore we recommend cooking
at the lowest possible temperatures
and not browning foods too much.

6electrolux safety instructions
Microwave
•Only switch the appliance on when
there is food inside it. With no food in
it, the appliance could be overload-
ed.
•Only use microwave safe cook-
ware (see section Uses, Tables and
Tips: Suitable Cookware and Materi-
als)
•To protect the interior or the door of
the appliance from corrosion through
escaping steam (condensed water),
please dry the appliance thoroughly
with a cloth after each use.
•Do not leave the appliance unattend-
ed, if food is being heated or cooked
in disposable containers made of
plastic, paper or other flammable
materials.
•If smoke appears, keep the appli-
ance closed. Switch off the appli-
ance and disconnect from the power
supply. Do not use the appliance un-
der any circumstances, if it is no
longer working correctly.

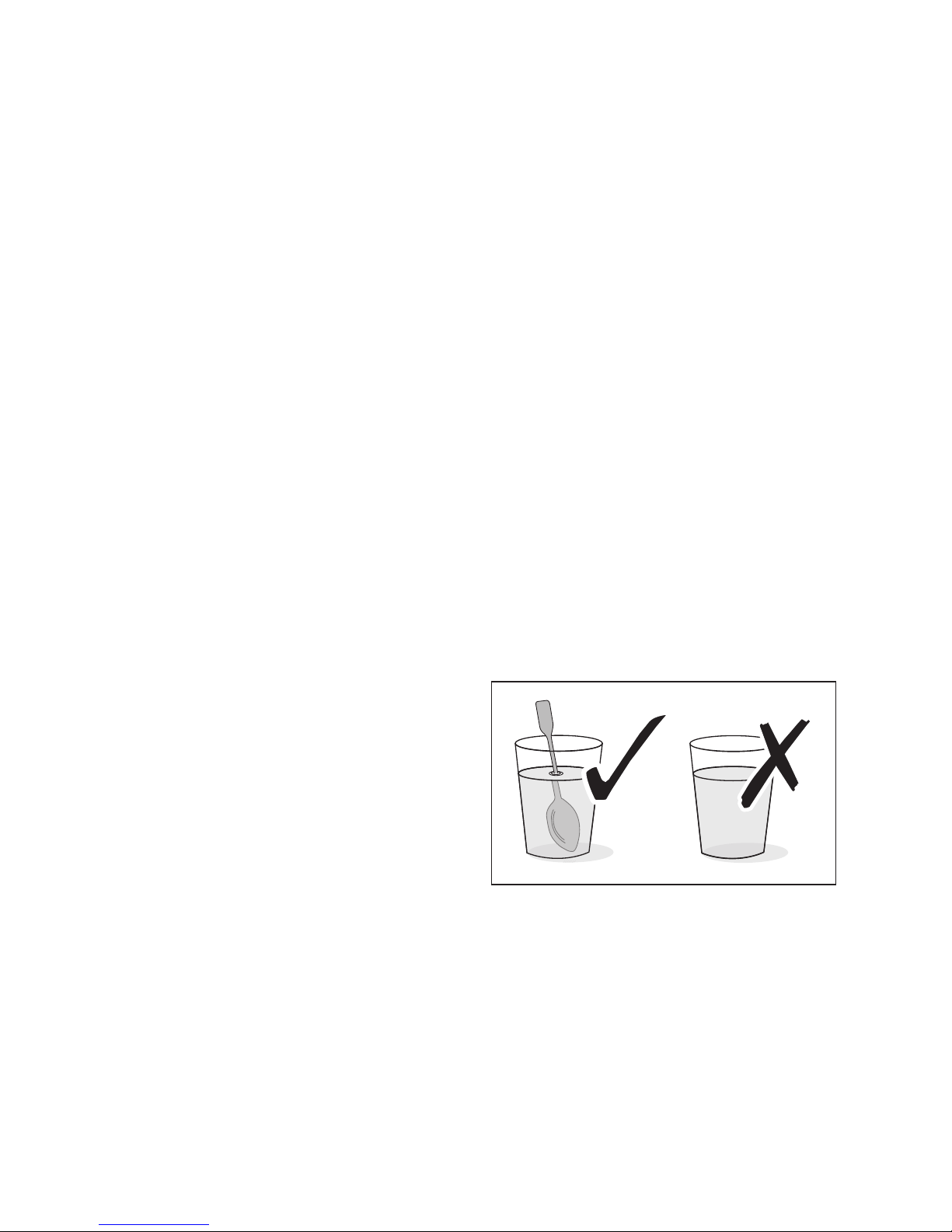

•When heating liquids always put a
coffee spoon or a glass rod in the
container to avoid boiling delay. With
boiling delay the boiling temperature
is reached without the typical steam
bubbles rising.
If the container is shaken even slight-
ly the liquid can suddenly boil over or
spray violently. Risk of burns!

safety instructions electrolux 7
•Prick food with “skin” or “peel”, such
as potatoes, tomatoes, sausages,
with a fork several times before
cooking so that the food does not
burst.
Ensure that a minimum temperature of
70°C is reached when cooking/heating
food. For this please refer to the power
and time data in the tables. Never use
mercury or liquid thermometers to
measure the temperature of the food.
•Foods heated with microwaves give
off heat to the cookware. Use oven
gloves or something similar.
•Do not overcook the dishes by using
powers and times that are too high.
The food can dry out, burn or set it-
self alight in certain places.
•The interior of the oven, the grill heat-
ing element and the accessories be-
come hot when the appliance is
operating. Please be careful when
handling them and use oven gloves
or similar for this reason.
Risk of burns!
•Metal objects must be at least 2 cm
from the walls of the oven interior
and the oven door. Otherwise spark
discharges may be caused and the
appliance can be damaged.
•If not advised otherwise, do not use
aluminium foil.
•Do not get anything caught between
the door and the door frame.
•Always keep the door seal, the door
seal surfaces and the interior clean.
Lack of cleanliness in the appliance
can lead to dangerous situations.
•Do not store any flammable materi-
als inside the oven. These could ig-
nite when the oven is switched on.

8electrolux safety instructions
How to avoid damage to the
appliance
•Do not line the oven with aluminium
foil and do not place baking trays,
pots, etc. on the oven floor, as the
heat that builds up will damage the
oven enamel.
•Fruit juices dripping from the baking
tray will leave stains, which you will
not be able to remove. For very moist
cakes, use a deep tray.
•Do not put any strain on the oven
door when open.
•Never pour water directly into the
oven when it is hot. This could cause
damage to or discoloration of the
enamel.
•Rough handling, especially around
the edges of the front panel, can
cause the glass to break.
•Do not store any flammable materi-
als inside the oven. These could ig-
nite when the oven is switched on.
•Do not store any moist foods inside
the oven. This could damage the
oven enamel.
•After switching off the cooling fan, do
not keep uncovered dishes in the ov-
en. Moisture may condense in the
oven interior or on the glass doors
and may get into the units.
Note on enamel coating
Changes in the colour of the oven’s
enamel coating as a result of use do not
affect the appliance’s suitability for nor-
mal and correct use. They therefore do
not constitute a defect in the sense of
the warranty law.

safety instructions electrolux 9

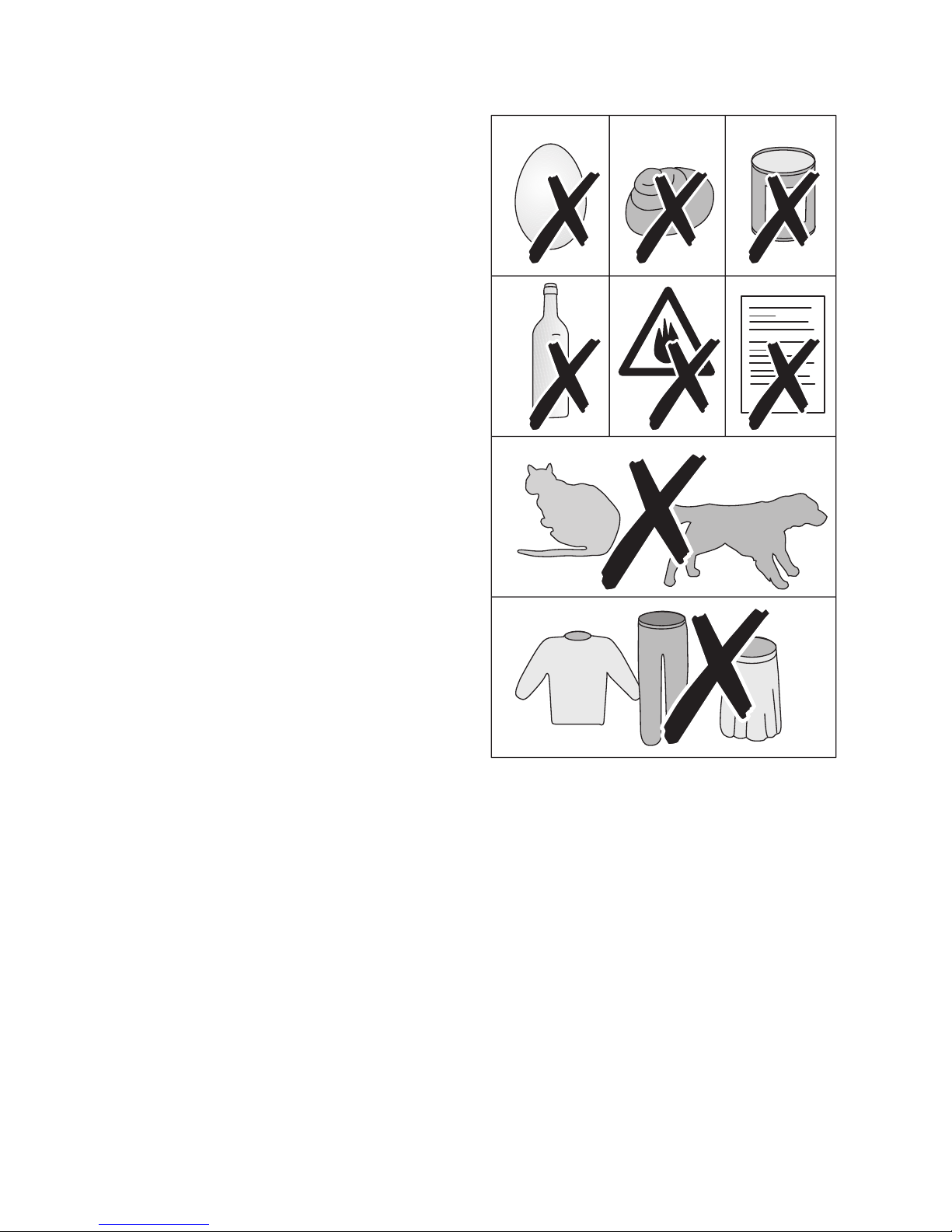

Do not use the appliance...
... for cooking eggs in their shells (with
fried eggs, pierce the yolks first) and
snails, as it causes these items to burst.
... for heating large amounts of cooking
oil (fondue, deep frying) and drinks with
high alcohol content: Spontaneous ig-
nition! Risk of explosion!
... for heating tightly closed containers,
e.g. tins, bottles, screw top jars.
... for drying animals, textiles, grain pil-
lows and gel cushions and other flam-
mable materials: Risk of fire!
... for cookware made of porcelain, ce-
ramic or earthenware that has small
holes, e.g. on handles or unglazed bot-
toms. Moisture penetrating holes can
cause the cookware to crack when it is
heated.

10 electrolux description of the appliance
Description of the Appliance
General Overview
If no function is selected and noth-
ing is changed on the appliance, the
appliance switches itself off after
2 minutes, but the light bar remains
on.
To switch the light bar off, switch
the appliance on using
the Start button and switch it off
again using the Stop button
(press twice).
Oven door
Control panel
Door
handle
Light bars.

description of the appliance electrolux 11
Control Panel
Oven Features

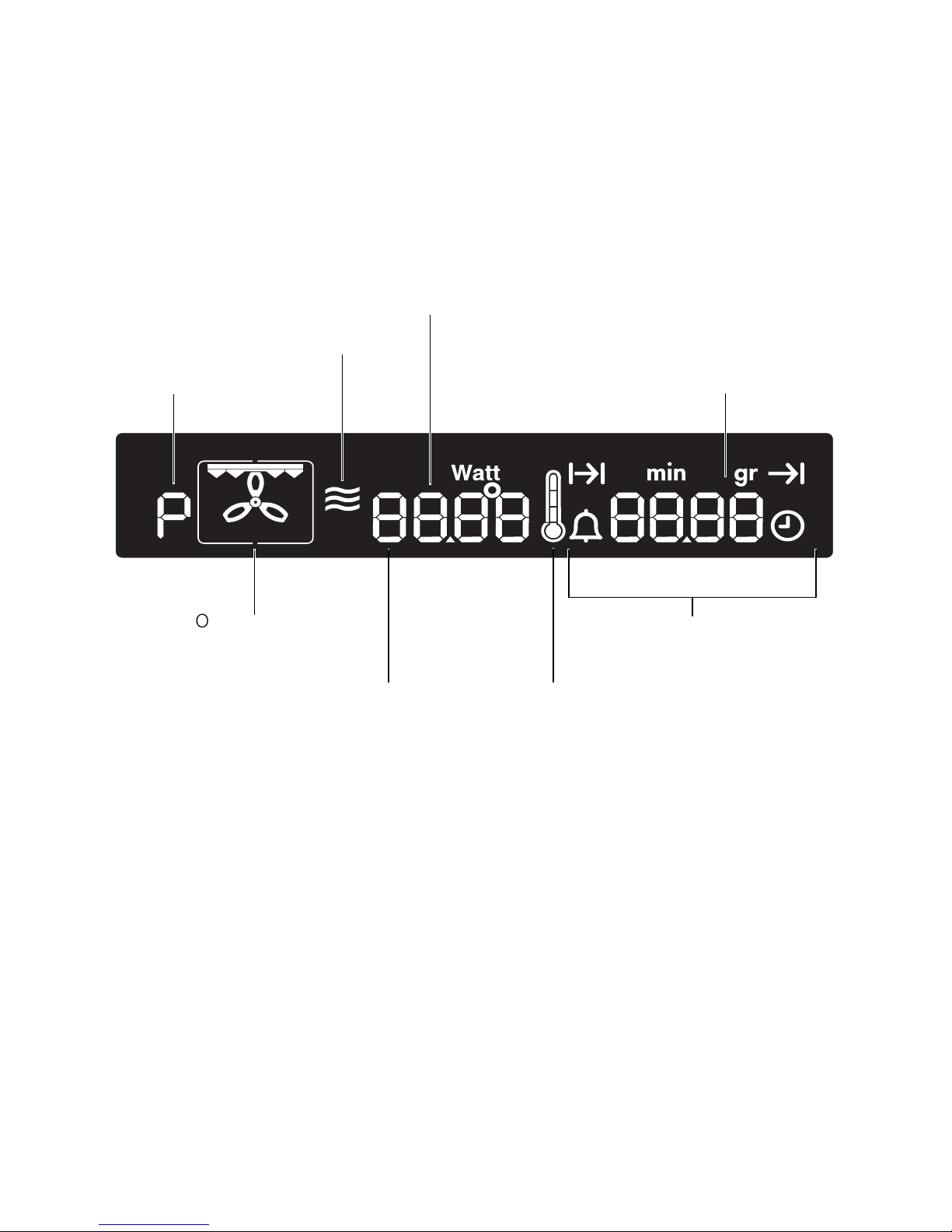

Oven display
Function buttons
Oven
Grill heating element
Rear wall heating element
Oven lighting
Glass floor,
removable
Shelf positions
Oven shelf runners,
removable
Microwave generator

12 electrolux description of the appliance
Oven accessories

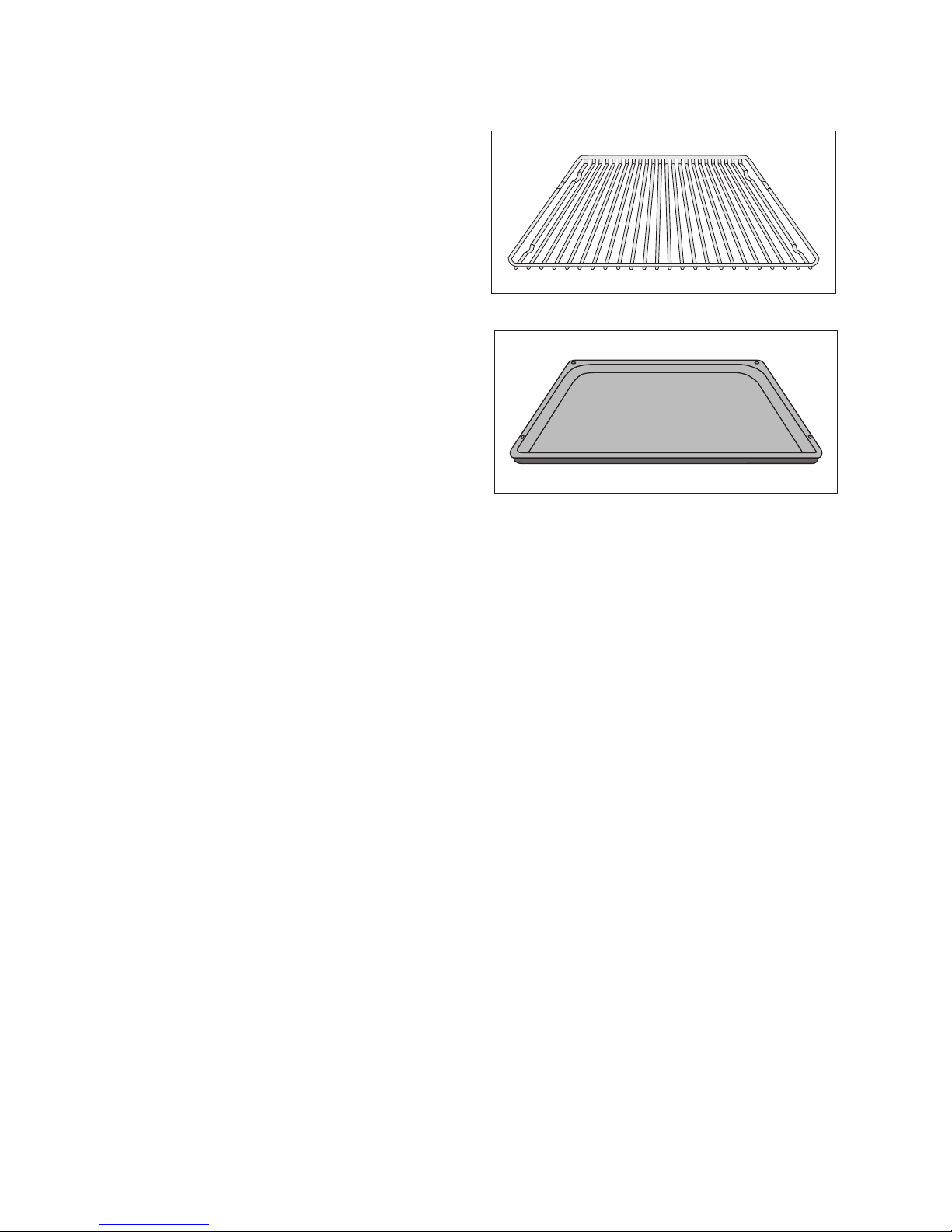

Oven shelf
For cookware, cake tins, roasts and
grilled foods.
Baking tray
For cakes and biscuits
(not suitable for microwave use)

before using for the first time electrolux 13
Before Using for the first time
Setting and changing the time
The oven only operates when the
time has been set.
When the appliance has been connect-
ed to the electrical supply or when there
has been a power cut, the symbol for
Time automatically flashes.

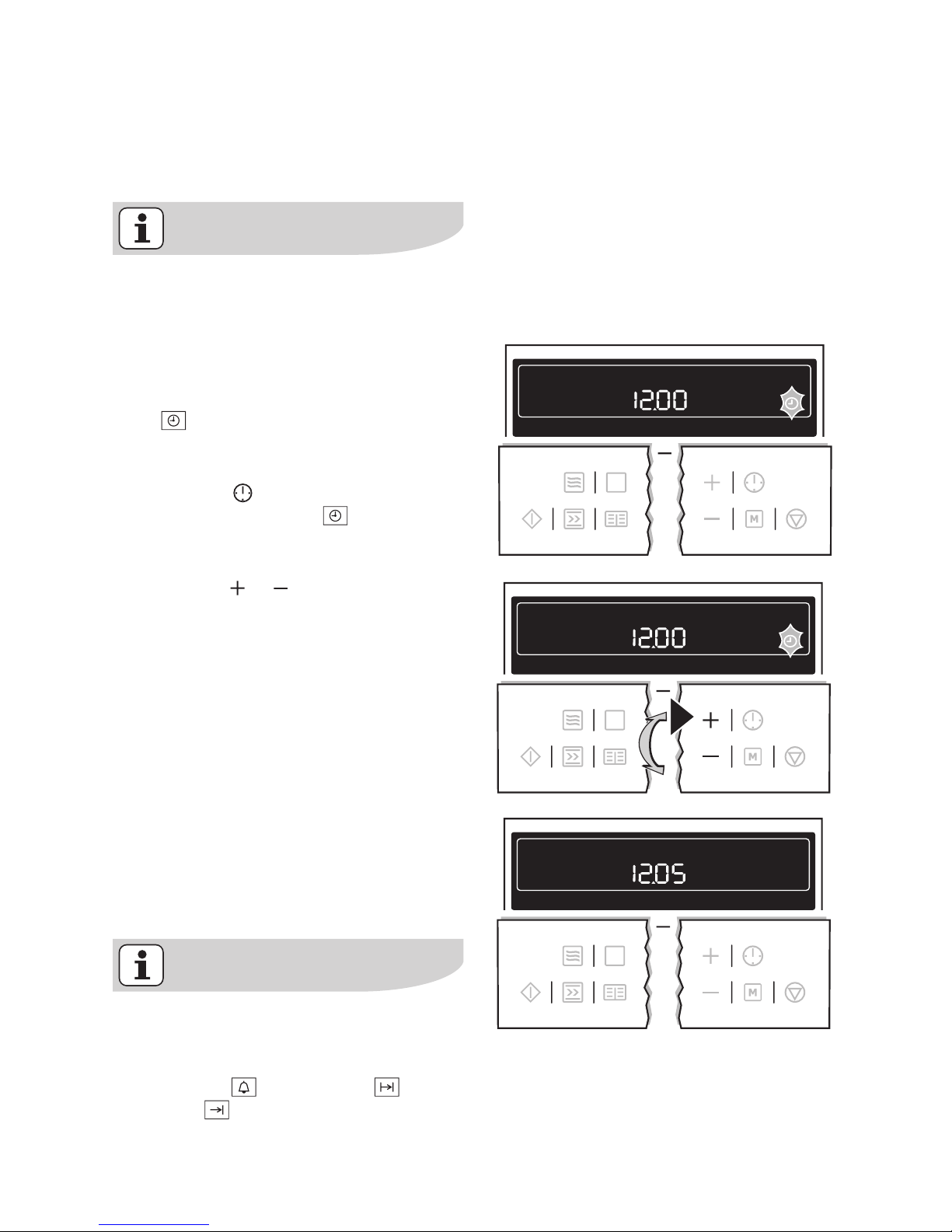

1. To change a time of day that has al-
ready been set, press the Clock
Functions button repeatedly until
the symbol for Time flashes.
2. Using the or button, set the cur-
rent time.
After about 5 seconds, the flashing
stops and the clock displays the time of
day set.
The appliance is now ready to use.
The time can only be modified, if the
child safety device is deactivated,
none of the clock functions
Countdown , Cook time or
End time nor any oven functions
are set.

14 electrolux before using for the first time
Initial cleaning
Clean the oven before using it for the
first time.
Important: Do not use caustic or
abrasive cleaning agents! These
can damage the oven surfaces.
For the metal surfaces, use com-
mercially available cleaning agents.
1. Open the oven door.
The oven light is lit.
2. Remove all oven accessories, and
clean them with warm water and a
scouring agent.
3. Wash the oven in the same way, and
wipe dry.
4. Wipe the front of the appliance with
a damp cloth.
Getting to know the appliance

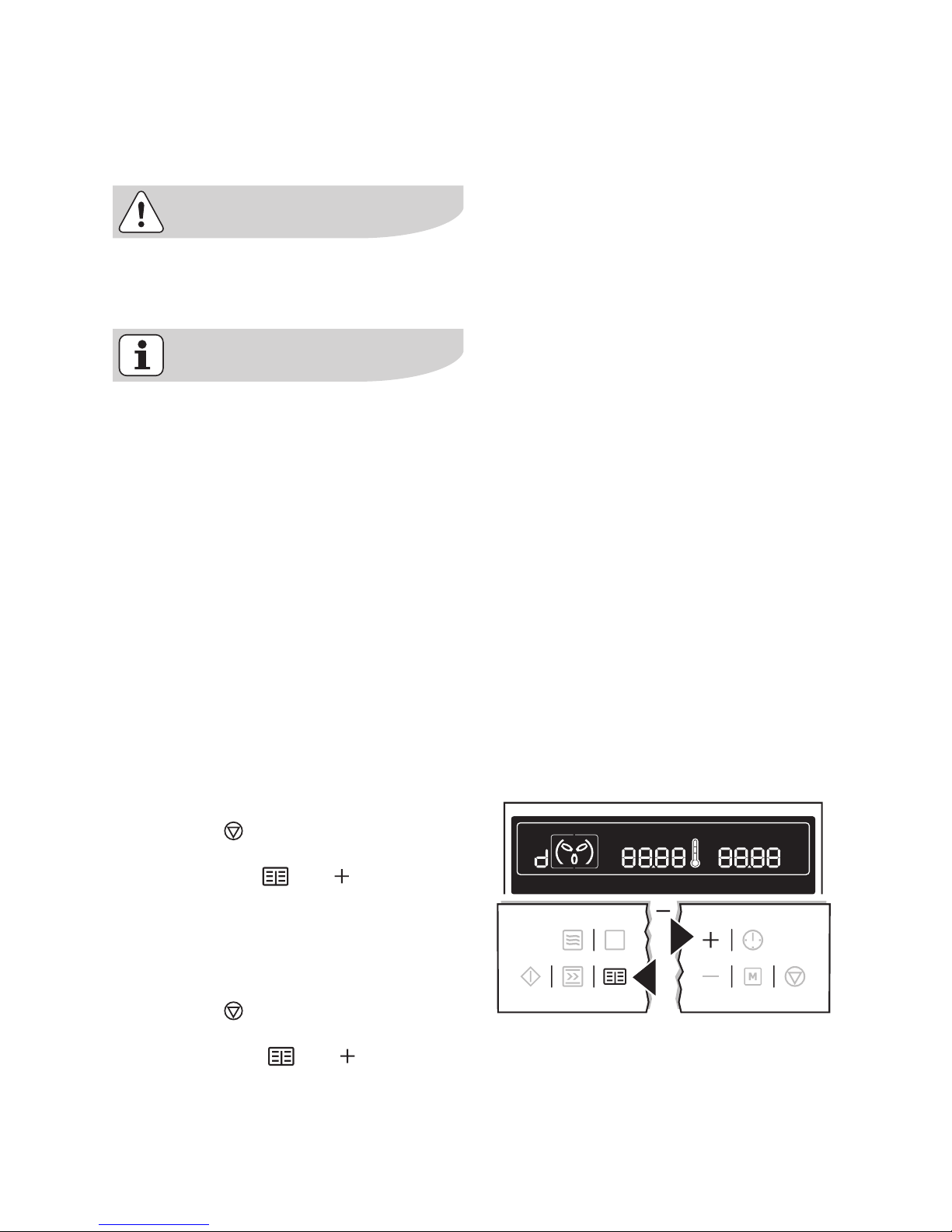

The appliance can be operated in test
mode for testing or performing all oper-
ating steps. The oven does not heat up.
Switching test mode on
1. Switch off the appliance using
the Stop button.
2. Press and hold Baking/Roasting
Programmes and buttons at
the same time until an acoustic sig-
nal sounds and “d” lights up in the
display.
1. Switch off the appliance using
the Stop button.
2. Press and hold Baking/Roasting
Programmes and buttons at
the same time, until a signal sounds
and “d” goes out in the display.
Switching test mode off

using the oven electrolux 15
Using the Oven
The Electronic Oven Control
The display field
Oven Functions
Microwave function
Clock functions
Period of operation
Thermometer symbol
Temperature/Time/Microwave Power
Memory: P / Test: d
Baking/roasting programmes
Weight display

16 electrolux using the oven
The control panel
General instructions
•Always confirm the selected function
with the Start button.
If the selected function is not started
within 120 seconds, the appliance
switches itself off.
•When the selected function is start-
ed, the oven begins to heat up or the
time set begins to count down.
•If the oven door is opened during op-
eration, the function stops. After
closing the door continue with
the Start button. If the Start
button is not pressed within
120 seconds, the appliance switch-
es off.
•The oven light is switched on as long
as an oven function is started or the
oven door is open.
The oven light goes off after
10 minutes when the door is open
and the appliance switched off.
•Stop operation with the Stop but-
ton, continue with the Start but-
ton. Switch the appliance off by
pressing the Stop button again.
Start button
Clock Functions
Speedcook
Baking/roasting programmes
Memory function
Microwave button
Button
Oven Functions
Stop button/
Reset
Button

using the oven electrolux 17
Selecting oven function
1. Press the Oven Functions button
repeatedly until the desired oven
function appears.
•A suggested temperature appears in
the temperature display.
2. Press the Start button to start the
function that has been set.
Changing the oven temperature
Press the or button, to raise or low-
er the temperature.
The setting changes in 5 °C steps.
Thermometer symbol
•The slowly rising thermometer
symbol indicates how far the oven
has heated up.
•The three segments of the thermom-
eter symbol flashing one after the
other show that Fast Warm Up is on.
Switching the oven off
To switch the oven off, press
the Stop button repeatedly until only
the time and any residual heat is
displayed.
Cooling fan
The fan switches on automatically
in order to keep the appliance’s sur-
faces cool. When the oven is
switched off, the fan continues to
run to cool the appliance down, then
switches itself off automatically.

18 electrolux using the oven
Speedcook
After an oven function has been select-
ed, using the additional function
Speedcook the empty oven can be
pre-heated in a relatively short time.
Important!: Do not put the food to be
cooked into the oven, until Speed-
cook is completed and the oven is
operating using the desired func-
tion.
1. Set and start the desired oven func-
tion (e.g. Convection with ring
heating element ). If necessary,
change the suggested temperature.
2. Press the Speedcook button.
The symbol lights up.
When the bars flash one after another it
shows that Speedcook is operating.
When the temperature set is reached,
the bars of the heat indicator are lit. An
acoustic signal sounds. The symbol
goes out.
The oven now continues heating ac-
cording to the pre-set oven function and
temperature. You can now place the
food in the oven.

using the oven electrolux 19
Oven Functions
The oven has the following functions:
Microwave
In microwave mode, the heat is created
directly in the food. For heating ready
meals and drinks, for defrosting meat or
fruit and for cooking vegetables and fish.
Combi Function
For the style of heating for the oven
function(s), the function Microwave
can be switched on. The dishes are
cooked in the shortest time and
browned at the same time.
Microwave Quick Start
Quick Start of the maximum microwave
power when the appliance is switched
off using the Start button.
Operating time from 30 seconds to
7 minutes. Each press of the button
adds 30 seconds to the operating time
displayed.
Oven function Application Heating element/
fan
Convection with
ring heating
element
For roasting and baking on up to
two oven levels
at the same time.
Rear heating element,
fan
Convection grill-
ing
For roasting larger joints of meat or
poultry on one level. This function is
also suitable for
gratinées and
browning dishes on top.
Grill, fan
Grill For grilling flat foodstuffs and for
toasting .
Grill
Drying/Defrost For defrosting and zum drying
herbs, fruit or vegetables.
Rear heating element,
fan

20 electrolux using the oven
Microwave
1. If necessary, switch off the appliance
using the Stop button.
2. By repeatedly pressing
the Microwave button, set the de-
sired microwave power.
•The settings options are in 100 Watt
steps from 1,000 Watt to 100 Watt.
•Repeatedly pressing
the Microwave button makes the
power display begin again at
1,000 Watt.
3. Using the or button set the de-
sired cook time. The symbol for
Cook time flashes.
•The cooking times can be set as fol-
lows:
–from 0 to 2 mins. in 5 second
steps,
–from 2 to 5 mins. in 10 second
steps,
–from 5 to 10 mins. in 20 second
steps,
–from 10 to 20 mins. in 30 second
steps,
–from 20 mins. onwards in 1 minute
steps.
•The maximum length of operation
that can be set is:
–At 700 Watt to 1,000 Watt
0 to 7 minutes 40 seconds,
–at 100 Watt to 600 Watt 0 to
59 minutes.
