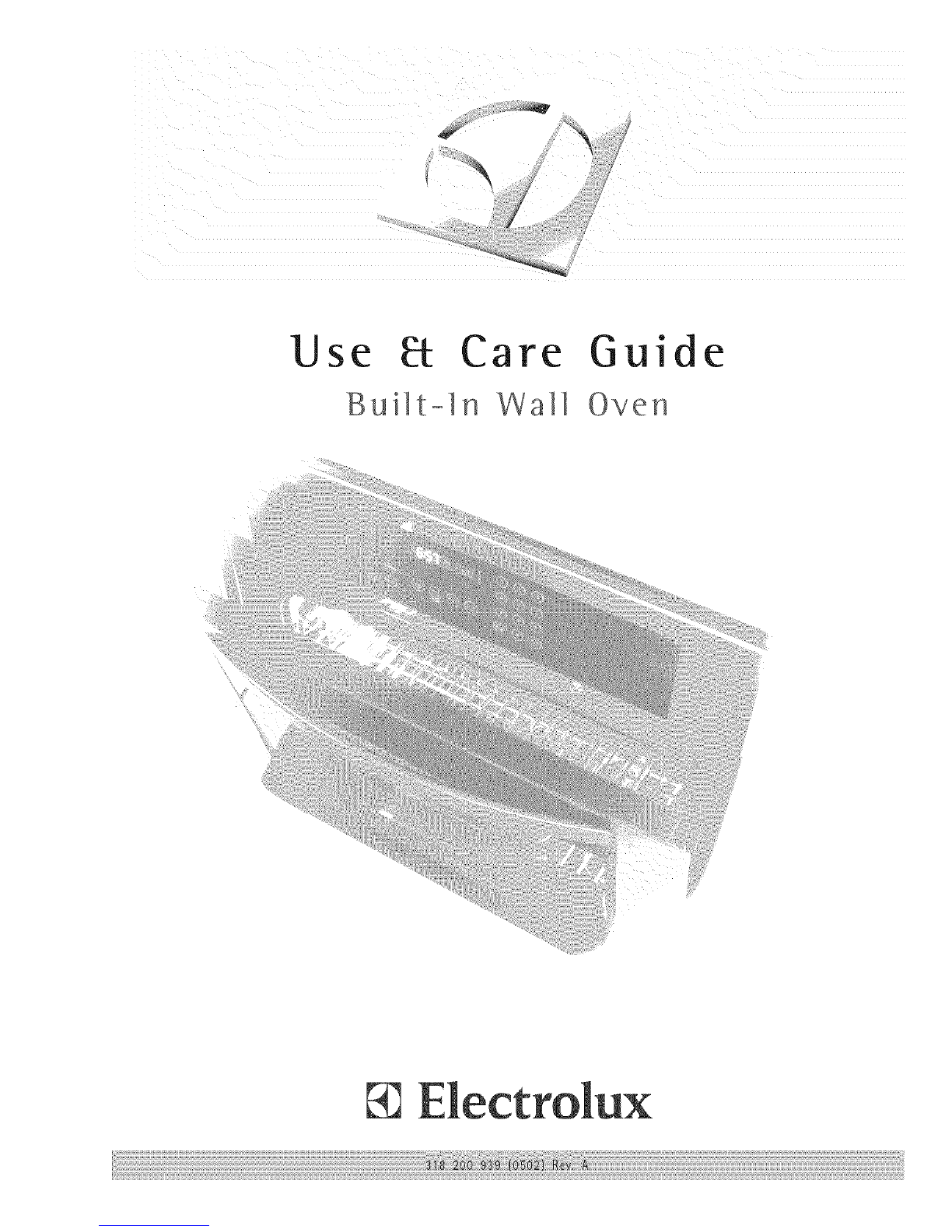

Electrolux E30EW75ESS3 User manual

Use _ Care
Built-ln Wall
Guide
Ovc:n
i!i!i!!¸
Electrolu×

Finding information
MAKEA RECORDFORFUTUREUSE
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Brand
Purchase Date
Model Number
Serial Number
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
For toll-free telephone support in the U.S. and Canada:
l=877=4ELECTROLUX (1=877=435=3287)
For online support and internet product information:
www.electrolux.com
©2005 Eiectrolux Home Products, Inc.
Post Office Box 212378, Augusta, Georgia 30917, USA
All rights reserved. Printed in the USA

Finding information
TABLEOFCONTENTS
R m II S Ill n M llll Ill m S m N M Nil m R m m g III m
FindingInformation ...........................................2
Makea RecordforFutureUse..........................2
Questions?........................................................2
Safety...................................................................4
(mportantSafetyInstructions..............................4
FeatureOverview................................................7
YourWal(Oven.................................................7
GettingStarted ...................................................8
OvenVentLocation...........................................8
InstallingOvenRackSupports...........................8
RemovingandReplacingOvenRacks..............8
ArrangingOvenRacks......................................8
Setting OvenControls .......................................9
ControlPadsFunctions.....................................9
SettingtheClock..............................................10
SettingContinuousBake
or 12hoursEnergySaving..............................11
SettingtheKitcilenTimer................................11
SettingOvenLockoutFeature.......................12
SettingTemperatureDisplay..........................12
SettingSilentControlOperation.....................13
AdjustingOvenTemperature..........................13
Cooking Instructions ........................................14
Preheating......................................................14
Baking............................................................15
BakingProblems............................................16
ConvectionBaking.........................................17
SettingTimedBakeor
TimedConvectionBake...................................19
SetlingDelayedTimedBakeor
DelayedTimedConvectionBake...................20
Broiling...........................................................21
ConvectionRoasting.......................................23
SabbathFeature(Foruseonthe
JewishSabbath& Holidays).......................24-25
Care& Cleaning................................................26
UsingtheSelf-CleanFeature...........................26
StartingSerf-CleaningCye}e............................27
ToStartDelayedSelf-CleaningCycle..............28
GeneralCleaning............................................29
CareandC(eaningofStainlessSteel...............30
ToRemoveandReplaceOvenDoor..............30
SpecialDoorCareInstructions........................30
ToRemovethe"HiddenBake"ElementCove("31
OvenLight......................................................31
Solutions to CommonProblems.....................32
OvenControlsBeepsandDisplaysan"F"
ErrorCode.....................................................32
installation.......................................................32
EntireOvenDoesNotOperate...................32-33
OvenLightDoesNotOperate.........................33
Self-CleanCycleDoesNotWork.....................33
OvenSmokesExcessivelyDuringBroiling......33
SoilNotCompletelyRemovedAfter
Self-C(eaningCyc(eIsCompleted....................34
PoorBakingResults........................................34
FlamesInsideOvenOrSmokeFromVent.......34
Notes ..................................................................35
Warranty (nformation.......................................36

Safety
IMPORTANTSAFE INSTRUCTIONS
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Please read all safety instructions before using your new Electrolux wall oven,
[] []
Remove all tape and packaging wrap before using the appliance. Destroy the carton and
plastic bags after unpacking the appliance. Never allow children to play with packaging
material. Do not remove the wiring label and other literature attached to the back of the
wall oven. Do not remove model/serial number plate.
Proper Installation--Be sure you rappliance is properly installed and grounded by a qualified
electrician or installer in accordance with the National Electrical Code ANSl/NFPA No. 70
(U.S.A.) or CSA C22.1, PART 1 (Canada)--Iatest editions and local code requirements.
Install only per installation instructions provided in the literature package for this appliance.
Ask your dealer to recommend a qualified technician and an authorized repair service. Know
how to disconnect the electrical power to the appliance at the circuit breaker or fuse box incase
of an emergency.
Electronic controllers can be damaged by cold temperatures. When you use
your appliance for the first time, or if it has not been used for a long period of time, make sure
that it has been exposed to a temperature above 0°C/32°F for at least 3 hours before
connecting it to the power supply.
* User Servicing--Do not repair or replace any part of the appliance unless specifically
recommended in the manuals. All other servicing should be done only by a qualified
technician to reduce the risk of personal injury and damage to the appliance.
Never modify or alter the construction of the appliance by removing panels, wire covers, or
any other part of the product.
,, Remove the oven door from any unused appliance if it is to be stored or discarded.
Stepping, leaning, sitting or pulling down on the door of this appliance can
result in serious injuries and may also cause damage to the appliance. Do not allow children
to climb or play around the appliance.
o Storage in or on Appliance--Flammable materials should not be stored in an oven.
This includes paper, plastic and cloth items, such as cookbooks, plasticware and towels, as
well as flammable liquids. Do not store explosives, such as aerosol cans, in or near the
appliance.
Do not use the oven for storage,
Do not store items of interest to children in the cabinets above an
appliance. Children climbing on the oven can be seriously injured.

_To reduce the risk of tipping of the appliance. The appliance must be
secured by properly install anti tip device. To check if devices are installed properly open the
oven door and verify that the anti-tip device are engaged see installation instructions.
•Do not leave children alone--Children should not be left alone or unattended in the area
where an appliance is in use, They should never be allowed to sit or stand on any part of
the appliance.
, DO NOT TOUCH INTERIOR OVEN ELEMENTS OR INTERIOR SURFACES OF THE
WALL OVEN UNTIL THEY HAVE COOLED. The oven heating elements may be hot even
though the elements are dark in color. Areas near the elements may become hot enough to
cause burns. During and after use, do not touch, or letclothing or other flammable materials
touch these areas until they have had sufficient time to cool. Among these areas are the oven
vent openings, the surfaces near these openings, oven door and window.
• Wear Proper Apparel--Loose-fitting or hanging garments should never be worn while using
the appliance. Do not let clothing or other flammable materials contact hot surfaces,
_ Never use your appliance for warming or heating the room.
*Do Not Use Water or Flour on Grease Fires--Smother the fire with a pan lid, or use baking
soda, a dry chemical or foam-type extinguisher,
, When heating fat or grease, watch it closely. Fat or grease may catch fire if allowed to
become too hot,
,, Use Only Dry Pot holders--Moist or damp pot holders on hot surfaces may result in burns
from steam, Do not let the pot holders touch the hot heating elements. Do not use a towel
or other bulky cloth instead of a pot holder.
, Do Not Heat Unopened Food Containers--Build-up of pressure may cause the container to
burst and result in injury.
IMPORTANTINSTRUCTIONSFORUSINGYOUROVEN
,, Use Care When Opening an Oven Door--Stand to the side of the appliance when opening
the door of a hot oven. Let hot air or steam escape before you remove or replace food in
the oven.
,, Keep Oven Vent Ducts Unobstructed, The wall oven is vented at the upper control panel or
at the center trim depending of the model, Touching the surfaces in this area when the wall
oven is operating may cause severe burns. Also, do not place plastic or heat-sensitive items
near the oven vent. These items could melt or ignite.
• Placement of Oven Racks. Always place oven racks in desired location while oven is cool.
Remove all utensils from the rack before removing rack. If rack must be moved while oven
ishot, use extreme caution. Use pot holders andgrasp the rack with both hands toreposition.
Do not let pot holders contact the hot oven element or interior of the oven.
,, Do not use the broiler pan without its insert. The broiler pan and grid allow dripping fat
to drain and be kept away from the high heat of the broiler,

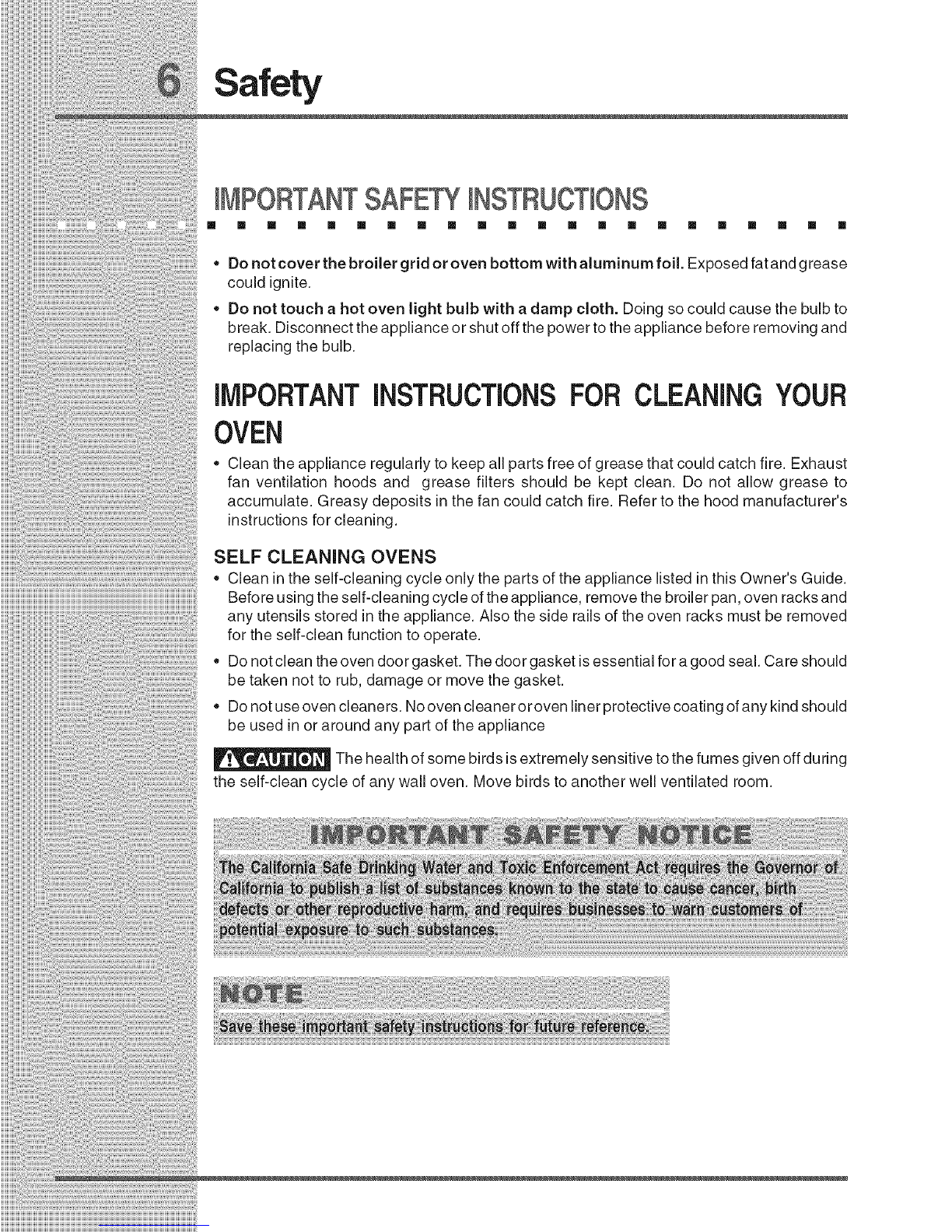

Safety
IMPORTANTSAFE INSTRUCTIONS
Nil [] [] I! [] [] [] [] [] [] I! [] [] I! [] [] [] I! [] [] [] []
• Do not cover the broiler grid or oven bottom with aluminum foil. Exposed fat and grease
could ignite.
• Do not touch a hot oven light bulb with a damp cloth. Doing so could cause the bulb to
break. Disconnect the appliance or shut off the power to the appliance before removing and
replacing the bulb.
IMPORTANTINSTRUCTIONSFORCLEANINGYOUR
OVEN
Clean the appliance regularly to keep all parts free of grease that could catch fire. Exhaust
fan ventilation hoods and grease filters should be kept clean. Do not allow grease to
accumulate. Greasy deposits in the fan could catch fire. Refer to the hood manufacturer's
instructions for cleaning.
SELF CLEANING OVENS
Clean in the self-cleaning cycle only the parts of the appliance listed in this Owner's Guide.
Before using the self-cleaning cycle of the appliance, remove the broiler pan, oven racks and
any utensils stored in the appliance. Also the side rails of the oven racks must be removed
for the self-clean function to operate.
Do not clean the oven door gasket. The door gasket is essential for a good seal. Care should
be taken not to rub, damage or move the gasket.
Do not use oven cleaners. No oven cleaner oroven liner protective coating of any kind should
be used in or around any part of the appliance
The health of some birds is extremely sensitive to the fumes given off during
the self-clean cycle of any wall oven. Move birds to another well ventilated room.

Getting
BEFORESE (NG OVENCONTROLS
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Oven VentLocation
The oven is vented under
upper control panel.
When the oven is on, warm
air is released through the
vent. This venting is
necessary for proper air
circu(ation in the oven and
good baking results.
Oven Vent
InstaUingOvenRackSupports
ALWAYS INSTALL OVEN RACK
SUPPORT BEFORE TURNING ON
THE OVEN (WHEN THE OVEN IS
COOL).
To install oven rack support, insert
the support tabs in the holes (ocated
on the oven inside side as shown
below. To remove the oven rack
support for a self-clean cycle, pull
up the support to disengage the tabs
from the oven. (fthe rack supports
are not removed, the self-clean cycle
won't start. Always remove the left
side support first.
Removingand ReplacingOven
Racks AL WAYS ARRANGE OVEN
RACKS WHEN THE OVEN IS COOL
(PRIOR TO OPERA TING THE OVEN).
Always use oven mitts when using the
oven.
To remove an oven rack, pull the rack
forward. Lift up the rack off the oven
rack slider. To replace an oven rack,
place the rack on the slider and fit the
sliders pin into the pinhole (ocated at
the 2 front corner of the rack.
Installed on sliders
To remove from
sliders
Pull oven rack forward and lift it To place on
up of the oven rack slider, sliders
Rack positions
ArrangingOven Racks ALWAYSARRANGEOVEN
RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERA TING
THE OVEN).
RECOMMENDED RACK POSITIONS FOR
BROILING, BAKING & ROASTING
Food Rack Position
Broiling meats, chicken or fish 4, 5 or 6
Cookies, cakes, pies & muffins
To bake on: 1 rack 3or4
2 racks 2 & 7
3 racks 1,3 & 7
Frozen pies, angel food cake, yeast, bread, 2
casseroles, small cuts of meat or poultry
Turkey, roast or ham 1
Note: Always use caution when removing food.

CONTROLPADFUNCTIONS
m II I II U _ R m m ml !1 II R g I 8 lU m IN In I
Read the instructions carefully before using the oven, For satisfactory use of your
oven, become familiar with the various functions of the oven as described below, Note: Th
graphics on your timer may look like one of those shown, Both are operating the same way
Roast
Convection
Pad- Used to
select the
convection
roasting mode,
Preheat Pad-
Used to select
the preheat
mode.
Lock Pad- Used
to disable all
oven function.
Bake Convection Pad* Bake Pad- Used to Broil Pad- Used
Used to select the enter the normal to select the
convection baking mode. baking mode variable broil
temperature, mode.
/
0Thru 9 number
pads- Used to
enter temperature
and times.
Clean Pad-
to select the self-
cleaning mode.
Oven Light- Used
to turn the oven
light on and off.
Clock Pad- Used Kitchen Imer ON/OFF
to set the time of Pad- Used to set or
day. cancel the minute timer,
The minute timer does
not start or stop cooking.
Note: See illustration above for pad description.
Bake Convection Pad Pad
Roast
Convection
Pad _.\
Broil Pad
/
Preheat Pad
Lock Pad
Clean Pad
Oven Light
Start Time Pad- Used to set
the desired start time for
baking or cleaning. Can be
used with BAKE or CLEAN
cycles to program a delayed
bake or clean cycle,
0 Thru 9 number pads
©O©
®©Q
®0 .
% .............
Clock Pad Kitchen Timer Start Cook
ON/OFF Pad Time Pad Time Pad
Cal
can_
prev_
exce_
and n
Canc_
cookin_
Sta_- b
all oven
Notused
Light.
Used to ent,
iength of the
time,
Cancel pad
/
Start pad

Figure 1
Setting Oven Controls
SE ING THECLOCK
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
The _2_) or (_OJpad is used to set the clock. The clock may be set for 12 or 24 hour time
v V
of day operation. The clock has been preset at the factory for the 12 hour operation. When
the range is first plugged in, or when the power supply to the range has been interrupted,
the timer in the display will flash with "PF" (power failure, See Figure 1). Note: The clock
cannot be set when the oven is on.
When PF appears in the display, press (_)oANo_or @. No sound will be heard, but after 10
seconds a beep will sounds and PF will disappear.
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
To set the clock(examplebelow for 1:30):
t. Press @ or (_. "CLO" will appear in the display (Figure 2).
2. Press Q Q Q pads to set the time of day to 1:30 (Figure 3). "CLO" will
appear in the display. Press (_ or @. "CLO" will disappear and the clock
ST_T
will start (Figure 4).
Changing between 12 or 24 hour time of day display:
t. Press and hold _ or _ for 8 seconds (Figure 3). While holding the pad
v V
down the current time of day will remain and "CLO" will disappear from the
display (Figure 4). CONTINUE holding the pad until a beep is heard.
2. The display will show either "12: Hr" (Figure 5) or "24: Hr" (Fig.6).
3. Press _ or _ to switch between the t 2 and 24 hour time of day display.
V v
The display will show either "12:Hr" (Figure 5) or "24:Hr" (Figure 6).
@or vt_ to accept the change or press @ or v('_ to reject
4. Press the
START
change.
5. Reset the correct time as described in To set the Clock above. Please note
that if the 24 hour time of day mode was chosen, the clock will now display
time from 0:00 through 23:59 hours.

Setting Oven Controls
SETTMNGCONTMNUOUSBAKE OR 12HOURENERGYSAVMNG
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
The _or ('_ and _ or _ pads control the Continuous Bake or12 Hour Energy
o,,o_
Saving features. The oven control has a factory preset built-in 12 Hour Energy Saving
feature that will shut off the oven if the oven control is left on for more than 11 hours and
59 minutes. The oven can be programmed to override this feature for Continuous Baking.
To set the control for Continuous Bake or 12 Hour Energy
Saving
1. Press and hold _ or for 8 seconds (Figure1). "12Hr" or "- -Hr" will appear
in the display and the control will beep once.
2. Press @ or _ to switch between the 12 Hour Energy Saving and
continuous bake features. Note: "12Hr" in the display indicates the control is
set for the 12 Hour Energy Saving mode and "- -Hr" indicates the control is set
for the Continuous Bake feature (Figures 2and a).
3. Press @0,A_,or Q to accept the change (Figure 4; display will return to time of
day) or press (_)oA,o_,or@ to reject the change.
Figure 1
Figure 2
Figure 3
SE ING THEKMTCHENTIMER
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
The _ or pad controls the Timer feature. The Timer serves as an extra timer in the
kitchen that will beep when the set time has run out. It does not start or stop cooking. The
Timer feature can be used during any of the other oven control functions.
To set the Timer (examplefor 5 minutes):
1. Press *"°"°"_,_,or . "0:00" will appear in the display (Figure 5).
2. Press the number pads to set the desired time in the display (example Q).
Press (_),,_,or Q. The time will begin to count down with "5:00" (Figure 6).
Note: If _,,,o,or Q is not pressed the timer will return to the time of day.
3. When the set time has run out, "End" will show in the display (Figure 7). The
clock will sound with 3 beeps every 15 seconds until _ or is pressed.
To cancel the Timer before the set time has run out:
Press _ or . The display will return to the time of day.
Figure 4
Figure 5
Figure 6
Figure 7

Setting Oven Controls
SE ING OVENLOCKOUTFEATURE
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
The (1::1)or((_) pad controls the Oven Lockout feature. The Oven Lockout feature
automatically locks the oven door and prevents the Warmer Drawer from being turned
on. It does not disable the clock, timer or the interior oven lights.
To activate the Oven Lockout feature:
1. Press and hold _ or ('_ for 3 seconds.
2. After 3 seconds a beep will sound, "CONTROLS LOCKED" will appear and "DOOR
LOCKED" will flash on the control panel. Once the oven door islocked the "DOOR
LOCKED" indicator will stop flashing and remain on.
To reactivate Normal Oven Operation:
1. Press and hold _'_ or _ for 3 seconds. A beep will sound, "DOOR LOCKED" will
flash in the display. The "DOOR LOCKED" will continue to flash until the oven door
has completely unlocked. When the oven door is unlocked, "DOOR LOCKED" and
"CONTROLS LOCKED" will disappear from the display.
2. The oven isagain fully operational.
SE_MNGTEMPERATUREDMSPLA¥--FAHRENHEMTORCELSMUS:
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
The or (,0_) and _,_) or _%_ pads control the Fahrenheit or Celsius temperatu re
display modes. The oven control can be programmed to display temperatures in
Fahrenheit or Celsius. The oven has been preset at the factory to display in Fahrenheit.
Figure 1
Figure 2
Figure 3
To changedisplay from Fahrenheitto Celsius or Celsius to
Fahrenheit:
1. To tell ifthe display is set for Fahrenheit or Celsius. Press _Ci,_or ('_ (Figure
1) and hold for 7 seconds; "550 °'' will appear in the display and a beep will
sound. If "F°'' appears, the display is set to show temperatures in Fahrenheit
(Figure 2). If "C°'' appears, the display is set to show temperatures in Celsius
(Figure3).
2. Press _ or _,',) to switch between Fahrenheit or Celsius display modes. The
display will show either "F°'' (Figure 2) or "C°'' (Figure 3).
or _--_ to accept the change or press @ or @ to reject
3. Press the
change.

Oven Contro(s
SE (NG S[LENTCONTROLOPERAT(ON
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
The _ or "-"()-,)and (2) or _("_,,)pads control the Silent Control operation feature. The
v
Silent Control operation feature allows the oven control to be operated without sounds or
beeps whenever necessary, if desired the control can be programmed for silent operation
and later returned to operating with all the normal sounds and beeps.
To change control from normal sound operation to silent control
operation:
1. To tell ifyour range isset for normal or silent operation press and hold _ or
Q for 7 seconds. "0:00" will in the 1
appear display (Figure ).
2. After 7 seconds, the display will show either ":SP" (Figure 2) or ":--" (Figure 3).
Press _ or(_ to switch between normal sound operation and silent
operation mode.
If ":SP" appears (Figure 2), the control will operate with normal sounds and
beeps. If ":- -" appears (Figure 3), the control isin the silent operation mode.
or Q to accept the change or press @ or @ to reject the change.
3. Press
Figure 1
Figure 2
Figure 3
ADJUST(NGOVENTEMPERATURE
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
The temperature in the oven has been pre-set at the factory. When first using the
oven, be sure to follow recipe times and temperatures. (fyou think the oven is too
hot or too cool, the temperature in the oven can be adjusted. Before adjusting, test
a recipe by using a temperature setting that is higher or lower than the
recommended temperature. The baking results should he(p you to decide how much
of an adjustment is needed.
To adjust the oven temperature:
1. Press Q or @ for 8 seconds (Figure 4). After 8 seconds the offset digit will
appear in the display (Figure 5).
2. To increase the temperature use the number pads to enter the desired change.
(Example 30°F) Q Q (Figure 6). The temperature may be increased as
much as 35°F (19°C). To decrease the temperature use the number pads to
enter the desired change. (Example -30°F) Q Q and then Press _ or
_ (Figure 7). The temperature may be decreased as much as 35°F (19°C).
3. Press (_)o,,,,or Q to accept the temperature change and the display will return to
the time of day (Figure 8). Press _)o_o,_or@ to reject the change ifnecessary.
[] [] []

Cooking instructions
m [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
A
The (,_._,)or(fit) pad controls the Preheat feature. The Preheat feature will bring the oven up
to temperature and then indicate when to place the food in the oven. Preheating is not
necessary when roasting or cooking casseroles. The oven can be programmed to preheat at
any temperature between 170°F to 550°F.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
To set the Preheat temperature for 350°F:
1. Arrange the interioroven racks.
2. Press @ or Q. "- - - °" will appear in the display (Figure 1).
3. Press Q, Q, Q. "350°" will appear in the display (Figure 2).
4. Press @ or (_). "PRE" will appear in the display as the oven heats and
reaches 350°F (Figure 3).
Note: After the oven has reached the desired temperature (this example, 350°F) the
control will beep and the "PRE" light will turn off and oven temperature will be
displayed (Figure 4). If the beep was missed, a quick glance at the display with
oven temperature showing inthe oven display is a good way to check that the oven
has already reached the preheat temperature. Once the oven has preheated,
PLACE FOO D IN TH E OVEN.
Press (_)oA,o_or @ when baking iscomplete or to cancel the preheat feature.
To change Preheattemperature while oven is preheating
(example changingfrom 350 to 425°F):
Ifit is necessary to change the preheat temperature while the oven is preheating to
the original temperature:
preheating, press @ or Q. "- - _o,,will appear in the display (Figure 5).
1. While
2. Enter the new preheat temperature. Press Q, Q, Q. "425 °" will appear in
the display (Figure 6).
3. Press @ or ('_. "PRE" will appear in the display as the oven heats and to
425°F (Figure 7). A beep will sound once the oven temperature reaches 425°F
and the display will show "425°" (Figure 8).
4. When baking is completed press _)oA,o_Lor@.

Cooking Iructions
The _ or _(__J_9pad controls normal baking. If preheating is necessary, refer to the
Preheat Feature for instructions. The oven can be programmed to bake at any
temperature from 170° F to 550 ° F (The sample shown below is for 350°F).
To set the Bake Temperatureto 350°F:
1. Arrange interior oven racks and place food in oven.
2. Press _ or @, "- -- °" will appear in the display (Figure 1).
3. Press Q, Q, Q (Figure 2). "350 °'' will appearin the display,
4. Press _ or(_. A beep will sound once the oven temperature reaches 350°F
and the display will show "350 °'' (Figure 3).
Pressing @ or @ will cancel the Bake feature at any time.
To changethe BakeTemperature(example changingfrom 350°to 425°F):
1, After the oven has already been set to bake at 350°F and the oven temperature
needs to be changed to 425°F, press (_ or @ (Figure 4) and "---° "will
show in the display.
2. Press Q, Q, Q (Figure 5). "425°" will appear in the display.
3, Press @ orQ (Figure 6).
Note: If the oven was recently heated from prior cooking and has remaining
heat, the bake element symbol may not show in the display immediately.
Figure
Figure 2
Figure 3
Figure 4
Figure B
Figure 6
AirCirculationintheOvert
For good air circulation in the oven and best baking results, center pans as much as
possible. Allow 5.1 to 10.2cm (2" to 4") around the utensil(s) for proper air circulation and be
sure pans do not touch each other, the door, sides or back of oven. The hot air must circulate
around the pans in the oven for even heat to reach all parts of the oven.
If using multiple pans, stagger as shown.
If using one pan, place in center of oven.

Cooking instructions
Baking Problems
For best cooking results heat the oven when baking cookies, breads, cakes, pies or pastries,
etc... There is no need to preheat the oven for roasting meats or baking casseroles. The
cooking times and temperatures needed to bake a product may vary slightly from your previous
appliance.
Baking Problems and Solutions Chart
BakingProblems Causes Solutions
® e
Cookies and bis-
cuits burn on the
bottom.
: Cakestoodarkon
top or bottom,
Cakes not done in
the center,
Cakes not level.
roodsnotdone
when cooking time
is up.
®
®
Cookies and biscuits put into the
oven before the preheating time is
completed.
Oven rack overcrowded or rack
position too low.
Dark pan absorbs heat too fast.
,, Cakes put into the oven before
preheating time is completed.
,, Rack position too high or low.
,, Oven too hot.
,, Oven too hot.
,, Incorrect pan size.
,, Pan not centered in oven.
, Range not level.
,, Pan too close to oven wall or rack
overcrowded.
,, Pan warped.
,, Oven too cool.
, Oven overcrowded.
,, Oven door opened too frequently.
Allow oven to preheat to the selected temperature before
placing food in oven.
,, Choose pan sizes that will permit 5.1 cm to 10.2 cm (2" to
4") of air space on all sides when placed in the oven.
,, Use a medium-weight aluminum baking sheet.
,, Allow oven to preheat to the selected temperature before
placing food in the oven.
,, Use proper rack position for baking needs.
,, Set oven temperature 25°F/12°C lower than recommended.
,, Set oven temperature 25°F/12°C lower than recommended.
,, Use pan size suggested in recipe.
,, Use proper rack position and place pan so there is 5.1 cm
to 10.2 cm (2" to 4") of space on all sides of pan.
,, Place a marked glass measuring cup filled with water on
the center of the oven rack. If the water level is uneven, re-
fer to the installation instructions for leveling the range.
,, Be sure to allow 5.1 cm to 10.2 cm (2" to 4") of clearance
on all sides of each pan in the oven.
,, Do not use pans that are dented or warped.
,, Set oven temperature 25°F/12°C higher than suggested
and bake for the recommended time.
,, Be sure to remove all pans from the oven except the ones
to be used for baking.
,, Open oven door only after shortest recommended baking
time.

Cooking instructions
CONVECTIONBAKING
Bill I R I J ! I m I I Ill [] [] J [] ! [] [] m [] ml []
The convection oven uses a fan located in the rear wall of the
oven to circulate heated air around the food to be cooked.
The controlled air flow pattern quickly seals the food surface
retaining the natural juices and fiavour. This method of
cooking enables you to obtain the best culinary results when
baking, thawing, dehydrating and roasting foods.
Convection notes:
t. Batch cooking is more convenient with better results.
2. Defrosting isquicker in convection mode when compared
to regular radiant cooking.
3. Remember to use tested recipes with times adjusted for
convection baking/roasting when using the convection
mode. Times may be reduced by as much as 30% when
using the convection feature.
Benefits of Convection Bake:
--Some foods cook up to 30% faster, saving time and
energy.
--Multiple rack baking.
--No special pans or bakeware needed.
Foods _o_ CONVECTION BAKE pad
*Decrease normal cook time by:
Frozen foods, pies,. ................. 15-25 %
pastries and pizza
Refrigerator biscuits ................ 15-30 %
Rolls & Breads ......................... 20-25%
Fresh Pies/Pastries ................. 10-20 %
Begin with the maximum reduction in cook times and
adjust as needed.
*Recommended reduction in cook times based on
brands of food items tested. Cook times may vary with
your specific brand of food item.
Setting Convection Bake
c,_oo @
The _ or pad controls the Convection Bake feature. Use the Convection Bake
feature when cooking speed is desired. The oven can be programmed for Convection
baking at any temperature between 300 ° F (149 ° C) to 550 ° F (288 ° C).
Convection baking uses a fan to circulate the oven's heat evenly and continuously within the
oven. This improved heat distribution allows for fast, even cooking and browning results. It
also gives better baking results when using 2 or 3 racks at the same time. Breads and
pastries brown more evenly. Most foods cooked in a standard oven will cook faster and
more evenlywith Convection Bake.
GeneralConvectionBake Instructions
1. When using Convection Bake, decrease your normal cooking times as shown aside.
Adjust the cook time for desired doneness as needed. Time reductions will vary
depending on the amount and type of food to be cooked. Biscuits should be baked on
pans with no sides or very low sides to allow heated air to cimulate around the food.
Food baked on pans with a dark finish will cook faster.
2. Preheating is not necessary when cooking casseroles with Convection Bake.
3. When using Convection Bake with a single rack, place oven rack in position 3 or 4. If
cooking on multiple racks, place the oven racks in positions 2 and 7 or t, 3 and 7.

Cooking instructions
To set the oven for ConvectionBake and temperature to 350°F:
1. Arrange interioroven racks and place food inoven.
2. Press°_7or(_. "- - -°" will appear in the display (Figure l ).
_22 _
3. Press Q, Q, Q. "350 °" will appear in the display (Figure 2).
4. Press (_ or ('_-"). "PRE" and the fan icon will appear in the display (Figure 3)
STAB
until the oven reaches 350 ° F. A beep will sound once the oven temperature
reaches 350 ° F and the display will show "350°"and the fan icon (Figure 4).
Note: The convection fan will start AS SOON AS the oven is set for Convection
Bake. The oven icon will show a rotating fan within the square. This rotating fan
icon indicates when the Convection Fan isoperating (See rotating fan in Figure 4).
Press _) or (_ to stop Convection Bake or cancel Convection Bake at any time.

Cooki instructions
SETTINGT MEDBAKE OR TBAEBCONVECTIONBAKE
[] m [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
The _ (or (_)or °_°°(o_#,._,l'_and _ (or G)pads control theTimed Bake feature.
The automatic timer of the Timed Bake feature will turn the oven OFF after cooking for the
desired amount of time you selected.
To programthe oven to begin baking immediatelyand to shut off
automatically: (example below to BAKE at 350°F for 30 minutes):
t. Be sure the clock is set for the correct time of day.
2. Arrange interior oven rack(s) and place the food inthe oven.
3. Press (_) or (_, "- - - °" will appear in the display (Figure 1).
4. Press G' Q' Q (Figure 2). "350 °'' will appear in the display. Min.
temperature is 170°F bake and 300°F for convection bake.
5. Press _ or (_ (See Figure 3).
6. Press _ or Q. "0:00" will appear and "350 °" will stay in the display (Figure
4).
7. Enter the desired baking time by Pressing Q, Q. "30:00" will appear in the
display (Figure 5). Note: Baking time can be set for any amount of time
between 1 minute to 11 hours and 59 minutes.
8. Press (_),,_,or G' (Figure 6). Once the Timed Bake feature has started, the
current time of day will appear in the display.
Note: After the Timed Bake feature has activated, press _ or (_) to display the
bake time remaining in the Timed Bake mode. Once Timed Bake has started
baking, a beep will sound when the oven temperature reaches the set temperature.
Press (_)o_,o,_or (_ when baking has finished or at any time to cancel the Timed Bake
feature.
When the timed bake finishes:
1. "End" and the time of day will show in display. The oven will shut off
automatically (Figure 7).
2. The control will beep 3 times. The control will continue to beep 3 times every 30
seconds until (_)o,,o,_or _ is pressed.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Use caution with the TIMED BAKE or DELAYED TiME BAKE features. Use the automatic timer
when cooking cured or frozen meats and most fruits and vegetables. Foods that can easily spoil such as milk,
eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in
the oven for more than t hour before cooking begins, and should be removed promptly when cooking is
completed. Eating spoiled food can result in sickness from food poisoning.

Cooking instructions
SE ING DELAYEDTMMEDBAKEORDELAYEDTIMED
CONVECTmONBAKE
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
The _ (or @)or °_" (or _), @ (or Q)and @ (or Q)pads control the
Delayed Time Bake feature. The automatic timer of the Delayed Time Bake will turn the
oven on and off at the time you select in advance. NOTE: if your clock is set for normal
12 hour display mode the Delayed Time Bake feature can never be set to start more than
12 hours in advance.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
To programthe oven for a delayed BAKE start time and to shut off
automatically (example for baking at 350°F,starting at 5:30 and baking
for 30 minutes):
1. Be sure that the clock is set with the correct time of day.
2. Arrange interior oven rack(s) and place the food in the oven.
3. Press _ or _Q_. "===o,,will appear in the display (Figure 1).
4. Press Q, Q, Q (Figure 2). "350°'' will appear in the display.
5. Press @ or ('_. "350 °'' will stay in the display. (Figure 3).
6. Press _ or b. "0:00" will appear in the display (Figure 4).
7. Enter the desired baking time using the number pads by pressing Q, Q.
"30:00" will appear in the display (Figure 5). Note: Baking time can be set for
any amount of time from 1 minute to 11 hours and 59 minutes.
8 Press _ or _. "350°" will show (Figure 6).
9. Press _ or _. Enter the desired start time using the number pads Q,
Q' C__(Figure 7).
10. Press @ or ('_. When Delayed Time Bake starts, the set oven temperature
will disappear, the current time of day will appear in the display (Figure 8).
11. When the desired start time is reached, "350°" appears in display. Oven starts
to bake at the previously selected temperature.
Press (_)o,No_or @ when baking has completed or at any time to cancel the Delayed
Time Bake feature.
When the set bake time runs out:
1. "End" will appear inthe display and the oven will shut off automatically (Figure 9).
2. The control will beep 3 times. The control will continue to beep 3 times every 30
@or (_ is pressed.seconds until °ANC_
