CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following data
available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
CONTENTS
1. SAFETY INFORMATION............................. 3
1.1 Children and vulnerable people
safety..................................................... 3
1.2 General Safety.................................4
2. SAFETY INSTRUCTIONS........................... 5
2.1 Installation........................................5
2.2 Electrical connection........................6
2.3 Use.................................................. 7
2.4 Care and cleaning............................8
2.5 Pyrolytic cleaning.............................8
2.6 Internal lighting................................ 9
2.7 Service.............................................9
2.8 Disposal........................................... 9
3. INSTALLATION........................................... 9
3.1 Building in........................................ 9
3.2 Securing the oven to the cabinet... 10
4. PRODUCT DESCRIPTION........................ 11

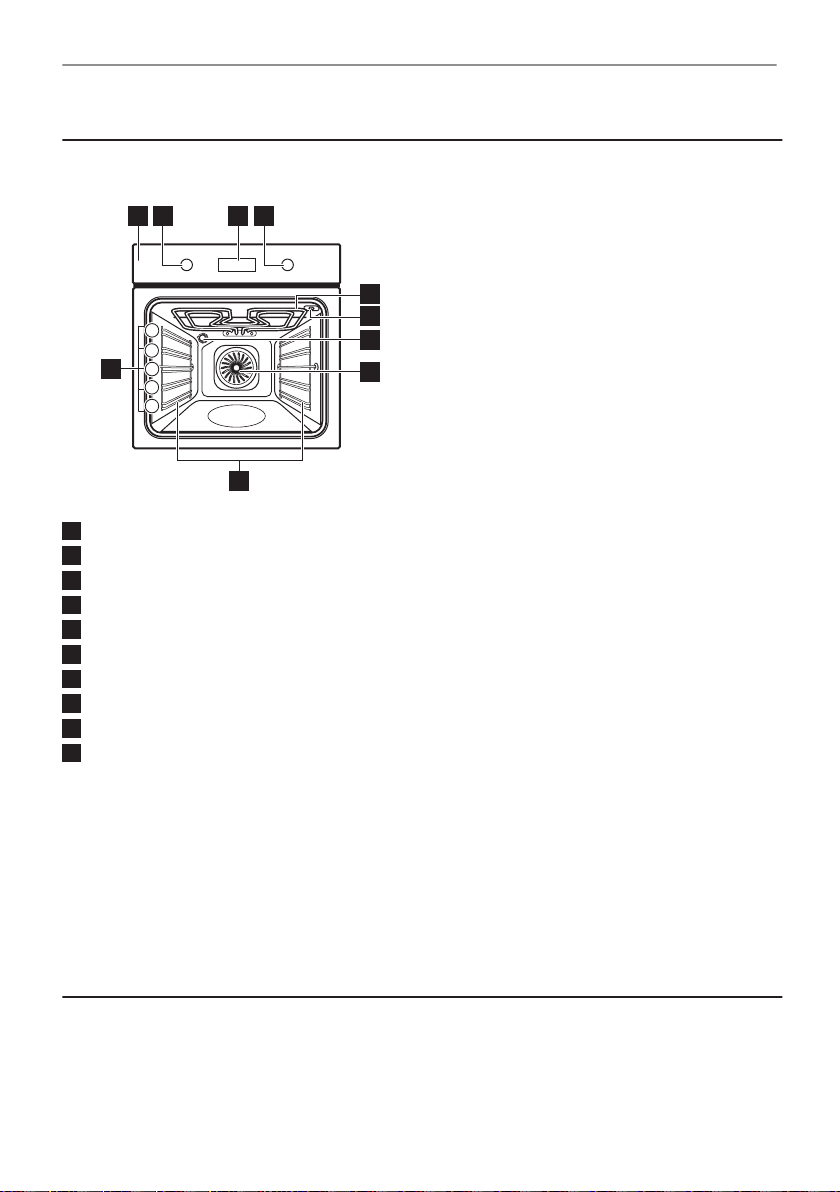

4.1 General overview...........................11
4.2 Accessories................................... 11
5. CONTROL PANEL.....................................11
5.1 Retractable knobs..........................11

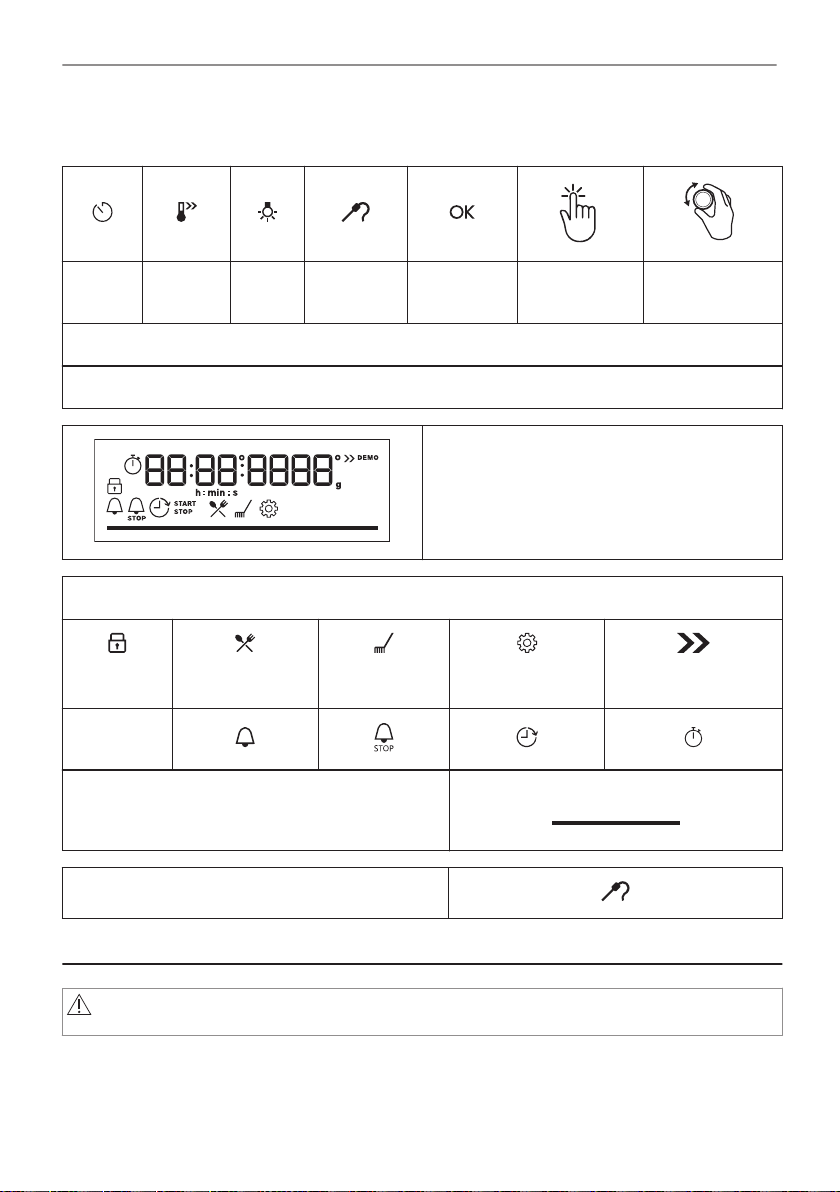

5.2 Control panel sensor fields............ 12
6. BEFORE FIRST USE.................................12
6.1 Initial cleaning................................ 13
6.2 Initial preheating............................ 13
7. DAILY USE................................................ 13
7.1 How to set: Heating functions........ 13

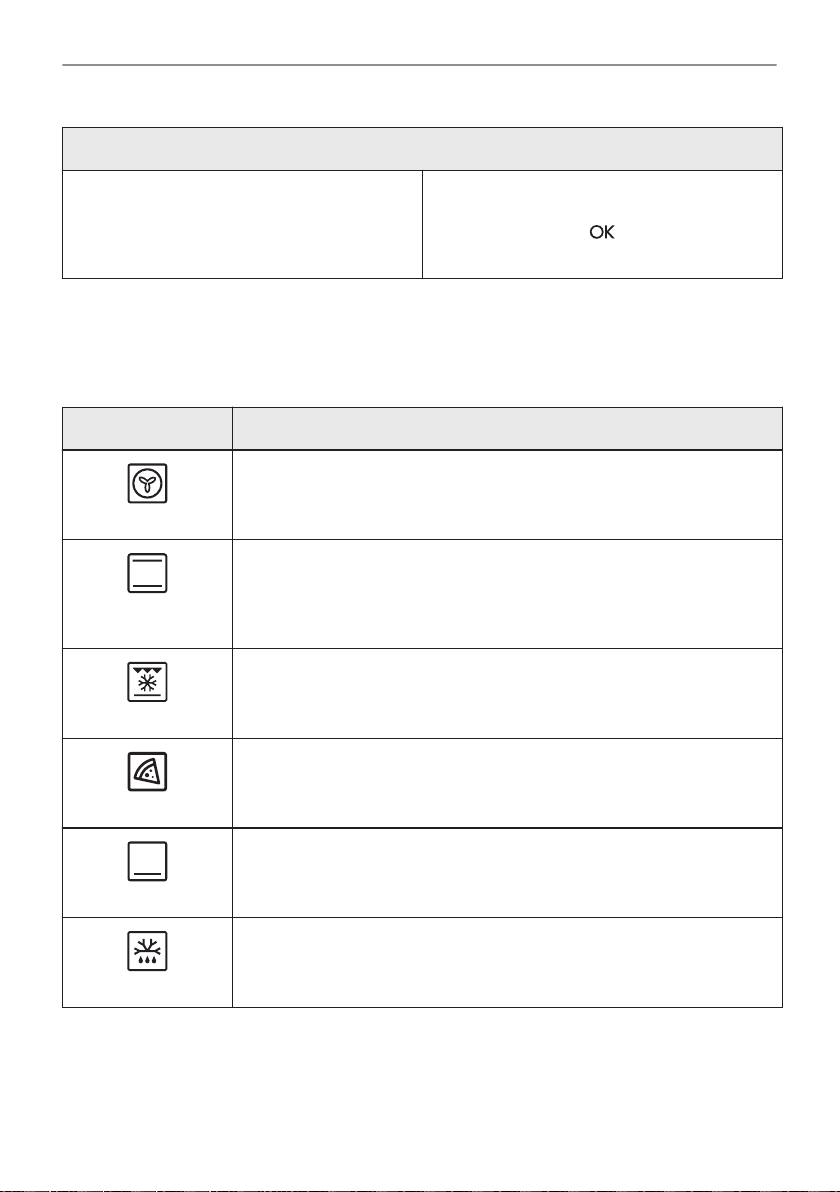

7.2 Heating functions........................... 14
7.3 Notes on: Moist Fan Baking...........15
7.4 How to set: Assisted Cooking........ 15
7.5 Assisted Cooking........................... 16
2/40

8. CLOCK FUNCTIONS.................................21
8.1 Clock functions.............................. 21
8.2 How to set: Clock functions........... 21
9. HOW TO USE: ACCESSORIES................ 23
9.1 Inserting accessories..................... 23
9.2 Food Sensor.................................. 23
10. ADDITIONAL FUNCTIONS..................... 25
10.1 Lock............................................. 25
10.2 Automatic switch-off.....................25
10.3 Cooling fan...................................26
11. HINTS AND TIPS..................................... 26
11.1 Moist Fan Baking......................... 26
11.2 Moist Fan Baking -
recommended accessories..................27
11.3 Cooking tables for test institutes..28
12. CARE AND CLEANING...........................30
12.1 Notes on cleaning........................ 30
12.2 How to remove: Shelf supports ...30
12.3 How to use: Pyrolytic Cleaning.... 31
12.4 Cleaning Reminder...................... 32
12.5 How to remove and install: Door..32
12.6 How to replace: Lamp..................34
13. TROUBLESHOOTING............................. 35
13.1 What to do if.................................35
13.2 Service data.................................36
14. ENERGY EFFICIENCY............................ 36
14.1 Product Information and Product
Information Sheet................................ 36
14.2 Energy saving.............................. 37
15. MENU STRUCTURE................................38
15.1 Menu............................................38
16. ENVIRONMENTAL CONCERNS.............39
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damage that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved. Children of less than 8 years of age and
persons with very extensive and complex disabilities shall
be kept away from the appliance unless continuously
supervised.
3/40
SAFETY INFORMATION

•Children should be supervised to ensure that they do not
play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
•WARNING: The appliance and its accessible parts become
hot during use. Keep children and pets away from the
appliance when in use and when cooling down.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
1.2 General Safety
•This appliance is for cooking purposes only.
•This appliance is designed for single household domestic
use in an indoor environment.
•This appliance may be used in, offices, hotel guest rooms,
bed & breakfast guest rooms, farm guest houses and other
similar accommodation where such use does not exceed
(average) domestic usage levels.
•Only a qualified person must install this appliance and
replace the cable.
•Do not use the appliance before installing it in the built-in
structure.
•Disconnect the appliance from the power supply before
carrying out any maintenance.
•If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
•WARNING: Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
•WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements or the surface of the appliance cavity.
4/40
SAFETY INFORMATION

•Always use oven gloves to remove or insert accessories or
ovenware.
•Use only the food sensor (core temperature sensor)
recommended for this appliance.
•To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls.
Install the shelf supports in the opposite sequence.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
•Before pyrolytic cleaning, remove all accessories and
excessive deposits/spills from the appliance cavity.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• Always take care when moving the appliance as it is heavy. Always use safety gloves and
enclosed footwear.
• Do not pull the appliance by the handle.
• Install the appliance in a safe and suitable place that meets installation requirements.
• Keep the minimum distance from other appliances and units.
• Before mounting the appliance, check if the appliance door opens without restraint.
• The appliance is equipped with an electric cooling system. It must be operated with the
electric power supply.
Cabinet minimum height (Cabinet under the work‐
top minimum height)
590 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of the appliance 594 mm
5/40
SAFETY INSTRUCTIONS
