Electrolux 790.75403501 Manual

79075403.eps C75403501.eps BR75403500.eps B79075403501.eps T75403500.eps
D75403500.eps 318045813.eps
REPAIR
PARTS
LIST
790.75403501
For Parts or Service:
Call
1-800-4-MY-HOME®
(1-800-469-4663)
Or Visit
www.sears.com
"
4"
B AKE
S LOW
C OOK
B ROIL
W ARM &
H OLD
O VEN
L OCKOUT
S TOP
C LEAR
O N/ O FF
O VEN
L IGHT
C LOCK
O VEN C OOK
T IME
F LEX
C LEAN
O
N/ O FF
K ITCHEN
T IMER
D ELAY
S TART
A DD1
M INUTE
R ECIPE
R ECALL
O VEN
P REHEAT
D OOR L OCKED
36-INCH FREE-STANDING GAS RANGE
In all orders or correspondence, avoid delays and misunderstandings
by always giving the complete model number shown on the nameplate.
The nameplate is located on the outside of the drawer frame.
All repair parts listed are available for immediate purchase or special
order when you visit your nearest Sears Parts & Repair Center, or the
Service Department at most Sears stores. To order parts by phone, call
the toll-free number listed to the left or visit sears.com.
When requesting service or ordering parts, always provide the following
information:
• Product Type • Part Number
• Model Number • Part Description
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A
Publication number 5995469490

790.75403501
07/06 2
BACKGUARD
CAUTION: Use the Kenmore part number to order part, not the illustration number.

790.75403501
# Functional Parts 3 07/06
* Non-Illustrated Parts
BACKGUARD
CAUTION: Use the Kenmore part number to order part, not the illustration number.
POS. NO PART NO. DESCRIPTION
1 318316311 Cover, rear, upper
9 318339100 Bracket, mounting, service cord
19 318343900 Control Panel Assembly, stainless, w/touch pad
20 # 316418547 Clock/Timer, electronic, ES345T
23 318316200 Bracket, timer
99 5303304544 Spacer, end cap mtg.
* 318224714 Wiring Harness, backguard
* 318224715 Wiring Harness, backguard
* 5995469490 Repair Parts List
* 318200759 Use & Care Guide
* 318127025 Service Data Sheet
* 318045813 Wiring Diagram
* 318201759 Instructions, installation
* 5303131801 Screw, 10 x 3/8
* 5303311333 Screw, 8-32 x 3/8

790.75403501
07/06 4
BURNER
CAUTION: Use the Kenmore part number to order part, not the illustration number.

790.75403501
# Functional Parts 5 07/06
* Non-Illustrated Parts
BURNER
CAUTION: Use the Kenmore part number to order part, not the illustration number.
POS. NO PART NO. DESCRIPTION
1 # 318315700 Manifold Pipe
2 # 318234021 Valve, top burner, 17K
2A # 318234025 Valve, top burner, 5K
2B # 318234024 Valve, top burner, 9.5K
2C # 318234022 Valve, top burner, 14K
2D # 318234023 Valve, top burner, 12K
3 # 318232613 Wiring Harness, w/igntr switch
8 318079001 Module, spark
* 318199745 Wiring Harness, spark module
10 # 316223300 Burner, sealed, 16/17K
10A# 316206400 Burner, sealed, 5K
10B# 316212400 Burner, sealed, 9.5K
10C# 316223400 Burner, sealed, 14K
10D# 316212300 Burner, sealed, 12K
11 # 318221356 Ignitor/orifice assy., top burner, right front, 17.2K, w/holder, tube
11A# 318221351 Ignitor/orifice assy., top burner, right rear, 5K, w/holder, tube
11B# 318221352 Ignitor/orifice assy., top burner, left rear, 9.5K, w/holder, tube
11C# 318221354 Ignitor/orifice assy., top burner, left front, 14K, w/holder, tube
11D# 318221353 Ignitor/orifice assy., top burner, center, 12K, w/holder, tube
13 318054511 Tube, connection, manifold
14 # 316091706 Regulator, pressure
15 318262800 Bracket, regulator
16 318054512 Tube, regulator, to safety
17 # 316031400 Valve, safety
18 # 5303311544 Burner, oven
19 318177720 Ignitor, oven burner
20 5308011508 Baffle, oven burner
21 3201885 Nut, Keps, 10-24
22 318249301 Tube
23 # 5303311548 Burner, oven broil
24 # 5303311547 Elbow, mixer
26 318177730 Ignitor, broil burner
37 316240600 Screw, assy mtg, ignitor/orifice
44 316237909 Orifice, top burner, 17.2K
44A 316237903 Orifice, top burner, 5K
44B 316237902 Orifice, top burner, 9.5K
44C 316237900 Orifice, top burner, 14K
44D 316237901 Orifice, top burner, 12K
57 318340500 Bracket, spark module
69 3131871 Shield, oven ignitor
72 316215600 Screw, valve mtg., 1/4 - 20
77 318192606 Bracket, burner mtg, (4)
* 318186912 LP Conversion Kit
* 5303324193 Bushing, snap, nylon
* 5303131801 Screw, 10 x 3/8
* 5303300195 Screw, 10-32 x 0.375, terminal block, (2)

790.75403501
07/06 6
BODY
CAUTION: Use the Kenmore part number to order part, not the illustration number.

790.75403501
# Functional Parts 7 07/06
* Non-Illustrated Parts
BODY
CAUTION: Use the Kenmore part number to order part, not the illustration number.
POS. NO PART NO. DESCRIPTION
1 318076305 Back, main
3 318317903 Panel-bodyside, black
5 318175503 Screw, leveling
5* 08013303 Tee nut, snap-in, levelling screw
6 318315800 Rack, oven, (2)
7 318348800 Hinge Assy, RH
7A 318348801 Hinge Assy, LH
* 3051070 Screw, hex washer head, 10-24 x 0.438, special
8 318135500 Panel, oven bottom, insert
9 5303317977 Pan, broiler
10 5303317976 Insert, broiler pan
12 # 318089916 Switch, light
* 318231824 Harness, wiring, door switch
14 318224000 Receptacle, oven light
15 5303013071 Bulb/Lamp, light
16 08011086 Lens, oven light, glass
17 5303205904 Clip, lamp cover, retainer
36 318316100 Box, flue assy.
37 # 316217002 Probe, oven temp
39 318144008 Cord, service
40 318133301 Baffle, broil burner
42 318168700 Baffle, oven burner
54 5303271606 Housing, oven light
56 318315200 Trim, vertical, stainless, front, (2)
58A 318285080 Insulation, top & sides, oven wrapper
58B 318285081 Insulation, top & back, oven wrapper
58C 318285097 Insulation, flue
74 3051063 Grommet, bodyside
76 318320801 Frame, oven, front
77 318166702 Rail, base
83 318134400 Liner, oven, RH
83A 318134401 Liner, oven, LH
84 318134700 Frame, oven bottom
85 318088400 Spring, oven door, (2)
85* 5303207651 Spring, oven door, (1)
86 318135300 Liner, oven, back
88 318118906 Rod, latch
89 318095951 Motor, latch assy, w/brkt & switch
89* 3201861 Screw, 6 x 0.375, (4)
89* 318120711 Switch
98 318332800 Channel, latch rod
108 318073002 Blower, fan
120 3051096 Support, oven rear
128 5303311163 Bushing
* 5303311528 Screw, oval hd sq dr, 6-20AB x 0.625, black
129 5303311164 Spring
140 5304405240 Anti-tip accessories
147 318168401 Support, safety valve
147A 08068039 Support, control valve
149 3131046 Channel, wiring
154 318076600 Pan, oven burner
* 3201885 Nut, Keps, 10-24
155 318160601 Shield, door lock, btm
189 318322800 Angle, rear plenum, (2)
* 5303211311 Screw, 8 x 0.500
192 316117100 Grill, searing
209 5303286692 Support, rail
219# 318003606 Thermostat, safety, .945" mtg., 140/170
230 318134511 Liner, oven
241 318121201 Retainer, btm insullation
241* 3201899 Washer, flat
* 318224706 Wiring Harness, chassis
* 318014110 Spacer, (6)
* 5303131801 Screw, 10 x 3/8

790.75403501
07/06 8
TOP/DRAWER/SMALL DOOR
CAUTION: Use the Kenmore part number to order part, not the illustration number.

790.75403501
# Functional Parts 9 07/06
* Non-Illustrated Parts
TOP/DRAWER/SMALL DOOR
CAUTION: Use the Kenmore part number to order part, not the illustration number.
POS. NO PART NO. DESCRIPTION
1 318157611 Drawer, storage, black
2 318336500 Panel, insulation, upper
3 318336100 Divider, vent box, side
3A 318336200 Divider, vent box, center
4 318315100 Panel, drawer, stainless, outer
7 318332200 Roller, nylon
11 318316000 Bracket, Drawer Panel, (2)
* 5303300265 Screw, 8-18 X 1/2, (2)
13 5303051055 Channel, drawer, RH
13A 5303051056 Channel, drawer, LH
16 318185210 Main Top Assy, glass, black
20 318221641 Grate, black, (2)
20A 318221758 Grate, black, center
21 316264803 Skirt, 16/17K burner, black
21A 316241904 Skirt, 5K burner, black
21B 316241804 Skirt, 9.5K burner, black, (2)
21C 316264903 Skirt, 14K burner, black
21D 316241704 Skirt, 12K burner, black
22 316271904 Cap, 16/17K burner, black
22A 316206604 Cap, 5K burner, black
22B 316213505 Cap, 9.5K burner, black, (2)
22C 316219905 Cap, 14K burner, black
22D 316213605 Cap, 12K burner, black
31 316242004 Seal, 16/17K burner
31A 316242003 Seal, 5K burner
31B 316242002 Seal, 9.5K burner
31C 316242000 Seal, 14K burner
31D 316242001 Seal, 12K burner
33 318282310 Knob, control, (5)
34 318251610 Griddle
35 318285615 Skirt, (5)
39 318039801 Handle, door, stainless steel, oven
46 318336300 Deflector, ventilation
50 318315900 Deflector, flue
51 318315300 Gasket, flue deflector
52 5304453933 Pushnut, flue deflector, (2)
60 5304400794 Screw, handle mtg, 10-32 x 3/4
69 5303308450 Screw, 8 x 0.375
124 318336400 Box, vent
* 316112100 Cleaner, cooktop
* 316119700 Cleaner, grate
* 5303131801 Screw, 10 x 3/8
* 5303311174 Screw, 10-24 x 3/8

790.75403501
07/06 10
OVEN DOOR
CAUTION: Use the Kenmore part number to order part, not the illustration number.

790.75403501
# Functional Parts 11 07/06
* Non-Illustrated Parts
OVEN DOOR
CAUTION: Use the Kenmore part number to order part, not the illustration number.
POS. NO PART NO. DESCRIPTION
6 318319601 Shield, insullation, door
* 3051050 Screw, shoulder
7 318285082 Insulation, oven door
7A 318294908 Insullation, door
8 5303271567 Glass, oven door, inner
9 318157211 Panel, door, inner
10 5304400794 Screw, handle mtg, 10-32 x 3/4
11 318065102 Latch, door
* 5304415832 Screw, 8-18 x 0.406
12 318053140 Seal, oven door
13 318344000 Door Assmebly, stainless, w/glass
15 318122100 Bracket, glass mtg
16 318041610 Glass, oven door, heat barrier
29 318147412 Bumper, base
32 318057202 Panel, heat deflector, door handle
33 318294910 Insullation, deflector, door
39 318039801 Handle, door, stainless steel, oven
57 318172902 Stiffener, glass
* 316221000 Label, anti-tip
* 316136900 Cleaner, stainless steel
* 5303131801 Screw, 10 x 3/8

790.75403501
07/06 12

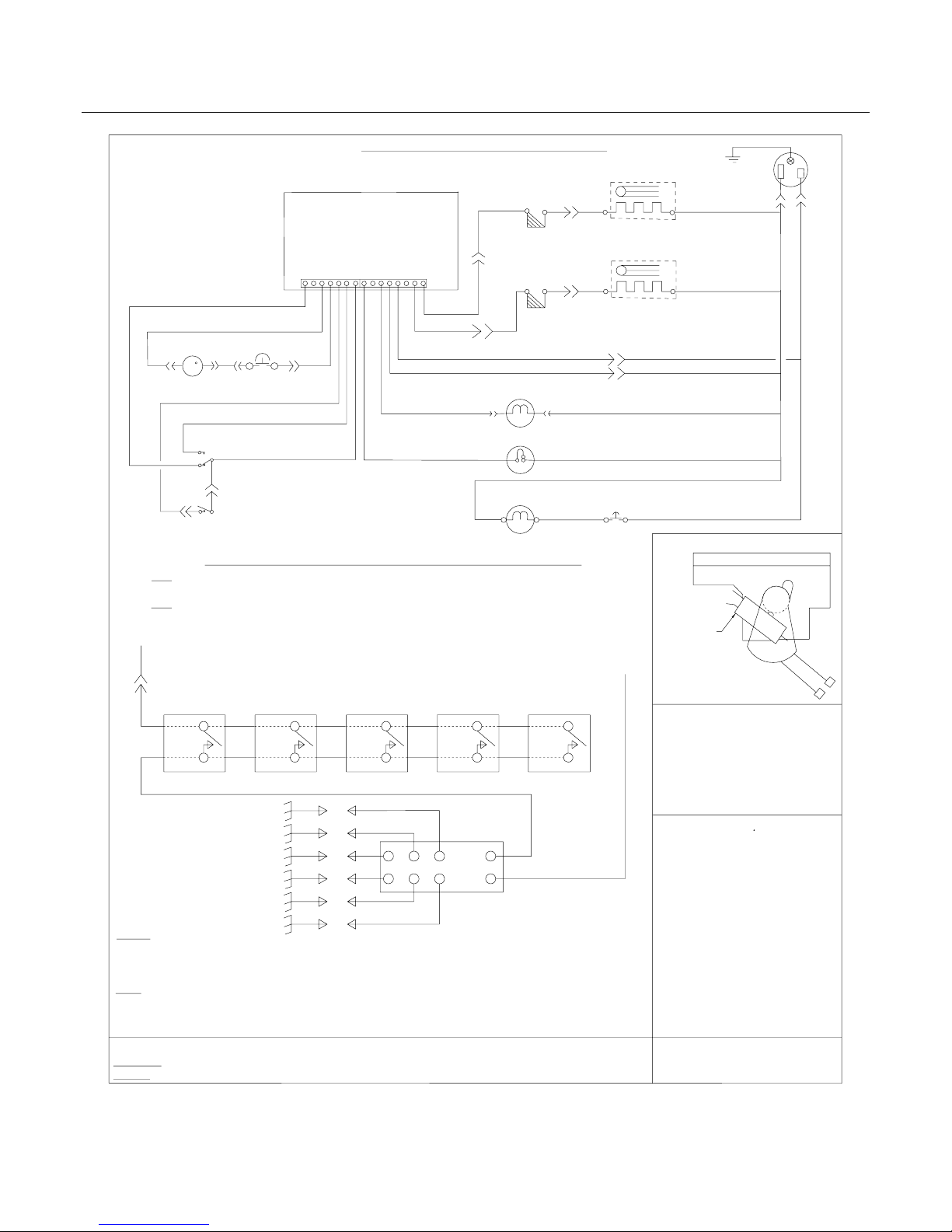

WIRING DIAGRAM
COLOR CODE/CODIGOS DE COLOR
G.-GREEN/VERDE
W.-WHITE/BLANCO
R.-RED/ROYO
O.-ORANGE/NARANJA
Y.-YELLOW/AMARILLO
BR.-BROWN/MORENO
BL.-BLUE/AZUL
BK.-BLACK/NEGRO
WIRE GAUGE TEMP.C CSA UL
ALAMBRE MEDIDA
1 18 125 CL1251 3173
2 16 125 CL1251 3173
3 14 125 CL1251 3173
4 12 125 CL1251 3173
5 18 150 EXL-150 3321
6 16 150 EXL-150 3321
7 14 150 EXL-150 3321
8 12 150 EXL-150 3321
9 10 150 EXL-150 3321
10 18 200 SEW-1 3122
11 16 200 SEW-1 3122
12 12 250 3252
13 16 250 3252
14 20 150 EXL-150 3321
15 8 150 EXL-150 3321
16 6 60
17 10 60
18 10 200 SEW-1 3122
19 20 125 SEW-1 3173
20 20 200 SEW-1 3122
21 22 125 CL1251 3266
22 20 125 CL1251 3266
318045813 REV:A
CAUTION: DISCONNECT POWER BEFORE SERVICING UNIT.
AVISO:DESCONECTE LA ENERGIA ANTES DE REALIZAR EL MANTENIMIENTO DEL ELECTRODOMESTICO.
BROIL VALVE
VALVULA DE ASAR
BAKE VALVE
VALVULA DE HORNEAR
W-1
Y-1
R-1
BK-1
OVEN LAMP
LUZ DE HORNO
THERMAL CIRCUIT BREAKER
ROMPEDOR DE CIRCUITO TERMICO
OVEN CIRCUIT // CIRCUITO DE HORNO
W-1
N
FAN MOTOR
MOTOR DE VENTILADOR
1
ELECTRONIC OVEN CONTROL
CONTROL DE HORNO ELECTRONICO
ES 345
15 P5
t
MOTOR LATCH
MOTOR DE CERROJO
W-1BL-1
BK-22
SW.A
MDL SW.
C
NO
NC
BR-22
TEMPERATURE PROBE
SONDA DE TEMPERATURA
L
W-1
R-1 R-1
BK-1
R-1
DOOR SWITCH
INTERROPTOR DE
LUZ DE PUERTA
C
BK-22
V-22
W-1 R-1
BROIL IGNITER
ENCENDIDO DE ASAR
BAKE IGNITER
ENCENDIDO DE HORNEAR
IGNITER SWITCH
INTERRUPTOR DE
ENCENDIDO
N
L
TOP BURNER IGNITER
QUEMADOR E ENCENDIDO SUPERIOR
N
L
V-22
V-22
O-22
BK-22
Y-1
BL-1
R-14
R-14R-14
R-14
R-14
R-14
R-14
R-14
R-14
R-1
W-18
W-18
W-18
W-18
W-18
W-18
W-1
IGNITER MODULE BOARD
CUARDO DE MODULO DE ENCENDIDO
CAUTION:
LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING
CONTROLS.
WIRING ERROR CAN CAUSE IMPROPER AND DANGEROUS OPERATION.
VERIFY PROPER OPERATION AFTER SERVICING.
AVISO:
ETIQUETE TODOS LOS ALAMBRES ANTES DE DESCONECTAR PAR REALIZAR
ET MANTENIMIENTO DE LOS CONTROLES.ERROR DE ALAMBRAJE PUEDE
CAUSAR UN FUNCIONAMIENTO INCORRECTO Y PELIGROSO.VERIQUE SI
EL FUNCIONAMIENTO ESTA CORRECTO DESPUES DEL MANTENIMIENTO.
NOTE:
SERVICE:IF REPLACEMENT OF TERMINALS BECOMES NECESSARY,COMPARABLE WIRE TYPE AND
GAGE AND COMPARABLE TERMINALS MUST BE USED.
NOTA:
EN CASO QUE SEA NECESARIO DE REEMPLAZAR LOS BORNES,ES NECESARIO DE UTILIZAR EL
MISMO TIPO DE ALAMBRE Y DE MEDIDOR Y EL MISMO TIPO DE BORNES.
COOKTOP CIRCUIT // CIRCUITO DE PLANCHIA DE COCINAR
W-1
NO
NC
C
SW.A
SW.A
LATCH MOTOR
MOTOR DE CERROJO
R-14
IGNITER SWITCH
INTERRUPTOR DE
ENCENDIDO
IGNITER SWITCH
INTERRUPTOR DE
ENCENDIDO
IGNITER SWITCH
INTERRUPTOR DE
ENCENDIDO
IGNITER SWITCH
INTERRUPTOR DE
ENCENDIDO
FAN THERMOSTAT
TERMOSTATO DE VENTILADOR

® Registered Trademark /
TM
Trademark /
SM
Service Mark of Sears Brands, LLC
® Marca Registrada /
TM
MarcadeFábrica/
SM
MarcadeServiciodeSearsBrands,LLC
MC
Marque de commerce /
MD
Marque déposée de Sears Brands, LLC © Sears Brands, LLC
Get it fixed, at your home or ours!
Your Home
For repair – in your home –of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME
®(1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
1-800-488-1222
Call anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparación
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR
®
(1-888-784-6427)
Au Canada pour service en français:
1-800-LE-FOYERMC
(1-800-533-6937)
www.sears.ca
