Electrolux E30GF74GPS - 30" Pro-Style Gas Range User manual

318201761 E30GF74GPS E36GF75GPS E36GF76GPS

2FindingInformation
READ AND SAVE THESE INSTRUCTIONS
Read all instructions before installing the range.
For your safety, please read and observe all safety instructions. This
guide will help you anticipate all installations connections.
NONO
NONO
NOTETE
TETE
TE
Installer: Leave instructions with owner. Owner: Read your range Use & Care guide. It
contains important safety information for operating this appliance. It also has many
suggestions for getting the best results from your appliance.
QUESTIONS
For toll-free telephone support in the U.S. and Canada:
1-877- 4ELECTROLUX (1-877-435-3287)
For online support and Internet product information:
www.electroluxusa.com
©2007 Electrolux Home Products, Inc.
Post Office Box 212378, Augusta, Georgia 30917, US
All rights reserved. Printed in the USA

3
FindingInformation
TABLE OF CONTENTS
Please Read And Save This Guide .................... 2
Questions .......................................................... 2
Table Of Contents ............................................. 3
Safety ..................................................................... 4
Important Safety Instructions ............................... 4
Definitions ........................................................... 4
Safety Precautions ........................................... 5
Preparing for Installation ................................... 7
Verifying Package Contents ................................ 7
Gas/Electric Requirement Table............................... 7
Electrical Power Supply Requirements .................. 8
Gas/Electric Connection Rough-In ..................... 9
Cabinet/Countertop Preparation .......................... 10
General Dimensions ........................................ 11
Wood/Composite Overlay Installation...................... 13
Installing Anti-Tip Bracket ...................................... 14
Installing the 36” Range Optional Backguard......... 15
Removing Oven Door.......................................... 16
Re-Installing Oven Door.................................. 16
Grounding..................................................... 17
Connect Range To Gas Supply.........................17
Installing Range...............................................18
Verifying the Operation ...................................... 19
To Insure Proper and Safe Operation..................... 20
Converting from Natural Gas To LP Gas................. 21

4Safety
IMPORTANT SAFETY INSTRUCTIONS

5
Safety

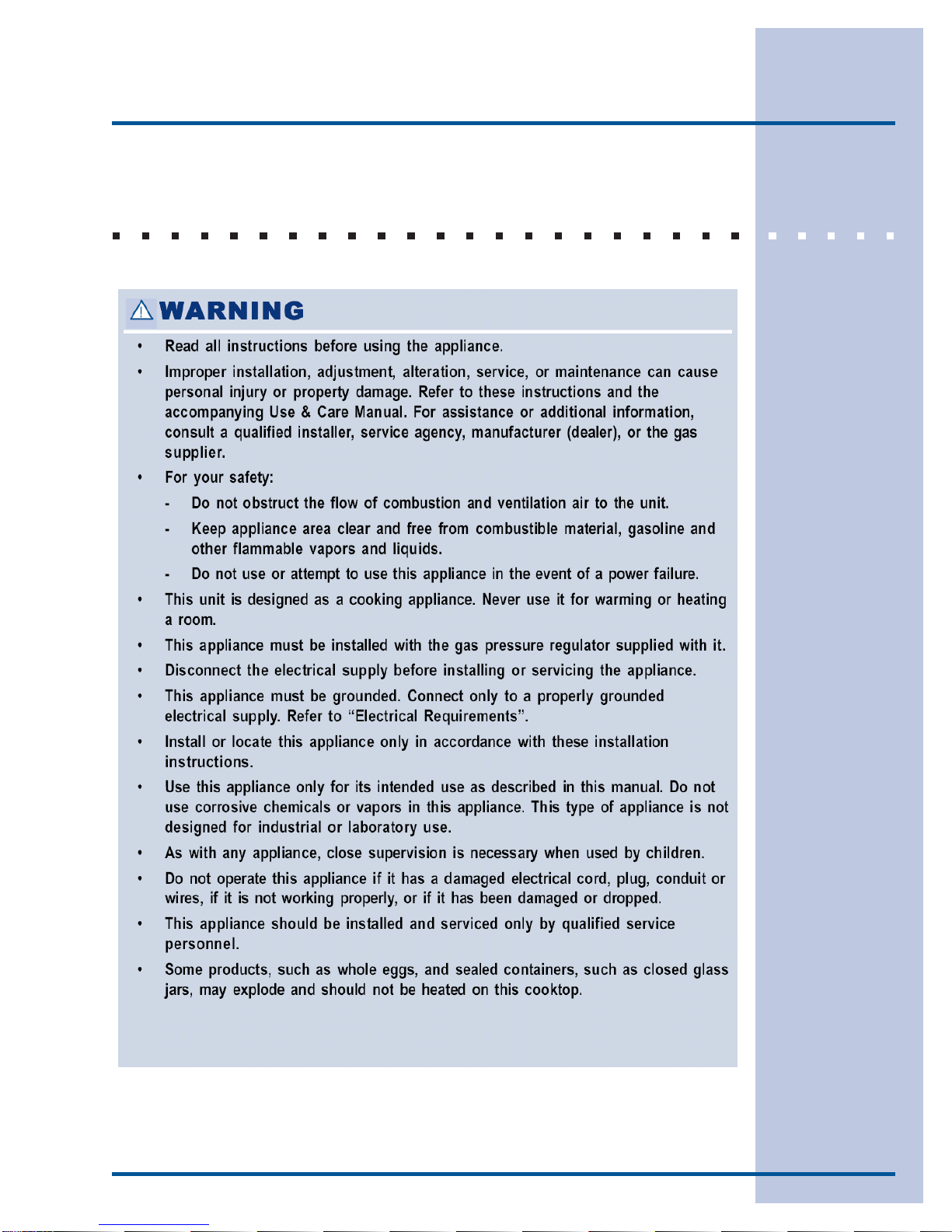

SAFETY PRECAUTIONS

6Safety
WARNINGWARNING
WARNINGWARNING
WARNING
Never use this appliance as a space heater to heat or warm a room. Doing so may result in carbon
monoxide poisoning and overheating of the oven.

7
NONO
NONO
NOTETE
TETE
TE
This range is shipped from the factory pre-set for use with natural gas. For LP conversion see the
accompanying LP Conversion Kit. The electrical information in the table is also located on the
serial number label on the range.
VERIFY PACKAGE CONTENTS
GAS AND ELECTRIC REQUIREMENT TABLE
• Literature Pack • Griddle (some models)
• Anti-Tip Bracket • Simmer Plate
• Burner Grate Pack • Broiler Pan/Insert
• Burner Rings • Stainless Steel Cleaner
• LP Conversion Kit • Wok Ring
• Burner Caps • Oven Racks
PreparingforInstallation
Model No.
E36GF75GPS
E36GF76GPS
Electrical
Circuit Total
Connected Gas Type Manifold Pressure Minimum Gas
Supply
E30GF74GPS 120 V,
60Hz,
8A
Natural
Natural
Natural
5"
5"
5"
6"
6"
6"
120 V,
60Hz,
120 V,
60Hz,
5A
5A
Liquid Propane 10" 11"
Liquid Propane 10" 11"
Liquid Propane 10" 11"
Water Column Inches Water Column Inches

8PreparingforInstallation
ELECTRICAL POWER SUPPLY REQUIREMENTS
It is the owner’s responsibility to ensure that the electrical connection
of this appliance is performed by a qualified electrician. The electrical
installation, including minimum supply wire size and grounding, must be
in accordance with the National Electric Code ANSI/NFPA 70-1993*
(or latest revision) and local codes and ordinances. In Canada,
electrical grounding must be in accordance with the current CSA C22.1
Canadian Electrical Code Part 1 and/or local codes.
*A copy of the standard must be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, Massachusetts 02269-9101
The correct voltage, frequency, and amperage must be supplied to the
appliance from a separate, grounded, circuit that is protected by a
properly sized circuit breaker or time delay fuse.
WARNINGWARNING
WARNINGWARNING
WARNING
If the gas or electric service provided does not meet the product specifications, do not
proceed with the installation. Call the selling dealer, the gas supplier, or a licensed
electrician.
NONO
NONO
NOTESTES
TESTES
TES
The power supply must be properly grounded. Improper grounding will result in
continuous sparking of the electrodes, even after flame ignition.
If there is any doubt as to whether the power supply is properly polarized or grounded,
have it checked by a qualified electrician.
Use 120V, 60Hz, and properly grounded branch circuit protected by a 15-amp or 20-amp
circuit breaker or time delay fuse.

9
PreparingforInstallation
GAS AND ELECTRICAL ROUGH-IN
Locations
A manual shut valve must be installed in the gas piping, external to the
appliance, for the purpose of turning on or shutting off gas to the
appliance. Place the location of the range and the gas supply to allow
access to the valve when the unit is installed. Access to the remote
circuit breaker panel/fuse box, with the range in place, must also be
allowed for in the installation. Any openings in the wall behind the
appliance and in the floor under the appliance must be sealed. Both the
gas supply piping and shut-off valve, and the electrical junction box/
receptacle must be located so they do not interfere with the range when
it is installed. In addition, the junction box must be located so the range
can be removed for service when the conduit supplied with the unit is
attached to the junction box. Do not lengthen the conduit or wiring
provided with the range.
NONO
NONO
NOTESTES
TESTES
TES

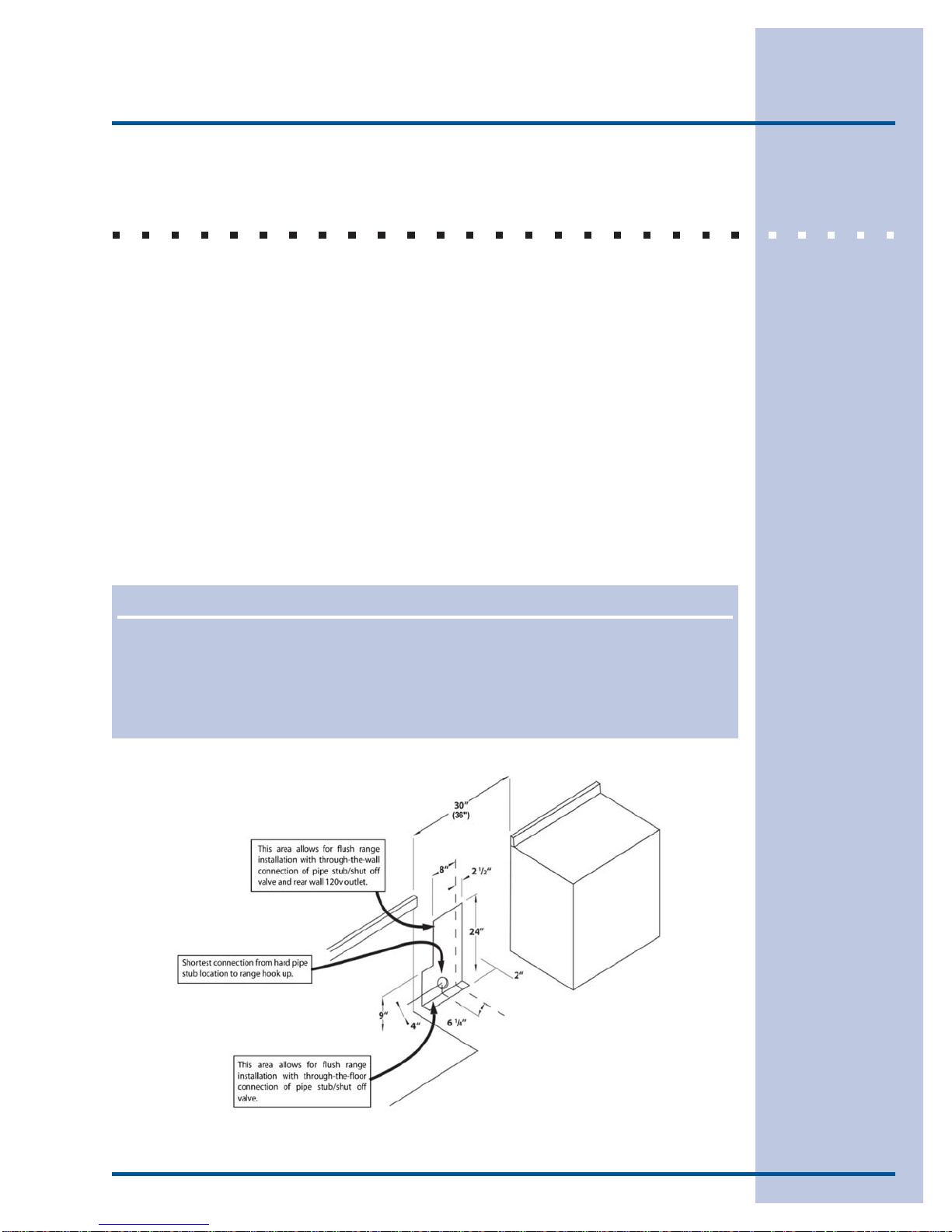

The areas shown in the illustrations, denote the location of the gas stub and the
electrical junction box/receptacle. These are suggested locations. For replacement
purposes, the location of the existing utilities may be utilized provided that they do not
interfere with the sides or rear of the range. If installing the gas valve behind the range,
verify that local building codes will permit this.
Center Line
Figure 1

10 PreparingforInstallation
CABINET AND COUNTERTOP PREPARATION
NONO
NONO
NOTESTES
TESTES
TES
• If cabinet storage space is to be provided directly above the range, the risk of
personal injury may be reduced by installing a ventilating hood that projects
horizontally a minimum of 5 inches beyond the face of the cabinets.
• The range may be installed flush to the rear wall. We recommend installing a
noncombustible material on the rear wall above the range and up to the vent
hood. It is not necessary to install noncombustible materials behind the range
below the countertop height.
• The minimum distance from the sides of the range above the countertop to
combustible side walls must be at least 10 inches..
• All models are delivered with a 3.5” backguard from the factory. A 9” backguard
is available on the E36GF75GPS AND E36GF76GPS as options.
• Utilities may be located: In the lower left corner of the adjacent right cabinet.
(Refer to Figure 2)
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
• Contact your local building department to verify compliance with local code
interpretation.
Check your local building codes for the proper method of installation. In the
absence of local codes, this appliance should be installed in accordance with the
NationalFuel Gas CodeANSIZ223.1/NFPA54.In Canada,installationmust
conform to current Natural Gas Installation Code, CAN1-1.1-M and the local codes
where applicable. This range has been design-certified according toANSI Z21.1b,
latest edition. Be certain that the appliance being installed is correct for the gas
service being provided. Refer to the rating label located on the kick panel and/or the
table on page 7 for gas supply requirements.
All dimensions shown are based on standardAmerican cabinets, 36 inches
(914mm) high at the finished countertop by 24 inches (610mm) deep, with a 25
inch (635mm) overall countertop depth. When installing the range into nonstandard
cabinets, minimum clearances shown in the diagrams on page 11 must be
maintained.
Carefully check the location where the range is to be installed. For best
performance, the range should be placed away from drafts that may be caused by
doors, windows and HVAC outlets.

11
Preparingforinstallation
GENERAL DIMENSIONS
Plan the installation so that the electrical connection, gas shut-off valve, and pressure
regulator are accessible from the front of the cabinet.
Model
E30GF74Series
E36GF75Series
E36GF76Series
“A”
30”(762mm)
MinimumRecommended
36”(914mm)
MinimumRecommended
36”(914mm)
MinimumRecommended
Cutout Dimensions
“B”
301/16”(764 mm)
361/16”(916 mm)
361/16”(916 mm)
E30GF74GPS, E36GF75GPS,
E36GF76GPS
Figure 2
13"
(330 mm)
Max
Ventilation
Hood
Vertical non-
combustible
surface
30" (762 mm) Min
18" (457 mm)
Min
25"
(635 mm)
Top of
Finished
Counter
10" (254 mm) Min.
to combustible sides walls
above the range (both sides)
Recommended utility location

12 PreparingforInstallation
GENERAL DIMENSIONS

13
PreparingforInstallation
WOOD/COMPOSITE OVERLAY INSTALLATION
The bottom of an overhead hood should be 30” minimum to 36” above the
countertop. This would typically result in the bottom of the hood being 66” to 72”
above the floor. These dimensions provide safe an efficient operation of the hood.

14

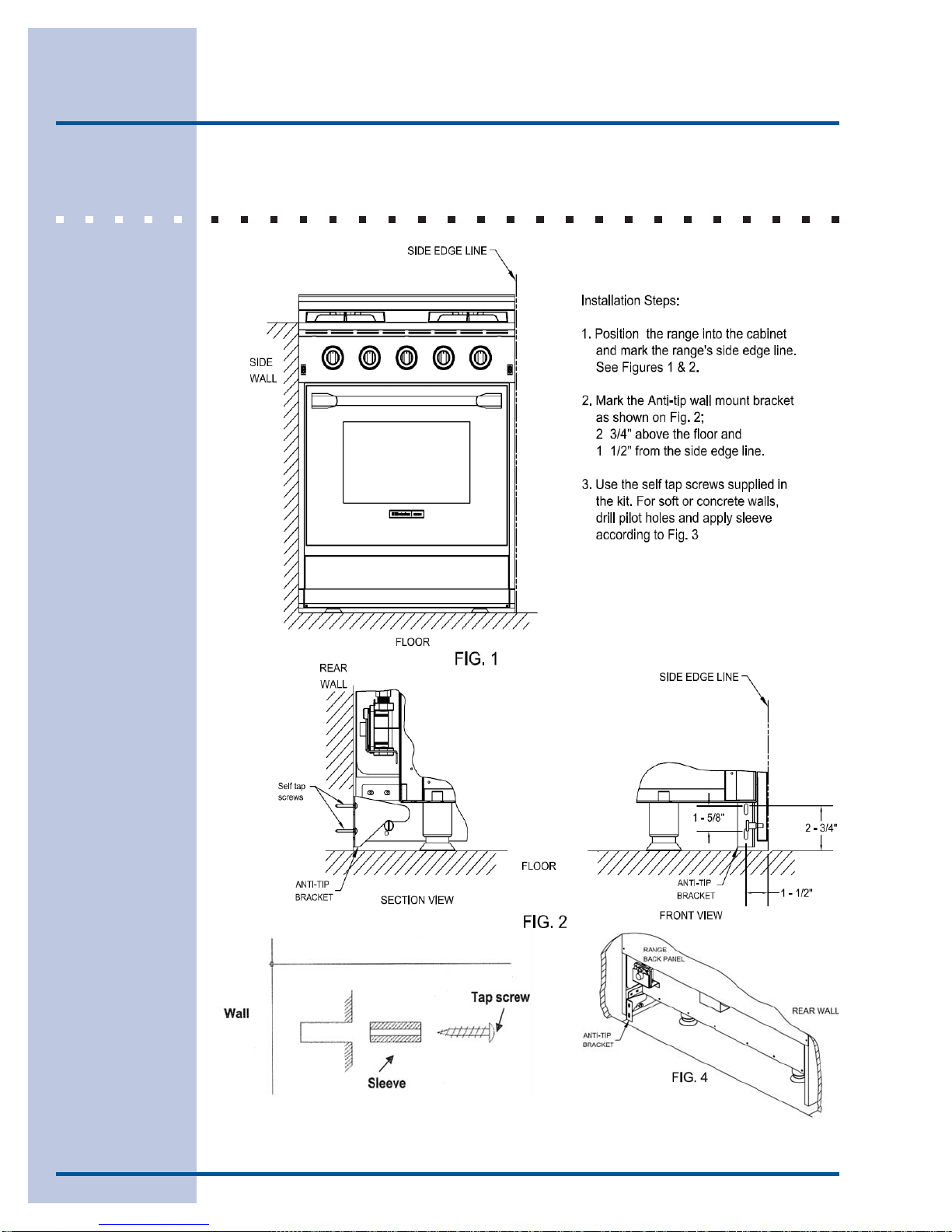

INSTALLING THE ANTI-TIP BRACKET
Installation
FIG. 3
**
**Note: Increase or decrease this dimension as
necessary for range top to be flush with countertop.

15
Figure 3
Backguard Installation
(36" range shown)
Backguard
WARNINGWARNING
WARNINGWARNING
WARNING
Be sure the range is not connected to gas or power before proceeding.
Installation
INSTALLING THE 36” RANGE OPTIONAL
BACKGUARD
Your Electrolux IconMR range was shipped with a backguard in place.These instructions
coverthe installation of one of the optionalbackguards.
Installing the Range Optional Backguard:
1. Remove existing backguard by removing 4 screws on rear of backguard (2 screws
perside).
2. Removethe backguardfrom itsbox.
3. To avoid scratches, place small scraps of thin cardboard on the rear of the side
panels where the backguard will make contact. With the assistance of at least
one other person, carefully lift the backguard and place down on to the range top.
Special attention should be givento thelower flange in front of the backguard,
which must be fit between the stainless steel side panels.
4. Fasten the screws through the rear flange in the same location in which they were
removedfrom factory suppliedbackguard.
5. Connect the gas line to the regulator. Reposition and attach the access panel or
theback coverif theentire backcover wasremoved.
6. You are now ready to continue with the range installation.

16
WARNINGWARNING
WARNINGWARNING
WARNING
Do not attempt to disengage the hinge catches with the door removed from the oven. The hinge
springs could release causing personal injury.
Do not lift or carry the oven door by the handle door.
Figure 4
To remove
oven door,
rotate catch as
shown.
REMOVING THE OVEN DOOR
Open the door to its fully opened position. Rotate the catch over the retaining arm on each
hinge. Lift the oven door to about a 30 degree angle from the horizontal position. Pull the
dooraway fromthe oven while continuing to lift.
RE-INSTALLING THE OVEN DOOR
Grasp the oven door on opposite sides and lift it until the door hinges are aligned with the
openingsin theoven frame. Holding the door at about a 30 degree angle from thehorizontal,
slide the hinges into the openings until the bottom hinge arms drop fully into the two hinge
receptacles. Lower the door to the fully opened position, and then rotate the two hinge
catchestoward the oven.
Open and close the door completely to ensure that it is properly installed.
Peel off the protective layer of plastic that covers the door panel.
Installation

17
Installation
1Therange isequipped with athree-prong power cord (grounding plugwhich mates
witha standard three-prong grounding wall receptacle tominimize thepossibility of
electrical shock hazard from the range).
2Where a standard two-prong wall receptacle is encountered, it is the responsibility
andobligation ofthe customerto haveit replacedwith aproperly groundedthree-
prongwall receptacle.Do notcut or remove the grounding prong fromthe power
cord.
GROUNDING
CONNECT RANGE TO GAS SUPPLY
1Turnoffgas.
2Installamale1/2”flareunionadapterto1/2”NPTinternalthreadofregulatorinlet.
3Connectflexiblegaslineconnectortoendunionandregulatorinlet.
4Installthemaleflareunionadapteronthemanualshut-offvalve,takingcaretosupportthe
shut-offvalve.Donotallowthevalvetomoveorturn.
5Positiontherangeintothecabinettoallowconnectionofflexibleconnectorattheshut-off
valve.
6Whenallconnectionshavebeenmade,makesureallrangecontrolsareinthe“OFF”
positionandturnonmaingassupplyvalve.
7Use a leak detector at all joints and connections to check for leaks in the system. Do not
use a flame to check for gas leaks.
Theappliancemust be isolatedfromthebuilding’s gas supplypipingsystemby closing
it’sindividualmanualshut-offvalveduringanypressuretestingofthegassupplypiping
system at test pressures equal to or less than 1/2 psig (3.5kPa).
NONO
NONO
NOTETE
TETE
TE
The gas pressure regulator is preset at the factory for natural gas to use with the appliance. To
convert the range to LP gas, see instructions supplied in the LP conversion package.

18 Installation
CONNECT RANGE TO GAS SUPPLY
INSTALLING THE RANGE
Measure from the floor to the countertop and adjust the leveling legs as required to position
the top frame at the desired height, based on the cabinet and countertop installation.
Carefully slide the range into position in the cutout.
Installing the burner components
Removethe burnerbases, burner heads, burner caps,and porcelaingrates fromtheir
shippingpackages. Place each burner onto its correspondingburner base,being certain
that the burners align with the ignitor correctly. Set each burner cap on top of its
correspondingburner head.Place eachgrate ontothe topframe.
Make sure the anti-tip bracket is installed as directed on page 14.
1. Slide range forward.
2. Make sure the anti-tip bracket is securely attached to
the wall behind the range.
3. Safely slide the range slightly and move back against wall, making sure the
pin slides under bracket.
WARNINGWARNING
WARNINGWARNING
WARNING
The 30” and 36” ranges require an Anti-Tip device. Before installing the range, you must locate and
secure the Anti-Tip bracket to the floor.
WARNINGWARNING
WARNINGWARNING
WARNING
• Do not apply excessive pressure when tightening gas connections and fittings.
• Do not use teflon tape or plumber’s putty on gas flex line connections.
• Turn all control valves to the “OFF” position. Turn on gas supply and check all lines and
connections with leak detector, such as soap and water solution. Do not use flame to
check for leaks. After verifying that there are no gas leaks, turn off the gas supply to the
range by turning the gas shut-off valve to the “OFF” position.
• For LP installations, the LP gas tank must have its own high pressure regulator. This is in
addition to the pressure regulator provided with the range.
• The maximum gas supply pressure to the regulator must never exceed 1/2 pound per square
WARNINGWARNING
WARNINGWARNING
WARNING
Never attempt to operate the cooktop section of the range with any of the burner caps or grates
removed.

19
WARNINGWARNING
WARNINGWARNING
WARNING
• The range and shut-off valve must be disconnected from the gas supply piping during any
pressure testing exceeding 1/2 psi (3.5kPa).
• The range must be isolated from the gas supply piping by closing the shut-off valve during
any pressure testing at or below 1/2 psi (3.5kPa).
NONO
NONO
NOTESTES
TESTES
TES
If either the oven or cooktop does not operate properly follow these troubleshooting steps:
• Verify the power and the gas are supplied to the range.
• Check the electrical connections and gas supply to ensure the installation has been
completedcorrectly.
• If the appliance still does not work, contact an authorized service company. Do not attempt
to repair the appliance yourself. Electrolux is not responsible for service required to correct
faulty installation.
Operation
VERIFYING THE OPERATION
Before beginning the test procedure, ensure that all cooktop control valves are in
the “OFF” position, and all burner rings, burner caps, and grates are properly
positioned on the top frame. Turn on the gas supply at the shut-off valve.
Turn on the power supply to the range. Select a temperature of 350°F by rotating
the oven selector knob to “350”. Rotate knob to the “Off” position to stop the
heating process.
Test each top burner separately by pressing and turning one control knob at a time
counterclockwise to the “HIGH” position. All ignitors will spark continuously, but
only the burner with gas flowing to it will ignite. (It will take approximately 4 seconds
for ignition to occur, at which time the ignitors will stop sparking. If ignition does not
occur within 4 seconds, turn off the knob, wait for at least 2 minutes to allow any
gas to dissipate, then repeat this ignition test.) The control knob can then be
rotated counterclockwise from “HIGH” to “LOW” to adjust the flame height
progressively.
Repeat the ignition test for all burners. When installed properly, the flame will be
steady and quiet. It will also have a sharp, blue inner cone that will vary in length
proportional to the burner size.

20 Operation
TO ENSURE PROPER AND SAFE OPERATION
•Read all instructions before using this appliance. Install or locate the appliance only in
accordancewiththeprovidedInstallationInstructions.
• Do not attempt to adjust, repair, service, or replace any part of your appliance unless it
is specifically recommended in this guide.
• Donotleavechildrenaloneorunattendedin theareawheretherangeisinuse.Never
allow children to sit or stand on any part of the oven. Do not let children play with the
range.
• Allotherservicingshouldbereferredto aqualifiedserviceagency.
• Havethetechnician show youthe location ofthegas shut offvalveand how toshutit off
inanemergencysituation.
• Alwaysdisconnectpowertoappliancebeforeanytypeofservicing.
• Donotuse abrasiveorcaustic cleaners ordetergentson thisappliance.They may
causepermanentdamagetothesurface.
• When cooking, set the burner controls so that the flame heats only the bottom of the
utensil and does not overlap at the sides of the utensil.
• Utensils (pots & pans) that conduct heat slowly, i.e. glass pots, should be used in
conjunctionwith burner flames at alow or mediumsetting.
• Turnoffallcontrolsandwaitforappliancepartstocoolbefore touching orcleaning
them.
• Donottouchtheburner grates orsurroundingareasuntiltheyare cool.
• Donotusewater on greasefires.
• Cleanappliancewithcaution.
• Always turn pot handles to the side or back of the range. Do not turn handles towards
theareawheretheyareeasilyburned.Handlesshould not extendoveradjacent
burners.
• Use range only for cooking tasks expected of a home appliance as outlined in this
manual.
• When using the cooktop, do not touch the grates, burner caps, burner bases, or any
other parts in proximity to the flame. These components may be hot enough to cause
burns.
• Use dry potholders. Moist or damp potholderson hotsurfaces may result in burns from
steam. Do not let potholders touch hot surface areas. Do not use a towel or other bulky
cloth.
• Donotheatunopened food containers.Buildupof pressure maycausethecontainer to
explode and result in injury.
• Duringandafteruse,so not touchinteriorsurfacesoftheoven until cool.
NONO
NONO
NOTETE
TETE
TE
REFER TO THE USE AND CARE MANUAL FOR DETAILED INSTRUCTIONS.
NONO
NONO
NOTETE
TETE
TE
Prior to operating the cooktop or oven sections of the range, please read the accompanying Use
and Care Manual carefully. Important safety, service and warranty information is contained within
this manual.
