Installation Instructions
Dual Fuel Ranges
5995447082
E30DF74EPS E36DF76EPS E48DF76EPS

2Safety
IMPORTANT SAFETY INSTRUCTIONS
Safety Precautions
Do not attempt to install or operate your unit until you have read the safety
precautions in this manual. Safety items throughout this manual are labeled with a
Warning or Caution based on the risk type.
Definitions
This is the safety alert symbol. It is used to alert you to potential personal
injury hazards. Obey all safety messages that follow this symbol to avoid possible
injury or death.
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
Indicates installation, operation or maintenance information which is important but
not hazard related.
CACA
CACA
CAUTIONUTION
UTIONUTION
UTION
CAUTION indicates a potentially hazardous situation which, if not avoided, may result
in minor or moderate injury.
CACA
CACA
CAUTIONUTION
UTIONUTION
UTION
CAUTION used without the safety alert symbol indicates a potentially hazardous
situation which, if not avoided, may result in property damage.
WARNINGWARNING
WARNINGWARNING
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.

3
WARNINGWARNING
WARNINGWARNING
WARNING
• Read all instructions before using the appliance.
• Improper installation, adjustment, alteration, service, or maintenance can cause
personal injury or property damage. Refer to these instructions and the
accompanying Use & Care Manual. For assistance or additional information,
consult a qualified installer, service agency, manufacturer (dealer), or the gas
supplier.
• For your safety:
- Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
- Do not obstruct the flow of combustion and ventilation air to the unit.
- Keep appliance area clear and free from combustible material, gasoline and
other flammable vapors and liquids.
- Do not use or attempt to use this appliance in the event of a power failure.
• This unit is designed as a cooking appliance. Never use it for warming or heating
a room.
• This appliance must not be used in combination with surface (countertop)
ventilation systems. The use of an overhead hood or downdraft is recommended
for ventilation.
• This appliance must be installed with the gas pressure regulator supplied with it.
• Disconnect the electrical supply before installing or servicing the appliance.
• This appliance must be grounded. Connect only to a properly grounded
electrical supply. Refer to “Electrical Requirements”.
• Install or locate this appliance only in accordance with these installation
instructions.
• Use this appliance only for its intended use as described in this manual. Do not
use corrosive chemicals or vapors in this appliance. This type of appliance is not
designed for industrial or laboratory use.
• As with any appliance, close supervision is necessary when used by children.
• Do not operate this appliance if it has a damaged electrical cord, plug, conduit or
wires, if it is not working properly, or if it has been damaged or dropped.
• This appliance should be serviced only by qualified service personnel.
• Some products, such as whole eggs, and sealed containers, such as closed glass
jars, may explode and should not be heated on this cooktop.
Safety
SAFETY PRECAUTIONS

4Safety
WARNINGWARNING
WARNINGWARNING
WARNING
• Based on safety considerations, the top burner flame should be adjusted so it
does not extend beyond the edge of the cooking utensil.
• If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury, or death.
• What to do if you smell gas:
- Do not try to light any appliance.
- Do not touch any electrical switch, do not use any phone in your building.
- Immediately call the gas supplier from a neighbor’s phone.
- Follow the gas supplier’s instructions.
- If you cannot reach your gas supplier, call thefire department.
• Installation of this appliance must be performed by a qualified installer, service
agency or the gas supplier.

5
FindingInformation
READ AND SAVE THESE INSTRUCTIONS
Read all instructions before installing the Range.
For your safety, please read and observe all safety instructions. This guide will help
you anticipate all installation connections.
QUESTIONS?
For toll-free telephone support in the U.S. and Canada:
1-877- 4ELECTROLUX (1-877-435-3287)
For online support and Internet product information:
www.electroluxusa.com
©2005 Electrolux Home Products, Inc.
Post Office Box 212378,Augusta, Georgia 30917, USA
All rights reserved. Printed in the USA
Attach your sales
receipt to this
page for future
reference.
NONO
NONO
NOTETE
TETE
TE
Installer: Leave instructions with owner.
Owner: Read your Range Use & Care Manual. It contains important safety information
for operating this appliance. It also has many suggestions for getting the best results
from your Range.

6FindingInformation
TABLE OF CONTENTS
Safety ................................................................... 2
Definitions.......................................................... 2
ImportantSafetyInstructions .............................. 2
SafetyPrecautions............................................. 3
Finding Information ........................................... 5
PleaseReadAndSaveThisGuide ................... 5
Questions? ........................................................ 5
TableOfContents .............................................. 6
Preparing for Installation .................................. 7
VerifyingPackageContents ............................... 7
GasSupplyRequirements ................................. 7
GasandElectricRequirementsTable ................ 7
ElectricalPowerSupplyRequirements .............. 8
GasandElectricalRough-In.............................. 9
Cabinet/CounteropPreparation....................... 10
OveralDimensions .......................................... 12
InstallingtheAnti-TipBracket ........................... 13
GasRegulatorandElectrical
ConduitLocation.............................................. 16
Installation ........................................................ 17
InstallingtheRangeBackguards ..................... 17
RemovingtheDoor(s)..................................... 18
ReinstallingtheDoor(s) ................................... 18
MakingtheElectricalConnection ..................... 19
MakingtheGasConnection............................. 22
InstallingtheRange ......................................... 23
InstallingtheBurnerComponents .................... 23
Operation........................................................... 24
VerifyingtheOperation .................................... 24

7
PreparingforInstallation
VERIFY PACKAGE CONTENTS
• Use & Care Manual • Burner Rings
• Broiler Pan/Insert • Wok Ring
• Anti-tip Bracket • Simmerplate
• Grate Pack • Stainless Steel Cleaner
• Griddle • Roasting Rack
• LP Conversion Kit • Burner Cap Pack
GAS SUPPLY REQUIREMENTS
Check your local building codes for the proper method of installation. In the
absence of local codes, this appliance should be installed in accordance with the
National Fuel Gas CodeANSI Z223.1. Be certain that the appliance being installed
is correct for the gas service being provided. Refer to the rating label located on the
kick panel and/or the table below for gas supply requirements.
GAS AND ELECTRIC REQUIREMENTS TABLE
Refer to the following table for more information on gas and electric requirements.
Model No. Electrical
circuit
required
Total
connected
load
Gas type Manifold
pressure Minimum gas supply
pressure
E30DF74EPS 240-4
Wire VAC,
60Hz, 30A
26.4 Amps
(6.3 Kw)
Natural
Natural
Natural
4” Water Column
4” Water Column
4” Water Column
5” Water Column
5” Water Column
5” Water Column
E48DF76EPS
E36DF76EPS 240-4
Wire VAC,
60Hz, 30A
240-4
Wire VAC,
60Hz, 50A
26.4 Amps
(6.3 Kw)
44.2 Amps
(10.4 Kw)
Liquid Propane 10” Water Column 11” Water Column
Liquid Propane 10” Water Column 11” Water Column
Liquid Propane 10” Water Column 11” Water Column
NONO
NONO
NOTETE
TETE
TE
This range is shipped from the factory pre-set for use with natural gas. For LP
conversion see the accompanying LP Conversion Kit. The electrical information in the
table is also located on the serial number label on the range. It can be found by
opening the oven door and looking through the inlet air cooling grill.

8PreparingforInstallation
ELECTRICAL POWER SUPPLY REQUIREMENTS
It is the owner’s responsibility to ensure that the electrical connection of this
appliance is performed by a qualified electrician. The electrical installation,
including minimum supply wire size and grounding, must be in accordance with the
National Electric codeANSI/NFPA70- 1993* (or latest revision) and local codes and
ordinances.
*A copy of this standard may be obtained from:
National Fire ProtectionAssociation
1 Batterymarch Park
Quincy, Massachusetts 02269-9101
The correct voltage, frequency, and amperage must be supplied to the appliance
from a separate, grounded, circuit that is protected by a properly sized circuit
breaker or time delay fuse.
Refer to the Gas and Electrical Requirements Table on page 7.
WARNINGWARNING
WARNINGWARNING
WARNING
If the gas or electric service provided does not meet the product specifications, do not
proceed with the installation. Call the selling dealer, the gas supplier, or a licensed
electrician.
NONO
NONO
NOTESTES
TESTES
TES
The power supply must be properly polarized. Reverse polarity will result in
continuous sparking of the electrodes, even after flame ignition.
If there is any doubt as to whether the power supply is properly polarized or grounded,
have it checked by a qualified electrician.

9
PreparingforInstallation
GAS AND ELECTRICAL ROUGH-IN
Locations
A manual shut valve must be installed in the gas piping, external to the appliance,
for the purpose of turning on or shutting off gas to the appliance. Plan the location
of the range and the gas supply to allow access to the valve when the unit is
installed.Access to the remote circuit breaker panel/fuse box, with the range in
place, must also be allowed for in the installation.Any openings in the wall behind
the appliance and in the floor under the appliance must be sealed.
Both the gas supply piping and shut-off valve, and the electrical junction box/
receptacle must be located so they do not interfere with the range when it is
installed. In addition, the junction box must be located so the range can be removed
for service when the conduit supplied with the unit is attached to the junction box.
Do not lengthen the conduit or wiring provided with the range.

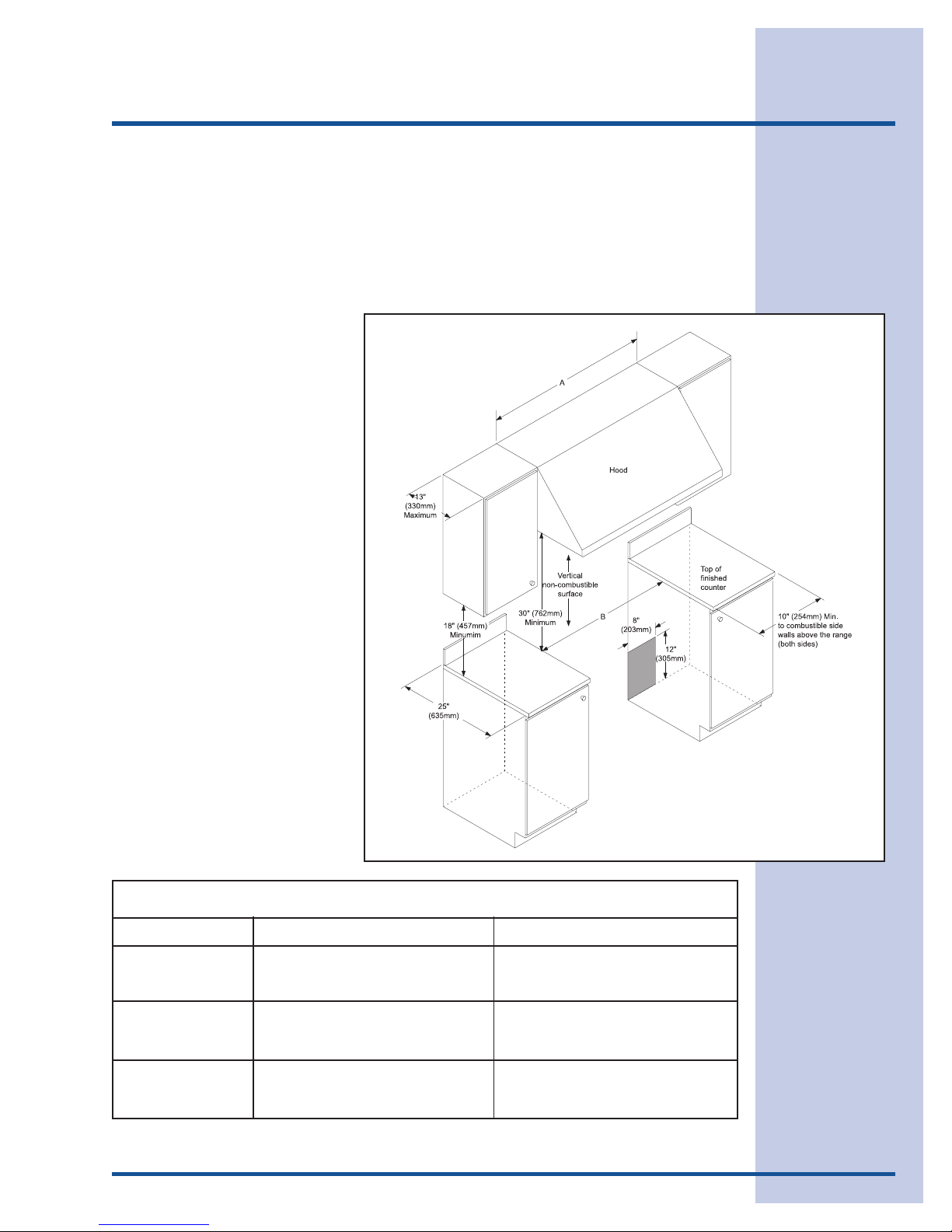

All dimensions shown are based on standard American cabinets 36 inches
(914mm) high at the finished countertop by 24 inches (610mm) deep, with a 25
inch (635mm) overall countertop depth. When installing the range into nonstandard
cabinets, minimum clearances shown in the diagrams on page 11 must be
maintained.
Carefully check the location where the range is to be installed. For best
performance, the range should be placed away from drafts that may be caused by
doors, windows and HVAC outlets.
NONO
NONO
NOTETE
TETE
TE
The shaded areas shown in the illustrations, denote the location of the gas stub and the
electrical junction box/receptacle. These are suggested locations. For replacement
purposes, the location of the existing utilities may be utilized provided that they do not
interfere with the sides or rear of the range. If installing the gas valve behind the range,
verify that local building codes will permit this.

10 PreparingforInstallation
CABINET AND COUNTERTOP PREPARATION
NONO
NONO
NOTESTES
TESTES
TES
• If cabinet storage space is to be provided directly above the range, the risk of
personal injury may be reduced by installing a ventilating hood that projects
horizontally a minimum of 5 inches beyond the face of the cabinets.
• The range may be installed flush to the rear wall. We recommend installing a
non-concombustible material on the rear wall above the range and up to the vent
hood. It is not necessary to install non-combustible materials behind the range
below the countertop height.
• The minimum distance from the sides of the range above the countertop to
combustible side walls must be at least 10 inches.
• The E36DF76EPS and E48DF76EPS ranges are delivered with a 3” backguard from
the factory. 9” and 24” backguards are available as options. The E30DF74EPS
range is delivered with a 6” backguard from the factory. 9” and 12” backguards
are available as options.
• Utilities may be located: In the lower left corner of the adjacent right cabinet.
(Recommended)
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
• Contact your local building department to verify compliance with local code
interpretation.

11
PreparingforInstallation
Plan the installation so that the electrical connection, gas shut-off valve, and
pressure regulator are accessible from the front of the cabinet.
Figure 1
E30DF74EPS, E36DF76EPS and
E48DF76EPS
Model
E30DF74EPS
“A” “B”
36”(914mm)Recommended
30”(762mm)Minimum
Cutout Dimensions
301/16”(764mm)
E36DF76EPS
E48DF76EPS
42”(1067mm)Recommended
36”(914mm)Minimum 361/16”(914mm)
54”(1372mm)Recommended
48”(1219mm)Minimum 481/8”(1222mm)

12 PreparingforInstallation
OVERALL DIMENSIONS
E36DF76EPS and E48DF76EPS Overall Dimensions
Side View Figure 2
E30DF74EPS Overall Dimensions
Side View Figure 3

13

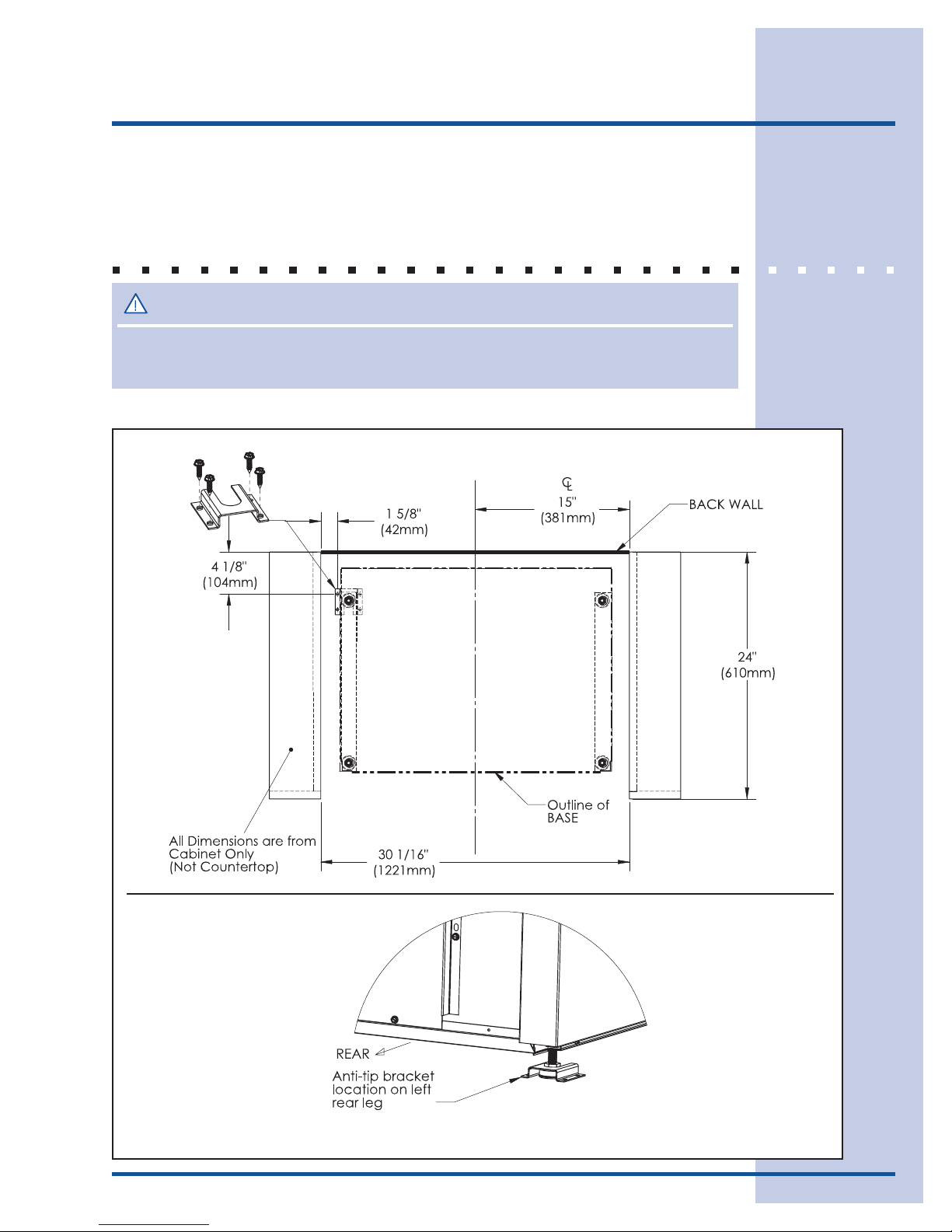

Figure 4
Figure 5
Location of the E30DF74EPS Anti-Tip Bracket
Installation of E30DF74EPS Anti-Tip Bracket
TopView
PreparingforInstallation
INSTALLING THE ANTI-TIP BRACKET (FOR 30”, 36” &
48” MODELS)
WARNINGWARNING
WARNINGWARNING
WARNING
The 30”, 36” and 48” ranges require an anti-tip device. Before installing the range, you
must locate and secure the anti-tip bracket to the floor.

14 PreparingforInstallation
INSTALLING THE ANTI-TIP BRACKET (FOR 30”, 36” &
48” MODELS)
WARNINGWARNING
WARNINGWARNING
WARNING
The 30”, 36” and 48” ranges require an anti-tip device. Before installing the range, you
must locate and secure the anti-tip bracket to the floor.
Back wall 7 1/2"
(191mm)
4 13/16" (122mm)
24" (610mm)
36 1/16"
(916mm)
18 1/32"
(458mm) All Dimensions are
from Cabinet Only
(Not Countertop)
Installation of E36DF76EPS Anti-Tip Bracket
TopView
Left
Rea
r
Leg
Leveler
5/16 - 18 x 2
or Equivalent
Rear
Location of the E36DF76EPS Anti-Tip Leveler
Figure 6
Figure 7

15
PreparingforInstallation
INSTALLING THE ANTI-TIP BRACKET (FOR 30”, 36” &
48” MODELS)
WARNINGWARNING
WARNINGWARNING
WARNING
The 30”, 36” and 48” ranges require an anti-tip device. Before installing the range, you
must locate and secure the anti-tip bracket to the floor.
Figure 8
Figure 9
Installation of E48DF76EPS Anti-Tip Bracket
TopView
Location of the E48DF76EPS Anti-Tip Leveler

16 PreparingforInstallation
GAS REGULATOR AND ELECTRICAL CONDUIT
LOCATION
Figure 10
Gas Regulator and Electrical Conduit Location
Rear View
Factory installed
Factory installed
3/4" regulator
3/4" regulator
(1/2" supply ok)
(1/2" supply ok)
Power cord

17
Installation

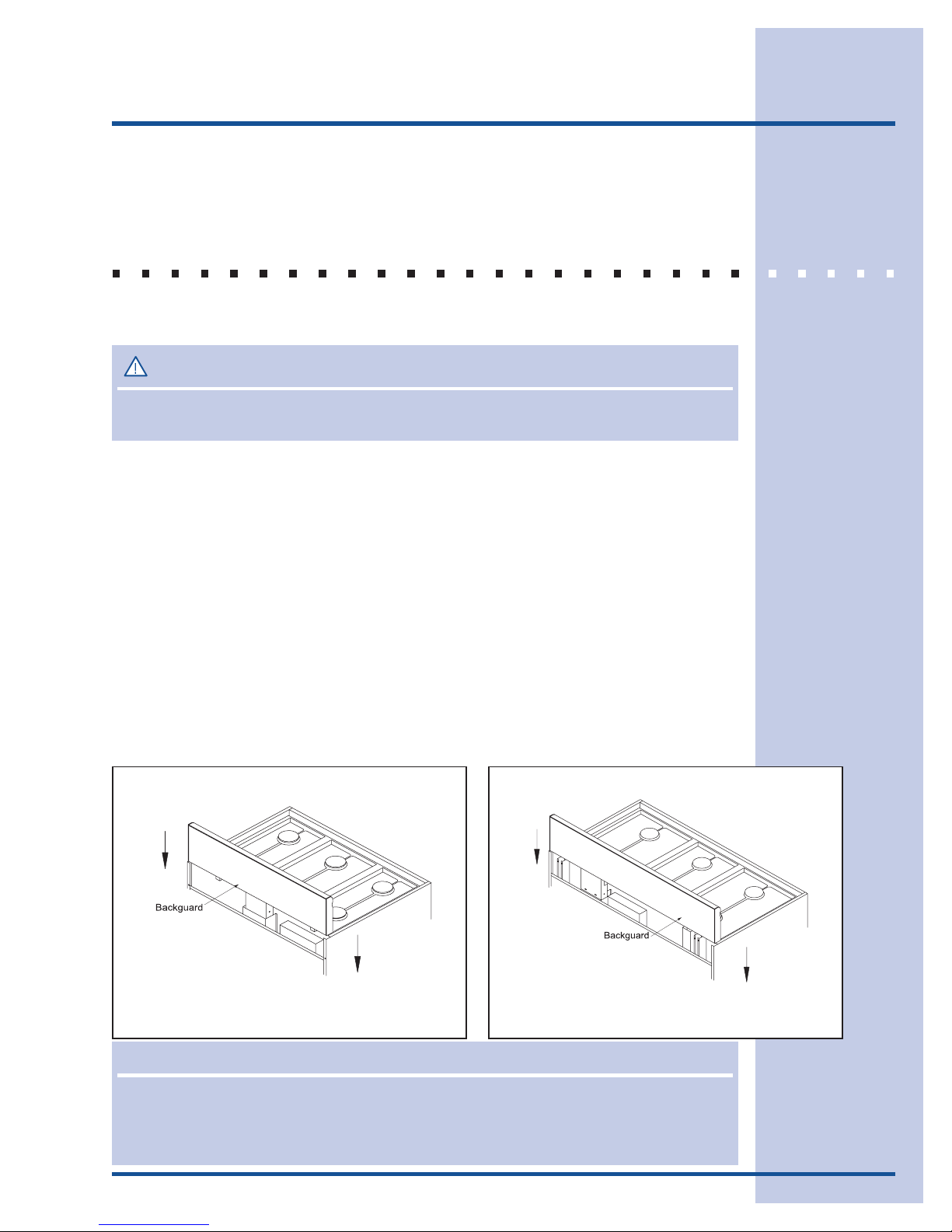

INSTALLING THE 30”, 36” & 48” RANGE OPTIONAL
BACKGUARDS
Your Electrolux IconTM range was shipped with a backguard in place. These
instructions cover the installation of one of the optional backguards.
Figure 11 Figure 12
Backguard Installation
(36” range shown) Backguard Installation
(48” range shown)
NONO
NONO
NOTETE
TETE
TE
For 24” Backguards, fasten the provided screws through the holes in the back panel of
the Backguard.
WARNINGWARNING
WARNINGWARNING
WARNING
Be sure that the range is not connected to gas or power before proceeding.
1. Remove the backguard from its box.
2. To avoid scratches, place small scraps of thin cardboard on the rear of
the side panels where the backguard will make contact. With the
assistance of at least one other person, carefully lift the backguard and
place down on to the range top. Special attention should be given to the
lower flange in front of the backguard, which must fit between the
stainless steel side panels.
3. Fasten the provided screws through the rear flange.
4. Connect the gas line to the regulator. Reposition and attach the access
panel or the back cover if the entire back cover was removed.
5. You are now ready to continue with the range installation.
Installing the Range Optional Backguard:

18 Installation
REMOVING THE OVEN DOOR(S)
Open the door to its fully opened position. Rotate the catch over the retaining arm
on each hinge. Lift the oven door to about a 30 degree angle from the horizontal
position. Pull the door away from the oven while continuing to lift.
RE-INSTALLING THE OVEN DOOR(S)
Grasp the oven door on opposite sides and lift it until the door hinges are aligned
with the openings in the oven frame. Holding the door at about a 30° angle from the
horizontal, slide the hinges into the openings until the bottom hinge arms drop fully
into the hinge receptacles. Lower the door to the fully opened position, and then
rotate the two hinge catches toward the oven.
Open and close the door completely to ensure that it is properly installed.
Peel off the protective layer of plastic that covers the door panel.
WARNINGWARNING
WARNINGWARNING
WARNING
Do not attempt to disengage the hinge catches with the door removed from the oven.
The hinge springs could release causing personal injury.
Do not lift or carry the oven door by the door handle.
Figure 13
Removing the Oven Door
To remove
oven door,
rotate catch
as shown.

19
Installation
MAKING THE ELECTRICAL CONNECTION
Grounding Instructions
This appliance must be electrically grounded. With the range positioned
directly in front of the cabinet cutout, feed the appliance conduit to the electrical
junction box. Then, depending upon local codes, utilize one of the following
techniques to connect the appliance to the electrical power supply:
Connecting to a Four-Wire Electrical System
1. Separate the green and white appliance wires.
2. Connect the white appliance wire to the
neutral (white) supply wire in the junction
box.
3. Connect the black appliance wire to the
black (L1) power supply wire in the
junctionbox.
4. Connect the red appliance wire to the red
(L2) power supply wire in the junction box.
5. Connect the green appliance wire to the
green house grounding wire in the junction
box.
WARNINGWARNING
WARNINGWARNING
WARNING
• Models E30DF74EPS, E36DF76EPS and E48DF76EPS must be connected to a
grounded, metallic, permanent wiring system. Alternatively, a grounding
conductor should be connected to the grounding terminal or lead on the
appliance. Failure to do so may result in an electric shock hazard.
• Do not use an extension cord with this appliance. Such use may result in fire,
electrical shock, or other personal injury.
• Do not install a fuse in the neutral or ground circuit. A fuse in the neutral or
ground circuit may result in an electrical shock hazard.
Figure 14
Conduit from
appliance
Cable from
power supply
Wire nut
(4 places)
Junction
box
RED
RED
GREEN
GREEN
WHITE
WHITE
BLACK
BLACK
Connecting the appliance to a
four-wire power supply

20 Installation
Connecting the Green Appliance Wire to the Neutral (White) Supply
Wire – Where Local Codes Permit
1Connect the green and white appliance wires to the neutral (white) supply
wire in the junction box.
2Connect the black appliance wire to the black (L1) power supply wire in the
junctionbox.
3Connect the red appliance wire to the red (L2) power supply wire in the
junctionbox.
WARNINGWARNING
WARNINGWARNING
WARNING
Do not connect the green appliance wire to the neutral (white) supply wire unless local
building codes permit.
Figure 15
Conduit from
appliance
Cable from
power supply
Wire nut
(3 places)
Junction
box
RED
RED
GREEN
WHITE
WHITE
BLACK
BLACK
Connecting the appliance to a
three-wire power supply
