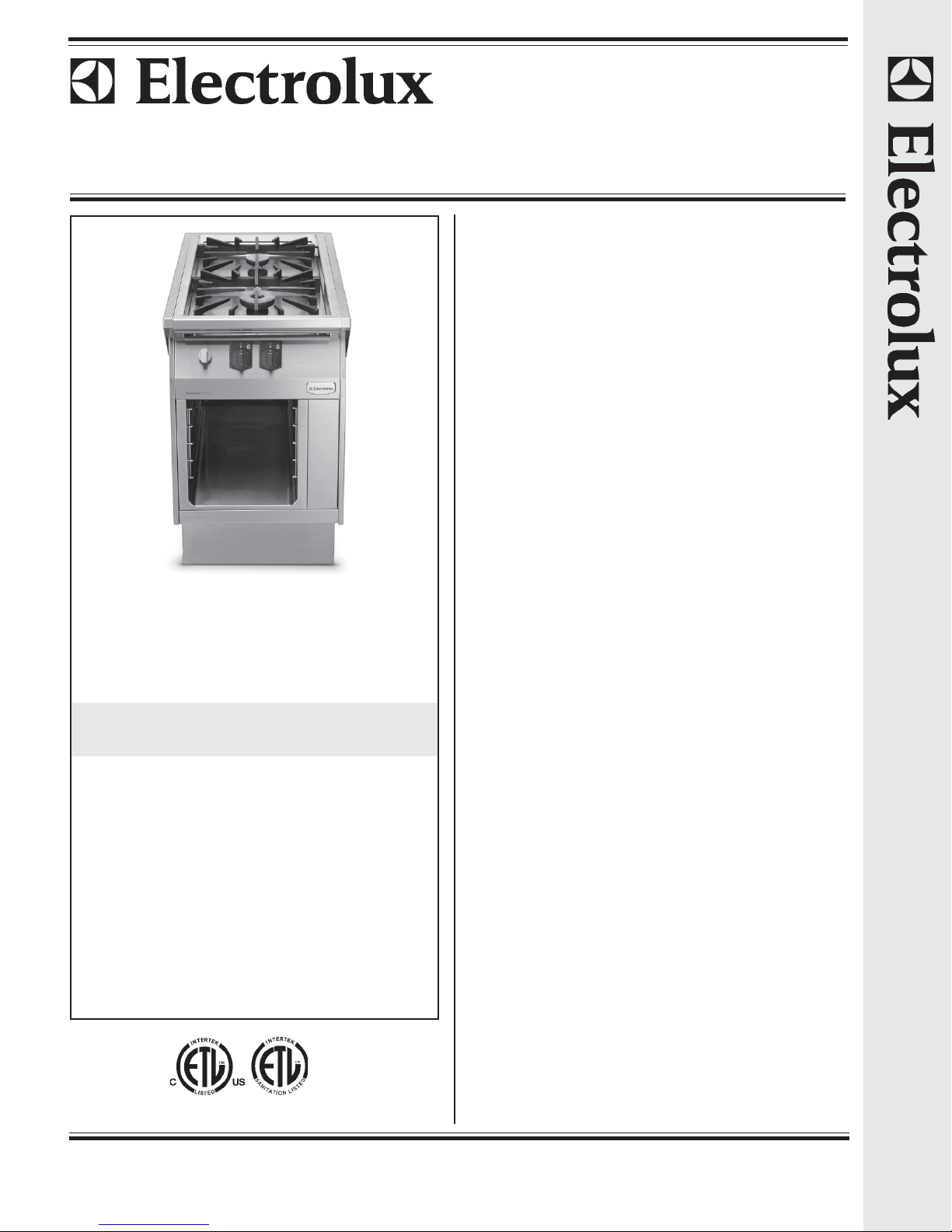

584106 (WGGRAAQOOO) S90 2 Open Gas Burners
(34,000 BTU), open base,
island, 1 side operation
Item No. ___________________________________
Unit to be Electrolux S90 Heavy Duty two 34,000 BTU (10 kW) burner
gas range on open base. Unit to be installed in central island type
installations with operations from one side. High efficiency burners
with continuous power regulations from 7,500 BTU (2.2 kW)
“simmering” to high power of 34,000 BTU’s (10 kW).
Thermocouples as standard on burners for added safety. Body
and open base of unit entirely in 304 stainless steel. Pan
supports in heavy duty cast iron. Unit shall have heavy duty 304
stainless steel internal frame with reinforcement on the top of
0.157″(4 mm). Extra strength work top in heavy duty 0.118″
(3 mm) stainless steel. “Lastertec” connection system permits units
to be connected to each other creating a seamless work top.
Covered by Electrolux Platinum Star® Service Program two-year
parts and one-year labor warranty, installation start-up and
performance check-up after one year from installation.
Short Form Specification
Electrolux Professional, Inc.
www.electroluxusa.com/professional
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
ITEM # _______________________________________________
MODEL # _____________________________________________
PROJECT NAME # ______________________________________
SIS # _________________________________________________
AIA # _________________________________________________
Modular Cooking Range Line
S90 Heavy Duty 2-Burner Gas
Range on Open Base, Island, 1 Side
Main features
• Unit for island type installation with operations by chef from one side
(nobs only on one side of the console).
• The two 2″(50 mm) diameter 34,000 BTU (10 kW) high efficiency
burners suit high performing cooking requirements for the most demanding
customers.
• Manual gas valves with fixed high and low positions allow precise control
of the flame intensity. Simmering as low as 7,500 BTU’s (2.2 kW).
• Large sized pan support in cast iron (stainless steel as option) with long
center fins to allow the use of the largest down to the smallest pans.
• Open base compartment for storage of pots, pans, sheet pans etc.
• Flat deep drawn spillage area with cleaning openings on front and rear
side, with removable pan supports, burner rings and flame ignition parts.
• Heavy duty internal frame 304 type stainless steel with reinforcement on
top of 0.157″(4 mm).
• 0.118″(3 mm) top in 305 type stainless steel.
• “Lasertec connection system” creates seamless work top when units are
connected to each other.
• Unit delivered with four 7-7/8″(200 mm) legs as standard (all round
stainless steel plinth as option).
Optional Accessories
• Set 4 castors (2 with brake).
•2.3″(60 mm) diameter burners with power regulation from 5,000 BTU
(1.5 kW) to 20,500 BTU (6 kW).
• Simmering plate.
• Stainless steel 0.118″(3 mm) side panel.
•5″(130 mm) portioning shelf.
•7.8″(200 mm) portioning shelf.
• All round stainless steel kick plates.
• Shelf for open base.
• Shelf fixation kit for open base.
Modular Cooking Range Line
S90 Heavy Duty 2-Burner Gas Range on Open Base, Island, 1 Side
Modular Cooking Range Line
S90 Heavy Duty 2-Burner Gas Range
on Open Base, Island, 1 Side

Modular Cooking Range Line
S90 Heavy Duty 2-Burner Gas Range
on Open Base, Island, 1 Side
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
6-18-09
Front View
To p V i e w
Side View
Modular Cooking Range Line
S90 Heavy Duty 2-Burner Gas Range on Open Base, Island, 1 Side
Storage Cavity Dimensions
(width): 13-3/8″(340 mm)
Storage Cavity Dimensions
(height): 14-1/16″(358 mm)
Storage Cavity Dimensions
(depth): 29-1/16″(738 mm)
Net weight: 154 lb (70 kg)
Shipping weight: 198 lb (90 kg)
Shipping width: 27-9/16” (700 mm)
Shipping height: 43-5/16” (1100 mm)
Shipping depth: 43-5/16” (1100 mm)
Shipping volume: 30.01 cu.ft (0.85 m3 )
If appliance is set up or next to or against temperature
sensitive furniture or similar, a safety gap off approximately
6″(150 mm) should be maintained or some form of heat
insulation fitted.
Key Information
Gas
Gas Power: 68,000 Btu/hr (20 kW)
Gas Type Option: Butane, Natural Gas, Propane
(must be specified when
ordered)
Natural Gas Pressure: 7″w.c. (17.7 mbar)
LPG Gas Pressure: 11″w.c. (27.7 mbar)
Gas Inlet: 3/4″NPT
