Electrolux CH 910 User manual

INSTRUCTION BOOK
FOR ELECTROLUX
COOKER HOOD
CH 910
cod. 436002577_01 - 050329
UK

3
Thank you for buying a Electrolux product.
To enable you to use your appliance effectively and safely, please read this instruction book carefully before using
the appliance and retain for future reference. If you require guidance in the use of the appliance or require further in-
formation on Electrolux Products, please contact our Customer Care Department. For general enquiries concerning
your Electrolux appliance or for further information, visit our website at http://www.electrolux.co.uk
Customer Care Department
Electrolux
55 - 77 High Street
Slough
Berkshire
SL1 1DZ Tel: [phone]*
*Calls to this number may be recorded for training purposes.
To register ownership, please ensure you complete and return the guarantee card supplied with
the appliance.
For the User
Important Safety Information
Your Appliance
Operating Instructions
Cooker Hood Controls
To Operate
Recirculation
Extraction
Maintenance and Cleaning
External Cleaning
Metal Grease Filters
Charcoal Filters
To Remove/Replace Charcoal Filter
Changing the Halogen Light
Something Not Working
Service and Spare Parts
Guarantee Conditions
For the Installer
Technical Information
Electrical Connections
Electrical Requirements
Electrical Connection
Installing the Cooker Hood
Installation Requirements
Unpacking

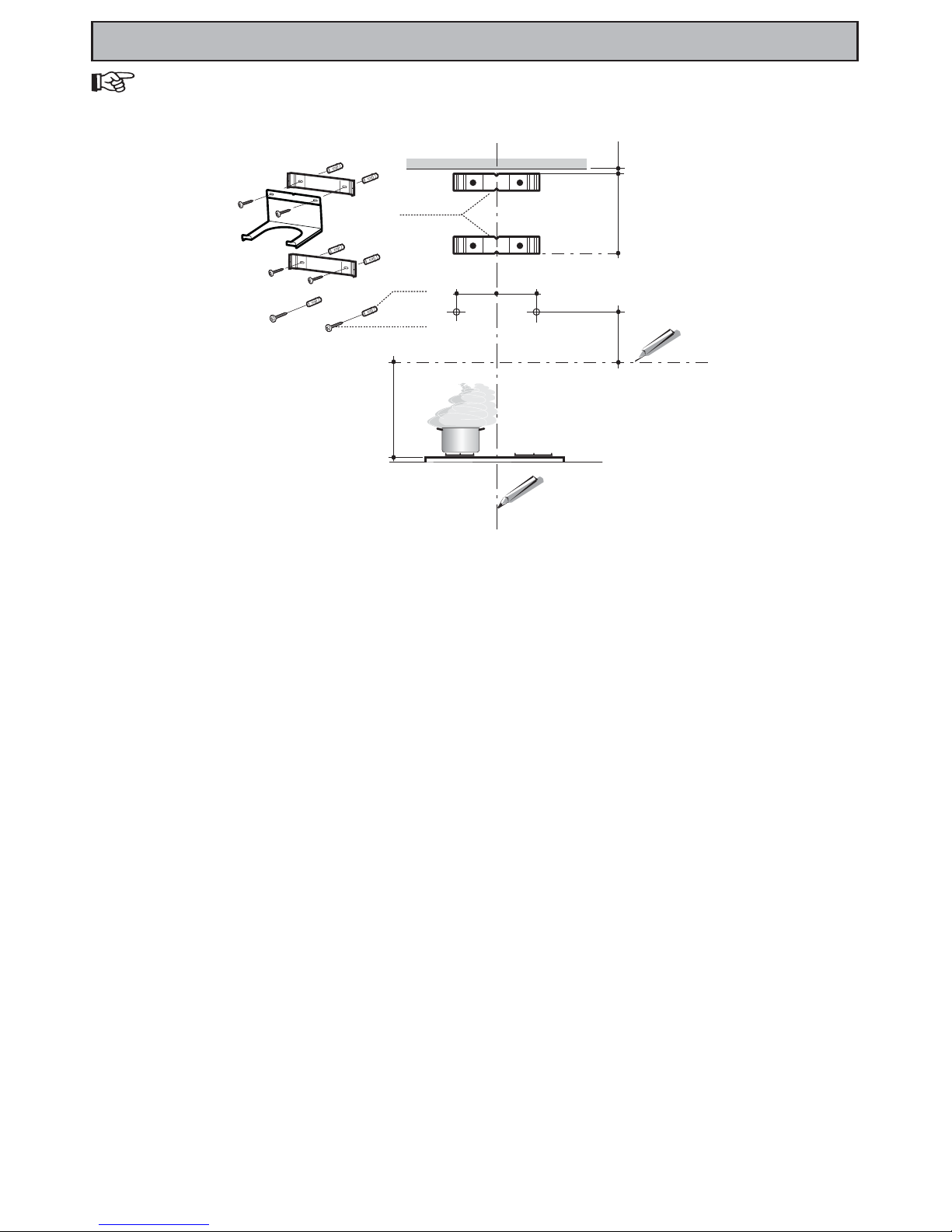

Fitting the Wall Brackets
Fitting the Canopy Hood
Venting
Recirculation
Fitting the Chimney Stack
Guide to use the instruction book
The following Symbols will be found in the text to guide you through the instruction book
Safety instructions Step by step instructions

4
IMPORTANT SAFETY INFORMATION
These warnings are provided in the interests of your safety. Ensure that you understand them all before
installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the
meanings of these warnings contact the Customer Care Department.
Installation
• Any installation work must be undertaken by a quali-
fied electrician or a competent person.
• This hood must be installed in accordance with the
installation instructions and all measurements must
be adhered to.
• If the cooker hood is installed for use above a gas
appliance then the provision for ventilation must be
in accordance with the Gas Safety Codes of Practice
BS.6172, BS.5440 and BS.6891 (Natural Gas) and
BS.5482 (LP Gas) 1994, the Gas Safety (Installation
& Use) Regulations, the Building Regulations issued
by the Department of the Environment, the Building
standards (Scotland) (Consolidated) Regulations
issued by the Scottish Development Department.
• The fan motor of this cooker hood incorporates a
cut-out device which will operate if the cooker hood
is installed below the minimum height recommended
under section ‘Clearance Height’, or if the motor be-
comes overheated. If the cut-out device is activated,
switch off the fan motor and allow the cooker hood to
cool. The cut-out device will reset itself when the fan
motor has cooled significantly.
• It is dangerous to alter the specifications or modify
this product in any way.
• When installed between adjoining wall cabinets the
wall cabinets must not overhang the hob.
• If the room where the hood is to be used contains
a fuel burning appliance such as a central heating
boiler then its flue must be of the room sealed or
balanced flue type.
• If other types of flue or appliances are fitted ensure
that there is an adequate supply of air to the room.
• The ducting system for this appliance must not be
connected to any existing ventilation system which is
being used for any other purpose.
• Do not install above a cooker with a high level grill.
Child Safety
• This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the appliance.
During Use
• This product is for domestic use only.
• Never leave frying pans unattended during use as
over-heated fats and oils might catch fire.
• Never do flambé cooking under this cooker hood.
• Do not leave naked flames under the hood.
• This cooker hood is designed to extract unpleasant
odours from the kitchen, it will not extract steam.
Maintenance and Service
• This appliance can be a hazard if the synthetic paper
and charcoal filters are not replaced as recommen-
ded.
• Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or more
serious malfunction. Refer to your local Electrolux
Service Force Centre. Always insist on genuine
spare parts.

5
YOUR APPLIANCE
740
870
1200
260
300
64
42
650 min.
490 60
598-698-898-1198
108
150

6
OPERATING INSTRUCTIONS
The cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam.
The appliance can be installed to recirculate or extract contaminated air.

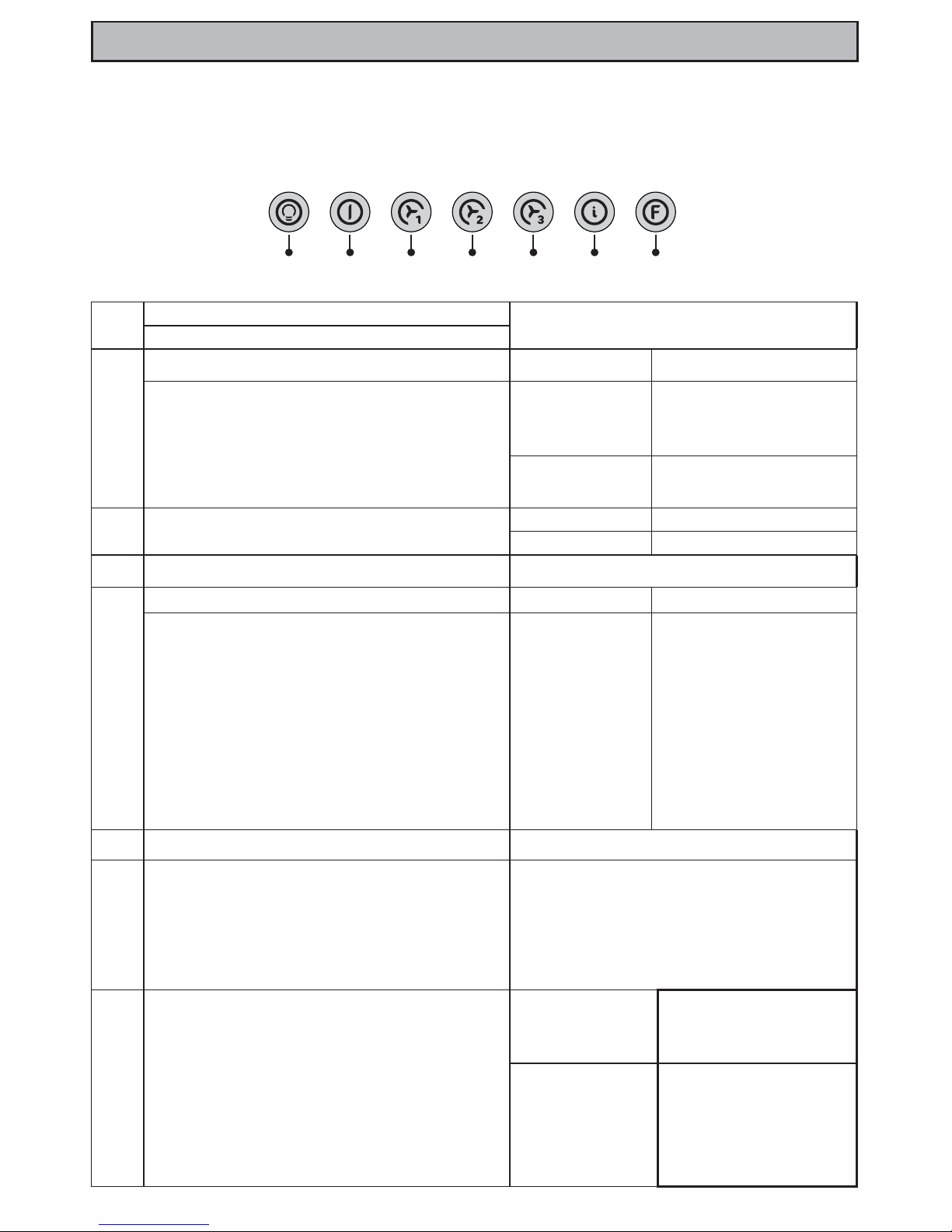

Control Panel
The hood can be switched on pushing directly onto the requested speed without firstly having
to select 0/1 button.
L T1 T2 T3 T4 T5 F
Touch Basic functions Indicator lights
Dual Function
LWhen briefly pressed it switches the lighting system on/off. Touch control unlit Lights off
When pressed for 2 seconds it starts the lighting system
in “courtesy light" mode.The lamps are fed at a reduced
power of approximately 5W. Such function can be stopp-
ed by pressing the touch control for 2 seconds or just by
pressing it shortly in order to return to the normal lighting
mode. In courtesy light mode the touch control is not lit.
Touch control lit Lights on
Touch control unlit Courtesy light on
T1 When pressed the motor is stopped, regardless of the
speed it is set to.
Touch control lit Motor on
Touch control unlit Motor off
T2 When pressed the motor is set to the first speed Touch control lit
T3 By a brief pressing the motor is set to the second speed. Touch control lit Second speed on
By pressing the touch control for approximately 2 seconds the
Delay function is enabled, i.e delayed shutdown of the appli-
ance ensuring a complete elimination of the residual odours.
This function can be activated at OFF- position and at 1°, 2°
and 3°speeds. It can be stopped in advance by pressing any
of the touch controls (T) with the exception of T3. The Delay
function works according to the following scheme:
1°speed / OFF = 20 minuets
2°speed =15 minutes
3°speed = 5 minutes
Flashing touch control Delay function on
T4 When pressed the motor is set to the third speed Touch control lit
T5 When pressed the motor is set to the intensive speed
timed to 5 minutes. At the end of 5 minutes of intensive
speed the hood starts again at the speed it was set to
previously. In case the hood is set to the intensive speed
directly from OFF-state it will then start from the first
speed after 5 minutes of intensive speed.
Touch control lit
FWhen pressed for 4 seconds it resets the filter alarm s-
ignal indicated by flashing of the touch control T1.This
procedure can be carried out only when the motor is
stopped.
Touch control lit Metal grease filters saturation
alarm.Metal grease filters need
to be washed.The alarm starts
up after 100 working hours.
Flashing touch control Charcoal odour filter saturaion
alarm.Charcoal filter has to
be replaced and metal grease
filters washed.The alarm
starts up after 200 working
hours.(Activation; check the
paragraph "Odour filter")

7
Before carrying out any maintenance or clea-
ning isolate the cooker hood from the mains
supply.
The cooker hood must be kept clean, as a build
up of grease or fat can be a fire hazard.
External Cleaning
Wipe the cooker hood frequently with warm
soapy water using a mild detergent.
Never use scouring pads or abrasive cleaners.
Never use excessive amounts of water when
cleaning particularly around the control panel.
Metal Grease Filters
The filters are washable and must be cleaned when the
F-Touch control lights up or at least every 2 months
of operation, or more frequently for particularly heavy
usage.
Remove the metal grease filters
one at a time by:
Releasing the catches on the filters, the
filters can be removed.
The metal grease filters should be washed, by
hand, in mild soapy water or in a dishwasher. Allow
to dry completely before replacing.
Alarm signal reset
Stop the motor.
Press the F-Touch control for at least 4 secon-
ds until the T1-Touch control flashes.
MAINTENANCE AND CLEANING
To Operate
Select the required fan speed and light if required.
Recirculation
In the recirculation mode the contaminated air enters the cooker hood through the grease filters. The air is cleaned
by passing through the charcoal filters before being passed back into the kitchen through the grilles in either side of
the chimney stack.
Extraction
In the extraction mode the contaminated air enters the cooker hood passing through the grease filters and is passed
out through the ducting into the atmosphere.
To obtain the best performance when cooking it is advisable to switch the cooker hood on for a few minutes before
you start cooking and leave it running for about 15 minutes after finishing.
When used in the ducting mode the charcoal filters are not required.
Never do flambé cooking under this cooker hood.
Never leave frying pans unattended during use, as over-heated fats and oils can catch fire.
Do not leave naked flames under the cooker hood.
Ensure heating areas on your hob are covered with pots and pans when using the hob and cooker hood
simultaneously.
OPERATING INSTRUCTIONS

8
Before carrying out any maintenance or cleaning isolate the cooker hood from the mains supply.
Charcoal Filters
In the recirculation mode the charcoal filters absorb smells and unwanted odours.
Enabling the alarm signal
• In Recirculation Version Hoods, the Filter saturation Alarm must be enabled at the time of installation or later.
• Switch off the lights and the motor.
• Disconnect the mains power supply to the hood by removing the motor unit power supply cable connector,
switching off the power supply at the Mains or turning the Main switch off.
• Restore the connection, pressing and holding T2.
• Release the touch control, touch controls L, T2 and Fwill light up normally.
• Within 3 seconds press the touch control Funtil the key itself flashes to confirm as follows:
• 2 flashes – Charcoal odour Filter saturation Alarm ENABLED
• 1 flash - Charcoal odour Filter saturation Alarm DISABLED
This filter cannot be washed or regenerated, and must be replaced when the F touch control starts to flash, or at least
once every 4 months. The alarm is only triggered when the motor is on.
To Remove/Replace the Charcoal Filters
• Remove the metal grease filters
• Remove the saturated activated carbon filter by
releasing the fixing hooks
• Fit the new filter by hooking it into its seating
• Replace the metal grease filters.
This appliance can be a possible fire
hazard if the grease and charcoal filters
are not cleaned and replaced as recommended.
Alarm signal reset
• Stop the motor.
• Press the touch control Ffor at least 4 seconds, until
the touch control T1 flashes.
Changing the Light halogen
• Remove the 2 screws fixing the Lighting support, and
pull it out of from the Hood.
• Extract the lamp from the Support.
• Replace with another of the same type, making sure
that the two pins are properly inserted in the lamp
holder socket holes.
• Replace the Support, fixing it in place with the two
screws removed as above.
MAINTENANCE AND CLEANING

9
SOMETHING NOT WORKING
SERVICE AND SPARE PARTS
If, having followed these instructions carefully, your cooker hood fails to work properly please carry out
the following checks.
Symptom
The cooker hood will not start
The cooker hood is not working effectively
The cooker hood has switched off during opera-
tion
If after all these checks, the fault persists, contact your
local Service Force Centre, quoting the model and
serial number.
Please note that it will be necessary to provide proof of
purchase for any in-guarantee service calls.
Solution
• Check the hood is connected to the electricity
supply.
• Make sure the switch is in the ‘ON’ position.
• The fan speed is set high enough for the task
• The grease filter is clean.
• The kitchen is adequately vented to allow the
entry of fresh air.
• If set up for recirculation, check that the charcoal
filter is still effective.
• If set up for extraction, check that the ducting and
outlets are not blocked.
• The safety cut-out device has been tripped.
• Tum off the hob and then wait for the device to
reset.
In-guarantee customers should ensure that the
above checks have been made as the engineer will
make a charge if the fault is not a mechanical or
electrical breakdown.
If you require an engineer or spare parts contact your
local Service Force Centre by telephoning:
08705 929929
Your telephone call will be routed to your local Service
Force Centre. The addresses are listed in the back of
the book.
For general assistance with your appliance or for further
information on Electrolux products please contact our
Customer Care Department.
Customer Care Department,
Electrolux
55 - 77 High Street
Slough
Berkshire
SL1 1DZ
Tel: [phone] *
* calls to this number may be recorded for training
purposes.

10
GUARANTEE CONDITIONS
We Electrolux, undertake that if within twenty four months of the date of the purchase this Electrolux built-in applian-
ce or any part thereof is proved to be defective by reason only of faulty workmanship or materials, the company will,
at our option repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that:
• The appliance has been correctly installed and used only on the electrical supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
operating and maintenance instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
• All service work under this guarantee must be undertaken by Electrolux Service Force Centre.
• Any appliance or defective part replaced shall become the property of this company.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours
in which case a premium will be charged.
EXCLUSIONS
This Guarantee does not cover:
• Damage or calls resulting from transportation, improper use or neglect, the replacement of any lilght bulbs or
removable parts of glass or plastic.
• Costs incurred for calls to put right appliances improperly installed or calls to appliances outside the United
Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are the subject of rental agree-
ments.
• Products of Electrolux manufacture which are not marked by Electrolux.
This guarantee is in addition to your statutory and legal rights.
ELECTROLUX EUROPEAN GUARANTEE
If you should move to another country within Europe then your guarantee moves with you to your new home subject
to the following qualifications:
• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of
use for this brand or range of products.
• This guarantee relates to you and cannot be transferred to another user.
• Your new home is within the European Community (EC) or European Free Trade Area.
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal
household.
Before you move please contact your nearest Customer Care Centre, listed below, to give them details of
your new home. They will then ensure that the local Service Organisation is aware of your move and able to
look after you and your appliances.
France Senlis [phone]
Germany Nurnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]

11
INSTALLATION INSTRUCTIONS
It is dangerous to alter the specifications or attempt to modify this product in any way.
Technical Information
DIMENSIONS HEIGHT OF CANOPY: 60 mm
HEIGHT OF CHIMNEY: (UPPER SECTION) 470 mm
(LOWER SECTION) 745 mm
WIDTH OF CANOPY : 898 mm
DEPTH OF CANOPY: 490 mm
ELECTRICAL SUPPLY: VOLTAGE: 220-240 V 50Hz
POWER CONSUMPTION: 265 W
FAN MOTOR: 205 W
LAMPS : (3 x 20 W) 60 W
Note: CE Marking certifies that this appliance complies with the requirements
laid down in EEC directive 89:336. (Electromagnetic compatibility) and
subsequent modifications and Low Voltage directive 72/23/E.
ELECTRICAL CONNECTIONS
Electrical Requirements
Any permanent electrical installation must comply with
the latest I.E.E. Regulations and local Electricity Board
regulations. For your own safety this should be under-
taken by a qualified electrician e.g. your local Electricity
Board, or a contractor who is on the roll of the National
Inspection Council for Electrical Installation Contracting
(NICEIC).
Electrical Connection
Before connecting to the mains supply ensure that the
mains voltage corresponds to the voltage on the rating
plate inside the cooker hood.
This appliance is fitted with a 3 core mains cable and
must be permanently connected to the electricity supply
via a double-pole switch having 3mm minimum contact
gap on each pole. A Switched Fuse Connection Unit to
BS1363 Part 4, fitted with a 3 Amp fuse, is a recom-
mended mains supply connection accessory to ensure
compliance with the Safety Requirements applicable to
fixed wiring instructions.
This appliance conforms to BS 800: 1988 and EEC
Directive No. 78 308 regarding suppression of radio and
television interference.
This appliance must be earthed

12
INSTALLING THE COOKER HOOD
Please ensure that when the appliance is installed
it is easily accessible to an engineer in the event of
a breakdown.
All installations must comply with the local
authorities requirements for the discharge of
exhaust air.
Incorrect installation may affect the safety of this
cooker hood.
Installation Requirements
Before installation check the wall to which the
cooker hood is to be fitted for electric cables,
water pipes or gas.
This cooker hood is designed to be fixed to any vertical
surface over a cooking area, and can be used in the
extraction (ducted to the outside) or recirculation mode.
The installation work must be undertaken by a qualified
and competent person.
The manufacturer disclaims any responsibility for
damage due to incorrect installation of the cooker hood
or if the hood is not installed in compliance with relevant
regulations controlling this type of installation.
Unpacking
Before unpacking the cooker hood position
the carton with the arrows pointing upwards as
illustrated on the carton.
The cooker hood is made up of the following
components:
Ref Qty Product Components
11 Hood body, complete with controls,
lighting, fan and filters.
21 Telescopic Chimney comprising:
2.1 1 Upper section
2.2 1 Lower section
91 ø150-120 Ducting spigot
10 1 ø120-125 Ducting flange
14.1 2 Air outlet Connection Extension
15 1 Air outlet connector
Ref Qty Installation Components
7.2.1 2 Upper chimney Section Fixing
Brackets
7.3 1 Air Outlet Connection Support
11 6 Wall Plugs
12c 6 Screws 4,9 x 9,5
Ref Qty Documentation
1 Instruction booklet
2.1
2.2
2
12c
7.2.1
1
9
7.3
14.1
15
10

13
A: Built-in Electric Hob: 650mm clearance
B: Built-in Gas hob: 700mm clearance
C: Slot-in Electric Cooker: 685mm clearance
D: Slot-in Gas Cooker: 787mm clearance
Hob
Clearance Height
The cooker hood is designed to be fitted over a cooking
appliance at the clearance heights stated, providing the
maximum output of the appliance beneath does not
exceed the maximums quoted in the Technical Speci-
fications.
If the output of the appliance below the cooker hood
exceeds the maximum outputs quoted, please refer to
the cooker manufacturer’s installation instructions.
A clearance height of 650mm (25 1/2 ”) is required when
installed above a built-in electric hob, or 700mm (27 1/2
”) when installed above a built-in gas hob.
A clearance height of 685mm (27”) is required when
installed above a slot-in electric cooker, or 787mm
(30 1/2 ”) when installed above a slot-in gas cooker.
When installed between adjoining wall cabinets, the wall
cabinets must not overhang the hob and the distance
between the underside of the cabinet and the worktop
must be 450mm. If the height of the wall cabinet is less
than 450mm, a gap of 50mm must be maintained either
side of the hob.
This cooker hood must not be installed above a
cooking appliance with a high level grill.
The hood can be installed above these heights but
for optimum performance it should be installed at the
distances quoted for the appropriate heat source.
This appliance can be used in either extraction mode
(ducting) or recycling mode (filtering).
The hood is supplied suitable for recirculation with the
charcoal filters fitted.
When used in the extraction mode (ducting) the charcoal
filters are not required and must be removed and
destroyed.
INSTALLING THE COOKER HOOD

14
Fitting the Wall Brackets
Wall marking:
• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area
in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob.
• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning the centre (notch)
with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper chimney
section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point as indicated at 116 mm from the vertical reference line and 320 mm above the horizontal
reference line.
• Repeat this operation on the other side.
• Drill ø 8 mm holes at all the centre points marked.
• Insert the wall plugs (not supplied) in the holes.
• Fix the lower bracket 7.2.1 using the two screws (not supplied).
• Fix the upper bracket 7.2.1 and the air outlet connection support 7.3 together using the two screws (not sup-
plied).
• Insert the two screws 12a (not supplied) supplied in the hood body fixing holes, leaving a gap of 5-6 mm
between the wall and the head of the screw.
Note: If the hood is to be installed onto a hollow construction or plaster or partition board wall then special
fixing screws will be required (not supplied).
INSTALLING THE COOKER HOOD
11
12a
320 X
116
1÷2
116
650 min.
7.2.1

15
Fitting the Hood Body
Before starting to fix the hood body, tighten
the two screws Vr located on the top of the
hood body.
Hook the hood body onto the two screws
item 12a (not supplied).
Fully tighten the screws item 12a.
Using a screw driver and spirit level, adjust
the screws item Vr until the hood body is
level.
Extraction
The cooker hood is more effective when used in the
extraction mode (ducted to the outside).
Venting kits may be purchased through your
retailer or DIY store, and must be ducted to an
outside vent of Ø125mm (5”) or Ø150mm (6”).
The ducting used must be manufactured from fire
retardent material conforming to the relevant British
Standard or DIN 4102-B1.
When the cooker hood is ducted to the outside the
charcoal filter must be removed.
Recirculation
The cooker hood is supplied specified for use in the
recirculation mode, with the charcoal filter fitted.
In the recirculation mode contaminated air is
passed through the charcoal filter to be purified
and recirculated into the kitchen through the grille
outlets on either side of the chimney.
To assemble the recirculation duct, place the
recirculation outlet connection item 15 into the
support item 7.3.
Insert the extension ducts item 14.1 into either
side of the recirculation outlet item 15 ensuring the
connections are vertically and horizontally aligned
with the outlets in the chimney.
Connect the recirculation oulet item 15 to the outlet
on top of the hood body using either a piece of
Ø125mm or Ø150mm flexible or rigid pipe.
Rigid pipe is strongly recommended and should be
used where possible as this will ensure the best
performance while lowering noise.
ø 150
14.1
15
12a
Vr
INSTALLING THE COOKER HOOD

16
Extraction
The charcoal filter is not required in this mode and
should be removed.
Ducting
The ducting used must be Ø150mm (6ins), or
Ø125mm (5ins) in diameter.
If possible duct through the wall immediately above
the hood body.
For the best performance use the shortest possible
duct run and the minimum number of bends.
Where flexible ducting is fitted it should not be
turned through very tight bends as this may impair
the performance of the hood.
It is recommenmded a maximum length of 3 metres,
to be installed, to be reduced 1 metre for each 90o
bend installed in the ducting run.
If the distance is greater than 3 metres the efficency
of the hood could be impaired.
The diameter of the ducting spigot on the top of the
hood body item 1 is Ø150mm (6”).
When using Ø125mm (5”) ducting it will be
necessary to install the ducting adapter item 9 to
the Ø150mm (6”) outlet on the top of the hood body
and the Ø120mm to 125mm ducting collar item 10
(supplied).
If the room where the cooker hood is to
be used contains a fuel burning appliance
such as a central heating boiler, then its flue
must be of the room sealed or balanced flue
type.
If other types of flue or appliances are fitted
ensure that there is an adequate supply of
air to the room.
The cooker ducting (extraction mode) must
never be connected to central heating flues,
radiators or water heaters etc.
Electrical Connection and Working
Test
Before fitting the chimney to the canopy make the
electrical connection as described in the section
titled “ELECTRICAL CONNECTION”.
When the electrical connection has been made, test
the three speed fan and worktop illumination.
9
ø 150
ø 125
10
INSTALLING THE COOKER HOOD

17
Fitting the Chimney Stack
The chimney consists of two sections.
The lower chimney measures 740mm and the
upper chimney (with the recirculation grilles
on either side) measures 465mm. The overall
installed measurement is min. 870 - max
1200mm.
UPPER CHIMNEY
To fit the upper chimney section item 2.1 expand
the chimney slightly to allow it to be fitted over the
brackets item 7.2.1 as illustrated.
When installed in the recirculation mode ensure
that the recirculation ducting outlet extension
pieces item 14.1 align correctly with the outlet
grilles in the chimney.
Secure the sides of the chimney to the brackets
using the four screws item 12c (2.9x9.5mm)
provided, as illustrated.
LOWER CHIMNEY
To fit the lower chimney section item 2.2 expand
the chimney slightly to allow it to be fitted over the
upper chimney item 2.1 and the hood body item 1
as illustrated.
Secure the sides of the chimney to the hood
body using the two screws item 12c (2.9x9.5mm)
provided, as illustrated.
INSTALLING THE COOKER HOOD
12c
2.1
2.2
2
7.2.1
12c

55 - 77 High Street - Slough
BERKSHIRE SL1 1DZ
© Electrolux plc 2002
The symbol on the product or on its packaging indicates that this product may not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By
ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your local city office, your household waste disposal service or
the shop where you purchased the product.
