Congratulations to your new Cooker Hood
Thank you for your choice of an Electrolux product. We are convinced that you will have
great use and pleasure from your new cooker hood.
Before you use the cooker hood we recommend that you read through the whole user
manual giving a direct description of the cooker hood and its functions.
To avoid the risks, that are always present when you use a product driven by electricity, it
is important that the cooker hood is installed correctly and that you read the safety instruc-
tions carefully to avoid misuse and hazard.
Save the instruction manual and keep it available at use of the cooker hood
At installation and service
lThe cooker hood is made for normal households
with normal cooking. If it is used for other
purposes there is a risk of damage which is not
covered by the warranty.
lAll eventual electric installation has to be
carried out by a qualified electrician. The
installation of the hood should be made by a
person with enough knowledge. Installation
made otherwise could lead to loss of perform-
ance and even injuries and /or damage on
properties.
lThe hood cannot be connected to flues of other
appliances that run on energy sources other than
electricity.
Please, keep to the provisions of official direc-
tives regarding the question of fumes discharge.
lWhen the hood is used at the same time of other
appliances that run on energy sources other than
electricity, provision must be made for an
adequate supply of air.
lWhen installed, the hood must be not less than
65 cm. above electric burners or 75 cm. above
gas or mixed-fuel burners. (Fig. 4).
lThe power cord should be drawn so that there is
no risk of damage. Hazard!
At use of cooker hood
lNo food must be cooked flambee underneath the
hood.
lThe use of an unprotected flame is dangerous
for the filters and could cause fires.
lNever leave the deep-frying or frying pan over a
cooker/hob. The oil contained in the pan may
spontaneously ignite through overheating.
lObserve the filter change or cleaning intervals.
Failure to observe these intervals may cause the
risk of fire through fat deposition.
Note! If a fire starts; Switch of the cooker hood
and the heating zone; Cover the fire , Never use
water.
At disposal
lHelp to avoid damages even when the cooker
hood should be disposed. Disconnect the power
plug and cut the power cord at hood inlet. Check
with the authorities for information of how to
proceed for disposal.
Safety instructions

36
a
b
1. Control panel
2. Operating light
3. Grease filters
Standard accessories included:
lScrews for mounting
lNo return valve (mounted on air outlet)
lDrillingscheme
lConnectionring
lDeflector (Recycling version)
Mounting of grease filters
The grease filters are supplied apart inside an
apposite package; follow these instructions for
mounting:
lFit the pins of the filter on the slots of the grease
filter housing, then use the handles of the filter to
lock them.
Dismount the filter the opposite way.
lPull the handles backwards to loosen the filter.
(Fig. 1).
Function
The hood may be used as follows:
- Exhausting version
- Recycling version
Exhausting version
The air is vented outdoors by a 150 mm duct
which must be connected to connecting ring with
no return valve Aon top of the motor package
(Fig. 2).
The hood cannot be connected to
flues of other appliances that run
on energy sources other than electricity.
Please, keep to the provisions of official direc-
tives regarding the question of fumes discharge.
Recycling version
The air is filtered through a carbon filter and
recirculated into the room through the top sides of
the chimney (Fig. 3).
This version is used when there is no exhaust duct
for venting outdoors or when it is impossible to
installone.
Description of the appliance
Fig. 3
Fig. 1
Fig. 2
3
A - Ø 150 mm
12

37
Special accessories
Active carbon filter
When the hood is used in recirculation mode an
active carbon filter should be used.
Order by the retailer
PNC 942 120 182
Installation
Unpacking
Check that the cooker hood has no damages.
Transportation damages should immediately be
reported to the one responsible for the transport
Damages, faults and eventually missing details
should immediately be reported to the seller.
Take care of the packing material so that small
children cannot play with it.
Placement
The hood is to be mounted hanging from the roof.
When installed, the hood must be not less than 65
cm. above electric burners or 75 cm. above gas or
mixed-fuel burners. (Fig. 4).
Electrical connection
The hood has a power cord with moulded plug
with earth connection to be connected to a wall
outlet of 230 V.
The power outlet should be pre-mounted in such a
way that the power cord is invisible when the hood
is fully mounted.
The power cord length is 1,25 m.
As it is then hard to disconnect the
power plug for cleaning and service,
an easy accessible two pole switch
should be fitted. The switch should conform to
regulations with an opening distance between
contacts of not less than 3 mm.
Min
75 cm
Min
65 cm
Fig. 4

38
!
Mounting of hood
First set the telescopic support structure on the
right direction and drill as indicated on the drilling
scheme supplied with the hood.
lThe two sections of the structure are fixed one
each other with 8 screws (fig. 5- "a").
Remove all screws, regulate the lenght of the
structure according the exigencies, fit again the
8 screws.
In order to install the cooker hood at the right
height consider also that the height of the body
of the hood is 290 and that a minimum distance
from hobs must be in any case respected (see
paragraph "Placement").
Choose how to use the hood:
Exhausting version
lFit a Ø 150 mm exhausting pipe or flex tube on
the ceiling sufficiently long to reach the connec-
tion ring above the hood, once the hood will be
fit on place.
Recirculating version
lFit the deflector from one side of the slots of the
upper section of the telescopic supporting
structure (Fig. 6).
Attention!
Slots used must be those perpendicular to the
top fixing points for chimney unit.
lFix the deflector with bracket supplied and 4
screws 2,9x6,5 (Fig. 6).
Fix the deflector also on the other side of the
structure with two other screws same shape.
lFrom the bottom of the telescopic supporting
structure fit the connection ring supplied
(bajonett attachment- turn clockwise and fix
definitively with one screw 2,9x9,5). (Fig. 7)
lFit a section of pipe or flex tube Ø 150 mm
sufficiently long to reach the connection ring of
the hood once this hood will be fit on place
(Fig. 7).
Fig. 7
Fig. 6
c
b
b
b
aa
Fig. 5

39
For both versions:
lFix the supporting structure to the ceiling with
4 screws 5x45 and dowel (b- Fig. 5).
Sides with fixing points "c" for the external
telescopic chimney correspond to the right and
left sides (fig. 5).
The hood is supplied with installation fittings
suitable for most kinds of ceilings, but in any
case a qualified installation technician must
be consulted in order to choose the best
mounting solution.
The power plug must be disconnected
from the mains during the mounting
procedure.
lFix the upper and lower part of the utter
chimney together temporarily with one
screw "a" 2,9x6,5 (Fig. 8).
lFix the upper part of the chimney to the
supporting structure with two screws "b"
2,9x6,5 (Fig. 8).
lFit four auto locking nuts on the four pins
located on the upper side of the hood (Fig. 9).
lFit the glass part on top of the hood
lFit temporarily the hood on the supporting
structure by means of the already mentioned
pins with nuts to be inserted on the proper holes
located on the lower side of the supporting
structure.
Rotate the hood until it stops (a- Fig. 10).
lCompletely thighten the nuts (b- Fig. 10).
lSecure the hood with one screw 4x9,5 (C-
Fig. 10).
lConnect the flex tube on the connection ring.
If a no return valve is used check that it can
open correctly and is not blocked by the flex
tube
lFit the electrical plug to the power outlet.
lRemove the screw that fix the two parts of the
utter chimney together.
lSlide the lower part of the chimney downwards
and insert it on its proper housing on the upper
side of the hood (Fig. 11).
Fig. 9
12
34
b
a
Fig. 10
Fig. 11
C
b
a
Fig. 8

40
Mounting of carbon filter (for
recirculating version)
lRemove the grease filters.
lFix the carbon filter with its two screws
(Fig. 12).
lReplace the grease filters.
Fig. 12

41
Using the hood
Important to know
If the hood is run at the same time as a burner
or fireplace that depend on ambient air (for
example gas, Diesel, coal or wood heaters,
water heaters, etc.) be careful, because the
hood, when it exhausts the air, removes the
ambient air required by the burner or fireplace
for combustion.
Not valid if the cooker hood is used in
recirculation mode.
A– Motor OFF button
B– ON button and motor speed selection button 1 - 2 - 3 - 1 - 2 - . . . .
E – Speed 1 LED
F– Speed 2 LED and grease filter saturation LED (flashes)
C– Speed 3 LED and carbon filter saturation LED (flashes)
D– Intensive speed indicator LED
G– Intensive speed ON switch
H– OFF lamp button
I– ON lamp button
If the hood fails to operate correctly, briefly disconnect it from the mains power
supply for almost 5 sec. by pulling out the plug. Then plug it in again and try once
more before contacting the Technical Assistance Service.
The hood has one variable speed motor. For the
best performance, we recommend using the low
speeds in normal conditions and the high
speeds in particular cases of strong odour and
vapour concentration.
We recommend starting up the hood a few
minutes before cooking and keeping it running
until all the odours have been eliminated.
0123
5 MIN
0I
FC
BEFCD GAHI
Using the hood
Intensive speed button
This speed should be used when the
concentration of cooking fumes or odours is
particularly strong (for example when frying,
cooking fish etc.).
The fast speed will run for about 5 minutes and
then return to the speed previously set automati-
cally (1, 2 or 3), or switch off if no speed was
selected. To turn off the fast speed, before the
end of the 5 minutes, press button Aor button
B.
Control devices for the grease
filter and carbon filter
This hood has a device which warns you when
to clean the grease filter or replace the carbon
filter (in the case of the air recircultion version).
This hood is delivered without a carbon filter.
For this reason the warning signal to replace the
carbon filter is not connected.
If the hood will be used for recirculation of air,
with carbon filter, the warning signal have to be
connected as follows: Press the buttons Band G
at the same time for about 3 seconds. The LED
marked F lights up. When the LED marked C
lights up, the warning signal is connected.
To disconnect the warning signal, press the
buttons
Band Gat the same time for about 3 seconds
until the LED marked Cgoes out.
Grease filter saturation led
The LED marked Fwarns you when the grease
filter needs to be cleaned.
This LED flashes to warn you that the grease
filters must be cleaned.
Generally, these must be cleaned after 40 hours
of use.
Read the maintenance instructions provided for
the grease filters.

42
Correct ventilation
To have the cooker hood working correctly the
windows in the kitchen should be closed. In stead
a window in an adjacent room should be open.
(Fig. 13)
Maintenance
Before performing any maintenance
operation, disconnect the hood from
the electricity.
Grease filter
This serves to hold the grease particles in suspen-
sion.
The metal filter should be washed when the grease
filter saturation LED flashes, normally once per
month.
Wash it with warm soapy water or, if possible, in
the dishwasher (60°C).
Let dry before reinstalling.
Carbon filter
This filter dissolves cooking odours.
It should be changed when the Carbon filter
saturation LED flashes. Ask the technical assist-
ance service or manufacturing company for a new
one.
The carbon filter must never be washed.
To remove the carbon filter, first remove the
grease metal filters and then unscrew the two
screws that holds the grease filter and pull the
filter down (Fig. 12).
Cleaning
To clean the outside of the hood use a cloth mois-
tened with denatured alcohol or neutral liquid
detergents. Never use products containing
abrasives.
Carbon filter saturation led
The LED marked Cindicates carbon filter needs
to be replaced.
This must be done after approximately 160
hours of use.
Read the instructions provided for replacing the
carbon filter.
To restore the LED for the filter
warnings.
After cleaning of the grease filter and exchange
of the carbon filter, press button Afor about 3
seconds until the LED Fstops flashing.
Fig. 13
Attention
Failure to observe the rules for cleaning the appli-
ance and changing and cleaning the filters may
cause fires. Therefore, we recommend observing
these instructions.
Changing the lighting elements
lWith the help of a screwdriver remove the screw
that secures the lens (Fig. 14).
lRemove the lens
lReplace the damaged part with one of equal
rating.
lMount the lens and secure it with the screw.
Fig. 14

43
If the hood does not function
Before you make contact to
service
Check that the power plug is connected to the wall
power outlet and that no fuse is blown. Do not do
any operations that can cause hazard or damage to
the product. If the problem remains contact your
dealer or an approved service company
Remember to save the purchase recite and the
Warranty card (only used in some countries)
Service and spare parts
Service and spare parts you will get via your dealer
or service company.
When you order service or spare parts you should
be ready to give the product number and model
denomination. This information you will find on
the rating label.
Take away the grease filter and you will find the
rating label behind.
Model:
Product number:
Date of purchase:

44
298
298
min. 752 - max. 930
1000
700
Technical data
Model EFC 009 X
Capacity Intensive 609 m3/h x) 225 m3/h
full speed 483 m3/h
low speed 246 m3/h
Dimension Height 752 - 930 mm
Width 1000 mm
Depth 700 mm
Light (energy saving lamp) 2 x PL 9 W
Grease filter 2 pcs
Mains Voltage 230 V
Power rating total 205 W
x) Valid when the hood is used with carbon filter (recirculation)

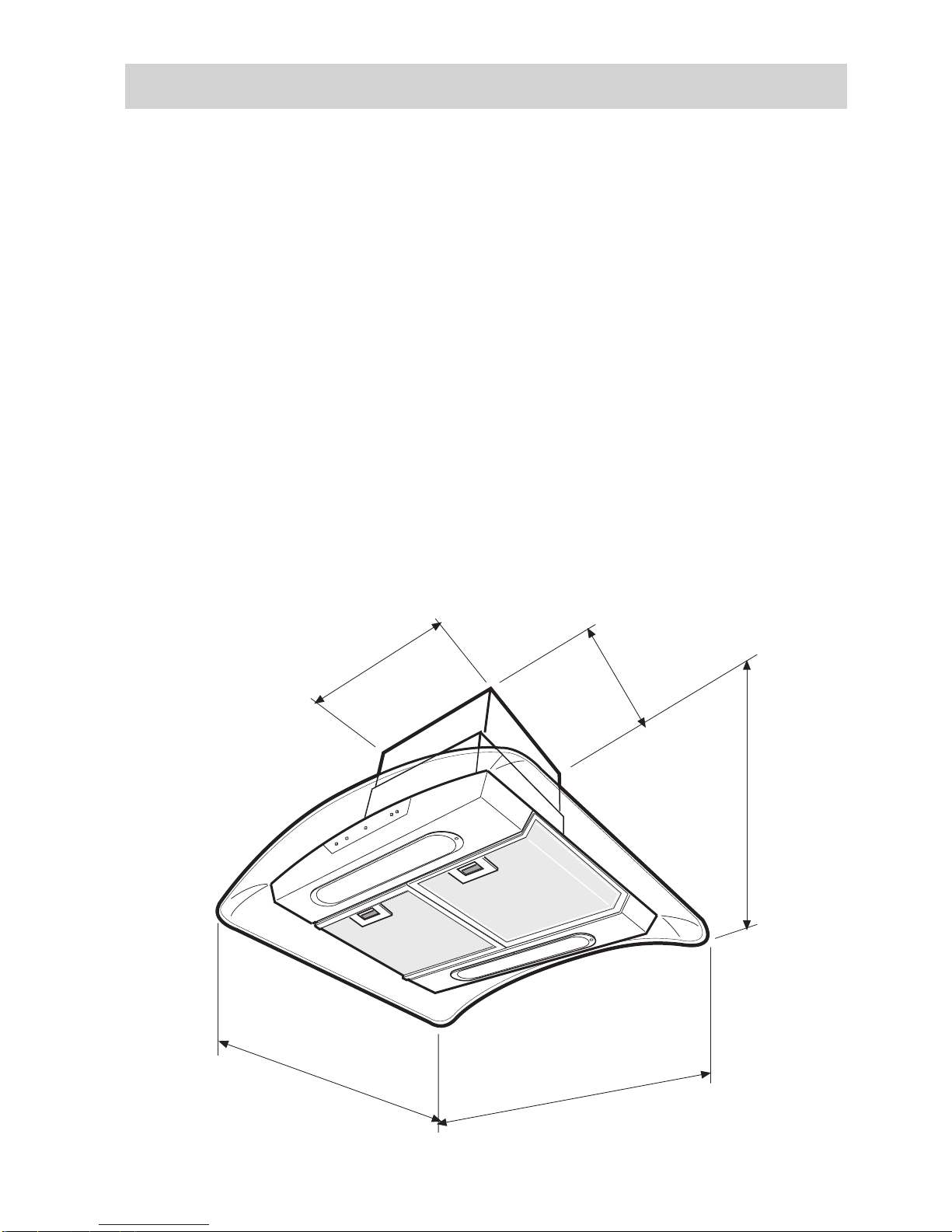

Dimensions

LI1O4A Ed.12/00
