Electrolux EFC90245X User manual

USER MANUAL
EFC90245X

We were thinking of you
when we made this product

3
Thank you for buying a Electrolux product.
To enable you to use your appliance effectively and safely, please read this instruction book carefully before using
the appliance and retain for future reference. If you require guidance in the use of the appliance or require further in-
formation on Electrolux Products, please contact our Customer Care Department. For general enquiries concerning
your Electrolux appliance or for further information, visit our website at http://www.electrolux.co.uk
Customer Services Department
Major Appliances
Electrolux
Addington Way
Luton
Bedfordshire
LU4 9QQ Tel: [phone]*
*Calls to this number may be recorded for training purposes.
To register ownership, please ensure you complete and return the guarantee card supplied with
the appliance.
For the User
Important Safety Information
Your Appliance
Operating Instructions
Cooker Hood Controls
To Operate
Recirculation
Extraction
Maintenance and Cleaning
External Cleaning
Metal Grease Filters
Charcoal Filters
To Remove/Replace Charcoal Filter
Changing the Halogen Light
Something Not Working
Service and Spare Parts
Guarantee Conditions
For the Installer
Technical Information
Electrical Connections
Electrical Requirements
Electrical Connection
Installing the Cooker Hood
Installation Requirements
Unpacking

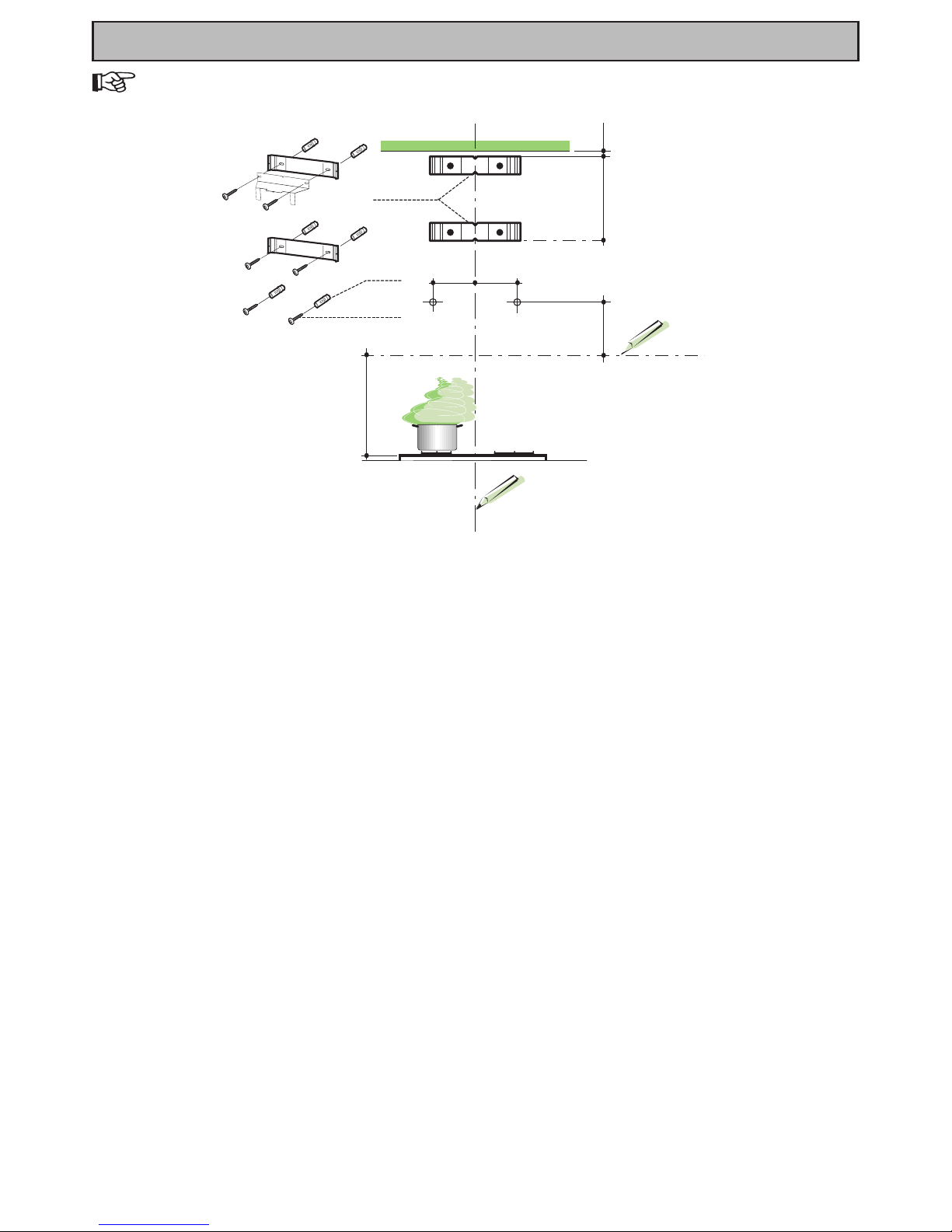

Fitting the Wall Brackets
Fitting the Canopy Hood
Venting
Recirculation

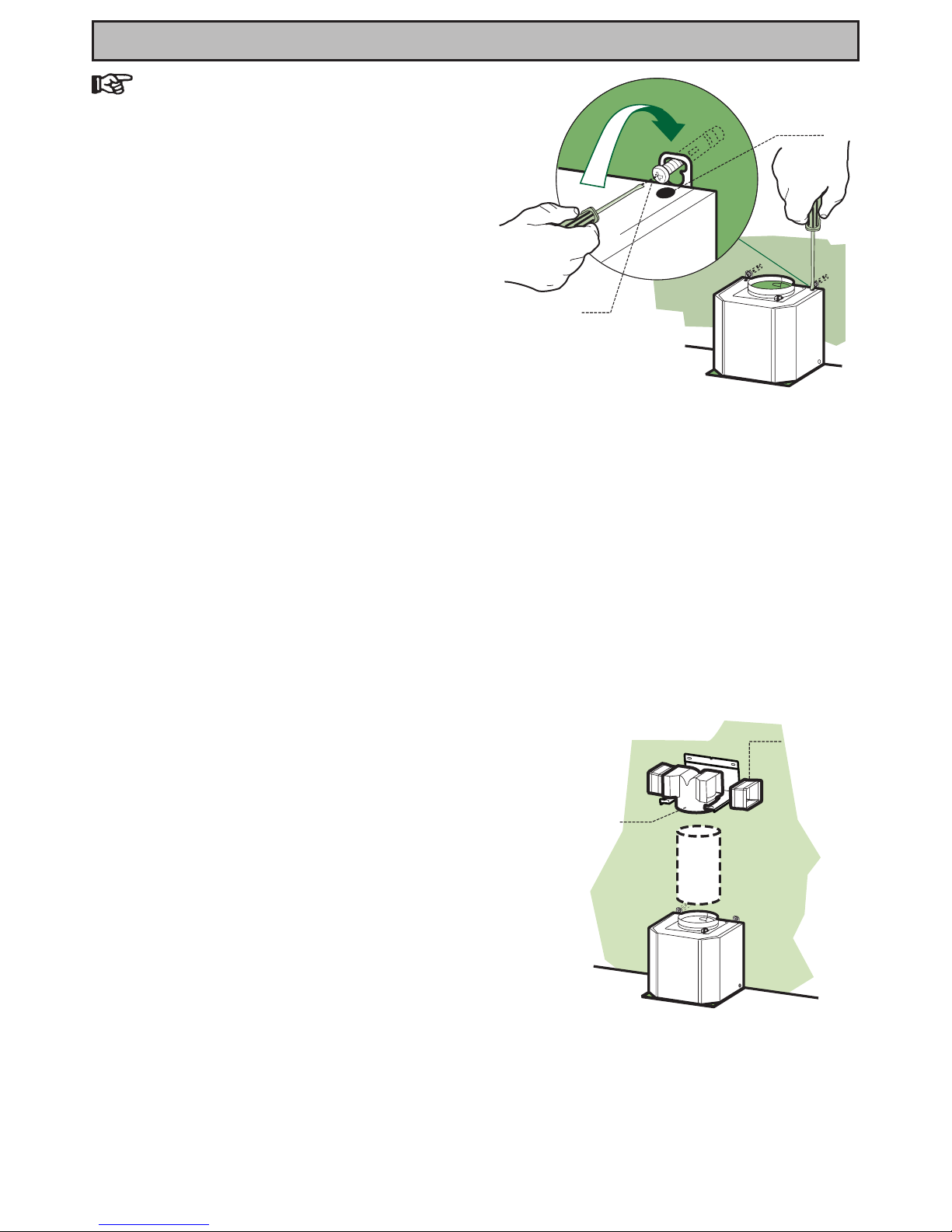

Fitting the Chimney Stack
Guide to use the instruction book
The following Symbols will be found in the text to guide you through the instruction book
Safety instructions Step by step instructions

4
IMPORTANT SAFETY INFORMATION
These warnings are provided in the interests of your safety. Ensure that you understand them all before
installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the
meanings of these warnings contact the Customer Care Department.
Installation
• Any installation work must be undertaken by a quali-
ed electrician or a competent person.
• This hood must be installed in accordance with the
installation instructions and all measurements must
be adhered to.
• If the cooker hood is installed for use above a gas
appliance then the provision for ventilation must be
in accordance with the Gas Safety Codes of Practice
BS.6172, BS.5440 and BS.6891 (Natural Gas) and
BS.5482 (LP Gas) 1994, the Gas Safety (Installation
& Use) Regulations, the Building Regulations issued
by the Department of the Environment, the Building
standards (Scotland) (Consolidated) Regulations
issued by the Scottish Development Department.
• The fan motor of this cooker hood incorporates a
cut-out device which will operate if the cooker hood
is installed below the minimum height recommended
under section ‘Clearance Height’, or if the motor be-
comes overheated. If the cut-out device is activated,
switch off the fan motor and allow the cooker hood to
cool. The cut-out device will reset itself when the fan
motor has cooled signicantly.
• It is dangerous to alter the specications or modify
this product in any way.
• When installed between adjoining wall cabinets the
wall cabinets must not overhang the hob.
• If the room where the hood is to be used contains
a fuel burning appliance such as a central heating
boiler then its ue must be of the room sealed or
balanced ue type.
• If other types of ue or appliances are tted ensure
that there is an adequate supply of air to the room.
• The ducting system for this appliance must not be
connected to any existing ventilation system which is
being used for any other purpose.
• Do not install above a cooker with a high level grill.
Child Safety
• This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the appliance.
During Use
• This product is for domestic use only.
• Never leave frying pans unattended during use as
over-heated fats and oils might catch re.
• Never do ambé cooking under this cooker hood.
• Do not leave naked ames under the hood.
• This cooker hood is designed to extract unpleasant
odours from the kitchen, it will not extract steam.
Maintenance and Service
• This appliance can be a hazard if the synthetic paper
and charcoal lters are not replaced as recommen-
ded.
• Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or more
serious malfunction. Refer to your local Electrolux
Service Force Centre. Always insist on genuine
spare parts.

5
YOUR APPLIANCE
OPERATING INSTRUCTIONS
This cooker hood is designed to extract
unpleasant odours from the kitchen, it will not
extract steam.
Cooker Hood Controls
The cooker hood functions are controlled by four
push button switches located centrally in the control
fascia.
L Turns the worktop lighting On and Off
SMains light - illumination indicates fan motor is
running
V1 Turns the fan motor On and Off at low speed,
suitable for one pan or when simmering.
V2 Medium fan speed, suitable for use when
cooking with a number of pots and pans.
V3 Maximum fan speed, suitable for cooking foods
with strong odours.

  



 





















6
To Operate
Select the required fan speed and light if required.
Recirculation
In the recirculation mode the contaminated air enters
the cooker hood through the grease lters. The air is
cleaned by passing through the charcoal lters
before being passed back into the kitchen through
the grilles in either side of the chimney stack.
Extraction
In the extraction mode the contaminated air enters
the cooker hood passing through the grease lters
and is passed out through the ducting into the
atmosphere.
To obtain the best performance when cooking it is
advisable to switch the cooker hood on for a few
minutes before you start cooking and leave it
running for about 15 minutes after nishing.
When used in the ducting mode the charcoal
lters are not required.
Never do ambé cooking under this cooker
hood.
Never leave frying pans unattended during use,
as over-heated fats and oils can catch re.
Do not leave naked ames under the cooker
hood.
Ensure heating areas on your hob are covered
with pots and pans when using the hob and
cooker hood simultaneously.

7
Before carrying out any maintenance or
cleaning isolate the cooker hood from the
mains supply.
The cooker hood must be kept clean, as
a build up of grease or fat can be a re
hazard.
External Cleaning
Wipe the cooker hood frequently with warm soapy
water using a mild detergent.
Never use scouring pads or abrasive
cleaners.
Never use excessive amounts of water
when cleaning particularly around the
control panel.
Metal Grease Filters
The grease lters absorb grease and dust during
cooking to help keep the cooker hood clean
inside.
Cleaning
The lters must be washed once every
month, using a normal household
detergent; their compact dimension
also enables them to be washed in a
dishwasher. Allow to dry completely
before replacing.
Removing and replacing the lters
Remove the lters one at a time, press
against the metal actuator to release
the spring catch as illustrated. When
replacing, ensure that the handles face
outwards.
Charcoal Filter
In the recirculation mode the charcoal lter
absorbs smells and unwanted odours.
The charcoal lter cannot be cleaned or
regenerated, and must be replaced approximately
every 4 months, or more frequently if the hood is
subjected to heavy usage.
Replacing the charcoal lter
First remove the metal grease lters.
Remove the saturated activated charcoal
lter by releasing the xing hooks as
illustrated.
MAINTENANCE AND CLEANING

8
Position the new charcoal lter in the
position marked and while holding
the lter replace the xing hooks as
illustrated.
This appliance can be a possible re
hazard if the grease and charcoal
lters are not cleaned and replaced as
recommended.

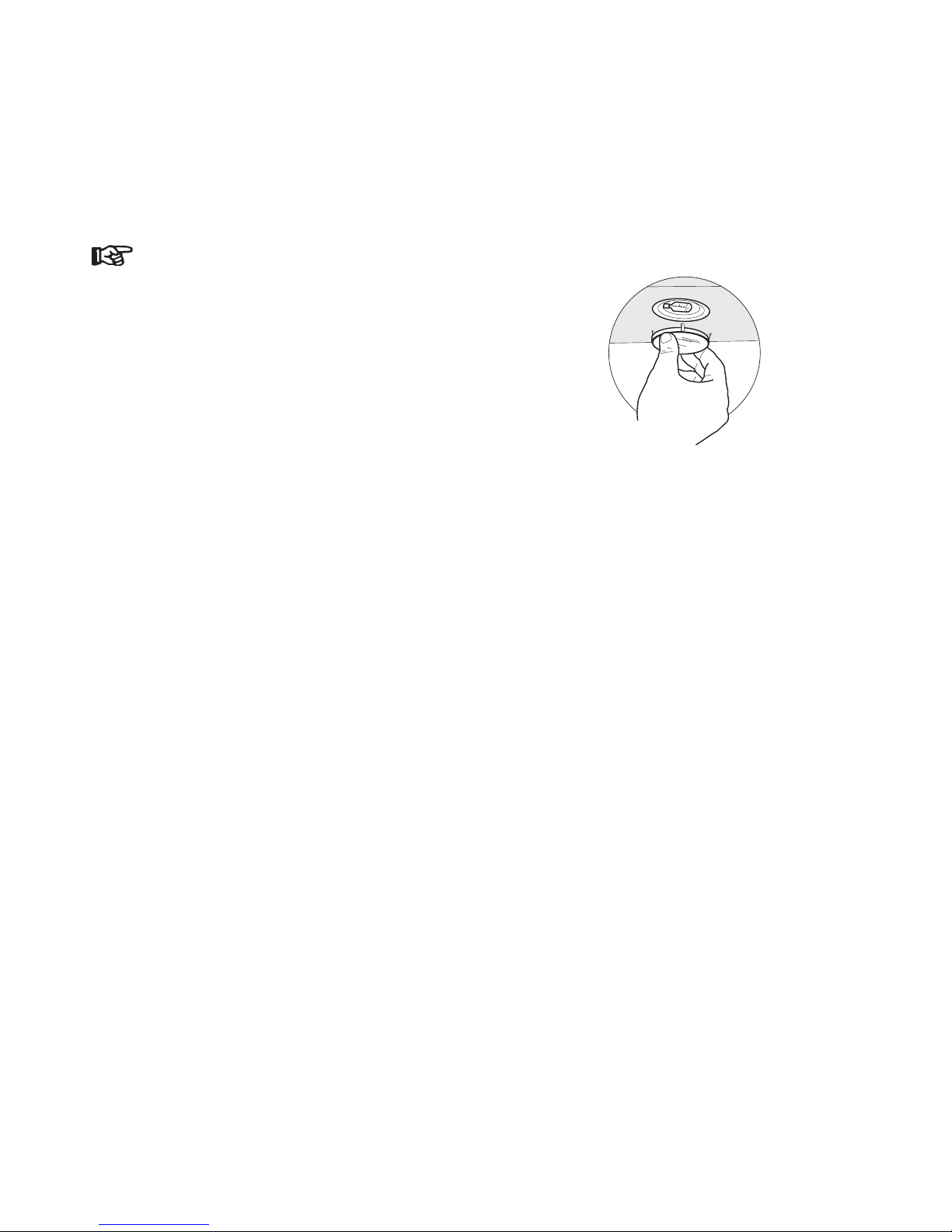

Changing the Light Bulb
20 W halogen light
Remove the snap-on lamp cover by
levering it from under the metal ring,
supporting it with one hand.
Remove the halogen lamp from the lamp
holder by pulling gently.
Replace the lamp with a new one of the
same type, making sure that you insert
the two pins properly into the housings on
the lamp holder.
Replace the snap-on lamp cover.
Replacement lters and light bulbs can be
obtained from your local Service Force Centre.

9
SOMETHING NOT WORKING
SERVICE AND SPARE PARTS
If, having followed these instructions carefully, your cooker hood fails to work properly please carry out
the following checks.
Symptom
The cooker hood will not start
The cooker hood is not working effectively
The cooker hood has switched off during opera-
tion
If after all these checks, the fault persists,
contact your local Service Force Centre,
quoting the model and serial number.
Please note that it will be necessary to
provide proof of purchase for any
in-guarantee service calls.
Solution
• Check the hood is connected to the electricity
supply.
• Make sure the switch is in the ‘ON’ position.
• The fan speed is set high enough for the task
• The grease lter is clean.
• The kitchen is adequately vented to allow the
entry of fresh air.
• If set up for recirculation, check that the charcoal
lter is still effective.
• If set up for extraction, check that the ducting and
outlets are not blocked.
• The safety cut-out device has been tripped.
• Tum off the hob and then wait for the device to
reset.
In-guarantee customers should ensure
that the above checks have been made as
the engineer will make a charge if the fault
is not a mechanical or electrical
breakdown.
If you require an engineer or spare parts contact your
local Service Force Centre by telephoning:
08705 929929
Your telephone call will be routed to your local
Service Force Centre. For the address of your
local Service Force Centre and further information
about Service Force, please visit the website at
www.serviceforce.co.uk.
For general assistance with your appliance or
for further information on Electrolux products
please contact our Customer Care Department.
Customer Services Department
Major Appliances
Electrolux
Addington Way
Luton
Bedfordshire
LU4 9QQ
Tel: [phone]*
* calls to this number may be recorded for training
purposes.

10
GUARANTEE CONDITIONS
We Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux built-in appliance or any
part thereof is proved to be defective by reason only of faulty workmanship or materials, the company will, at our
option repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that:
• The appliance has been correctly installed and used only on the electrical supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
operating and maintenance instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
• All service work under this guarantee must be undertaken by Electrolux Service Force Centre.
• Any appliance or defective part replaced shall become the property of this company.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours
in which case a premium will be charged.
EXCLUSIONS
This Guarantee does not cover:
• Damage or calls resulting from transportation, improper use or neglect, the replacement of any lilght bulbs or
removable parts of glass or plastic.
• Costs incurred for calls to put right appliances improperly installed or calls to appliances outside the United
Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are the subject of rental agree-
ments.
• Products of Electrolux manufacture which are not marked by Electrolux.
This guarantee is in addition to your statutory and legal rights.
ELECTROLUX EUROPEAN GUARANTEE
If you should move to another country within Europe then your guarantee moves with you to your new home subject
to the following qualications:
• The guarantee starts from the date you rst purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of
use for this brand or range of products.
• This guarantee relates to you and cannot be transferred to another user.
• Your new home is within the European Community (EC) or European Free Trade Area.
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal
household.
Before you move please contact your nearest Customer Care Centre, listed below, to give them details of
your new home. They will then ensure that the local Service Organisation is aware of your move and able to
look after you and your appliances.
France Senlis [phone]
Germany Nurnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Luton [phone]

11
INSTALLATION INSTRUCTIONS
It is dangerous to alter the specications or attempt to modify this product in any way.
Technical Information
DIMENSIONS HEIGHT OF CANOPY: 70 mm
HEIGHT OF CHIMNEY: (UPPER SECTION) 465 mm
(LOWER SECTION) 740 mm
WIDTH OF CANOPY : 598-898 mm
DEPTH OF CANOPY: 490 mm
ELECTRICAL SUPPLY: VOLTAGE: 220-240 V 50Hz
POWER CONSUMPTION: 290W
FAN MOTOR: 250W
LAMPS : (2 x 20 W) 40W
Note: CE Marking certies that this appliance complies with the requirements
laid down in EEC directive 89:336. (Electromagnetic compatibility) and
subsequent modications and Low Voltage directive 72/23/E.
ELECTRICAL CONNECTIONS
Electrical Requirements
Any permanent electrical installation must
comply with the latest I.E.E. Regulations and
local Electricity Board regulations. For your own
safety this should be undertaken by a qualied
electrician e.g. your local Electricity Board, or a
contractor who is on the roll of the National
Inspection Council for Electrical Installation
Contracting (NICEIC).
Electrical Connection
Before connecting to the mains supply ensure
that the mains voltage corresponds to the
voltage on the rating plate inside the cooker
hood.
This appliance is tted with a 3 core mains cable and
must be permanently connected to the electricity supply
via a double-pole switch having 3mm minimum contact
gap on each pole. A Switched Fuse Connection Unit to
BS1363 Part 4, tted with a 3 Amp fuse, is a recom-
mended mains supply connection accessory to ensure
compliance with the Safety Requirements applicable to
xed wiring instructions.
This appliance conforms to BS 800: 1988 and EEC
Directive No. 78 308 regarding suppression of radio and
television interference.
This appliance must be earthed
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city ofce,
your household waste disposal service or the shop where you purchased the product.

12
INSTALLING THE COOKER HOOD
Please ensure that when the appliance is installed
it is easily accessible to an engineer in the event of
a breakdown.
All installations must comply with the local
authorities requirements for the discharge of
exhaust air.
Incorrect installation may affect the safety of this
cooker hood.
Installation Requirements
Before installation check the wall to which the
cooker hood is to be tted for electric cables,
water pipes or gas.
This cooker hood is designed to be xed to any vertical
surface over a cooking area, and can be used in the
extraction (ducted to the outside) or recirculation mode.
The installation work must be undertaken by a qualied
and competent person.
The manufacturer disclaims any responsibility for
damage due to incorrect installation of the cooker hood
or if the hood is not installed in compliance with relevant
regulations controlling this type of installation.
Unpacking
Before unpacking the cooker hood position
the carton with the arrows pointing upwards as
illustrated on the carton.
The cooker hood is made up of the following
components:
Ref Qty Product Components
11 Hood body, complete with controls,
lighting, fan and lters.
21 Telescopic Chimney comprising:
2.1 1 Upper section
2.2 1 Lower section
32 Extensions metal
91 ø150-120 Ducting spigot
10 1 Dumper ø150
14.1 2 Air outlet Connection Extension
15 1 Air outlet connector
Ref Qty Installation Components
7.2.1 2 Upper chimney Section Fixing
Brackets
7.3 1 Air Outlet Connection Support
12a 4 Screws for extencion
12c 6 Screws 4,9 x 9,5
Ref Qty Documentation
1 Instruction booklet





  





�
�


13
Fitting the Wall Brackets
Wall marking:
• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area
in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob.
• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning the centre
(notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the rst bracket (X = height of the upper chimney
section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point as indicated at 116 mm from the vertical reference line and 310 mm above the horizontal
reference line.
• Repeat this operation on the other side.
• Drill ø 8 mm holes at all the centre points marked.
• Insert the wall plugs (not supplied) in the holes.
• Fix the lower bracket 7.2.1 using the two screws (not supplied).
• Fix the upper bracket 7.2.1 and the air outlet connection support 7.3 together using the two screws (not sup-
plied).
• Insert the two screws (not supplied) supplied in the hood body xing holes, leaving a gap of 5-6 mm between
the wall and the head of the screw.
Note: If the hood is to be installed onto a hollow construction or plaster or partition board wall then special
xing screws will be required (not supplied).
INSTALLING THE COOKER HOOD


 






14
Fitting the Hood Body
Before starting to x the hood body,
tighten the two screws Vr located on the
top of the hood body.
Hook the hood body onto the two
4.2x44.4mm screws item 12a.
Fully tighten the screws item 12a.
Using a screw driver and spirit level,
adjust the screws item Vr until the hood
body is level.
Extraction
The cooker hood is more effective when used in
the extraction mode (ducted to the outside).
Venting kits may be purchased through your
retailer or DIY store, and must be ducted to an
outside vent of Ø125mm (5”) or Ø150mm (6”).
The ducting used must be manufactured from
re retardent material conforming to the relevant
British Standard or DIN 4102-B1.
When the cooker hood is ducted to the outside the
charcoal lter must be removed.
Recirculation
The cooker hood is supplied specied for use
in the recirculation mode, with the charcoal lter
tted.
In the recirculation mode contaminated air is
passed through the charcoal lter to be puried
and recirculated into the kitchen through the grille
outlets on either side of the chimney.
To assemble the recirculation duct, place the
recirculation outlet connection item 15 into the
support item 7.3.
Insert the extension ducts item 14.1 into either
side of the recirculation outlet item 15 ensuring
the connections are vertically and horizontally
aligned with the outlets in the chimney.
Connect the recirculation oulet item 15 to the
outlet on top of the hood body using either a piece
of Ø125mm or Ø150mm exible or rigid pipe.
Rigid pipe is strongly recommended and should
be used where possible as this will ensure the
best performance while lowering noise.





INSTALLING THE COOKER HOOD

15
Extraction
The charcoal lter is not required in this mode
and should be removed.
Ducting
The ducting used must be Ø150mm or Ø120mm
in diameter.
If possible duct through the wall immediately
above the hood body.
For the best performance use the shortest
possible duct run and the minimum number of
bends.
Where exible ducting is tted it should not be
turned through very tight bends as this may
impair the performance of the hood.
It is recommenmded a maximum length of 3
metres, to be installed, to be reduced 1 metre for
each 90obend installed in the ducting run.
If the distance is greater than 3 metres the
efcency of the hood could be impaired.
The diameter of the ducting spigot on the top of
the hood body item 1 is Ø150mm (6”).
When using Ø120mm ducting it will be necessary
to install the ducting adapter item 9 to the the
Dumper 10 (supplied) Ø150mm outlet on the top
of the hood body.
If the room where the cooker hood is to
be used contains a fuel burning appliance
such as a central heating boiler, then
its ue must be of the room sealed or
balanced ue type.
If other types of ue or appliances are
tted ensure that there is an adequate
supply of air to the room.
The cooker ducting (extraction mode)
must never be connected to central
heating ues, radiators or water heaters
etc.
Electrical Connection and Working
Test
Before tting the chimney to the canopy make the
electrical connection as described in the section
titled “ELECTRICAL CONNECTION”.
When the electrical connection has been made,
test the three speed fan and worktop illumination.





INSTALLING THE COOKER HOOD

16
Fitting the Chimney Stack
The chimney consists of two sections.
The lower chimney measures 740mm and the
upper chimney (with the recirculation grilles
on either side) measures 465mm. The overall
installed measurement is min. 870 - max
1200mm.
UPPER CHIMNEY
To t the upper chimney section item 2.1 expand
the chimney slightly to allow it to be tted over the
brackets item 7.2.1 as illustrated.
When installed in the recirculation mode ensure
that the recirculation ducting outlet extension
pieces item 14.1 align correctly with the outlet
grilles in the chimney.
Secure the sides of the chimney to the brackets
using the four screws item 12c (2.9x9.5mm)
provided, as illustrated.
LOWER CHIMNEY
To t the lower chimney section item 2.2 expand
the chimney slightly to allow it to be tted over the
upper chimney item 2.1 and the hood body item 1
as illustrated.
Secure the sides of the chimney to the hood
body using the two screws item 12c (2.9x9.5mm)
provided, as illustrated.







INSTALLING THE COOKER HOOD


For general enquiries concerning your Electrolux appliance
or for further information on Electrolux products, please
       






  




       









Please refer to your guarantee card for the guarantee
conditions. Replacement cards are available on request
from the above address.
Customer Services Department
Major Appliances
Electrolux
Addington Way
Luton
Bedfordshire
LU4 9QQ
Tel: [phone] *

www.electrolux.com
436005302_01 - 110125
