Electrolux EFI 60011 User manual

User Manual
EFI 60011
EFI 60012
EFI 60013
UK

2
Contents UK
Before installing or using this appliance please read this instruction book carefully paying particular attention to
the safety warnings on the following page.
If you have any queries regarding this appliance please contact Customer Care for advice.
Please keep this instruction book for future reference and pass it on to any future owner of the appliance.
Safety warnings..................................................................................................................................................... 3
For the installer ........................................................................................................................................................3
For the user .............................................................................................................................................................. 4
Description of the Appliance .............................................................................................................................. 5
Extraction mode ....................................................................................................................................................... 5
Recirculation mode ..................................................................................................................................................5
Control Panel ........................................................................................................................................................ 6
Correct ventilation ....................................................................................................................................................6
Maintenance and Care ........................................................................................................................................ 7
Cleaning the hood ....................................................................................................................................................7
Grease filter .............................................................................................................................................................7
Charcoal filter ..........................................................................................................................................................8
Changing the light bulbs ...........................................................................................................................................8
Special accessories ..................................................................................................................................................9
What to do if ............................................................................................................................................................ 9
Technical assistance service .................................................................................................................................. 10
Service and Spare Parts ........................................................................................................................................ 10
Guarantee Conditions ............................................................................................................................................. 11
Technical Specifications ......................................................................................................................................... 12
Installation .......................................................................................................................................................... 12
Unpacking .............................................................................................................................................................. 12
Fitting ..................................................................................................................................................................... 12
Electrical connection .............................................................................................................................................. 12
Mounting accessories included .............................................................................................................................. 13
Before beginning installation .................................................................................................................................. 13
Fixing a furniture door to the visor ......................................................................................................................... 14
Fixing the hood ....................................................................................................................................................... 15

3
Safety warnings
For the installer
• When used as an extractor unit, the hood must
be fitted with a hose having preferably the same
diameter as the outlet hole.
Attention: The hose is not supplied and must
be purchased separately.
• When installing the hood, make sure you
observe the following minimum distance from
the top edge of the cooking hob/ring surfaces:
electric cookers 500 mm
gas cookers 700 mm
If the instructions for installation for the gas hob
specify a greater distance, this must be adhered
to.
• The national Standard on fuel-burning systems
specifies a maximum depression of 0.04 mbar in
such rooms.
• The air outlet must not be connected to chimney
flues or combustion gas ducts. The air outlet
must under no circumstances be connected to
ventilation ducts for rooms in which fuel-burning
appliances are installed.
• The air outlet installation must comply with the
regulations laid down by the relevant local
authorities.
• When the unit is used in extraction mode, a
sufficiently large ventilation hole must be
provided, with dimensions that are approxi-
mately the same as the outlet hole.
• National and regional building regulations
impose a number of restrictions on using hoods
and fuel-burning appliances connected to a
chimney, such as coal or oil room-heaters and
gas fires, in the same room.
• Hoods can only be used safely with appliances
connected to a chimney if the room and/or flat
(air/environment combination) is ventilated from
outside using a suitable ventilation hole approxi-
mately 500-600 cm2 large to avoid the
possibility of a depression being created during
operation of the hood.
• If you have any doubts, contact the relevant
controlling authority or building inspector’s
office.
• Since the rule for rooms with fuel burning
appliances is “outlet hole of the same size as the
ventilation hole”, a hole of 500-600 cm2, which
is to say a larger hole, could reduce the perfor-
mance of the extractor hood.
• If the hood is used in its recirculation mode, it
will operate simply and safely in the above
conditions without the need for any of the
aforementioned measures.
• When the hood is used in its extraction mode,
the following rules must be followed to obtain
optimal operation:
- short and straight outlet hose
- keep bends in outlet hose to a minimum
- never install the hoses with an acute angle,
they must always follow a gentle curve.
- keep the hose as large as possible (preferably
the same diameter as the outlet hole).
- the length should be no more than:
3 metres with one 90° bend
2 metres with two 90° bends
Bends of more than 90° will reduce the
efficiency of the hood and reduce the airflow.
• Failure to observe these basic instructions will
drastically reduce the performance and increase
the noise levels of the extractor hood.

4
For the user
• The cooker hood is designed to extract
unpleasant odours from the kitchen, it will not
extract steam.
• Always cover lighted elements, to prevent
excess heat from damaging the appliance. In
the case of oil, gas and coal fired cookers it is
essential to avoid open flames.
• Also, when frying, keep the deep frying pan on
the cooker top/cooker under careful control.
• The hot oil in the frying pan might ignite due to
overheating.
• The risk of self-ignition increases when the oil
being used is dirty.
• It is extremely important to note that
overheating can cause a fire.
•Never carry out any flambé cooking under
the hood.
•Always disconnect the unit from the power
supply before carrying out any work on the
hood, including replacing the light bulb
(take the cartridge fuse out of the fuse holder or
switch off the automatic circuit breaker).
•It is very important to clean the hood and
replace the filter at the recommended
intervals. Failure to do so could cause
grease deposits to build up, resulting in a
fire hazard.
• The appliance is not intended for use by young
children or infirm persons without supervision.
• Older children must be supervised if using the
appliance.
• Young children should be supervised to ensure
that they do not play with the appliance.
• WARNING - Ensure that the appliance is
switched off before replacing the lamp to avoid
the possibility of electric shock.
This appliance is marked according to the
European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly,
you will help prevent potential negative
consequences for the environment and human
health, which could otherwise be caused by
inappropriate waste handling of this product.
The symbol on the product, or on the
documents accompanying the product, indicates
that this appliance may not be treated as household
waste. Instead it shall be handed over to the
applicable collection point for the recycling of
electrical and electronic equipment.
Disposal must be carried out in accordance with
local environmental regulations for waste disposal.
For more detailed information about treatment,
recovery and recycling of this product, please
contact your local city office, your household
waste disposal service or the shop where you
purchased the product.

5
Coupling
ring
Hose
To the outside
Front view
Description of the Appliance
• The cooker hood is designed to extract
unpleasant odours from the kitchen, it will
not extract steam.
• The hood is supplied as an extractor unit and
can also be used with a recirculation mode by
fitting a charcoal filter.
Attention!
EFI 60011 - EFI 60012: one charcoal filter
EFI 60013: two charcoal filters
Extraction mode
• In this mode fumes are extracted to the outside
via a hose connected to the coupling ring.
Fig. 1
Note: The coupling ring may be placed on the
top or on the rear exhaust according to the
needs.
• In order to obtain the best performance the hose
should have a diameter equal to the outlet hole.
Recirculation mode
• The air is filtered through a charcoal filter and
returned to the kitchen. Fig. 2
Attention!
EFI 60011 - EFI 60012: one charcoal filter
EFI 60013: two charcoal filters
Fig. 1
Rear
Top
Rear
Top
Rear view
Fig. 2

6
Control Panel
• Best results are obtained by using a low speed
for normal conditions and a high speed when
odours are more concentrated.
Turn the hood on a few minutes before you start
cooking.
The hood should be left on after cooking for
about 15 minutes or until all the odours have
disappeared.
The control switches are located on the unit’s
front panel:
• the light switch switches the hood lamp on and
off
• the motor switch switches the motor on and
off, enabling you to select one of the three
different speeds.
The hood is also equipped with a micro-switch
which can be found under the lower runner of the
visor on the right hand side.
With this micro-switch, the appliance may be
automatically switched on and off by opening and
closing the pull-out panel, but only if the fan speed
has already been set and the light switch is turned
to “I”.
Correct ventilation
If the cooker hood is to work correctly there must
be an under pressure in the kitchen. It is important
to keep the kitchen windows closed and have a
window in an adjacent room open.
Motor switch
Light switch
Fig. 3

7
Cleaning the hood
• Clean the outside of the hood using a damp
cloth and a solution of water and mild washing
up liquid.
• Never use corrosive, abrasive or flammable
cleaning products or products containing bleach.
• Never insert pointed objects in the motor’s
protective grid.
• Only ever clean the switch panel and filter grill
using a damp cloth and mild washing up liquid.
• It is extremely important to clean the unit and
change the filters at the recommended intervals.
Failure to do so will cause grease deposits to
build up that could constitute a fire hazard.

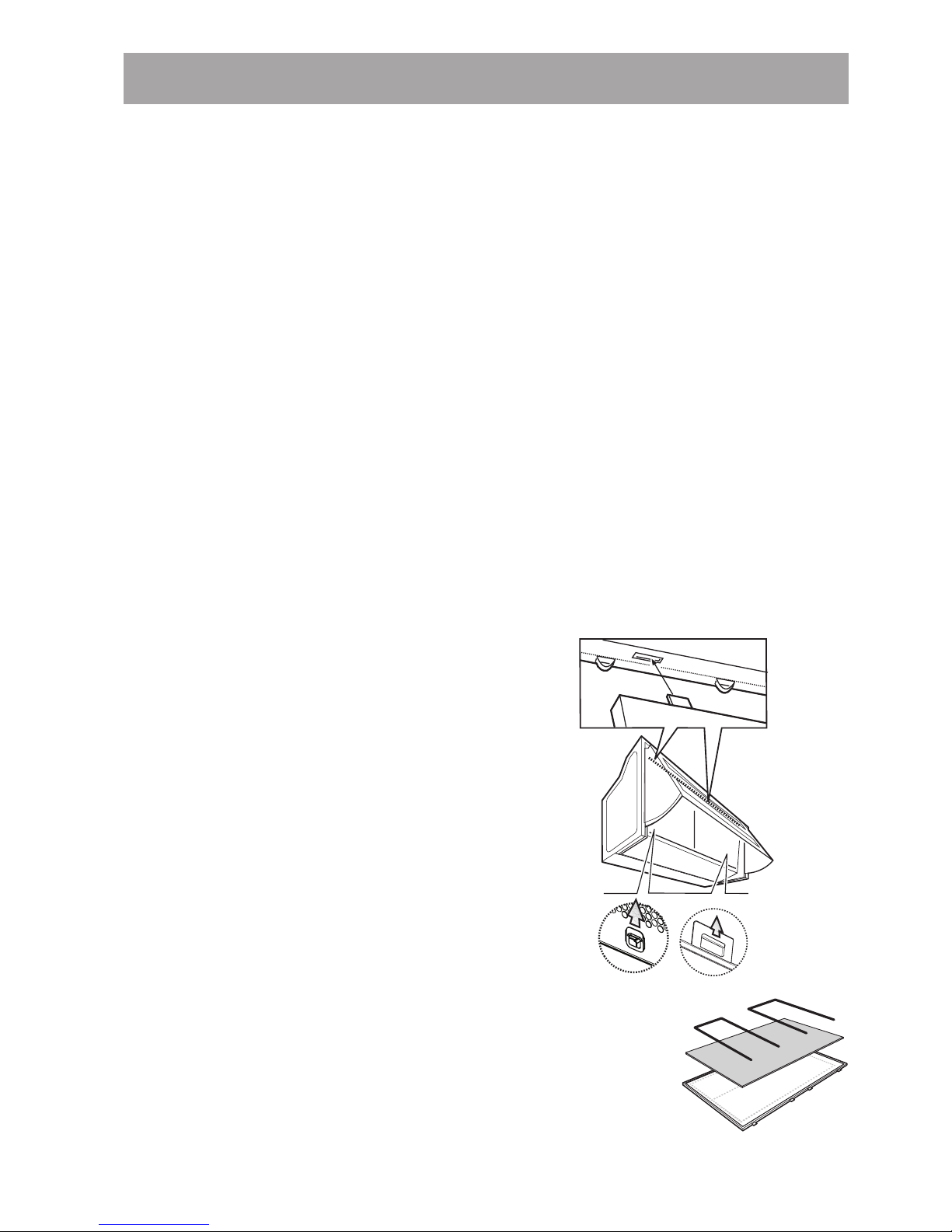

Grease filter
• The purpose of the grease filters is to absorb
grease particles which form during cooking and
it must always be used, either in the external
extraction or internal re-circulation function.
•EFI 60011 only:
The synthetic filter is very thin (approx. 1 mm)
and positioned on the inside of its related
support grill.
The filter should be changed once a month.
The grill should be cleaned with luke warm
water and non-abrasive detergent when you
change the filter.
The grease filter can be ordered from your local
Service Force Centre.
•EFI 60012 - EFI 60013 only:
The metal grease filters must be removed and
washed, either by hand or in the dishwasher,
every four weeks.
Hand washing
Soak grease filters for about one hour in hot
water with a grease-loosening cleaner, then
rinse off thoroughly with hot water. Repeat the
process if necessary. Refit the grease filters
when they are dry.
Dishwasher
Place grease filters in the dishwasher. Select
most powerful washing programme and highest
temperature, at least 65°C. Repeat the process.
Refit the grease filters when they are dry.
When washing the metal grease filter in the
dishwasher a slight discolouration of the filter
can occur, this does not have any impact on its
performance.
•The hood must always be disconnected from the electricity supply before beginning any
maintenance work.
Maintenance and Care
EFI 60011 EFI 60012
EFI 60013
Fig. 4
Fig. 5 - EFI 60011 only
• Opening the grill (EFI 60011) or the metal
grease filter (EFI 60012 - EFI 60013):
Move the handles upwards, then extract the
grill/filter outwards. Fig. 4.
To refit the grill (EFI 60011) or the metal
grease filter (EFI 60012 - EFI 60013): fit
above on the appropriate supports, and fixed in
the lower part with the handles. Fig. 4
• Removing the synthetic filter:
Remove the stops to take out the filter. Fig. 5.
• Clean the inner housing using a hand hot
solution only(never use caustic detergents,
abrasive powders or brushes).
Warning
• Failure to observe the instructions on cleaning
the unit and changing the filters will cause a fire
hazard. You are therefore strongly
recommended to follow these instructions.
• The manufacturer declines all responsibility for
any damage to the motor or any fire damage
linked to inappropriate maintenance or failure to
observe the above safety recommendations.

8
Charcoal filter
• The charcoal filter should only be used if you
want to use the hood in recirculation mode.
• The charcoal filter cannot be washed nor
regenerated.
The charcoal filter should be replaced every 4
months under normal use.
Replacement filters are available from your
local Service Force Centre.
Fitting - Fig. 6
Remove the grill or the metal grease filter.
Place the charcoal filter to cover the grill that
protects the extraction motor so that the slots on
the filter correspond to the pins on the sides of
the motor protection grill.
Turn the filter clockwise in order to lock the
filter into position.
Remount the grid or the metal grease filter.
•To remove proceed in the reverse order.
• Always specify the hood model code number
and serial number when ordering replacement
filters. This information is shown on the rating
plate located on the inside of the unit.
• The charcoal filter can be ordered from your
local Service Force Centre.
Changing the light bulbs
•Disconnect the cooker hood from the
mains supply.
• Remove the grill or the metal grease filter.
• Replace the old bulb with a new one of the
same type.
• Remount the grid or the metal grease filter.
• If the light does not come on, make sure the
bulb has been inserted in correctly before
contacting your local Service Force Centre.
Fig. 6 - EFI 60011 - EFI 60012
EFI 60013 = 2 charcoal filters

9
What to do if
If your appliance fails to work properly please carry out the following checks.
Symptom Solution
The cooker hood will not start... Check that: The hood is connected to the electricity supply.
Check that a fan speed has been selected
The cooker hood is not working Check that: The fan speed is set high enough for the task.
The grease filters are clean.
The kitchen is adequately vented to allow the entry of fresh air.
If set up for recirculation, check that the charcoal filter is still effective.
If set up for extraction, check that the ducting and outlets are not
blocked.
The cooker hood has The safety cut-out device has been tripped.
switched off during operation... Turn off the hob and then wait for the device to reset.
If the hood has been installed below the heights indicated in the
installation instructions the motor will cut-out frequently which will
damage the hood.
If after all these checks, the problem persists, contact your local Service Force Centre, quoting the model and
serial number.
Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls.
In-guarantee customers should ensure that the above checks have been made as the engineer will make a
charge if the fault is not a mechanical or electrical breakdown.
Special accessories
Charcoal filter type 29

10
Technical assistance service
You are welcome to telephone our technical assistance service (see list of technical assistance centres)
whenever you need information or in the unlikely event of a fault.
For service in Australia call 1300 650 020.
When calling, please be ready to specify:
1. The model code number
2. The serial number (E-Nr.)
3. The manufacturing number (F-Nr.)
This information is shown on the registration plate inside the unit behind the grease filter.
We reserve the right to change specifications and colours as a result of our policy of continuing technological
development.
Service and Spare Parts
In the event of your appliance requiring service, or if you wish to purchase spare parts, contact your local
Service Force Centre by telephoning: 08705 929 929
Your call will be automatically routed to the Service Centre covering your post code area. For the address of
your local Service Force Centre and further information about Service Force, please visit the website at
www.serviceforce.co.uk
Please ensure that you have read the section "What to do if..." as the engineer will make a charge if the fault is
not a mechanical or electrical breakdown even the appliance is under warranty. Please note that proof of
purchase is required for in-guarantee service calls.
Help us to help you
Please determine your type of enquiry before writing or telephoning.
When you contact us we need to know:
• Your name • Clear and concise details of the fault • Serial number*
• Address and post code • Name and model of the appliance*
• Telephone number • E number*
* This information can be found on the rating plate, which can be seen when the grease filters are removed.
If you require Customer Service in the Republic of Ireland please contact us at the address below:
Electrolux
Electrolux Group (Ire) Ltd
Long Mile Road
Dublin 12
Republic of Ireland
Tel: + 353 (0) 1 4090751
Email: [email protected]
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your ELECTROLUX appliance or for further information on ELECTROLUX
products, please contact our Customer Care Department by letter or telephone at the address below or visit our
website at www.electrolux.co.uk
Customer Services Department
Major Appliances
Electrolux
Addington Way
Luton
Bedfordshire
LU4 9QQ
08705 950 950 (*) * calls to this number may be recorded for training purposes.

11
Guarantee Conditions
Standard guarantee conditions
We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any
part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
instructions.
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
All service work under this guarantee must be undertaken by an Electrolux Service Force Centre. Any appliance
or defective part replaced shall become the Company’s property.
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday.
Visits may be available outside these hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
European Community (EC) or European Free Trade Area.
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
Products of Electrolux manufacture which are not marketed by Electrolux.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
The guarantee starts from the date you first purchased your product.
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of
use for this brand or range of products.
This guarantee relates to you and cannot be transferred to another user.
Your new home is within the European Community (EC) or European Free Trade Area.
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal
household.
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliances.
France Senlis [phone]
Germany Nürnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Luton [phone]

12
Technical Specifications
Model EFI 60011 EFI 60012 EFI 60013
Dimensions (in cm):
Height: 400 400 400
Width: 559 599 559
Depth: 270 270 270
Maximum absorbed power: 180 W 220 W 380 W
Motor: 100 W 140 W 2 x 150 W
Lighting: 2x40 W 2x40 W 2 x 40W
Electrical connection: 220-240W 220-240W 220-240W
Fuse rating: 5A T 5AT 5A T
Subject to change without notice.
Installation
Unpacking
Check that the cooker hood has no damages.
Transportation damages should immediately be
reported to the company responsible for the
transportation.
Damages, faults and eventually missing details
should immediately be reported to the retailer.
Take care of the packing materials so that small
children cannot play with them.
Fitting
The hood is to be mounted on the wall.
When installed, the hood must be no less than 50
cm. above electric burners or 70 cm. above gas or
mixed-fuel burners.
The hood can be installed above these heights but
for optimum performance it should be installed at
the distance quoted for the appropriate heat source.
Electrical connection (not for
UK)
Safety warnings for the electrician
Before connecting the appliance to the power
supply, check that the voltage indicated on the
rating plate corresponds to the mains power supply
available. Appliances fitted with a plug can be
connected to any standard power socket within
easy access.
Attention: substituting the supply cable must
be carried out by an authorised electrician.
Should it be necessary to provide a fixed
connection, the hood must only be installed by an
electrician authorised by the local electricity board.
When installing, an omnipolar disconnector with a
distance of at least 3 mm between contacts must
be provided.
Fixed connection of the appliance must only be
carried out by an authorised electrician.
Fig. 7
Electrical connection for UK
only
Safety warnings for the electrician
Connect the hood to the mains supply via a double
pole switch which has 3 mm minimum separation
between the contacts.
The switch must be accessible at all times.
The following is valid in the United Kingdom only:
- the wire which is coloured blue must be
connected to the terminal which is marked with
the letter N or coloured black,
- the wire which is coloured brown must be
connected to the terminal which is marked with
the letter L or coloured red.
- EFI 60013 Only: the wire which is coloured
green and yellow must be connected to the
terminal which is marked with the letter E or by
the earth symbol ( ), or coloured green or
green and yellow;
BROWN
CORD CLAMP
BLUE
GREEN & YELLOW
5AT



Min
70 cm
Min
50 cm
EFI 60013 Only

13
Ø 2,9 x 9,5
Ø 2,9 x 9,5
Top
Mounting accessories included
1 spacer
2 brackets
2 hooks
1 deflector
2 plastic washers for the spacer
2 wall plugs
1 screw 2,9x9,5 to affix the deflector/coupling ring
on the outlet hole
4 screws 4.5 x 16 (to affix the cooker hood
sideways)
8 screws 4.5 x 13 (to affix a wooden panel to the
cabinet door).
2 screws 3.5 x 9.5 (to affix the spacer to the
cooker hood)
2 screws 5 x 45 (fixing the hooks)
1 coupling ring Ø 120 mm
2 screws 5x18
2 screws 5x10 to fix the brackets
2 bushes to fix the brackets
Before beginning installation
• Remove and keep the extraction grill or the
metal grease filter.
Note: This is to be mounted once installation is
completed.
• Remove and keep the charcoal filter/s (see also
relative paragraph).
Note: This/these is/are to be mounted only if
you want to use the hood in the recirculation
mode.
• In addition check whether near the installation
area of the hood (in the area accessible also
with the hood mounted) an electric connection
to the mains is available and if it is possible to
connect a fumes discharge device to the outside
(Extraction mode only).
• Choose the exhaust hole to use- Fig. 8:
Only recirculation mode: use ONLY the
top exhaust hole.
Check that this, once installation is completed, is
not obstructed and that there is sufficient space
so that the purified fumes and steam can return
easily into the kitchen.
Press with decision to take away the
prefractured part (Top or Rear) that closes the
exhaust hole and remove it.
Install the connection ring on the open discharge
outlet (bayonet attachment - (Extraction mode
only) or the deflector. (recirculation mode only).
Fig. 8
Top
Rear
Top
Rear

14
• Check that the side wall units between which to
install the hood are sufficiently heavy for
installing the hood.
Otherwise mount the brackets to use as
additional supports:
a. Insert each bracket from the rear inside the
hood through the opposite slots.
b. Fix the brackets with the screws and
threaded bushes.
Screw the headless screws halfway.
They will serve to adjust the position of the
hood at the moment of installation. Fig. 9
Note: the position of the brackets can be
adjusted during installation, suitably loosening
and retightening the screws that fix them to the
hood.
Fixing a furniture door to the
visor
• Remove the extraction grill or the metal grease
filter.
• Remove the visor (freeing the locking releases
Fig. 10, I).
• Apply the drill holes diagram N3 on the rear of
the furniture door (Fig. 11,J-the arrow on the
diagram should face the upper border of the
furniture door), perform blind holes as indicated
(K-Fig. 11).
• Place the visor over the furniture door and affix
with 8 screws (Fig. 11,L).
• Refit the cover on the cooker hood firstly in the
upper track (Fig. 12-M1), then in the lower
track (Fig. 12-M2).
Ø 5x18 Ø 5x1
Fig. 9
Rear view
Fig. 10
II
Ø 2,5mm x 6mm max
6mm
N3
Ø 4,5 x 13
J
L
Fig. 11
K
Fig. 12
M1
M2
M2
M1

15
Fixing the hood
•Use template N2. Position the template on the
front edges of the wall unit (right wall unit, B
side) – (left wall unit, C side) WITHOUT
CONSIDERING THE THICKNESS OF
THE FRONT WALL UNIT DOORS, and
make the holes as indicated. Fig. 13
• If the side wall units are not heavy enough
ONLY:
a. If necessary, fix the hood to the wall, putting
template N1 on the wall so its upper edge
coincides with the upper edge of template
N2. Fig. 13-14
b. Make the holes as indicated.
Fix 2 hooks R to the wall with screws and
dowels. Fig. 14
c. Hang the hood onto the hooks and adjust the
position of the hood with headless screws S1
and adjusting the position of the hooking
brackets with screws S2. Fig. 14
•Fix the hood to the side wall units with 4 screws
P.Fig. 13
•Mount the lower corner Q (*) to the hood with
two screws and plastic washers T. They will
serve to cover possible spaces between the rear
of the hood and the wall. Fig. 13-14.
• Fit the charcoal filter/s (Recirculation mode
ONLY).
• Fit the grill or the metal grease filters.
Fig. 13
PP
Q
N2
B
N2
C
N1
Ø 4,5 x 16
Fig. 14
N1
RR
Q
S1
S2
TT
Ø 3,5 x 9,5
Ø 5 x 45

LI25TA
The Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux
Group products (such as refrigerators, cookers, washing machines,vacuum cleaners, chain saws and lawn mowers) are sold each year to a value
of approx. USD 14 billion in more than 150 countries around the world.
© Electrolux 2003
