Contents
Safety warnings .............................. 57
Description of the Appliance ........... 59
Control Panel ................................. 60
Maintenance and Care ................... 62
Special accessories ........................ 66
Something Not Working ................. 66
Installation ...................................... 67
The following symbols are used in this user manual:
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
General information and tips.
Environmental information.

electroluxelectrolux
electroluxelectrolux
electrolux safety warnings 55
55
5
GB
Safety warnings
of the appliance by a person respon-
sible for their safety.
• This appliance is designed to be
operated by adults, children should
be monitored to ensure that they do
not play with the appliance.
• This appliance is designed to be
operated by adults. Children should
not be allowed to tamper with the
controls or play with the appliance.
• Never use the hood without effec-
tively mounted grating!
• The hood must NEVER be used as a
support surface unless specifically
indicated.
• The premises where the appliance is
installed must be sufficiently venti-
lated, when the kitchen hood is used
together with other gas combustion
devices or other fuels.
• The ducting system for this appliance
must not be connected to any
existing ventilation system which is
being used for any other purpose
such as discharging exhaust fumes
from appliances burning gas or other
fuels.
• The flaming of foods beneath the
hood itself is severely prohibited.
• The use of exposed flames is detri-
mental to the filters and may cause a
fire risk, and must therefore be
avoided in all circumstances.
• Any frying must be done with care in
order to make sure that the oil does
not overheat and ignite.
• Accessible parts may become hot
when used with cooking appliances.
• With regards to the technical and
• Any installation work must be under-
taken by a qualified electrician or a
competent person.
• This hood must be installed in
accordance with the installation
instructions and all measurements
must be adhered to.
• When used as an extractor unit, the
hood must be fitted with a hose
having preferably the same diameter
as the outlet hole.
Attention: The hose is not suppliedAttention: The hose is not supplied
Attention: The hose is not suppliedAttention: The hose is not supplied
Attention: The hose is not supplied
and must be purand must be pur
and must be purand must be pur
and must be purchased separatelychased separately
chased separatelychased separately
chased separately..
..
.
• The minimum distance between the
supporting surface for the cooking
vessels on the hob and the lowest
part of the range hood must be not
less than 65cm65cm
65cm65cm
65cm from electric cookers
and from gas or mixed cookers.
If the instructions for installation for
the gas hob specify a greater dis-
tance, this must be adhered to.
• Before any cleaning or maintenance
operation, disconnect hood from the
mains by removing the plug or
disconnecting the mains electrical
supply.
Always wear work gloves for all
installation and maintenance opera-
tions.
• The appliance is not intended for use
by children or persons with impaired
physical, sensorial or mental faculties,
or if lacking in experience or knowl-
edge, unless they are under supervi-
sion or have been trained in the use

66
66
6 electrelectr
electrelectr
electroluxolux
oluxolux
olux safety warnings
GB
safety measures to be adopted for
fume discharging it is important to
closely follow the regulations pro-
vided by the authorised authorities.
• The hood must be regularly cleaned
on both the inside and outside (AT
LEAST ONCE A MONTH).
• This must be completed in accord-
ance with the maintenance instruc-
tions provided in this manual). Failure
to follow the instructions provided in
this user guide regarding the cleaning
of the hood and filters will lead to the
risk of fires.
• Do not use or leave the hood without
the lamp correctly mounted due to
the possible risk of electric shocks.
• We will not accept any responsibility
for any faults, damage or fires caused
to the appliance as a result of the
non-observance of the instructions
included in this manual.
This appliance is marked according to
the European directive 2002/96/EC on
Waste Electrical and Electronic Equip-
ment (WEEE).
By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environ-
ment and human health, which could
otherwise be caused by inappropriate
waste handling of this product.
The symbol on the product, or on
the documents accompanying the
product, indicates that this appliance
may not be treated as household
waste. Instead it should be taken to the
appropriate collection point for the
recycling of electrical and electronic
equipment.
Disposal must be carried out in accord-
ance with local environmental regula-
tions for waste disposal.
For more detailed information about
treatment, recovery and recycling of
this product, please contact your local
authority.

electroluxelectrolux
electroluxelectrolux
electrolux description of the appliance 77
77
7
GB
Description of the Appli-
ance
••
••
•The cooker hood is designed toThe cooker hood is designed to
The cooker hood is designed toThe cooker hood is designed to
The cooker hood is designed to
extract unpleasant odours frextract unpleasant odours fr
extract unpleasant odours frextract unpleasant odours fr
extract unpleasant odours from theom the
om theom the
om the
kitchen, it will not extract steam.kitchen, it will not extract steam.
kitchen, it will not extract steam.kitchen, it will not extract steam.
kitchen, it will not extract steam.
• The hood is supplied as an extractor
unit and can also be used with a
recirculation mode by fitting a char-
coal filter.
• You will need an original charcoal
filter for the recirculation mode. (See
Special Accessories).

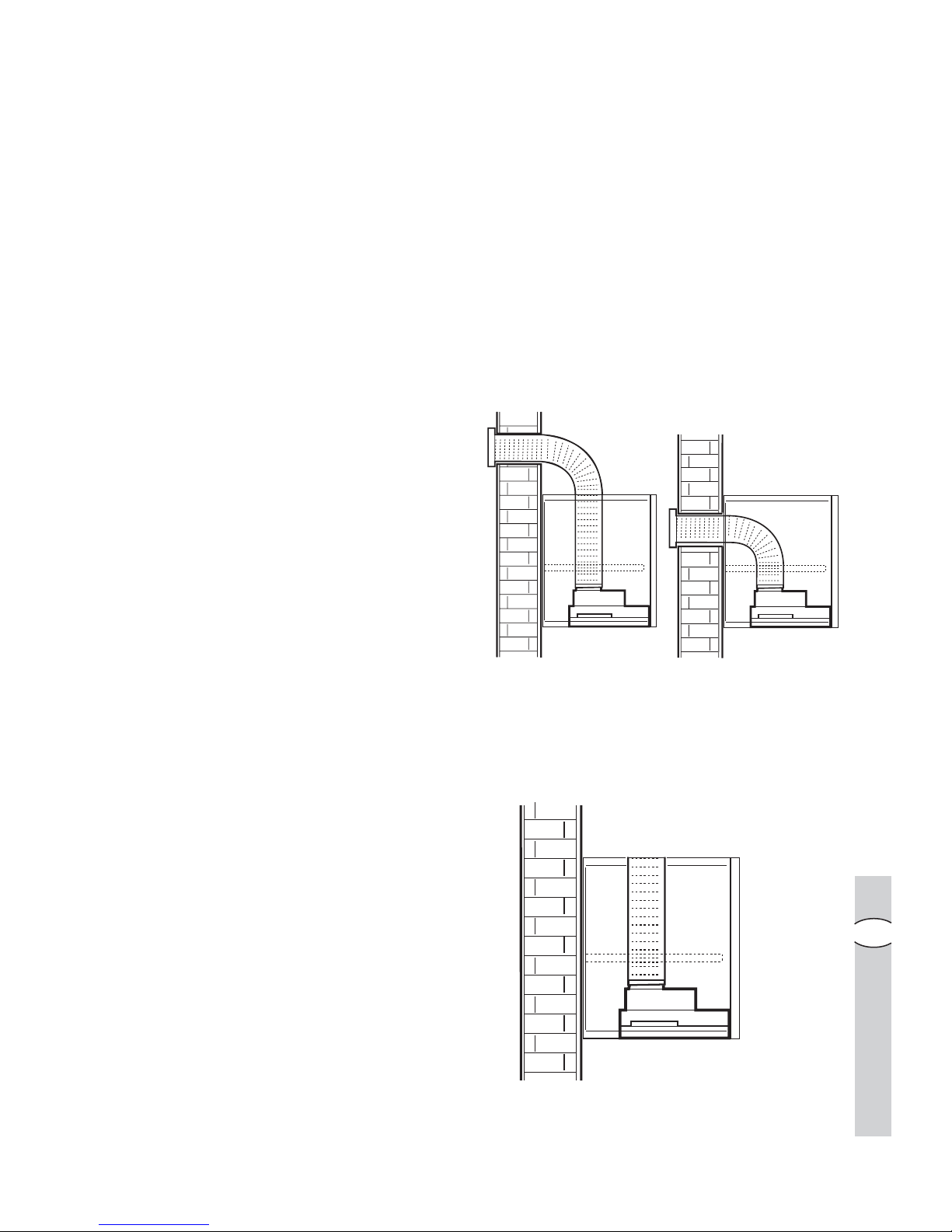

Extraction modeExtraction mode
Extraction modeExtraction mode
Extraction mode
• In this mode fumes are extracted to
the outside via a hosehose
hosehose
hose connected to
the coupling ringcoupling ring
coupling ringcoupling ring
coupling ring.
• In order to obtain the best perform-
ance the hose should have a diam-
eter equal to the outlet hole.
RecirRecir
RecirRecir
Recirculation modeculation mode
culation modeculation mode
culation mode
• The air is filtered through a charchar
charchar
charcoalcoal
coalcoal
coal
filterfilter
filterfilter
filter and returned to the kitchen.
• You will need an original charcoal
filter for the recirculation mode. (See
Special Accessories).
RecirRecir
RecirRecir
Recirculation modeculation mode
culation modeculation mode
culation mode
Extraction modeExtraction mode
Extraction modeExtraction mode
Extraction mode

88
88
8 electrelectr
electrelectr
electroluxolux
oluxolux
olux control panel
GB
Control Panel
• Best results are obtained by using a
low speed for normal conditions and
a high speed when odours are more
concentrated.
Turn the hood on a few minutes
before you start cooking.
The hood should be left on after
cooking for about 15 minutes or until
all the odours have disappeared.
• The controls are positioned near the
lights:
•the light switchthe light switch
the light switchthe light switch
the light switch switches the hood
lamp on and off
•the motor switchthe motor switch
the motor switchthe motor switch
the motor switch switches the motor
on and off, enabling you to select one
of the three different speeds.
The pull-out tray must be opened forThe pull-out tray must be opened for
The pull-out tray must be opened forThe pull-out tray must be opened for
The pull-out tray must be opened for
cooker hood operation (suction) tocooker hood operation (suction) to
cooker hood operation (suction) tocooker hood operation (suction) to
cooker hood operation (suction) to
begin.begin.
begin.begin.
begin.

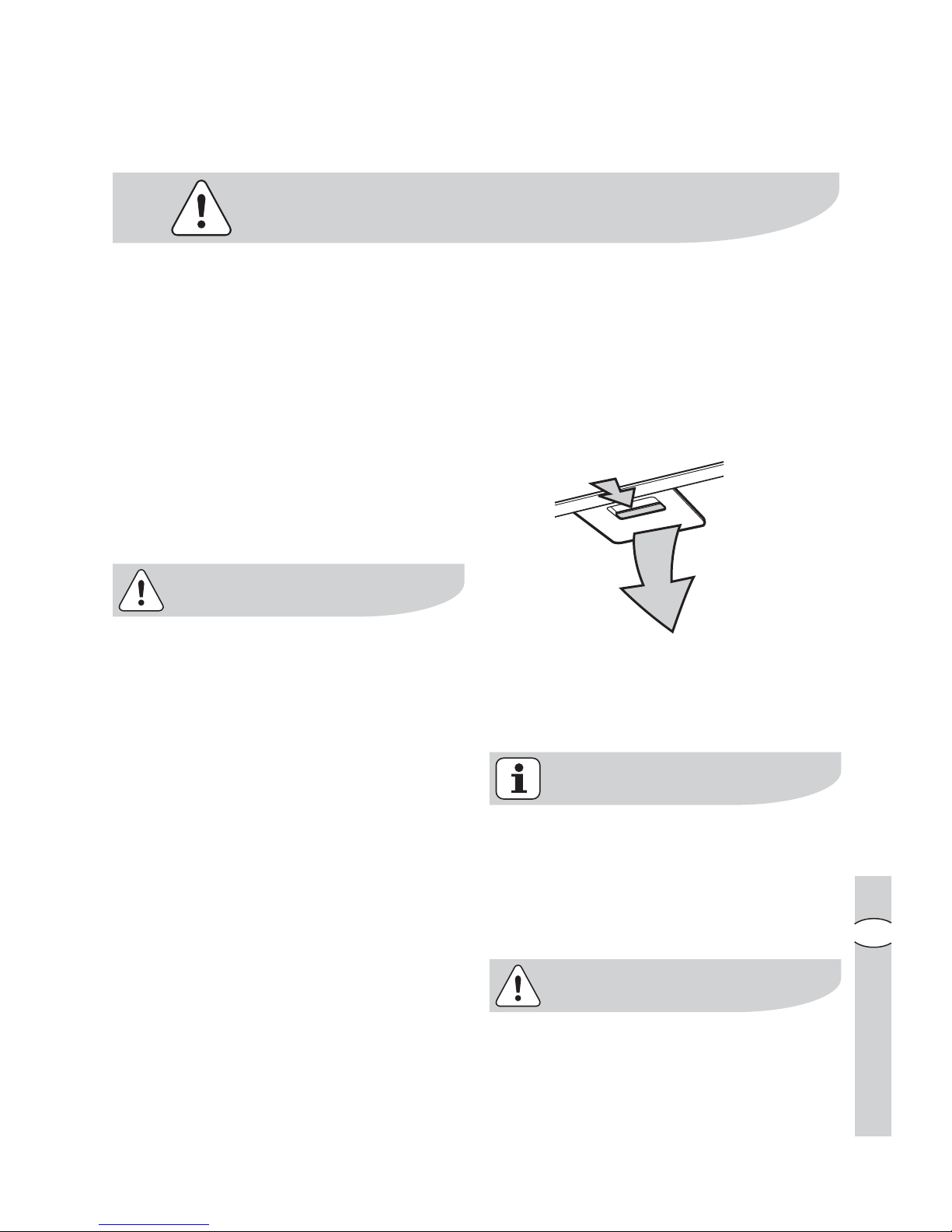

Opening the pull-out trayOpening the pull-out tray
Opening the pull-out trayOpening the pull-out tray
Opening the pull-out tray
• Pull the tray downwards.
• Slide it out until it reaches its stop
limit.
sklok!
Light switchLight switch
Light switchLight switch
Light switch Motor switchMotor switch
Motor switchMotor switch
Motor switch

electroluxelectrolux
electroluxelectrolux
electrolux maintenance and care 99
99
9
GB
Maintenance and Care
••
••
•BeforBefor
BeforBefor
Before performing any maintenance operation, isolate the hood fre performing any maintenance operation, isolate the hood fr
e performing any maintenance operation, isolate the hood fre performing any maintenance operation, isolate the hood fr
e performing any maintenance operation, isolate the hood from theom the
om theom the
om the
electrical supply by switching ofelectrical supply by switching of
electrical supply by switching ofelectrical supply by switching of
electrical supply by switching off at the connector and rf at the connector and r
f at the connector and rf at the connector and r
f at the connector and removing the connectoremoving the connector
emoving the connectoremoving the connector
emoving the connector
fuse.fuse.
fuse.fuse.
fuse.
Or if the appliance has been connected thrOr if the appliance has been connected thr
Or if the appliance has been connected thrOr if the appliance has been connected thr
Or if the appliance has been connected through a plug and socket, then theough a plug and socket, then the
ough a plug and socket, then theough a plug and socket, then the
ough a plug and socket, then the
plug must be rplug must be r
plug must be rplug must be r
plug must be removed fremoved fr
emoved fremoved fr
emoved from the socket.om the socket.
om the socket.om the socket.
om the socket.
When washing the metal grease filter
in the dishwasher a slight
discolouration of the filter can occur,
this does not have any impact on its
performance.
• Never use corrosive, abrasive or
flammable cleaning products or
products containing bleach.
Metal grMetal gr
Metal grMetal gr
Metal grease filterease filter
ease filterease filter
ease filter
• The purpose of the grease filters is to
absorb grease particles which form
during cooking and it mustmust
mustmust
must always be
used, either in the external extraction
or internal re-circulation function.
Attention:Attention:
Attention:Attention:
Attention: the metal grease filters
must be removed and washed, either
by hand or in the dishwasher, every
four weeks.
Removing the metal grRemoving the metal gr
Removing the metal grRemoving the metal gr
Removing the metal grease filterease filter
ease filterease filter
ease filter

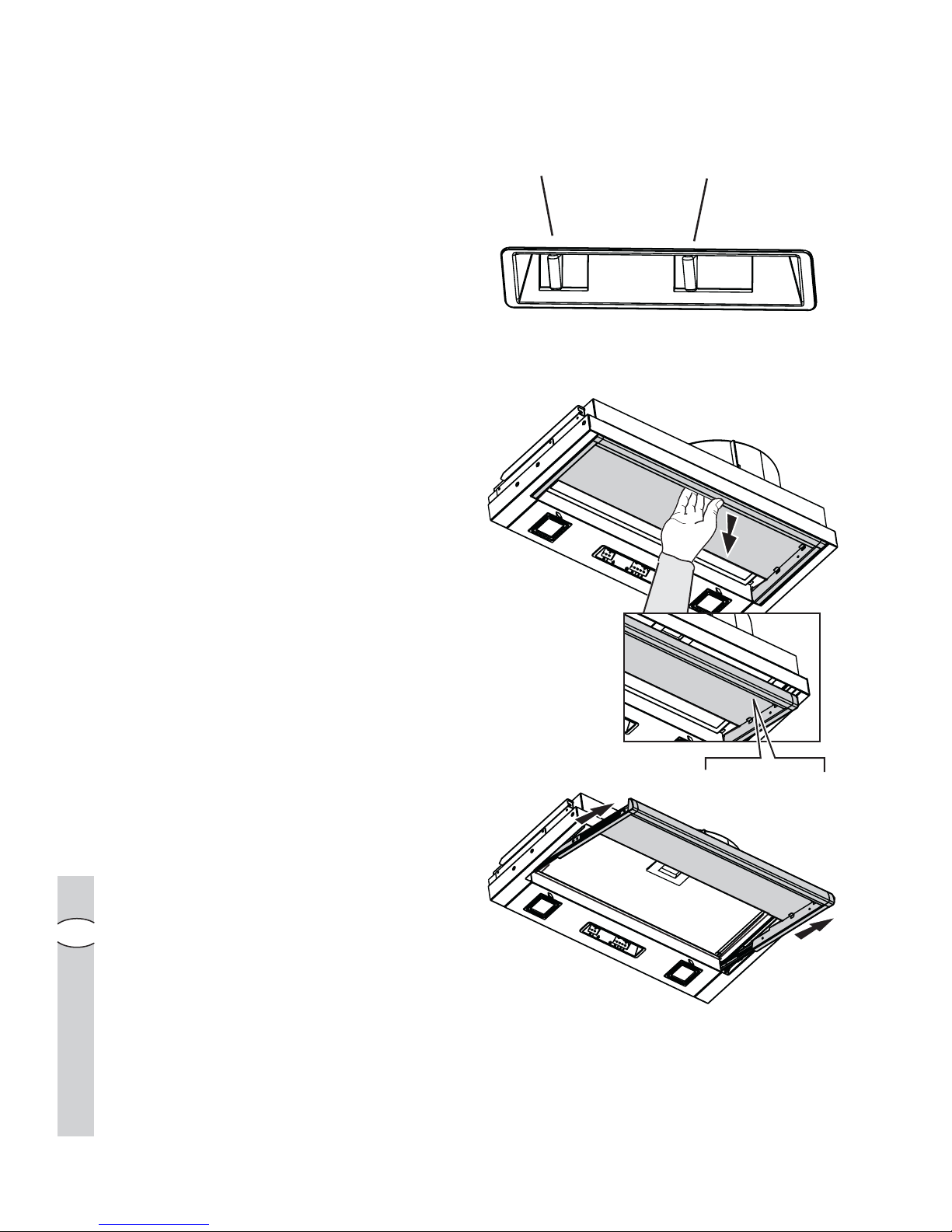

• Use the spring handle and remove
the filter downward.
Hand washingHand washing
Hand washingHand washing
Hand washing
Soak grease filters for about one hour
in hot water with a grease-loosening
cleaner, then rinse off thoroughly with
hot water. Repeat the process if
necessary. Refit the grease filters
when they are dry.
DishwasherDishwasher
DishwasherDishwasher
Dishwasher
Place grease filters in the dishwasher.
Select most powerful washing
programme and highest temperature,
at least 65°C. Repeat the process.
Refit the grease filters when they are
dry.

1010
1010
10 electrelectr
electrelectr
electroluxolux
oluxolux
olux maintenance and care
GB
CharChar
CharChar
Charcoal filtercoal filter
coal filtercoal filter
coal filter
• The charcoal filter should only be
used if you want to use the hood in
recirculation mode.
• To do this you will need an original
charcoal filter (available from your
local Service Force Centre).
•Replacing the charReplacing the char
Replacing the charReplacing the char
Replacing the charcoal filtercoal filter
coal filtercoal filter
coal filter
The charcoal filter cannot be washed
nor regenerated.
The charcoal filter should be replaced
every 4 months under normal use.
Replacement filters are available from
your local Service Force Centre.
•FittingFitting
FittingFitting
Fitting

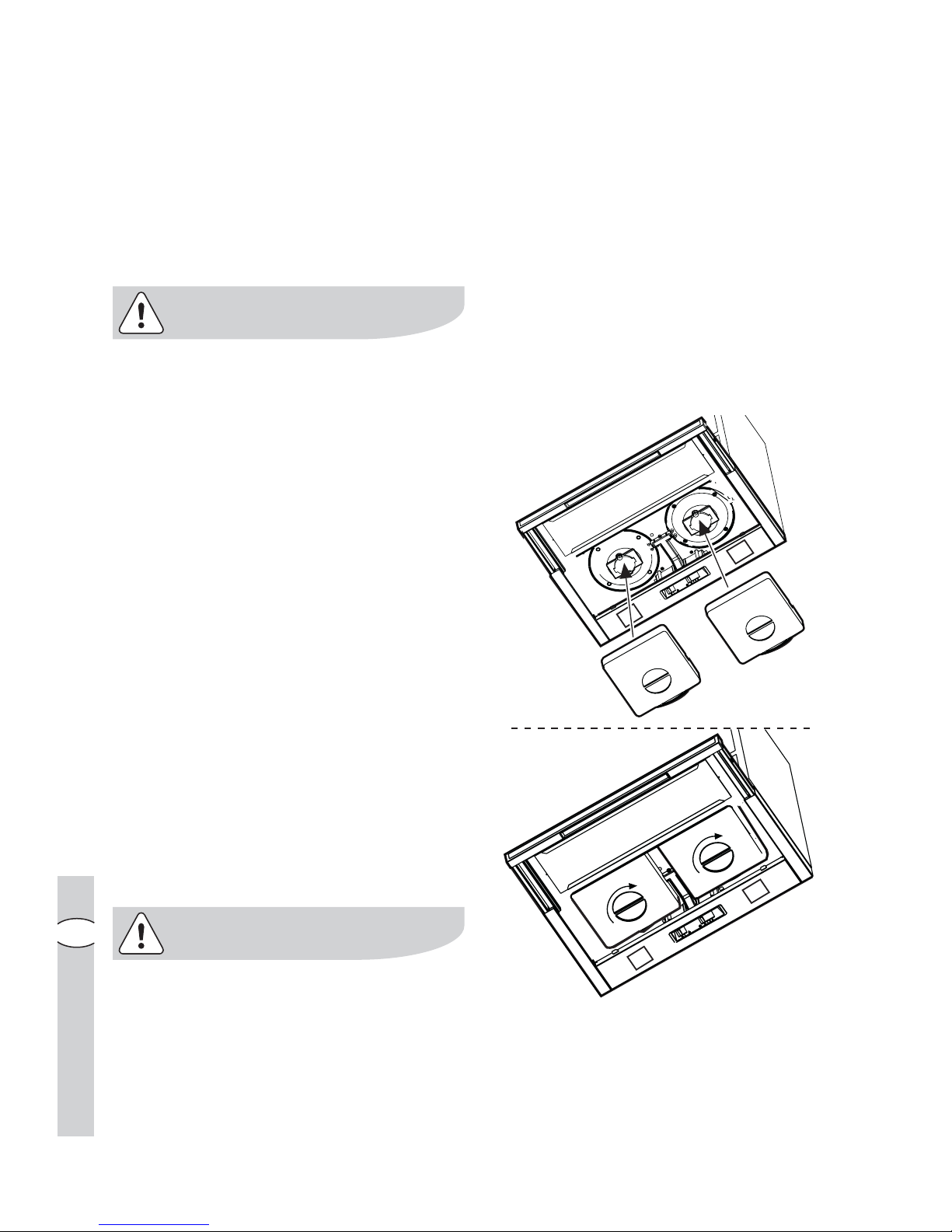

Pull out the drawer (see paragraph
““
““
“ContrContr
ContrContr
Control Panel - Opening the pull-outol Panel - Opening the pull-out
ol Panel - Opening the pull-outol Panel - Opening the pull-out
ol Panel - Opening the pull-out
traytray
traytray
tray”)”)
”)”)
”), remove the grease filter (see
paragraph ““
““
“Maintenance and Care -
Metal grease filter”)”)
”)”)
”).
Fit the charcoal filter so that it covers
the grilles protecting the hood motor
and fan, turn the carbon filter handle
in a clockwise direction.
Note: TNote: T
Note: TNote: T
Note: Two charwo char
wo charwo char
wo charcoal filters arcoal filters ar
coal filters arcoal filters ar
coal filters aree
ee
e
rr
rr
requirequir
equirequir
equired for cooker hoods with twoed for cooker hoods with two
ed for cooker hoods with twoed for cooker hoods with two
ed for cooker hoods with two
motors and one charmotors and one char
motors and one charmotors and one char
motors and one charcoal filter forcoal filter for
coal filter forcoal filter for
coal filter for
cooker hoods with one motorcooker hoods with one motor
cooker hoods with one motorcooker hoods with one motor
cooker hoods with one motor..
..
.
Refit the grease filters.
•TT
TT
To ro r
o ro r
o removeemove
emoveemove
emove proceed in the reverse
order.
• Always specify the hood model
number, serial number and product
number code when ordering replace-
ment filters. This information is shown
on the rating plate located on the
inside of the unit.
• The charcoal filter can be ordered
from your local Service Force Centre.

electroluxelectrolux
electroluxelectrolux
electrolux maintenance and care 1111
1111
11
GB
WW
WW
Warar
arar
arningning
ningning
ning
• Failure to observe the instructions on
cleaning the unit and changing the
filters will cause a fire hazard. You are
therefore strongly recommended to
follow these instructions.
• The manufacturer declines all respon-
sibility for any damage to the motor
or any fire damage linked to inappro-
priate maintenance or failure to
observe the above safety recommen-
dations.
Changing the light bulb(s)Changing the light bulb(s)
Changing the light bulb(s)Changing the light bulb(s)
Changing the light bulb(s)
•Disconnect the cooker hood frDisconnect the cooker hood fr
Disconnect the cooker hood frDisconnect the cooker hood fr
Disconnect the cooker hood fromom
omom
om
the mains supplythe mains supply
the mains supplythe mains supply
the mains supply..
..
.
••
••
•Prior to touching the light bulbsPrior to touching the light bulbs
Prior to touching the light bulbsPrior to touching the light bulbs
Prior to touching the light bulbs
ensurensur
ensurensur
ensure they have cooled down.e they have cooled down.
e they have cooled down.e they have cooled down.
e they have cooled down.
• Press and release the light cover to
open.
• Replace the damaged light bulb.
Only use max. 20W halogen light
bulbs (G4-12V), and make sure you
do not touch them with your bare
hands.
• Close the light cover (push-fit) again.
In case of accidental opening of the
light cover, it should first be opened
completely before closing.
• If the light does not come on, make
sure the bulb has been inserted in
correctly before contacting your local
Service Force Centre.
1
2
20W max G4
3CLICK!

1212
1212
12 electrelectr
electrelectr
electroluxolux
oluxolux
olux maintenance and care
GB
Cleaning the hoodCleaning the hood
Cleaning the hoodCleaning the hood
Cleaning the hood
• Clean the outside of the hood using a
damp cloth and a solution of water
and mild washing up liquid.
• Never use corrosive, abrasive or
flammable cleaning products or
products containing bleach.
• Never insert pointed objects in the
motor’s protective grid.
• Only ever clean the switch panel and
filter grill using a damp cloth and mild
washing up liquid.
• Clean all the plastic parts with a soft
cloth soaked in warm water and
neutral soap.
• It is extremely important to clean the
unit and change the filters at the
recommended intervals. Failure to do
so will cause grease deposits to build
up that could constitute a fire hazard.

electroluxelectrolux
electroluxelectrolux
electrolux special accessories 1313
1313
13
GB
Special accessoriesSpecial accessories
Special accessoriesSpecial accessories
Special accessories
CharChar
CharChar
Charcoal filtercoal filter
coal filtercoal filter
coal filter Type 303
Something Not Working
If your appliance fails to work properly please carry out the following checks.
SymptomSymptom
SymptomSymptom
Symptom
The cooker hood will not start...
The cooker hood is not working
The cooker hood has switched off
during operation...
SolutionSolution
SolutionSolution
Solution
Check that:Check that:
Check that:Check that:
Check that: The hood is connected
to the electricity supply.
Check that a fan speed has been
selected.
Check that:Check that:
Check that:Check that:
Check that: The fan speed is set high
enough for the task.
The grease filters are clean.
The kitchen is adequately vented to
allow the entry of fresh air.
If set up for recirculation, check that
the charcoal filter is still effective.
If set up for extraction, check that the
ducting and outlets are not blocked.
The safety cut-out device has been
tripped. Turn off the hob and then
wait for the device to reset. If the
hood has been installed below the
heights indicated in the installation
instructions the motor will cut-out
frequently which will damage the
hood.
If after all these checks, the problem persists, contact your local Service Centre,
quoting the model number, serial number and product number code.
Please note that it will be necessary to provide proof of purchase for any in-
guarantee service calls.
In-guarantee customers should ensure that the above checks have been made as
the engineer will make a charge if the fault is not a mechanical or electrical break-
down.
Model EFP 60520 :Model EFP 60520 :
Model EFP 60520 :Model EFP 60520 :
Model EFP 60520 :
2 charcoal filters are necessary

1414
1414
14 electrelectr
electrelectr
electroluxolux
oluxolux
olux installation
GB
Installation
TT
TT
Technical Detailsechnical Details
echnical Detailsechnical Details
echnical Details
EFP 60310EFP 60310
EFP 60310EFP 60310
EFP 60310 EFP 60520EFP 60520
EFP 60520EFP 60520
EFP 60520
Dimensions (in cm):Dimensions (in cm):
Dimensions (in cm):Dimensions (in cm):
Dimensions (in cm):
Height: 20,8 20,8
Height (with opened drawer) 24 24
Width: 55,8 55,8
Depth: 27,6 27,6
Max. absorb. power:Max. absorb. power:
Max. absorb. power:Max. absorb. power:
Max. absorb. power: 165 W165 W
165 W165 W
165 W 290 W290 W
290 W290 W
290 W
Motor: 125 W 2 x 125 W
Lighting: 2 x 20 W (12V-G4) 2 x 20 W (12V-G4)
Length of the cable:Length of the cable:
Length of the cable:Length of the cable:
Length of the cable: 150 cm150 cm
150 cm150 cm
150 cm 150 cm150 cm
150 cm150 cm
150 cm
Electrical connection:Electrical connection:
Electrical connection:Electrical connection:
Electrical connection: 220-230 V220-230 V
220-230 V220-230 V
220-230 V 220-230 V220-230 V
220-230 V220-230 V
220-230 V
Fuse rating:Fuse rating:
Fuse rating:Fuse rating:
Fuse rating: 5At5At
5At5At
5At 5At5At
5At5At
5At
Mounting accessories includedMounting accessories included
Mounting accessories includedMounting accessories included
Mounting accessories included
11
11
1 coupling ring
44
44
4 brackets
22
22
2 screwdriver inserts (to tighten torx screws)
11
11
1 spacer
11
11
1 Aesthetic cover
22
22
2 screws 4 x 8 mm
44
44
4 screws 4,5 x 16
33
33
3 screws 3,5 x 9,5
22
22
2 screws 3 x 9

electroluxelectrolux
electroluxelectrolux
electrolux installation 1515
1515
15
GB
Electrical connection
Safety warSafety war
Safety warSafety war
Safety warnings for the electriciannings for the electrician
nings for the electriciannings for the electrician
nings for the electrician
The mains power supply must corre-
spond to the rating indicated on the
plate situated inside the hood. If
provided with a plug connect the hood
to a socket in compliance with current
regulations and positioned in an
accessible area. If it not fitted with a
plug (direct mains connection) or if the
plug is not located in an accessible
area apply a double pole switch in
accordance with standards which
assures the complete disconnection of
the mains under conditions relating to
over-current category III, in accordance
with installation instructions.
WW
WW
Warar
arar
arning!ning!
ning!ning!
ning! Before re-connecting the
hood circuit to the mains supply and
checking the efficient function, always
check that the mains cable is correctly
assembled.

1616
1616
16 electrelectr
electrelectr
electroluxolux
oluxolux
olux installation
GB
InstallationInstallation
InstallationInstallation
Installation
WW
WW
Warar
arar
arning! Do not connect the appliance to the mains until the installation is fullyning! Do not connect the appliance to the mains until the installation is fully
ning! Do not connect the appliance to the mains until the installation is fullyning! Do not connect the appliance to the mains until the installation is fully
ning! Do not connect the appliance to the mains until the installation is fully
complete.complete.
complete.complete.
complete.
PrPr
PrPr
Preparing the cabineteparing the cabinet
eparing the cabineteparing the cabinet
eparing the cabinet
189mm
Ø 130mm min. 200mm
min. 276
max. 325
Ø 130mm
Ø 130mm
Ø 130mm
min. 200mm
min. 276
max. 325
189mm
First, check the dimensions given in the
diagrams to make sure the cabinet is
suitable for the cooker hood.
Make the holes required for the power
supply cable and the exhaust hose.
Make the same type of holes in the top
of the cabinet.
The cooker hood may be installed in a
wider cabinet if the special Installation
KIT is used (see "Special accessories"
chapter).
Contact your nearest Authorised
Assistance Centre to confirm the
necessary details.

electroluxelectrolux
electroluxelectrolux
electrolux installation 1717
1717
17
GB
Fixing the brackets to the cabinetFixing the brackets to the cabinet
Fixing the brackets to the cabinetFixing the brackets to the cabinet
Fixing the brackets to the cabinet
• Apply the template to the inner right-
hand side of the cabinet.
• The lower edge at the front of the
template should be aligned with the
lower edge at the front of the cabinet
(without taking any doors into
account).
• Mark the two fixing points.
• Fix bracket RR
RR
R to the cabinet using 2
screws.
Note!Note!
Note!Note!
Note! To achieve the correct position,
fasten the screws through the
smallest holes in the bracket.
• Repeat this procedure on the inner
left-hand side of the cabinet (Bracket
LL
LL
L).
R
Ø 4,5 x 16
69,1
46
200
69,1
46
200
Ø 4,5 x 16

1818
1818
18 electrelectr
electrelectr
electroluxolux
oluxolux
olux installation
GB
Before installing the hood
• When using cabinets with a greater
depth measurement than the cooker
hood, a spacer may be installed.
• The spacer can compensate for
differences in depth measurement of
up to 5 cm.
• Measure the difference between the
cabinet depth and the hood depth
(see chapter "Technical details") and
use a cutter to remove any excess.
• Fix the spacer to the back of the
hood using 3 snap-fastening clips.
max 5cm
Ø 3,5 x 9,5Ø 3,5 x 9,5
Ø 3,5 x 9,5Ø 3,5 x 9,5
Ø 3,5 x 9,5

electroluxelectrolux
electroluxelectrolux
electrolux installation 1919
1919
19
GB
Fitting the hood inside the cabinet
• Position the hood inside the cabinet,
by sliding its brackets over the
brackets fixed to the cabinet until the
stop limit is reached.
• Run the power supply cable through
the special slots in the cabinet.
• Secure the hood, using 2 screws
(one per side) to fix the brackets
together.
• If the hood is not perfectly in line with
the lower edge of the cabinets at the
side, its position can be adjusted by
means of the internal fixing screws
(see chapter "Fixing the brackets toFixing the brackets to
Fixing the brackets toFixing the brackets to
Fixing the brackets to
the cooker hoodthe cooker hood
the cooker hoodthe cooker hood
the cooker hood" on the previous
page).
• Fit the connection flange to the
exhaust hose, which should have a
suitable length and diameter for
channelling fumes outside (Ducted
version), or to the top of the cabinet
(Filter version).
• Fix the connection flange to the
exhaust outlet of the hood (snap-
fastening).
When fastened correctly, the
indicator on the flange should be
aligned with the corresponding notch
in the exhaust outlet.
• Complete the connection at the other
end of the exhaust hose.
• Filter version only: Fit the charcoal
filter(s) (see chapter "MaintenanceMaintenance
MaintenanceMaintenance
Maintenance
and Carand Car
and Carand Car
and Care - Chare - Char
e - Chare - Char
e - Charcoal filtercoal filter
coal filtercoal filter
coal filter").
• Fit the grease filter(s) (see chapter
"Maintenance and CarMaintenance and Car
Maintenance and CarMaintenance and Car
Maintenance and Care - Metale - Metal
e - Metale - Metal
e - Metal
grgr
grgr
grease filterease filter
ease filterease filter
ease filter").
• Connect the hood to the electricity
supply.
Ø 4 x 8
2x

2020
2020
20 electrelectr
electrelectr
electroluxolux
oluxolux
olux installation
GB

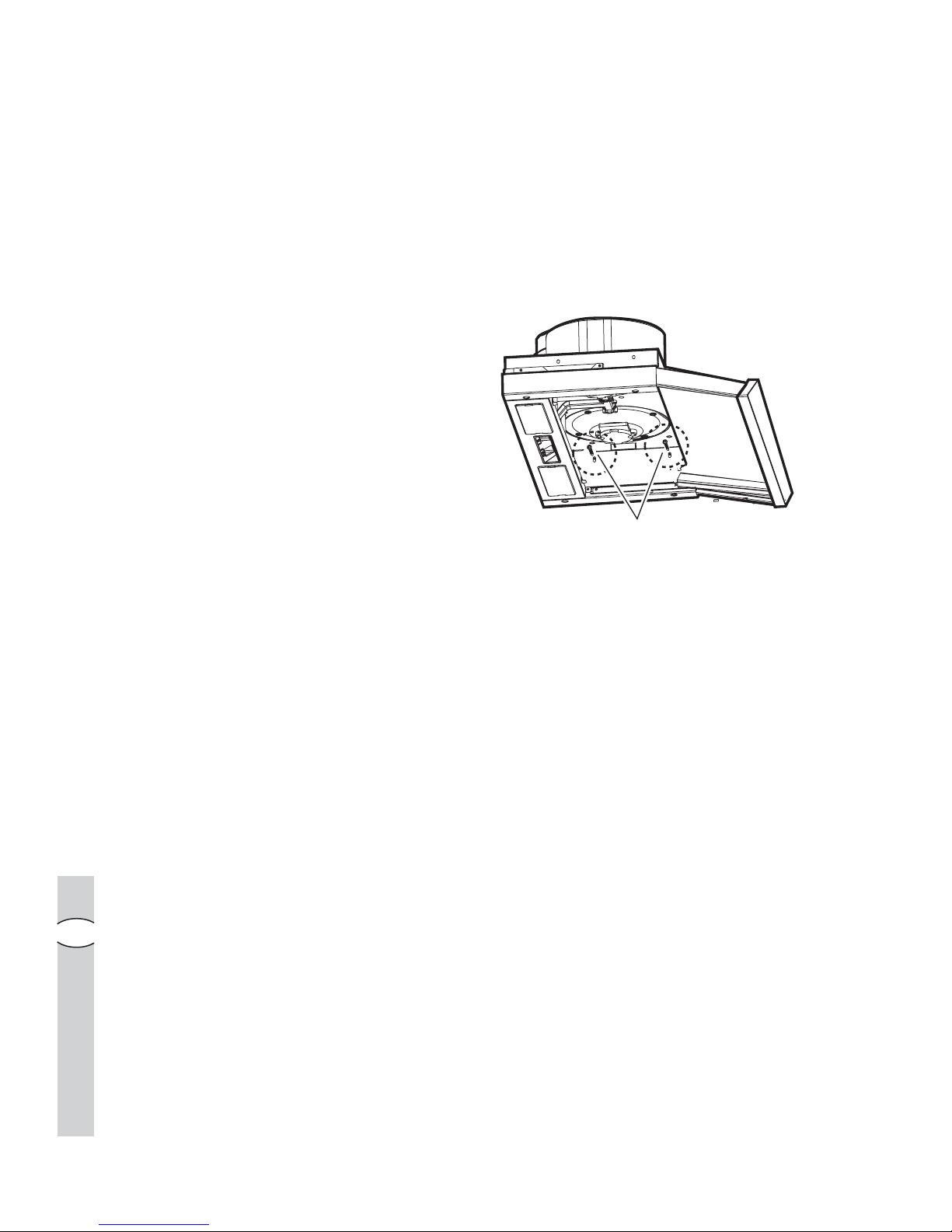

Adjusting the cooker hood
The position of the cooker hood may
be adjusted.
Once the installation procedure is
complete, you will find it useful to
perform small adjustments with regard
to the position of the hood inside the
cabinet.
• Open the pull-out tray (see chapter
"ContrContr
ContrContr
Control Panel - Opening the pull-outol Panel - Opening the pull-out
ol Panel - Opening the pull-outol Panel - Opening the pull-out
ol Panel - Opening the pull-out
traytray
traytray
tray").
• Remove the grease filter (see chapter
"Maintenance and CarMaintenance and Car
Maintenance and CarMaintenance and Car
Maintenance and Care - Metale - Metal
e - Metale - Metal
e - Metal
grgr
grgr
grease filterease filter
ease filterease filter
ease filter ").
• Loosen BUT DO NOT COMPLETELBUT DO NOT COMPLETEL
BUT DO NOT COMPLETELBUT DO NOT COMPLETEL
BUT DO NOT COMPLETELYY
YY
Y
REMOVEREMOVE
REMOVEREMOVE
REMOVE the internal screws fixing
the right and left-hand adjustment
brackets in place.
• Adjust the position of the hood and
re-tighten the screws.
Ø 4 x 8
