2Finding Information
PLEASE READ AND SAVE THIS GUIDE
Thank you for choosing Electrolux, the new premium brand in home appliances.
This Use & Care Guide is part of our commitment to customer satisfaction and
product quality throughout the service life of your new hood.
We view your purchase as the beginning of a relationship. To ensure our ability to
continue serving you, please use this page to record key product information.
Once you have your unit installed, we suggest you keep this manual in a
safe place for future reference. Should any problems occur, refer to the
Troubleshooting section of this manual. This information will help you quickly
identify a problem and get it remedied. In the event you require assistance, please
contact the dealer where you purchased your unit.
MAKE A RECORD FOR QUICK REFERENCE
Whenever you call to request information or service, you will need to know your
model number and serial number. You can find this information on the serial plate
located on the inside wall of your unit and on the product registration card.
©2006 Electrolux Home Products, Inc.
Post Office Box 212378, Augusta, Georgia 30917, USA
All rights reserved. Printed in the USA
Attach your sales
receipt to this
page for future
reference.
IMPORTANT
PLEASE READ all instructions completely before attempting to install or operate the unit.

3
PRODUCT REGISTRATION INFORMATION
The package containing this manual also includes your product registration
information. Warranty coverage begins at the time your Electrolux vent hood was
purchased.
If you received a damaged product, immediately contact your dealer or builder. Do
not install or use a damaged appliance.
Please record the purchase date of your Electrolux unit and your dealer’s name,
address and telephone number.
________________________________________________
Purchase Date
________________________________________________
Electrolux Model Number
________________________________________________
Electrolux Serial Number
________________________________________________
Dealer Name
________________________________________________
Dealer Address
________________________________________________
Dealer Telephone
Keep this manual and the sales receipt together in a safe place for further
reference.
QUESTIONS?
For toll-free telephone support in the U.S. and Canada:
1-877- 4ELECTROLUX (1-877-435-3287)
For online support and Internet product information:
www.electroluxusa.com
Finding Information
NOTE
Registering your product with Electrolux enhances our ability to serve you. You can register
online (at the Internet address below) or by dropping your Product Registration Card in the
mail. Complete and mail the Product Registration Card as soon as possible to validate the
registration date.

4
TABLE OF CONTENTS
Finding Information .............................................. 2
Please Read And Save This Guide ................... 2
Make A Record For Quick Reference ................ 2
Questions ........................................................... 3
Table Of Contents .............................................. 4
Safety ..................................................................... 5
Important Safety Instructions ............................. 5
General Precautions .......................................... 6
Getting Started ...................................................... 9
Operating Your Hood ......................................... 9
Care and Cleaning ...............................................11
Cleaning Your Hood ..........................................11
Installation ........................................................... 12
Checking Contents .......................................... 12
Installing the Ductwork ..................................... 13
Installing the Electrical ..................................... 13
Installing the Mounting Bracket ........................ 14
Installing the Flue Mounting Bracket ................ 15
Preparing the Hood .......................................... 16
Installing the Hood ........................................... 18
Installing the Filters .......................................... 20
Troubleshooting ................................................ 21
If Service is Required ....................................... 21
Troubleshooting Guide ..................................... 22
Energy Saving Tips .......................................... 23
Warranty Information ......................................... 24
Finding Information

5
Safety
IMPORTANT SAFETY INSTRUCTIONS
Safety Precautions
Do not attempt to install or operate your unit until you have read the safety
precautions in this manual. Safety items throughout this manual are labeled with a
Warning or Caution based on the risk type.
Definitions
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
IMPORTANT
Indicates installation, operation or maintenance information which is important but not
hazard related.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury.
CAUTION
CAUTION used without the safety alert symbol indicates a potentially hazardous situation
which, if not avoided, may result in property damage.

6Safety
General Precautions
WARNING
• To reduce the risk of a range top grease fire:
a) Never leave surface units unattended at high settings. Boilovers cause smoking
and greasy spillovers that may ignite. Heat oils slowly on low or medium
settings.
b) Always turn hood ON when cooking at high heat or when flambeing food (i.e.
Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe’).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate
on fan or filter.
d) Use proper pan size. Always use cookware appropriate for the size of the
surface element.
• To reduce the risk of injury to persons in the event of a range top grease fire, observe
the following:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn
off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out
immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels - a violent steam
explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class ABC extinguisher, and you already know how
to operate it.
2) The fire is small and contained in the area where it started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit.
• To reduce the risk of fire, electric shock, or injury to persons, observe the following:
a) Use this unit only in the manner intended by the manufacturer. If you have
questions, contact the manufacturer.
b) Unplug or disconnect this appliance from the power supply before servicing.
c) Installation work and electrical wiring must be done by a qualified person(s)
in accordance with all applicable codes and standards, including fire-rated
construction codes and standards.
d) Sufficient air is needed for proper combustion and exhausting of gases through
the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow
the heating equipment manufacturer’s guidelines and safety standards such
as those published by the National Fire Protection Association (NFPA), and the
American Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
e) When cutting or drilling into wall or ceiling, do not damage electrical wiring and
other hidden utilities.
f) Ducted fans must always be vented to the outdoors.
g) Do not use this unit with any separate solid-state speed control device.
h) To reduce the risk of fire, use only metal ductwork.
i) This unit must be grounded.

7
CAUTION
• For general ventilating use only. Do not use to exhaust hazardous or explosive
materials and vapors.
• Do not store items of interest to children above or at the back of the cooktop or vent,
as they could climb on the appliance to reach items and be injured.
CAUTION
• Begin by ensuring proper installation and grounding of the hood by a qualified
installer. Have the installer show you where the fuse or junction box is located so that
you know how and where to turn off power.
• Always be certain that nothing will interfere with the vent intake.
• Use the vent system for its intended purpose only as outlined in this manual.
• Clean the filters and all grease-laden surfaces often to prevent grease fires and
maintain performance.
• If the cooktop and hood are near a window, use an appropriate window treatment.
Avoid long drapes or other window coverings that could blow over the cooktop and
hood, resulting in a fire hazard.
• Always run the blower whenever a cooktop is operating.
• Never operate the hood without the filters in place.
• Do not operate the blower if a flame or flare-up develops. In the event of a flame,
immediately turn off the blower. Smother the flame or use an appropriate class dry
chemical or foam-type fire extinguisher.
• Never leave the appliance unattended when using high heat settings. Boil-overs and
greasy spills may smoke and/or ignite.
• Do not leave children alone or unattended in the area where the cooktop and vent are
in use. Never allow children to sit or stand on an appliance. Do not let children play
with a cooktop or vent.
• Do not repair or replace any part of the vent system unless specifically recommended
in literature accompanying this appliance. All service should be referred to a qualified
technician.
• Do not use water on grease fires. A violent steam explosion may result. Also, avoid
using wet potholders, sponges or clothes, as steam burn may occur.
• To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not
vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or
garages.
• Take care when using cleaning agents or detergents.
• Avoid using food products that produce flames under the Range Hood.
• For general ventilating use only. Do not use to exhaust hazardous or explosive
materials and vapors.
• To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall
spray, construction dust, etc. off power unit.
• Your hood motor has a thermal overload which will automatically shut off the motor
if it becomes overheated. The motor will restart when it cools down. If the motor
continues to shut off and restart, have the hood serviced.
Safety

8
CAUTION
• For best capture of cooking impurities, the bottom of the hood should be a minimum
of 24” and a maximum of 30” above the cooking surface. See “Install Mounting
Bracket” section for mounting restrictions.
• Two installers are recommended because of the large size and weight of this hood.
• This product is equipped with a thermostat which may start blower automatically. To
reduce the risk of injury and to prevent power from being switched on accidentally,
switch power off at service panel and lock or tag service panel.
• Please read specification label on product for further information and requirements.
Safety

9
Getting Started
OPERATING YOUR HOOD
Controls

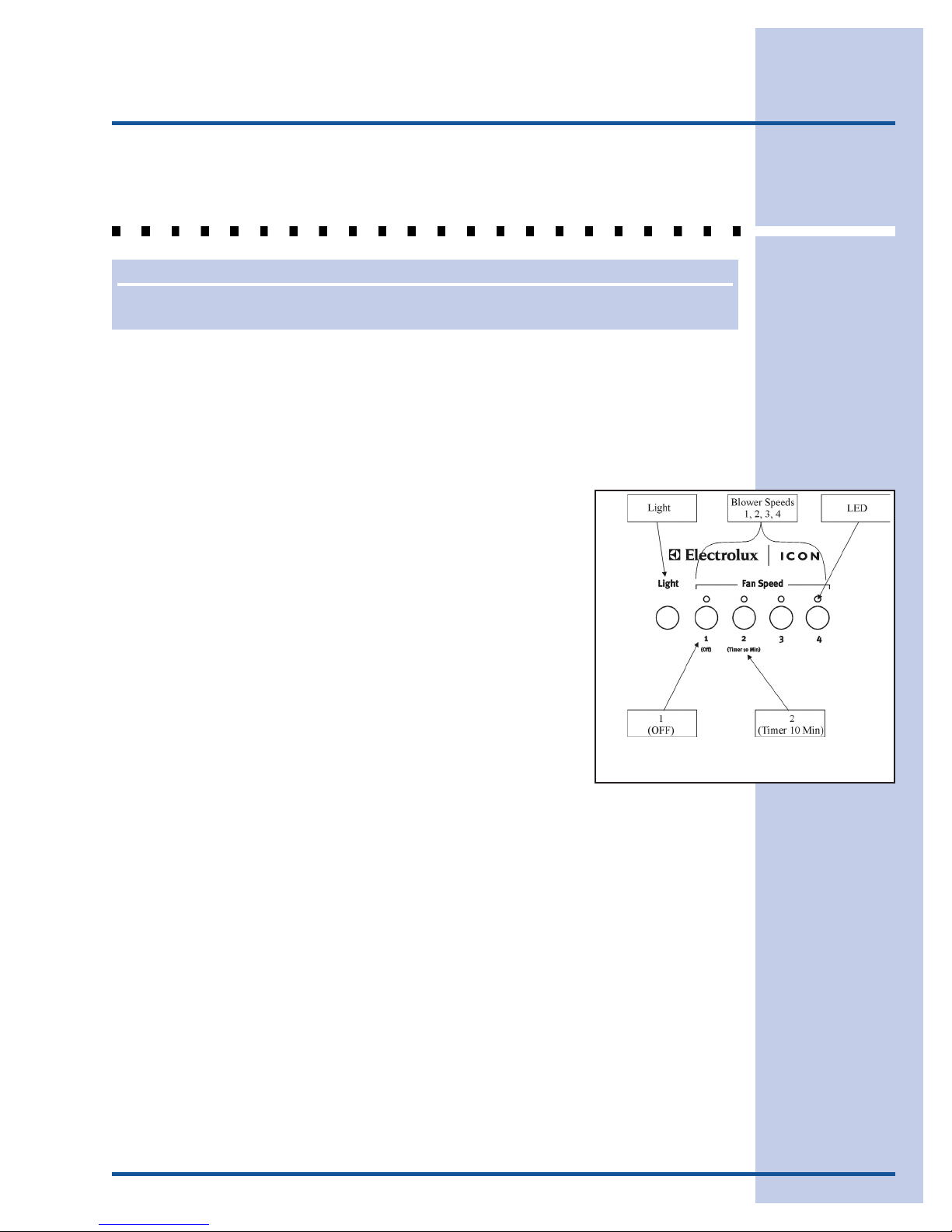

The hood is operated using the (5) push-buttons located at eye-level, on the front
edge of the hood.
The light switch turns the halogen lights on and off. Push the light switch once to
turn the lights ON - push a second time to turn the lights ON to a brighter level
- push a third time to turn the lights OFF.
The blower on-off / speed 1 switch turns the blower on to its
lowest running speed. To turn OFF the blower, push in and
hold this blower switch for approximately 2 seconds.
The blower speed 2 switch turns the blower on to medium-low
running speed. Pressing this switch a second time sets a timer
which keeps the blower operating at this speed for 10 minutes.
The LED will blink during this time and the blower will shut off
automatically.
The blower speed 3 and blower speed 4 switches operate the
same as blower speed 2 switch except:
Blower speed 3 is medium-high and blower speed 4 is high.
After every 30 hours of operation, the LED above the “blower
speed 1 switch” will be illuminated (RED) and blink for 30
seconds after turning off the blower. This is a reminder to
clean the grease filters. Once the grease filters are cleaned
and installed, press in and hold the “light switch” button for approximately 2
seconds during the blink of the LED.
IMPORTANT
Do not operate the vent system without the filters in place or with dirty, grease-laden filters.
Figure 1

10 Operation
Halogen Bulbs
This range hood requires two halogen bulbs (Type JC, 12Volt, 20Watt Max, G-4 Base).
To change bulbs:
1 Open the cover by prying from the proper slots.
2 Remove the bulb by pulling sideways. (DO NOT ROTATE).
3 Replace with Type JC, 12Volt, 20 Watt Max, G-4 Base halogen bulb. Do not
touch replacement bulb with bare hands!
Fuse Placement
IF LIGHTS FAIL TO OPERATE, DISCONNECT POWER AT THE SERVICE
ENTRANCE. CHECK THE FUSE AND REPLACE IF NECESSARY.
1 Raise or remove the lower decorative flue. See Figure 3.
2 Remove the cover from the electrical box.
3 Unscrew the cap from the fuse holder and remove the fuse.
4 Replace the fuse with the same size and amperage (5 x 20mm, 4 amp,
125 volt).
5 Reinstall the fuse holder cap, electrical box cover and flue.
6 Reconnect power at the service entrance.
WARNING
Always switch off the electrical supply before carrying out any operation on the appliance.
CAUTION
Bulb may be hot.
CAUTION
Use of bulbs greater than 20 watts will cause the fuse to open.
CAUTION
Use of a fuse greater than 4 amps may damage the transformer.
ELECTRICAL
BOX
FUSE
Figure 2
Figure 3

11
Care and Cleaning
CARING FOR YOUR RANGE HOOD
Proper maintenance of the Range Hood will assure proper performance of the unit.
Grease Filters
The grease filters should be cleaned frequently. Use a warm detergent solution.
Grease filters are dishwasher safe.
See “INSTALL FILTERS” section for removal and installation instructions.
Non-Ducted Recirculation Filter
The non-ducted recirculation filter should be changed every 6 months.
See “INSTALL FILTERS” section for removal and installation instructions.
Hood Cleaning
Stainless steel is one of the easiest materials to keep clean. Occasional care will
help preserve its fine appearance.
Cleaning tips:
· Hot water with soap or detergent is all that is usually needed.
· Follow all cleaning by rinsing with clear water. Wipe dry with a clean, soft cloth to
avoid water marks.
· For discolorations or deposits that persist, use a non-scratching household cleanser
or stainless steel polishing powder with a little water and a soft cloth.
· For stubborn cases, use a plastic scouring pad or soft bristle brush together with
cleanser and water. Rub lightly in direction of polishing lines or “grain” of the stainless
finish. Avoid using too much pressure which may mar the surface.
· DO NOT allow deposits to remain for long periods of time.
· DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere
to the surface causing rust.
· DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds
to remain in contact with stainless steel for extended periods. Many of these
compounds contain chemicals which may be harmful. Rinse with water after
exposure and wipe dry with a clean cloth.
Painted surfaces should be cleaned with warm water and mild detergent only.

12 Installation
CHECK CONTENTS
Unpack hood and check contents.
You should receive:
1 - Hood
1 - Decorative Flue Assembly
1 - Parts Bag (B080810604) containing:
1 - Mounting Bracket
1 - Discharge Collar
1 - Flue Mounting Bracket
6 - Mounting Screws (4,8 x 38mm Pan Head)
7 - Mounting Screws (3,9 x 9,5mm Pan Head)
2 - Mounting Screws (3.9 x 6mm Flat Head)
6 - Drywall Anchors
1 - Installation Instructions
1 - Warranty Card
MOUNTING
BRACKET
DISCHARGE
COLLAR
FLUE MOUNTING
BRACKET
6 MOUNTING SCREWS
(4.8 x 38mm Pan Head)
6 DRYWALL
ANCHORS
7 MOUNTING SCREWS
(3.9 x 9.5mm Pan
Head)
DECORATIVE
FLUE
2 MOUNTING BRACKET
SCREWS
(3.9 x 6mm Flat Head)
Figure 4

13
Installation
INSTALL THE DUCTWORK
1 Decide where the ductwork will run between the hood and the outside.
2 A straight, short duct run will allow the hood to perform most efficiently.
3 Long duct runs, elbows, and transitions will reduce the performance
of the hood. Use as few of them as possible. Larger ducting may be
required for best performance with longer duct runs.
4 Install a roof or wall cap. Connect round metal ductwork to cap and
work back towards hood location. Use duct tape to seal the joints
between ductwork sections.
INSTALL THE ELECTRICAL
1 Plan where the hood will be located above the cook top. Refer to the
“INSTALL MOUNTING BRACKET” section for hood mounting height
options.
2 Install a standard 2” x 4” wall outlet box and 3-blade 125 volt, 15Amp
grounded receptacle.
3 Mount the receptacle 18” to 22” above the bottom of the hood.
4 Locate the receptacle within boundary shown and off center of the
ductwork (to allow for power cord plug and flue clearance).
CAUTION
To reduce the risk of fire, use only metal ductwork.
ROOF CAP
ROUND DUCT
DECORATIVE
FLUE
HOOD
WALL
CAP
ROUND
ELBOW
6”
ADAPTER
24” TO 30” ABOVE
COOKING SURFACE
(See “Install mounting
bracket” section, for
mounting restrictions)
9”
4-1/2”
18”- 22”
WARNING
Electrical wiring must be done by a qualified person(s) in accordance with all
applicable codes and standards. This range hood must be properly grounded.
Turn off electrical power at service entrance before wiring.
Figure 5
Figure 6

14 Installation
INSTALL THE MOUNTING BRACKET
Ducted and Non-Ducted Hoods
1 Construct wood wall framing that is flush with interior surface of wall studs.
Make sure:
a the framing is centered over installation location.
b the height of the framing will allow the mounting bracket to be secured to the
framing within the dimensions shown.
2 After wall surface is installed, secure the mounting bracket to framing with (2)
4.8x38mm mounting screws. See chart below for mounting bracket location.
DRYWALL
FRAMING
BEHIND WOOD CROSS
SUPPORT
WOOD CROSS SUPPORT
BEHIND DRYWALL
NOTE : Minimum hood distance above cook top must not be less than 24”. A maximum of 30” above
cook top is highly recommended for best capture of cooking impurities. Distances over 30” are at
the installer and user’s discretion; and if ceiling height and flue lenght permit.
HOOD DISTANCE ABOVE 36” HIGH COOKTOP (SEE NOTE BELOW)
30”
MOUNTING BRACKET LOCATION ABOVE 36” HIGH COOKTOP
43”
43”
CEILING
HEIGHT
8-FEET
9-FEET
24” 25” 26” 27” 28” 29”
37” 38” 39” 40” 41”
10-FEET
37” 38” 39” 40”
38” 39” 40” 41” 42”
39” 40” 41” 42”
DUCTED
NON-DUCTED
DUCTED OR
NON-DUCTED
DUCTED OR
NON-DUCTED
WITH EXWC45S
DUCT
METHOD
37”
Figure 7

15
Installation
INSTALL THE FLUE MOUNTING BRACKET
Ducted and Non-Ducted Hoods
1 Assemble the flue mounting bracket, adjusting outside width as shown. See
Figure 8.
2 Carefully center the mounting bracket directly over the range hood location.
3 Secure the bracket assembly to the ceiling using (2) 4.8x38mm mounting
screws and drywall anchors (Figure 9). Make sure the bracket is pushed into the
corner, tight against the wall and centered over the hood.
FLUE MOUNTING BRACKET
10-7/16”
(265.6 mm)
3.9 x 6 mm
FLAT HEAD BRACKET
SCREWS
4.8x38mm
MOUNTING SCREWS
DRYWALL ANCHORS
Figure 8 Figure 9

16 Installation
PREPARE THE HOOD
Note: On stainless steel hoods, carefully remove the plastic protective film from all
exterior surfaces of the hood and decorative flues, prior to final installation.
Ducted Hoods Only
1. Remove the tape on the electrical system plate; place the electrical system plate
on the hood (use a protection). Figure 10.
DISCHARGE
COLLAR
DUCT
CONNECTOR
ELECTRICAL
SYSTEM
PLATE
PROTECTION
Figure 10 Figure 11

17
Installation
Non-Ducted Hoods Only
1 Remove the tape on the electrical system plate; place the electrical system plate
on the hood (use a protection). Figure 12
2 Discard discharge collar/damper supplied with the hood. Install the 5” to 6” adapter
supplied with the Non-Ducted Recirculation Kit.
3 Secure the plenum to the flue mounting bracket with (2) 3.9x6mm flat head
screws (the screws are supplied with the Non-Ducted Recirculation Kit Model
DFKTWC40EC). Figure 13.
ELECTRICAL
SYSTEM
PLATE
PROTECTION
3.9x6mm
FLAT HEAD
SCREWS
PLENUM
FLUE MOUNTING
BRACKET
5”-6”
ADAPTER
Figure 12 Figure 13
NOTE
The following materials must be purchased separately for non-ducted recirculation
installations.
• Non-Ducted Recirculation Kit Model DFKTWC40EC.
• 5” diameter duct.

18 Installation
INSTALL THE HOOD
1 Raise the hood into its mounting position.
2 Align the rectangular opening on the back of the hood with the wall-mounting
bracket. Gently lower the hood until it securely engages the bracket. Figure 14.
3 Level the hood with (2) 3.9x9.5mm mounting screws and secure with (2) 4.8x38mm
mounting screws. Use drywall anchors provided if wall studs or framing are not
available. Figure 14.
4 Mount the electrical system plate attaching it with (3) 3.9x9.5mm mounting screws.
Figure 15.
5 On ducted hoods, attach 6” round metal duct between the hood’s blower collar
and duct that leads to the outside location.
6 On non-ducted hoods, attach 5” round metal expandable duct between the 5”- 6”
adapter on the hood the connector on the plenum.
7 Tape all duct joints to make them secure and air tight.
8 Plug the power cord into the electric wall receptacle. Tuck excess cord behind the
flue.
MOUNTING
SCREWS
(4.8x38mm)
MOUNTING
SCREWS
(4.8x38mm)
RECTANGULAR
OPENING
WALL
MOUNTING
BRACKET
MOUNTING
SCREWS
(3.9x9.5mm) PLATE OF THE
ELECTRICAL
SYSTEM
MOUNTING
SCREWS
(3.9x9.5mm)
Figure 14 Figure 15
NOTE
At least two people will be required to mount the hood.

19
Installation
9 Carefully place the decorative flue on the hood. Figure 16.
- On ducted installation in rooms with 8-foot ceilings, the air vents are concealed.
Install the flue with the air vents down.
- On non-ducted installations in rooms with 8-foot ceilings, the air vents are
exposed. Install the flue with the air vents up.
- On ducted and non-ducted installations in rooms with 9-foot ceilings, the vents
are exposed. Install the flue with air vents up.
Rooms with 10-Foot Ceilings
Rooms with 10-foot ceilings require flue extension model EXWC45S, available from
your local dealer.
10 Discard the upper flue supplied with the product. Replace it with the flue extension
EXWC45S.
- On ducted and non-ducted installations in rooms with 10-foot ceilings, the
vents are exposed. Install the flue with air vents up.
11 Raise the upper flue until its holes align with holes in the flue mounting bracket
(located on ceiling). Figure 17.
12 Secure the flue with (2) 3.9x9.5mm mounting screws. Figure 17.
3.9x9.5mm
MOUNTING SCREWS
UPPER
FLUE
LOWER
FLUE
UPPER FLUE VENTS
EXPOSED
UPPER FLUE VENTS
CONCEALED
UPPER
FLUE
LOWER
FLUE
Figure 16 Figure 17

20 Installation
INSTALL THE FILTERS
Ducted and Non-Ducted Hoods
1 To remove the GREASE filter, push in on the metal latch tab and tilt filter downward
to remove.
2 To install the GREASE filter, align rear filter tabs with slots in the hood. Depress
the metal latch tab, push filter into position and release. Make sure filter is securely
engaged after installation.
Non-Ducted Hoods Only
1 To remove the CHARCOAL filter, push in on the front filter latch. Pull the filter down
to disengage the rear filter tabs.
2 To install the CHARCOAL filter, align the rear filter tabs with slots in the hood. Push
the filter up into place until the front latch snaps securely into the slot. Make sure
the filter is securely engaged after assembly.
3 Install GREASE filter after charcoal filter is installed.
GREASE
TABS
LATCH NON-DUCTED
RECIRCULATION
FILTER
Figure 18
Figure 19
NOTE
Prior to use, remove protective film from the filter frame.
