Electrolux Frigidaire 76F49-AM21 Instruction Manual

katerra.com
Appliance Name:
30” Range Hood
Part Number:
76F49-AM21
Install Instructions &
User Guide
Read these instructions completely and carefully. Save these instructions
for local inspector’s use. Observe all governing codes and ordinances.
Note to Installer – Be sure to leave these instructions with the Consumer.
Keep these instructions for future reference. Product failure due to
improper installation is not covered under warranty agreement.

WELCOME & CONGRATULATIONS
Before you call for service, there are a few things you can do to help us serve you better.
Read this manual.
It contains instructions to help you use and maintain your range hood properly.
If you received a damaged range hood... immediately contact the dealer (or builder)
that sold you the range hood.
Save time and money.
NEED HELP?
Visit the Frigidaire Web Site at: http://www.frigidaire.com
Congratulations on your purchase of a new range hood! At Electrolux Home Products,
we are very proud of our product and are completely committed to providing you with the best
service possible. Your satisfaction is our number one priority.
We know you’ll enjoy your new range hood and Thank You for choosing our product. We
hope you consider us for future purchases.
PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS
This Use &Care Manual provides specific operating instructions for your model. Use your
every possible condition and situationthat may occur. Common sense and caution must be
practiced when installing, operating andmaintainingany appliance.
Please record your model and serial numbers below for future reference.
Model Number:
______________________________________________________________________________
Serial Number: ______________________________________________________________________________
Purchase Date: ______________________________________________________________________________
Questions?
(United States)
1-800-265-8352
(Canada)
Please attach sales receipt
here for future reference.
1-800-374-4432
Serial Plate
Location
range hood only as instructed in this manual. These instructions are not meant to cover

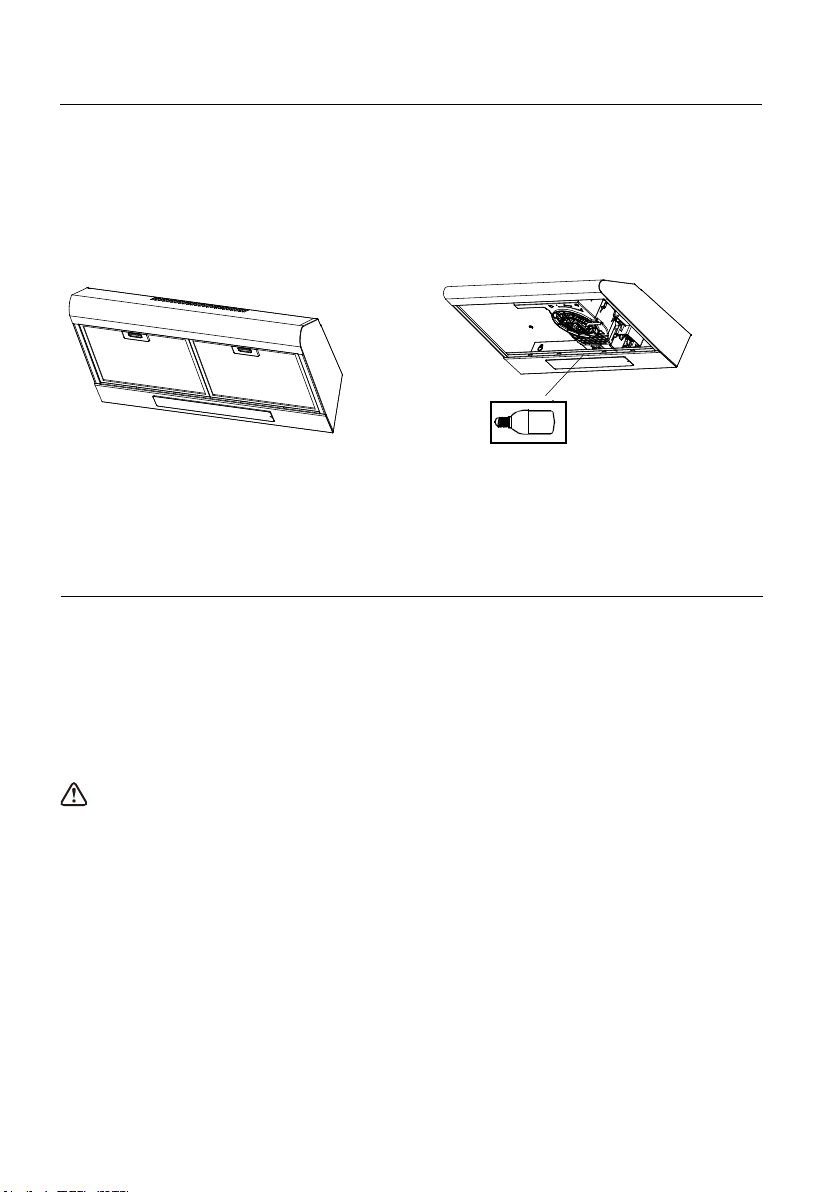

Hinge down the vent grille and remove the grease filters. Refer to page 11for
additional information
The serial plate is located on the left inside of the range hood
Check the section titled “Troubleshooting”. This section helps you solve commonproblems
that might occur. If you do need service, you can relax knowing help is only a phone callaway.
A list of toll-free customer service numbers is included in the back of this manual. Or call
Frigidaire Customer Services at 1-800-374-4432,
Monday through Saturday from 8 am
to 8 pm Eastern Standard Time.
Please contact to Foxit Software for the licensed copy.
Web Site: www.FoxitSoftware.com
Sales and Information: [email protected]
Technical Support: [email protected]
3

Save these instructions for future references
Approved for residential appliances
For residential use only
Do not attempt to install or operate your appliance until
you have read the safety precautions in this manual.
Safety items throughout this manual are labeled with a
WARNING or CAUTION based on the risk type.
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messeges
that follow this symbol to avoid possible injury or deat'h.
WARNING
This symbol alerts you to situations that may
cause serious body harm, death or property
damage.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
IMPORTANT
IMPORTANT indicates installation, operation,
maintenance or valuable information that is not hazard
related.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
FOR GENERAL VENTILATING USE ONLY. DO NOT
USE TO EXHAUST HAZARDOUS OR EXPLOSIVE
MATERIALS OR VAPORS.
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
WARNING
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the
electric current. This appliance is equipped with a cord
having a grounding wire with a grounding plug. The
plug must be plugged into an outlet that is properly
installed and grounded.
WARNING - IMPROPER GROUNDING CAN
RESULT IN A RISK OF ELECTRIC SHOCK.
Consult a qualified electrician if the grounding
instructions are not completely understood, or if doubt
exists as to whether the appliance is properly
grounded.
Do not use an extension cord. If the power supply
cord is too short, have a qualified electrician install an
outlet near the appliance.
CAUTION
To reduce risk of re and to properly exhaust
air, do not vent ex
walls, ceilings, attics, crawl spaces, or garages.
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL
DUCT WORK.
Install this hood in accordance with all requirements
specied.
haust air into spaces within
4
WARNING
TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE.
Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or
medium settings.
Always turn hood ON when cooking at high heat or
when ambeing food (l.e. Crepes Suzette, Cherries
Jubilee, Peppercorn Beef Flambe’).
Clean ventilating fans frequently. Grease should not
be allowed to accumulate on fan or lter.
Use proper pan size. Always use cookware
appropriate for the size of the surface element.
a)
b)
c)
d)
CAUTION
USE ONLY WITH RANGE HOOD CORD
CONNECTION KITS THAT HAVE BEEN
INVESTIGATED AND FOUND ACCEPTABLE FOR
USE WITH THIS MODEL RANGE HOOD.

WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS,
IN THE EVENT OF A RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING:
SMOTHER FLAMES with a close - tting lid, cookie
sheet, or other metal tray, then turn off the gas
burner or the electric element.
PREVENT BURNS. If the ames do not go out
immediately, EVACUATE AND CALL THE
FIRE DEPARTMENT.
NEVER PICK UP A FLAMING PAN - you may be
burned.
DO NOT USE WATER, including wet dishcloths or
towels - a violent steam explosion will result.
Use an extinguisher ONLY if:
You know you have a class ABC extinguisher,
and you already know how to operate it.
The re is small and contained in the area
where it started.
The re department is being called.
You can ght the re with your back to an exit.
OPERATION
Always leave safety grills and lters in place.Without
these components, operating blowers could catch onto
hair, ngers and loose clothing.
The manufacturer declines all responsibility in the
event of failure to observe the instructions given here
for installation,maintenance and suitable use of the
product. The manufacturer further declines all respon-
sibility for injury due to negligence and the warranty of
the unit automatically expires due to improper mainte-
nance.
a)
b)
c)
d)1)
2)
3)
4)
IMPORTANT SAFETY INSTRUCTIONS
BE CAREFUL TO
WARNING
Unplug or disconnect the appliance from the
power supply before servicing.
5
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer
Before servicing or cleaning the unit, switch power
off at service panel and lock service panel
disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to
the service panel.
Installation Work and Electrical Wiring Must Be Done
By Qualied Person(s) In Accordance With all
Aplicable Codes & Standards, Including Fire-rated
Construction.
When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
Ducted systems must always be vented to the
outdoors.
A.
B.
C.
E.
F.
Sufcient air is needed for proper combustion and
burning equipment to prevent back- drafting. Follow
the heating equipment manufacturers guideline and
safety standards such as those published by the
National Fire Protection Association (NFPA), the
American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code
authorities.
D.exhausting of gases through the ue (Chimney) of fuel
WARNING
To Reduce The Risk Of Fire Or Electric Shock, Do
Not Use This Hood With Any External Solid State
Speed Control Device.

COMPONENTS
Ref.
Qty.
Product Components
1 1 Main Body
21 Volute groupware
4
8
7
6
31 Filter groupware
56
Ref. Qty. Installation Components
4 1 Carbon Filter (optional)
5 1 Check Valve
6 2 Air Outlet Cap
7 4 Screws 5mm x 49mm
8 4 Plastic Wall Plugs 10mm x 43.3mm
1
3
2

DIMENSIONS
7
Min.
19.5”
5.51”
Ø4.72”
24/30/36”
Ø4.72”
25.6” Min. 25.6”
5.51”
19.5”
24/30/36”
unit：in

INSTALLATION

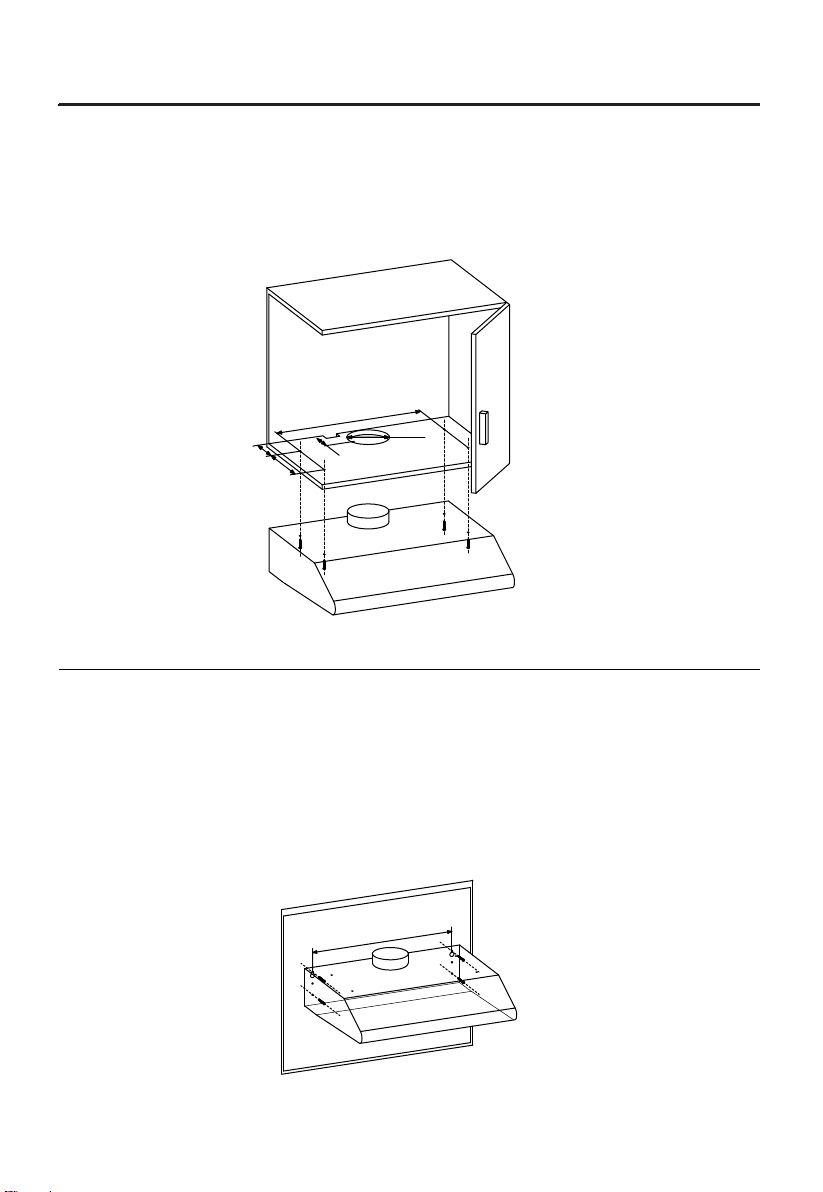

WALL DRILLING AND BRACKET FIXING
8
Please read the instructions carefully.
Unpack the canopy and check that all functions are working. Ensure
that the voltage (V) and the frequency (Hz) indicated on the serial plate match the voltage
and frequency at the installation site.
Check that the area behind the installation surface to be drilled is clear
of any electrical cables or pipes, etc.
The stainless steel and glass surfaces of the canopy are very easily
damaged during installation if grazed or knocked by tools. Please take care to protect
the surfaces during installation.
Protect the cooktop surface below with cardboard, or the like, to
prevent damage occurring whilst the wall canopy is being installed above.
The manufacturer shall not be liable for failure to observe all safety
regulations in force for the correct and normal operation of electrical parts.
Choose a venting mode:
Extraction-air mode Recirculation mode
Venng knob posion
Extracon-air mode: Turn
the venng knob here
means venng outside
Circulang-air mode:
Turn the venng knob
here means recirculaon

9
Information
Sufficient air is needed for proper combustion and exhaustion of gases through the
flue (chimney) of fuel burning equipment to prevent back drafting. Ductless fans must
always be vented to the outdoors.
When assessing the air pressure, the entire ventilation system in the house/apartment
must be taken into account, e.g. hob and/or gas cooker, this rule does not apply.
Government regulations must be observed for the conveyance of exhaust air. If the
extractor hood is used in circulating air mode with activated carbon filter, there are no
operating restrictions.
If you choose extraction-air mode,choose A or B for venting air, and install check valve
on the vent hole you choose.



Prepare the installation:
Ensure the power has been turned off before beginning this installation. Plug must be
assembled in places easy to drag and insert.
To install this hood you will require two assistants. You will need following tools and
material to complete this installation.
Tools you will need:
Drill appropriate to your wall
Phillips Screwdriver
Tape Measure
Hand Saw or Jig Saw
Installation work and electrical wiring must
be done by qualified person(s) in accordance
with all applicable codes and standards,
including fire rated construction.
Do not discharge the exhaust air into a flue
from other appliances burning gas or other
fuels.
Regulations concerning the discharge of air
have to be fulfilled.
The cooker hood must be placed at a
minimum distance of 25.6" above the
cooking surface of a hob.
The cooker hood must be placed at a
maximum distance of 29.5" above the
cooking surface of a hob.
Min. 25.6"
Max. 29.5"
24/30/36"





B
A

10
Drill a 5.11" diameter and four 0.14" diameter hole as below picture.
ATTENTION: If your cooker hood works at circulating-air mode, it is not necessary
to drill 5.11" diameter hole.
Use the 4 screws to fix the cooker hood to a kitchen cupboard .Check that your
fixings are correctly located, by temporarily fitting the cooker hood. If correct, fit the
unit into position. Tighten the screws if necessary.





To mount on the wall, drill two10mm diameter holes 538/696mm with the vent hole on the
top of the cooker hood in the middle as below picture. Make sure the hood is aligned
directly over the hob.
Insert two plastics wall plugs(supplied) into the holes.
Insert two screws into the upper two plastic wall plugs and tighten them leaving 3mm
protruding from the wall.
Mount the cooker hood onto the two screws and mark the bottom two screw positions.
Remove the hood and drill the bottom two screw holes and Insert the plastic wall plugs.
Mount the hood on the top screws, Insert the bottom screws and fully tighten all the screws.

21.1/27.4"
5.11"
2.75"
3.93"
7.08"
CUPBOARD MOUNTING INSTALLATION


WALL MOU NTING INSTALLATION
24/30/36"

13
OPERATION
Switch B:
0 Off lighting.
1 On lighting.
0 Off motor.
1 The motor runs at LOW speed.
2 The motor runs at MEDIUM speed.
3 The motor runs at HIGH speed.
Switch A:
ON/OFF LIGHTING SWITCH: Press on this switch to turn on the
lights, and press again to turn them off.
OFF MOTOR SWITCH: Press on this switch to stop the motor
operation.
SPEED SWITCH: Press on this switch, the motor runs at LOW
speed.
SPEED SWITCH: Press on this switch, the motor runs at
MEDIUM speed.
SPEED SWITCH: Press on this switch, the motor runs at HIGH
speed.

LIGHTING
LIGHT REPLACEMENT
12
Switch off the extractor hood and isolate the extractor hood by pulling out the
mains plug or switching off the fuse.
Remove the grease filter.
Replace the lamp (commercially) led modules,separate ballast.
Reconnect the power by inserting the mains plug or by switching on the fuse.



CLEANING AND MAINTENANCE
Disconnect range hood from power supply before cleaning or servicing.
Cleaning the surface of hood frequently. Use mild soap or detergent to clean the hood.
Do not use harsh alkalis or abrasives.
Avoid the use of scouring powers or dishwasher compounds.
Grease filter may be washed using mild soap or detergent. (Heavy grease build-up may
not be cleaned easily and the filter may require replacement).
Charcoal filter cannot be cleaned and must be replaced regularly.





Information
Cleaning water must not inter into motor, control switch etc. electrical parts.
It is recommendable to clean the metallic filter every three months by carrying out the following
instruction:
Remove the metallic filter from the cooker hood and wash it in asolution of water and neutral
liquid detergent, leaving to soak.
Rinse thoroughly with warm water and leave to dry.
The metallic filter may alter in color after several washes. This is notcause for customer
complaint or replacement of metallic filter.




13
INSTALLING THE CARBON FILTER
z5HPRYHWKHJUHDVH¿OWHU Open
z7KHFKDUFRDO¿OWHULVORFDWHGDWHQG
RIWKHPRWRU7XUQWKHFDUERQ¿OWHU
XQWOLWLVXQVFUHZHG
z5HSODFHDQHZFDUERQ¿OWHUDSSO\Close
UHYHUVHSURFHGXUHIRUUHLQVWDOODLWRQ Carbon Filter
:DUQLQJWKHFDUERQ¿OHUFDQQRWEHZDVKHGRUUHF\FOHG,WVKRXOGEHUHSODFHGDIHUDSSUR[LPDWHO\
PRQWKVRIXVH
5HPDUN&DUERQ¿OWHULVQRWVXSSOLHGZLWK\RXUDSSOLDQFH
CHECK VALVE INSTALLATION
Hold on check valve with your hands, align the box gap, put in the check valve , and then spin
to a certain angle until three anglesof the valve are stuck. Installation is complete.
Information
There is a fire risk if cleaning is not carried out in accordance with the instructions.

14
DISPOSAL OF OLD ELECTRICAL APPLIANCES
The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old
household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old
appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain,
and reduce the impact on human health and the environment.
The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the
appliance, it must be separately collected.
Consumers should contact their local authority or retailer for information concerning the correct disposal of their old
appliance.

recommendations and instruction regarding installation, maintenance
The manufacturer shall decline all responsibility if the foregoing
and use are not observed and respected when using the cooker hood.
