Electrolux ICON E30WD75GPS User manual

30" WARMER DRAWER
Capacity
FEATURES
Electronic Controls
Blue LED Display
Automatic Shutoff – 4 Hour
Humidity Control
Heating Element (Watts)
Smooth-Glide™Full-Extension Drawer
Stainless Steel Drawer Interior
Second-Tier Rack
ACCESSORIES
ServeWare – PN# 5304447729
SPECIFICATIONS
Drawer Interior Dimensions –
Height
Width
Depth
Overall Exterior Dimensions –
Height
Width
Depth (to Front Drawer Corner)
(Fully Extended Including Handle)
Temperature Range
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @120 Volts‡
Amps@ 120 Volts
Minimum Circuit Required (Amps)
60" Electrical Cable
Approved for Under-Counter Installation
Shipping Weight (Approx.)
‡For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and/or national electric codes. Refer to Product Installation
Guide for detailed installation instructions on the web at electroluxicon.com.
Specifications subject to change.
1.6 Cu. Ft.
Yes
Yes
Yes
Yes
450
Yes
Yes
Yes
Optional
6-1/2"
20-15/16"
19-1/4"
11-1/4"
30"
23-3/8"
44-1/8"
80°F – 210° F
Right Center Rear
120V/ 60Hz /15A
0.45
3.75
15
Included
Yes
63 Lbs.
electroluxicon.com
Smooth-Glide™Full-Extension
Warmer Drawer
Drawer slides in and out with ease, extending
completely and safely for convenient access to
prepared foods.
Flexible Temperature Control
The 450-watt heating element keeps food warm
at a preferred serving temperature of anywhere
from 80 to 210 degrees F. The blue LED panel
is visible through the convenient display window
located on the drawer front.
Stainless Steel Interior Design
Entire inner drawer cavity is constructed of
smooth and durable, seamless stainless steel
for easy cleanup.
Humidity Control
Allows adjustment of humidity levels to
ensure that foods taste as they should even
after reheating.
Designed for the well-lived home.
Warmer Drawer
E30WD75GPS professional series

Warmer Drawer
E30WD75GPS professional series
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxicon.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxicon.ca
E30WD75GPS 01/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
30" Warmer Drawer Specifications
•
Product Weight – 49 Lbs.
•
Voltage Rating –120V/450W/60 Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.45kW (For use on
adequately wired 120V, dedicated circuit having 2-wire service with a
separate ground wire. Appliance must be grounded for safe operation.)
•
Amps @120V = 3.75 Amps
•
Full plywood base required, capable of supporting 100 Lbs.
•
Base must be level and cabinet front must be square.
•
Warmer Drawer can be used alone, or is approved to be used in
combination with any Electrolux ICON®Wall Oven. (Refer to Combination
Installation Specifications and drawing on this page.)
•
Warmer Drawer is approved to be used in combination with any Electrolux
ICON®High-Speed Oven/Built-In Microwave and/or Electric Single Wall
Oven. (Refer to model-specific Combination Installation Specifications
pages on web.)
Optional Accessories
•
ServeWare – (PN # 5304447729).
Warmer Drawer/Wall Oven Combination Specifications
•
To support Wall Oven when using in combination with Warmer Drawer,
two 3"-wide x 3/4" thick planks must be installed as a base, capable of
supporting 200 Lbs. Do NOT use full base, since planks are necessary
to allow for proper air displacement.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Overall depth with
drawer fully extended
(including handle) – 441/8"
Full plywood
base required to
support 100 lbs.
41/2" min.
required
distance
to floor
9 7/8" min.
10 1/4"max.
28 1/2" min.
28 3/4" max. 23 5/8"min. 24"max.
Warmer Drawer
Stand-Alone
Installation
11 1/4"
23 3/8"
30"
26"
7/8"
Power cord
location (right
center rear)
9 7/8" min.
10 1/4"max.
1
1
/ 2 "
min.
*Critical dimension –
MUST be applied
**Electrical junction
box for Wall Oven
must be lower than
the Warmer Drawer
cutout
†
Maximum height
depends on critical
dimension ( 11
5
/ 8 ")
3"
max.**
30"min.
4" x 4"
opening
to route
armoured
cable
28 1/2"
min.
28 7/8"
max.
Electrical
junction box
location
28 1/2"min.
28 3/4"max. Bottom
of oven
cutout
115/8"
min.*
24"*
(critical
dimension)
Two 3" wide
x 3/4" thick
planks must
be installed,
capable of
supporting
200 lbs.
1
3
/ 4 "
min.
†
Warmer Drawer/Single Wall Oven
Combination Installation

30" Combination Installation –
High-Speed Oven/Single Wall Oven/Warmer Drawer
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxicon.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxicon.ca
SO_EW_WD INST 01/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
30" Combination Installation Specifications
•
Always consult local and/or national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 24"deep cutout dimension is critical for proper combination
installation, to ensure that each built-in product’s faceplate will fit
flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Warmer Drawer
cutout to floor.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 23-1/4" clearance needed for Wall Oven door depth
when open.
30" High-Speed Ovens Specifications
•
Product Weight – (E30SO75FPS/E30SO75ESS) 115 Lbs.
•
Voltage Rating – 240V/60 Hz/15 or 20 Amps
•
Single phase 3- or 4-wire cable, 240 Volt, 60 Hertz AC only electrical
supply with ground required on separate circuit fused on both sides
of line.
•
Connected Load (kW Rating) @ 240 Volts = 3.3kW
•
Amps @ 240 Volts =13.2 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 150 Lbs.
•
Minimum 2-5/8"clearance required from bottom of High-Speed Oven
cutout to top edge of Wall Oven’s faceplate, leaving a 2"visible gap
between both product faceplates.
30" Electric Single Wall Ovens Specifications
•
Product Weights – (E30EW75GPS) 178 Lbs. / (E30EW75GSS) 175 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =16.6/14.4 Amps
•
To support Wall Oven, two 3"-wide x 3/4"-thick planks must be installed
as a base, capable of supporting 200 Lbs. Do NOT use full base, since
planks are necessary to allow for proper air displacement.
30" Warmer Drawers Specifications
•
Product Weights – (E30WD75GPS/E30WD75GSS) 49 Lbs. /
(E30WD75GTT) 41 Lbs.
•
Voltage Rating –120V/450W/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.45kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120V = 3.75 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
For detailed product dimensions
and installation specifications, refer
to model-specific product page and
installation guide on web
24"min.
3"max.
††
30"min.
9
7
/ 8 "min.
10
1
/ 4 "max.
1
3
/ 4 "min.
†
22
3
/ 8 " min.
22
7
/ 8 " max.
Full plywood base
required to support
150 lbs.
Full plywood base
required to support
100 lbs.
28
1
/ 2 "min.
28
7
/ 8 "max.
28
1
/ 2 "min.
28
3
/ 4 "max.
30" High-Speed
Oven Cutout
For Models:
E30SO75FPS
E30SO75ESS
Two 3" wide
by
3
/ 4 " thick
planks must be
installed, capable
of supporting
200 lbs.
4"x 4" opening to route
armoured cable
28
1
/ 2 "min.
28
3
/ 4 "max.
240V/60Hz
grounded electrical
outlet should NOT
be located within
shaded area
4
1
/ 2 "min.
required
21
11
/ 16 "min.
22
3
/ 16 "max.
24"min.**
(critical
dimension)
Electrical junction
box location
Bottom of
oven cutout
11
5
/ 8 "min.**
(critical
dimension)
* Minimum 2
5
/ 8 "
clearance required
from bottom of
Built-In High-Speed
Oven cutout to top
edge of Wall Oven’s
faceplate, leaving
a 2"visible gap
between both product
faceplates
** Critical dimension –
MUST be applied
†
Maximum height
depends on critical
dimension (11
5
/ 8 ")
††
Electrical junction
box for Wall Oven
must be lower than
the Warmer Drawer
cutout
30" Warmer
Drawer Cutout
For models:
E30WD75GPS
E30WD75GSS
E30WD75GTT
C
L
20
1
/ 4 "
16
3
/ 4 "
2"
(visible
gap)*
30" Electric Single
Wall Oven Cutout
For models:
E30EW75GPS
E30EW75GSS

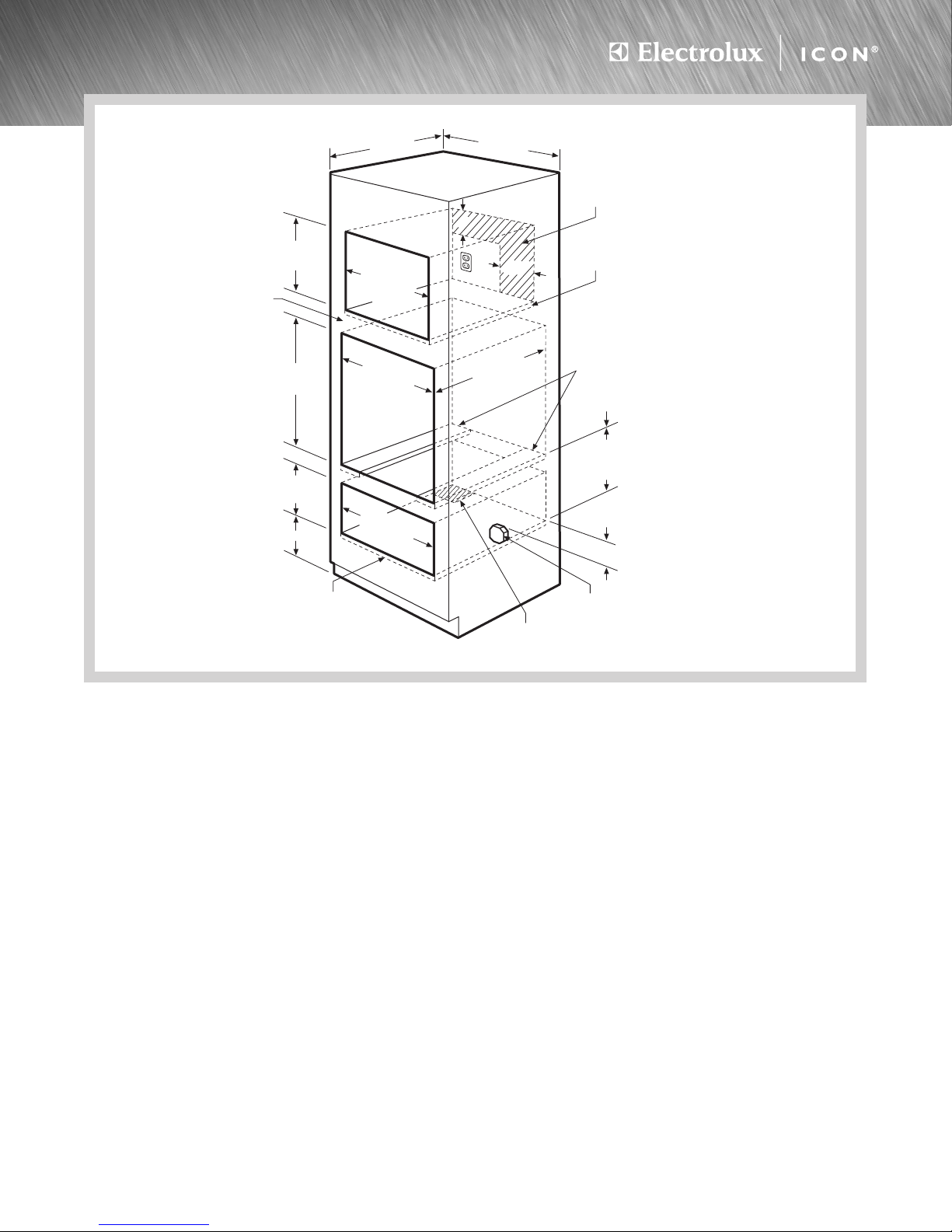

30" Combination Installation –
Built-In Microwave /Single Wall Oven/Warmer Drawer
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxicon.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxicon.ca
MO_EW_WD INST 01/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
30" Combination Installation Specifications
•
Always consult local and/or national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 24"deep cutout dimension is critical for proper combination
installation, to ensure that each built-in product’s faceplate will fit
flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Warmer Drawer
cutout to floor.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 23-1/4" clearance needed for Wall Oven door depth
when open.
30" Built-In Convection Microwave Specifications
•
Product Weight – 60 Lbs.
•
Voltage Rating –120V/ 60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts =1.55kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =13 Amps
•
Consult local building code in the event that cutout opening may
be required to be enclosed with sides, ceiling and rear partition.
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
•
Minimum 3-1/8"clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2"visible gap
between both product faceplates.
30" Electric Single Wall Ovens Specifications
•
Product Weights – (E30EW75GPS) 178 Lbs. / (E30EW75GSS) 175 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =16.6/14.4 Amps
•
To support Wall Oven, two 3"-wide x 3/4" thick planks must be installed
as a base, capable of supporting 200 Lbs. Do NOT use full base, since
planks are necessary to allow for proper air displacement.
30" Warmer Drawers Specifications
•
Product Weights – (E30WD75GPS/E30WD75GSS) 49 Lbs. /
(E30WD75GTT) 41 Lbs.
•
Voltage Rating –120V/450W/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.45kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120V = 3.75 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
24"min.
3"max.
††
30"min.
97/8"min.
10 1/4"max.
13/4"min.†
261/2"min.
27"max.
Full plywood base
required to support
100 lbs.
Full plywood base
required to support
100 lbs.
281/2"min.
287/8"max.
281/2"min.
283/4"max.
Two 3" wide
by 3/4" thick
planks must be
installed, capable
of supporting
200 lbs.
30" Warmer
Drawer Cutout
For models:
E30WD75GPS
E30WD75GSS
E30WD75GTT
4"x 4" opening to route
armoured cable
281/2"min.
283/4"max.
5"
111/2"
120V/60Hz
grounded electrical
outlet should NOT
be located within
shaded area
41/2"min.
required
197/8"min.
203/8"max.
24"min.**
(critical
dimension)
Electrical junction
box location
Bottom of
oven cutout
115/8"min.**
(critical
dimension)
For detailed product dimensions
and installation specifications, refer
to model-specific product page and
installation guide on web
* Minimum 31/8"
clearance required
from bottom of
Built-In Microwave
cutout to top edge of
Wall Oven’s faceplate,
leaving a 2"visible
gap between both
product faceplates
** Critical dimension –
MUST be applied
† Maximum height
depends on critical
dimension (115/8")
†† Electrical junction
box for Wall Oven
must be lower than
the Warmer Drawer
cutout
2"
(visible
gap)*
30" Electric Single
Wall Oven Cutout
For models:
E30EW75GPS
E30EW75GSS
30" Built-In
Microwave Cutout
For model:
E30MO65GSS

High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxicon.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxicon.ca
MODD_EW_WD INST 03/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
30" Combination Installation Specifications
•
Always consult local and/or national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 24"deep cutout dimension is critical for proper combination
installation, to ensure that each built-in product’s faceplate will fit
flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Warmer Drawer
cutout to floor.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 23-1/4" clearance needed for Wall Oven door depth
when open.
30" Built-In Convection Microwaves Specifications
•
Product Weight – (E30MO75HPS/E30MO75HSS) 84 Lbs.
•
Voltage Rating –120V/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 1.6kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =13.7 Amps
•
Full oven base of solid plywood or similar material required, capable
of supporting 150 Lbs.
•
Minimum 2-1/8"clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2"visible gap
between both product faceplates.
30" Electric Single Wall Ovens Specifications
•
Product Weights – (E30EW75GPS) 178 Lbs. / (E30EW75GSS) 175 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =16.6/14.4 Amps
•
To support Wall Oven, two 3"-wide x 3/4"-thick planks must be installed
as a base, capable of supporting 200 Lbs. Do NOT use full base, since
planks are necessary to allow for proper air displacement.
30" Warmer Drawers Specifications
•
Product Weights – (E30WD75GPS/E30WD75GSS) 49 Lbs. /
(E30WD75GTT) 41 Lbs.
•
Voltage Rating –120V/450W/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.45kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120V = 3.75 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
For detailed product dimensions
and installation specifications, refer
to model-specific product page and
installation guide on web
24"min.
3"max.
††
30
1
/ 8 " min.
9
7
/ 8 "min.
10
1
/ 4 "max.
1
3
/ 4 "min.
†
Full plywood base
required to support
150 lbs.
Full plywood base
required to support
100 lbs.
28
1
/ 2 "min.
28
7
/ 8 "max.
28
1
/ 2 "min.
28
3
/ 4 "max.
Two 3" wide
by
3
/ 4 " thick
planks must be
installed, capable
of supporting
200 lbs.
4"x 4" opening to route
armoured cable
28
1
/ 2 "min.
28
3
/ 4 "max.
120V/60Hz
grounded electrical
outlet should NOT
be located within
shaded area
4
1
/ 2 "min.
required
21"min.
21
1
/ 2 "max.
24"min.**
(critical
dimension)
Electrical junction
box location
Bottom of
oven cutout
11
5
/ 8 "min.**
(critical
dimension)
* Minimum 2
1
/ 8 "
clearance required
from bottom of
Built-In Microwave
cutout to top edge of
Wall Oven’s faceplate,
leaving a 2"visible
gap between both
product faceplates.
** Critical dimension –
MUST be applied
†
Maximum height
depends on critical
dimension (11
5
/ 8 ")
††
Electrical junction
box for Wall Oven
must be lower than
the Warmer Drawer
cutout
30" Warmer
Drawer Cutout
For models:
E30WD75GPS
E30WD75GSS
E30WD75GTT
C
L
6"
18"
2"
(visible
gap)*
4"
30" Electric Single
Wall Oven Cutout
For models:
E30EW75GPS
E30EW75GSS
30" Built-In
Microwave Cutout
For models:
E30MO75HPS
E30MO75HSS
28
1
/ 2 "min.
28
3
/ 4 "max.
30" Combination Installation –
Built-In Microwave/Single Wall Oven/Warmer Drawer
