WASHER-DRYER EW 1247 W
AUTOMATICKA PRACKA SE SUSICKOU EW 1247 W
AUTOMATICKA PRACKA SO SUSIGKOU EW 1247 W
MOSO-SZARITOGEP EW 1247 W
4) Electrolux

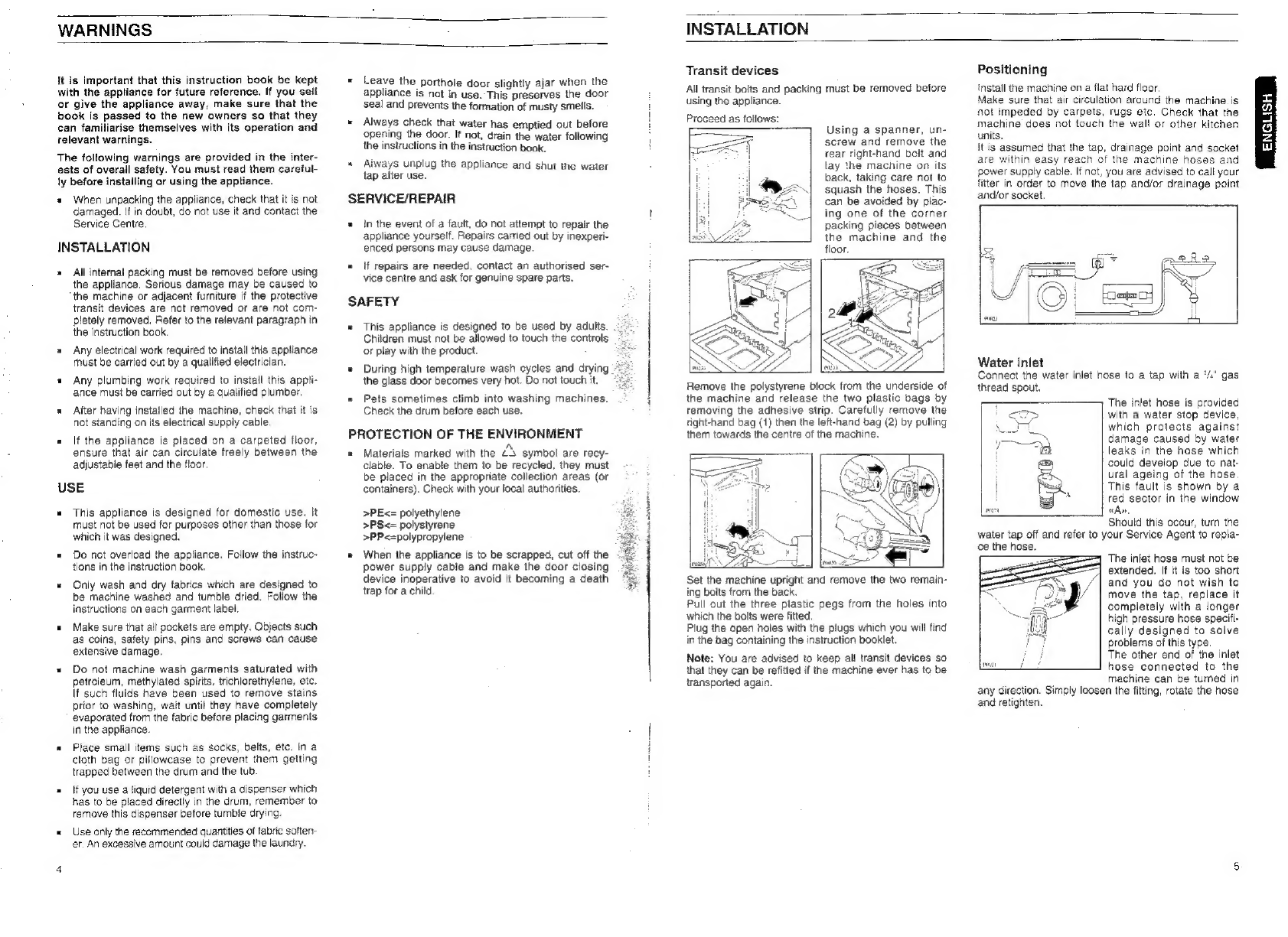

WARNINGS
it is important that this instruction book be kept
with the appliance for future reference. If you sell
or give the appliance away, make sure that the
book is passed to the new owners so that they
can familiarise themselves with its operation and
relevant warnings.
The foltowing warnings are provided in the inter-
ests of overall safety. You must read them careful-
ly before installing or using the appliance.
When unpacking the appliance, check that it is not
damaged. If in doubt, do not use it and contact the
Service Centre.
INSTALLATION
» All internal packing must be removed before using
the appliance. Serious damage may be caused to
the machine or adjacent furniture if the protective
transit devices are not removed or are not com-
pletely removed. Refer to the relevant paragraph in
the instruction book.
= Any electrical work required to install this appliance
must be carried out by a qualified electrician.
= Any plumbing work required to install this appli-
ance must be carried out by a qualified plumber.
x» After having installed the machine, check that it is
not standing on its electrical supply cable
« If the appiiance is placed on a carpeted floor,
ensure that air can circulate freely between the
adjustable feet and the floor.
USE
« This appliance is designed for domestic use. It
must not be used for purposes other than those for
which it was designed.
= Do not overload the appliance. Follow the instruc-
tions in the instruction book.
« Only wash and dry fabrics which are designed to
be machine washed and tumble dried. Follow the
instructions on each garment label.
= Make sure that all pockets are empty. Objects such
as coins, safety pins, pins and screws can cause
extensive damage.
« Do not machine wash garments saturated with
petroleum, methylated spirits, trichlorethylene, etc.
{f such fluids have been used to remove stains
prior to washing, wait until they have completely
evaporated from the fabric before placing garments
in the appliance.
« Place smali items such as socks, belts, etc. in a
cloth bag or pillowcase to prevent them getting
trapped between the drum and the tub.
= {fF you use a liquid detergent with a dispenser which
has to be placed directly in the drum, remember to
remove this dispenser before tumble drying.
= Use only the recommended quantities of fabric soften-
er. An excessive amount could damage the laundry.
=
Leave
the
porthole
door
slightly
ajar
when
the
appliance
is
not
in
use.
This
preserves
the
door
seal
and
prevents
the
formation
of
musty
smelis.
=
Always
check
that
water
has
emptied
out
before
Z
opening
the
door.
If
not,
drain
the
water
following
the
instructions
in
the
instruction
book.
B
«
Aiways
unplug
the
appliance
and
shut
the
water
tap
after
use.
SERVICE/REPAIR
= in the event of a fault, do not attempt to repair the
appliance yourself. Repairs carried out by inexperi-
enced persons may cause damage.
= if repairs are needed, contact an authorised ser-
vice centre and ask for genuine spare parts.
SAFETY
« This appliance is designed to be used by adults.
Children must not be allowed to touch the controls
or play with the product.
« During high temperature wash cycles and drying
the glass door becomes very hot. Do not touch it.
«= Pets sometimes climb into washing machines.
Check the drum before each use.
PROTECTION OF THE ENVIRONMENT
* Materials marked with the £3 symbol are recy-
clable. To enable them to be recycled, they must
be placed in the appropriate collection areas (or
containers). Check with your focal authorities.
>PE<= polyethylene
>PS<= polystyrene
>PP<=polypropylene
= When the appliance is to be scrapped, cut off the
power supply cable and make the door closing
device inoperative to avoid it becoming a death
trap for a child.
INSTALLATION
Transit devices
All transit bolts and packing must be removed before
using the appliance.
Proceed as follows:
Using a spanner, un-
screw and remove the
tear right-hand bait and
tay the machine on its
back, taking care not to
squash the hoses. This
can be avoided by plac-
ing one of the corner
packing pieces between
the machine and the
Remove the polystyrene block from the underside of
the machine and release the two plastic bags by
removing the adhesive strip. Carefully remove the
right-hand bag (1) then the left-hand bag (2) by pulling
them towards the cenire of the machine.
Set the machine upright and remove the two remain-
ing bolts from the back.
Pull out the three plastic pegs from the holes into
which the bolts were fitted.
Plug the open holes with the plugs which you will find
in the bag containing the instruction booklet.
Note: You are advised to keep all transit devices so
ihat they can be refitted if the machine ever has to be
transported again.
Positioning
Install the machine on a flat hard floor.
Make sure that air circulation around the machine. is
not impeded by carpets, rugs etc. Check that the
machine does not touch the wali or other kitchen
units.
It is assumed that the tap, drainage point and socket
are within easy reach of the machine hoses and
power supply cable. If not, you are advised to call your
fitter in order to move the tap and/or drainage point
and/or socket.
Water inlet
Connect the water inlet hose to a tap with a %/" gas
thread spout,
The inlet hose is provided
with a water stop device,
which protects against
damage caused by water
leaks in the hose which
could develop due to nat-
ural ageing of the hose.
This fault is shown by a
ted sector in the window
«A»,
Should this occur, turn the
water tap off and refer to your Service Agent to repla-
ce the hose.
The inlet hose must not be
extended, If it is too short
and you do not wish to
move the tap, replace it
completely with a longer
high pressure hose specifi-
cally designed to solve
problems of this type.
The other end of the inlet
hose connected to the
machine can be turned in
any direction. Simply loosen the fitting, rotate the hose
and retighten.
ae ee

Water drainage
The end of the drain hose can be positioned in three
ways:
Hooked over the edge
of a sink using the
plastic hose guide sup-
plied with the machine.
in this case, make sure
the end cannot come
unhooked when the
machine is emptying.
This could be done by
———— = tying it to the tap with a
piece of string or attaching it to the wall.
In a sink drain pipe branch. This branch must be
above the trap so that the bend is at least 60 cm
above the ground.
Directly in a drainpipe: you are advised to use a ver-
tical 65 cm high pipe; in any case it should never be
shorter than 60 cm or longer than 90 cm.
The end part of the drain hose must always be ventila-
ted, i.e. the internal diameter of the pipe must be
wider than the external diameter of the drain hose.
The drain hose can be extended up to a maximum
length of 180 cm. Use an extension with an internal
diameter at least equal to the diameter of the original
hose and a suitable fitting. The hose extension will run
along the floor and only the part near the drainage
point will be raised.
Electrical
connection
This machine is designed to operate on a 220-230 V,
single-phase, 50 Hz supply.
Check
that
your
domestic
electrical
installation
can
take
the
maximum
load
required
(2.2
kW),
also
taking
into
account
any
other
appliances
in
use.
Connect
the
machine
to
an
earthed
socket,
in
accor-
dance
with
current
wiring
regulations.
The manufacturer declines any responsibility for
damage or injury through failure to comply with
the above safety precaution.
Levelling
Position the appliance and level it by tightening or loo-
sening one or two of the adjustable feet. Ensure that
the machine is resting securely with all four feet on the
ground. Once the machine has been levelled, tighten
up the lock nuts on all feet with the aid of a screwdriver.
|
|
|
USING YOUR MACHINE

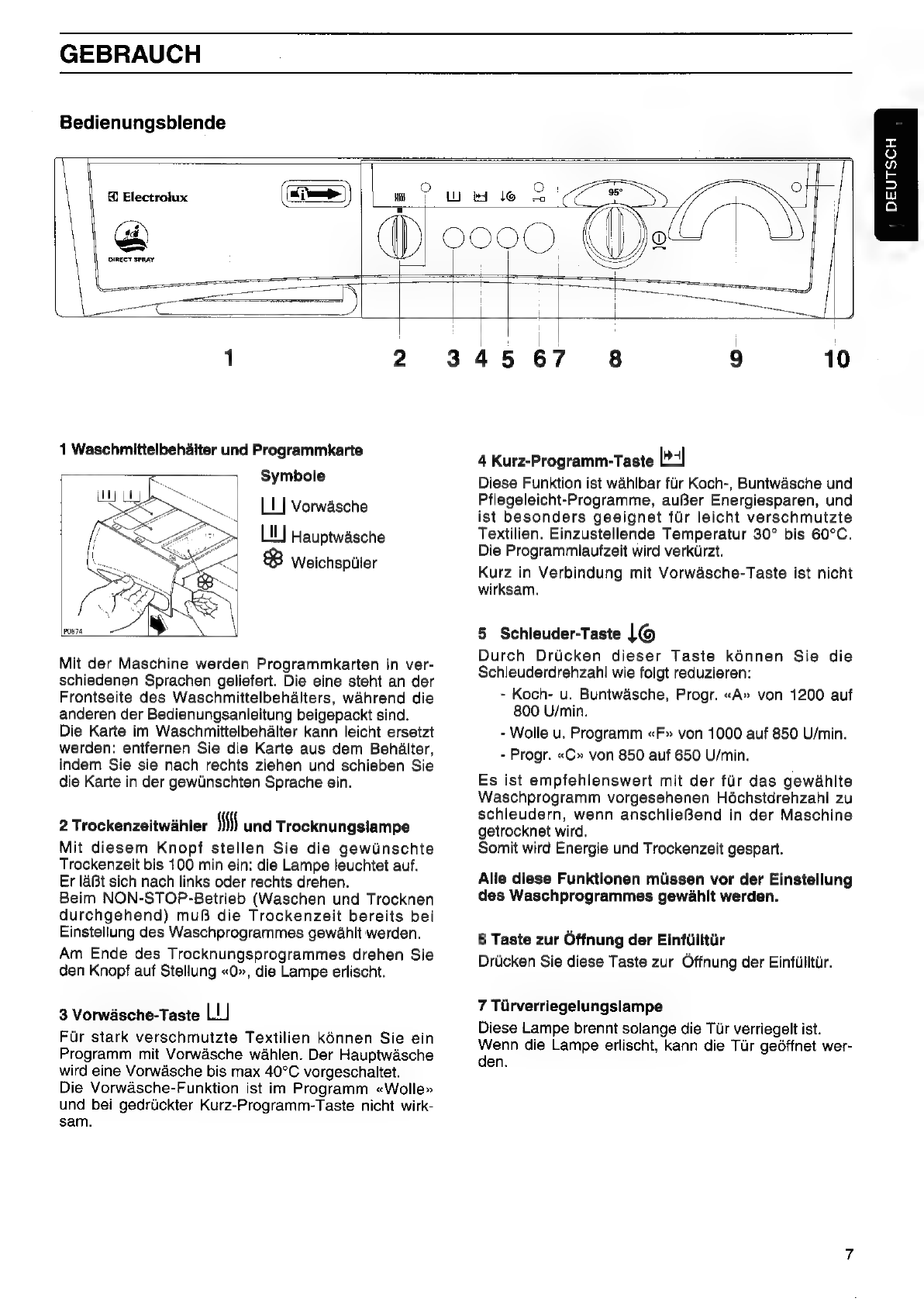

Control panel
\ @ Electrolux
1 Detergent dispenser drawer and programme chart
Symbols
LU Prewash
LU Main wash
B Fabric conditioner
Various programme charts in different languages are
supptied with the appliance. One is on the front side of
the detergent dispener drawer and the others are
attached to the instruction bookiet.
The chart in the drawer can easily be replaced:
remove the chart from the drawer by pulling it towards
the right and insert the chart with the language
required.
2 Drying time selector dial lilff and drying light
With this selector it is possible to set the required dry-
ing time up to 100 min.: the light ituminates. The knob
can be turned to the right or left.
With the NON-STOP programme {automatic washing
and drying) the drying time must be chosen when the
washing programme is selected.
At the end of the drying programme, turn the knob to
position “0” and the light goes out.
3 Prewash button LL
For heavily soiled laundry a prewash may be selected.
The main wash is preceeded by a prewash up to 40°C
max.
The prewash function cannot be selected with the
“wool” programme and when the Quick wash button is
depressed.
4 Quick wash button [#44
This function can be selected with cotton, linen, syn-
thetics, except with energy saving programmes and is
particularly suitable for lightly soiled laundry. Temper-
ature can be selected from 30° to 60°C. The pro-
gramme time is shortened.
This button cannot be depressed together with the
prewash button.
5 Spin button 1©
By depressing this button the spin speed can be
reduced as follows:
- cotton, linen, progr. “A” from 1200 to 800 rpm,
- woollens and programme “F” from 1000 to 850
pm, ©
- progr. “C” from 850 to 650 rpm.
It is advisable to spin at the highest speed suitable for
the selected washing programme, when a drying pro-
gramme follows.
In this way, energy and drying time can be saved.
All these functions must be selected before choo-
sing the washing programme.
6 Door opening button —O
The door can be opened by depressing this button.
7 Locked door light
This light stays on as long as the door is locked.
When the light goes out, the door can be opened.
ENGLISH

@
8 Programme setector dial =<
The appliance has 5 different washing sectors:
cotton, linen (red sector}
synthetics (biue sector)
delicate fabrics {yellow sector)
woollens & {yellow sector)
additional programmes A-H ({biack sector)
Turn the selector to the right or to the left to select the
wash programme and the washing temperature or
programmes A-H or the drying programme.
The programme is properly selected when the tem-
perature or the symbol or {{fff or the letter are
opposite to the line marked on the control panel.
When the programme is selected, the appliance
starts.
At the end of the programme the selector dial must
be turned back to «OQ»: the appliance switches off.
Symbols on the programme dial
®@ Symbol % means “cold”, the water is not heated.
@ Symbol {{{{{ shows the drying positions.
Cancelling a programme
lf a programme which is running nas to be cancelled,
turn the selector dial to position “H”, a sound signal
will follow.
Now another programme can be selected.
9 Programme information
As the programme progresses, the knob tums and
shows the phase that the machine is performing.
The symbols have the following meaning:
Prewash
Main wash
Rinses
Stop with water in drum
Spin
LOOHEE
Drain
{91 Drying
© Stop
10 Mains-on light
Comes on when the programme is selected and goes
out when the selector is turned to «OQ»,
i
'

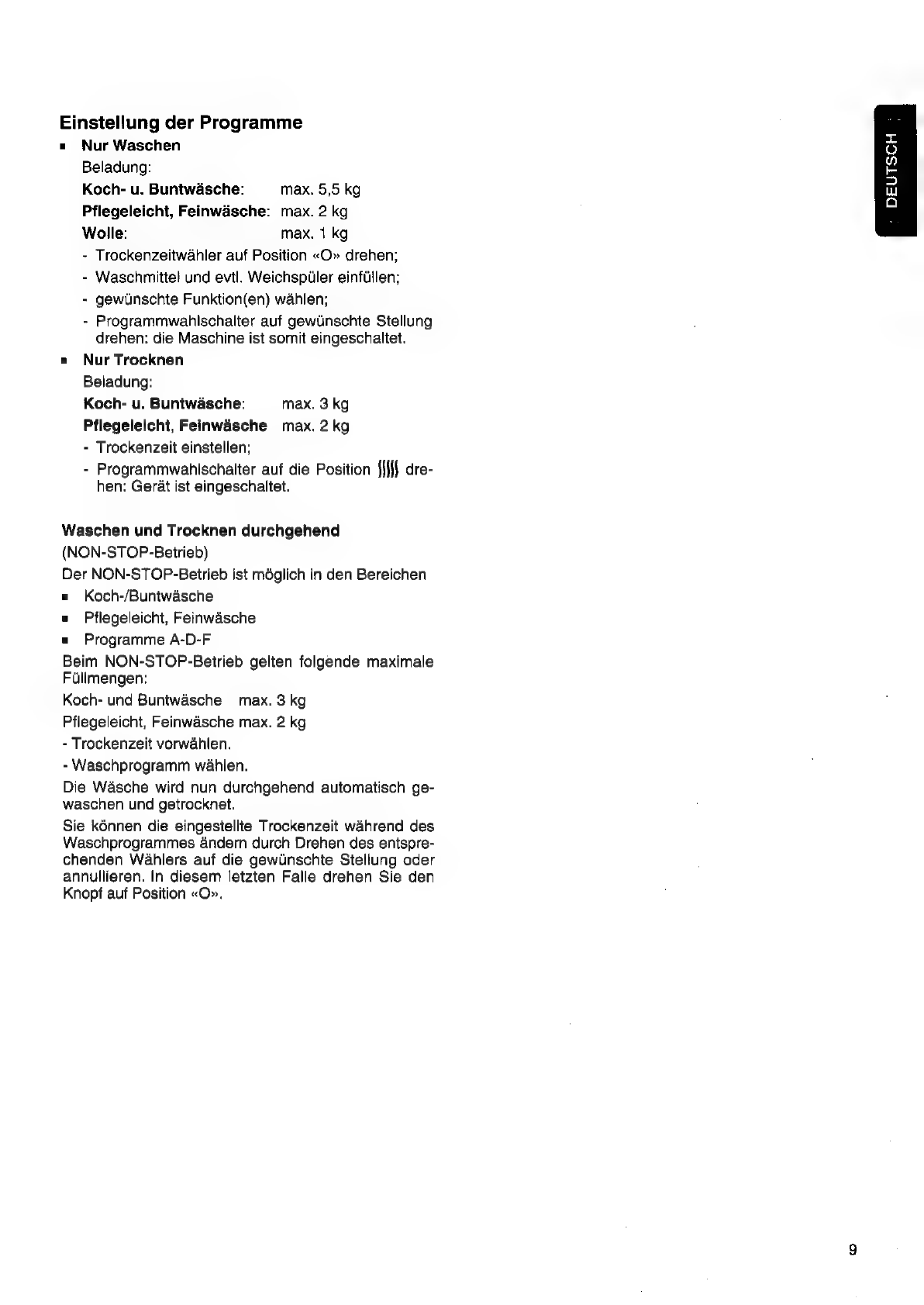

Programme selection
» Washing only
Load size:
cotton, linen max 5.5 kg
synthetics, delicate fabrics = max 2 kg
woollens max 1 kg
- turn the drying time selector dial to position «O»;
- pour the detergent and the fabric softener into
the dispenser drawer;
- select the required function(s);
- turn the programme selector dial to the required
position: the machine switches on.
= Drying only
Load size:
cotton, linen max 3 kg
synthetics, delicate fabrics © max 2 kg
- select the drying time;
- turn the programme selector dial to position {{f{f:
the appliance switches on.
Automatic washing and drying
(NON-STOP programme)
The NON-STOP programme can be used with
= cotton, linen
® synthetics, delicate fabrics
= programmes A-D-F
The maximun load sizes with NON-STOP programme
are:
cotton and linen max 3 kg
synthetics, delicate fabrics max 2 kg
- Select the drying time.
- Select the wash programme.
The laundry will be automatically washed and dried.
The selected drying time can be modified or canceiled
by turning the corresponding selector to the required
position. If the time has to be cancelled, turn the knob
to position «O»
ENGLISH

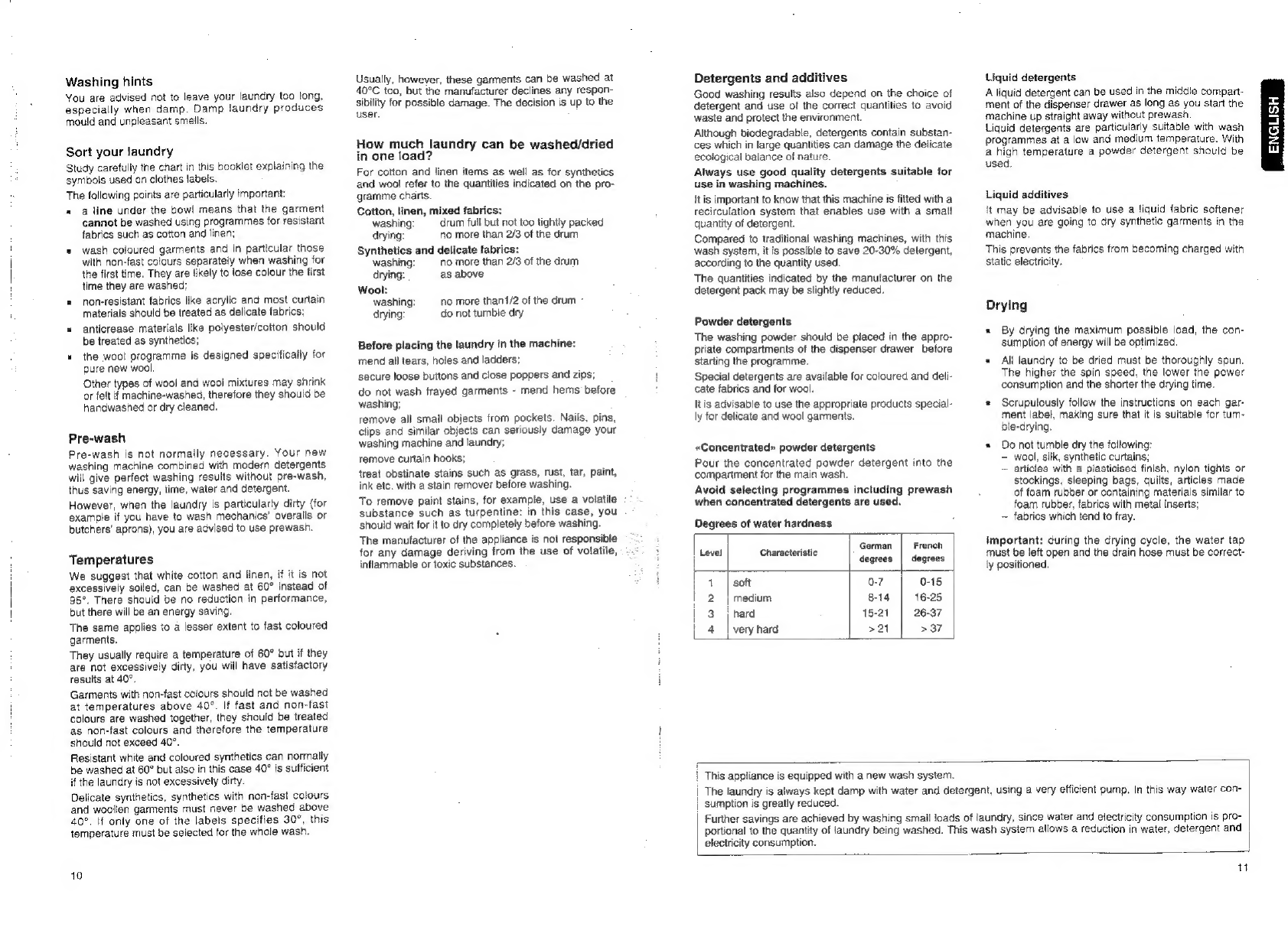

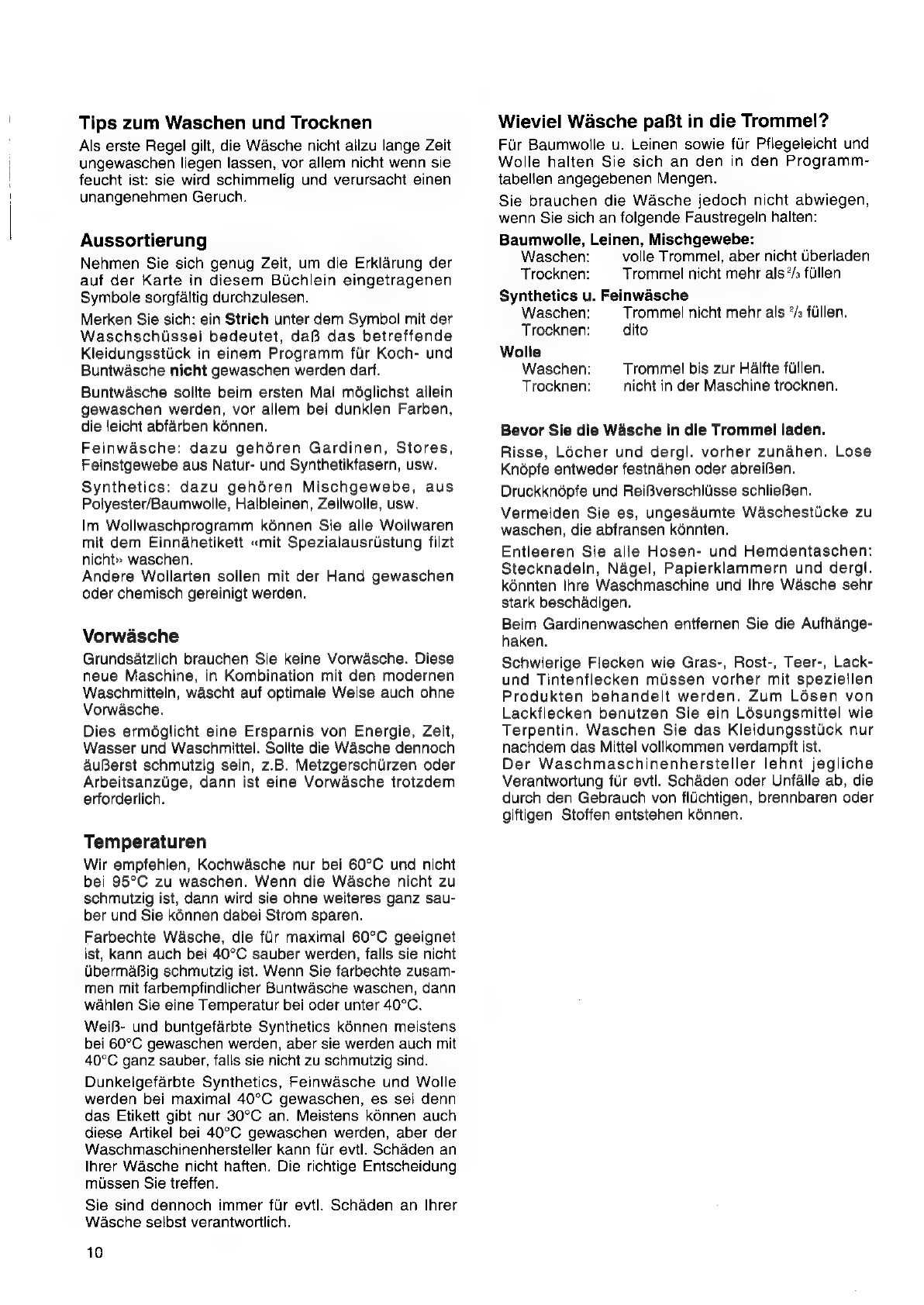

Washing hints
You
are
advised
not
to
leave
your
laundry
too
long,
especially
when
damp.
Damp
laundry
produces
mould
and
unpleasant
smeils.
Sort your laundry
Study
carefully
the
chart
in
this
booklet
explaining
the
symbols used on clothes labels.
The following points are particularly important:
=
a
line
under
the
bowl
means
that
the
garment
cannot
be
washed
using
programmes
for
resistant
fabrics
such
as
cotton
and
linen;
= wash coloured garments and in particular those
with non-fast colours separately when washing for
the first time. They are likely to lose colour the first
time they are washed;
® non-resistant fabrics like acrylic and most curtain
materials should be treated as delicate fabrics:
«
anticrease
materials
like
polyester/cotton
should
be
treated
as
synthetics;
«the wool programme is designed specifically for
pure new wool.
Other types of wool and wool mixtures may shrink
or felt if machine-washed, therefore they should be
handwashed or dry cleaned.
Pre-wash
Pre-wash is not normally necessary. Your new
washing machine combined with modern detergents
will give perfect washing results without pre-wash,
thus saving energy, time, water and detergent.
However, when the laundry is particularly dirty (for
example if you have to wash mechanics’ overalls or
butchers’ aprons), you are advised to use prewash.
Temperatures
We suggest that white cotton and linen, if it is not
excessively soiled, can be washed at 60° instead of
95°, There should be no reduction in performance,
but there will be an energy saving.
The same applies to a lesser extent to fast coloured
garments.
They usually require a temperature of 60° but if they
are not excessively dirty, you will have satisfactory
results at 40°.
Garments with non-fast colours should not be washed
at temperatures above 40°. If fast and non-fast
colours are washed together, they should be treated
as
non-fast
colours
and
therefore
the
temperature
should not exceed 40°.
Resistant white and coloured synthetics can normally
be washed at 60° but also in this case 40° fs sufficient
if the laundry is not excessively dirty.
Delicate
synthetics,
synthetics
with
non-fast
colours
and
woollen
garments
must
never
be
washed
above
40°.
If
only
one
of
the
labels
specifies
30°,
this
temperature
must
be
selected
for
the
whole
wash.
10
Usually, however, these garments can be washed at
40°C too, but the manufacturer declines any respon-
sibility for possible damage. The decision is up to the
user.
How much laundry can be washed/dried
in one load?
For cotton and linen items as well as for synthetics
and wool refer to the quantities indicated on the pro-
gramme charts.
Cotton, linen, mixed fabrics:
washing: drum fui! but not too tightly packed
drying: no more than 2/3 of the drum
Synthetics and delicate fabrics:
washing: no more than 2/3 of the drum
drying: as above
Wool:
washing: no more than1/2 of the drum
drying: do not tumble dry
Before placing the taundry in the machine:
mend ail tears, holes and ladders;
secure loose buttons and close poppers and zips;
do not wash frayed garments - mend hems before
washing;
remove all small objects from pockets. Nails, pins,
clips and similar objects can seriously damage your
washing machine and laundry;
remove curtain hooks;
treat obstinate stains such as grass, rust, tar, paint,
ink etc. with a stain remover before washing.
To remove paint stains, for example, use a volatile
substance such as turpentine: in this case, you
should wait for it to dry completely before washing.
The manufacturer of the appliance is not responsible
for any damage deriving from the use of volatile,
inflammable or toxic substances.

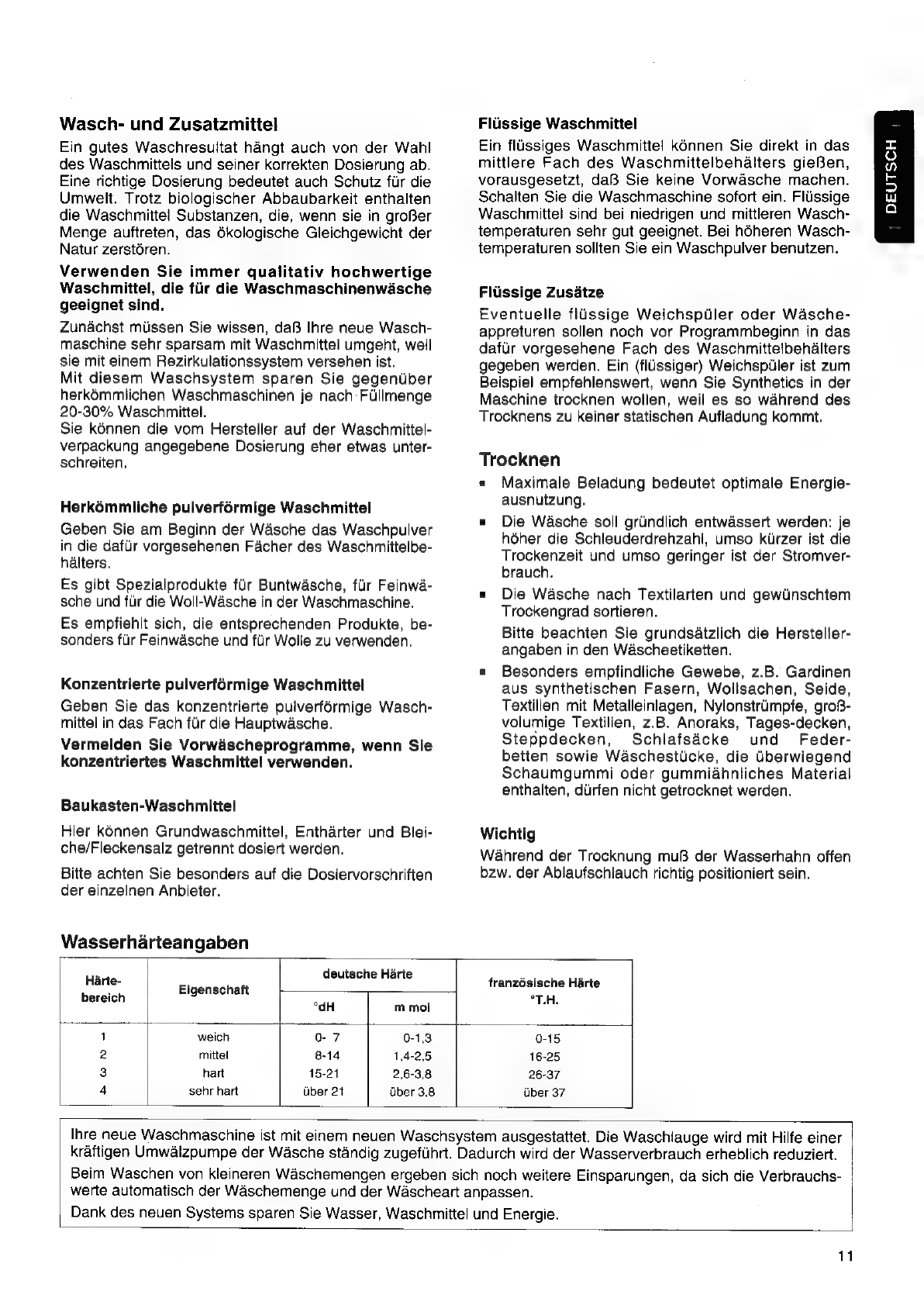

Detergents and additives
Good washing results also depend on the choice of
detergent and use of the correct quantities to avoid
waste and protect the environment.
Although biodegradable, detergents contain substan-
ces which in large quantities can damage the delicate
ecological balance of nature.
Always use good quality detergents suitable for
use in washing machines.
it is important to know that this machine is fitted with a
recirculation system that enables use with a smail
quantity of detergent.
Compared to traditional washing machines, with this
wash system, it is possible to save 20-30% detergent,
according to the quantity used.
The quantities indicated by the manufacturer on the
detergent pack may be slightly reduced.
Powder detergents
The washing powder should be piaced in the appro-
priate compartments of the dispenser drawer before
Starting the programme.
Special detergents are available for coloured and deli-
cate fabrics and for wool.
It is advisable to use the appropriate products special-
ly for delicate and wool garments.
«Concentrated» powder detergents
Pour the concentrated powder detergent into the
compartment for the main wash.
Avoid selecting programmes including prewash
when concentrated detergents are used.
Degrees of water hardness
T
| Lever Characteristic Seeman: | rene
i degrees | degrees
; 1° | soft 0-7 0-15
2] medium 8-14 16-25
| 3 | hard 15-21 | 26-37
| 4 | very hard >21 > 37
Liquid detergents
A liquid detergent can be used in the middfe compart-
ment of the dispenser drawer as long as you start the
machine up straight away without prewash.
Liquid detergents are particularly suitable with wash
programmes at a low and medium temperature. With
a high temperature a powder detergent should be
used.
Liquid additives
It may be advisable to use a ‘iquid fabric softener
when you are going to dry synthetic garments in the
machine.
This prevents the fabrics from becoming charged with
static electricity.
Drying
= By drying the maximum possible load, the con-
sumption of energy will be optimized.
= All laundry to be dried must be thoroughly spun.
The higher the spin speed, the lower the power
consumption and the shorter the drying time.
® Scrupulously follow the instructions on each gar-
ment label, making sure that it is suitable for tum-
ble-drying.
= Do not tumble dry the following:
- wool, silk, synthetic curtains,
~ articles with a plasticised finish, nylon tights or
stockings, sleeping bags, quilts, articles made
of foam rubber or containing materials similar to
foam rubber, fabrics with metal inserts;
~ fabrics which tend to fray.
Important: during the drying cycle, the water tap
must be left open and the drain hose must be correct-
ly positioned.
This appliance is equipped with a new wash system.
sumption is greatly reduced.
electricity consumption.
The laundry is always kept damp with water and detergent, using a very efficient pump, In this way water con-
further
savings
are
achieved
by
washing
smail
loads
of
laundry,
since
water
and
electricity
consumption
is
pro-
portional
to
the
quantity of
jaundry
being
washed.
This
wash
system
allows
a
reduction
in
water,
detergent
and
1
ENGLISH

i
1

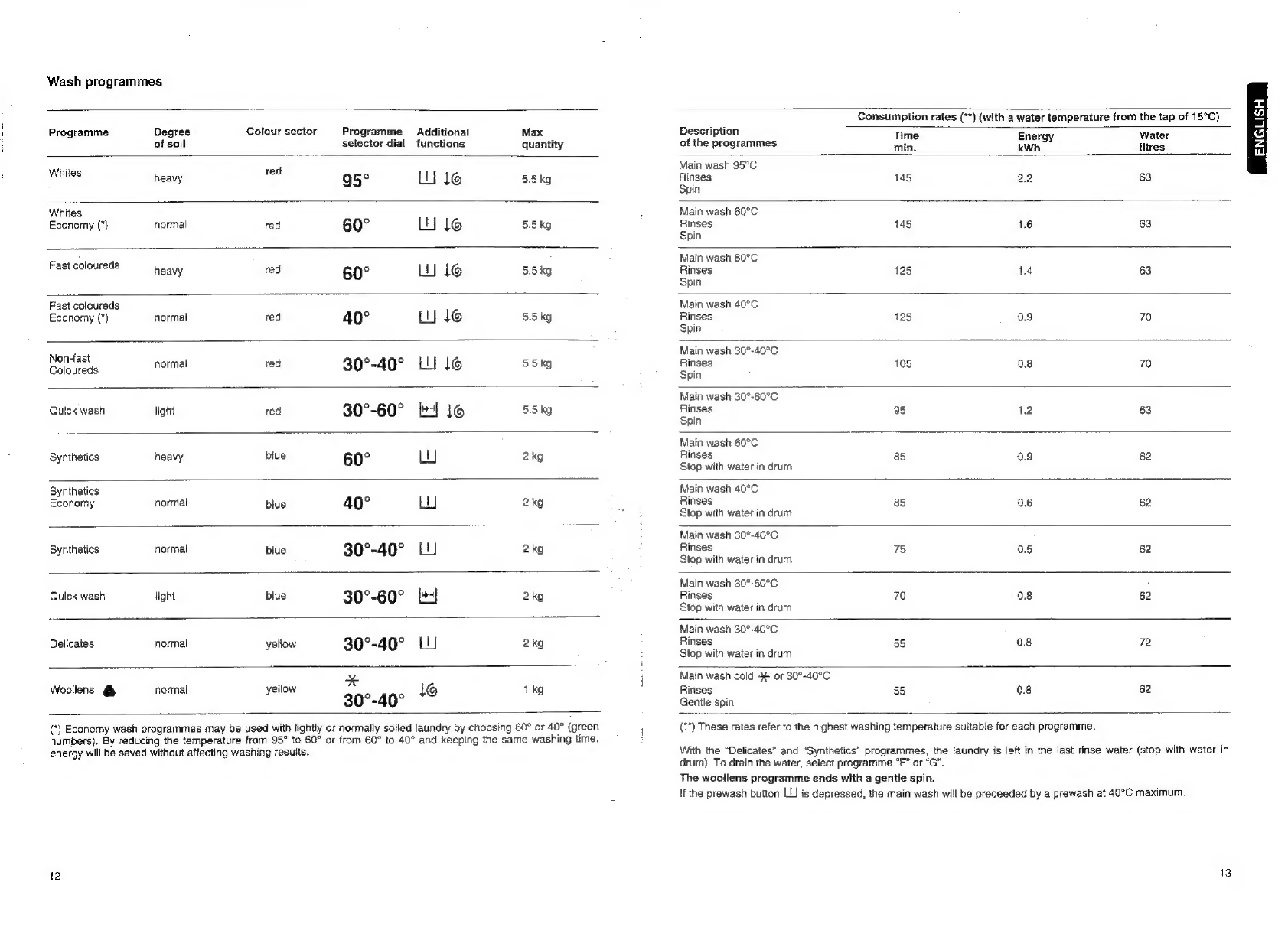

Wash programmes
Programme Degree Colour sector Programme Additional Max
of soil selector dial functions quantity
Whites
heavy
red
95°
LU
16
5.5
kg
Whites
Economy (*) normal red 60° LU le 5.5 kg
Fast
coloureds
heavy
red
60°
LU
lo
5.5
kg
Fast coloureds
Economy (*) normal red 40° LU Lo 5.5 kg
Non-fast ° °
Coloureds
Honma!
ee
30°-40°
LU
16
5.5
kg
Quick wash light red 30°-60° el 16 5.5 kg
Synthetics heavy biue 60° Ly 2kg
Synthetics
Economy normal blue 40° LU 2kg
Synthetics normal blue 30°-40° 2kg
Quick wash light biue 30°-60° bol 2kg
Delicates normal yeliow 30°-40° LU 2kg
* i
Woollens @ normal yellow L© tkg
30°-40°
(*)
Economy
wash
programmes
may
be
used
with
lightly
or
normally
soiled
laundry
by
choosing
60°
or
40°
(green
{
numbers).
By
reducing
the
temperature
from
95°
to
60°
or
from
60°
to
40°
and
keeping the
same
washing
time,
energy
will
be
saved
without
affecting
washing
results.
Description
of the programmes
Consumption rates (**) (with a water temperature from the tap of 15°C)
Time
Energy
kWh
Water
litres
Main wash 95°C
Rinses
Spin
min.
145
2.2
ENGLISH
63
Main wash 60°C
Rinses
Spin
145
63
Main wash 60°C
Rinses
Spin
125 63
Main wash 40°C
Rinses
Spin
125
0.9 70
Main wash 30°-40°C
Rinses
Spin
105
0.8 70
Main wash 30°-60°C
Rinses
Spin
95 63
Main wash 60°C
Rinses
Stop with water in drum
85
0.9
Main wash 40°C
Rinses
Stop with water in drum
85 0.6
62
62
Main wash 30°-40°C
Rinses
Stop with water in drum
Main wash 30°-60°C
Rinses
Stop with water in drum
75
70
0.5
0.8
62
62
Main wash 30°-40°C.
Rinses
Stop with water in drum
55
0.8 72
Main wash cold - or 30°-40°C.
Rinses
Gentle spin
55
0.8
62
(**) These rates refer to the highest washing temperature suitable for each programme.
With the “Delicates” and “Synthetics” programmes, the laundry is left in the last rinse water (stop with water in
drum). To drain the water, select programme “F” or
The woollens programme ends with a gentle spin.
If the prewash button LU is depressed, the main wash will be preceeded by a prewash at 40°C maximum.

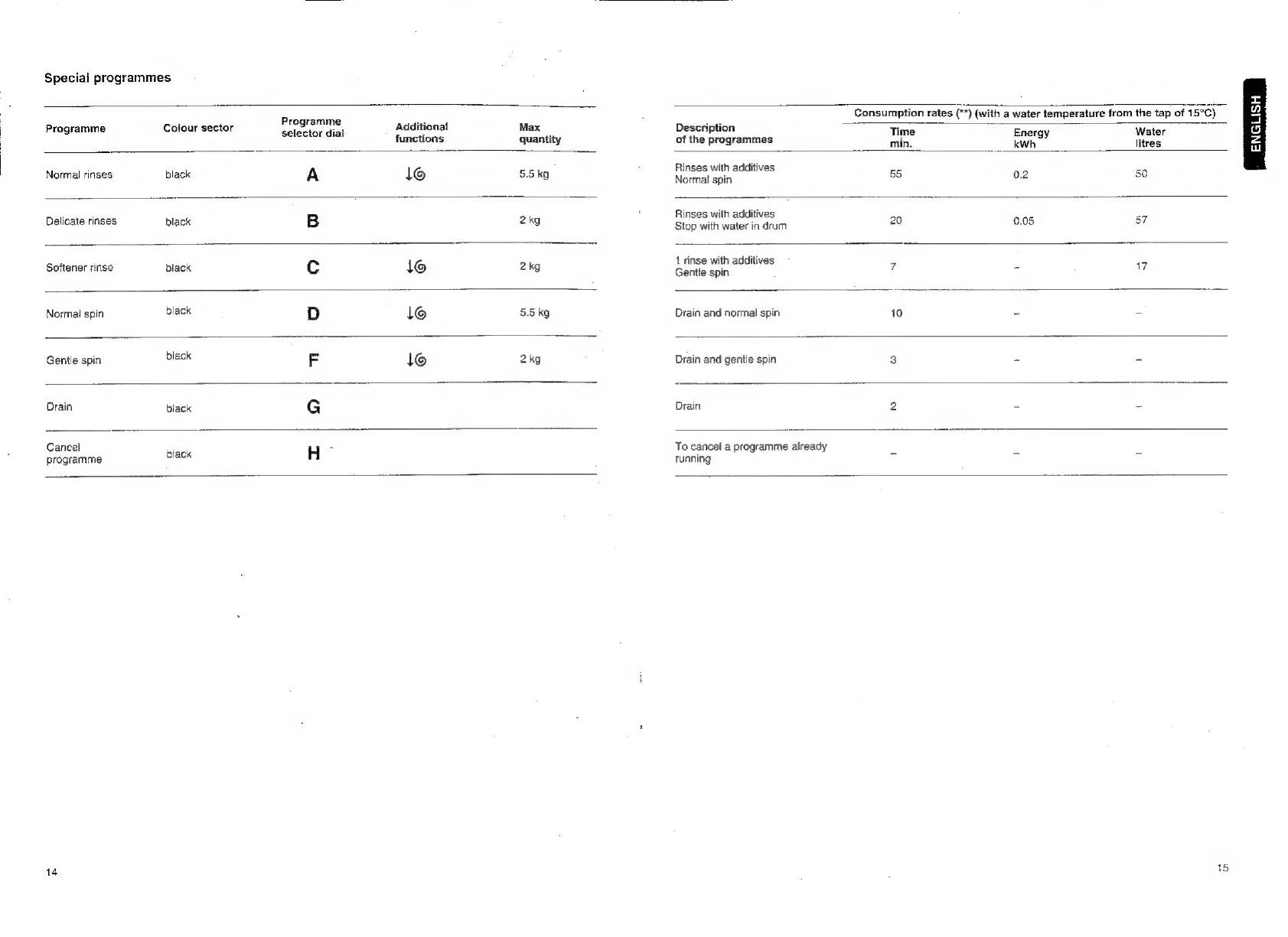

Special programmes
Consumption rates cy (with a water temperature from the tap off
Programme
Colour
sector
Eregramips
pediore!
Max
Description
Time
Energy
swaiay
2
2
BICHON
2
quantity
of
the
programmes
min.
____
kWh
litres
Normal
rinses
black
A
16
5.5
kg
:
see
acl
55
02
50
Delicate
rinses
on
B
2kg
Serena
aoe
a
;
20
0.08
87
Softener
rinse
black
Cc
1©
2kg
bibs
si
additives
7
=
17
Normal
spin
black
D
Lo
5.5
kg
Orain
and
normat
spin
ie
=
.
Gentle
spin
black
F
1@
2kg
Drain
and
gentle
spin
3
=
Drain
black
o.
op
2
se
a
eecramé
black
H-
_
ba
ring
a
aot
Pa
icady
7
~
=
_
ENGLISH

{
iH
H
i
|
DRYING - COTTON AND LINEN
Programme
ott Spin spee Drying time selector.
Quantity in kg rpm (*) Degree of drying in min. dial
3 | 1200 | i 95-100
18 ' 4200 i Extra dry | 45- 55
3 } 1200 i 85-95 iss
1.5 | 4200 Store ary 35-45
i red sector
3 4200 60-70
16 4200 Wren dry 30-40
(*) To save energy and drying time It is advisable to spin at the highest speed sultable for the selected wash pro-
gramme,
DRYING - DELICATES AND SYNTHETICS
1 Programme
7 Spin speed | | Drying time selector
Quantity in kg rpm | Degree of drying | in min. dial
1 |
i |
2 850 | 80-30
1 850 de 9A 55-65 §S$94
‘ | i blue and
2 851 i i 60-70 yellow sector
1 850 oe 40-50
i 1
Wash code symbols
These
symbols
appear
on
fabric
labels,
in
order
to
heip
you
choose
the
best
way
to
treat
your
laundry.
x=
7 a sie T .
Wash action | : i | } 3
Normal : ! i
| | Be
1 j j H
i Luar Max. wash Max. wash Max. wash | Max. wash
temperature | temperature | temperature | temperature Sz
95°C coc =O | ores 30°C |
ee i : Handwash ; Donot |
= 39) | wash |
Delicate : =. SOS oe at alt {
t i ‘ L a ‘ =e
| Bleaching Chiorine bleach can be used j Do not bleach
|
7 1. _ re ] To ]
| 5
|
A aA a aA Pes
| Ironing Hot iron Warm iron | Cool iron | Do not iron
| |
i i i i
H } H
f i |
O0;/@;, ©®)| ©; ®B
i
H
|
|
Dry cleaning Dry cleaning Dry cleaning in Dry cleaning Do not
in all solvents | perchlorethylene, in petrol, dry clean
petrol, pure alcohol, pure alcoho!
R111 &R 13 and R 113
f i : 1 ey high
}
|
|
|
A
temperature
|
| ! if © be
i : | Dad temperature
i i
i Drying Flat | On the line On clothes Tumble dry Do not
| hanger tumble dry |

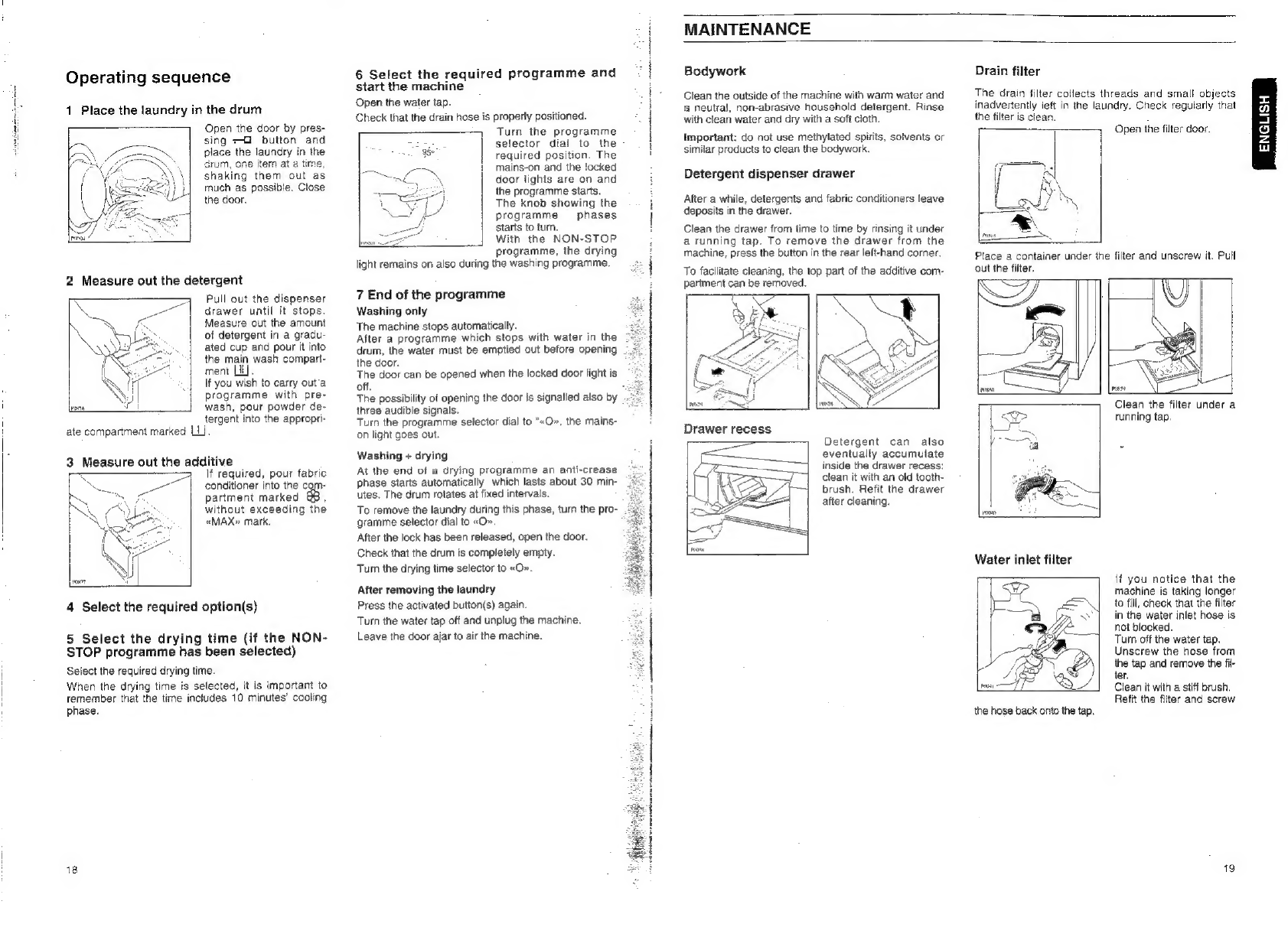

Operating sequence
1 Place the laundry in the drum
Open the door by pres-
sing =O button and
place the laundry in the
drum, one item at a time
shaking them out as
much as possible. Close
the door.
2 Measure out the detergent
Pull out the dispenser
drawer until it stops.
Measure out the amount
of detergent in a gradu-
ated cup and pour it into
the main wash compart-
ment Lit].
If you wish to carry outa
programme with pre-
wash, pour powder de-
tergent into the appropri-
ate compartment marked LU.
pov
3 Measure out the additive
If required, pour fabric
conditioner into the cgm-
partment marked 7
without exceeding the
«MAX» mark.
4 Select the required option(s)
5 Select the drying time (if the NON-
STOP programme has been selected)
Select the required drying time.
When the drying time is selected, it is important to
remember that the time includes 10 minutes’ cooling
phase.
18
6 Select the required programme and
start the machine
Open the water tap.
Check that the drain hose is properly positioned.
>———_———,__ Turn the programme
= selector diai to the
required position. The
{1 mains-on and the locked
door lights are on and
the programme starts.
The knob showing the
programme phases
starts to turn.
With the NON-STOP
programme, the drying
light remains on also during the washing programme.
7 End of the programme
Washing only
The machine stops automatically.
After a programme which stops with water in the
drum, the water must be emptied out before opening
the door.
The door can be opened when the locked door light is
off.
three audible signals.
Turn the programme selector dial to “«O», the mains-
on light goes out.
Washing + drying
At the end of a drying programme an anti-crease
phase starts automatically which lasts about 30 min-
utes. The drum rotates at fixed intervals.
To remove the laundry during this phase, turn the pro-
gramme selector dial to «O»
After the lock has been released, open the door.
Check that the drum is completely empty.
Turn the drying time selector to «O».
After removing the laundry
Press the activated button(s) again.
Turn the water tap off and unplug the machine.
Leave the door ajar to air the machine.
The possibility of opening the door is signalled also by :
MAINTENANCE
Bodywork
Clean the outside of the machine with warm water and
a neutral, non-abrasive household detergent. Rinse
with clean water and dry with a soft cloth.
Important: do not use methylated spirits, solvents or
similar products to clean the bodywork.
Detergent dispenser drawer
After a while, detergents and fabric conditioners leave
deposits in the drawer.
Clean the drawer from time to time by rinsing it under
a running tap. To remove the drawer from the
machine, press the button in the rear left-hand corner.
To facilitate cleaning, the top part of the additive com-
partment can be removed.
Detergent can also
eventually accumulate
inside the drawer recess:
clean it with an old tooth-
brush. Refit the drawer
after cleaning.
Drain filter
The drain filter collects threads and smal! objects
inadvertently left in the laundry. Check reguiarly that
the filter is clean.
Open the filter door.
Place a container under the filter and unscrew it. Pull
out the filter.
Clean the filter under a
Tunning tap.
if you notice that the
machine is taking longer
to fill, check that the filter
in the water inlet hose is
not blocked.
Turn off the water tap.
Unscrew the hose from
the tap and remove the fil-
ter.
Clean it with a stiff brush.
Refit the filter and screw
the hose back onto the tap,
19
ENGLISH

IN F O
INSTALLATIONS- UND GEBRAUCHSANWEISUNG
INSTRUCTIONS POUR L'INSTALLATION ET L'EMPLOI
GEBRUIKSAANWIJZING EN INSTALLATIE VOORSCHRIFT
WASCH-TROCKENAUTOMAT EW1247W
LAVANTE-SECHANTE EW1247W
WAS- EN DROOGAUTOMAAT EW1247W
KX) Electrolux
