SERVICE MANUAL
W75 – W100 – W160 – W230
471 1553-51

NOTICE TO SERVICE PERSONNEL
INSTALLATION
Improper installation of Wascomat laundry and wet cleaning equipment can result in
personal injury and severe damage to the machine.
REFER INSTALLATION TO QUALIFIED PERSONNEL!
RISK OF ELECTRIC SHOCK
The equipment utilizes high Voltages. Disconnect electric power before servicing.
The use of proper service tools and techniques, and the use of proper repair procedures,
is essential to the safety of service personnel and equipment users.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL!
RISK OF PERSONAL INJURY
This equipment contains moving parts, and some components that may have sharp edges.
Improper or careless service procedures may result in serious injury to service personnel.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL!
ABOUT THIS MANUAL
This manual is intended to provide service guidance to qualified service personnel.
Wascomat and its authorized dealers make no determination regarding the qualification of
individuals requesting this service manual. The service provider assumes all risks inherent
to the servicing of this equipment and any risks that arise as result of the lack of
knowledge or ability of any person servicing this equipment.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL!
NOTE:
Improper installation or servicing of Wascomat equipment will void the
manufacturer's warranty!

Machine description – Safety regulations
Data
Description of principle components
Programmes
Periodic maintenance
Function sequences – Fault finding
Automatic unit
Timer
Level control
Thermostat
Door and safety locking device
Motor
Inlet valve, water
Drain valve
Heating
Coin meter
Drum and bearings
Frame
1
2
3
4
5
11
12
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Summary
Service-
instruc-
tions
Included
units and
components

Service
Manual 9112
Edition
Type Page 1
1
1418
1. Machine description
The 70 100, 160 and 230 litre washing machines described in this manual
are normal spin machines and differ only in size and washing capacity. The
machines are intended for installation in apartment houses, hotels,
laundries, industries, hospitals, smaller institutions and other regular users
who require machines with high reliability, large washing capacity and easy
maintenance.
Because the machines have a washing drum which is solidly mounted in
the frame, they require secure anchoring to the foundation.
The spin speed provides a G-factor of about 80.
The machines are supplied equipped in accordance with customer
specifications for electric, steam, gas heating or non-heating and can be
connected to various combinations of cold, hot and/or cold hard water.
The machines can be supplied with or without coin meter.
The machines are available with two different types of timer:
• Mechanical timer with fixed wash programs. The machine has switches
to select different standard programs.
• Electronic timer with fixed wash programs. The machine has switches to
select different standard programs. The timer also has a built-in trouble-
shooting program which increases possibilities for rational service.
Fig.
1
91

Service
Manual
9112
EditionType Page
92
11. Machine description
Safety Regulations
• The machine is designed for water washing only.
• The machine must not be used by children.
• Installation and service work may only be carried out by qualified personnel.
• The machine’s door lock may not be bypassed under any circumstances.
• System leakage, such as a worn door gasket, should be repaired
immediately.
• Qualified personnel should study the relevant handbooks and service
manuals before any repairs or service are done.
• This machine may not be sprayed with water.

Service
Manual 9112
Edition
Type Page
2. Data 81
2
W 75 W 100 W 160 W230
Dry weight capacity
at filling factor 1:13 5.4 kg 7.7 kg 12.3 kg 17.7 kg
at filling factor 1:10 7 kg 10 kg 16 kg 23 kg
Drum volume 70 lit 100 lit 160 lit 230 lit
diameter 520 mm 520 mm 620 mm 700 mm
depth 356 mm 473 mm 520 mm 600 mm
Drum speed wash 52 r/m 52 r/m 52 r/m 45 r/m
spin 530 r/m 530 r/m 500 r/m 455 r/m
G-factor wash 0.8 0.8 0.9 0.8
spin 81 81 87 81
Dimensions width 660 mm 660 mm 745 mm 825 mm
depth 649 mm 766 mm 995 mm 1090 mm
height 1050 mm 1050 mm 1195 mm 1320 mm
Recommended service space
side 250 mm 250 mm 250 mm 250 mm
rear 500 mm 500 mm 500 mm 500 mm
Min. space for moving
machine during servicing side 50 mm 50 mm 50 mm 50 mm
rear 250 mm 250 mm 250 mm 250 mm
Weight net 107 kg 147 kg 202 kg 265 kg
gross, crate packed 117 kg 158 kg 220 kg 287 kg
gross, box packed 144 kg 185 kg 280 kg 352 kg
Transport volume crate packed 0.62 m30.65 m31.1 m31.42 m3
box packed 0.77 m30.8 m31.5 m31.8 m3
Max floor load during spin 1.2±2.6 kN 1.7±3.4 kN 2.4±4.8 kN 3.1±5.2 kN
Frequency (dynamic load) 9 Hz 9 Hz 8.5 Hz 8.5 Hz
Water valves connection DN20 3/4 DN20 3/4" DN20 3/4'' DN20 3/4''
rec. water pressure 200-600 kPa 200-600 kPa 200-600 kPa 200-600 kPa
pressure limits 40-1000 kPa 40-1000 kPa 40-1000 kPa 40-1000 kPa
capacity at 300 kPa 27 l/min 27 l/min 27 l/min 100 l/min
Drain valve conn. outside diameter 75 mm 75 mm 75 mm 75 mm
capacity 160 l/min 160 l/min 160 l/min 160 l/min
Steam valve connection DN15 1/2" DN15 1/2" DN15 1/2'' DN15 1/2''
rec. steam pressure 300-600

Service
Manual
9112
EditionType Page 2. Data
282
70 LITERS
Heating Voltage Total Fuse Cable cross-
alternative alternative kW A section mm2
No heating 100 V 1 AC 50 Hz 1,4 20 3 x 4
or 100 V 1 AC 60 Hz 1,3 20 3 x 4
Steam heating 120 V 1 AC 60 Hz 1,2 16 3 x 2,5
200 V 3 AC 50 Hz 1,1 10 4 x 1,5
208-240 V 3 AC 60 Hz 1,1 10 4 x 1,5
220-230 V 1 AC 50 Hz 1,4 16 3 x 2,5
220-230 V 3 AC 50 Hz 1,2 10 4 x 1,5
240 V 1 AC 50 Hz 1,4 16 3 x 2,5
380-400 V 3N AC 50 HZ 1,2 10 5 x 1,5
415-440 V 3N AC 50 Hz 1,2 10 5 x 1,5
El 3,0 kW 220-240 V 1 AC 50 Hz 3,5 20 3 x 4
380-400 V 3N AC 50 Hz 3.5 10 5 x 1,5
El 5,4 kW 220-230 V 1 AC 50 Hz 5,8 35 3 x 10
220-230 V 3 AC 50 Hz 5,8 16 4 x 2,5
240 V 1 AC 50 Hz 5,8 35 3 x 10
380-400 V 3N AC 50 Hz 5,8 10 5 x 1,5
415-440 V 3N AC 50 Hz 5,8 10 5 x 1,5
El 6,0 kW 380-415 V 3N AC 50 Hz 6,5 16 5 x 2,5
El 7,5 kW 220-230 V 3 AC 50 Hz 8,0 25 4 x 6
220-230 V 3 AC 60 Hz 8,0 25 4 x 6
240 V 3 AC 60 Hz 8,0 25 4 x 6
380-400 V 3 AC 50 Hz 8,0 16 4 x 2,5
380-400 V 3N AC 50 Hz 8,0 16 5 x 2,5
415-440 V 3 AC 50 Hz 8,0 16 4 x 2,5
415-440 V 3N AC 50 Hz 8,0 16 5 x 2,5

Service
Manual 9112
Edition
Type Page
100 LITERS
2. Data 2
83
Heating Voltage Total Fuse Cable cross-
alternative alternative kW A section mm2
No heating 220 V 3 AC 50 Hz 1,6 10 4 x 1,5
or 415-440 V 3 AC 60 Hz 1,6 10 4 x 1,5
Steam heating 380-440 V 3N AC 50 Hz 1,6 10 5 x 1,5
415-440 V 3N AC 50 Hz 1,6 10 5 x 1,5
208-240 V 3 AC 60 Hz 1,6 10 4 x 1,5
120 V 1 AC 60 Hz 1,1 20 3 x 4
220-240 V 1 AC 50 Hz 1,7 16 3 x 2,5
El 7,5 kW 220-230 V 3 AC 50 Hz 8,1 25 4 x 6
380-400 V 3N AC 50 Hz 8,1 16 5 x 25
El 9 kW 415-440 V 3N AC 50 Hz 9,6 16 5 x 2,5
380-400 V 3 NAC 50 Hz 9,6 16 5 x 2,5
160 LITERS
Heating Voltage Total Fuse Cable cross-
alternative alternative kW A section mm2
No heating 208-240 V 1 AC 60 Hz 2,6 16 3 x 2,5
or 208-240 V 3 AC 60 Hz 2,6 10 4 x 1,5
Steam heating 220-230 V 3 AC 50 Hz 2,6 10 4 x 1,5
380-440 V 3N AC 50 Hz 2,6 10 5 x 1,5
415-440 V 3N AC 50 Hz 2,6 10 5 x 1,5
El 12,0 kW 220-230 V 3 AC 50 Hz 12,8 35 4 x 10
380-400 V 3N AC 50 Hz 12,8 20 5 x 4
415-440 V 3N AC 50 Hz 12,8 20 5 x 4
230 LITERS
Heating Voltage Total Fuse Cable cross-
alternative alternative kW A section mm2
No heating 208-240 V 3 AV 60 Hz 2,3 10 4 x 1,5
or 220-230 V 3 AC 50 Hz 2,3 10 4 x 1,5
Steam heating 380-400 V 3N AC 50 Hz 2,3 10 5 x 1,5
415-440 V 3N AC 50 Hz 2,3 10 5 x 1,5
El 18 kW 208-240 V 3 AC 60 Hz 18,9 50 4 x 16
220-230 V 3 AC 50 Hz 18,9 50 4 x 16
380-400 V 3N AC 50 Hz 18,9 35 5 x 10
415-440 V 3N AC 50 Hz 18,9 35 5 x 10

Service
Manual 9112
Edition
Type Page 3

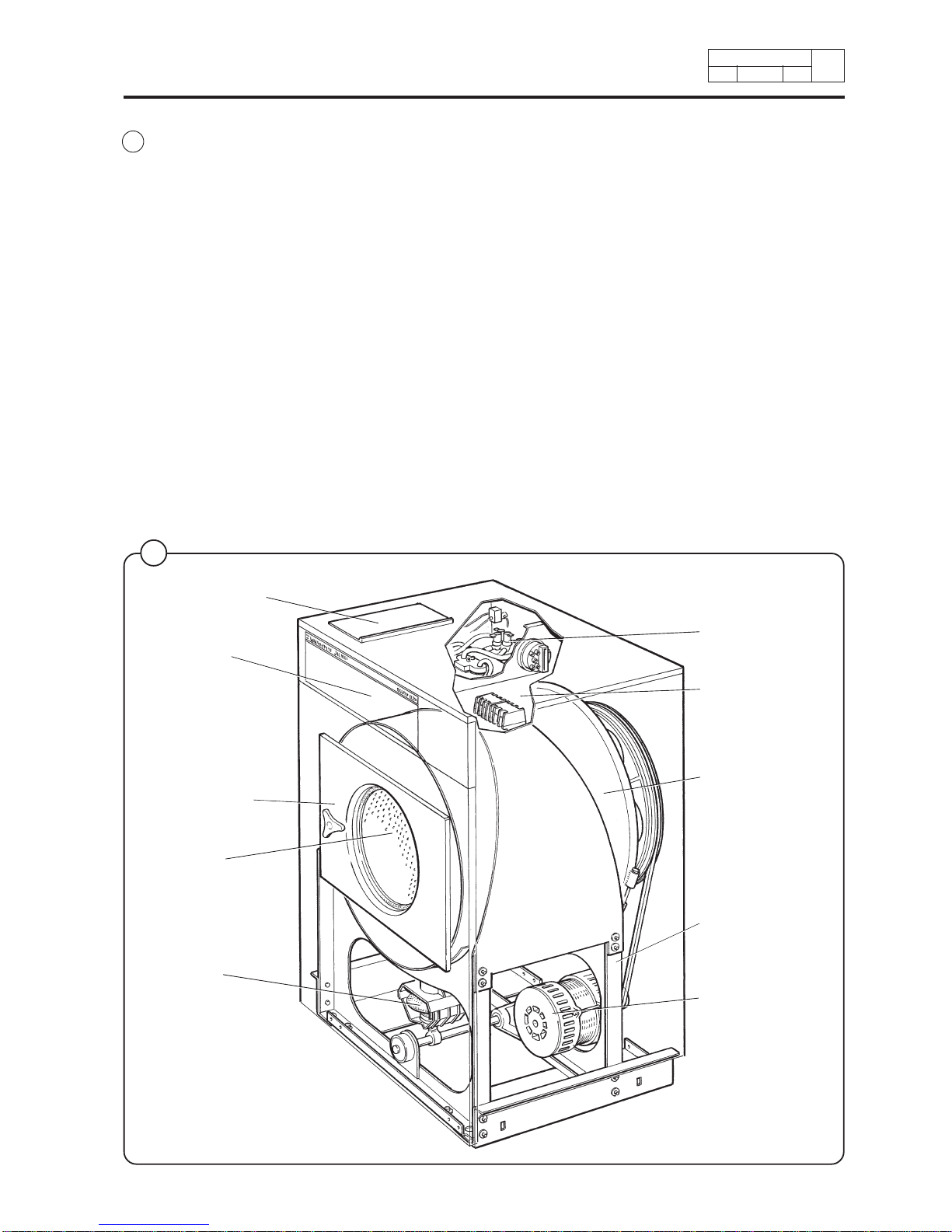

Inlet valve, water
Automatic control unit
Outer drum
Chassis
Motor
1
G119
The inner drum drive shaft is mounted in the outer drum with two ball
bearings at the back plate. Two neoprene gaskets make the shaft leak
resistant.
The motor is mounted on a rubber-cushioned shaft under the drum.
To prevent transmission of troublesome noises from chassis to the building
frame, the motor’s belt-tensioning device is also rubber-cushioned.
The drain valve is a membrane valve controlled with the help of the water
pressure in the cold water connection.
The door is electrically locked when the machine in running.
Timer, level control, thermostat, motor relays, etc., are located in the
automatic control unit which is easily accessible from the top of the
machine.
The front plate is available in a selection of finishes (galvanised/ painted or
in stainless steel). The side plates are galvanised/ painted, the rear panel is
galvanised/unpainted and the top panel is stainless steel.
5
3. Description of principle components
Detergent compartment
Control panel
Door and Safety lock
Inner drum
Drain valve
Fig.
1
11 9020 1

Service
Manual Edition
Type Page
PE11CHd
Timer type
E = electronic microprocessor-
controlled timer.
Electromechanical timer do not
have a letter positioned here in
the program name.
Example:
PE11CHd = electronic timer
P11CHd = electromechanical
timer
Market
0 = Export
1 = Sweden
Machine family
1 = Machine with heating
2 = Machine for laundrettes, Europe
and Asia
3 = Machine for laundrettes, USA and
Canada
4 = Machine for laundrettes,
Denmark and West Germany
5 = Machine for OPL, USA
6 = Machine for OPL, Selecta USA
8 = Machine for laundrettes, Japan
The symbol PE11CHd used in the example above means:
• for standard user
• with electronic timer
• adapted for Sweden
• equipped with heating
• cold and cold hard water connection.
User catagory
P = Standard
H = Hygienic and hospital.
These programs follow national
regulations
S = Selecta program. Special OPL-
program.
M = Mop program.
4. Programmes 4
Identification of wash programs
The wash programs are identified by a combined letter and number symbol.
Identification occurs as described in the example below.
Water connection
C = cold water
CH = cold and hot water
CHd = cold and cold hard water
CHHd = cold, hot and cold hard
water
10 19002

Service
Manual
Type PageEdition
10 2 4. Programmes
Program description
The wash programs identified by the symbol P11C are described on the
following pages. They are the programs designed for a regular user using a
heated machine with mechanical timer and intended for cold water
connection only.
These machines have eight fixed programs, which are selected by using the
knob on the control panel.
Program Wash type
Normal 95°white wash
Normal 60°colour wash
Normal 40°colour wash
Mild 30°delicate wash
Wool separate wool garments
Permanent press 40°fine wash
Permanent press 60°coloured
Permanent press 95°white
By pushing the selector button HEAVILY SOILED a prewash and rinse will
be added to the three standard programs.
During cool-down, water filling and heating, the timer does not move. This
time is not included in the stated program times.
49002

4
Service
Manual 4. Programmes Edition Page
Type
PROGRAM
PROGRAM SEQUENCE
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
3C-LL2N
12 C 90 LL 2 N
C56
1N 1C-HL-N 1N
0.5 E
2C-HL-N 1N
0.5 E
2C-HL3N 1N 1E
1.5 N
Program P11C
WITHOUT PRE WASH MAIN WASH COOL DOWN DRAIN RINSE 1 DRAIN EXTRACTION RINSE 2 DRAIN EXTRACTION RINSE 3 DRAIN EXTRACTION RINSE 4 DRAIN
EXTRACTION SHAKE OUT
TOTAL TIME
NORMAL 95°NORMAL 60°NORMAL 40°DELICATE 30°WOOL PERM. PRESS 40°PERM. PRESS 60°PERM. PRESS 95°
STANDARD STANDARD STANDARD STANDARD STANDARD STANDARD STANDARD STANDARD
12 34 5 6 78
10 9002 3
27.5 27.5 27.5 16.5 16.5 27.5 27.5 27.5
3C-LL2N
12 C 60 LL 2 N
C56
1N 1C-HL-N 1N
0.5 E
2C-HL-N 1N
0.5 E
2C-HL3N 1N 1E
1.5 N
3C-LL2N
12 C 40 LL 2 N
---
1N 1C-HL-N 1N
0.5 E
2C-HL-N 1N
0.5 E
2C-HL3N 1N 1E
1.5 N
3C-HL2G 2C30HL-G
---
1- 1C-HL-G 1-
--
2C-HL-G 1-
--
2C-HL3G 1G 1E
1.5 -
3C-HL2G 2C40HL-G
---
1- 1C-HL-G 1-
--
2C-HL-G 1-
--
2C-HL3G 1G 1E
1.5
3C-LL2N
12 C 40 LL 2 N
---
1N 1C-HL-N 1N
0.5 E
2C-HL-N 1N
0.5 E
2C-HL3N 1N 1E
1.5 N
3C-LL2N
12 C 60 LL 2 N
C56
1N 1C-HL-N 1N
0.5 E
2C-HL-N 1N
0.5 E
2C-HL3N 1N 1E
1.5 N
3C-LL2N
12 C 90 LL 2 N
C56
1N 1C-HL-N 1N
0.5 E
2C-HL-N 1N
0.5 E
2C-HL3N 1N 1E
1.5 N
C = COLD WATER
HL = HIGH LEVEL
LL = LOW LEVEL
D = DISTRIBUTION
E = EXTRACTION
G = GENTLE ACTION 3/12 SEC
N = NORMAL ACTION 12/3 SEC

4. Programmes
Edition Page
Type Service
Manual
4
PROGRAM
PROGRAM SEQUENCE
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
Program P11C with prewash
10 9002 4
6C-LL1N
0.5 N
12 C 90 LL 2 N
C56
1N 1C-HL-N 1N 1C-HL-N 1N
0.5 E
2C-HL-N 1N
0.5 E
2C-HL3N 1N 1E
1.5 N
PRE WASH DRAIN WITHOUT PRE WASH MAIN WASH COOL DOWN DRAIN RINSE DRAIN EXTRACTION RINSE 2 DRAIN EXTRACTION RINSE 3 DRAIN EXTRACTION RINSE 4 DRAIN EXTRACTION SPIN DOWN TOTAL TIME 33 33 33 16.5 16.5 27.5 27.5 27.5
NORMAL 95°NORMAL 60°NORMAL 40°DELICATE 30°WOOL PERM. PRESS 40°PERM. PRESS 60°PERM. PRESS 95°
HEAVY SOILED HEAVY SOILED HEAVY SOILED
910111213141516
6C-LL1N
0.5 N
12 C 60 LL 2 N
C56
1N 1C-HL-N 1N 1C-HL-N 1N
0.5 E
2C-HL-N 1N
0.5 E
2C-HL3N 1N 1E
1.5 N
6C-LL1N
0.5 N
12 C 40 LL 2 N
---
1N 1C-HL-N 1N 1C-HL-N 1N
0.5 E
2C-HL-N 1N
0.5 E
2C-HL3N 1N 1E
1.5 N
3C-HL2G 2C30HL-G
---
1- 1C-HL-G 1-
--
2C-HL-G 1-
--
2C-HL3G 1G 1E
1.5
3C-HL2G 2C40HL-G
---
1- 1C-HL-G 1-
--
2C-HL-G 1-
--
2C-HL3G 1G 1E
1.5
3C-LL2N
12 C 40 LL 2 N
---
1N 1C-HL-N 1N
0.5 E
2C-HL-N 1N
0.5 E
2C-HL3N 1N 1E
1.5 N
3C-LL2N
12 C 60 LL 2 N
C56
1N 1C-HL-N 1N
0.5 E
2C-HL-N 1N
0.5 E
2C-HL3N 1N 1E
1.5 N
3C-LL2N
12 C 90 LL 2 N
C56
1N 1C-HL-N 1N
0.5 E
2C-HL-N 1N
0.5 E
2C-HL3N 1N 1E
1.5 N
C = COLD WATER
HL = HIGH LEVEL
LL = LOW LEVEL
D = DISTRIBUTION
E = EXTRACTION
G = GENTLE ACTION 3/12 SEC
N = NORMAL ACTION 12/3 SEC

Service
Manual Edition
Type Page
4. Programmes 4
PE11CHd
Timer type
E = electronic microprocessor-
controlled timer
Electromechanical timer do not
have a letter positioned here in
the program name.
Example:
PE11CHd = electronic timer
P11CHd = electromechanical
timer
Market
0 = Export
1 = Sweden
Machine family
1 = Machine with heating capacity
2 = Machine for laundrettes,
Europe and Asia
3 = Machine for laundrettes,
USA and Canada
4 = Machine for laundrettes,
Denmark and West Germany
5 = Machine for OPL, USA
6 = Machine for OPL, Selecta USA
8 = Machine for laundrettes, Japan
Water connection
C = cold water
CH = cold and hot water
CHd = cold and cold hard water
CHHd = cold, hot and cold hard
water
The symbol PE11CHd used in the example above means:
• for standard
• with electronic timer
• adapted for Sweden
• equipped with heating
• cold and cold hard water connection
User catagory
P = Standard
H = Hygienic and hospital.
These programs follow national
regulations.
S = Selecta program. Special OPL-
program.
M = Mop program.
Identification of wash programs
The wash programs are identified by a combined letter and number symbol.
Identification occurs as described in the example below.
9002
11 1

Service
Manual
Type PageEdition 4. Programmes
Program description
The wash programs identified by the sybol P11C
are described on the following pages. They are the
programs for a regular user in Sweden using a
heated machine with mechanical timer and
intended for cold water connection only. There are
more program variations available for machines
with electronic timer.
Machines with wash program PE11C have seven
fixed programs which are selected by pushing the
program buttons on the panel.
Program Wash type
Normal 95°white wash
Normal 60°colour wash
Normal 40°colour wash
Mild 30°delicate wash
Wool separate wool garments
Permanent press 40°fine wash
Permanent press 60°coloured
The programmer has two selector buttons,
HEAVILY SOILED and NO SPIN. By pushing in
one or the other or both simultaneously, a total of
28 different program variations are accessible.
During cool-down, water filling and heating, the
timer does not move. This program time is not
included in the stated program times.

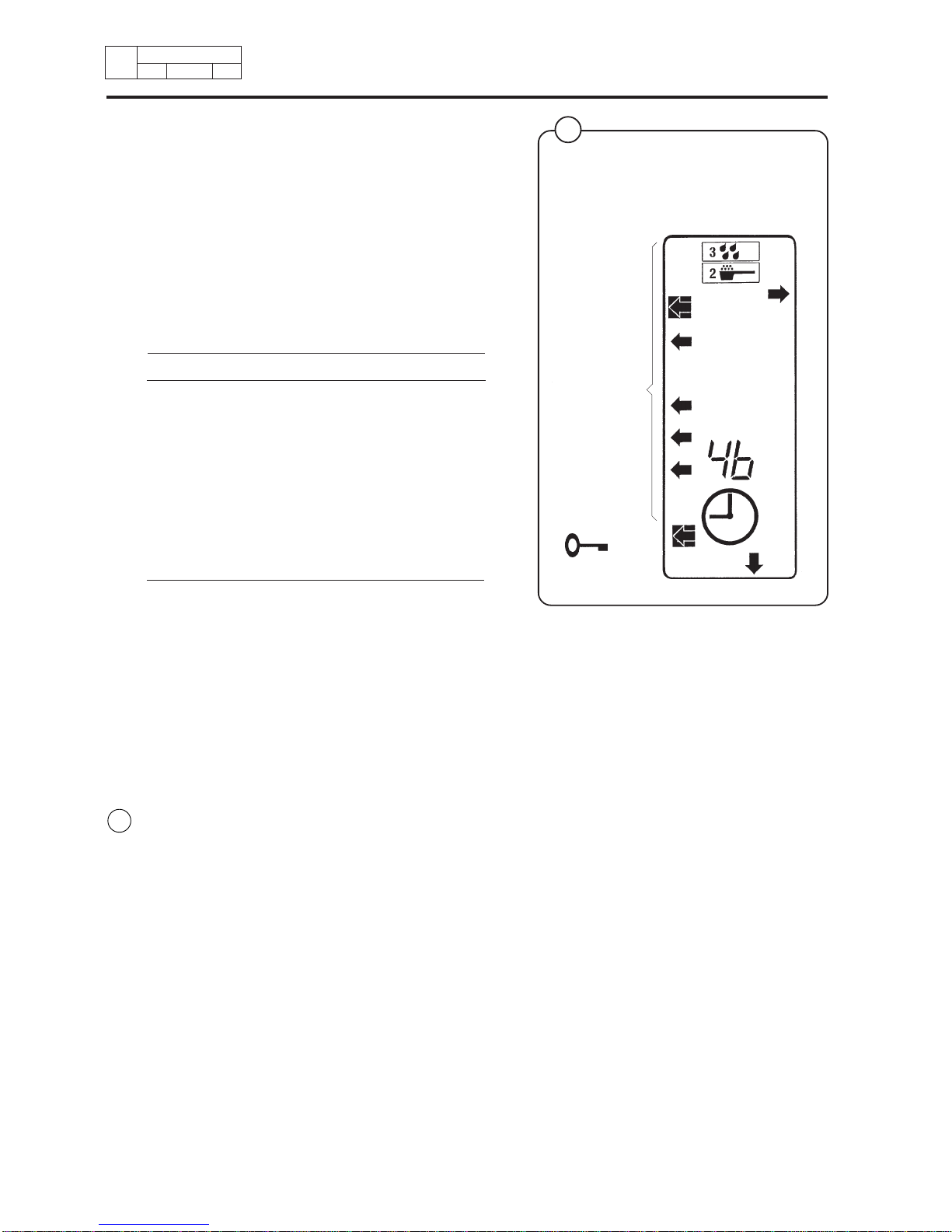

Program indicator
To the left in the display window, there are ten
arrow symbols which can be illuminated. A square
surrounding each arrow can also be illuminated.
The arrows light up when a program is selected in
order to indicate which program step is in progress.
During program operation, the squares around the
arrows light up when each program step is
completed.
In the following program schedule, there are
columns titled "PROG. INDIC." for each program.
The numbers included in the columns indicate
which squares should light. Squares which are
already illuminated remain lit throughout the
program operation.
4
1
1445
Nine arrow and
square
symbols
indicate
different
program steps
(shown here is
a program
example with
arrows 3, 4, 6,
7 and 8 in
use).
9002
11 2
Fig.
1

4
Service
Manual 4. Programmes Edition Page
Type
PROGRAM
PROGRAM SEQUENCE
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
PROGIND
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
PROGIND
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
PROGIND
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
PROGIND
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
PROGIND
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
PROGIND
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
PROGIND
3C-LL2N3
12 C 85 LL 2 N 3
CHLN4
0.5 N 4 1.5 C - LL - N 6 0.3 N 6 0.5 E 6 1.5 C - HL - N 7 0.3 N 7 0.5 E 7
2C-HL3N8
0.3 N 9
1E9
0.5 N 9
Program PE11C
PRE WASH DRAIN WITHOUT PRE WASH MAIN WASH COOL DOWN DRAIN RINSE 1 DRAIN RINSE 2 DRAIN EXTRACTION RINSE 3 DRAIN EXTRACTION RINSE 4 DRAIN
EXTRACTION
SPIN DOWN TOTAL TIME
NORMAL 95°NORMAL 60°NORMAL 40°DELICATE 30°WOOL PERM. PRESS 40°PERM. PRESS 60°
STANDARD STANDARD STANDARD STANDARD STANDARD STANDARD STANDARD
12 3 4 5 6 7
11 9002 3
24 24 24 13.2 13.2 22 22
3C-LL2N3
12 C 55 LL 2 N 3
0.5 N 4 1.5 C - LL - N 6 0.3 N 6 0.5 E 6 1.5 C - HL - N 7 0.3 N 7 0.5 E 7
2C-HL3N8
0.3 N 9
1E9
0.5 N 9
3C-LL2N3
12 C 40 LL 2 N 3
0.5 N 4 1.5 C - LL - N 6 0.3 N 6 0.5 E 6 1.5 C - HL - N 7 0.3 N 7 0.5 E 7
2C-HL3N8
0.3 N 9
1E9
0.5 N 9
3C-HL2G3 2C30HL2G3
0.5 4
1C-HL-G6
0.5 6
2C-HL-G7
0.5 7
2C-HL3G8
0.5 G 9
1E9
0.2 G 9
3C-HL2G3 2C40HL2G3
0.5 4
1C-HL-G6
0.5 6
2C-HL-G7
0.5 7
2C-HL3G8
0.5 G 9
1E9
0.2 G 9
3C-LL2N3
10 C 40 LL 2 N 3
0.5 N 4 1.5 C - LL - N 6 0.3 N 6 0.5 E 6 1.5 C - HL - N 7 0.3 N 7 0.5 E 7
2C-HL3N8
0.3 N 9
1E9
0.5 N 9
C = COLD WATER
HL = HIGH LEVEL
LL = LOW LEVEL
D = DISTRIBUTION
E = EXTRACTION
G = GENTLE ACTION 3/12 SEC
N = NORMAL ACTION 12/3 SEC
3C-LL2N3
10 C 55 LL 2 N 3
0.5 N 4 1.5 C - LL - N 6 0.3 N 6 0.5 E 6 1.5 C - HL - N 7 0.3 N 7 0.5 E 7
2C-HL3N8
0.3 N 9
1E9
0.5 N 9

4. Programmes
Edition Page
Type Service
Manual
4
PROGRAM
PROGRAM SEQUENCE
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
PROGIND
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
PROGIND
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
PROGIND
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
PROGIND
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
PROGIND
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
PROGIND
TIME
INLET WATER
TEMP
LEVEL
DETERGENT
ACTION
PROGIND
6C-LL1N1
0.3 N 2
12 C 90 LL 2 N 3
CHLN4
0.5 N 4
1.5 C - LL - N 5
0.5 N 5 1.5 C - LL - N 6 0.3 N 6 0.5 E 6 1.5 C - HL - N 7 0.3 N 7 0.5 E 7
2C-HL3N8
0.3 N 9
1E9
0.5 N 9
Program PE11C with "HEAVILY SOILED"
PRE WASH DRAIN WITHOUT PRE WASH MAIN WASH COOL DOWN DRAIN RINSE 1 DRAIN RINSE 2 DRAIN EXTRACTION RINSE 3 DRAIN EXTRACTION RINSE 4 DRAIN
EXTRACTION SPIN DOWN
TOTAL TIME
NORMAL 95°NORMAL 60°NORMAL 40°DELICATE 30°WOOL PERM. PRESS 40°PERM. PRESS 60°
HEAVY SOILED HEAVY SOILED HEAVY SOILED STANDARD STANDARD HEAVY SOILED HEAVY SOILED
8 9 10 11 12 13 14
29.3 29.3 29.3 13.2 13.2 24 24
11 9002 4
6C-LL1N1
0.3 N 2
12 C 60 LL 2 N 3
0.5 N 4
1.5 C - LL - N 5
0.5 N 5 1.5 C - LL - N 6 0.3 N 6 0.5 E 6 1.5 C - HL - N 7 0.3 N 7 0.5 E 7
2C-HL3N8
0.3 N 9
1E9
0.5 N 9
6C-LL1N1
0.3 N 2
12 C 40 LL 2 N 3
0.5 N 4
1.5 C - LL - N 5
0.5 N 5 1.5 C - LL - N 6 0.3 N 6 0.5 E 6 1.5 C - HL - N 7 0.3 N 7 0.5 E 7
2C-HL3N8
0.3 N 9
1E9
0.5 N 9
3C-HL2G3 2C30HL2G3
0.5 4
1C-HL-G6
0.5 6
2C-HL-G7
0.5 7
2C-HL3G8
0.5 G 9
1E9
0.2 G 9
3C-HL2G3 2C40HL2G3
0.5 4
1C-HL-G6
0.5 6
2C-HL-G7
0.5 7
2C-HL3G8
0.5 G 9
1E9
0.2 G 9
3C-LL2N3
12 C 40 LL 2 N 3
0.5 N 4 1.5 C - LL - N 6 0.3 N 6 0.5 E 6 1.5 C - HL - N 7 0.3 N 7 0.5 E 7
2C-HL3N8
0.3 N 9
1E9
0.5 N 9
3C-LL2N3
12 C 60 LL 2 N 3
C55 N 4
0.5 N 4 1.5 C - LL - N 6 0.3 N 6 0.5 E 6 1.5 C - HL - N 7 0.3 N 7 0.5 E 7
2C-HL3N8
0.3 N 9
1E9
0.5 N 9
C = COLD WATER
HL = HIGH LEVEL
LL = LOW LEVEL
D = DISTRIBUTION
E = EXTRACTION
G = GENTLE ACTION 3/12 SEC
N = NORMAL ACTION 12/3 SEC
