Element4 Lucius 140 GSB User manual

1
Element4 Gas Fireplaces Rev# 07082020 EuropeanHome.com
Installation, Operation and Owner’s Manual
Lucius 140 GSB
Tenore 140 GSB
Direct Vent Gas Fireplace
HOT GLASS WILL Une surface vitrée chaude
CAUSE BURNS. peut causer des brûlures.
DO NOT TOUCH GLASS Laisser refroidir la surface
UNTIL COOLED. vitrée avant d’y toucher.
NEVER ALLOW CHILDREN Ne permettez jamais á un enfant
TO TOUCH GLASS. de toucher la surface vitrée.
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed
for the protection of children and other at-risk individuals.
Une barrière conçu pour réduire le risque de brûlure par le verre de visualisation chaude est fournie avec cet appareil et doit
être installé pour la protection des enfants et autres personnes à risque.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
INSTALLATEUR: Laissez cette notice avec l’appareil.
CONSOMMATEUR: Conservez cette notice pour
consultation ultérieure.
- Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call
the re department.
- Installation and service must be performed
by a qualied installer, service agency or the
gas supplier.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could
result in serious injury, death, or property damage.
- Ne pas entreposer ni utilizer d’essence ni d’autres vapeurs
ou liquides inammables dans le voisinage de cet appareil
ou de tout autre appareil.
- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ
• Ne pas tenter d’allumer d’appareil.
• Ne touchez á aucan interrupteur. Ne pas vous servir des
téléphones se trouvant dans le bátiment ou vous trouvez.
• Quitter immédiatement le bâtiment.
• Appelez immédiatment votre fournisseur de gaz depuis
un voisin. Suivez les instructions du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz
appelez le service des incindies.
- Installation et l’entretien doivent être e󰀨ectués par un
installateur qualié, une agence de service ou le fournisseur
de gaz.
AVERTISSEMENT:
INCENDIE OU D’EXPLOSION
Le non-respect des avertissements de sécurité à la
lettre pourrait entraîner de graves blessures , la mort
ou des dommages matériels.
July 2020
4006611

Important Safety Information............................................................................................. 3
Key Installation Points ........................................................................................................... 6
Planning Your Gas Fireplace... ............................................................................................. 7
User Information...................................................................................................................... 9
Specications and Dimensions.........................................................................................10
Lucius 140 Room Divider GSB 12
Tenore 140 Tunnel GSB 13
Parts of the Fireplace 14
Clearances................................................................................................................................15
Locating the Fireplace 15
Placing the Fireplace 15
Clearances to Combustibles 16
Clearances to Non-Combustibles 16
Mantel Clearances 17
Opening Clearances 18
Gas & Electric...........................................................................................................................19
Venting......................................................................................................................................20
Conguration 20
Enclosing the Fireplace.........................................................................................................23
Non-Combustible Materials List 23
Locating the Controls 29
Cold Climate Installation 29
Access Door (Locating and Mounting) 29
Installing the Fire Media .....................................................................................................31
Operating the Fireplace......................................................................................................33
Maintenance ...........................................................................................................................40
Glass 40
Burner 42
Pilot 42
Thermocouple 43
Venting 43
Replacement Parts................................................................................................................44
Warranty ...................................................................................................................................45
Massachusetts Certication.......................................................................Appendix One
Troubleshooting Flowchart ......................................................................Appendix Two
Connecting to a Smart Home System.................................................Appendix Three
Installing Optional Black Glass.................................................................Appendix Four
Error Codes for Pro Control App...............................................................Appendix Five
TABLE OF CONTENTS

3
IMPORTANT SAFETY INFORMATION
Element4 Gas Fireplaces Rev# 07082020 EuropeanHome.com
CAUTION - HOT! HOT! HOT!
This appliance is a HEATING appliance and it does become very hot in operation.
UNDER ANY CIRCUMSTANCES, DO NOT PLACE any object, furniture, draperies or other item LESS THAN 36” (90 cm) IN
FRONT OF THE GLASS OF THE FIREPLACE.
CHILDREN AND PETS
Radiant heat can heat surfaces such as the surround and trims of the replace to temperatures that, although approved
safe, can be quite uncomfortable to touch - particularly for children and pets. Children and pets should always be
supervised when in the room where the appliance is located. Remote control handset should be kept out of reach of
children. In the presence of children, we STRONGLY RECOMMEND that you install in front of the replace: a re screen or,
to protect young toddlers, a “hearth gate”.
HOT SURFACES
Be aware that, although safe, some combustible materials and
nishes, even though installed at listed clearances may, over time,
discolor, warp or show cracks.
Convective heat will exit the unit and travel up the wall surface if
not impeded. Protruding mantels and projections can help direct
the heat away from the wall. AVOID placing heat sensitive items
such as televisions, paintings, decorations, etc. above replaces or
near the edge of protrusions unless appropriate.
SAVE THESE INSTRUCTIONS
Make yourself fully aware of all the following instructions and the many features of the Element4
direct vent gas replace appliance.
INSTALLER: Leave this manual with the appliance.
OWNER: Keep this manual for future reference.
Do not place furniture or
other combustible objects
within 36” of the replace
glass.

4
IMPORTANT SAFETY INFORMATION
Element4 Gas Fireplaces Rev# 07082020 EuropeanHome.com
WARNING
Children and adults should be alerted to the hazards of
high surface temperature and should stay away to avoid
burns or clothing ignition.
WARNING
This direct vent system appliance must be installed as an
OEM installation in manufactured homes (USA only) or
an aftermarket permanently located, or a mobile home,
where not prohibited by local codes and must be
installed in accordance with Manufacturer’s instructions
and the Manufactured Home Construction and Safety
Standard, Title 24 CFR, Part 3280, in the United States, or
the Standard for Installation in Mobile Homes, CAN/CSA
Z240 MH Series, in Canada.
If the information in these instructions is not followed
exactly a re or explosion may result causing property
damage, personal injury or death.
Do not store or use gasoline or other ammable vapors
and liquids in the vicinity of this appliance.
WARNING: Installation and Service
Installation and service must be performed by an
authorized qualied installer, service agency or gas
supplier.
Any alteration to the product that causes soot or carbon to
form and results in damage is not the responsibility of the
manufacturer.
ONLY a qualied person may open the door/remove the
glass.
Do not modify or substitute any part of this appliance.
WARNING: Glass Handling
The glass must only be removed by a qualied person.
Gloves should be worn when removing the glass.
WARNING: Electrical Grounding
These direct vent appliances must be electrically
grounded in accordance with the local codes or, in the
absence of local codes, with National Electric code, ANSI/
NFPA 70, or the Canadian Electric Code, CSA C22.1
WARNING: Gas Appliance
This appliance is only for use with the type of gas
indicated on the rating plate. These appliances are not
convertible for use with other gases unless a certied kit
is used and the conversion is performed by an authorized
qualied technician.
Applicable standards are ANSI Z21.50/CSA 2.22 (Vented
Gas Fireplaces) and CAN/CGA 2.17-M91 (Gas-red
Appliances for Use at High Altitudes.) If your installation
is at an elevation greater than 2000’ in the US or 4500’
in Canada, consult with the local authority having
jurisdiction for gas product installations to determine their
specic requirements for high altitude installations.
WARNING: Gas Supply Testing
This appliance and its appliance main gas valve must be
disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of
½ psi (3.5 kPa).
This appliance must be isolated from the gas supply piping
system by closing the equipment shuto valve during any
pressure testing of the gas supply piping system at test
pressures equal to or less than ½ psi (3.5 kPa).

5
IMPORTANT SAFETY INFORMATION
Element4 Gas Fireplaces Rev# 07082020 EuropeanHome.com
This gas replace and vent assembly MUST be vented
directly to the outside and MUST NEVER be attached to a
chimney serving a separate solid fuel burning appliance.
Each gas appliance MUST BE a separate vent system.
Common vent systems are prohibited.
This unit MUST be used with a vent system as described
in this installation manual. NO OTHER VENT SYSTEM OR
COMPONENTS MAY BE USED.
INSPECT the external vent cap on a regular basis to make
sure that no debris, plants, trees, or shrubs are interfering
with the air ow.
NEVER OBSTRUCT the ow of ventilation air. Keep the
front of the appliance CLEAR of all obstacles and materials
for servicing and proper operation.
The glass panels MUST be in place and sealed before the
unit can be placed into safe operation.
DO NOT OPERATE this appliance with the glass panels
removed, cracked or broken. Replacement of the glass
panels should be performed by a licensed or qualied
service person. DO NOT strike or slam the glass panels.
The glass panels SHALL ONLY be replaced by units
supplied by the manufacturer. NO SUBSTITUTE panels
shall be used.
DO NOT USE abrasive cleaners on the panels. DO NOT
ATTEMPT to clean the glass panels when they are hot.
TURN OFF the gas before servicing the appliance. It is
recommended that a qualied service technician perform
an appliance check-up/service once a year.
Any safety screen or guard removed for servicing MUST BE
REPLACED before operating this appliance.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL, and must
only be used with gas supply conditions as indicated on
the rating label.
DO NOT USE this appliance if any part has been under
water. Immediately call a qualied service technician to
inspect the unit and to replace any part of the control
system and any gas control that has been under water.
DO NOT use this appliance as a temporary source of heat
during construction.
This appliance is a vented gas replace. It must not be
used for any other purposes such as drying clothes, etc.
If the pilot ame is extinguished either intentionally or
unintentionally, no attempt should be made to re-light the
gas until at least 3 minutes have elapsed.
Dimensions will appear as INCHES”/metric throughout
this manual. For convenience, the inches are rounded to
the nearest 1/16” when converted. If greater accuracy is
required, use the metric dimensions.
This appliance is for indoor use only.

6
KEY INSTALLATION POINTS
Element4 Gas Fireplaces Rev# 07082020 EuropeanHome.com
IMPORTANT
INFORMATION
This page references the most important key installation points when installing any Element 4 replace. This
page DOES NOT substitute for reading the entire manual.
FRECORDS
The installer MUST record the serial number and venting conguration to use for any technical issues that
may arise.
FELECTRICAL
An approved 120V AC wall receptacle is required. The receiver MUST be powered by the AC adapter. Four
AA batteries may be used only for on-demand electrical requirement during power outage.
FFIRE MEDIA
When installing the re media make sure to NEVER mix dierent types of media or use media purchased
from another retailer. ALWAYS keep the second thermocouple AND pilot free from media.
FAIR OUTLETS
The warm air outlets MUST be installed BEFORE the rst light. The amount of square inches needed for the
opening varies from model to model.
FENCLOSING THE FIREPLACE
ONLY a tested and approved non-combustible wallboard that is specied in the manual may be used when
enclosing the replace.
FFRAMING
The dimensions are dierent between metal and wood framing. Know which material you are using and
know the framing requirements.
FVENTING
The venting MUST follow the model specic graph shown in the manual. A restrictor may or may not need
to be used based on venting run and rise.
FCONSTRUCTION DEBRIS
REMEMBER that if the replace is installed before the site is nished, construction debris MUST be cleaned
from the enclosure and around the unit prior to nishing and the test re.
FGAS PRESSURES
Gas pressures MUST be read with a manometer and conrmed with what is required in the installation
manual.

7
Element4 Gas Fireplaces Rev# 07082020 EuropeanHome.com
PLANNING YOUR GAS FIREPLACE
PLANNING YOUR GAS FIREPLACE
Element4 Gas Fireplaces EuropeanHome.com
1
Before You Begin
• Since the Element4 replaces are vented gas appliances they must be installed by a qualied installer.
Your sales representative can help you choose the appropriate professional.
Overall Design
• One of the many features of the Element4 replace is its use of convective air ow.
• As the air within the enclosing walls, or chase, is warmed by the replace it rises and then exits the
Convection Air Outlet(s). The warm air in the chase is then replaced by room air which enters through
the Room Air Inlets. As this warm air cools it falls toward the oor where it’s drawn into the inlet and the
cycle repeats.
• The Room Air Inlets are part of the replace and cannot be blocked or adjusted. The amount of square
area required for your Convection Air Outlet(s) is determined by the replace model and is listed in the
installation manual.

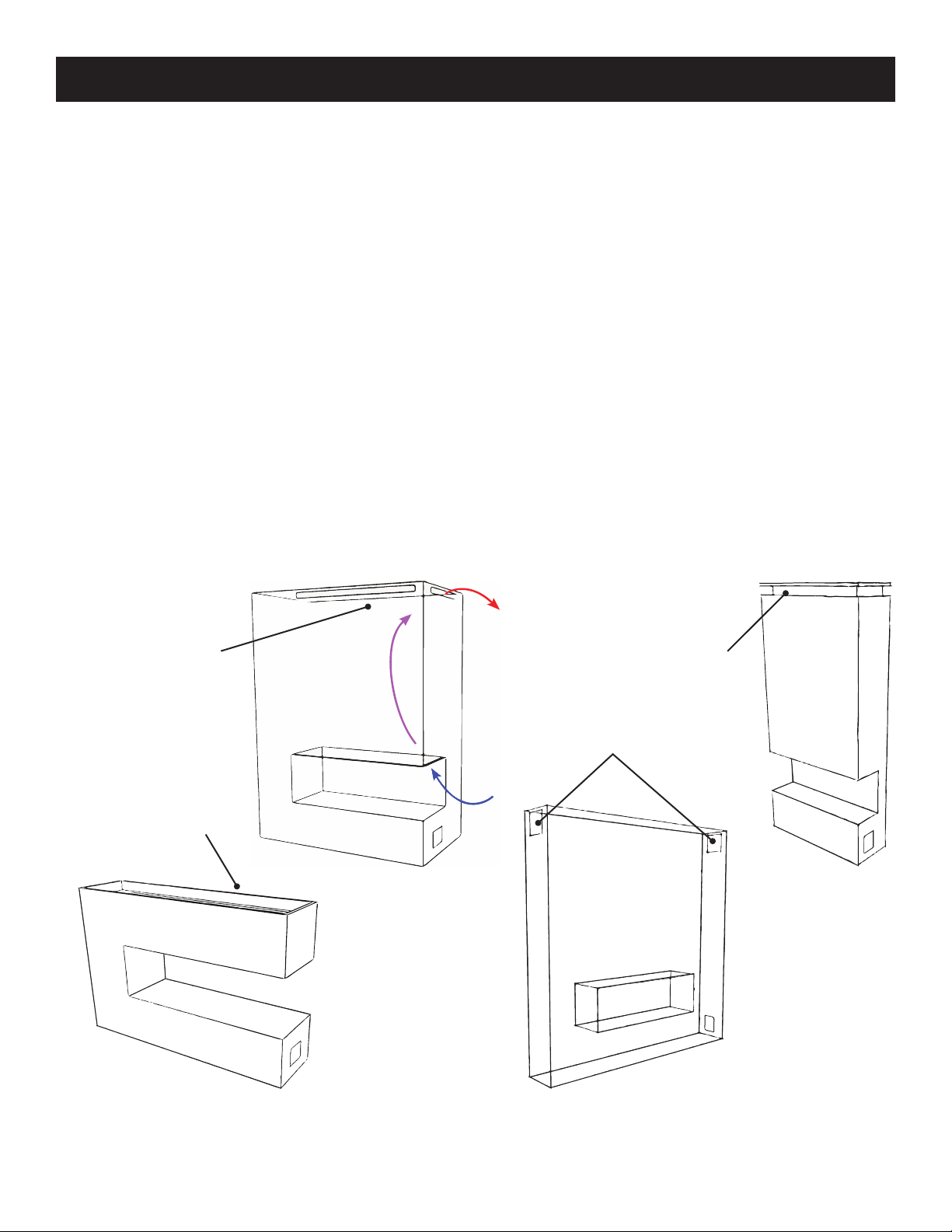

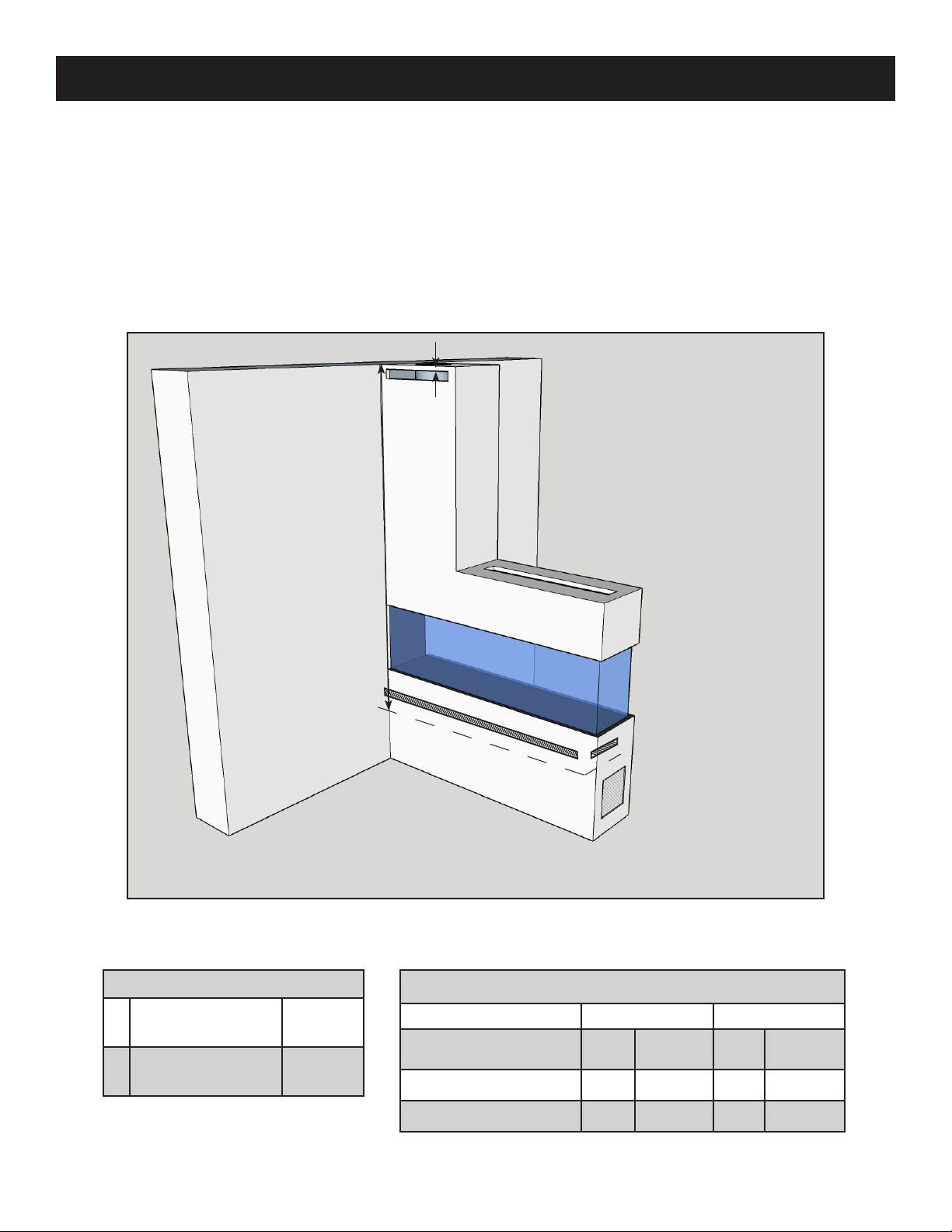

• As seen in the illustrations, below, the outlets may be placed in a number of locations to accommodate
all types of designs. In all cases, though, your design must allow the free ow of air through the chase.
Convection Air Outlets
near ceiling showing
warm air ow.
Half-wall conguration
with Convection Air
Outlet set into top.
Convection Air
Outlets set into
bottom of reveal.
Convection Air
Outlets set on
side walls.

8
Element4 Gas Fireplaces Rev# 07082020 EuropeanHome.com
PLANNING YOUR GAS FIREPLACE
PLANNING YOUR GAS FIREPLACE
Element4 Gas Fireplaces EuropeanHome.com
2
Contact your local dealer if you have any Questions
30 Log Bridge Road
Building 300 - Suite 303
Middleton, Ma 01949
www.EuropeanHome.com
Important Points
• The most important question to ask when locating your replace is, “Can it be eectively vented?”The
Element4 replaces are approved as “direct vent” appliances. This means that all of the air for combustion
comes directly from the outside and all of the ue gases are discharged directly to the outside by way of
co-axial 5” x 8”direct vent pipe.
• The venting can run vertically, horizontally or a combination of both. For example, it can be installed
near and vented through an exterior wall. Or it can be installed near the center of your home and vented
through the roof. In any case, the installation manual details the allowable congurations, distances and
clearances. If the venting falls outside of the vent graphs, a power vent is available.
• The next question to ask is,“Can I get my gas pipe to the replace?”The Element4 replaces burn either
natural gas (NG) or propane gas (LP.) Your sales representative will ask you for your requirement at the
time of order and your gas professional (usually your plumber) can advise you on the most eective
route for the gas supply within your home.
• In order to keep the look as contemporary as possible the replace controls are mounted away from
the replace but within a radius of approximately 50”(1250 mm) from center of the replace (on most
models). These controls must be behind an access door (not included) with a suggested size of 12”
square to allow ample room to work on the replace controls.
• This sheet is not intended to replace the Element4 Installation Manual. In all cases, the information and
instructions in the Element4 Installation Manual must be followed. The Element4 Installation Manual is
included with your replace and is available at www.europeanhome.com Please call us if you have any
questions or are uncertain about any aspect of your installation!
Let Us Help
• European Home and its retail partners are here to assist you with your unique replace design. Let us
help you today!
PLANNING YOUR GAS FIREPLACE
Element4 Gas Fireplaces EuropeanHome.com
2
Contact your local dealer if you have any Questions
30 Log Bridge Road
Building 300 - Suite 303
Middleton, Ma 01949
www.EuropeanHome.com
Important Points
• The most important question to ask when locating your replace is, “Can it be eectively vented?”The
Element4 replaces are approved as “direct vent” appliances. This means that all of the air for combustion
comes directly from the outside and all of the ue gases are discharged directly to the outside by way of
co-axial 5” x 8”direct vent pipe.
• The venting can run vertically, horizontally or a combination of both. For example, it can be installed
near and vented through an exterior wall. Or it can be installed near the center of your home and vented
through the roof. In any case, the installation manual details the allowable congurations, distances and
clearances. If the venting falls outside of the vent graphs, a power vent is available.
• The next question to ask is,“Can I get my gas pipe to the replace?”The Element4 replaces burn either
natural gas (NG) or propane gas (LP.) Your sales representative will ask you for your requirement at the
time of order and your gas professional (usually your plumber) can advise you on the most eective
route for the gas supply within your home.
• In order to keep the look as contemporary as possible the replace controls are mounted away from
the replace but within a radius of approximately 50”(1250 mm) from center of the replace (on most
models). These controls must be behind an access door (not included) with a suggested size of 12”
square to allow ample room to work on the replace controls.
• This sheet is not intended to replace the Element4 Installation Manual. In all cases, the information and
instructions in the Element4 Installation Manual must be followed. The Element4 Installation Manual is
included with your replace and is available at www.europeanhome.com Please call us if you have any
questions or are uncertain about any aspect of your installation!
Let Us Help
• European Home and its retail partners are here to assist you with your unique replace design. Let us
help you today!

9
USER INFORMATION
Element4 Gas Fireplaces Rev# 07082020 EuropeanHome.com

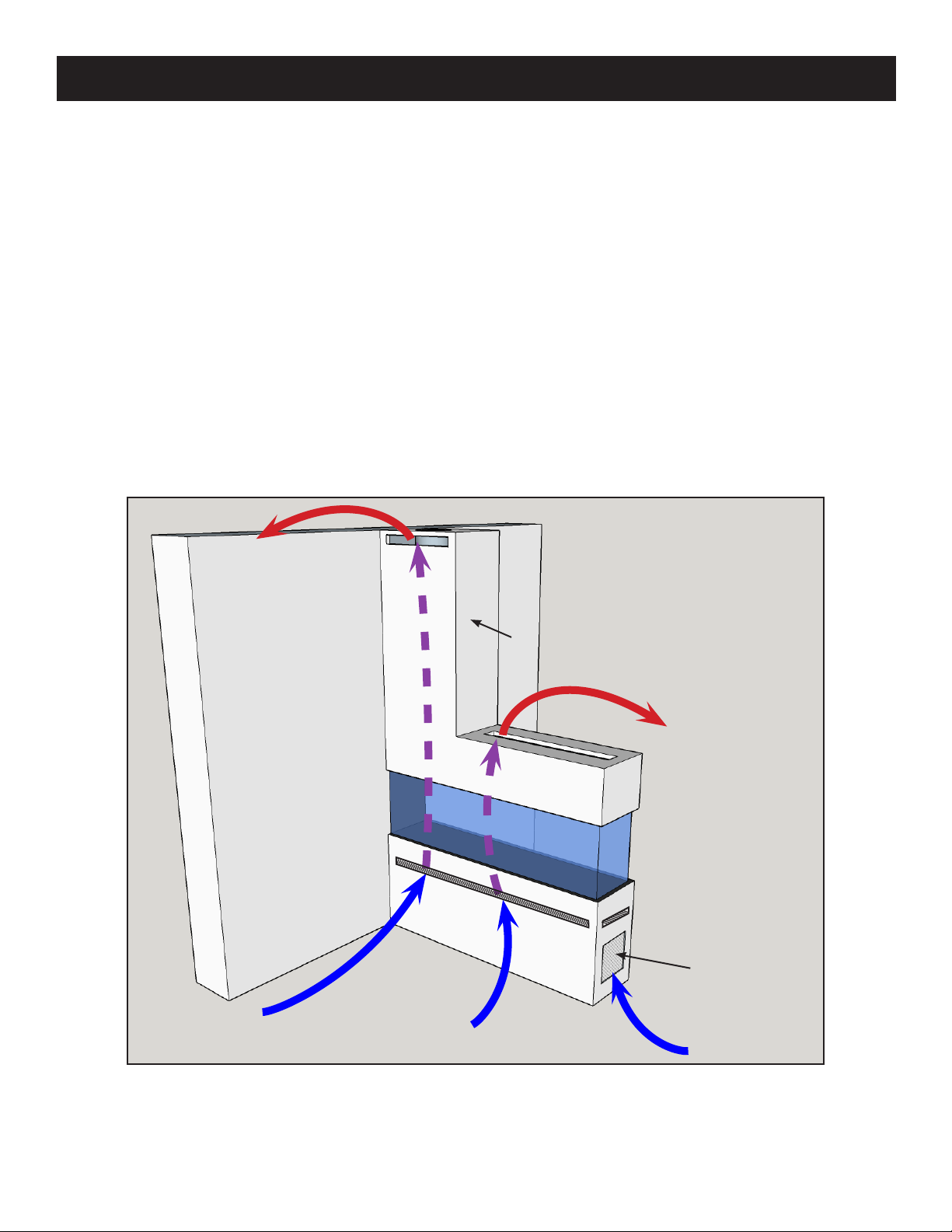

WARMTH AND BEAUTY  HOW IT WORKS
Room Air In
Warm Air Out
Site-built Chase
Room Air In
Access Door
Room Air In
Warm Air Out
This Element4 replace is a direct vent replace and, as such, the intake and exhaust air moves through the vent pipe. To lower the
temperature of the glass panels, the replace has a Glass Safety Barrier between the room and the ames. This Glass Safety Barrier
uses fans to move room air between two layers of viewing glass thus providing warm air to the room.
For proper operation, the Glass Safety Barrier (GSB) needs two openings; a room air inlet through which room air is drawn in and an
warm air outlet opening out which warm air can ow.
The inlet, for room air in, and the outlet, for warm air out, are built into the walls which enclose the replace and are part of your
design.
See the ENCLOSING the FIREPLACE section of this manual for more information.
Figure 1

10
SPECIFICATIONS and DIMENSIONS
Element4 Gas Fireplaces Rev# 07082020 EuropeanHome.com
APPLIANCE RATINGS
ModelLucius 140 GSB
Tenore 140 GSB
Gas Natural Gas Propane
Input Maximum Btu/hr 37,534 39,240
Input Minimum Btu/hr 7,507 7,848
Maximum Supply
Pressure
in. w.c. 10 12
kpa 1.74 2.99
Minimum Supply
Pressure
in. w.c. 4 8
kpa 2.49 2.0
Manifold Pressure
Maximum
in. w.c. 5.4 11.4
kpa 1.34 2.84
Manifold Pressure
Minimum
in. w.c. 0.4 1.5
kpa 0.1 0.38
Main Burner Injector Marking 650 (x2) 280 (x2)
Pilot Injector Marking 32.2 27.1
New Eciency 89%

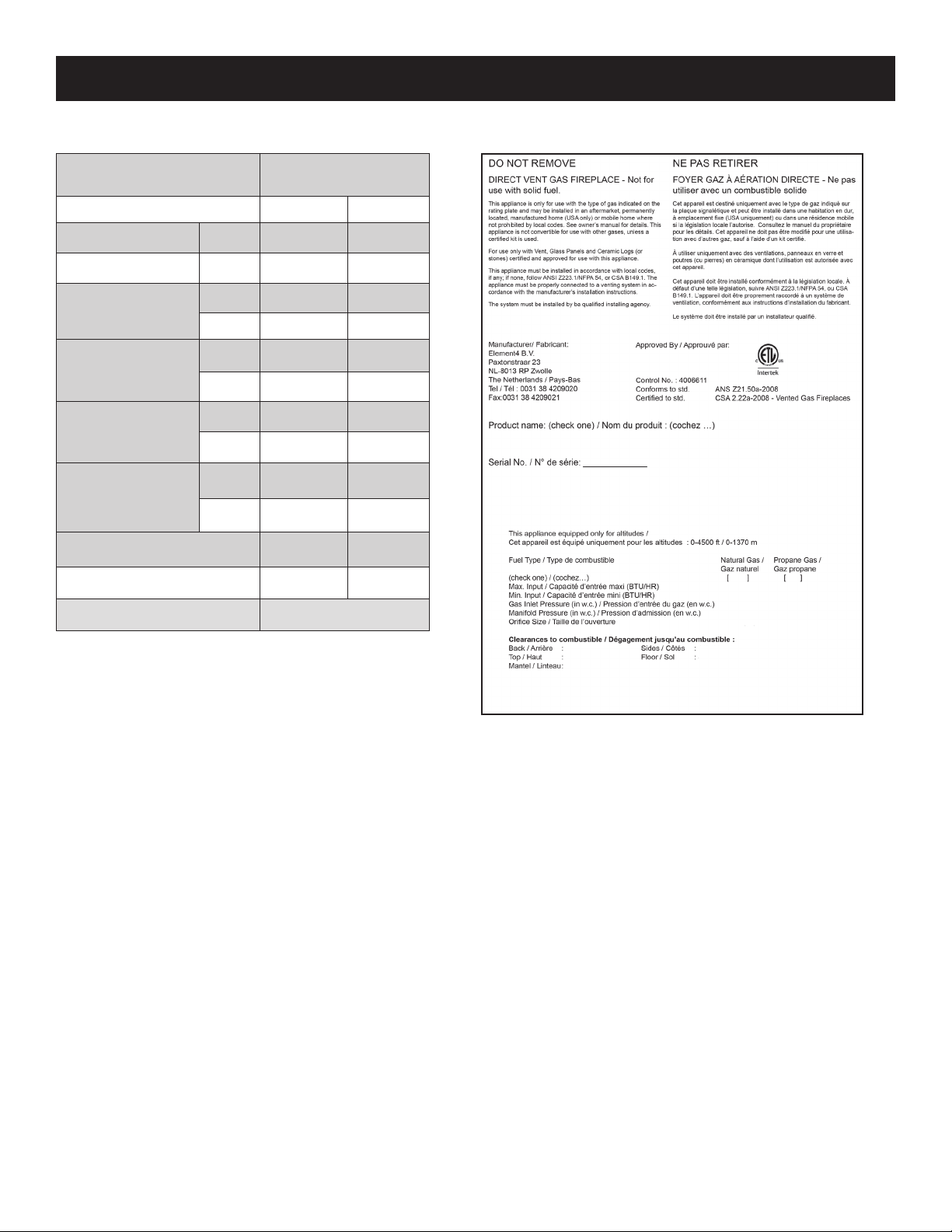

A typical rating label is shown above. It is attached to every
Element4 fireplace and contains important certification
information. It must not be removed from the replace.
Figure 2
Figure 3

11
SPECIFICATIONS and DIMENSIONS
Element4 Gas Fireplaces Rev# 07082020 EuropeanHome.com
AC ADAPTER SPECIFICATIONS
Input Voltage 120V AC
Input Power 9 W
Output Voltage 6V DC
Output Current 500 mA
Size 3.1”H x 2”W x 1.7”D
Output Cord Length 6 Feet
Agency Approvals UL, CSA
ELECTRICAL SPECIFICATIONS
Input Voltage 115/120 VAC 50/60 Hz
Maximum Rating 10A @ 104°F
Cord Length 6 Feet
Agency Approvals UL
Fan Set A
Fan Set B
L2
L1
Snap Switch Speed Control
GND

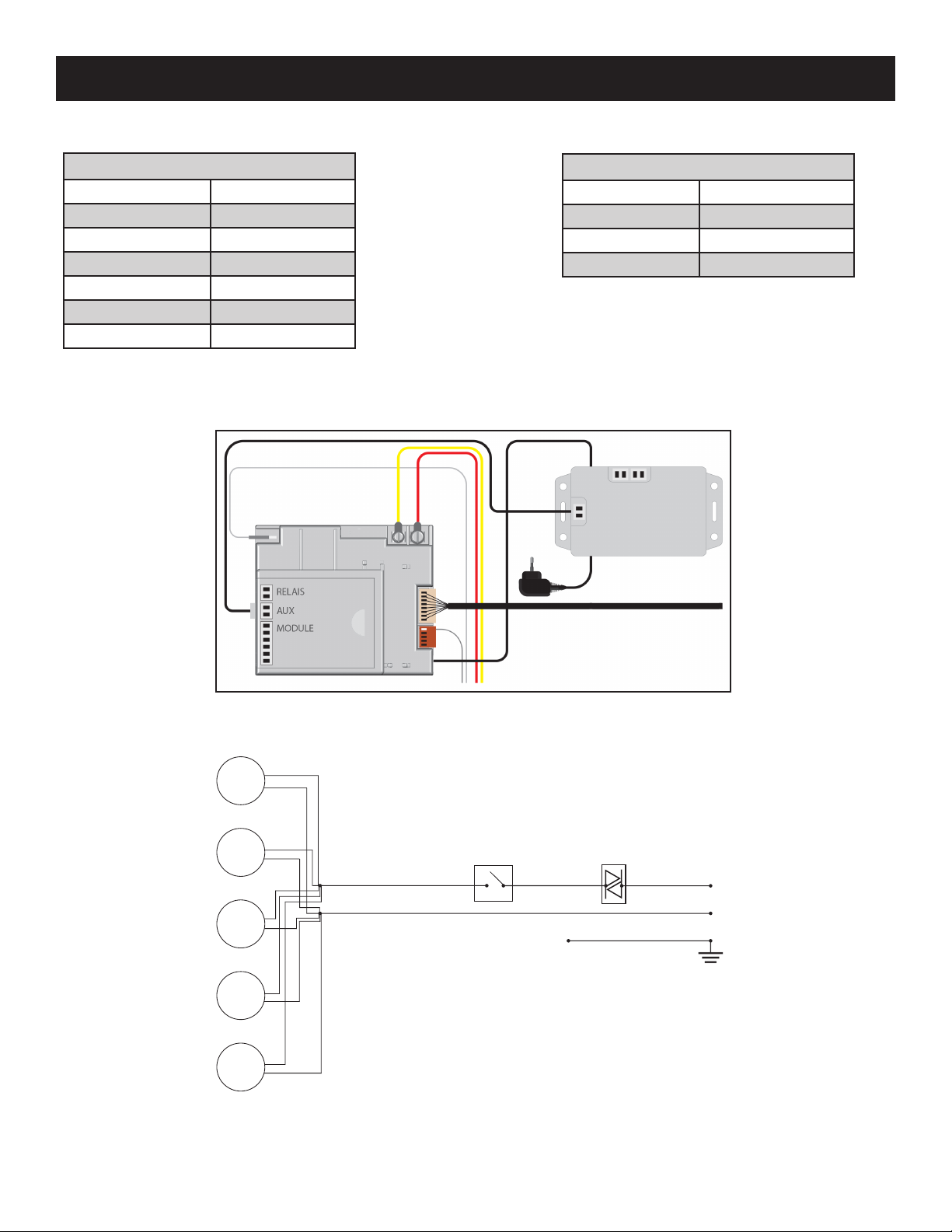

Fan Set Electrical Schematic
Fan Set C
Fan Set D
Fan Set E
Figure 4
Figure 5
Figure 7
Figure 6: AC Adapter Connection

12
SPECIFICATIONS and DIMENSIONS
Element4 Gas Fireplaces Rev# 07082020 EuropeanHome.com
manufactured by
Element4 B.V.
distributed by
EuropeanHome
Lucius 140 Room Divider GSB Planning Dimensions
11/2017
Letter Inches Millimeters
A16 ¾ 425
B1484
C497
D199
E493
F288
G899
H63 1601
I37 ½ 953
J½ 13
K234
F
J
E
C
D
K
A
B
H
G
I
PDE4L140RDMKII-170803
This information is for reference only. Please consult the Installation Manual for all details prior to making any design decisions.
LUCIUS 140 GSB
GLASS DIMENSIONS
Glass (6 pcs. total) W x H (inches) W x H (mm)
Long Inner (x2) 55⁄x 17¾ 1401 x 450
Short Inner 11⁄x 17¾ 294 x 450
Long Outer (x2) 58¼x 17¾ 1480 x 450
Short Outer 18⁄x 17¾ 480 x 450
A DWG/DXF le is available for download at www.europeanhome.com for dimensions not shown.
Unit Weight
Pounds Kilograms
454 206
Figure 8

13
SPECIFICATIONS and DIMENSIONS
Element4 Gas Fireplaces Rev# 07082020 EuropeanHome.com
manufactured by
Element4 B.V.
distributed by
EuropeanHome
Tenore 140 GSB Planning Dimensions
11/2018
Letter Inches
A
Millimeters
42516 ¾
B1398
C497
D199
E--
F288
G899
H61 1550
I95337 ½
J½ 1 3
K234
F
J
C
K
D
H
G
I
B
A
PDE4L140TMKII-170803
This information is for reference only. Please consult the Installation Manual for all details prior to making any design decisions.
TENORE 140 GSB
GLASS DIMENSIONS
Glass (4 pcs. total) W x H (inches) W x H (mm)
Long Inner (x2) 55⁄x 17¾ 1401 x 450
Long Outer (x2) 58¼x 17¾ 1480 x 450
A DWG/DXF le is available for download at www.europeanhome.com for dimensions not shown.
Unit Weight
Pounds Kilograms
434 197
Figure 9

14
SPECIFICATIONS and DIMENSIONS
Element4 Gas Fireplaces Rev# 07082020 EuropeanHome.com
PARTS OF THE FIREPLACE
The various parts of the Lucius 140 GSB replace are shown below. The
Tenore 140 GSB replace is similar.
Table of Fireplace Parts
1Outer Frame Face - surrounds the glass panels and limits the non-combustible wall board
2Inner Glass Panel (outer glass panels removed)
3Support Feet - four adjustable feet allow the replace to be levelled
4Hearth Panel - supports various Fire Media
5Primary Burner - produces the ame
6 Second Burner - controlled separately, produces additional ame
7Pilot Burner - the part of the safety circuit which lights the Main Burner
82nd Thermocouple - the part of the safety circuit which monitors the Main Burner
9Finish Trim - hides the Inner Glass Clamps
10 Inner Glass Clamps - holds the Inner Glass Panels in place
11 Vent Collar - accepts the 5”x 8”venting adapter (included)
12 Relief Door - part of the safety system. Do NOT block the operation of the relief doors.
13 Pilot Assembly
88
11
77
99
44
66
55
1111
22
22
1010
1010
1010
1313
3333
1212
3333
1212
Figure 11: Fireplace
as seen from below.
Figure 10
Figure 12

15
CLEARANCES
Element4 Gas Fireplaces Rev# 07082020 EuropeanHome.com
ENSURE THAT THE LINESET (WHICH INCLUDES THE GASENSURE THAT THE LINESET (WHICH INCLUDES THE GAS
VALVE, ELECTRICAL WIRING, AND GAS LINES) DOES NOTVALVE, ELECTRICAL WIRING, AND GAS LINES) DOES NOT
IMPEDE THE FULL OPERATION OF THE RELIEF DOORS. IT ISIMPEDE THE FULL OPERATION OF THE RELIEF DOORS. IT IS
YOUR RESPONSIBILITY TO ENSURE THE SAFETY OF THESEYOUR RESPONSIBILITY TO ENSURE THE SAFETY OF THESE
CRITICAL COMPONENTS THROUGHOUT THE INSTALLATIONCRITICAL COMPONENTS THROUGHOUT THE INSTALLATION
PROCESS. REMOVE AND DISPOSE OF ALL WRAPS AND TIES.PROCESS. REMOVE AND DISPOSE OF ALL WRAPS AND TIES.
These are NOT zero-clearance fireplaces. All clearances to
combustible AND non-combustible materials MUST be maintained
as described in this manual.
LOCATING THE FIREPLACE
When selecting a location for the replace:
• Ensure that all minimum clearances to combustible AND non-
combustible materials are met.
• Provide adequate clearances for servicing.
• Consider venting dimensions (rise, run and number of
elbows, etc.) when selecting the location for your replace.
• Locate the appliance out of trac and away from furniture
and draperies.
• Keep the location free of electrical, plumbing or other
heating/air conditioning ducting.
PLACING THE FIREPLACE

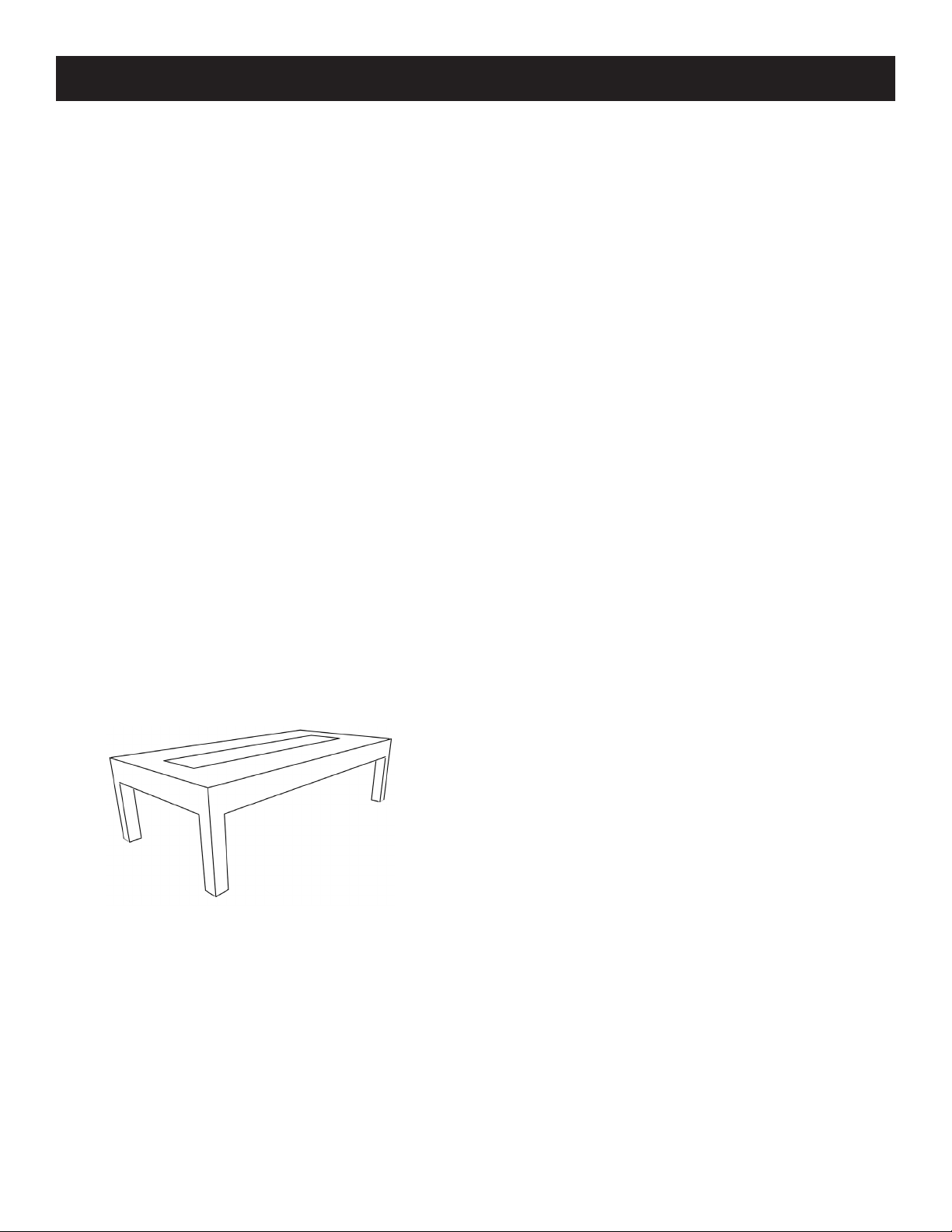

The base upon which the appliance rests must be sturdy, level and
built to safely support at least 500 pounds (230 kilograms). The
base may be the oor or a purpose-built raised platform, e.g. wood,
metal. When placed on a platform, a minimum 24 in2(610 mm2)
opening must be cut through the platform top. The lineset can be
routed through this opening. Room air must be allowed to ow
through the convection air inlets and then through this platform
opening. A linear cutout shape (Figure ) will perform best.
These are NOT zero-clearance fireplaces. All clearances to
combustible AND non-combustible materials MUST be
maintained as described in this manual.
LOCATING THE FIREPLACE
When selecting a location for the replace:
• Ensure that all minimum clearances to combustible AND
non-combustible materials are met.
• Provide adequate clearances for servicing.
• Consider venting dimensions (rise, run and number of
elbows, etc.) when selecting the location for your replace.
• Locate the appliance out of trac and away from furniture
and draperies.
• Keep the location free of electrical, plumbing or other
heating/air conditioning ducting.
PLACING THE FIREPLACE
The base upon which the appliance rests must be sturdy, level
and built to safely support at least 500 pounds (230 kilograms).
The base may be the oor or a purpose-built raised platform,
e.g. wood, metal. When placed on a platform, a minimum 24
in2(610 mm2) opening must be cut through the platform top.
The lineset can be routed through this opening. Room air must
be allowed to ow through the convection air inlets and then
through this platform opening. A linear cutout shape (Figure )
will perform best.
The feet on the appliance are designed to sit on a at platform,
however the appliance must not be installed on any combustible
material. A piece of non-combustable material must be laid on
top of the platform the replace sits on.
Lift the replace by the bottom of the main cabinet, not the
fan assembly.
Do not place anything between the bottom of the rebox and
the bottom of the feet.

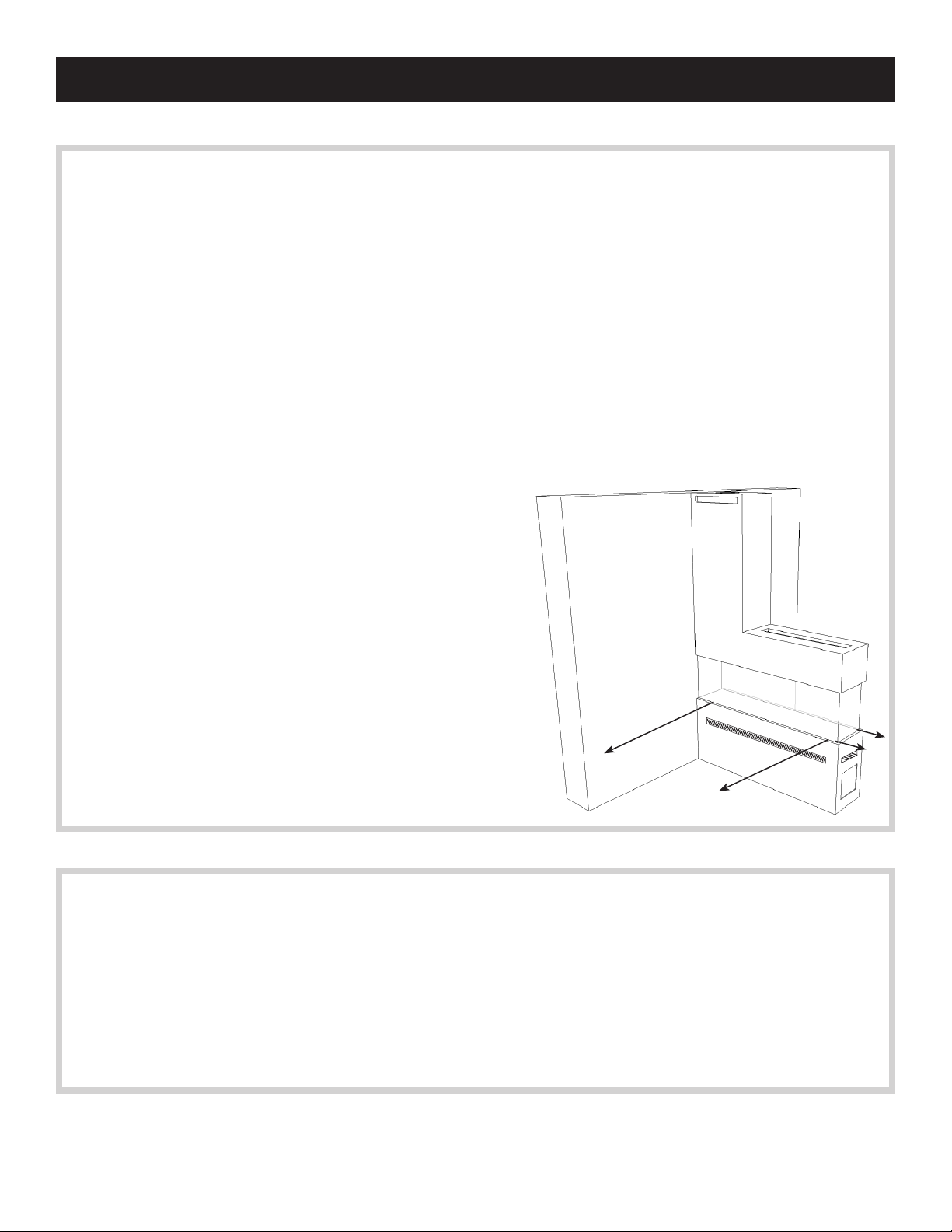

MINIMUM CLEARANCE TO COMBUSTIBLES
• The appliance is approved with a minimum clearance to
combustible materials of 26” (660 mm) to the top, 11” (280
mm) on all sides and 4” (100 mm) to the bottom. Any spacer
or framing used closer than this dimension must be non-
Figure 13
13

16
CLEARANCES
Element4 Gas Fireplaces Rev# 07082020 EuropeanHome.com
No material of any kind is allowed between the bottom of the support feet and the bottom of the rebox (except for the
lineset).
No material of any kind is allowed within 2” (50 mm) of the top of the replace.
No material of any kind is allowed within 2” (50 mm) of the metal sides the replace.
Facing material should be installed against the outer frame of the replace, with an ⁄” (3 mm) vertical or horizontal clearance
TO THE FLANGE to allow for heat expansion.
Non-combustible materials may be installed to a zero clearance to the outer faces of the appliance outer frame face. However,
they must not cover (or prevent the removal of) the glass panels or other replace parts.
The appliance must not be installed on any combustible material other than wood.
These clearances are the same for ALL Element 4 Fireplaces, regardless of model.
We recommend that the replace be set into its nal location before building the enclosure.
Please refer to the “Reduced Clearance to Existing Combustible Walls” section for use of combustibles inside of the above clearances.
Clearances to Combustibles
Sides (Non-Glass Sides ONLY) 11”
Top 26”
Bottom 4”
Clearances to Non-Combustibles
Sides (Non-Glass Sides ONLY) 2”
Top 2”
Bottom 4”
CLEARANCES TO COMBUSTIBLE MATERIAL
CLEARANCES TO NON-COMBUSTIBLE MATERIAL
ALL MODELS
Figure 14
Figure 15

17
CLEARANCES
Element4 Gas Fireplaces Rev# 07082020 EuropeanHome.com
A
A
BB
VENT OPENING
800cm² (124In²)
TOTAL MINIMUM
(2") 50
C
SECTION A-A
(36")
900
(36")
900
(36")
900
SECTION B-B
COMBUSTIBLE MATERIALS
NOT PERMITTED IN FRONT
OF GLASS
(2")
50
(11")
280
DETAIL C
SCALE 1 : 10
CONSTRUCTION
BEAMS NON-
COMBUSTIBLE
(TYPICAL)
TOP OF FIREPLACE
OPENING
GLASS
NON COMBUSTIBLE
MATERIAL
DETAIL C
CONVECTION GAP
CONSTRUCTION
BEAMS COMBUSTIBLE
(TYPICAL)
1”/25 mm
12”/300 mm
13”/330 mm
2”/50 mm
INCHES
Mantel Height
Mantel Depth

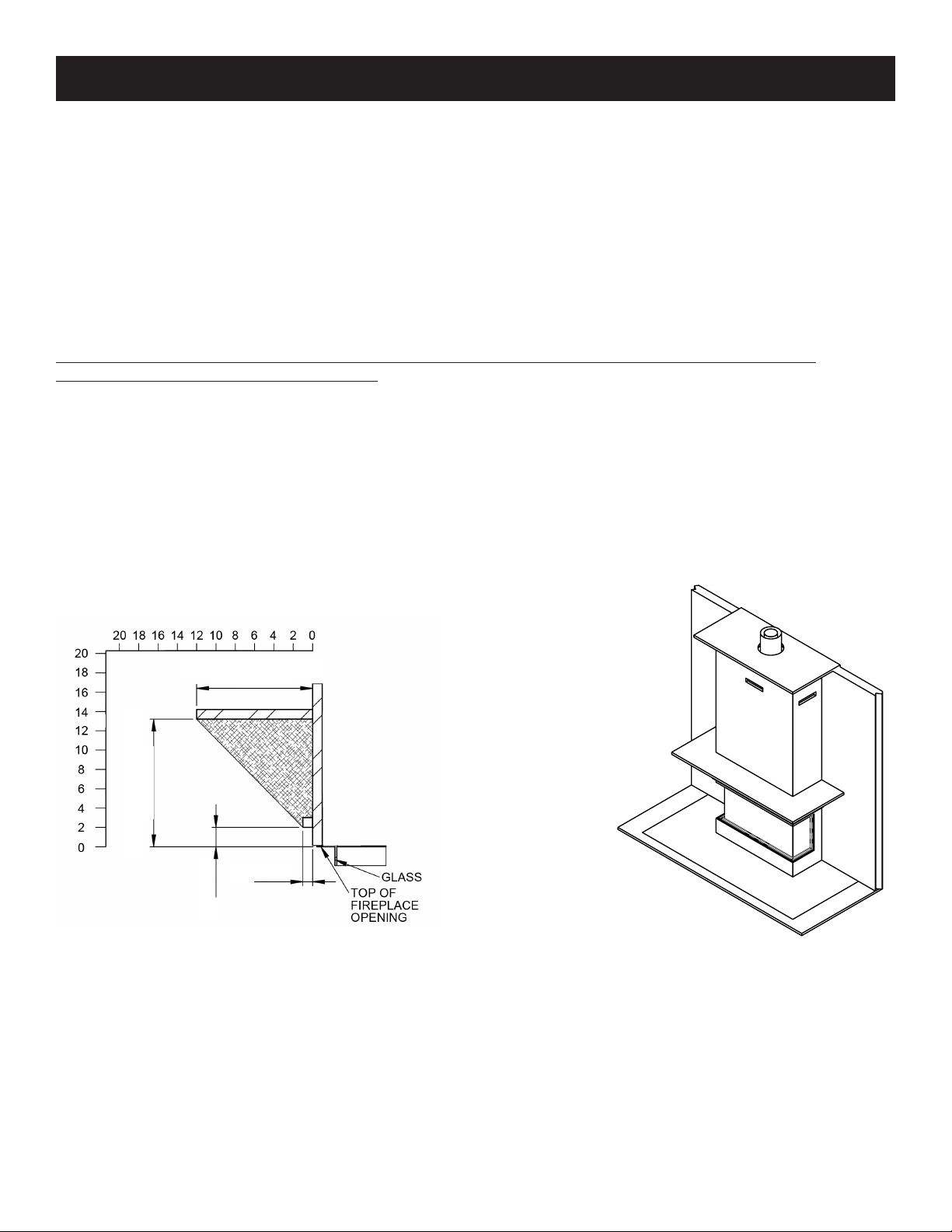

MANTELS
The graph below (Figure __) shows a range of allowable depths and heights for a COMBUSTIBLE mantel installation.
As shown, the minimum allowable mantel height above the replace opening is 2” (50 mm) with a 1” (25 mm) deep mantel.
The maximum mantel depth is 12” (300) mm at a minimum height above the replace opening of 13” (330 mm.)
All of the mantel height/depth combinations fall in between these extremes in accordance with the chart below.
Mantels made of non-combustible material are allowed inside these dimensions but they will be subjected to elevated
temperatures and may become too hot to touch.
A typical completed installation with mantel is shown in the diagram below, on the right.
Figure 16 Figure 17
16

18
CLEARANCES
Element4 Gas Fireplaces Rev# 07082020 EuropeanHome.com
TYPICAL CLEARANCE DIAGRAMS
Minimum Required Air Opening Sizes
Room Air Inlet Warm Air Outlet
Model Square
Inches
Square
Centimeters
Square
Inches
Square
Centimeters
Lucius 140 GSB 145 936 145 936
Tenore 140 GSB 145 936 145 936
Minimum Distances
ARoom ceiling to
appliance bottom
72”
1830 mm
BChase ceiling to top
of Warm Air Outlet
1”
25 mm
B
A
Warm Air
Outlet
The total area of the air openings must be maintained. The location of the openings must allow for the free movement of air and
must not allow excessive warm air to build up within the chase.
The top of the Warm Air Outlet must be no more than 1” (25 mm) down from the chase ceiling.
The minimum distance from the bottom of the appliance to the room ceiling is 72” (1830 mm).
Figure 18
Figure 19
Figure 20

19
GAS and ELECTRIC
Element4 Gas Fireplaces Rev# 07082020 EuropeanHome.com
INSTALLING THE GAS LINE
In accordance with the latest edition of the National Fuel Gas Code, NFPA 54 (USA) or CAN/CSA-B149.1 (Canada,) correctly size and
route the gas supply line from the supply regulator to the area where the appliance is to be installed.
Never use galvanized or plastic pipe unless it is rated for use with gas. Gas supply pipes must be designed, routed, constructed and
made of materials that are in strict accordance with local codes and regulations. A qualied plumber or gas tter should be hired to
correctly size and route the gas supply line to the appliance in accordance with all applicable codes and regulations.
Installing a gas supply line from the fuel supply to the appliance involves numerous considerations of materials, protection, sizing,
locations, controls, pressure, sediment trap, and other criteria. The sizing and/or installing of gas piping should only be performed
by a qualied plumber or gastter.
The gas control inlet accepts a ⁄” NPT tting.
The gas supply piping should have a separate gas shuto valve and a capped, 1/8”pipe tapping upstream of the valve for the purpose
of reading pressure. A service shuto valve must be placed within six feet of the replace gas control valve.
The gas supply pressure at the gas control valve must not exceed the Maximum Supply Pressure as shown in the Specications
and Dimensions section of this manual.
The gas supply line must be properly connected and bled by a certied gastter or plumber.
The appliance and its main gas valve must be disconnected from the gas supply piping system during any pressure testing of that
system at test pressures in excess of ½psi (3.5 kPa). The appliance must be isolated from the gas supply piping system by closing
its equipment shuto valve during any pressure testing of the gas supply piping system at test pressures equal to or less than ½ psi
(3.5 kPa).
Electrical work must be performed by a qualied, licensed electrician.
All wiring shall be in compliance with all local, city, and state codes.
WARNING
ELECTRICAL REQUIREMENTS
This replace uses a receiver and remote control for its burner operation. The remote control comes with two AAA batteries and
the receiver is powered by a 120V AC adapter, included. The replace MUST be powered by the AC adapter for improved reliability
and customer satisfaction.
The installer must provide a dedicated, approved 120V AC duplex receptacle to be placed within the six foot cord limit of the
AC adapter. The receiver MUST be powered by the AC adapter. Four AA batteries may be used only for on-demand electrical
requirement during a power outage. Remove batteries after use to avoid battery corrosion. Battery corrosion will damage the
receiver and void the warranty.
The cooling fans are powered by 120V AC and connect to the dedicated duplex receptacle via the provided eight foot long power
cord. Plug the power cord into the dedicated receptacle and ensure that the fans spin freely and operate properly before enclosing
the replace!

20
VENTING
Element4 Gas Fireplaces Rev# 07082020 EuropeanHome.com
CONFIGURATION
CONFIGURING THE VENTING
The replaces in this manual are direct vent replaces that use a co-axial or “pipe within a pipe” venting system. The outer “pipe” or vent
conducts fresh, outside air into the replace and the inner vent carries the exhaust outside. This system, which can run either horizontally
througha sidewallorverticallythroughtheroof,producesanecientsystembecauseconditionedbuildingairisnotusedforcombustion.
• Only the 5” x 8” direct vent components from the companies listed below (Figure __) are approved for use with
these replaces. Any of the 5”x 8” direct vent components suitable for the local condition are permitted. Please visit
www.europeanhome.com/qr-support or via the QR code below for installation instructions.
• This replace is shipped with a North American venting adapter (Figure __). It MUST attach to the
vent collar of the replace.
• All venting measurements are taken from the top center of the vent collar on the top of the replace
and all congurations must fall within the acceptable range of the venting charts.
• A minimum clearance of 3”(75 mm) must be maintained between combustible materials and the top
of any horizontal vent pipe surface; a minimum clearance of 1”(25 mm) must be maintained between
combustible materials and any other vent pipe surface.
• The horizontal parts of the venting must be pitched up away from the replace. For every 12”(305 mm) of horizontal run, the
venting must rise ¼” (6.5 mm) toward the termination. The venting must never run downward unless with the use of a power
vent.
• Whenever venting passes through a wall, an approved heat shield or‘wall thimble’must be installed.
• A power vent system is available for venting that falls outside of the venting graphs. Refer to the appropriate power vent
manual for any venting conguration which is outside of the vent graphs shown here.
• Your venting needs to be inspected annually, including any connected components, to ensure that the system is working as
designed.
• In colder climate environments, the replace can be lowered to STANDBY MODE (Pilot Flame only). This will help maintain a
steady draft within the venting over a period of up to ve days. See the“Operating the Fireplace”section.
Please visit www.europeanhome.com/technical-support/
for the power venting installation manuals
APPROVED COMPONENTS and MANUFACTURERS
DirectVent Pro (M&G DuraVent, Inc.)
EXCELDirect (ICC - Industrial Chimney Company)
Pro-Form (BDM - Bernard Dalsin Manufacturing)
Direct-Temp (Selkirk Corporation)
AmeriVent Direct Vent (Hart & Cooley Inc.)
Ventis Direct Vent (Olympia Chimney Supply, Inc.)
Figure 22

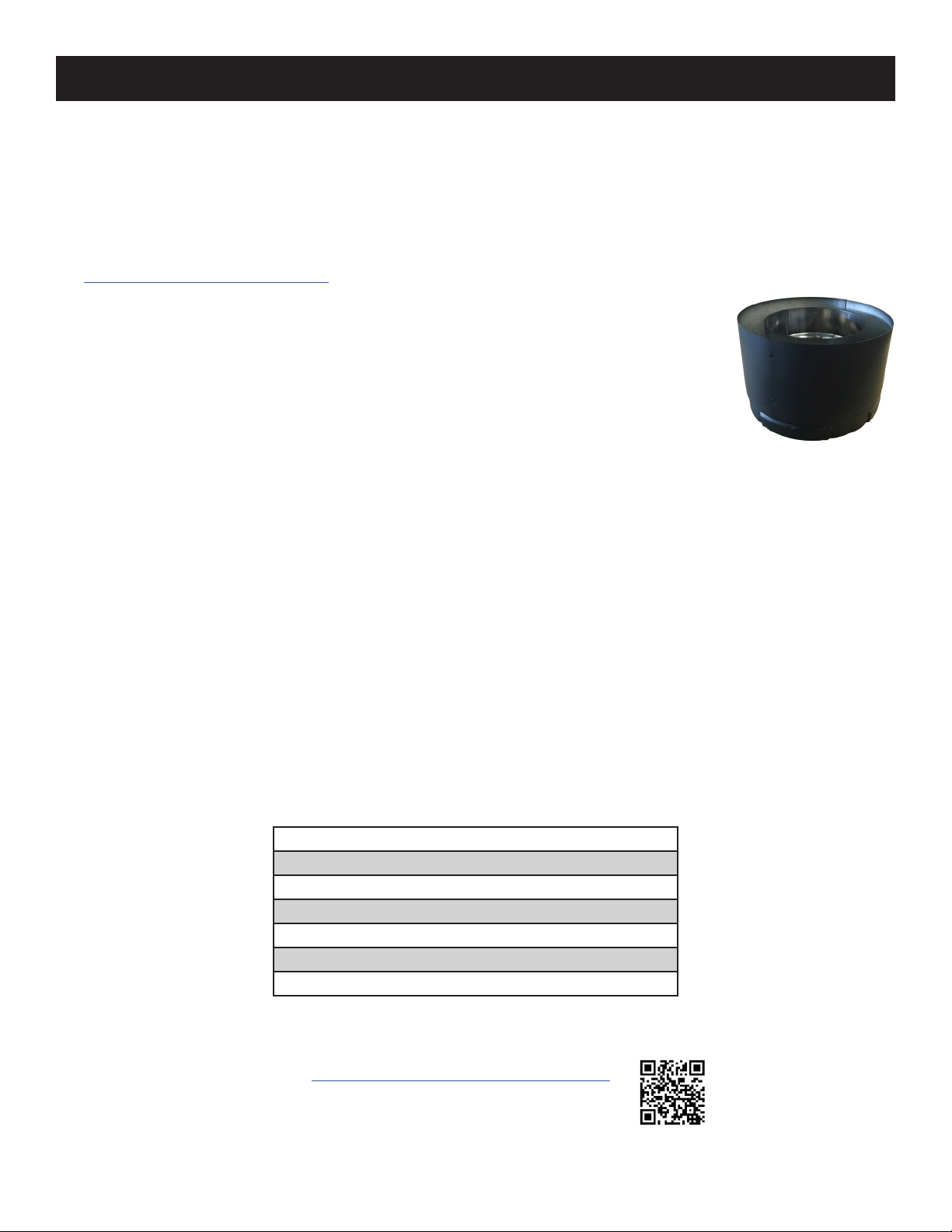

Figure 21:North American Vent
Adapter
22
21
