Element4 Sky Operating manual

These instructions should be left with the customer for future reference
User- and installation manual
Sky, Sky-T
WARNING - THE COMBUSTION CHAMBER OF THIS STOVE SHOULD
ONLY BE OPENED AND SERVICED BY A REGISTERED GAS INSTALLER
(i.e. GAS SAFE REGISTERED ENGINEER[GB])

2
Contents
GENERAL INFORMATION...........................................................................................................3
Important Safety Notice.................................................................................................................3
General Fitting Information ...................................................................................................4
USER INFORMATION....................................................................... ...........................................5
Remote Control Electronic Ignition System RCE GV60 ...............................................................5
INSTALLER INFORMATION.................................................................... ..................................10
Ventilation ...........................................................................................................................10
General Balanced Flue Notes / Appliance Fireplace installation ........................................10

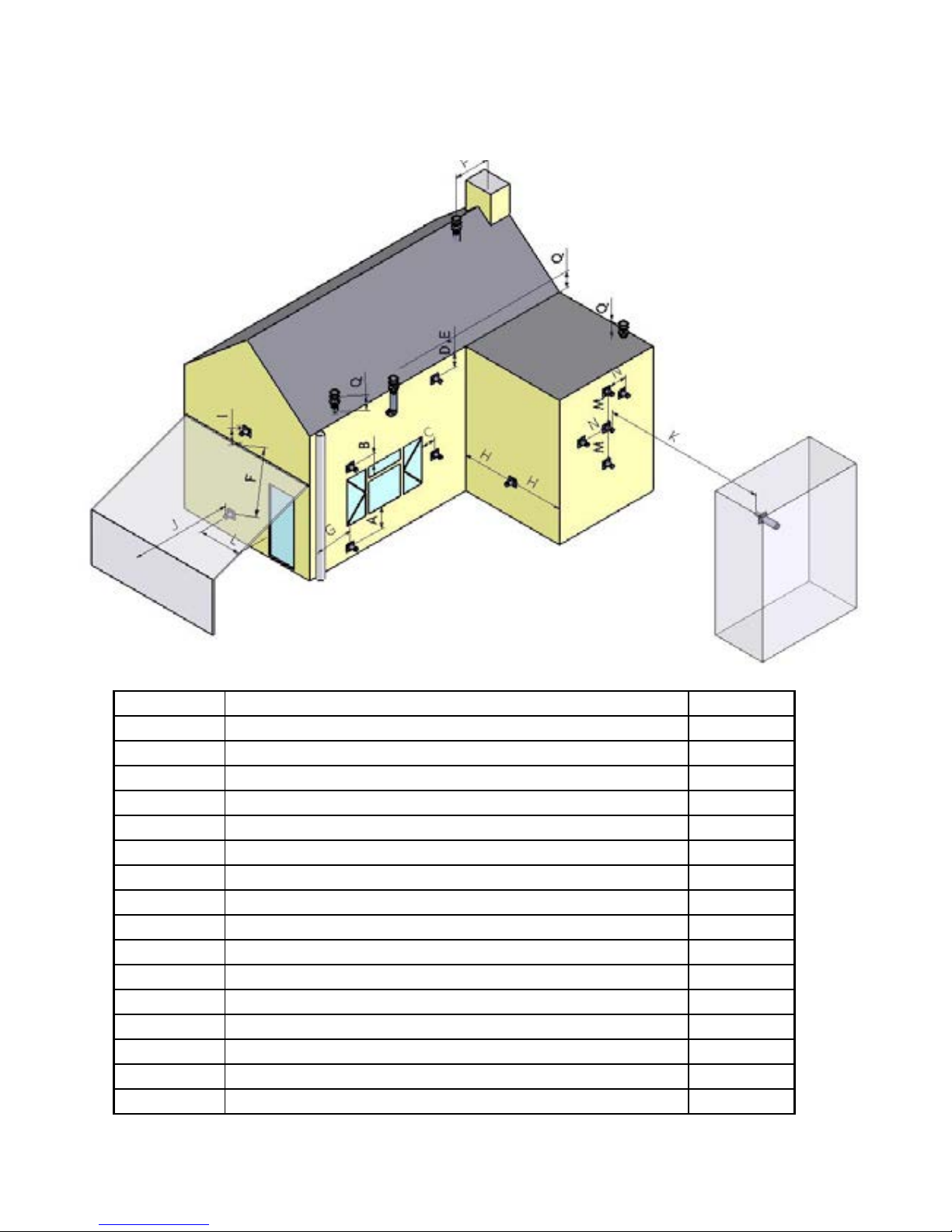

Terminal Locations Wall Mounting ......................................................................................12
Terminal Locations Roof Termination..................................................................................13

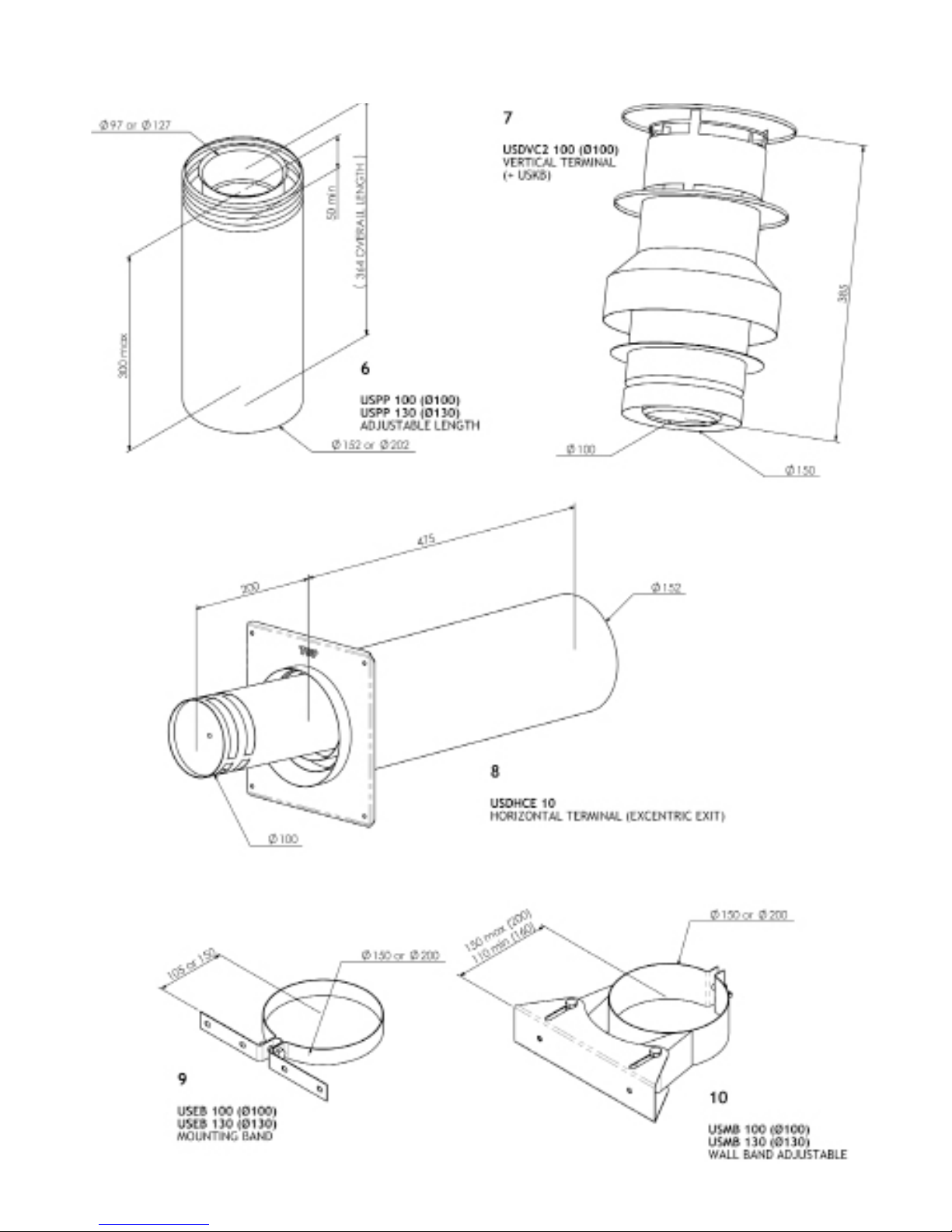

Concentric Flue Parts Identication ....................................................................................14
Flue restrictor ......................................................................................................................21
Wall Terminal Terminations .................................................................................................22
Vertical Roof Terminations ..................................................................................................23
Installing Remote Control Electronic Ignition System GV60........................................................26
Arranging The Ceramic Fire-bed.................................................................................................27
Log Arrangements ..............................................................................................................27
Gravel Arrangements...................................................................................................................30
COMMISSIONING THE APPLIANCE .........................................................................................30
Installing the re ..IMPORTANT INSTALLATION TIPS............................................................31
Servicing Instructions ..................................................................................................................34
Troubleshooting...........................................................................................................................35
TECHNICAL INFORMATION......................................................................................................37
Dimensions...................................................................................................................................37
Technical Details..........................................................................................................................41
Warranty ......................................................................................................................................44
This Manual Covers the following appliances:
Sky, Sky-T (E4-16)

3
a registered gas installer be employed for this
task. The engineer will provide you with informa-
tion about the safety limits of the installation and
should x a notice plate in a place where it can
be readily seen.
This appliance is designed as an efcient heating
device and consequently all body parts become
very hot in use. Except for the control knob and
control access door, which are designed to stay
cool, all other parts are working surfaces and
should not be touched.
The glass and frame on this appliance acts as
a reguard conforming to BS: 1945 – 1971 and
satisfies the Heating Appliance (Fireguards)
regulations 1991. No part of the window or frame
should be permanently removed. It does not give
protection for young children aged or inrm,
extra guarding(conforming to BS8423: 2002)
should be considered so the special hazards that
exist in nurseries and other places where there
are young children, aged or inrm persons are
minimized.
Bearing in mind that the heat given off by this
appliance may affect articles placed close to it,
curtains should not be placed within 30cm.
The appliance is not designed as a dryer. It is not
therefore recommended that the appliance be
used in such a manner. Do not place any articles
within 30cm of this appliance as this may result
in damage to the articles.
The installation must be carried out in accordance
with the following regulations:
ment of the Environment, the Building Standards
(Scotland) (Consolidation) Regulations issued by
the Scottish Development Department.
GENERAL INFORMATION
Important Safety Notice
This appliance has a ceramic Fire-bed arrange-
ment; this contains Refractory Ceramic Fibres,
which are man-made vitreous silicate bres. Ex-
cessive exposure to these materials can cause
irritation to eyes, skin and respiratory organs.
Hence we recommend that when handling these
materials the release of dust should be kept to
a minimum. During installation and servicing we
recommend that a HEPA ltered vacuum be used
to remove any dust and soot in and around the
re. If any of the ceramic re-bed components
need to be replaced we recommend that the re-
moved parts be sealed in a heavy-duty polythene
bag, and be labelled as RCF waste. RCF is not
“Hazardous waste” and can be disposed of at a
licensed tipping site for the disposal of industrial
waste.
The appliance incorporates a permanent pilot.
This is located on the front of the burner, and
must not be adjusted by the installer. This system
must not be put out of operation, and if any parts
require changing, only original manufacturer parts
shall be used.
This appliance is designed to be used either Natu-
ral or LPG gas however, each individual appliance
is only capable of running off the type of gas
specied at the time of purchase. It is important
to note that once a type of gas has been speci-
ed the stove cannot run off any other type. The
type of gas that your stove is capable of burning
is stated on the data information panel.
This appliance has been designed, tested and
approved to meet standards in place for prod-
uct use, performance and safety. Installation of
your appliance must comply with current build-
ing regulations. It is therefore recommend that

4
Inlet pipe connection 8mm compression
Chimney requirements Balanced Flue
Flue monitor Permanent Pilot
User control: Variable rotary control inc. integrated
Piezo ignition, Permanent pilot facility, Flame fail-
ure device and Oxygen Depletion Cut-out.
Before installation of these appliances, the area
into which the re is to be tted must be cleared
of all debris (including dust), in particular com-
bustible material.
The appliance must sit on a hearth (or base sur-
face) sufcient to support the weight of the re.
The rebox must then also be secured. Adjust-
able brackets are supplied on the rebox for this
purpose.
Prevention of rust: Always switch the Fire com-
pletely off after use. This saves gas and prevents
corroding of your re.
General Fitting Information
GENERAL INFORMATION
BS 5440 part 1, BS 5871 part 2 and BS 6891.
In the Republic of Ireland the installation must
also conform to the relevant standards, particu-
larly in regard to ue sizing and ventilation. Refer
to documents IS813, ICP3, IS327 and any other
rules in force.
This appliance must be installed in accordance
with the rules in force and used only in a suf-
ciently ventilated space, and is intended for use
on a gas installation with a governed meter.
Before installation, ensure that the local distribu-
tion conditions (identication of the type of gas
and pressure) and the adjustment of the appliance
are compatible. The technical specication of this
appliance is given on the rear page of this manual.
Do not use the appliance if the glass front door
or panel has been broken, removed or is open.
Note:
Since the appliance is a source of heat, circulation
of air occurs. Therefore it is of importance that you
do not use the appliance shortly after a renovation
of the home. Because of the natural circulation
of air, moist and volatile components from paint,
building materials, carpet etc. will
be attracted. These components can settle them-
selves down onto cold surfaces in the form of soot.

5
USER INFORMATION
Remote control electronic ignition system
RCE GV60
The appliance is supplied with a remote control.
Ignition, controlling the ame height and switching
off are performed by the remote control that
operates a receiver in the control hatch. For some
appliances, no control hatch is supplied. In that
case, the receiver is placed under the appliance.
The receiver and remote control are battery
powered. The receiver requires 4
penlite (AA type) batteries, the remote control
requires 3 x AAA penlites. At normal use, the
batteries will have an average life of one year.
You can also use an optional adapter. Ask your
installer for information. In that case you will need
a 230 V connection near your appliance.
The appliance’s standard functions such as
ignition, controlling the ame height, standby (pilot
burner) position and switching off ,are performed
in the MAN position. In the display of the remote
you can see the letters MAN.
In addition, the remote control can also be used
to set a number of additional functions:
- temperature display in degrees Celsius or
Fahrenheit;
- time;
- thermostat function;
- timer for thermostat function.
Setting the communication code
Prior to putting the application into operation, a
communication code must be set between the
remote control and the receiver. The code is
chosen randomly from the 65000 available codes.
As a result, the chance that other remote controls
near you are using the same code and affect the
operation of your appliance is very small.
Follow the procedure described below:

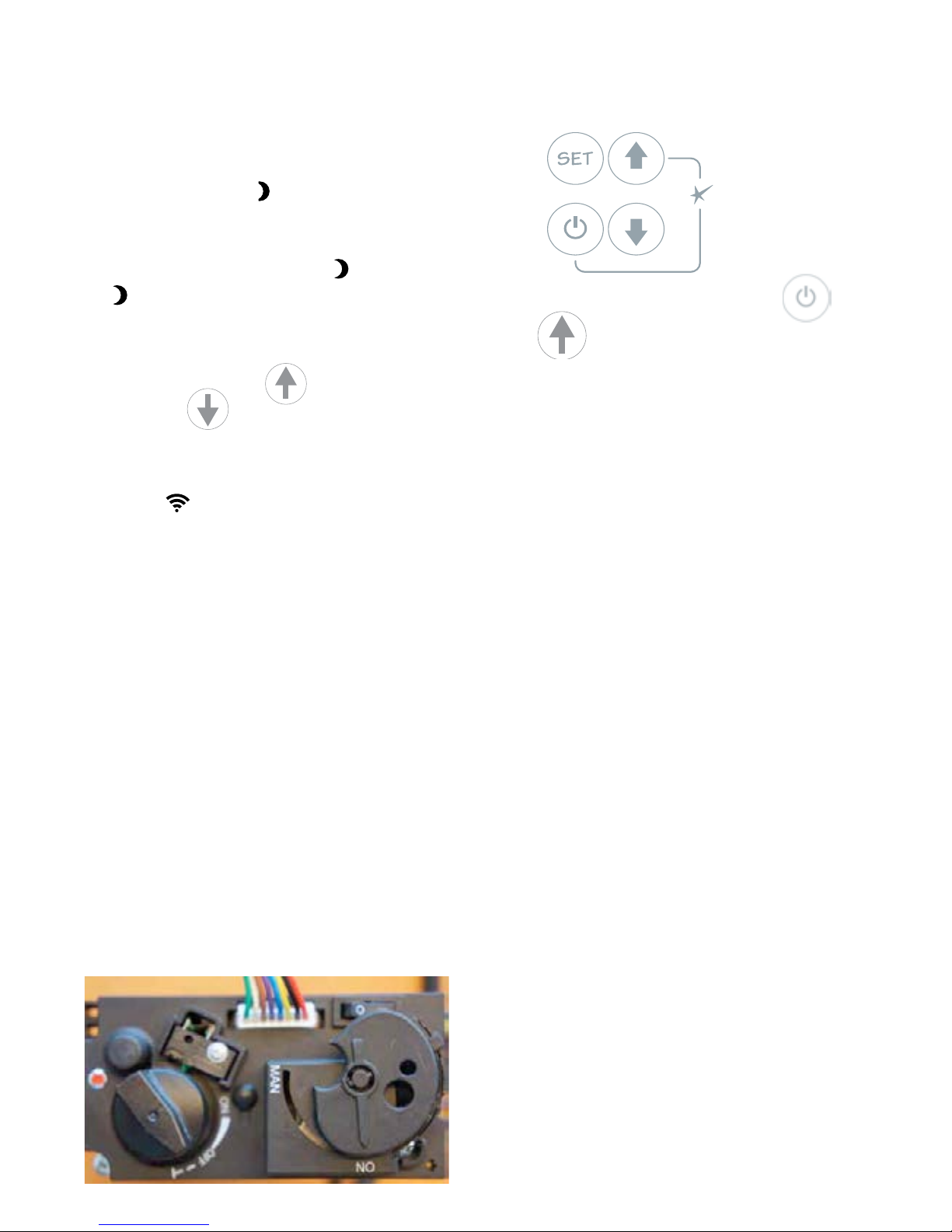

Hold down the reset button on the receiver,
until you hear two consecutive sound signals
(see g. 2). After the second, longer signal, let
go of the reset button.
Press button
on the remote control within 20 seconds,
until you hear a sound signal: this is the
conrmation of a correct communication.
!Caution When installing a new remote control
or receiver, you must set a new communication
code.
5
INFORMATIE VOOR DE GEBRUIKER
Afstandsbediening met volledig
electronische ontsteking (RCE4 GV60)
Het toestel wordt bediend met een afstandsbe-
diening (afb.1). Zowel het ontsteken, het regelen
van de vlamhoogte als het uitschakelen gebeurt
met behulp van de afstandsbediening, die een
ontvanger (afb.2) in het bedieningskastje aan-
stuurt. Bij sommige toestellen wordt geen bedie-
ningskastje geleverd. In dat geval is de ontvanger
onder het toestel aangebracht.
De ontvanger en de afstandsbediening worden
gevoed door batterijen. Voor de ontvanger zijn 4
penlite (type AA) batterijen nodig; voor de afstands-
bediening 3 penlites (type AAA). De levensduur
van de batterijen is bij normaal gebruik ongeveer
een jaar.
Als optie kan een netstroom adapter worden ge-
bruikt. Informeer hiernaar bij uw installateur.
U hebt dan een 230 V aansluiting nodig in de om-
geving van het toestel.
1
2
Met behulp van de afstandsbediening kunnen
een aantal extra functies ingesteld worden:
- temperatuurweergave in graden
Celsius of Fahrenheit;
- tijd;
- thermostaat functie;
- timer voor thermostaat functie.
Instellen communicatiecode
Voordat het toestel in gebruik wordt genomen,
moet een communicatiecode ingesteld worden
tussen de afstandsbediening en de ontvanger.
De code wordt willekeurig gekozen uit de 65000
codes die beschikbaar zijn. Hierdoor is de kans
klein dat andere afstandsbedieningen in uw om-
geving dezelfde code gebruiken en de werking
van uw toestel beïnvloeden.
Ga als volgt te werk:
Druk de reset-knop op de ontvanger in totdat
u achtereenvolgens twee geluidssignalen
hoort. Laat na het tweede, langere signaal
de reset-knop los.
Druk binnen 20 seconden op knop op
de afstandsbediening totdat u een geluid-
signaal hoort: dit is de bevestiging van de
goede communicatie. Als u een nieuwe
afstandsbediening of ontvanger installeert,
moet u opnieuw een communicatiecode in-
stellen.
2
1
2

6
USER INFORMATION
MAN position
By briey pressing the SET button, you will go
through the following functions:
MAN →
✹
TEMP → TEMP → (P*)TIMER →
MAN
where, depending on the timer setting:
(P*) is displayed as P1 , , P1 , P2
✹
,
P2 .
You can also go back to the MAN position by
pressing the button (large ame) or
(small ame).
!Caution - When pressing the buttons (with the
exception of the SET button), the transmission
symbol ( ) will appear to indicate that
transmission is taking place between the remote
control and the receiver;
- The receiver acknowledges the transmission
with a sound signal;
- The appliance will automatically enter the
standby position, if there is no transmission for
6 hours.
Set the remote control to the MAN position.
Ignition
Caution - During the ignition process, you are not
allowed to operate control button B
on the gas control manually
- Always wait 5 minutes after the pilot burner
has gone out, before you re-ignite
the appliance;
Ignite the appliance as follows:
Simultaneously press the buttons
and on the remote control.
Let go of the buttons when a short sound
signal indicates that the ignition process has
been started.
In succession:
- the continuous signals will indicate that the igni-
tion process is active;
- a short sound signal will indicate that the ignition
process has nished;
- the appliance will automatically switch through
to the highest position of the main burner, which
will start to burn in a few seconds.
Caution - If the pilot burner is not burning after
3 ignition attempts, you must close the gas tap
and call the installer;
- When igniting the pilot burner, you will hear
sound signals. After the last short sound sig-
nal, the main burner should be largely ignited
within about 10 seconds. If this is not the
case, you must close the gas tap and warn
your installer;
- If the appliance ignites with a pop sound, you
must close the gas tap and
contact your installer.
!Tip A little motor will start to run when the main
burner operates, you will be able to hear it.
A
✹
6
3
B
A
B
3
INFORMATIE VOOR DE GEBRUIKER
MAN stand
Door kort op de knop SET te drukken doorloopt
u achtereenvolgens de volgende functies:
MAN → TEMP → TEMP → (P*)TIMER
→ MAN waarbij afhankelijk van de instelling van
de timer: (P*) wordt weergegeven als P1 ,
P1 , P2 , P2 .
U kunt ook terugkeren naar de MAN stand
door op de knop of te drukken.
!Let op - Bij het indrukken van de knoppen
(behalve de knop SET) verschijnt het trans-
missiesymbool ( ) om aan te geven dat er
transmissie plaatsvindt tussen de afstands-
bediening en de ontvanger;
- De ontvanger bevestigt de transmissie met
een geluidssignaal;
- Het toestel gaat automatisch naar de stand-
by stand als er gedurende 6 uur geen trans-
missie plaatsvindt.
Zet de afstandsbediening op de MAN stand.
Ontsteken
Let op - Tijdens het ontstekingsproces is
het niet toegestaan de regelknop B op het
gasregelblok (afb. 4) handmatig te bedienen;
- Wacht altijd 5 min. na het doven van de
waakvlam voordat u het toestel opnieuw
ontsteekt;
Het ontsteken van het toestel gaat als volgt:
Druk de met een lijntje verbonden knoppen
en op de afstandsbediening
gelijktijdig in. Laat de knoppen los als een
kort geluidssignaal aangeeft dat het ontste-
kingsproces is gestart.
Achtereenvolgens:
- geven doorlopende signalen aan dat het
ontstekingsproces in werking is;
- geeft een kort geluidssignaal aan dat het
ontstekingsproces is voltooid;
- schakelt het toestel automatisch door naar de
hoogste stand van de hoofdbrander;
deze gaat binnen enkele seconden branden.
Let op - Als de waakvlam na 3 ontsteek-
pogingen niet brandt, moet u de gaskraan
dichtdraaien en de installateur waarschu-
wen;
- Tijdens het ontsteken van de waakvlam
hoort u geluidssignalen. Na het laatste
korte geluidssignaal dient de hoofdbrander
binnen circa 10 seconden grotendeels
ontstoken te zijn. Als dit niet gebeurt, draait
u de gaskraan dicht en waarschuwt u de
installateur;
- Als het toestel met een plof ontsteekt, sluit
u de gaskraan en waarschuwt u
de installateur.
Er gaat een motortje lopen als de hoofd-
brander in bedrijf komt; dit is hoorbaar.
3
B
A
B
A
4

7
USER INFORMATION
Flame height / standby
The ame height can be adjusted continuously by
using the buttons and
By continuing to lower the ame height, the ap-
pliance can be set to the standby position; this
means that only the pilot burner will still be burn-
ing.
Press button (small ame) to lower the
ame height and/or to set the appliance in the
standby position.
Press the button (large ame) to raise the
ame height and/or to switch on the main burner
from the standby (pilot burner) position.
Caution - If you continue to press down button
(large ame) on the remote control,
the main burner should be largely ignited
within about 10 seconds. If this is not the
case, you must close the gas tap and warn
your installer;
- If the appliance ignites with a pop sound,
you must close the gas tap and contact your
installer.
Switching off
Switch the appliance off by pressing the OFF
button. The pilot burner will also go out.
Please note that after switching off the pilot ame,
the thermocouple device must be cooled down,
before the appliance can be lighted again. This
can take up to 30 minutes.
Temperature display
The room temperature can be indicated on the
display in degrees Celsius (°C) using a 24 hour
clock or degrees Fahrenheit (°F) using a 12 hour
clock.
Simultaneously press OFF and (small
ame) , until the correct display appears.
Time
The display can indicate time.
After placing the battery or simultaneously press-
ing (large ame) and
(small ame), the time indication will ash on the
display and you will be able
to adjust the time.
Simultaneously press and until the time indication
ashes on the display.
Press the button (large ame) to set the
hours.
Press the button (small ame) to set the
minutes.
Press OFF to return to the MAN position,
or wait for the system to automatically return to
the MAN position.
Thermostat function
Using the thermostat function you can set
two temperatures, which can be controlled
thermostatically. These temperatures are referred
to as day temperature and night temperature.
The TEMP and TEMP symbols on the display
refer to day and night temperature respectively.
The room temperature is compared to the set
day/night temperature and then the ame height
is automatically controlled in order to reach the
set temperature.To be able to use the day/night
temperature function, the appliance must be
in the standby position.
!Caution - Always leave the remote control at
the same place, so that the thermostat is
able to ‘feel’ the room temperature;
- Make sure this place is free from inuences
such as draught, heat from radiators
and direct sunlight.
✹

8
USER INFORMATION
Example
By using the Y TEMP function you can keep the
day temperature at 20 °C; while
you use the 4 TEMP function at night to maintain
a temperature of 15 °C.
Setting day/night temperature
By using the SET button, you will go through the
following functions:
MAN → TEMP → TEMP → (P*)TIMER →
MAN
Briey press the SET button to enter
the TEMP or the TEMP position.
Press the SET button until the temperature on the
display ashes.
Set the required temperature by using the buttons
and
!Caution - The minimum temperature you can set
is 5 °C / 40 °F;
- Control of the night temperature is switched off
by lowering the temperature
until two stripes (“--”) appear on the display.
Press the OFF button or wait until position
TEMP or TEMP appears on the
display.
Activating the thermostat function
For activating the thermostat function, you must
proceed with the following
steps:
Place the appliance in the standby (pilot burner)
position using button
(small ame).
Set the day/night temperature.
Choose the TEMP or TEMP function using
the SET button.
✹
Timer for thermostat function
Using the timer enables you to set two times per
24 hours for switching on the day temperature
and two times per 24 hours for switching on the
night temperature.
In order to control the night temperature, it should
be set to at least 5 °C / 40 °F.
If the night temperature is set to the “-- ” position,
the appliance will remain in the standby position.
The appliance will only switch on at the next
switch-on time of the day temperature.
The appliance must be in standby position in order
to be controlled by the timer.
Example of switch times
You have set a day temperature and night
temperature of, for example, 20 °C and 15 °C.
P1 TIMER = 7 hours; the temperature will
go to 20 °C at 7 am.
P1 TIMER = 9 hours; the temperature will
go to 15 °C at 9 am.
P2 TIMER = 17 hours; the temperature will
go to 20 °C at 5 pm.
P2 TIMER = 22 hours; the temperature returns
to 15 °C at 10 pm.
✹
✹
✹
✹
✹

9
USER INFORMATION
Setting times for the timer
To set the timer, proceed as follows:
Set the day and night temperature as described
above
Briey press the SET button to enter the (P*)
TIMER position.
Pres s the SET button until P1 TIMER is
displayed and the time ashes.
Set the rst switch on time of the day temperature
using the buttons large ame) and
(small ame)
.
Briey press the SET button to set the next time
of the cycle, P1 TIMER.
Successively set the times P2 TIMER and
P2 TIMER.
Press the OFF button or wait until position (P*)
TIMER appears on the display.
Activating the timer function
Follow the steps below for activating the timer
control:
Place the appliance in the standby (pilot burner)
position using button (small ame).
Set the day/night temperature if you have not yet
done so;
Set the timer times P1 TIMER, P1 TIMER,
P2 TIMER and P2 TIMER.
Choose the (P*) TIMER function using the SET
button.
✹
Replacing the battery
If the battery is almost empty, the display will
show “BATT”.
To replace the battery, proceed as follows:
Remove the cover at the back side of the remote
control.
Disconnect the 9V block battery from / connect
the 9V block battery to the connector.
!Caution - Observe the “+” and “-” poles of the
batteries and the connector;
- Use alkaline batteries;
- Batteries are regarded as “small chemical
waste” and may therefore not be disposed with
the household rubbish.
Place the battery in the holder.
Replace the cover.
Double Burner Function:
The re will always start with both the front and
second burner on. If wanted, one can switch the
second burner off ,by pressing once at the same
time the button and
One can switch the second burner on again by
pressing at the same time the buttons:
and
✹
✹
✹

10
INSTALLER INFORMATION
InstallatIon
Before beginning the installation, check that the
details on the rating plate correspond to the gas
type and pressure to which the appliance will be
connected.
Ventilation
This appliance can be installed in a completely
sealed or mechanically ventilated house without
extra ventilation and/or fume extraction.
General Balanced Flue Notes
There are many possibilities for installing this
Concentric Balanced Flue system into a building,
both Roof and Wall terminations are possible,
and the ue can either be built into an existing
chimney or a completely new ue system may
be constructed.
The system is based upon a Concentric Flue
system which utilises an inner ue of 100 or 130
mm diameter which passes through an outer ue
of 150 or 200 mm diameter. The ue gasses that
are the products of combustion of the re, pass
through the inner ue and are safely vented to
the outside environment. The gap between the
inner and outer ues is the channel by which the
stove is supplied with air for combustion.
These concentric ues terminate outside of the
property in a terminal, this terminal will keep the
expelled gasses and the fresh air for combustion
separate. It is important that the terminal is not
blocked, a suitable guard maybe required if the
terminal is located at a “Low” level (usually when
the terminal is within 2m of oor level).
The Balanced Flue gas appliance can be installed
as an insertion into an existing or new replace.
If an existing Flue or Chimney is to be utilised,
then the installation engineer must be consulted.
If the chimney has been previously used it must
be professionally cleaned and certied as being
sound and t for use.
The European CE approval on this appliance is
restricted to the Flue systems as specied by
the supplier, thus the appliance must only be
installed with the original ue system, no others
may be used
The gas re, in combination with the concentric
ue system , has been approved in accordance
with the European CE-norm for gas appliances
and may therefore be used only with this system.
The guarantee is invalidated if the appliance is
(completely or partially) installed using a different
system.
The concentric ue systems can be used with
either a newly-built or existing chimney.
These appliances are designed with the “Firebox”
raised up off the ground level by the built in “Base
unit”.
Thus these appliances require no special Hearth
arrangements, as the oor will not get hot and is
protected by the steel construction of the “Base
unit”.
The appliance must not be tted against a rear
wall constructed from a combustible material; a
gap of 300mm should be given all round the stove
before combustible materials may be used in the
wall construction.
If the appliance has to be located in an opening,
a minimum clearance of 50mm should be allowed
to non-combustible materials.
If the appliance is located in a recess, then
the recess must have adequate ventilation, we
recommend a minimum total vent area of 400
cm².
The stove must be located at least 300 mm from
any combustible materials outside the chimney
breast.
Appliance Fireplace Installation
After selecting the appliance location, install a gas
connection for the appliance in approximately the
desired location of the gas controls.
The gas controls are already connected to the
appliance. The controls need to be located in the

11
INSTALLER INFORMATION
control access box, so an appropriate position for
the access box need to be determined.
This appliance has adjustable legs, these must
me set to stabalise the re before ue position is
nalised.
Do not make any adjustments to the appliance,
except the leg length.
The appliance and Flue system should be tted
with a minimum clearance of 500mm from any
combustible objects or materials, this includes
any combustible materials used for the replace
construction.
As this is a room sealed appliance and the
appliance stands on appropriate legs, a hearth
is not required for this appliance.
The Fireplace should be ventilated with openings
giving a total free vent area of 400 cm².
A gap of 50mm should be left all round the
appliance.
If a shelf is to be tted above the replace opening,
a gap of 150mm minimum should be left between
the opening and the shelf.
The brackets supplied may be used fore securing
the appliance to a rear wall.
Timber Frame Construction
Whilst it is possible to install room-sealed
appliances in timber frame properties, great care
needs to be taken to ensure that the ue assembly
does not interfere with the weather proofing
qualities of any outer wall which it may penetrate.
Before attempting this work, further details need
to be referenced, (e.g. “Gas Installations in Timber
Frame Buildings” from the CORGI installer series
in the UK).
Carport or Building Extension
Where a ue terminal is sited within a carport or
building extension, it should have at least two
completely open and unobstructed sides. The
distance between the lowest part of the roof and
the top of the terminal should be at least 600mm.
Note: A covered passageway should not be
treated as a carport. Flues should not be sited in
a covered passageway between properties.
Basements, Lightwells and Retaining walls
Flue terminals should not be sited within the
connes of a basement area, light well or external
space formed by a retaining wall, unless steps are
taken to ensure the products of combustion can
disperse safely at all times. It may be possible
to install this Balanced Flue system in such a
location provided that it is not sited lower than 1m
from the top level of that area to allow combustion
products to disperse safely.
Flue terminals should be sited to ensure
total clearance of the combustion products in
accordance with the inclosed information.
When the products of combustion are discharged,
they should not cause a nuisance to adjoining or
adjacent properties and they should be positioned
so that damage cannot occur to other parts of the
building. If the outer wall surface is constructed
of combustible material, a non-combustible plate
should be tted behind the terminal projecting
25mm beyond the external edges of the terminal.

12
Terminal Locations Wall Mounting
INSTALLER INFORMATION
Dimension Terminal Position Distance (mm)
A* Directly below an opening,air brick, opening window etc. 600
B Above an opening,air brick, opening window etc. 300
C Adjacent to an opening,air brick, opening window etc. 400
D Below gutters, soil pipes or drain pipes 300
E Below eaves 300
F Below balconies of car port roof 600
G From a vertical drain pipe or soil pipe 300
HFrom an internal or external corner 600
I Above ground roof or balcony level 300
J From a surface facing the terminal 600
K From a terminal facing the terminal 600
L From an opening in the car port (e.g. door , window into the dwelling) 1200
M Vertically from a terminal on the same wall 1500
N Horizontally from a terminal on the same wall 300
P From a vertical structure on the roof 600
Q Above intersection with roof 150
* I addition, the terminal should not be nearer than 300mm to an opening in the building fabric formed
for the purpose of accomodating a built in element such as a window frame.
12
Locatie afvoer bij wandmontage
INFORMATIE VOOR DE INSTALLATEUR
Afmeting Positie uiteinde Afstand (mm)
A* Direct onder een opening, ventilatiesteen, openslaand raam enz. 600
B Boven een opening, ventilatiesteen, openslaand raam enz. 300
C Naast een opening, ventilatiesteen, openslaand raam enz. 400
D Onder goten of afvoerpijpen 300
E Onder dakranden 300
F Onder balkons of daken van open garages 600
G Vanaf een verticale afvoerpijp 300
H Vanaf een binnen- of buitenhoek 600
I Bovengronds dak- of balkonniveau 300
J Vanaf een oppervlak tegenover het uiteinde 600
K Vanaf een uiteinde tegenover het uiteinde 600
L Vanuit een opening in de open garage (bijv. deur, raam in de woning) 1200
M Verticaal vanuit een uiteinde aan dezelfde wand 1500
N Horizontaal vanuit een uiteinde aan dezelfde wand 300
P Vanaf een verticale structuur op het dak 600
Q Boven het snijpunt met het dak 150
* Het uiteinde mag daarnaast niet dichter dan 300 mm bij een opening in het gebouw worden
geplaatst dat is aangebracht voor het plaatsen van een inbouwelement, zoals een raamkozijn.

13
INSTALLER INFORMATION
Terminal Locations Roof Termination
“Distance” = minimum distance required for positioning of the outlet to avoid adverse effects with
respect to:
A. A ventilation opening serving an occupied room, a toilet or a bathroom
B. A heating air supply, when the supply ows through an occupied room.
C. A window that can be opened and that is near an occupied room, a toilet or a bathroom.
(*) If the required distance cannot be achieved, the outlet position rules take precedence.
(**) If the outlet is positioned at least 1 m higher than the intake supply opening, or a window
that can be opened.
(***) If the required distance cannot be achieved, the position of the outlet must be at least 1 m
above the highest facade/roof.
Important note for Roof Terminations (C31).
When installing the appliance with a roof termination (classication C31), it is important to t a ue
restriction strip across the ue outlet inside the stove, see notes page 21.
Minimum Vertical Length notes.
Roof terminations may be installed from a minimum height 1.0 m this is shown on the pages that
follow.
To avoid adverse effects
Distance: outlet -
A,B or C
At the same roof level >6 m (*)
At a different roof level >3 m (*) (**)
At a lower positioned wall >2 m (**)
At a higher sloping surface >6 m (***)

14
Concentric Flue Parts Identication
The following pages identify the parts that may be used in the Balanced Flue installation of this appliance.
The Item number in the table refers to the item number of the part in the Identication pages, this Item
number is also the number that will be used to identify parts in the Installation suggestion diagrams.
INSTALLER INFORMATION
Item Description Part No.
Ø100 Ø130
A Appliance
B Appliance Connector
CFlue Adaptor
D Chimney or Flue, Fully Gas Tight Ø150 minimum
E Chimney or Flue, Fully Gas Tight Ø160 minimum
FStainless Steel Flexible Chimney Liner Ø100, AISI 316Ti
GStainless Steel Flexible Chimney Liner Ø150, AISI 316Ti
1 Concentric Flue Pipe 250mm Length US 25 100 US 25 130
2 Concentric Flue Pipe 500mm Length US 50 100 US 50 130
3 Concentric Flue Pipe 1m Length US 100 100 US 100 130
4 Locking Band USKB 100 USKB 130
5 Protection Band USAB 100 USAB 130
6 Concentric Flue Pipe Adjustable Length 50 - 300mm USPP 100 USPP 130
7Vertical Terminal USDVC2 100
8 Horizontal Terminal (Excentric Exit) Ø100 USDHCE 100
9 Mounting Band USEB 100 USEB 130
10 Wall Band Adjustable USMB 100 USMB 130
11 Concentric Flue 90° USB 90 100 USB 90 130
12 Concentric Flue 45° USB 45 100 USB 45 130
13 Concentric Flue 15° USB 15 100 USB 15 130
14 Storm Collar USSR 100 USSR 130
15 Flat Roof Flashing (Aluminium) USDPAL 100 USDPAL 130
16 Flat Roof Flashing USDP 100 USDP 130

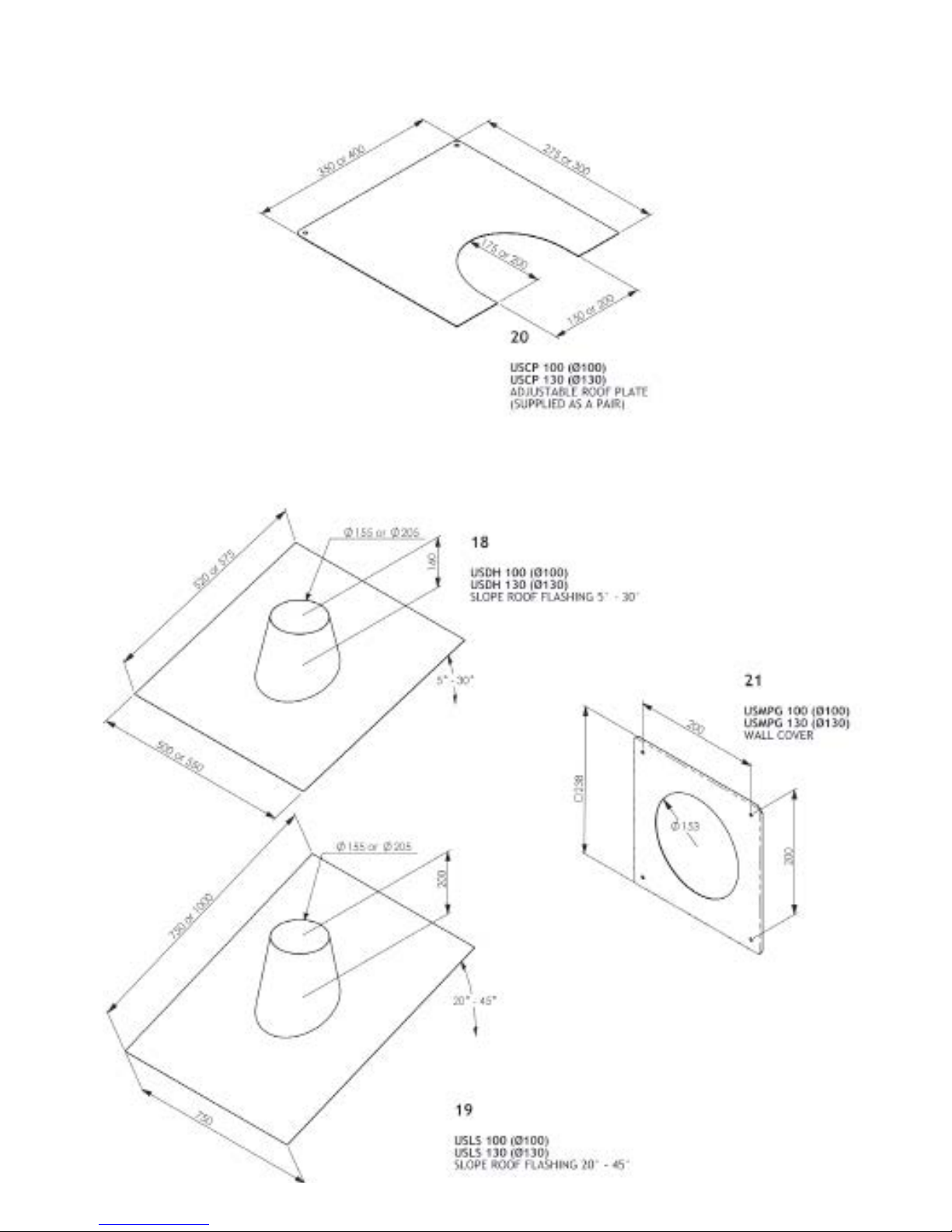

18 Slope Roof Flashing 5° - 30° USDH 100 USDH 130
19 Slope Roof Flashing 20° - 45° USLS 100 USLS 130
20 Adjustable Roof Plate (Supplied as pair) USCP 100 USCP 130
21 Wall Cover USMPG 100 USMPG 130
22 Flue reducer Ø130 - Ø100 USVK 10 130
23 Horizontal Terminal (Excentric Exit) Ø130 USDHC 130
24 Concentric Flue 90° with Inspection Cover USBI 100 USBI 130
25 Inspection Element USI 100 USI 130

15
INSTALLER INFORMATION
15
INFORMATIE VOOR DE INSTALLATEUR

16
INSTALLER INFORMATION
16
INFORMATIE VOOR DE INSTALLATEUR

17
INSTALLER INFORMATION
17
INFORMATIE VOOR DE INSTALLATEUR

18
INSTALLER INFORMATION
18
INFORMATIE VOOR DE INSTALLATEUR

19
INSTALLER INFORMATION
19
INFORMATIE VOOR DE INSTALLATEUR
22
USVK 100 130
REDUCER Ø130 - Ø100
23
USDHC 130
HORIZONTAL TERMINALØ130

20
INSTALLER INFORMATION
FLUE RESTRICTOR
- When using Flue system with a wall terminal DON’T use any restrictor
- When using a roof terminal Flue system (150/100) and vertical is more than 1,5 meter, then use the
35 mm ue restrictor.
The 35 mm Flue restrictor is located on the inside of the Fire near the Flue outlet. Undo 1 of the bolds
and turn the restrictor over the ue outlet.
