Element4 Modore 240 User manual

1
Element4 Gas Fireplaces EuropeanHome.com
Installation Manual
Modore 240
Tenore 240
Gas Fireplaces
Aug. 2015
HOT GLASS WILL Une surface vitrée chaude
CAUSE BURNS. peut causer des brûlures.
DO NOT TOUCH GLASS Laisser refroidir la surface
UNTIL COOLED. vitrée avant d’y toucher.
NEVER ALLOW CHILDREN Ne permettez jamais á un enfant
TO TOUCH GLASS. de toucher la surface vitrée.
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed
for the protection of children and other at-risk individuals.
Une barrière conçu pour réduire le risque de brûlure par le verre de visualisation chaude est fournie avec cet appareil et doit
être installé pour la protection des enfants et autres personnes à risque.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
INSTALLATEUR: Laissez cette notice avec l’appareil.
CONSOMMATEUR: Conservez cette notice pour
consultation ultérieure.
- Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call
the re department.
- Installation and service must be performed
by a qualied installer, service agency or the
gas supplier.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could
result in serious injury, death, or property damage.
- Ne pas entreposer ni utilizer d’essence ni d’autres vapeurs
ou liquides inammables dans le voisinage de cet appareil
ou de tout autre appareil.
- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ
• Ne pas tenter d’allumer d’appareil.
• Ne touchez á aucan interrupteur. Ne pas vous servir des
téléphones se trouvant dans le bátiment ou vous trouvez.
• Quitter immédiatement le bâtiment.
• Appelez immédiatment votre fournisseur de gaz depuis
un voisin. Suivez les instructions du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz
appelez le service des incindies.
- Installation et l’entretien doivent être effectués par un
installateur qualié, une agence de service ou le fournisseur
de gaz.
AVERTISSEMENT:
INCENDIE OU D’EXPLOSION
Le non-respect des avertissements de sécurité à la
lettre pourrait entraîner de graves blessures , la mort
ou des dommages matériels.
Tenore 240
Promotional Video
Product
Information

Important Safety Information 3
User Information 6
Specications and Dimensions 7
Modore 240 9
Tenore 240 10
Parts of the Fireplace 11
Clearances 13
Gas and Electric 18
Venting 19
Horizontal 21
Vertical 24
Enclosing the Fireplace 28
Non- combustible Materials List 28
Convection Air Opening 29
Rough Opening Dimensions 32
Operating the Fireplace 36
Installing the Fire Media 40
Logs 41
Stones 43
Screen Installation 44
Maintenance 49
Glass 49
Burner 52
Pilot 52
Thermocouple 53
Venting 53
Replacement Parts 53
Warranty 54
Massachusetts Certication Appendix One
Troubleshooting Flowchart Appendix Two
LP Conversion Appendix Three
Installing the Optional Wall Switch Appendix Four
Index ---
TABLE OF CONTENTS

3
IMPORTANT SAFETY INFORMATION
Element4 Gas Fireplaces EuropeanHome.com
CAUTION - HOT! HOT! HOT!
This appliance is a HEATING appliance and it does become very hot in operation.
UNDER ANY CIRCUMSTANCES, DO NOT PLACE any object, furniture, draperies or other item LESS THAN 36”/90 cm IN
FRONT OF THE GLASS OF THE FIREPLACE.
CHILDREN AND PETS
Radiant heat can heat surfaces such as the surround and trims of the replace to temperatures that, although approved
safe, can be quite uncomfortable to touch - particularly for children and pets. Children and pets should always be
supervised when in the room where the appliance is located. Remote control handset should be kept out of reach of
children. In the presence of children, we STRONGLY RECOMMEND that you install in front of the replace: a re screen or,
to protect young toddlers, a “hearth gate”.
HOT SURFACES
Be aware that, although safe, some combustible materials and nishes, even
though installed at listed clearances may, over time, discolor, warp or show
cracks.
Convective heat will exit the unit and travel up the wall surface if not impeded.
Protruding mantels and projections can help direct the heat away from the wall.
AVOID placing heat sensitive items such as televisions, paintings, decorations,
etc. above replaces or near the edge of protrusions unless appropriate.
SAVE THESE INSTRUCTIONS
Make yourself fully aware of all the following instructions and the many features of the Element4
direct vent gas replace appliance.
INSTALLER: Leave this manual with the appliance.
OWNER: Keep this manual for future reference.
Do not place furniture or other objects
within 36” of the replace glass.

4
IMPORTANT SAFETY INFORMATION
Element4 Gas Fireplaces EuropeanHome.com
WARNING
Children and adults should be alerted to the hazards of
high surface temperature and should stay away to avoid
burns or clothing ignition.
WARNING
This direct vent system appliance must be installed as an
OEM installation in manufactured homes (USA only) or
an aftermarket permanently located, or a mobile home,
where not prohibited by local codes and must be
installed in accordance with Manufacturer’s instructions
and the Manufactured Home Construction and Safety
Standard, Title 24 CFR, Part 3280, in the United States, or
the Standard for Installation in Mobile Homes, CAN/CSA
Z240 MH Series, in Canada.
If the information in these instructions is not followed
exactly a re or explosion may result causing property
damage, personal injury or death.
Do not store or use gasoline or other ammable vapors
and liquids in the vicinity of this appliance.
WARNING: Installation and Service
Installation and service must be performed by an
authorized qualied installer, service agency or gas
supplier.
Any alteration to the product that causes soot or carbon to
form and results in damage is not the responsibility of the
manufacturer.
ONLY a qualied person may open the door/remove the
glass.
Do not modify or substitute any part of this appliance.
WARNING: Glass Handling
The glass must only be removed by a qualied person.
Gloves should be worn when removing the glass.
WARNING: Electrical Grounding
These direct vent appliances must be electrically
grounded in accordance with the local codes or, in the
absence of local codes, with National Electric code, ANSI/
NFPA 70, or the Canadian Electric Code, CSA C22.1
WARNING: Gas Appliance
This appliance is only for use with the type of gas
indicated on the rating plate. These appliances are not
convertible for use with other gases unless a certied kit
is used and the conversion is performed by an authorized
qualied technician.
Applicable standards are ANSI Z21.50/CSA 2.22 (Vented
Gas Fireplaces) and CAN/CGA 2.17-M91 (Gas-red
Appliances for Use at High Altitudes.) If your installation
is at an elevation greater than 2000’ in the US or 4500’
in Canada, consult with the local authority having
jurisdiction for gas product installations to determine their
specic requirements for high altitude installations.

5
IMPORTANT SAFETY INFORMATION
Element4 Gas Fireplaces EuropeanHome.com
This gas replace and vent assembly MUST be vented
directly to the outside and MUST NEVER be attached to a
chimney serving a separate solid fuel burning appliance.
Each gas appliance MUST BE a separate vent system.
Common vent systems are prohibited.
This unit MUST be used with a vent system as described
in this installation manual. NO OTHER VENT SYSTEM OR
COMPONENTS MAY BE USED.
INSPECT the external vent cap on a regular basis to make
sure that no debris, plants, trees, or shrubs are interfering
with the air ow.
NEVER OBSTRUCT the ow of ventilation air. Keep the
front of the appliance CLEAR of all obstacles and materials
for servicing and proper operation.
The glass panels MUST be in place and sealed before the
unit can be placed into safe operation.
DO NOT OPERATE this appliance with the glass panels
removed, cracked or broken. Replacement of the glass
panels should be performed by a licensed or qualied
service person. DO NOT strike or slam the glass panels.
The glass panels SHALL ONLY be replaced by units
supplied by the manufacturer. NO SUBSTITUTE panels
shall be used.
DO NOT USE abrasive cleaners on the panels. DO NOT
ATTEMPT to clean the glass panels when they are hot.
TURN OFF the gas before servicing the appliance. It is
recommended that a qualied service technician perform
an appliance check-up/service once a year.
Any safety screen or guard removed for servicing MUST BE
REPLACED before operating this appliance.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL, and must
only be used with gas supply conditions as indicated on
the data label.
DO NOT USE this appliance if any part has been under
water. Immediately call a qualied service technician to
inspect the unit and to replace any part of the control
system and any gas control that has been under water.
DO NOT use this heater as a temporary source of heat
during construction.
This appliance is a DOMESTIC ROOM HEATING APPLIANCE.
It must not be used for any other purposes such as drying
clothes, etc.
If the pilot ame is extinguished either intentionally or
unintentionally, no attempt should be made to re-light the
gas until at least 3 minutes have elapsed.
Dimensions will appear as INCHES”/metric throughout
this manual. For convenience, the inches are rounded to
the nearest 1/16” when converted. If greater accuracy is
required, use the metric dimensions.

6
USER INFORMATION
Element4 Gas Fireplaces EuropeanHome.com

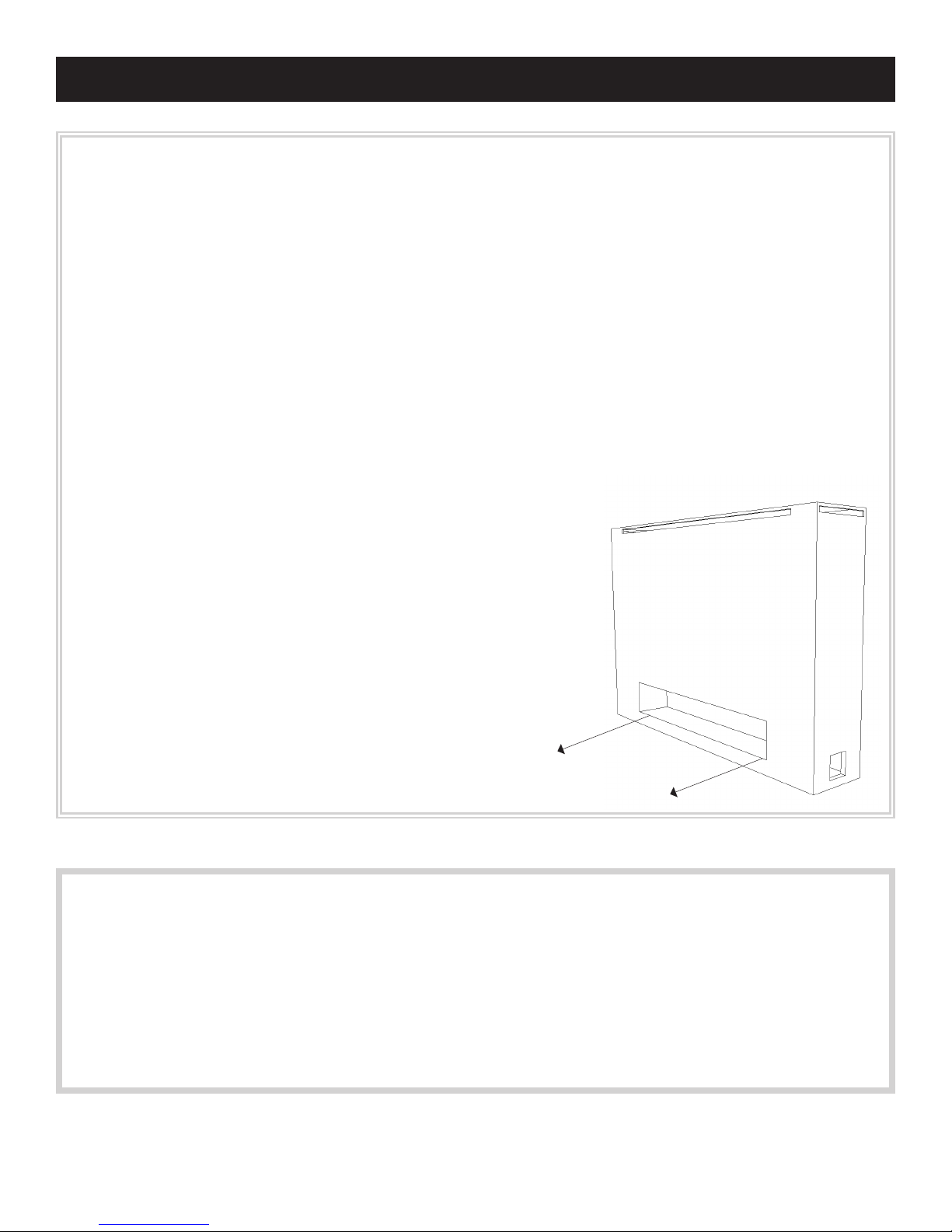

The Element4 replaces are direct vent replaces and, as such, the intake and exhaust are both handled through the vent pipe. The
replace also provides convection air to your room. The illustration shows one of the unique features of the Element4 replaces - its
use of warm, convection air ow.
Other replaces have louvered metal boxes around them to keep temperatures under control. The Element4 replaces use your
enclosing walls, or chase, to guide this warm air. This design, therefore, requires the use of non-combustible wall materials and gives
you beauty for your eort.
When the air within the chase is warmed by the replace, it rises and exits through the Convection Air Outlet. This air is then replaced
by room air which enters the chase just above the replace glass and through the Wall Access Door. As the exiting warm air cools, it
falls to the oor where it's drawn into the inlets and the cycle repeats.
The replace provides the inlet for room air as part of its design; you provide the warm air outlet as part of your design.
See the ENCLOSING the FIREPLACE section of this manual for more information.
Room Air In
WARMTH AND BEAUTY  HOW IT WORKS
Warm Air Out
Access Door
Room Air In
Warm Air Out
Site-built Chase
Figure 1

7
SPECIFICATIONS and DIMENSIONS
Element4 Gas Fireplaces EuropeanHome.com
APPLIANCE RATINGS
Figure 2 AC Adapter Connection (arrow)
AC ADAPTER SPECIFICATIONS
Input Voltage 120V AC
Input Power 9 W
Output Voltage 6V DC
Output Current 500 mA
Size 3.1”H x 2”W x 1.7”D
Output Cord Length 6 Feet
Agency Approvals UL, CSA
ModelModore 240
Tenore 240
Gas Natural
Gas Propane
Input Maximum Btu/hr 89,100 64,700
Input Minimum Btu/hr 25,900 19,500
Maximum Supply
Pressure
in. w.c. 7 11
kpa 1.74 2.74
Minimum Supply
Pressure
in. w.c. 4 8
kpa 1 2
Manifold Pressure
Maximum
in. w.c. 4.0 10.8
kpa 0.99 2.68
Manifold Pressure
Minimum
in. w.c. 0.4 1.5
kpa 0.1 0.38
Main Burner Injector Marking 1200 (x3) 220 (x3)
Pilot Injector Marking 31.2 27.1

8
SPECIFICATIONS and DIMENSIONS
Element4 Gas Fireplaces EuropeanHome.com
DO NOT REMOVE
DIRECT VENT GAS FIREPLACE - Not for
use with solid fuel.
This appliance is only for use with the type of gas indicated on the
rating plate and may be installed in an aftermarket, permanently
located, manufactured home (USA only) or mobile home where
not prohibited by local codes. See owner’s manual for details. This
appliance is not convertible for use with other gases, unless a
certied kit is used.
For use only with Vent, Glass Panels and Ceramic Logs (or
stones) certied and approved for use with this appliance.
This appliance must be installed in accordance with local codes,
if any; if none, follow ANSI Z223.1/NFPA 54, or CSA B149.1. The
appliance must be properly connected to a venting system in ac-
cordance with the manufacturer’s installation instructions.
The system must be installed by ba qualied installing agency.
NE PAS RETIRER
FOYER GAZ À AÉRATION DIRECTE - Ne pas
utiliser avec un combustible solide
Cet appareil est destiné uniquement avec le type de gaz indiqué sur
la plaque signalétique et peut être installé dans une habitation en dur,
à emplacement xe (USA uniquement) ou dans une résidence mobile
si la législation locale l’autorise. Consultez le manuel du propriétaire
pour les détails. Cet appareil ne doit pas être modié pour une utilisa-
tion avec d’autres gaz, sauf à l’aide d’un kit certié.
À utiliser uniquement avec des ventilations, panneaux en verre et
poutres (ou pierres) en céramique dont l’utilisation est autorisée avec
cet appareil.
Cet appareil doit être installé conformément à la législation locale. À
défaut d’une telle législation, suivre ANSI Z223.1/NFPA 54, ou CSA
B149.1. L’appareil doit être proprement raccordé à un système de
ventilation, conformément aux instructions d’installation du fabricant.
Le système doit être installé par un installateur qualié.
Manufacturer/ Fabricant:
Element4 B.V.
Paxtonstraar 23
NL-8013 RP Zwolle
The Netherlands / Pays-Bas
Tel / Tél : [phone]
Fax:[phone]
Approved By / Approuvé par:
Control No. : 4006611
Conforms to std. ANS Z21.50a-2008
Certied to std. CSA 2.22a-2008 - Vented Gas Fireplaces
Product name: (check one) / Nom du produit : (cochez …)
Trisore 100H [ ] Bidore 100H [ ]
Modore 100H [ ]
Serial No. / N° de série: _____________
This appliance equipped only for altitudes /
Cet appareil est équipé uniquement pour les altitudes : 0-4500 ft / 0-1370 m
Fuel Type / Type de combustible Natural Gas / Propane Gas /
Gaz naturel Gaz propane
(check one) / (cochez…) [ ] [ ]
Max. Input / Capacité d’entrée maxi (BTU/HR) 34145 34145
Min. Input / Capacité d’entrée mini (BTU/HR) 15025 17075
Gas Inlet Pressure (in w.c.) / Pression d’entrée du gaz (en w.c.) 7 11
Manifold Pressure (in w.c.) / Pression d’admission (en w.c.) 2.1 7.4
Orice Size / Taille de l’ouverture 650 (x2) 180 (x2)
Clearances to combustible / Dégagement jusqu’au combustible :
Back / Arrière : 11” (28cm) Sides / Côtés : 11” (28cm)
Top / Haut : 26” (66cm) Floor / Sol : 4” (10cm)
Mantel / Linteau: 2” (5cm)
Figure 3 Typical Rating Label
A typical rating label is shown in Figure 3. It is attached to every Element4 replace and contains important certication information.
It must not be removed from the replace.
SAMPLE

9
SPECIFICATIONS and DIMENSIONS
Element4 Gas Fireplaces EuropeanHome.com
MODORE 240
MODORE 240
Front Elevation
Plan View
Left Elevation Right Elevation
Letter Inches Millimeters
A 7⁄ 200
B 92⁄ 2338
C 4 102
D 94⁄ 2408
E 104⁄ 2656
F 15⁄ 398
G 42⁄ 1086
H 36 915
I 14⁄ 377
J 5⁄ 150

10
SPECIFICATIONS and DIMENSIONS
Element4 Gas Fireplaces EuropeanHome.com
TENORE 240
Letter Inches Millimeters
A 7⁄ 200
B 92⁄ 2338
C 94⁄ 2408
D 4⁄ 105
E 16⁄ 413
F 42⁄ 1086
G 38⁄ 981
H 14¾ 374
I 12⁄ 312
J 16⁄ 413
K 104⁄ 2656
TENORE 240
Front Elevation
Plan View
Left Elevation

11
SPECIFICATIONS and DIMENSIONS
Element4 Gas Fireplaces EuropeanHome.com
PARTS OF THE FIREPLACE
Figure 4

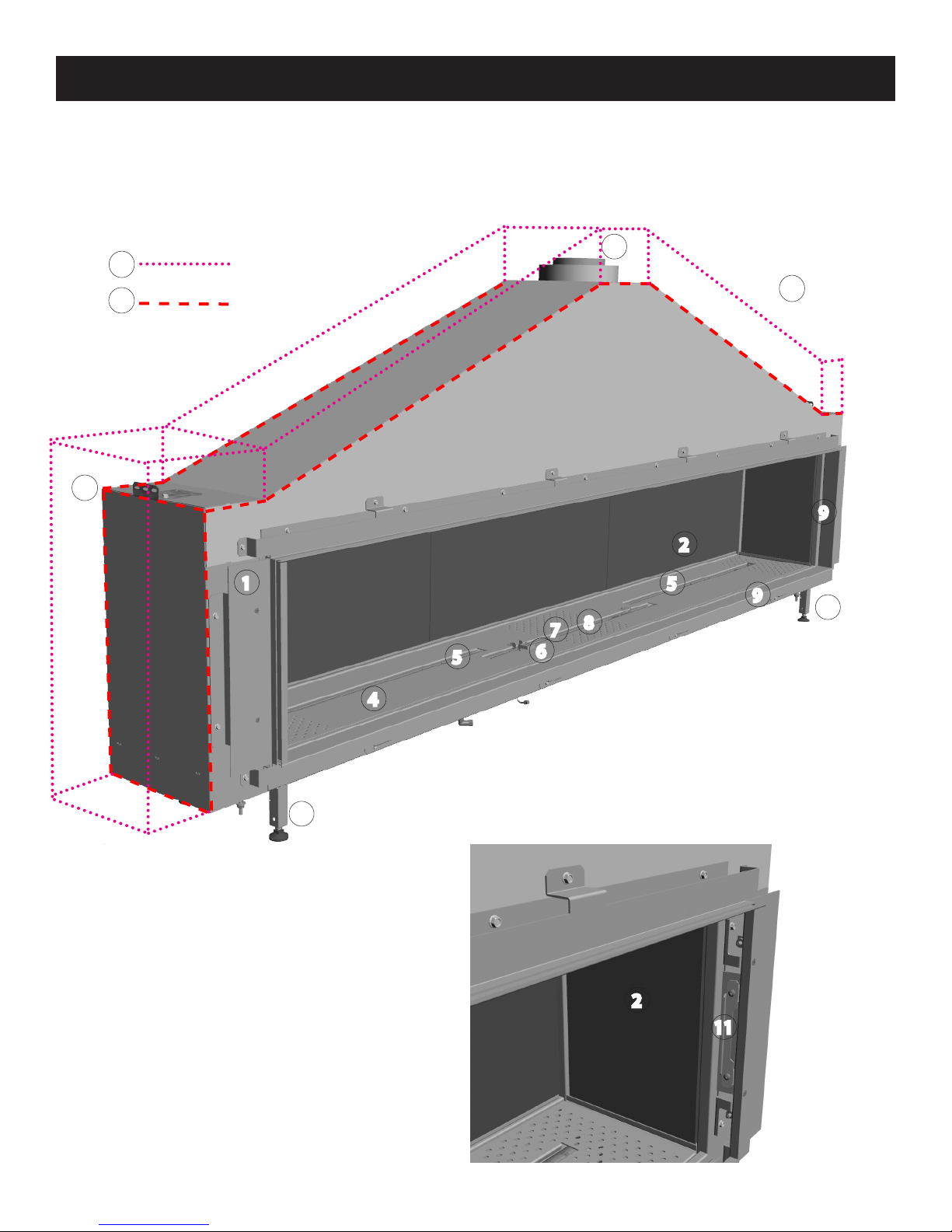

Parts of the Modore 240 replace are shown in Figures 4, 5 and 6. These parts are also in the Tenore 240.
Figure 5
16
16
2
2
3
3
4
6
7
9
12
9
5
5
8
17
17
11
1

12
SPECIFICATIONS and DIMENSIONS
Element4 Gas Fireplaces EuropeanHome.com
Figure 6

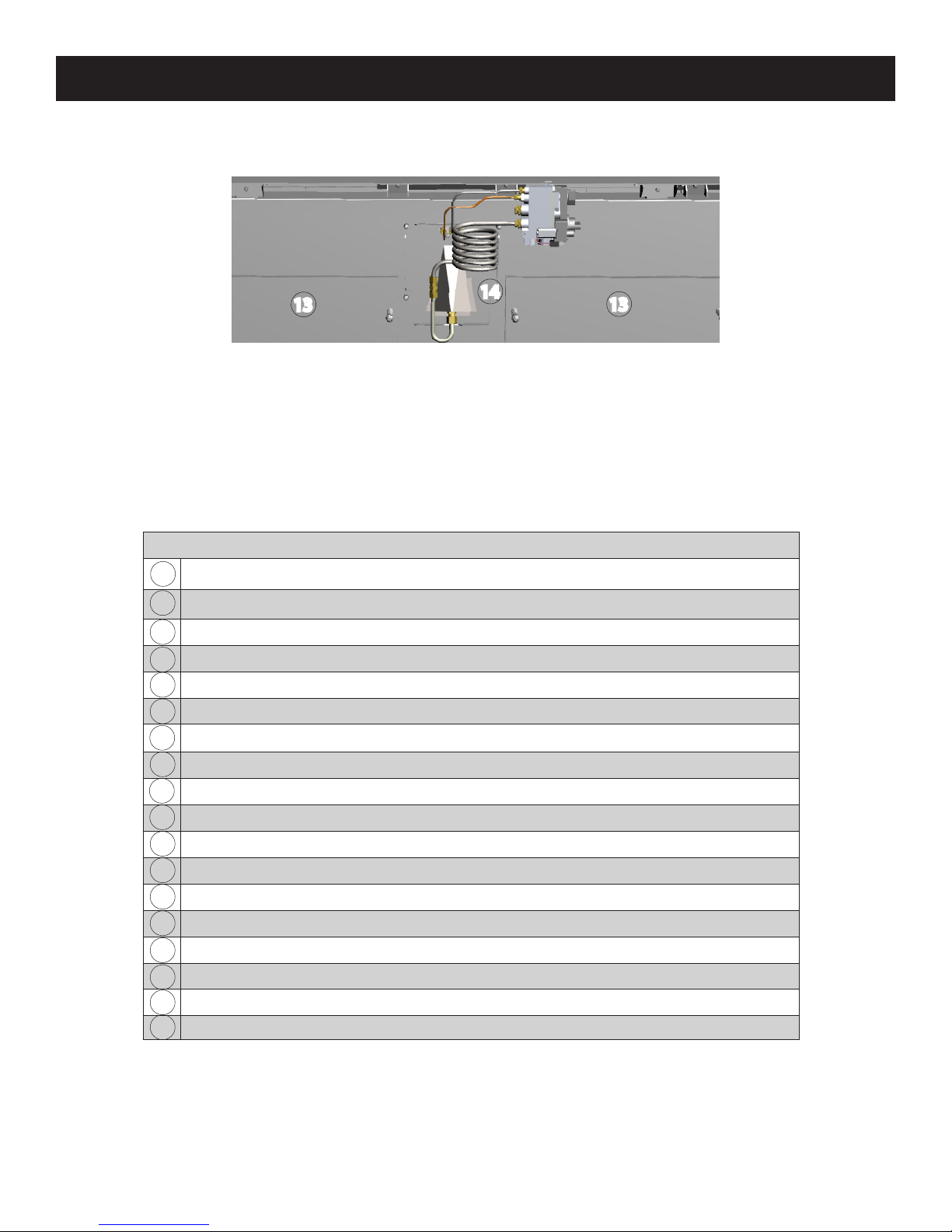

Figure 6 shows a view from below. The valve and receiver are shown on pages 33 - 35.
Table 1
Table of Fireplace Parts
Outer Frame Face- surrounds the glass panels and limits the non-combustible wall board
Exterior Glass Panel - 1 or 2 depending on model
Support Feet - six adjustable feet allow the replace to be levelled
Hearth Panel - supports various Fire Media
Primary Burner - produces the front ame
Secondary Burner - produces the rear ame; may be controlled separately
Pilot Burner - the part of the safety circuit which lights the Main Burner
2nd Thermocouple - the part of the safety circuit which monitors the Main Burner
Finish Trim - hides the Glass Clamps
Interior Glass Panel (0)
Glass Clamp - holds the Glass Panel in place (2 ea. - Modore 240, 4 ea. - Tenore 240)
Vent Collar - accepts the 5” x 8” venting adapter (included)
Relief Door - part of the safety system. Do NOT block the operation.
Pilot Assembly
Upright Trim - (2 ea. - Modore 240, 4 ea. - Tenore 240 hides the vertical Glass Clamps)
No material zone
Top of replace
Flange
11
10
9
8
7
6
5
4
3
2
1
12
13
14
15
16
17
18
13
14
13

13
CLEARANCES
Element4 Gas Fireplaces EuropeanHome.com
The Modore 240 and Tenore 240 replaces require non-combustible
framing. These are NOT zero-clearance replaces. All clearances to
combustible AND non-combustible materials MUST be maintained
as described in this manual.
LOCATING THE FIREPLACE
When selecting a location for the replace:
• Ensure that all minimum clearances to combustible AND non-
combustible materials are met.
• Provide adequate clearances for servicing.
• Consider venting dimensions (rise, run and number of
elbows, etc.) when selecting the location for your replace.
• Locate the appliance out of trac and away from furniture
and draperies.
• Keep the location free of electrical, plumbing or other
heating/air conditioning ducting.
PLACING THE FIREPLACE
The base upon which the appliance rests must be sturdy, level
and built to safely support at least 750 pounds/340 kilograms.
The base may be the oor or a purpose built raised platform (e.g.
wood,metal). The base upon which the replace is installed must

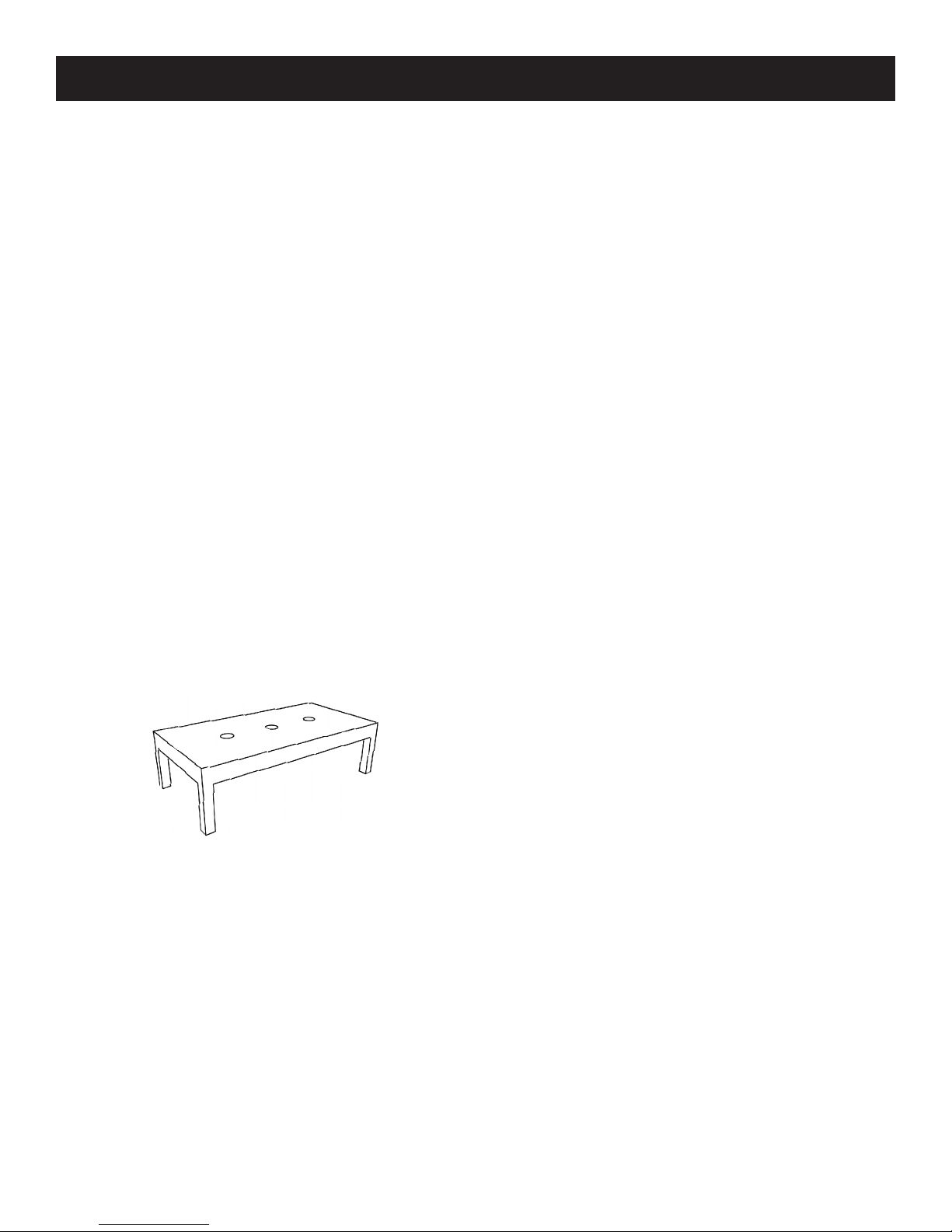

have 50 in.2/322 cm2of opening(s) centered (front to back) in it to
allow the free ow of air to the replace above. See example below.
MINIMUM CLEARANCE TO COMBUSTIBLES
• The appliance is approved with a minimum clearance to
combustible materials of 26”/660 mm to the top, 11”/280
mm on all sides and 4”/100 mm to the bottom. Any spacer
or framing used closer than this dimension must be non-
combustible (e.g. metal).
• The minimum clearance to non-combustible material is
2”/50 mm. (See Figures 7 - 12, clearance shown in red)
• The minimum distance from the bottom of the appliance to
the room ceiling is 72”/1830 mm. (See Figure 15, Table 2)
• When installing the venting the following clearances to
combustible materials MUST be maintained:
a. 3”/76 mm above any horizontal venting
b. 1”/25 mm to venting sides or below any horizontal
venting
• Non-combustible materials may be installed to a zero
clearance, to the outer faces of the appliance outer frame.
However, they must not cover (or prevent the removal of)
the glass panels or the control equipment.
• Do not block or restrict the convection gap between the
appliance rebox and the appliance outer frame (top of
glass panels).
The minimum clearances (air spaces) to combustible materials
must be maintained. It is of the greatest importance that the
replace and vent system be installed only in accordance with
these instructions.
Clearance to combustibles summary:
Back: 11”/280 mm
Sides: 11”/280 mm
Top: 26”/660 mm
Floor: 4”/100 mm
The Floor dimension (above) is measured from the bottom of the
rebox. This allows the feet to sit on the oor giving adequate
clearance in their lowest position.
The feet on the appliance are designed to sit on a at platform,
however the appliance must not be installed on any combustible
material other than wood. For example, carpet or linoleum bases
are not permitted.
Do not place anything between the bottom of the rebox and the
bottom of the feet. Ensure that the lineset (which includes the gas
valves, electrical wiring, and gas lines) does not impede the full
operation of the relief doors.

14
CLEARANCES
Element4 Gas Fireplaces EuropeanHome.com
Figure 7 Plan View - Modore 240
Figure 8 Front Elevation View - Modore 240 Figure 9 Side Elevation View - Modore 240
26”
660 mm
11”
280 mm
MODORE 240
MODORE 240

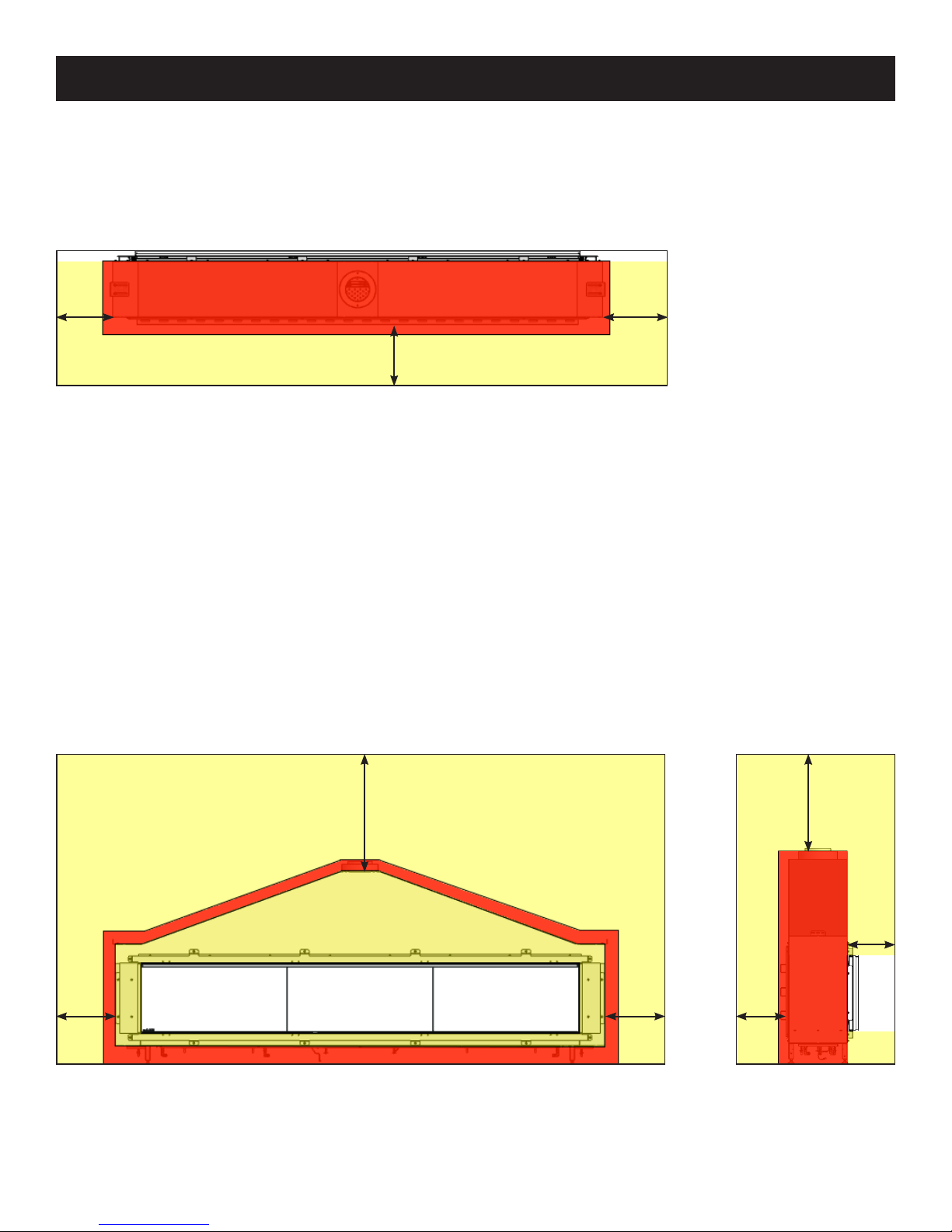

Figures 7* through 9* show (in yellow) the clearances to
combustible material which must be maintained.
No material of any kind is allowed between the
bottom of the support feet and the bottom of the
rebox (shown in red).
No material of any kind is allowed within 2”/50 mm
from the top of the replace (shown in red).
No material of any kind is allowed within 2”/50 mm
from the metal sides the replace (shown in red).
Facing material should be installed against the outer
frame of the replace, with an 1/8” vertical clearance
to allow for heat expansion.
*drawings not to scale
11”
280 mm
11”
280 mm
11”
280 mm
11”
280 mm
11”
280 mm
11”
280 mm
26”
660 mm

15
CLEARANCES
Element4 Gas Fireplaces EuropeanHome.com
Figure 10 Plan View - Tenore 240
Fi g ure 11 Front Elevation View - Tenore 240 Figure 12 Side Elevation View - Tenore 240
Figures 10* through 12* show (in yellow) the clearances
to combustible material which must be maintained.
No material of any kind is allowed between the
bottom of the support feet and the bottom of the
rebox (shown in red).
No material of any kind is allowed within 2”/50 mm
from the top of the replace (shown in red).
No material of any kind is allowed within 2”/50 mm
from the metal sides the replace (shown in red).
Facing material should be installed against the outer
frame of the replace, with an 1/8” vertical clearance
to allow for heat expansion.
*drawings not to scale
TENORE 240
TENORE 240
26”
660 mm
26”
660 mm
11”
280 mm
11”
280 mm
11”
280 mm
11”
280 mm

16
CLEARANCES
Element4 Gas Fireplaces EuropeanHome.com
MANTELS

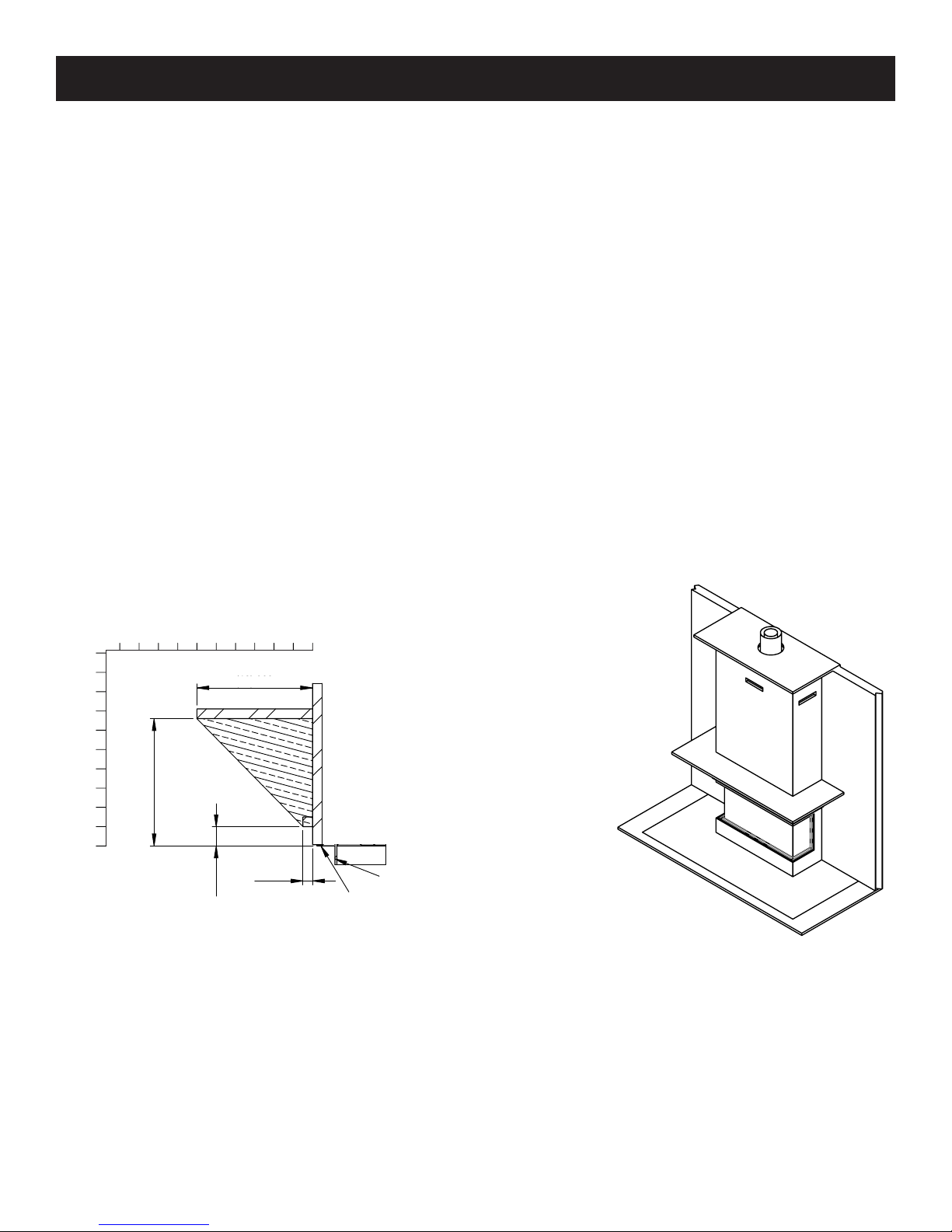

The graph in Figure 13 shows a range of allowable depths and heights for a combustible mantel installation.
As shown, the minimum allowable mantel height above the replace opening is 2”/50 mm with a 1”/25 mm deep mantel.
The maximum mantel depth is 12”/300 mm at a minimum height above the replace opening of 13”/330 mm.
All of the mantel height/depth combinations fall in between these extremes in accordance with Figure 13.
Mantels made of non-combustible material are allowed inside these dimensions but they will be subjected to elevated
temperatures and may become too hot to touch.

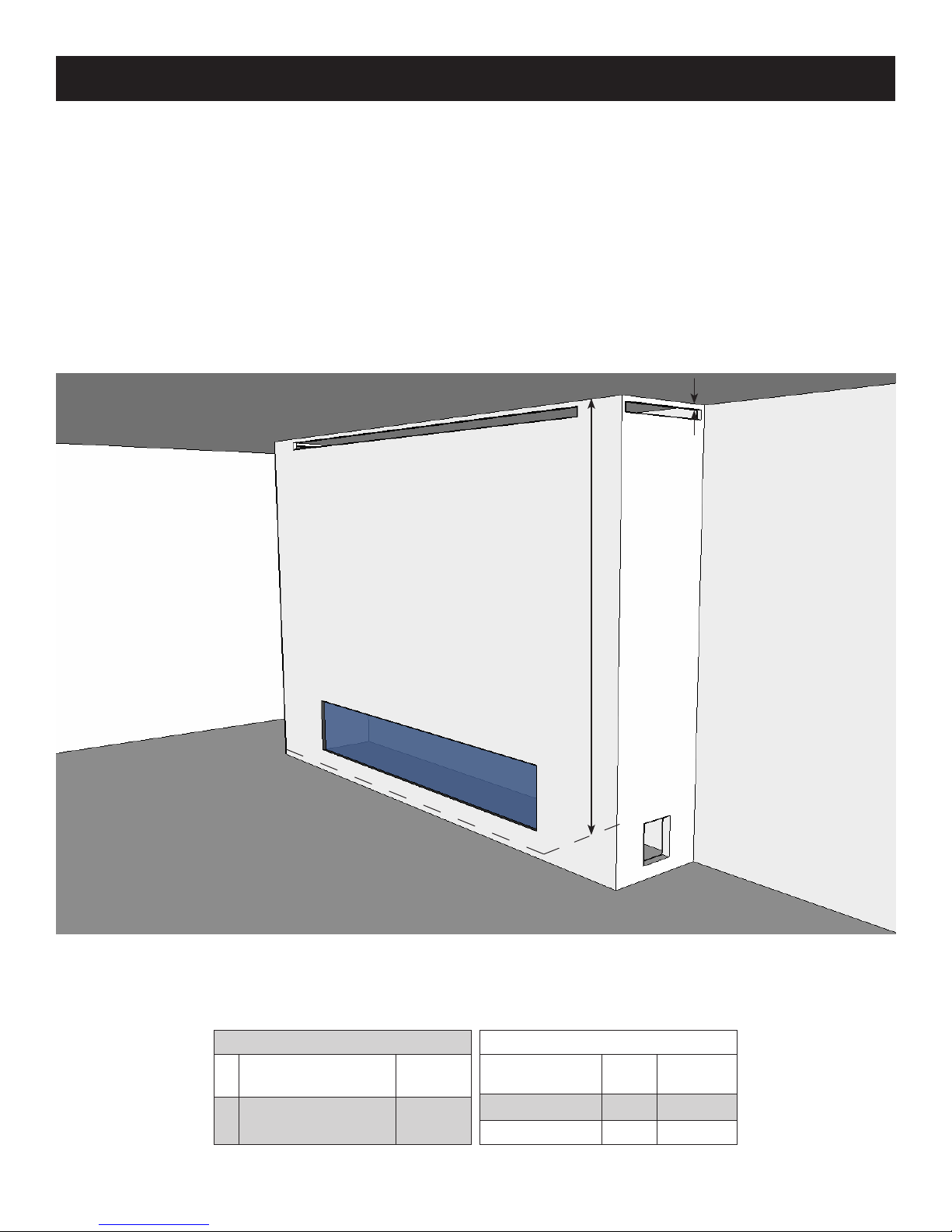

A typical completed installation with mantel is shown in Figure 14.
A
A
BB
VENT OPENING
800cm² (124In²)
TOTAL MINIMUM
(2") 50
C
SECTION A-A
(36")
900
(36")
900
(36")
900
SECTION B-B
COMBUSTIBLE MATERIALS
NOT PERMITTED IN FRONT
OF GLASS
(2")
50
(11")
280
DETAIL C
SCALE 1 : 10
CONSTRUCTION
BEAMS NON-
COMBUSTIBLE
(TYPICAL)
TOP OF FIREPLACE
OPENING
GLASS
NON COMBUSTIBLE
MATERIAL
DETAIL C
CONVECTION GAP
CONSTRUCTION
BEAMS COMBUSTIBLE
(TYPICAL)
Figure 14
A
A
C
SECTION A-A
(2) 50
Mantel Height
(13) 330
Mantel Depth
(12) 300
(1) 25
0
TOP OF
FIREPLACE
OPENING
GLASS
2468101214161820
2
4
6
8
10
12
14
16
18
20
0
Figure 13
1”/25 mm
12”/300 mm
13”/330 mm
2”/50 mm
INCHES
Mantel Height
Mantel Depth

17
CLEARANCES
Element4 Gas Fireplaces EuropeanHome.com
B
The total area of the convection air outlet(s) depends on the replace model. The location of the outlet(s) must allow for the free
movement of air and must not allow excessive convection air to build up within the chase. The top of the outlet(s) must be at least
1”/25 mm down from the ceiling and we recommend no more than 3”/76 mm down. The minimum distance from the bottom of the
appliance to the room ceiling is 72”/1830 mm.
A
TYPICAL CLEARANCE DIAGRAMS
Figure 15
Minimum Distances
ARoom ceiling to
appliance bottom
72”
1830 mm
BRoom ceiling to top of
Convection Air Outlet
1”
25 mm
Convection
Air Outlet
Table 2
Convection Air Outlet Area by Model
Model Square
Inches
Square
Centimeters
Modore 240 102 658
Tenore 240 204 1316
Table 3

18
GAS and ELECTRIC
Element4 Gas Fireplaces EuropeanHome.com
INSTALLING THE GAS LINE
Correctly size and route the gas supply line from the supply regulator to the area where the appliance is to be installed as per
requirements outlined in the latest edition of the National Fuel Gas Code, NFPA 54 (USA) or CAN/CSA-B149.1 (Canada).
Never use galvanized or plastic pipe unless specied for use with gas. Refer to the table below for proper sizing of the supply gas
line. Gas lines must be routed, constructed and made of materials that are in strict accordance with local codes and regulations. A
qualied plumber or gas tter should be hired to correctly size and route the gas supply line to the appliance.
Installing a gas supply line from the fuel supply to the appliance involves numerous considerations of materials, protection, sizing,
locations, controls, pressure, sediment trap, and other criteria. The sizing and/or installing of gas piping should only be performed
by a qualied plumber or gastter.
The gas control inlet accepts a ⁄” NPT tting.
Schedule 40 Black Iron Pipe
Natural
Gas
Propane
Gas
Length (feet) Inside Diameter (Inches)
0 - 10 ½ ⁄
10 - 40 ½ ½
40 - 100 ½ ½
100 - 150 ¾ ½
150 - 200 ¾ ½
Table 4
ELECTRICAL REQUIREMENTS
The Element4 replaces use a receiver and remote control for their burner operation. The remote control comes with (3) AAA
batteries and the receiver is powered by a 120V AC adapter, included.
The installer must provide an approved 120V AC wall receptacle to be placed within the six foot cord limit of the AC adapter.
The receiver may be powered by either the AC adapter or (4) AA batteries - not both. Batteries do not provide an electrical
backup for the AC adapter. Using batteries in combination with the AC adapter can damage the receiver.
Electrical work must be performed by a qualied, licensed electrician.
All wiring shall be in compliance with all local, city, and state codes.
WARNING
This replace arrives from the factory for use with natural gas. See Appendix Three for LP (propane) conversion instructions.

19
VENTING
Element4 Gas Fireplaces EuropeanHome.com
For the M&G venting installation guide or power venting installation manuals
please visit the link below.
• Only the 5” x 8” direct vent components from M&G DuraVent are approved for use with these replaces. Any of the M&G
DuraVent 5”x 8” direct vent components suitable for the local condition are permitted. Please visit www.europeanhome.com/
qr-support or via the QR code below for installation instructions.
• This replace is shipped with a North American venting adapter. It MUST attach to the vent collar of the replace.
• All venting measurements are taken from the top center of the vent collar on the top of the replace and all congurations
must fall within the acceptable range of the venting charts.
• When using wall terminations no more than three vertically-oriented 45° or 90° elbows are permitted. See the HORIZONTAL
TERMINATIONS section.
• When using vertical terminations no more than four 90° elbows OR eight 45° elbows OR a combination totaling no more than
360 ‘elbow degrees’. For example, a combination of two 90° elbows and two 45° elbows is allowed (90° + 90° + 45°+ 45° equals
270°) but a combination of three 90° elbows and three 45° elbows is not allowed (the total equals 405°.) These elbows can be
installed either horizontally or vertically.
• A minimum clearance of 3”/75 mm must be maintained between combustible materials and the top of any horizontal vent
pipe surface; a minimum clearance of 1”/25 mm must be maintained between combustible materials and any other vent pipe
surface.
• The horizontal parts of the venting must be pitched up, away from the replace. For every 12” / 305 mm of horizontal run, the
venting must rise ¼”⁄ 6.5 mm toward the termination. The venting must never run downward unless with the use of a power
vent.
• Whenever venting passes through a wall, an approved heat shield or‘wall thimble’ must be installed.
• A power vent system is available and must be used for any venting conguration which is outside of the vent graphs.
All of the following points apply to every installation:
• The maximum allowable rise is 36’/11.0 mand the maximum allowable run is 9’10”/3.0 mbut not in combination; see venting
charts beginning page 20.
• The minimum vent conguration is a 39”/1.0 mvertical rise to a 90° elbow plus a 19”/0.5 mhorizontal run to a wall termination.
CONFIGURING THE VENTING
The replaces in this manual are direct vent replaces that use a co-axial or “pipe within a pipe” venting system. The outer “pipe”
or vent conducts fresh, outside air into the replace and the inner vent carries the exhaust outside. This system, which can run
either horizontally through a side wall or vertically through the roof, produces an ecient system because conditioned building
air is not used for combustion.

20
VENTING
Element4 Gas Fireplaces EuropeanHome.com
APPROVED MANUFACTURERS and COMPONENTS
Manufacturer Components
M&G DuraVent, Inc.* only DirectVent Pro®
5” x 8” venting components
Table 5
Figure 16
rise
run
