DIGITAL WIRELESS REVERSING CAMERA SYSTEM
USER MANUAL
INTRODUCTION
Thank you for purchasing our product, please read it thoroughly before operating and
keep it for future reference.
The Digital Wireless Rear Vision System will improve your ability to see behind your
car, pickup truck, camper, travel trailer, fifth wheel trailer or motorhome. We
have taken numerous measures to ensure that your product is delivered in top
condition and will perform to your satisfaction.
IMPORTANT SAFETY INSTRUCTIONS
Before you install
If you are not confident working with 12V/ 24V DC vehicle wiring, contact your vehicle
manufacturer or your nearest retailer/ installer to get a professional installation.
Innovation: No Interference
This device is free from interferences coming from Bluetooth, smartphones, WiFi
routers, power lines and other various electrical equipment.
Repair
The camera system should not be opened. Any attempt at modification or repair by
the user will void the warranty.

www.elinz.com.au / [e-mail] / 1300 881 773
PARTS
1. Monitor and U Shape Mounting Bracket
2. Camera
3. Accessories
Attention: The above accessories list may have little differences for different retail platforms,
we may increase or update some accessories without notifying in advance, please subject to
the actual received package.
These instructions do not apply to all vehicles.They are only meant as a general guide due
to the number of different makes and models. For vehicle specific questions, contact
your vehicle manufacturer.
Suction Cup Mount
Detachable Sunshield
U Bracket Stand
Power Adapter
Camera Power Cord
User Manual
Antenna
Car Charger for Monitor
Remote Control
Screws & Bolt

www.elinz.com.au / [e-mail] / 1300 881 773
Installation
Camera Installation
Caution
Make sure there are no electrical cables , gas lines or important parts behind where the drill
holes will be. Make sure to isolate the 12V or 24V power source by disconnecting the
negative (-) terminal from the battery.

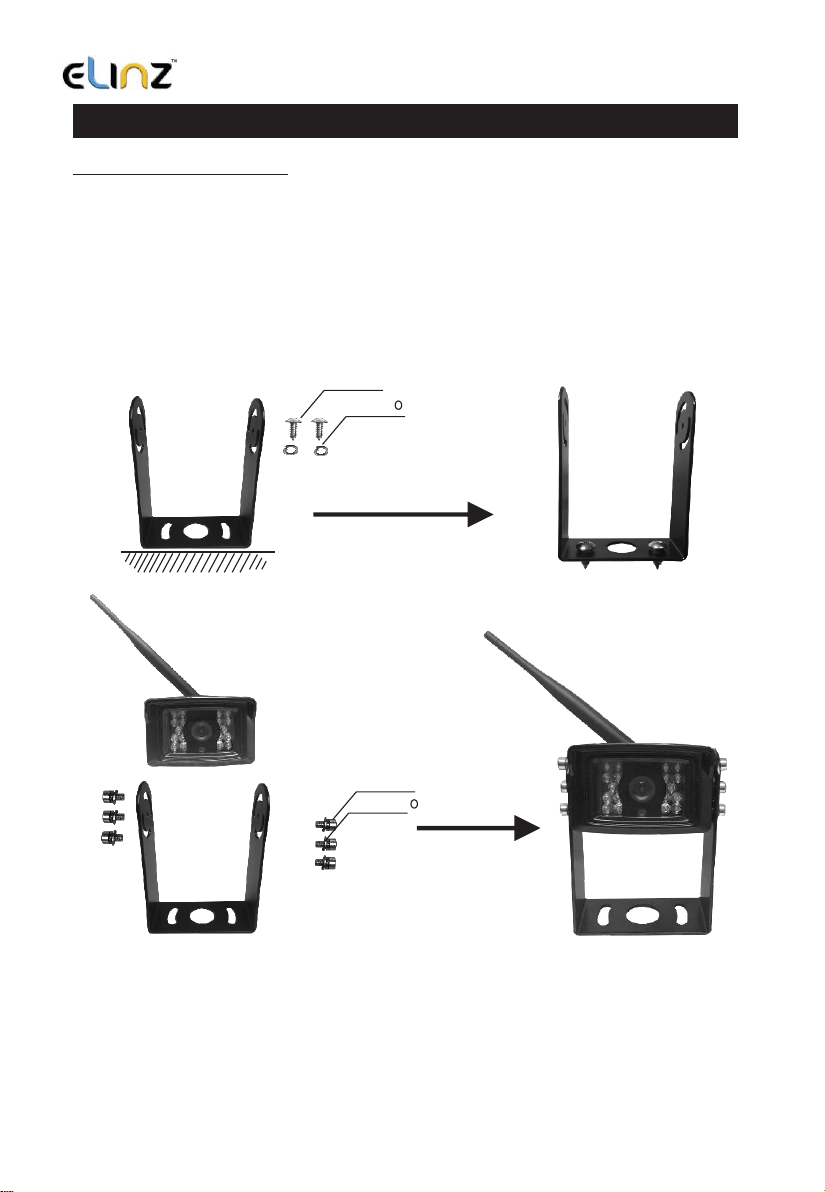

Metal brackets for plain surfaces
screw TA6x16
Washer ￠7
Allen Screw 4x8
Washer
￠
5

www.elinz.com.au / [e-mail] / 1300 881 773
Camera Positioning
Camera location
Wiring Installation
The system can be used as a rear observation system or as a backup camera system.
·To use as a rear observation system, the camera needs to be wired to a constant
12V/ 24V power source. Ex: If connected to running lights or marker lights, the
lights must be ON for the system to operate.
·To use system as a backup camera system, the camera needs to be wired to a circuit
that turns on when the reverse gear in engaged. Ex: Backup lights.
1. Chose routing path for the camera' s power cable to the power source
depending on the desired function.
2. Before drilling the hole, make sure there are no components behind the surface you
are drilling such as electrical cables, gas lines, or other important components that can
be damaged.
3. After drilling the hole, insert the supplied grommet then route the camera cable into
the opening.
The grommet must be used to prevent the metal edge from cutting the cable.
4. Locate the power source required: Backup lights if used as a backup camera or
running/ marker lights is used as a rear observation system.
5. Once you have located the power source,route the camera cable to that location.
Never route the cable on the outside of the vehicle.

www.elinz.com.au / [e-mail] / 1300 881 773
6. Connect wires as diagram below.
Reversing light’s power
GND
7. Make sure the battery's negative terminal is disconnected. After determining the
positive and negative wires,splice the wires using the quick connectors included.
8. Reconnect the negative terminal to the battery.
Monitor Installation
Make sure the monitor is mounted in a location that will not obstruct your vision while
driving.
1. Suction Cup Mounting.
a. Slide the suction cup mounting bracket's head into the monitor's back metal clip.
b. Before mounting the monitor, clean the mounting surface well.
c. Position the suction cup to your wind shield.
d. Press the suction cup against the surface and press the lock down to fix it.
Tomaximize the efficiency of the suction cup mount, it is recommended that the
mounting be performed under the following conditions:
·Surface temperature should be between 21°C and 38°C.
·Mounting below 10°C should be avoided.
·Mounting should not occur in direct sunlight.
Mounting should be protected from direct sunlight exposure for a period of 24 hours.
