Elite 5701N User manual

System Setting
Harware: 1.Calibration platform 2.Needle height calibration PIN 3.Needle height signal light
4.Vacuum suck cleaning needle 5.Left valve standby position plastic cup 6. Right valve standby
position plastic cup
H1 is left valve calibration:M0，M1，M3，M12，M15
H2 is right valve calibration:M7，M8，M9，M13，M16
Common point calibration:M2，M4，M5，M6，M10，M11，M14

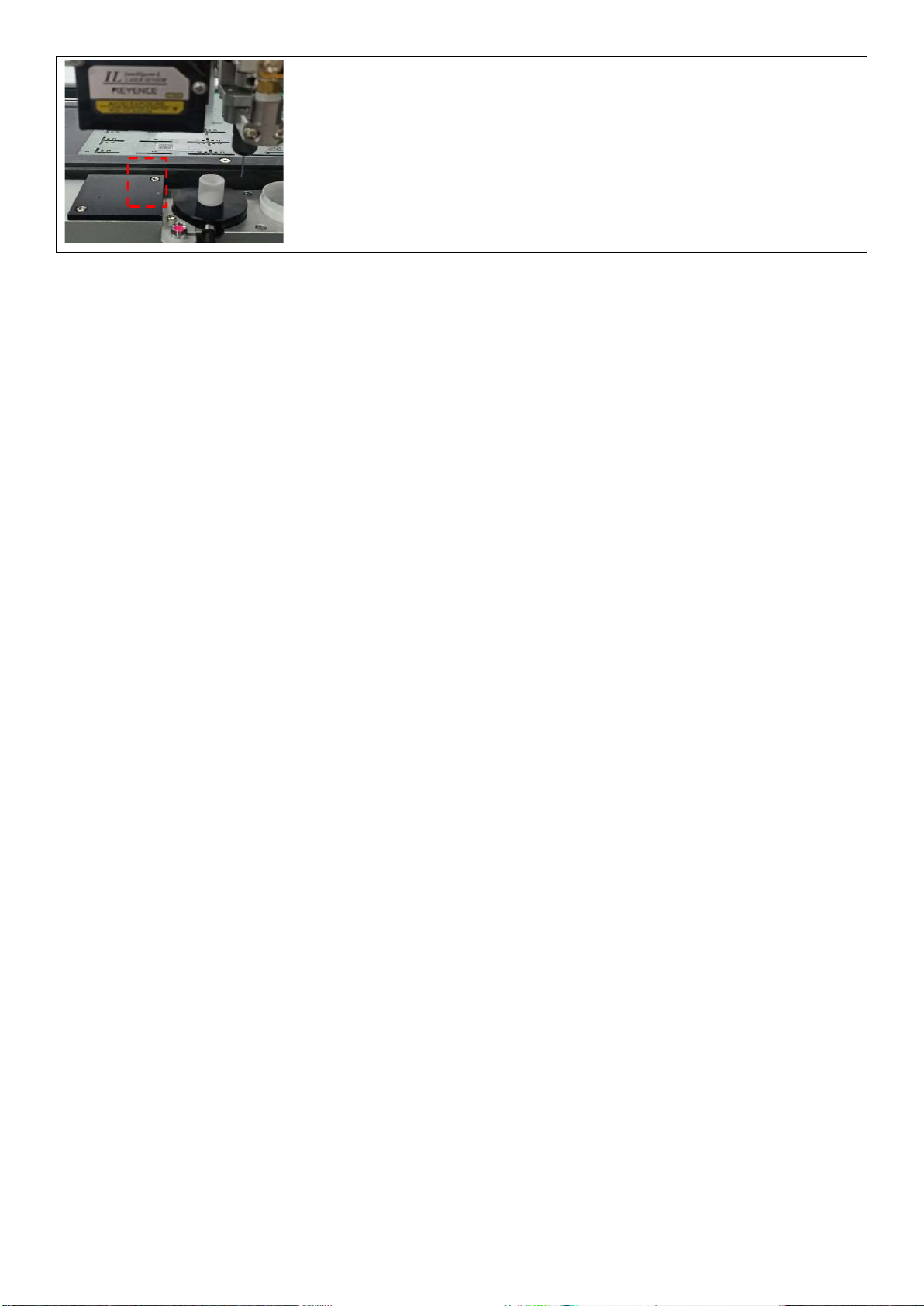

M10_Laser Z axis height detection base
When to use:Working position and actual position’s height detection point is different
1
2
3
4
5
6
1
2
3
5

1. Select M10_Laser Z axis height detection base
2. Open laser height detection interface
3. Turn on laser bean
4. Move X.Y. axis, align with customed target as right Pic. 1
5. Revise coordinate
Pic. 1
M11_CCD alignment :M10 Laser Z axis height detection base
When to use: Working position and actual position height detection point is different, Base height
detection and actual height is different
1. Select M11_CCD alignment:M10 Laser Z axis height detection base point
2. Turn on CCD light source
3. Move X.Y. axis, align with customed target as below Pic.1
4. Revise coordinate
5. Open Laser height detection interface
6. Perform height detection base height on M10 coordinate position and update M10 laser Z axis height detection value.
7. Red disk shows up, left key to save system file
4
1
2
4
3
5
6
6
7

Pic. 1
3

H1 valve calibration:M0_Dispenser base
When to use: Working dispense X.Y direction is wrong has an offset, renew needle and each axis
hardware
1. Select M0_Dispenser base
2. ，Select H1_valve
3. Move X.Y.Z as below Pic.1
4. Dispensing, dispense 1 drop as below Pic. 1
5. Revise coordinate
Pic. 1
5
1
2
4
3

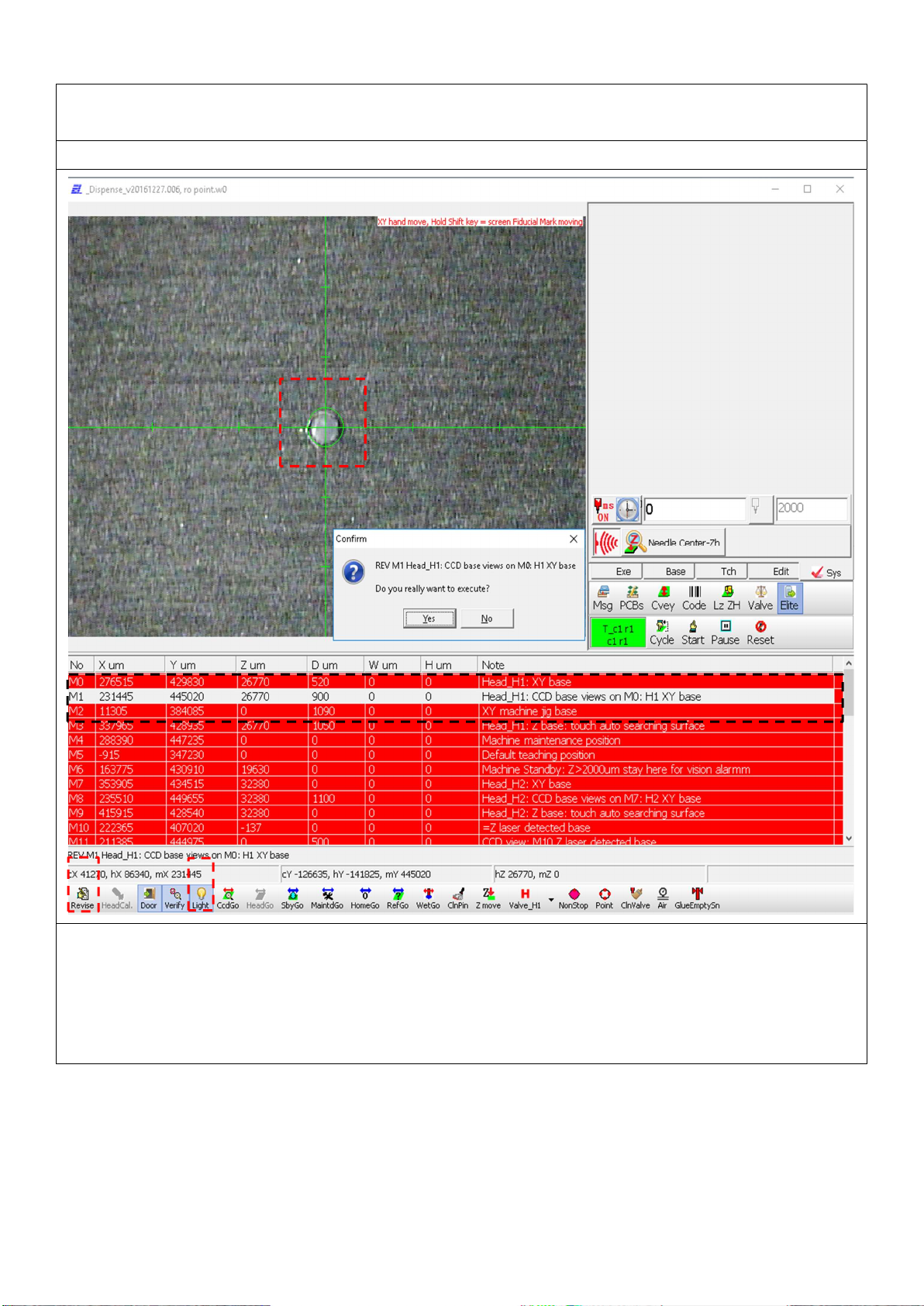

H1 valve calibration:M1_CCD base align with M0 Dispenser base
When to use :Working dispense X.Y direction has offset, renew needle and each axis hardware
1. Select M1_CCD base align with M0:H1 dispenser base
2. Turn on CCD light source
3. Move X.Y axis, align with H1 dispenser glue output point as below Pic. 1
4. Revise coordinate
1
2
4
3

Pic. 1
3

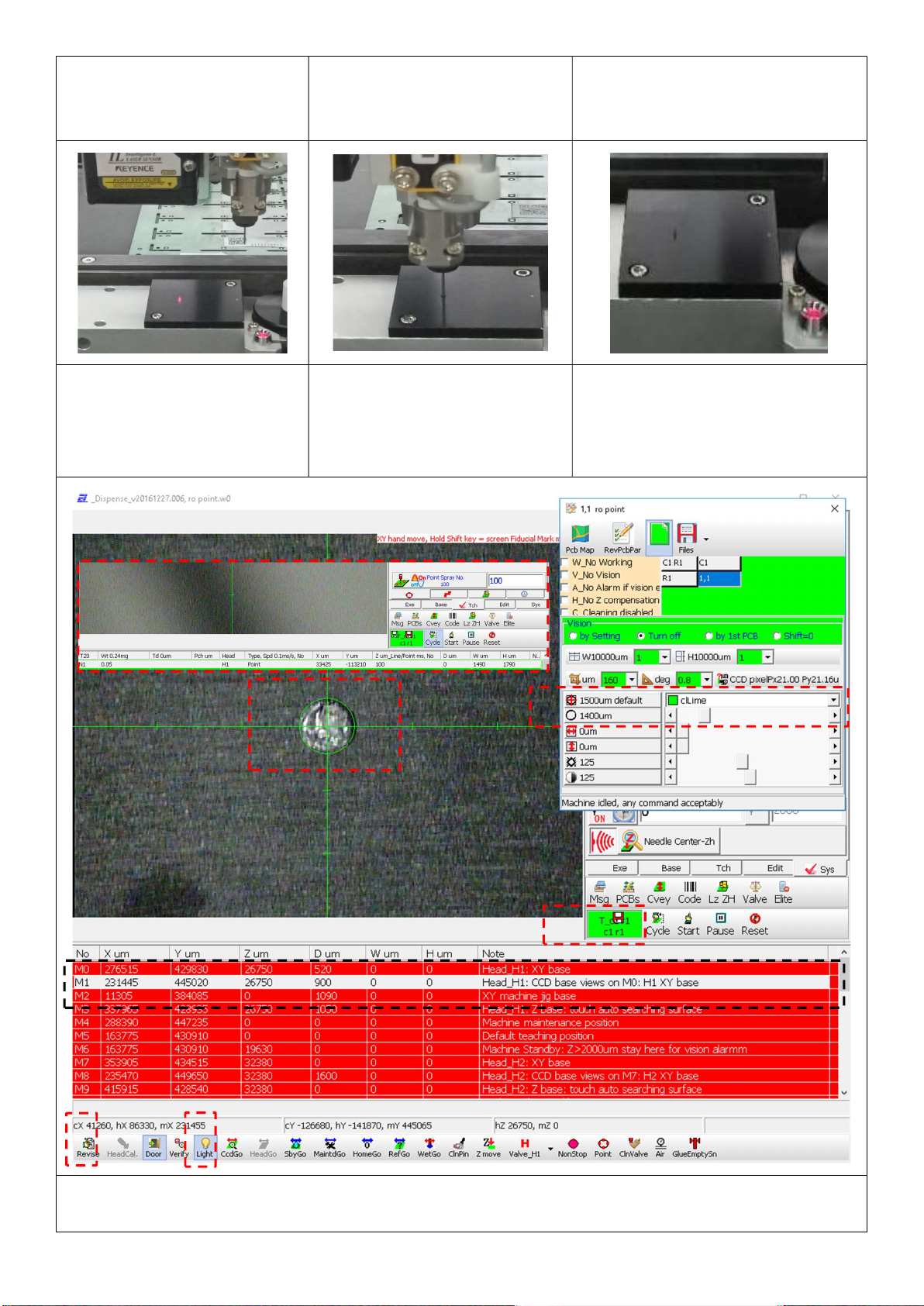

H1 valve calibration :M3_Z axis base height: Touch auto searching
surface
When to use :Working dispense Z height has an offset, renew needle and each axis hardware
1. Select M3_Z axis base height :touch auto searching surfac
2. Move X.Y.Z axis, align needle with height detection PIN as right Pic.1
3. Revise coordinate
Pic. 1
4. Select needle height and center point and below auto calibration will show up
1
3
4

4-1 Left needle will perform down
needle height detection light off
according to M3 coordinate
4-2 Detection needle height, height
detection light on
4-3 System conversion, Z axis needle base
height, click YES update M3_Z axis height
4-4 Laser height detection, perform
safety height detection to M0
coordinate to prevent foreign things
in it
4-5 Left needle’s X.Y will move to M0
coordinate, Z axis moves down to M3
new base height and perform single
dispense
4-6 Dispense to calibration platform, can
perform M1_CCD adjust to align with M0
dispenser base calibration
5. Dispense time will view first dispense timing int teach mode as base
6. Select M1_CCD base to align with M0 dispenser base
6
7
7
8
9
10
5

7. Turn on light source, move X.Y axis . CCD align 4-6 amount position
8. Adjust target size, adjust initial value to target size too
9. Revise coordinate
10. Red disk will show, left key to save system file
H1 valve calibration:M12_cleaning point setting
When to use : Renewing X.Y.Z axis hardware for example motor screw, cleaning position is wrong and
therefore needs reset
1. Select M12_H1 cleaning point setting
2. Move X.Y.Z axis, align needle with vacuum suck cleaning needle as below Pic. 1
3. Click Vacuum clean pin
4. Revise
5.
Red disk will show, click left key to save system file
1
3
4
5

圖一
H2(spray valve)valve calibration:M7_Dispenser base
When to use : Working dispense X.Y direction has an offset, renew and each axis hardware
1. Select M7_Dispenser base
2. Select H2_valve
3. Move X.Y.Z axis as below Pic.1
4. Dispenser, Dispense one amount, showed at below Pic. 1
5.
Revise coordinate
4
1
2
5
e
a

Pic. 1

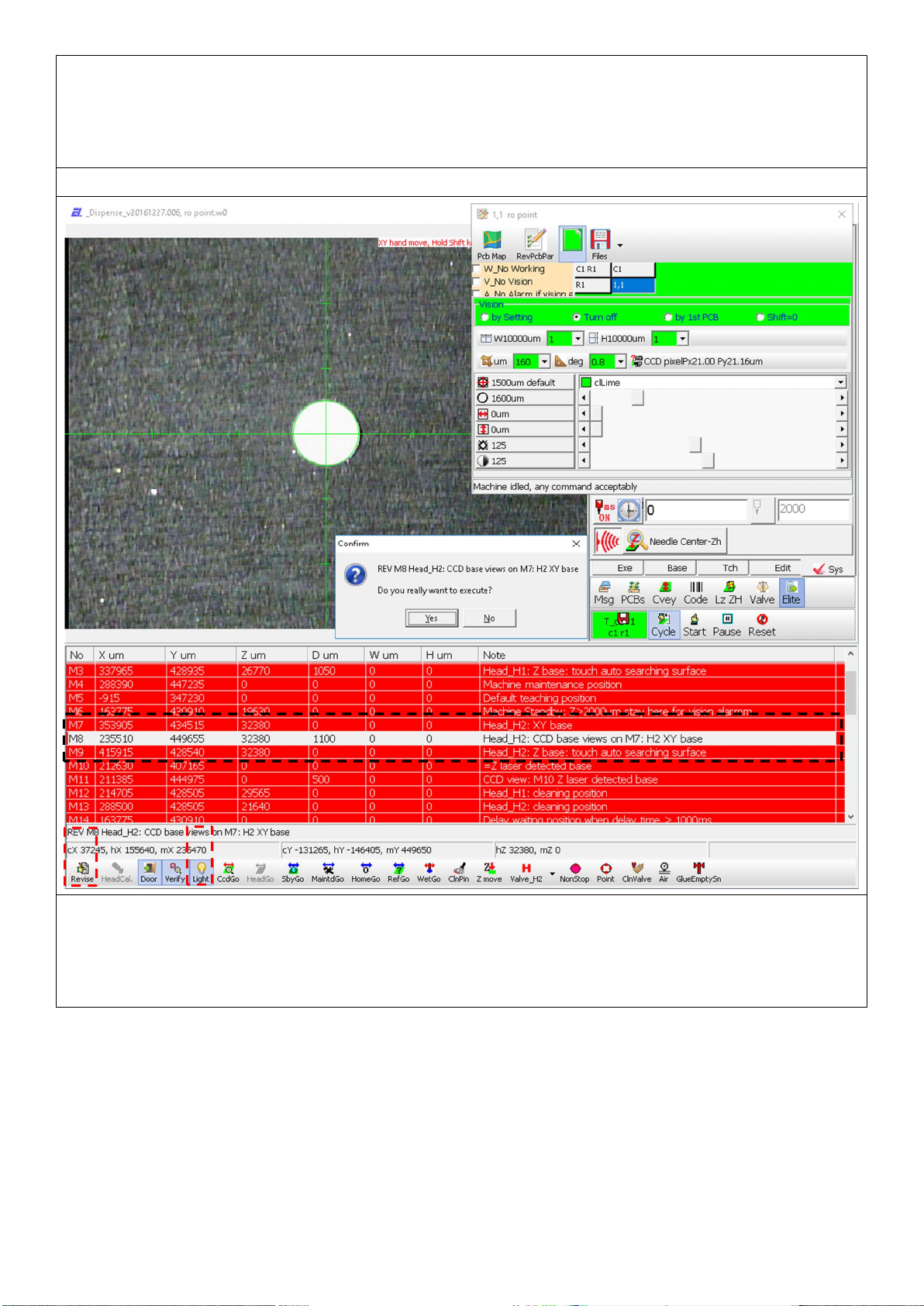

H2(Spray valve)Valve calibration:M8_CCD base align with M7
dispenser point
When to use :Working dispense X.Y direction has an offset, renew needle and each axis hardware
1. Select M8_CCD base align with M0:H1 dispenser base
2. Turn on CCD light source
3. Move X.Y axis and align H1 glue output point as below Pic. 1
4. Revise coordinate
1
2
4

Pic. 1
3

H2(Spray valve)Valve calibration:M9_Z axis base height:touch auto
searching surface
When to use :Working dispense Z height has an offset, renew needle and each axis hardware. Specifies to
valve calibration way
1. Select M9_Z axis base height :touch auto searching surface
2. Move X.Y.Z axis, align nut lead angle with height detection PIN as right Pic.1
3. Manually move needle until touches light off like Pic. 4.1, move up so that light is on as Pic. 4.2
4. Light On position is mZ31835um, move up 3000um= parameter is mZ28835um
5.
Revise coordinate
5
1
4

Pic. 1 3-1 Right needle will perform down
needle height detection light off
according to M3 coordinate
3-2 Detect needle height, height
detection light ON
5. Select M7_dispenser base, click CCD move to coordinate position
6. Select M9_Z axis base height, click Z axis move down
7. Click dispense(Dispense time will view the first dispense time in teach mode as base.)
8. Select M8_CCD base align with M7 dispenser base
9. Turn on light source, move X.Y axis, CCD align with glue amountposition
10. Adjust target size, adjust initial value to target size too.
11. Revise coordinate
5.6.8
7
10
10
1
1
10
7
5
6
7

12. Red disk will show, click left key of mouse to save system file

H2 Valve calibration:M13_cleaning point setting
When to use: Renew X.Y.Z axis hardware for example motor screw, Cleaning position is wrong which
needs reset
1. Select M13_H2 cleaning point setting
2. Move X.Y.Z axis, align needle with vacuum suck cleaning needle as below Pic. 1
3. Click Vacuum clean Pin
4. Revise
5.
Red disk will show up, click right mouse to save system file.
1
4
6
3

Pic. 1

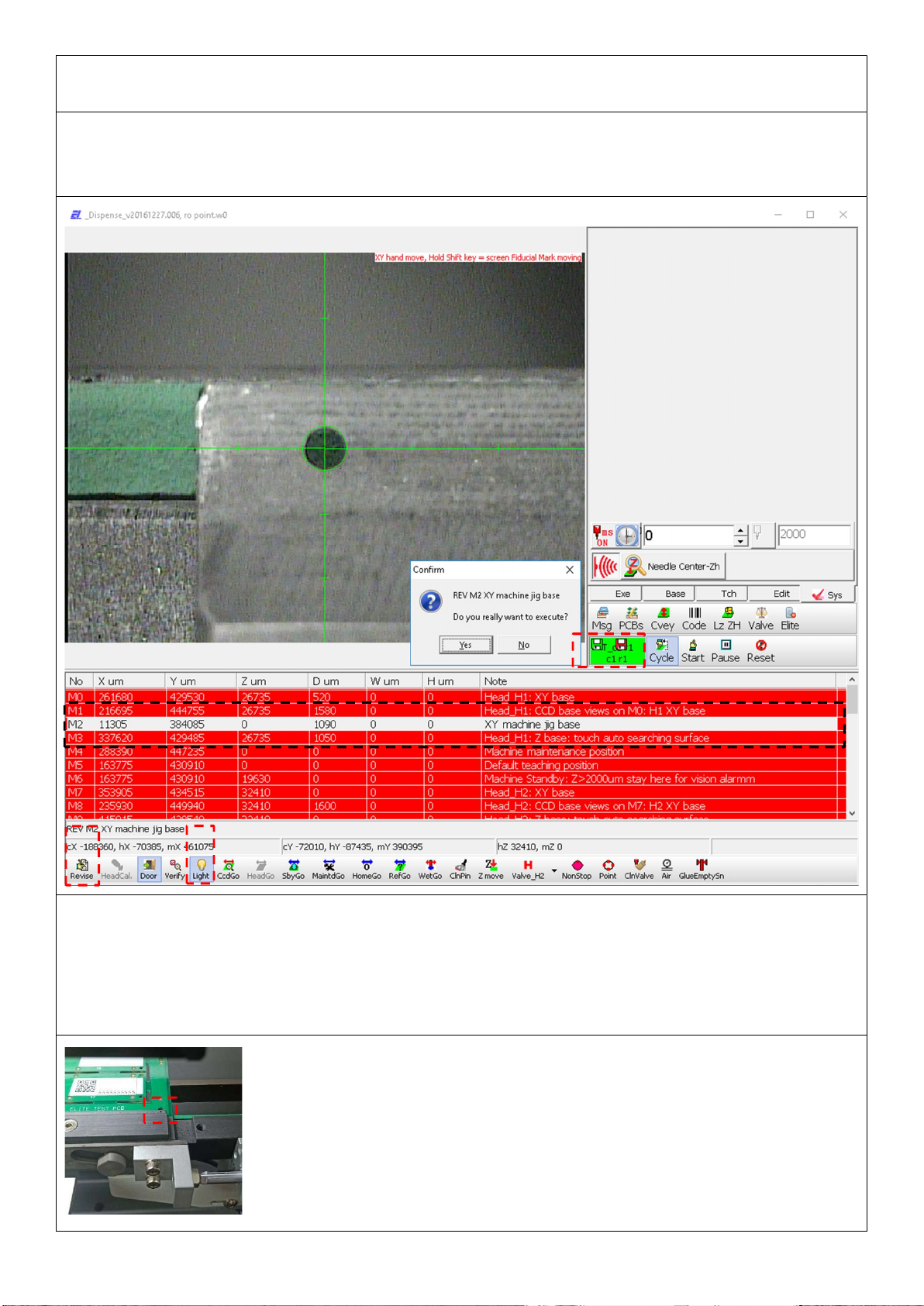

M2_machine XY Jig CCD origin
When to use: Renew X.Y hardware for example motor screw and others, Working file base position move
at fixed direction, Can use M2 coordinate to revise direction, and therefore can move all working files to
correct position**Can only be use when all working filess moving is in fixed position ***
1. Select M2_machine XY Jig CCD origin
2. Turn on CCD light source
3. Move X.Y axis, align CCD with jig origin, like below Pic. 1
4. Revise
5.
Red disk will show up, click left key of mouse to save system file
Pic. 1
1
4
5
2
