Elixier tech ET-STONE User manual

SOLAR POWER BANK
WITH LED LAMP & TORCH
USER MANUAL
eT-STONETM
EXPLORE. ENDURE. EVOLVE.

1. High Efficiency Solar Panel
2. Solar Charging Indicator
3. Power Button
4. Battery Level Indicator
5. MICRO USB Pin
6. USB A
7. LED Lamp
8. Lamp Button
9. LED Torch
10. Torch Button
11. Kickstand
12. Lanyard Holes
13. Tripod Thread
1
11
2
12
3
4
5
6
7
8
9
10
13

Battery - 3.7V, 3100 mAh Li-Po
Input Current - 2A
Output Current - 1.5A
Material - Special grade engineering polymer
Solar Panel - Mono-crystalline 2.75V / 550mA
LED (3 Nos) - 110mA i/p current each
Dimensions - 84mm x 135mm x 16.8mm
Multipurpose Kickstand - 360˚ Rotation
(Patent pending)
Lens (3 Nos) - Wide-angle, Anti-glare
Buttons with application symbols (3 Nos)
Lanyard Holes (3 Nos)
Female inserts (2 Nos) - Universal 1/4” 20 UNC
(For FCM / Tripod Attachment)
SPECIFICATIONS

SOLAR CHARGING
SOLAR PANEL
Disclaimer : No press of any buttons starts Solar Charging.
SOLAR INDICATOR
The mono-crystalline solar panel consists of 10 solar
cells. The output is 2.75V / 550mA.
Ensure that the solar panel is facing the
sunlight and kept at an angle app. 71deg
(use the rotating kickstand to achieve
this tilt). Angle can change according to
your co-ordinates. Find the best angle for your location
Charging rate depends upon the intensity of the sun.
During summer, ET-Stone should get fully charged in
less than 14 hours but during winter, charging rate will
be slightly slower.
This indicator is placed just above the solar panel. It
turns red immediately when the panel detects sunlight.
Red light means solar charging ON.
SOLAR CHARGING
1
2
USP

POWER BUTTON
BATTERY LEVEL &
CHARGING INDICATOR
POWER MANAGEMENT
No Press
Solar Charge ON
in sufficient light
Battery Level Indicator
1st Press:
Charge ON for
USB compatible devices
2nd Press:
Charge OFF
3rd Press:
Battery Level: Four green LED’s
indicate the battery level.
Charging Indicator: First LED turns
red while charging external device.
3
4

MICRO USB

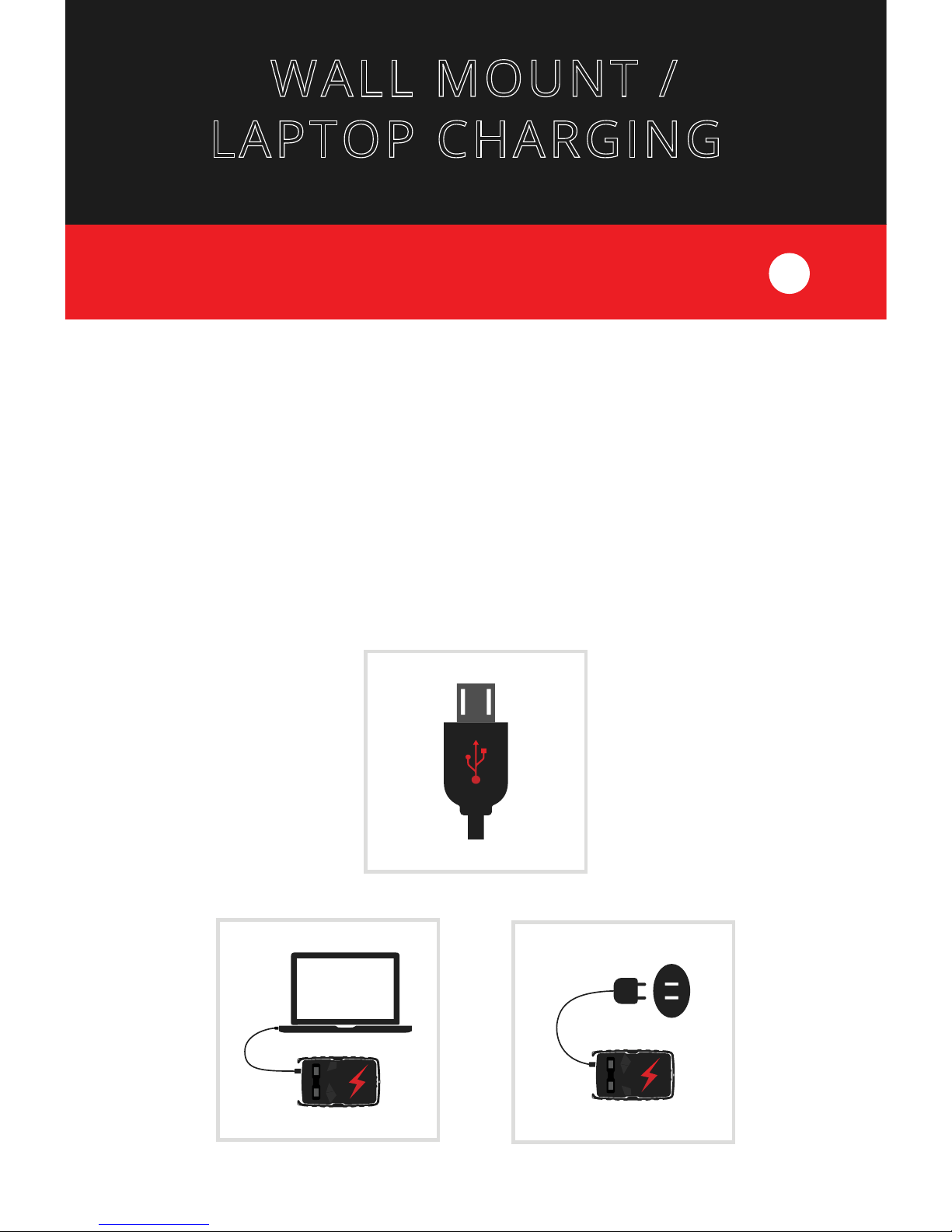

WALL MOUNT /
LAPTOP CHARGING
ET-Stone can be charged using any Micro-USB
charger (upto 2A) in approximately 3 hours.
ET-Stone can be charged using any USB to Micro-USB
cable connected to a laptop / PC in approximately 6
hours.
5

CHARGES VARIOUS
GADGETS
ET-Stone is capable of charging an array of devices such
as mobile phones, tablets, phablets, mp3 players,
bluetooth devices, certain cameras etc.
To charge a device, connect it to the USB A port of
ET-Stone using a USB cable (The ET USB Flash Cable will
give better results) and press the power button twice.
The first LED will turn red.

HOW AC DUAL CHARGING WORKS:
HOW DC DUAL CHARGING WORKS:
DC Dual
Charging
AC Dual
Charging
Dual Charging means that, if your product battery is low and
so is your device (eg. mobile) battery and you have only one
adapter or PC/Laptop connection, you will no longer have to
choose between charging of your device and charging of
ET-Stone™.
Connect any wall-mount adapter to
ET-Stone™
Connect ET USB Flash Cable from ET-Stone™
to your device
Switch on the wall-mount adapter and press
power button twice on ET-Stone™
Connect any Laptop / PC to ET-Stone™
using a USB cable
Connect ET USB Flash Cable from ET-Stone
™ to your device
Switch on the Laptop / PC and press power
button twice on ET-Stone™
DUAL CHARGING
USP

SOS Light Feature3 Intensity Lamp
100%
66%
33%
Wide Angle Lens
Highest Intensity (14hrs of light)
1st Press:
Medium Intensity (22hrs of light)
2nd Press:
Low Intensity (40hrs of light)
3rd Press:
Off
4th Press:
SOS Light
Long Press(2 secs):
LAMP BUTTON
TORCH BUTTON (ON/OFF)
LED LAMP
LED LAMP & TORCH
7
8
9
USP

KICKSTAND
The revolutionary kickstand developed and patented
by us, has been made after months of research,
keeping in mind usability, convenience and durability
as the main aspects to redefine user experience. It also
provides protection to the main body thus facilitating
additional rigidity.
The kickstand allows the user to rotate the product a
full 3600which facilitates:
Solar charging depending upon the angle of the
sunlight
Light output in each and every angle
Hanging the product whenever needed
360
360˚ Kickstand Hand held Easy wall hanging
DESIGN
11
* Patent pending

DESIGN
LANYARD
TRIPOD THREAD
The kickstand boasts two ¼” 20
UNC brass thread inserts giving
the user an option to attach the
product to the Flexi Car Mount
(provided with the product),
tripod, gorilla kickstand etc.
Lanyard HolesBag Lanyard
We have provided 3 separate provisions (2 at the
bottom & 1 on the top of the kickstand) to attach a
lanyard so as to give you a complete hands free
experience.
12
13

FLEXI CAR MOUNT
(FCM)
The Flexi Car Mount (FCM) takes the usability factor of
ET-Stone™ to the next level. You can affix the FCM to the
windshield or any window of your car (using the
suction cup) and pair it with ET-Stone™ using the
threads given on the kickstand. The flexible FCM allows
you to move the solar power bank in various angles
with the help of its 2 axis swivel mechanism.

ET-USB FLASH CABLE
(THE WHIP)
A great product deserves a great accessory. We have
also come up with a customized USB A to Micro USB
cable capable of charging the product and your
electronic device at a faster rate as compared to the
other cables available in the market. The Whip is a
carefully designed accessory that not only helps in
charging electronic devices but also assists in data
transfer. All in all, it is a perfect extension of
ET-Stone™.
USP

TECHNOLOGY
Pre-Charge - Fast Charge - Natural Charge - Charge
Termination – It basically protects your power bank
battery & increases battery life
Constant boosting @ 5v giving extremely stable
output
Low voltage boosting for solar (Low light charging)
During solar charging, power bank provides safety
against current spiking and excess sun
Dual Charging while charging through AC & DC
Lamp - Brightness remains constant even when
battery voltage drops
-Increased efficiency using High Efficiency Control-
ler (HEC) to give more light hours
-Emergency SOS feature
Compatible with wide range of adapters, It smartly
senses between PC & AC and accordingly adjusts
the current
Temperature sensing – Senses the battery tempera-
ture & automatically adjusts the current in case the
temperature rises abnormally
* Patent pending

Pre-Charge - Fast Charge - Natural Charge - Charge
Termination – It basically protects your power bank
battery & increases battery life
Constant boosting @ 5v giving extremely stable
output
Low voltage boosting for solar (Low light charging)
During solar charging, power bank provides safety
against current spiking and excess sun
Dual Charging while charging through AC & DC
Lamp - Brightness remains constant even when
battery voltage drops
-Increased efficiency using High Efficiency Control-
ler (HEC) to give more light hours
-Emergency SOS feature
Compatible with wide range of adapters, It smartly
senses between PC & AC and accordingly adjusts
the current
Temperature sensing – Senses the battery tempera-
ture & automatically adjusts the current in case the
temperature rises abnormally
On the go charging
During black outs
While traveling
During car breakdowns
Ideal camping tool
During natural calamities
Kerosene lamp replacement
APPLICATIONS
WARNING
FIRE TEMPERATUREWATER
Above
80˚C
DROP DIRECT LAMP
EXPOSURE
DISASSEMBLE

www.elixiertech.com
ET-Stone™ is the result of our 2 years of
careful designing, research & combination
of the best components from all over the
globe. A seamless intergration of state of
the art technology & ergonomic design
makes it by far the smartest solar power
bank & Lamp ever made. It was developed
with a single aim in mind - To redefine user
experience.
A perfect blend of rigidity, smoothness &
strength which are the inherent properties
of a stone has led the team to call this
marvel - ET-Stone™
