Elk Products ELK-M1XEP User manual

ELK-M1XEP
Ethernet Interface
INSTALLATION
MANUAL
828-397-4200 Voice
828-397-4415 Fax
http://www.elkproducts.com
email: [email protected]
PO Box 100 • Hwy. 70W • Hildebran, NC 28637 • USA
L524 2/06 WWW.DIYALARMFORUM.COM

ELK-M1XEPInstallationManual
Page2
Table of Contents
Features and Specifications......................................................................................................... 3
Basics of Networking.................................................................................................................... 4
Installation and Hookup................................................................................................................ 5
Configuration and Setup .............................................................................................................. 6
Basic Network Setup ....................................................................................................................... 6
Send Changes to M1XEP and Save............................................................................................... 8
Setup of User Names & Passwords............................................................................................... 8
Email Notification Setup.................................................................................................................. 9
Central Station Setup .................................................................................................................... 10
Notes on Router Setup ................................................................................................................. 12
Other Ports Used By the M1XEP .................................................................................................12
Connecting ElkRP to the Control over a Network .................................................................... 13
Updating the M1XEP Firmware .................................................................................................. 14

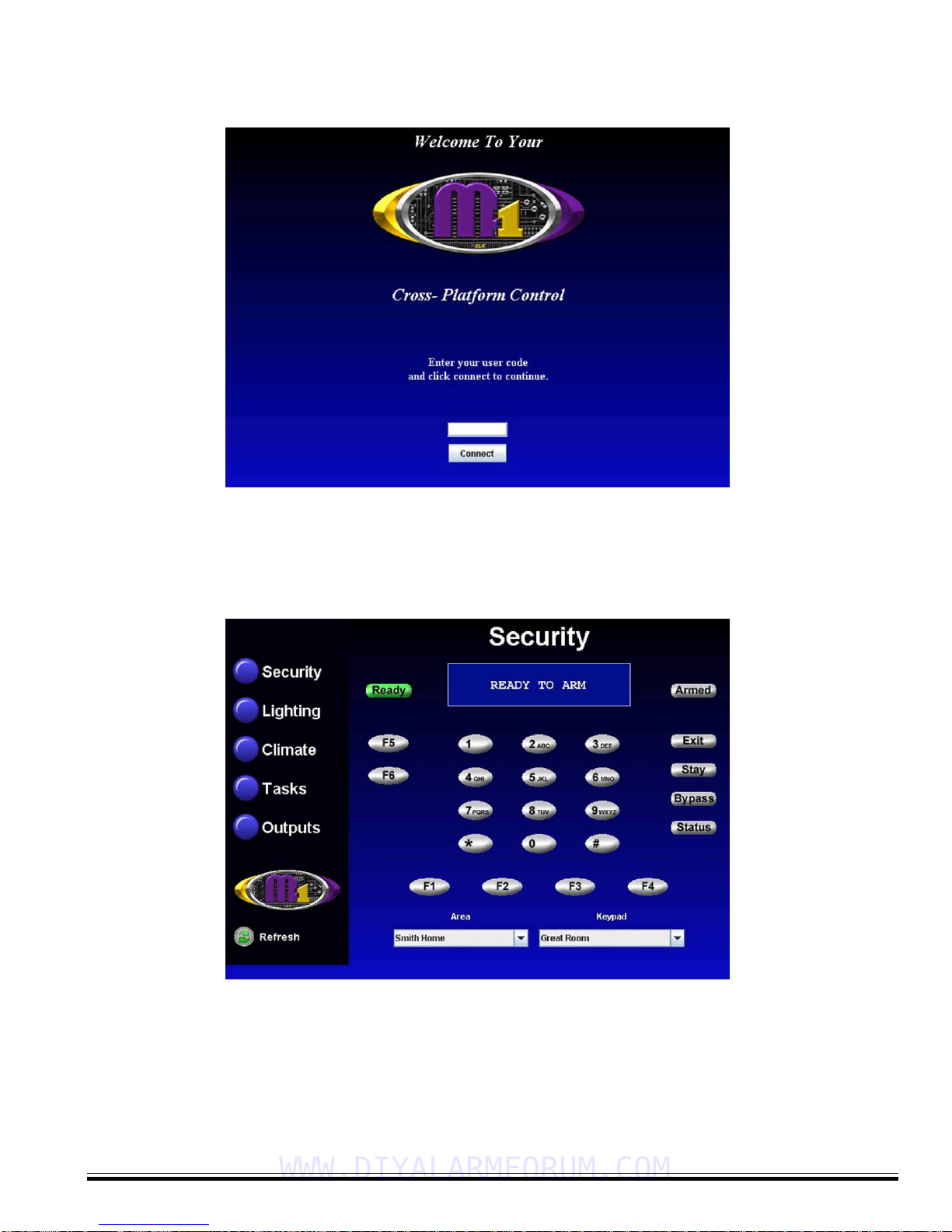

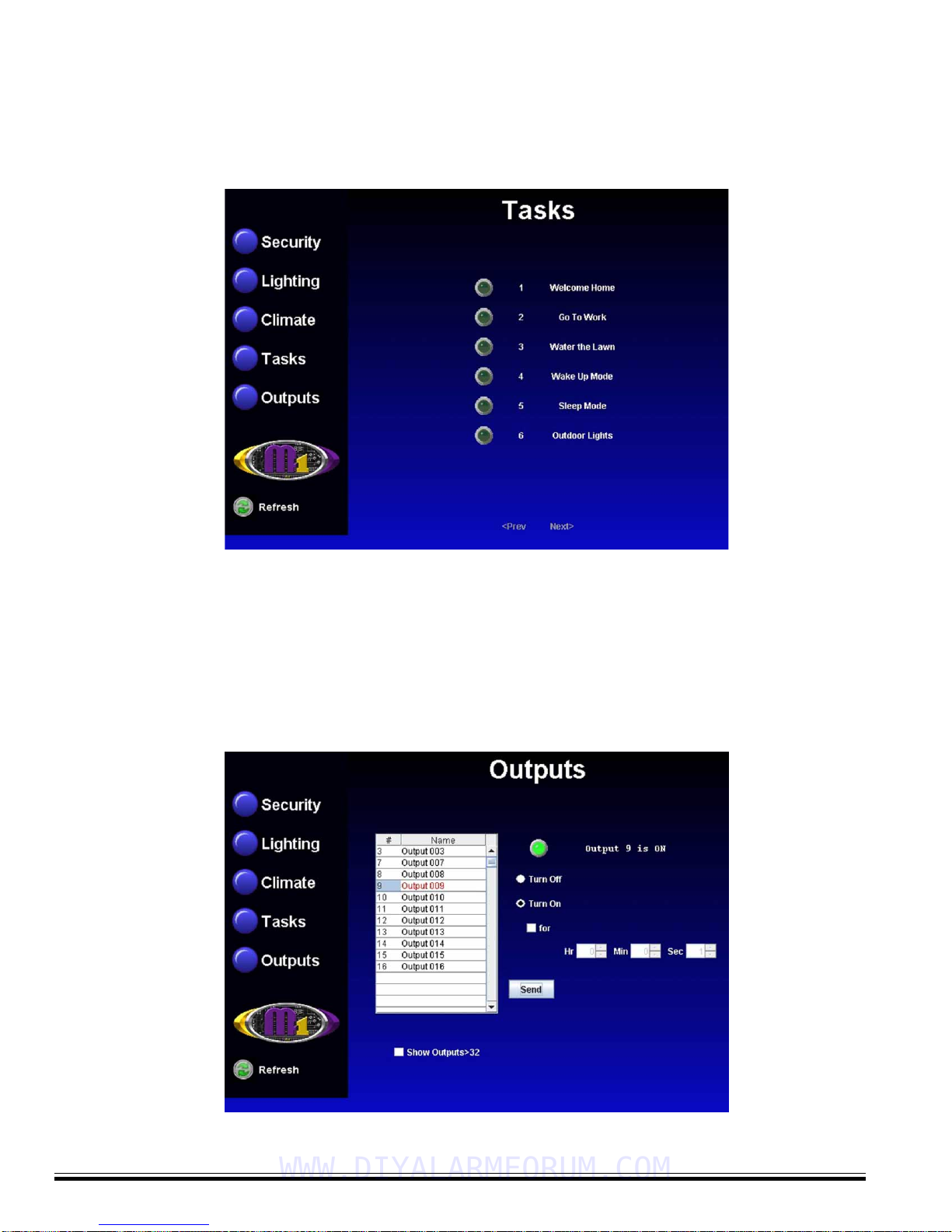

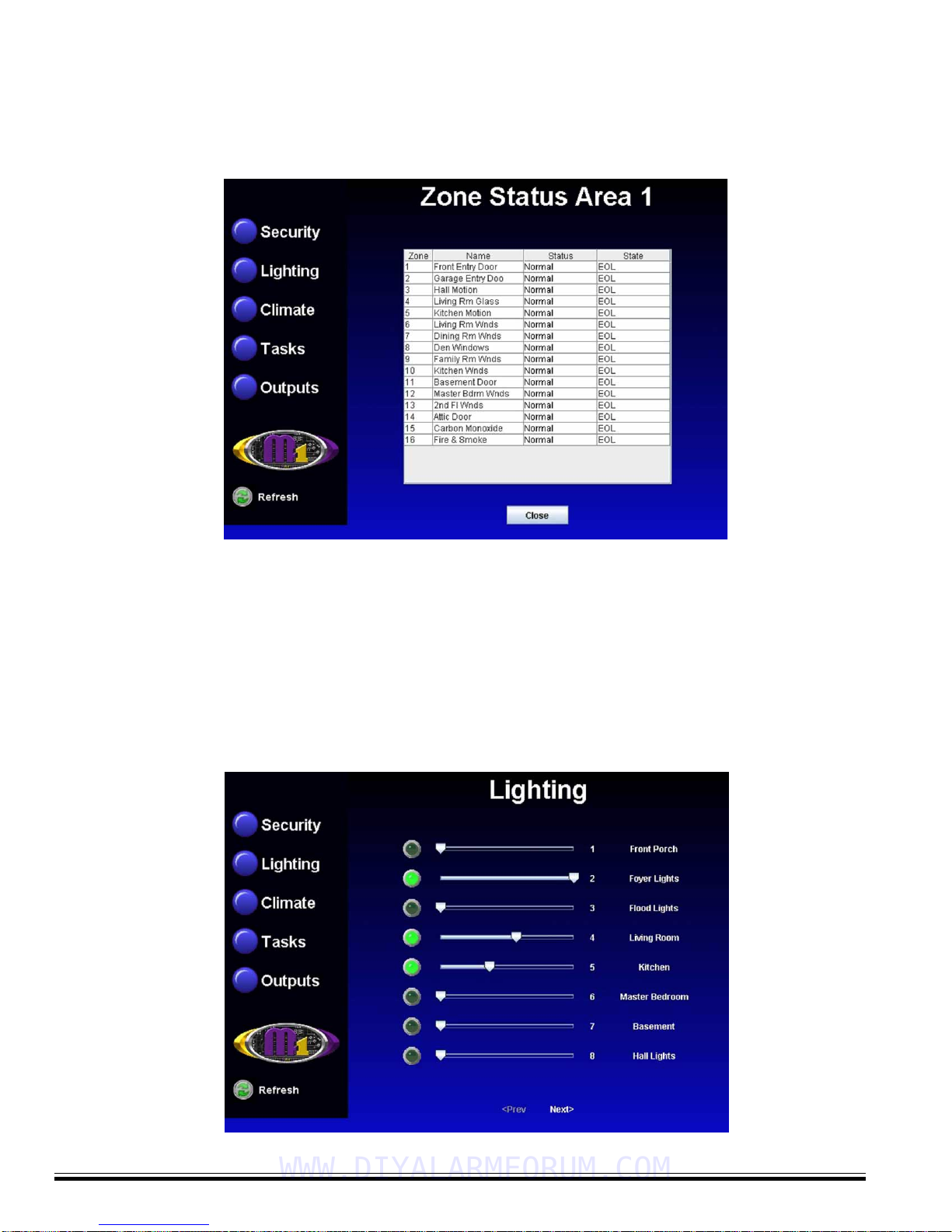

Using the Virtual Keypad Application ........................................................................................ 15
Glossary of Terms ....................................................................................................................... 21
Troubleshooting Guide ............................................................................................................... 22
IMPORTANT NOTICE:
TheM1XEPhasbeenshippedwiththenon-secureportenabled.
ItisstronglyrecommendedthatyouconfiguretheM1XEPtouse
thesecureportforcommunicationsoutsideofthelocalnetwork.
If you will connect to the local network using the non-secure
port, it is strongly recommended that the M1XEP be behind a
network router. Do not port forward the non-secure port to
outsidethelocalnetwork. Ifthenon-secureportwillnotbeused
it should be disabled in the M1XEP setup (refer to section 1.7 of
the configuration and setup).
WWW.DIYALARMFORUM.COM

ELK-M1XEP InstallationManual Page3
FEATURES:
•WebserverwithembeddedJavaapplet"M1VirtualKeypad"
•SecureconnectionwithpasswordprotectionandHTTPSencryption
•FlashMemoryforFirmwareUpdating
•EventnotificationviaE-Mail(SMTP)
•InternetMonitoringandReportingCapability
•TCP/IPstacksupportingthefollowingprotocols:
TCP,UDP,DHCP,SSL3.0/TLS1.0,HTTP,SMTP
•FederalInformationProcessingStandards(FIPS)128bitencryption
•Integrated802.3compliant10/100Mbitnetworkinterface
•RS232,DB9M9-pinserialportconnection
•Connects to the M1 RS-232 Serial port (Port 0). The baud rate for this port must be set to 115,200 (factory default)
•RJ458-pinNetworkJack
•2.1mmbarreltypepowerconnector(centerpositive)
•LEDIndicatorsforPower,Link, and Data
SPECIFICATIONS:
•OperatingVoltage: 12 Volts D.C. from Elk-P1216 Plug-inPower Supply **
•CurrentDraw:approx.300mA
•Housing Dimensions: 4.25" x 6.375" x 2.125"
•Circuit Board Dimensions: 2.25" x 3.95"
** Any required network equipment, i.e. Ethernet switch, router, cable modem, etc. including the plug-in power supply for the
M1XEP, MUST be backed up with an adequately sized UPS (Uninterruptible Power Supply) in order for the equipment to
continue operating during brief power outages.
Features and Specifications
APPLICATION:
TheELK-M1XEPisanEthernetDeviceServerwithaRS-232SerialPortInterface. ItmaybeusedtoconnectaControlin
theM1FamilytoanEthernetnetworkusingTCP-IPprotocol. Itfeaturesasecureembeddedwebserverwithauserinterface
builtonaJavaapplet,emaileventnotification,andFIPScompliantencryptionalgorithmsforsecuritysensitiveenvironments.
Itispowered by anELK-P121612 VoltsDC,1.5 Amp plug-inpowersupply/adapter (included). Asoftwaresetup utility is
builtintoElkRP(version1.5.0orlater)forconfiguringtheconnectionsetup,networkpassword,etc. TheM1XEPisfactory
defaultedtoobtainadynamicIPaddressfromaDHCPserver(i.e.Ethernetswitch,cablemodem,etc.),howeveritmayalso
be setup with a static IP address.
RJ-45 Connector
LEDIndicators Description NormalState
Orange
Green
Processor Power Indicator
Network Traffic Indicator
On-Solid
On-Blinking
During a reboot, the green light will be off and the orange light will be on
for 30-45 seconds. When the reboot is complete, both lights will be off
for a second, and then the orange light will come on solid and the green
light will begin to blink. Wait several seconds before re-establishing
a connection with the control.
WWW.DIYALARMFORUM.COM

ELK-M1XEPInstallationManual
Page4
Basics of Networking
WAN
LAN
Theinstaller must have a basic understanding of Ethernet setup to install and configure the M1XEP. If you do not have
this basic knowledge, please seek the assistance of a network professional.
The
Internet
ISP Cable
DSL
Satellite
Location
High Speed
Modem CableModem
DSLModem
SatelliteModem
RouterwithBuilt-In
DynamicDNSSupport
M1XEP
PC
Technical support from Elk
Products, Inc. is limited to the
setup and connection of the
M1XEP inside the local network.
Connectionto outside thelocal network
mayrequire assistance fromothers,
includingtheInternetserviceprovider
andthenetworkadministrator.
If using a DSL modem, the modem may need to
be bridged to allow the IP address to be passed
to the router. Contact the manufacturer of the
modem for assistance.
Refer to the Notes on
Router Setup located
on page 12.
LocalAreaNetwork
WideAreaNetwork
WWW.DIYALARMFORUM.COM

ELK-M1XEP InstallationManual Page5
Installation and Hookup
ThefollowingconnectionsarerequiredfortheM1XEPEthernetInterface.
a. The DB9M 9-pin male connector should be connected to the DB9F 9-pin female serial port (port 0) on the
Control using a standard 9-pin male to female serial cable (included). The M1Gold has the main serial port
(port0)onboard,whiletheM1EZ8requirestheM1EZ8MSIMainSerialInterfacetoprovidetheport 0
connection. TheM1XEP should be mounted within 10 feet of the Control. The baudrate of the Control'sserial
port must be set to 115,200, which is the factory default.
b. The 2.1mm barrel type connector is used to connect an ELK-P1216 Plug-in Power Adapter (included). The
M1XEP operates from 12 Volts DC and draws approximately 300 mA. The center pin of the barrel connector is
positive.
d.
1. RemovepowerfromtheControlbeforemakinganyconnections.
2. Connect the serial port cable from the Control to the M1XEP. Connect a network patch cable from the M1XEP to
theLAN (local area network)switch or router. Then, connect the power cable from the P1216 plug-in power supply.
Plug the P1216 into a 110V power outlet. The M1XEP should power up and attempt to link up with the Ethernet
network.
3. It is now okay to power up the Control.
4. Enroll the M1XEP into the Control. Using the keypad, access the Installation Programming menu (Menu 9).
Choose Bus Module Enrollment (Menu 1) and press the right arrow key to start the enrollment. When the enroll-
ment is complete press the ELK or * (Asterisk) key to exit.
Any required network equipment, i.e. Ethernet switch, router, cable modem, etc. including
the plug-in power supply for the M1XEP, MUST be backed up with an adequately sized UPS
(Uninterruptible Power Supply) in order for the equipment to continue operating during brief
power outages.
c. The RJ45 8-pin network jack is used to connect the M1XEP to a LAN/WAN Ethernet network switch or router.
Thisrequiresastandardnetwork8-pinRJ45terminatedpatchcable(notincluded).
d. The5-pin connector alongthe side of the M1XEP is providedfor future use. AnELK-WO35A cable is required
(not supplied) to connect to it. DO NOT CONNECT anything to this connector at this time.
5. ProceedtotheConfigurationandSetup.
The M1XEP does not connect to the RS-485 data bus on the control, therefore it will not appear in
the list of devices enrolled on the keypad. However, the enrollment process is necessary to
ensure proper supervision of the device. If the M1XEP is removed, it must be "un-enrolled" by
completing the Bus Module Enrollment process to prevent an "Ethernet Trouble" from occurring.
ElkRP versions 1.6.2 and later will display the current firmware, hardware, and bootware versions
of the M1XEP on the " Show KPs and Expanders" screen. This screen is accessed from the Send/
Rcv menu when connected to the control.
a.
b.
c.
!
!
WWW.DIYALARMFORUM.COM

ELK-M1XEPInstallationManual
Page6
Configuration and Setup
TheM1XEP issupported by the M1 Familyof controlswith firmware version 4.3.0 orlater. The M1XEP software
configurationutility is built intoElkRP software version 1.5.0or later. If you have an older version of firmware or ElkRP
software,currentupdates canbedownloaded fromthe M1 DealerWebsite (www.elkproducts.com). Pleasenotethat
somefeatureswillrequireM1XEPfirmwareversion1.2.0,M1Controlfirmwareversion4.3.10andElkRPversion1.6.5.
For the initial setup, ElkRP and the M1XEP must be on the same local network. ElkRP can not "find" an M1XEP
outside of the local area network (refer to step 1.2). The M1XEP is shipped with DHCP enabled. If a DHCP server
exists on your network the M1XEP will obtain a “dynamic” IP address, gateway address, and subnet mask allowing it to
workon the localnetwork. If not,the factory programmed (default) IP address is 192.168.0.251. If desired, the M1XEP
can be configured with your choice of a “static” (non-changing) IP address. This can be done during the following setup.
Before beginning the M1XEP setup, please ensure that the Control is programmed to transmit ASCII strings
at 115,200 baud for each of its available conditions to allow the Control and the Virtual Keypad to have and
display the information. Using the Keypad Installer Programming, or the ElkRP software, access the Globals
Menu (Menu-07) and program yes for options 35, 36, 37, 38, 39, and 40. Verify that Option 34 is set to 115,200.
1. Basic Network Setup
1.1. A router serving DHCP should not need any configuration to allow the M1XEP to connect inside the local network.
For communications outside the local network you will need to establish several open ports on the router. Please
referto section 6 of the configuration andsetup on page 12 and the documentation for the router for more details.
1.2.Start the ElkRP software and open the desired account.

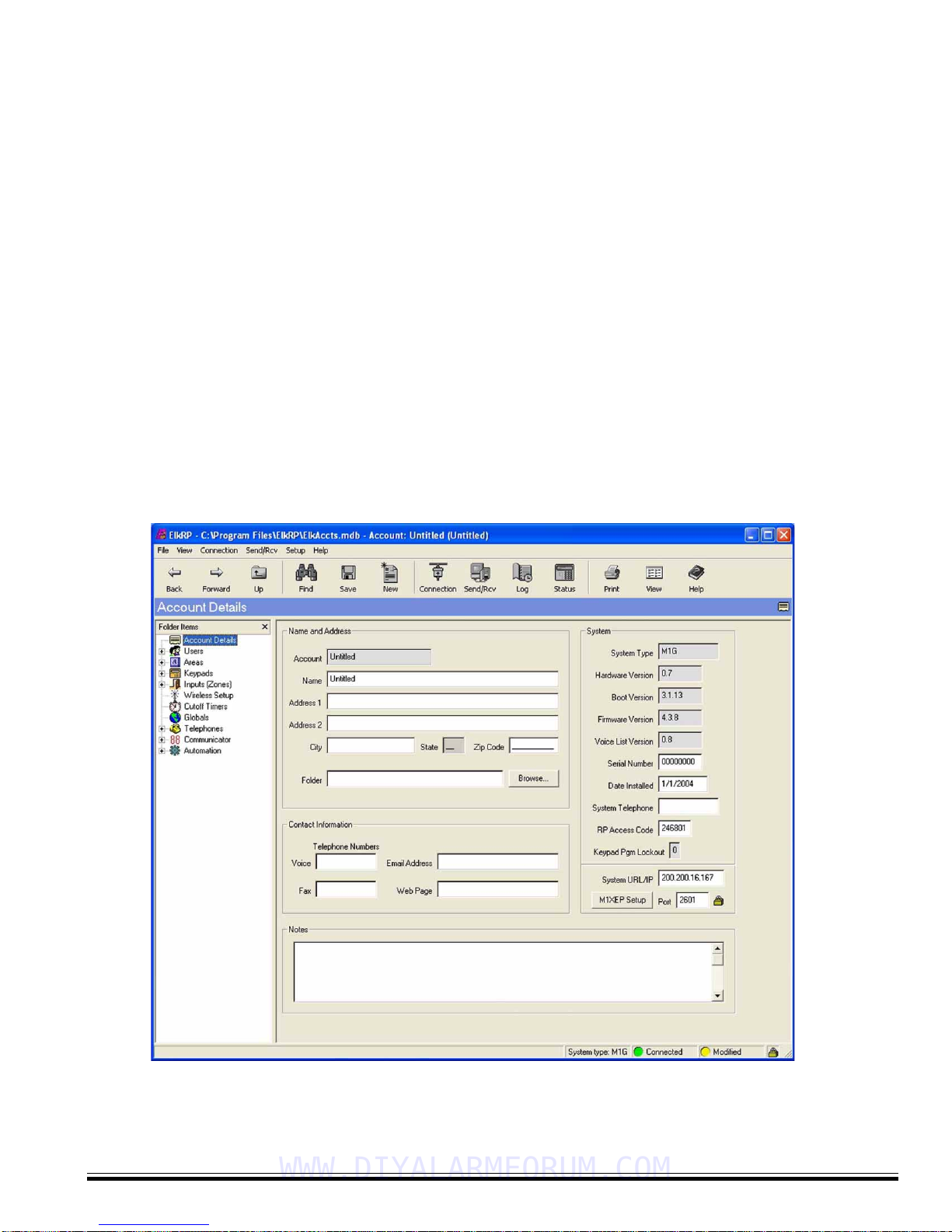

a. On the account details screen, click the 'M1XEP Setup' button located near the lower right side of the
screen. With the 'Introduction' tab selected, take a few minutes to read this information.
b. When you are ready to proceed, click the 'Find' button. This will open the “Find M1XEPs” screen.

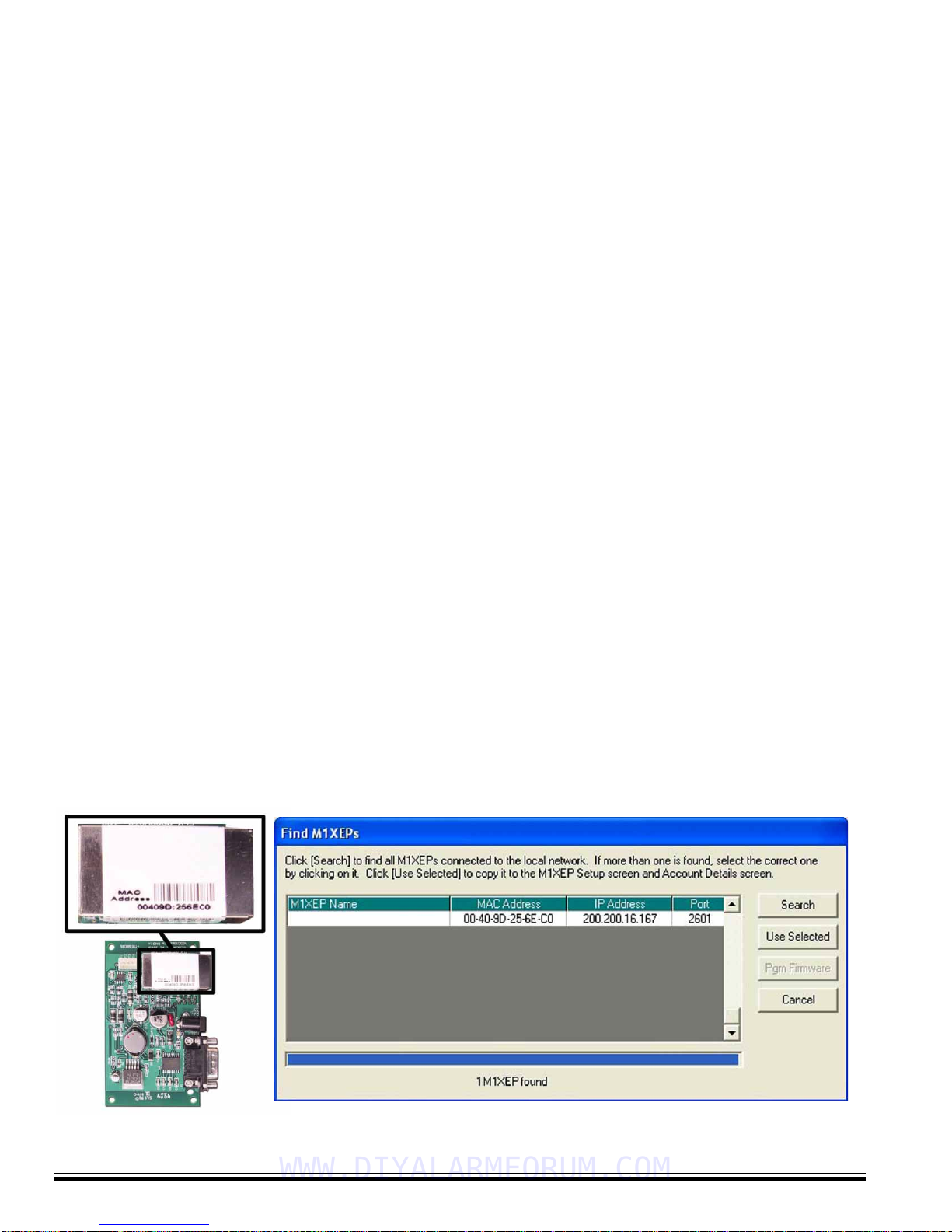

c. ElkRP will search for all M1XEPs connected to the local network. If the installation and hookup
procedure has been completed correctly, the M1XEP should be listed on this screen. Only one
should be found, unless there are multiple units installed. If you are unable to find the M1XEP, please refer to
thetroubleshooting section of this manual on page 22.
d. Verify that the MAC address in the second column matches the MAC address of the M1XEP. The MAC
addressis located on top ofthe white barcode label onthe RJ45 connector of the M1XEP (see figure below).
e. Note the IP address in the third column. This is the address used to connect/communicate with the M1XEP.
Remember, if a DHCP server is on the network and the M1XEP is still set for DHCP (factory default), this
number will most likely be a "dynamic" address. However, in the absence or failure of a DHCP server, the
M1XEP will default to its last static IP address, which is set from the factory to 192.168.0.251. To force the
DHCP/IPaddress settings to known values,please refer tothe troubleshooting sectionof this manual
onpage 23.
WWW.DIYALARMFORUM.COM

ELK-M1XEP InstallationManual Page7
1.6.As previously discussed, the M1XEP is factory defaulted to DHCP, which means that it expects to be assigned a
“dynamic” IP address. Be aware that a “dynamic” IP address can periodically change for many reasons, including a
power down/up cycle. You may optionally assign the M1XEP a permanent “static” address, if permitted by the
network.Thiswillalso involve settingvaluesforsubnet mask,defaultgateway,and primary andsecondaryDNS
servers.ThesesettingscanbeobtainedfromyournetworkadministratororInternetserviceprovider.Thesecondary
DNS field is only supported by M1XEPs with firmware version 1.2.0 or later.
If the M1XEP is programmed with a static IP address, and later changed to obtain a dynamic IP
address from a DHCP server, it will revert back to the last programmed static IP address if it fails
to obtain a dynamic IP address from the DHCP server after 1 minute. If a static IP address has not
been programmed and the M1XEP cannot obtain a dynamic IP address from a DHCP server it will
default to an IP address of 192.168.0.251.
1.7.Somethird partydevices usea TCPor non-secure port for standard (unencrypted) communicationson thelocal
network. If this port is needed, select “Enable Non-Secure Port" and enter the appropriate port number. Values
between1024and49151are valid. The recommended(default)portis2101. This port shouldnotbemapped
outside the local network for security reasons. If the port is not needed, it should be disabled. To disable the
non-secureport,remove the checkfromthe boxbesideof "Enable Non-SecurePort".
1.8.ElkRP and some third party devices use a SSL or secure port for encrypted communications. Enter the
appropriatevalueforthesecureport. Valuesbetween1024and49151arevalid. Therecommended(default)port
is 2601. If you intend to access the Control through the Internet, this port should be mapped (port forwarded) to
outsidethe local network via arouter.
1.5.Once connected, click the 'M1XEP Setup' button once again to continue the configuration. Click the 'TCP/IP
Settings' tab. At the top, a device name of up to 16 characters may be entered. This name is used only during
subsequent “Find” processes to quickly identify an M1XEP when there are more than one on the same network.
1.3.Highlight the M1XEP to be configured and click the 'Use Selected' button. This automatically copies the IP
address and Port settings to the ElkRP "Account Details" location and returns back to the setup screen. Click
'Close' to exit this screen.
1.4.Before continuing with the setup and configuration, you must connect to the Control over the network.
a. Verify that the URL/IP and Port setting are correct on the "Account Details" screen.
b. Make sure the serial number is correct and the "RP Access Code" is set to the correct value programmed
intothecontrol.(default=246801)
c. From the RP Connection Menu, choose the "Network" method.
If everything is setup correctly, ElkRP should now connect to the control through the M1XEP.
!
WWW.DIYALARMFORUM.COM

ELK-M1XEPInstallationManual
Page8
3. Setup of User Names & Passwords (optional)
Send changes to the M1XEP and save the changes to the database. Refer to section 2 on page 8.
Send the changes by clicking the send button located at the bottom of the setup screen. You may receive a
message that informs you that the changes will cause the M1XEP to reconfigure itself, and it must be rebooted
after the send is complete. Click 'Yes' on this screen. The send process may take up to a minute. Once the
process is complete, you will receive a message that the M1XEP will reboot. Click 'OK'. You must reboot the
M1XEP before the changes will take effect. The reboot will take up to 2 minutes. A connection with the M1XEP
cannot be re-established until the reboot process is complete. Click 'Save Account' under the "File" menu to save
the changes to the database.
2. Send Changes to the M1XEP and Save
Usernamesand Passwords are entered on this tabbed screenfor use asa means ofauthentication while logging on
totheM1XEPs secureconnection port. THESE AREOPTIONAL! If everyUsername and Passwordfield leftblank,
theM1XEP will not prompt forone duringthe connection process. Up to eight(8) differentUsernames and
Passwords may be entered, each being up to 16 alphanumeric characters long. Fields for usernames and
passwords2-8areonlysupportedbyM1XEPswithfirmwareversion1.2.0orlater.

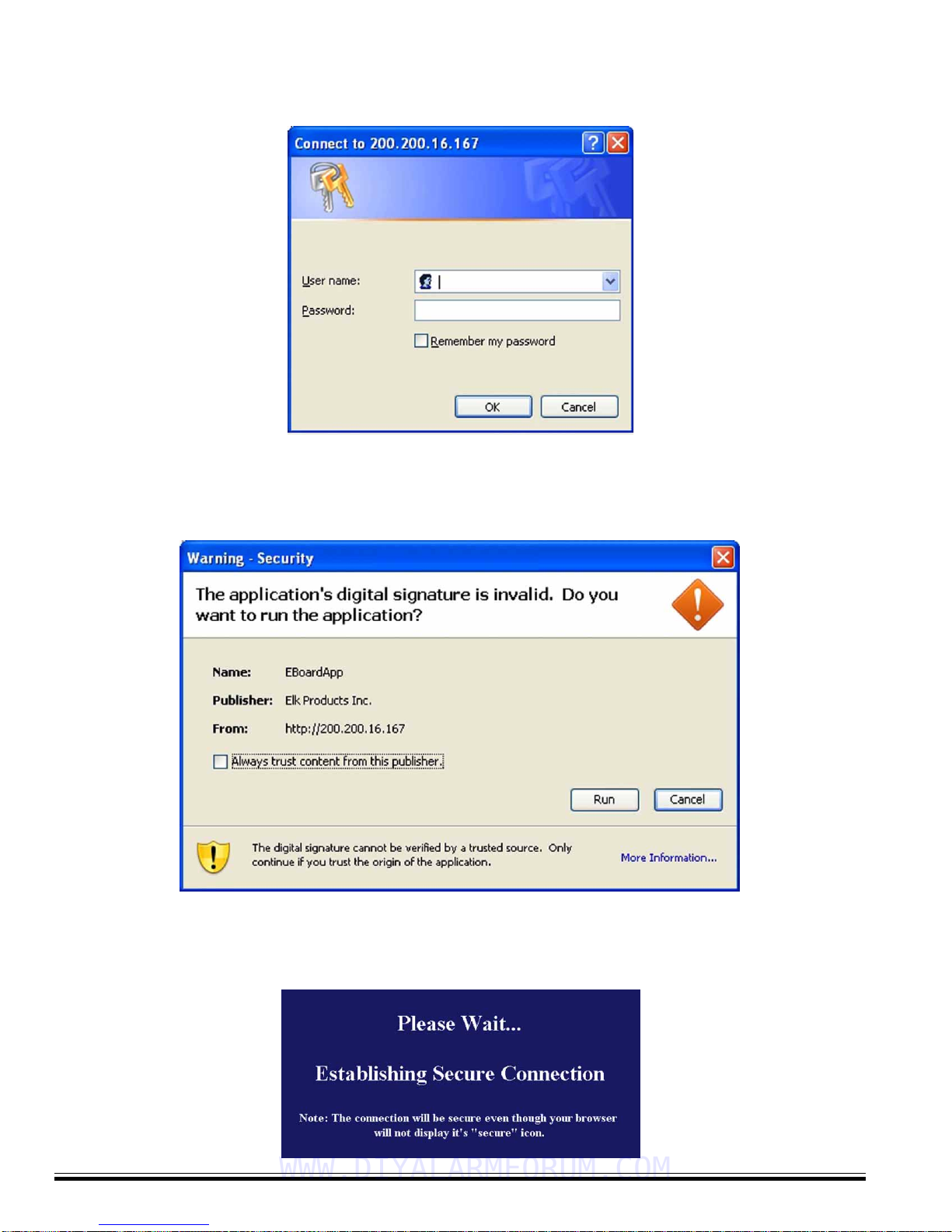

Uponconnection and presentation of the M1 Virtual Keypadvia a webbrowser, a separate entry code will be
required. This code is not optional. The correct entry for this field can be any valid User Code within the M1/EZ8
control.
ELK strongly recommends the entry of at least one Username and Password on this screen as it
helps protect against unauthorized access to the Web Browser and M1/EZ8. Third party software
developers wishing to connect to the M1XEP secure port should always use the Username and
Password Feature.
WWW.DIYALARMFORUM.COM

ELK-M1XEP InstallationManual Page9
The"Email" tabis whereinformation regardingemail notificationis stored.
a. Enter the SMTP server’s URL or IP address. This can be up to 48 characters long. Set the port value to the
correct setting for outgoing mail. The default port setting is 25. If your mail server uses a different port, your
Internetserviceproviderornetworkadministratorcanprovideyouwiththecorrectportsetting.
b. Some Internet Service Providers will block email if it is not sent from a valid email account. Enter a valid
email address in the “FROM” email address block. This is the address that will appear in the “from” field of
the email.
c. SomeInternetServiceProvidersmayrequireausernameorpasswordtolog onto the emailserver. If
required,entertheusernameandpasswordinthecorrespondingfields. IfyourInternetServiceProviderdoes
not require this log on information, leave the fields blank. The email authentication fields are supported only
byM1XEPswith firmware version1.2.0 or later.
d. The lower portion of this screen is where the email addresses and messages for email notification are
entered. Up to 16 addresses and messages can be stored. Email addresses can be up to 48 characters
long. The message body may be up to 255 characters long. To enter an email address, simply click on the
line where you want to enter the address and type the address. Then click on the message block next to
the address and enter the message that you want to be sent to that address. These messages are
activatedusingtheWhenever/And/ThenrulesprogramminginElkRP.
4. Email Notification Setup (optional)
Send changes to the M1XEP and save the changes to the database. Refer to section 2 on page 8.
Rule Example
The following is an example of a rule that will send an email message. In this example, an email message will be
sent when the system is disarmed by a particular user. This email is sent to "Mom" at the office to let her know
Little Suzy got home okay.
WHENEVERSmithHome(Area1)STATEBECOMESDISARMED
AND LAST USER WAS Suzy Smith (User 3)
THENSENDEMAILMESSAGE1TO[email protected](Email 1)
WWW.DIYALARMFORUM.COM

ELK-M1XEPInstallationManual
Page10
5. Central Station Setup (optional)
TheM1XEPsupportsAlarmoverInternetMonitoringtoCentralStationsthathaveanOsborne-HoffmanOH2000E
receiverusingtheContactIDformat. CentralStation Internet Monitoring is onlysupportedbyM1XEPswithfirmware
version1.2.0.
InternetmonitoringrequiressetupoftheM1XEPandacorrespondingtelephoneaccountintheControl. Telephone
account # 1 corresponds with CS1 in the M1XEP setup. Telephone account # 2 corresponds with CS2, etc.
1. Create a new telephone account in ElkRP. To do this, right click on the "Telephones" icon on the left side of the
screen. Choose"New Telephone". Enter the numberof telephone accounts tocreate and the first (starting)
telephone account ID and click OK.
2. On the telephone account screen, enter a name and set the reporting format to 6 = Ethernet M1XEP. Dialing
attempts should be set to 1 to enable reporting.
3. In the "Report the following to this number" box, check all the events that should be reported to the Central
StationthroughtheM1XEP.
4. Place a checkmark in the checkbox beside each area that will make reports to this Central Station.
WWW.DIYALARMFORUM.COM
