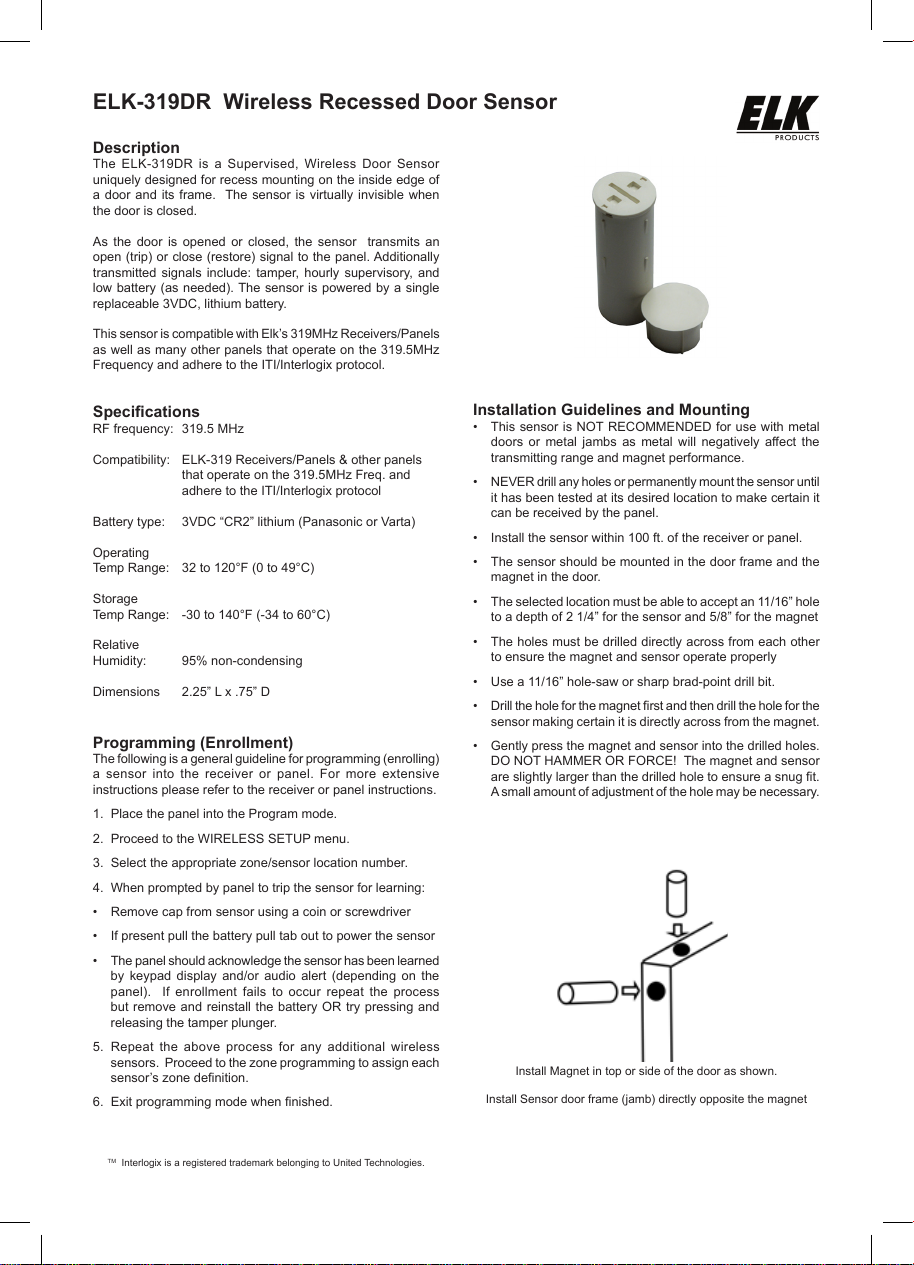

ELK-319DR Wireless Recessed Door Sensor
Description
The ELK-319DR is a Supervised, Wireless Door Sensor
uniquely designed for recess mounting on the inside edge of
a door and its frame. The sensor is virtually invisible when
the door is closed.
As the door is opened or closed, the sensor transmits an
open (trip) or close (restore) signal to the panel. Additionally
transmitted signals include: tamper, hourly supervisory, and
low battery (as needed). The sensor is powered by a single
replaceable 3VDC, lithium battery.
This sensor is compatible with Elk’s 319MHz Receivers/Panels
as well as many other panels that operate on the 319.5MHz
Frequency and adhere to the ITI/Interlogix protocol.
Specications
RF frequency: 319.5 MHz
Compatibility: ELK-319 Receivers/Panels & other panels
that operate on the 319.5MHz Freq. and
adhere to the ITI/Interlogix protocol
Battery type: 3VDC “CR2” lithium (Panasonic or Varta)
Operating
Temp Range: 32 to 120°F (0 to 49°C)
Storage
Temp Range: -30 to 140°F (-34 to 60°C)
Relative
Humidity: 95% non-condensing
Dimensions 2.25” L x .75” D
Programming (Enrollment)
The following is a general guideline for programming (enrolling)
a sensor into the receiver or panel. For more extensive
instructions please refer to the receiver or panel instructions.
1. Place the panel into the Program mode.
2. Proceed to the WIRELESS SETUP menu.
3. Select the appropriate zone/sensor location number.
4. When prompted by panel to trip the sensor for learning:
• Remove cap from sensor using a coin or screwdriver
• If present pull the battery pull tab out to power the sensor
• The panel should acknowledge the sensor has been learned
by keypad display and/or audio alert (depending on the
panel). If enrollment fails to occur repeat the process
but remove and reinstall the battery OR try pressing and
releasing the tamper plunger.
5. Repeat the above process for any additional wireless
sensors. Proceed to the zone programming to assign each
sensor’s zone denition.
6. Exit programming mode when nished.
Install Magnet in top or side of the door as shown.
Install Sensor door frame (jamb) directly opposite the magnet
Installation Guidelines and Mounting
• This sensor is NOT RECOMMENDED for use with metal
doors or metal jambs as metal will negatively a󰀨ect the
transmitting range and magnet performance.
• NEVER drill any holes or permanently mount the sensor until
it has been tested at its desired location to make certain it
can be received by the panel.
• Install the sensor within 100 ft. of the receiver or panel.
• The sensor should be mounted in the door frame and the
magnet in the door.
• The selected location must be able to accept an 11/16” hole
to a depth of 2 1/4” for the sensor and 5/8” for the magnet
• The holes must be drilled directly across from each other
to ensure the magnet and sensor operate properly
• Use a 11/16” hole-saw or sharp brad-point drill bit.
• Drill the hole for the magnet rst and then drill the hole for the
sensor making certain it is directly across from the magnet.
• Gently press the magnet and sensor into the drilled holes.
DO NOT HAMMER OR FORCE! The magnet and sensor
are slightly larger than the drilled hole to ensure a snug t.
A small amount of adjustment of the hole may be necessary.
TM Interlogix is a registered trademark belonging to United Technologies.
All manuals and user guides at all-guides.com

FCC AND IC COMPLIANCE STATEMENT:
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment o󰀨 and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit di󰀨erent from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.
Elk Products, Inc.- 3266 Hwy 70 - Connelly Springs, NC 28612 http://www.elkproducts.com 11/22/2018
Limited Warranty
THIS WIRELESS SENSOR IS WARRANTED TO BE FREE FROM
DEFECTS AND WORKMANSHIP FOR A PERIOD OF 2 YEARS
FROM DATE OF MANUFACTURE EXCLUDING BATTERIES.
BATTERIES USED WITH WIRELESS DEVICES ARE NOT
WARRANTED.
MANUFACTURER HEREBY DISCLAIMS ANY AND ALL OTHER
WARRANTIESAND REPRESENTATIONS, WHETHER EXPRESS,
IMPLIED, STATUTORY OR OTHERWISE INCLUDING (BUT NOT
LIMITED TO) ANY WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE WITH RESPECT
TO THESE PRODUCTS AND ANY RELATED SOFTWARE.
MANUFACTURER FURTHER DISCLAIMS ANY OTHER IMPLIED
WARRANTY UNDER THE UNIFORM COMPUTER INFORMATION
TRANSACTIONS ACT OR SIMILAR LAW AS ENACTED BY
ANY STATE. (USA only) SOME STATES DO NOT ALLOW THE
EXCLUSION OF IMPLIED WARRANTIES, SO THE ABOVE
EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES
YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE
OTHER LEGAL RIGHTS THAT VARY FROM STATE TO STATE.
MANUFACTURER MAKES NO REPRESENTATION, WARRANTY,
COVENANT OR PROMISE THAT ITS ALARM PRODUCTS
AND/OR RELATED SOFTWARE (I) WILL NOT BE HACKED,
COMPROMISED AND/OR CIRCUMVENTED; (II) WILL PREVENT,
OR PROVIDE ADEQUATE WARNING OR PROTECTION FROM,
BREAK-INS, BURGLARY, ROBBERY, FIRE; OR (III) WILL WORK
PROPERLY IN ALL SITUATIONS.
NOTE: Elk Products is not responsible for any changes
or modications not expressly approved by the party
responsible for compliance. Such modications could
void the user’s authority to operate the equipment.
+

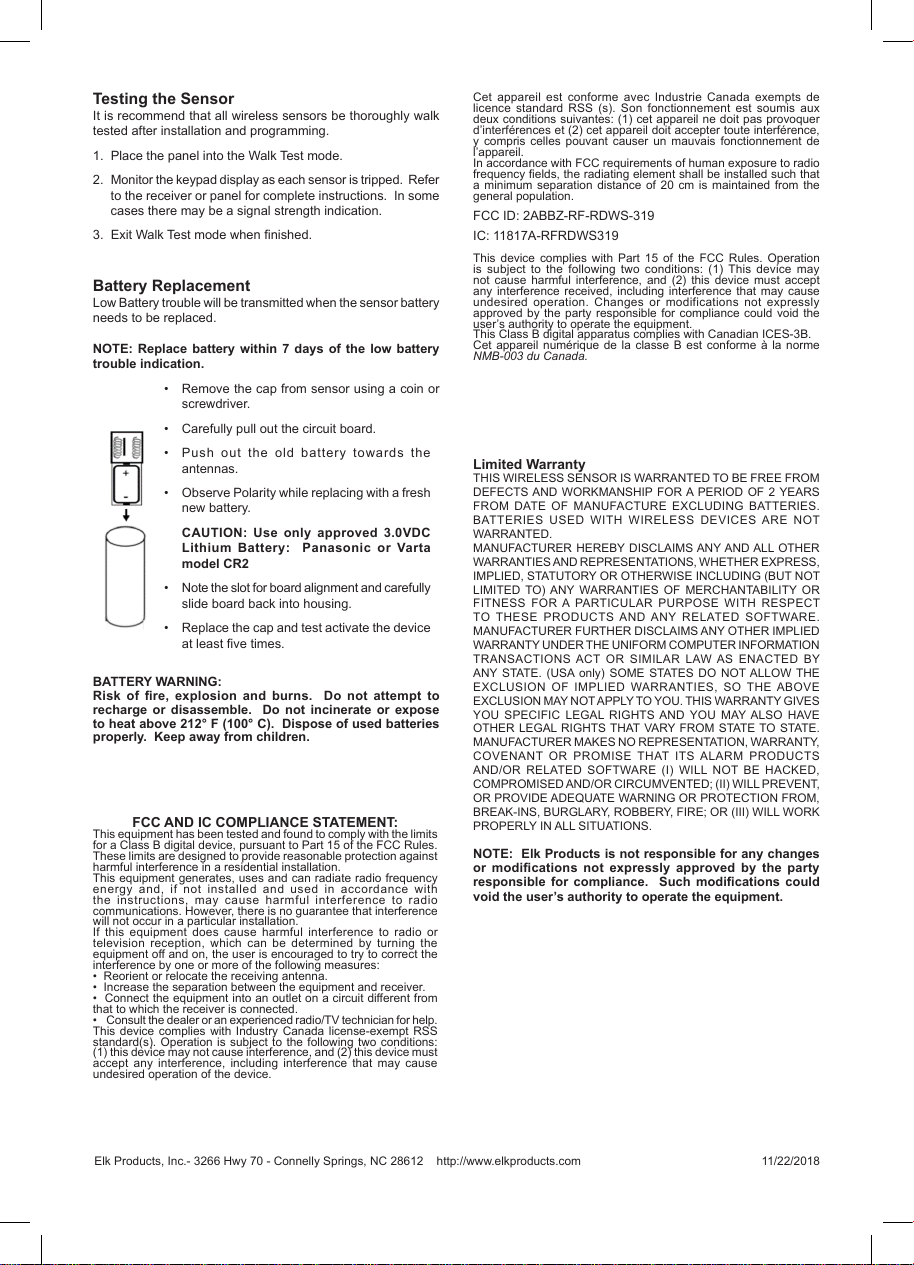

Testing the Sensor
It is recommend that all wireless sensors be thoroughly walk
tested after installation and programming.
1. Place the panel into the Walk Test mode.
2. Monitor the keypad display as each sensor is tripped. Refer
to the receiver or panel for complete instructions. In some
cases there may be a signal strength indication.
3. Exit Walk Test mode when nished.
Battery Replacement
Low Battery trouble will be transmitted when the sensor battery
needs to be replaced.
NOTE: Replace battery within 7 days of the low battery
trouble indication.
• Remove the cap from sensor using a coin or
screwdriver.
• Carefully pull out the circuit board.
• Push out the old battery towards the
antennas.
• Observe Polarity while replacing with a fresh
new battery.
CAUTION: Use only approved 3.0VDC
Lithium Battery: Panasonic or Varta
model CR2
• Note the slot for board alignment and carefully
slide board back into housing.
• Replace the cap and test activate the device
at least ve times.
BATTERY WARNING:
Risk of re, explosion and burns. Do not attempt to
recharge or disassemble. Do not incinerate or expose
to heat above 212° F (100° C). Dispose of used batteries
properly. Keep away from children.
Cet appareil est conforme avec Industrie Canada exempts de
licence standard RSS (s). Son fonctionnement est soumis aux
deux conditions suivantes: (1) cet appareil ne doit pas provoquer
d’interférences et (2) cet appareil doit accepter toute interférence,
y compris celles pouvant causer un mauvais fonctionnement de
l’appareil.
In accordance with FCC requirements of human exposure to radio
frequency elds, the radiating element shall be installed such that
a minimum separation distance of 20 cm is maintained from the
general population.
FCC ID: 2ABBZ-RF-RDWS-319
IC: 11817A-RFRDWS319
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation. Changes or modifications not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-3B.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
