POE-ULTRAPOD™
ULTRA POESPLITTER WITH 12V STANDBY
BATTERY FUNCTIONALITY
POE-ULTRAPOD-MOD /POE-ULTRAPOD-B
FEATURES
The Elmdene POE-ULTRAPOD™ is a unique PoE powered device that acts as an Ultra PoE splitter whilst also
providing charge locally to a 12V 17Ah battery. If power from the PoE input fails the battery seamlessly
continues to provide 12V dc to the load at up to 3A. This offers the installer a cost effective solution to
providing standby battery functionality to not only IP devices but any 12V device e.g. camera, maglock, etc.
over a single PoE Cat5 cable.
To further enhance the device, the POE-ULTRAPOD™ offers battery Deep Discharge Protection and also
remote fault monitoring with the provision of volt-free fault contacts for low battery and input PoE power
failure.
Provides 13.8V dc @ 3A max when used with PoE 802.3bt (PoE++ 60W)
Additional 0.5A available for battery charging
RJ45 Data pass through
Available as an unboxed module (DIN rail or lug mountable) or boxed solution
No mains required –powered solely from PoE
Cost effective solution to providing battery backup to IP devices
Boxed version accommodates industry standard 12V 17Ah SLA battery
Battery Deep Discharge Protection
Fault Outputs
SPECIFICATION
Input Specification
PoE++
PoE 802.3bt
PoE+
PoE
Ethernet Data Rate
PoE 802.3at
PoE 802.3af
10/100 Mbps
Output Specification
PoE++
13.8V dc @ 3A
PoE+
PoE
Load Output Fuse Protection
13.8V dc @ 1A
13.8V dc @ 0.3A
F3.15A (20mm Glass Fuse)
Standby Battery
Battery Type (not supplied)
12V 17Ah (max) Valve Regulated Lead Acid
Battery Charging Fuse protection
PTC –self-resetting
Elmdene International Ltd Tel: [phone]
3 Keel Close, Interchange Park, Fax: [phone]
Portsmouth, Hampshire, PO3 5QD, UK Web: www.elmdene.co.uk

Technical Support Line [phone] (Option 3) POE-ULTRAPOD™ PAK200903_02B Nov 2017© 2017 Elmdene International Ltd
LED Indication
Green LED
Red LED
PoE Present LED
Fault LED (ON when output fuse fails)
Mechanical
POE-ULTRAPOD-MOD™
POE-ULTRAPOD-B™
Dimensions
134L x 84W x 35D
355L x 382W x 85D
Battery Capacity
N/A
12V 17Ah
Weight
180g
2.5Kg
Enclosure Material
N/A
1.2mm steel white powder coated
Environmental
Temperature -10 to +40°C (operating) 75% RH non-condensing
POE IN PoE 802.3bt (60W) from PoE++ source
(PoE and PoE+ can be used, see output Specification above)
DATA Data Connection to IP device
OP +/- Load Output: 13.8V dc (+/-5%) @ 3A max (PoE++ input)
BATT +/- 12V Battery Connection –observe polarity
POE Relay Output for PoE power failure. Open on loss of PoE
GEN Relay Output for output fuse failed or/and low battery level (less than 10.7V)
when PoE is off. Open in Fault condition
This unit must be fed from a compliant PoE power source (PoE 802.3bt for 3A power output)
Unboxed Module:
Mounting
1) Mount securely utilising the DIN rail mount or the provided mounting lugs
Boxed Module:
Mounting
1) Mount securely utilising the enclosure mounting points in the correct orientation, allowing
100mm clearance around the enclosure
2) Route cables via knockouts and/or rear cable enclosure entry holes
Fig. 1 Mounting of Ultrapod
CONNECTIONS
INSTALLATION INSTRUCTIONS
100mm
100mm

Technical Support Line [phone] (Option 3) POE-ULTRAPOD™ PAK200903_02B Nov 2017© 2017 Elmdene International Ltd
Power Up
1) Attach correctly rated load cable to load equipment and fasten using cable ties –Note polarity
2) Attach suitable Ethernet cable from PoE++ source to POE IN RJ45 connector (100m max from PSE)
3) Attach suitable Ethernet cable between IP device and DATA RJ45 connector (if required)
4) Loop battery cable through supplied ferrite (1 turn) and attach to BATT terminal block, fasten with
cable ties
NOTE: ensure correct polarity of battery connections: +use Red lead, -use Black lead

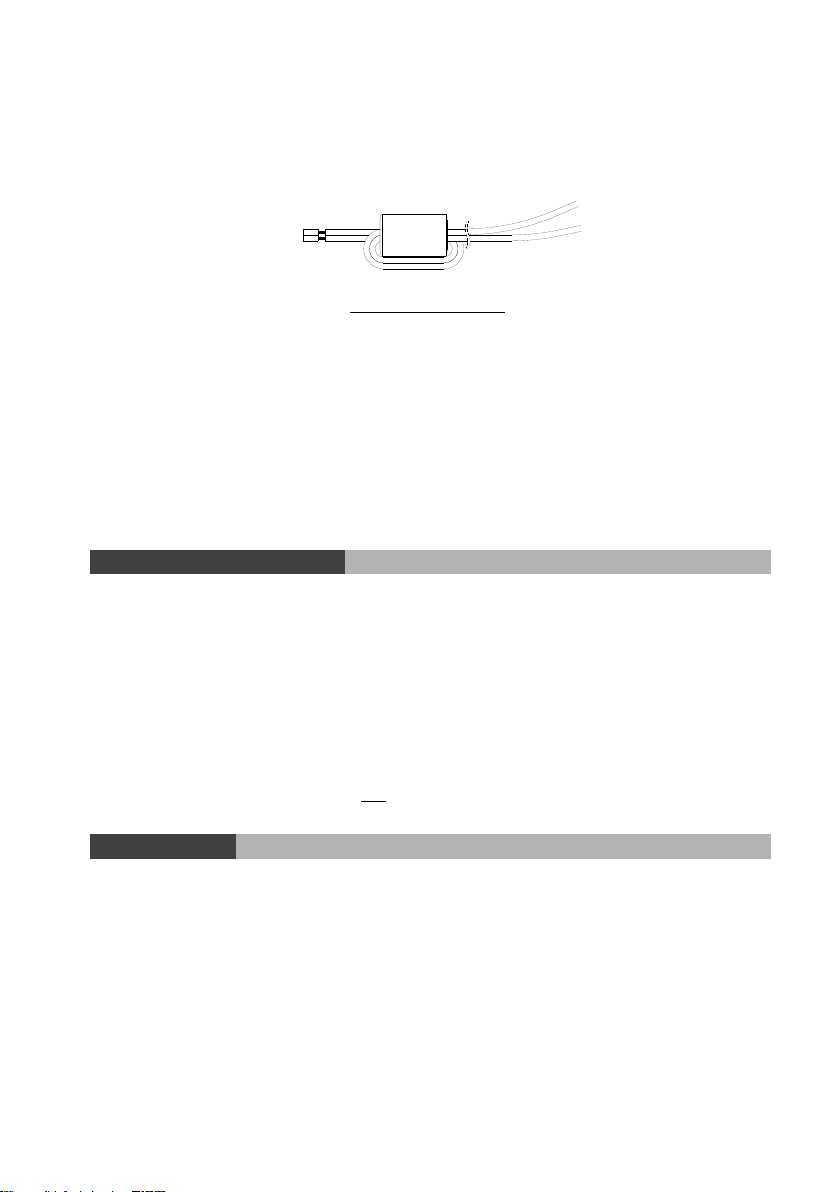

Fig. 2 Position of ferrite
5) Connect charged 12V battery 17Ah (max) to the other end of battery cable.
6) Observe Green LED is ON when PoE is present
7) Observe Load equipment indicates power is present
8) Remove POE IN cable and observe load equipment continues to indicate power is present
9) Reconnect PoE INPUT cable
Signalling
1) Connect fault outputs to appropriate input of Control and Indicating Equipment (CIE) if required
2) Close cover and secure using fastening key provided
OPERATING INSTRUCTIONS
In the event of loss of PoE++ to the POE-ULTRAPOD™, the PoE Fault signal contact will open and the
Green LED will turn off, the POE-ULTRAPOD™ will continue to deliver up to 13.8V 3A of power to the
load for up to 4 hours (dependant on charge state or capacity of 17Ah battery).
If the output of the POE-ULTRAPOD™ fails, the cause of the failure should be investigated e.g. short
circuit load, connection of a deeply discharged battery. The fault should be rectified before restoring
power to the POE-ULTRAPOD™. If any of the fuses require replacing, ensure the correct fuse rating and
type is used.
Battery charging will only start after a compliant PoE power source is connected to POE-ULTRAPOD™, it
will NOT start up on battery. Ensure only 12V battery is fitted to the system.
MAINTENANCE
This unit is intended for use by Service Personnel only. There are NO USER SERVICEABLE parts inside.
There is no regular maintenance required of the POE-ULTRAPOD™ other than periodic testing, and
replacement of the standby battery.
Reference should be made to the battery manufacturer's documentation to determine
typical/expected battery life with a view to periodic replacement of the battery.

Technical Support Line [phone] (Option 3) POE-ULTRAPOD™ PAK200903_02B Nov 2017© 2017 Elmdene International Ltd
COMPLIANCE
This power supply unit meets the essential requirements of the following European Directives:
Low Voltage 2014/35/EU
EMC 2014/30/EU
WEEE 2012/19/EU
RoHs2 2011/65/EU
DISPOSAL OF PRODUCT AT END OF LIFE
This product falls within the scope of EU Directives 2012/19/EU Waste Electrical and Electronic
Equipment (WEEE) and 2013/56/EU (Battery). At the end of life, the product must be separated from
the domestic waste stream and disposed via an appropriate approved WEEE disposal route in
accordance with all national and local regulations.
Before disposal of the product, any batteries must be removed, and disposed separately via an
appropriate approved battery disposal route in accordance with all national and local regulations.
Package used batteries safely for onward transport to your supplier, collection point or disposal facility.
Caution: Risk of fire or explosion
if bare battery wires are allowed to touch.
See Specification for battery type information. The battery is marked with the crossed out wheelie bin
symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
