ELRO AS80RE11 User manual

1
AS80RE11
Wireless Keyfob
Installation Instructions
General Introduction
The Wireless Keyfob is used to Arm, Partial Arm and Disarm the system. The
Keyfob also incorporates a Panic switch that will immediately initiate a Full Alarm
condition when the system is Armed or Disarmed.

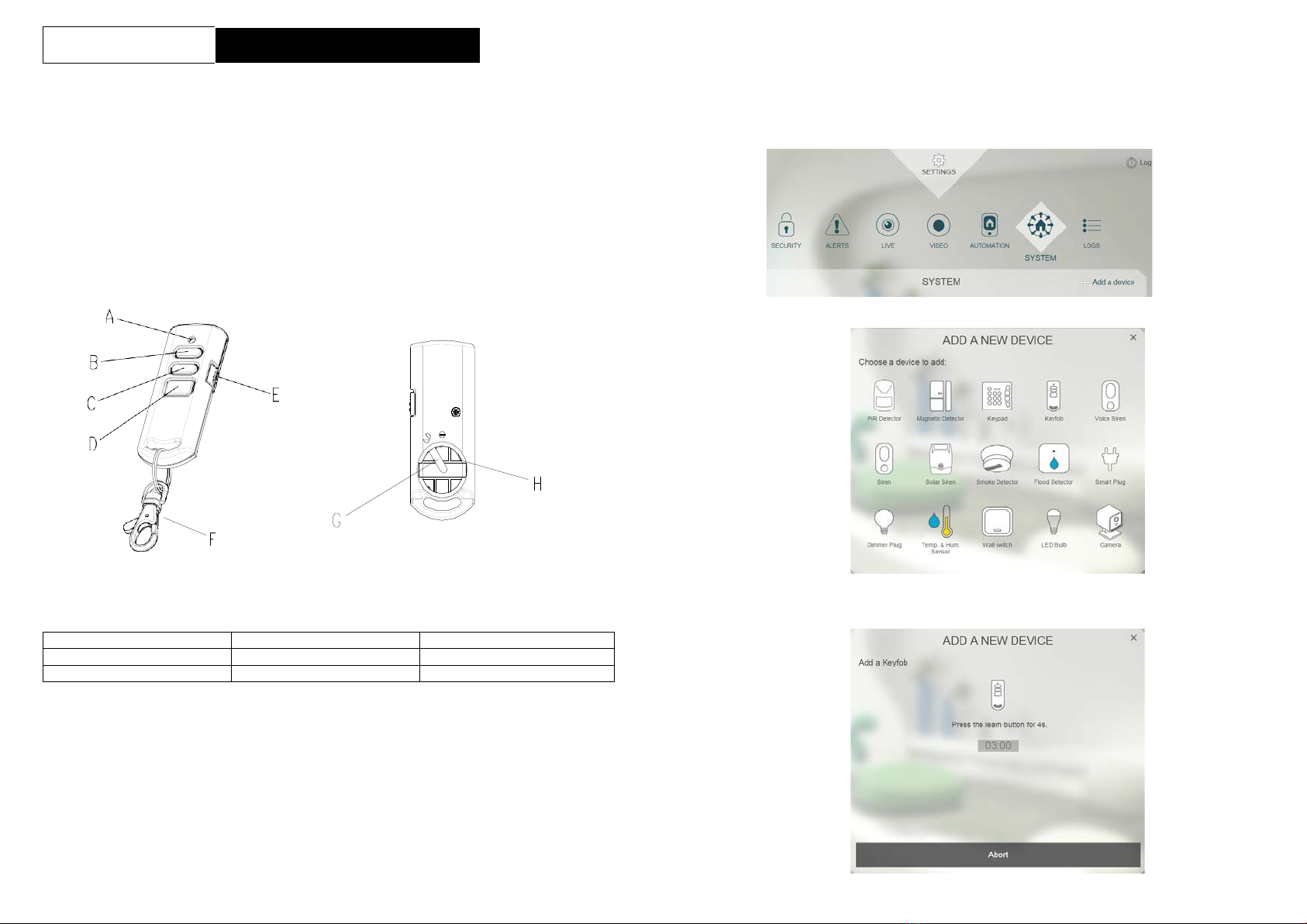

Product Overview
A LED indicator
B Arm
C Partial Arm
D Disarm
E Panic Switch
F Key Chain Ring
G Negative Polarity
H Positive Polarity
Binding
1. Remove the battery cover behind thekeyfob.
2. Prepare the CR2032 coin cell battery by removing any plastic wrapping onthe
battery. Do not insert the batteries yet into theunit.
3. Log into the ELRO Smart Home Alarm account from a webbrowser.
4. Select “System”, then “Add a NewDevice”.
5. Select “Keyfob”.
6. The following screen will appear. This means the gateway is entering binding
mode.

2

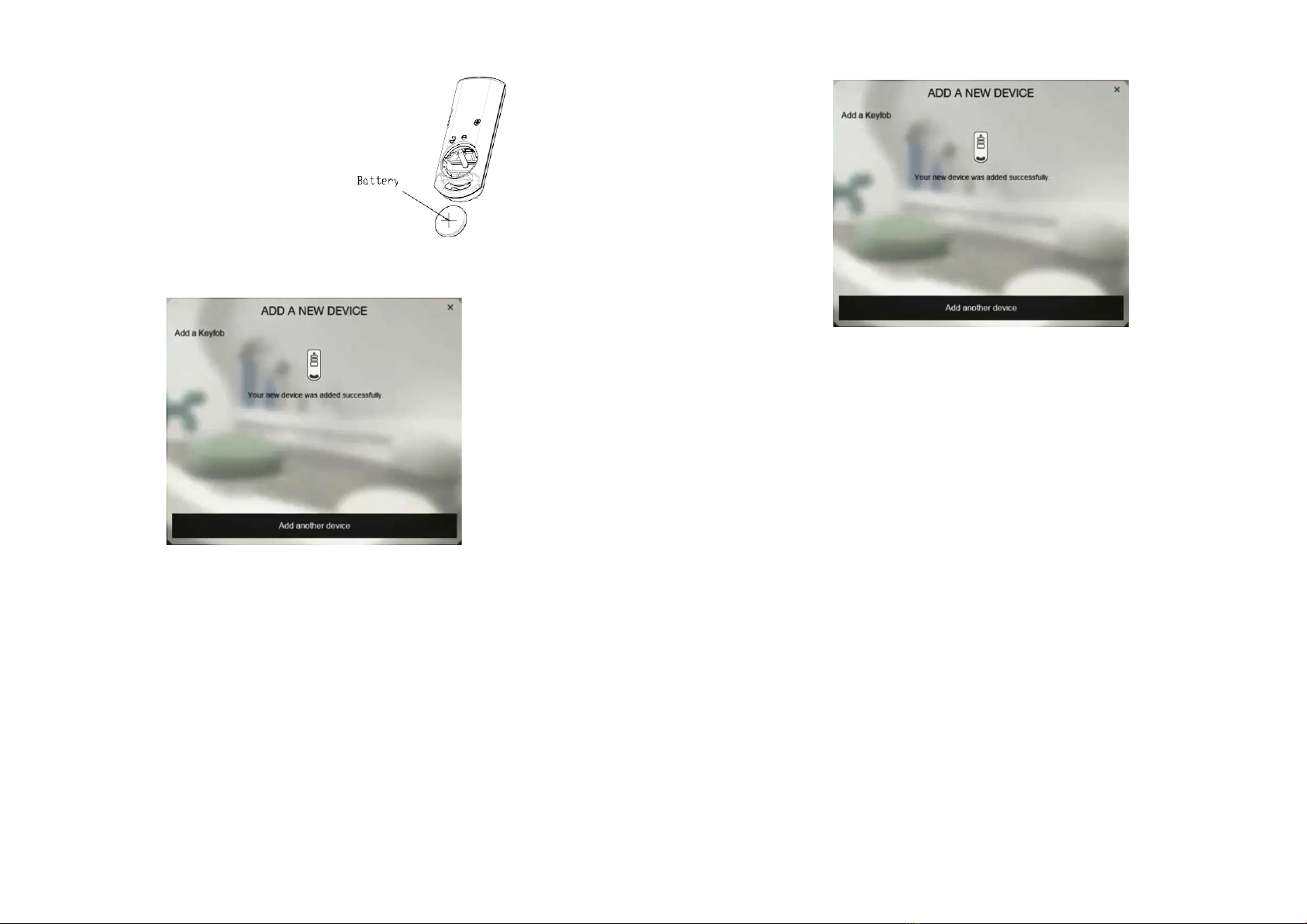

7. Insert the battery ensuring that the +v terminal faces upwards away from the
PCB and replace the battery cover.
8. The screen below will appear in 10 seconds if the process issuccessful.
9. Time-out will occur if the binding process was unsuccessful. Please refer to the
“Manual binding” section.
Manual Binding
1. With the battery inserted, repeat steps 3 to 6 of the Binding with Homesys
3. Within 5 secs, the LED indicator then stop flashing and turn off, indicating the
learning procedure is completed. The screen below will appear indicating the
process is successful.
4. If after 30 seconds LED flashes rapidly for 3 times, it means the keyfob fails the
binding process
Operation & Testing
Operating the Keyfob
There are 5 operating modes provided by the keyfob.
1. ARM : Press and release the ARM button.
2. DISARM : Press and release
3. PARTIAL ARM 1: Press and release the Partial Arm buttononce
4. PANIC: Slide the Panic Switch and hold for at least 3 secs beforereleasing.
Note: The LED on the keyfob will turn green after button press is released. This
implies the keyfob receives a confirmation signal from the Gateway. Instead if the
LED turns red, this means the keyfob did not receive the reply from gateway
Testing the Keyfob
section.
2. Press and hold the Disarm button for more than 3 seconds until the LED flashes
1. Press the Arm button to see if there is an entry in the LOGS page of your
ELRO Smart Home Alarm account.
moderately (on for 2 second; off for 2 second). This implies keyfob has now
entered the binding mode and is waiting to receive binding signals from the
gateway.
2. Press the Partial Arm button to see if there is an entry in the LOGS page of your
ELRO Smart Home Alarm account.
3. Press the Disarm button to see if there is an entry in the LOGS page of your
ELRO Smart Home Alarm account.
4. Slide the Panic Switch and hold for at least 3 secs before releasing. See if there
is an entry in the LOGS page of your ELRO Smart Home Alarm account.
Note: Press the Disarm button to deactivate a triggered alarm and siren sound.

3
Maintenance
Low Battery: When the battery becomes low, the LED will turn orange after
each press to indicate low battery condition to the user. Replace the battery
when this occurs.
Troubleshooting
The troubleshooting table lists some possible causes and solutions. Please contact
your original retailer or nearest service center if the below solutions cannot solve
your problem.
Specifications
Battery
CR2032 3V/230mAh
Operating Frequency
868MHz
Operating Temperature
-10°C to 40°C
RF Output power
< 25mW
** Specifications are subject to change without notice.
WARNING:
Do not dispose of electrical appliances as unsorted municipal waste, use separate
collection facilities instead. Please contact your local government for information
regarding the collection systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous substances
can leak into the groundwater and get into the food chain, damaging your health
polarity.
1. out of rangeof and well-being.
When replacing old appliances with new once, the retailer is legally obligated to
take back your old appliance for disposal at least for free of charge.
LED Table
The table below summarizes the LED indication of the keyfob.
Function LED Indication
RF transmission Green LED illuminating for 1 second
Failed RF transmission Red LED illuminating for 1 second
Low battery Orange LED illuminating for 1 second
Binding in process LED flashing with an interval of 2 seconds
Binding successful Green LED illuminating for 0.5 seconds
Binding timeout Green LED flash 3 times.
Reset to Factory Settings
1. Remove the battery from thekeyfob.
2. Using two fingers, press and hold both the Arm and Disarm simultaneously
while inserting thebattery.
3. Keep pressing both buttons for more than 5 secs until the detector’s LED blinks
red, this implies the device is reset back to factorymode.
Note: After power on, the Keyfob will automatically enter “Auto-binding” mode
to bind with a gateway. The auto-binding process lasts for 30 seconds
indicated by the LED blinking slowly.
Symptom
Cause of Failure
Recommendation
LED cannot be
displayed
1. Run out of battery
power.
2. Check if reversebattery
1. Replace a new battery.
2. Refit the battery with correct
polarity.
LED turns red after
pressing the button
Keyfob is
the gateway.
1. Move closer to the gateway
2. Hold the keyfob higher and
press again.
LED blinks green
slowly for 30secs after
power on.
1. Keyfob has not bind
with Gateway
1. Remove the battery and
perform binding
