Elumen8 Evora 740ZP Zoom Wash User manual

Order codes: ELUM700
Evora 740ZP Zoom Wash
User Manual

www.prolight.co.uk Evora 740ZP Zoom Wash User Manual 2
Safety advice
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL
CAREFULLY BEFORE YOUR INITIAL START-UP!
• Before your initial start-up, please make sure that there is no damage caused during transportation.
• Should there be any damage, consult your dealer and do not use the equipment.
• To maintain the equipment in good working condition and to ensure safe operation, it is necessary
for the user to follow the safety instructions and warning notes written in this manual.
• Please note that damages caused by user modications to this equipment are not subject to warranty.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance
of this manual or any unauthorised modication to the equipment.
CAUTION!
KEEP THIS EQUIPMENT
AWAY FROM RAIN,
MOISTURE AND LIQUIDS
CAUTION!
TAKE CARE USING
THIS EQUIPMENT!
HIGH VOLTAGE-RISK
OF ELECTRIC SHOCK!!
• Never let the power cable come into contact with other
cables. Handle the power cable and all mains voltage
connections with particular caution!
• Never remove warning or informative labels from the unit.
• Do not open the equipment and do not modify the unit.
• Do not connect this equipment to a dimmer pack.
• Do not switch the equipment on and off in short intervals,
as this will reduce the system’s life.
• Only use the equipment indoors.
• Do not expose to ammable sources, liquids or gases.
• Always disconnect the power from the mains when
equipment is not in use or before cleaning! Only handle
the power-cable by the plug. Never pull out the plug by
pulling the power-cable.
• Make sure that the available mains supply voltage is
between 100~240V AC, 50/60Hz.
• Make sure that the power cable is never crimped or
damaged. Check the equipment and the power cable
periodically.
• If the equipment is dropped or damaged, disconnect the
mains power supply immediately and have a qualied
engineer inspect the equipment before operating again.
• If the equipment has been exposed to drastic
temperature uctuation (e.g. after transportation),
do not connect power or switch it on immediately.
The arising condensation might damage the equipment.
Leave the equipment switched off until it has reached
room temperature.
• If your product fails to function correctly, stop use
immediately. Pack the unit securely (preferably in the
original packing material), and return it to your Prolight
dealer for service.
• Only use fuses of same type and rating.
• We recommend this xture should be serviced at least
once every 3 months to prevent build-up of dust, dirt and
debris that could affect the xtures operation.
• Repairs, servicing and power connection must only be
carried out by a qualied technician. THIS UNIT CONTAINS
NO USER SERVICEABLE PARTS.
• This lighting xture is for professional use only - it is
not designed for or suitable for household use. The
product must be installed by a qualied technician in
accordance with local territory regulations. The safety of
the installation is the responsibility of the installer. The
xture presents risks of severe injury or death due to re
hazards, electric shock and falls.
• Warning! Risk Group 2 LED product according to
EN 62471. Do not view the light output with optical
instruments or any device that may concentrate the beam.
• WARRANTY: Two years from date of purchase.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than
those described in this manual, the product may suffer
damage and the warranty becomes void. Incorrect
operation may lead to danger e.g: short-circuit, burns
and electric shocks etc. Do not endanger your own
safety and the safety of others!
Incorrect installation or use can cause serious damage
to people and/or property.

www.prolight.co.uk Evora 740ZP Zoom Wash User Manual 3
Safety advice
This xture falls under Protection Class 1, therefore it has to be connected
to a mains socket with a protective earthing connection.
Risk group 2, RG-2: CAUTION!
Do not stare at exposed LED in operation as it may damage/be harmful to
the eyes. Avoid looking directly into the light source.
CAUTION!
If the lens gets damaged ie. cracks or deep scratches so the output is impaired
then it must be replaced.
CAUTION!
The maximum ambient temperature (Ta) of 40° must not be exceeded.
CAUTION!
To avoid damage to internal parts ie. optics, motors, belts, wiring or LEDs never
expose the front lens to direct sunlight, lighting xtures or lasers even when the
xture is not in use.

www.prolight.co.uk Evora 740ZP Zoom Wash User Manual 4

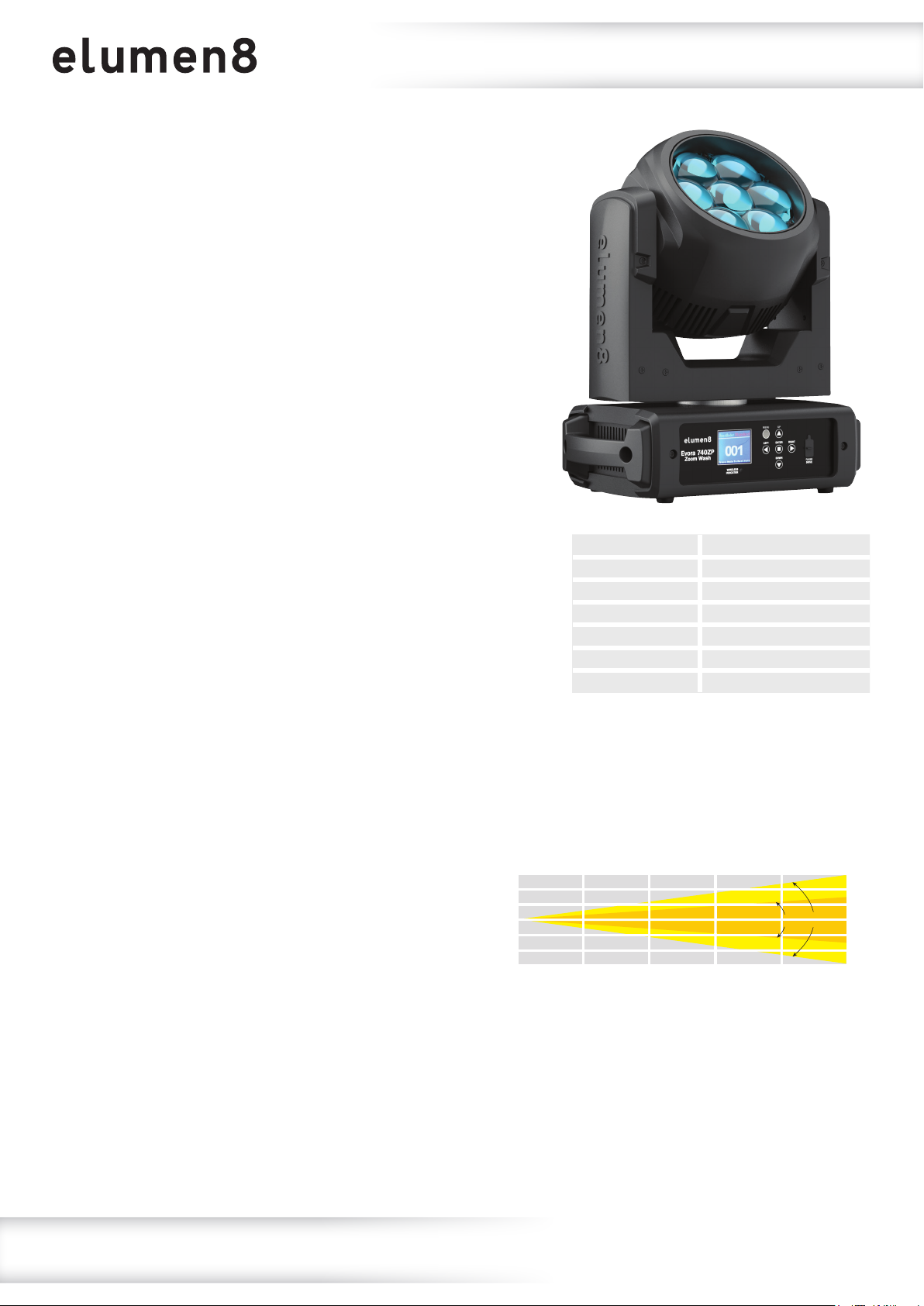

Product overview & technical specications
• 2 year warranty
• 7 x 40W Osram Ostar™ quad-colour LEDs (RGBW)
• Adjustable beam angle: 4°- 31°
• 4° - 81,040 Lux @ 2m (full on), 31° - 2,504 Lux @ 2m (full on)
• CRI: 83
• Refresh rate: 900Hz-25kHz
• Motorised zoom
• Full pixel mapping capabilities
• Control protocols: DMX, Kling-net, Art-net and sACN
• DMX channels: 9/12/19 or 48 selectable
• Wireless control (W-DMX Sweden transceiver)
• Auto, manual control and master/slave modes
• Built-In Colour Macros
• Colour Temperature Presets
• 16-Bit pan/tilt positioning
• Pan: 540° or 630° selectable, Tilt: 265°
• 0 - 100% dimming
• 5 dimming modes: Standard, stage, TV, architectural and theatre
• Variable strobe
• PowerCON TRUE1, 5-Pin XLR and EtherCON inputs/outputs
• RDM (Remote Device Management)
• 6 push button menu with 1.8” LCD display
• Display battery backup for ofine conguration
• Supplied with quick release omega clamps
• USB port (rmware updates)
• Temperature controlled fan
Evora 740ZP Zoom Wash
Specications Evora 740ZP Zoom Wash
Power consumption 350W
Fuse T3A 250V
Power supply 100~240V, 50/60Hz
Dimensions 349 x 288 x 180mm
Weight 7kg
Order code ELUM700
0m 1m 2m 3m 4m 5m
31°
4°
31° - Lux
FULL ON
R
G
B
W
2504
428
760
205
1211
10016
1712
3040
820
4844
1113
190
338
91
538
626
107
190
51
303
401
69
122
33
194
4° - Lux
FULL ON
R
G
B
W
81040
12600
28600
4650
45700
324160
50400
114400
18600
182800
36018
5600
12711
2067
20311
20260
3150
7150
1163
11425
12966
2016
4576
744
7312
The Evora 740ZP LED Zoom Wash produces an incredible high
output from a very compact and durable chassis, making it an
incredibly versatile yet affordable solution for both rental and
installation applications. The rst-class optical system presents a
high intensity adjustable zoom; the narrow 4 degree beam angle
creates sharp mid-air effects, whilst the wider angles produce
uniform colour mixing, bathing concerts and events in rich colours.
Full pixel control over the 7 x 40W Osram Ostar™ quad-colour LEDs
gives lighting designers a further level of creativity, whilst colour
calibration ensures colours match from batch to batch.

www.prolight.co.uk Evora 740ZP Zoom Wash User Manual 5

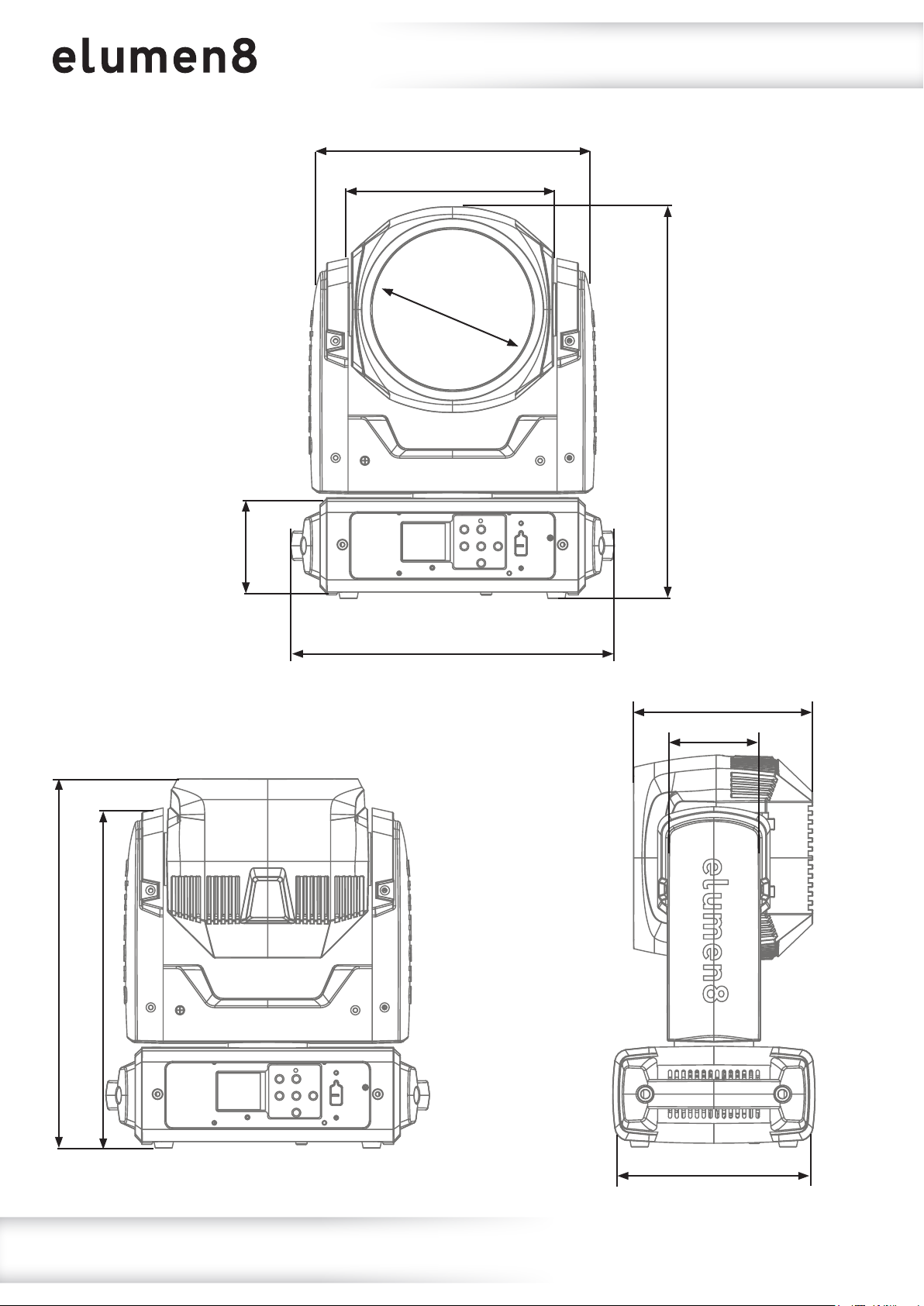

Technical specications
303mm
329mm
160mm
349mm
180mm
288mm
180mm
90mm
255mm
146mm
83mm

www.prolight.co.uk Evora 740ZP Zoom Wash User Manual 6
Technical specications
01 - LCD display
02 - Function buttons
03 - USB Port
04 - Fan
05 - Fuse T5A 250V
06 - PowerCON TRUE1 intput
07 - PowerCON TRUE1 output
08 - 5-Pin DMX output
09 - 5-Pin DMX input
10 - EtherCON output
11 - EtherCON intput
In the box: 1 x xture,
1 x omega clamp
& 1 x power cable
04
11
05
0706 0908 10
0301 02

www.prolight.co.uk Evora 740ZP Zoom Wash User Manual 7
Installation
Before installing the xture, the supporting structure (ie. truss) must be able to hold a minimum of 10
times the xtures weight without any deformation (eg. 15kg - 150kg point load). The xture must be
secured with a secondary safety attachment when being installed (ie. an appropriate safety cable).
Never stand directly below the xture when mounting, removing, and/or servicing.
Overhead installation requires experience and qualications to calculate working load limits, the
material being used at the installation area and periodic safety inspections of the xture and installation
material. If you do not have the relevant experience and/or qualications please do not attempt the
installation yourself. The installation should be checked annually by a qualied person.

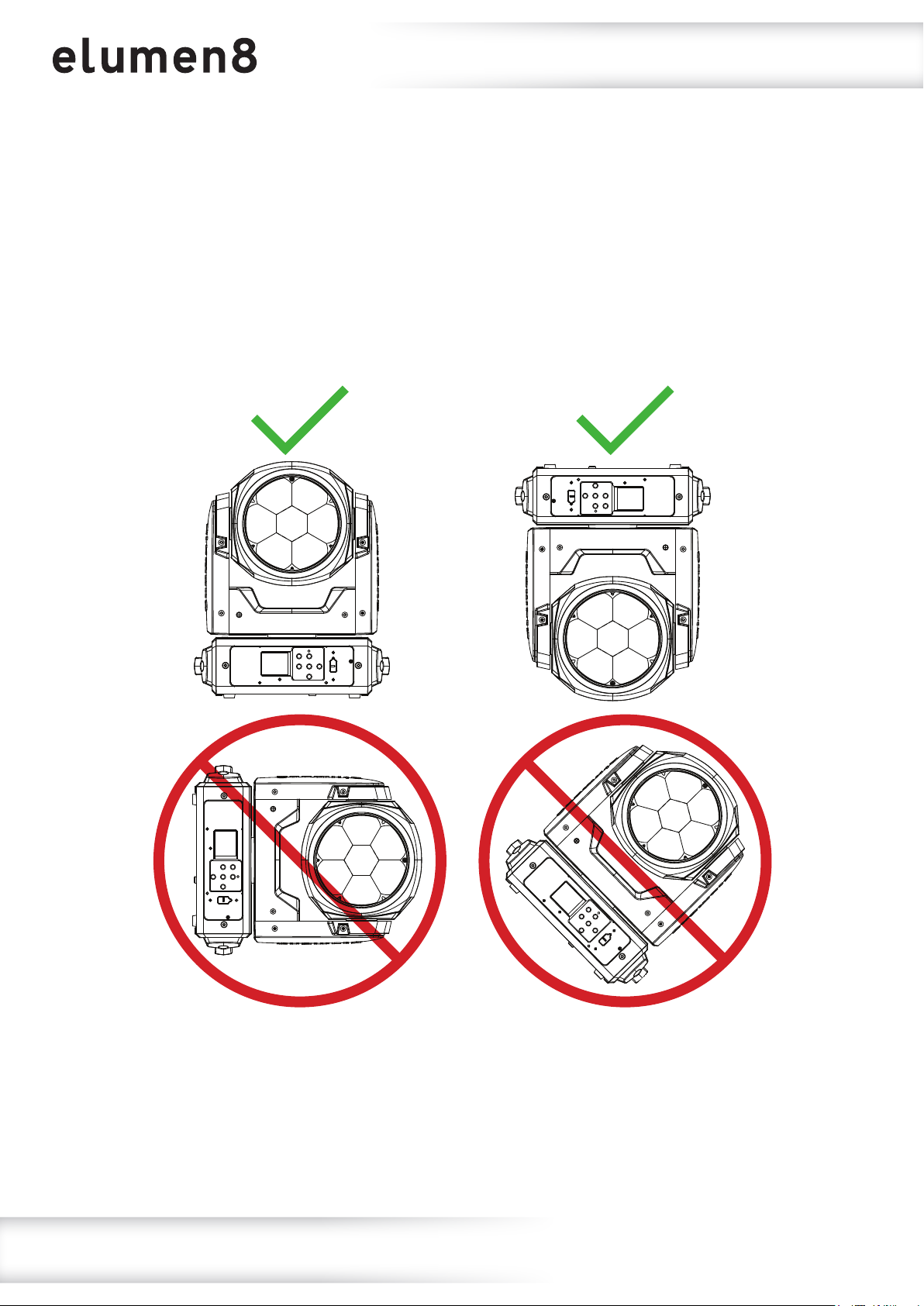

The Evora 740ZP Zoom Wash can be operated where the base of the xture is horizontally orientated, this
includes standing the xture upright on a at, level surface or hanging the xture upside down.
Do NOT install the xture in a sideways position or in a position where the base of the xture is
orientated vertically or at an angle. Always use a safety wire as an extra safety precaution to prevent
damage/injury in the event a clamp fails (see the next page for clamp installation). Never use the carry
handles for secondary attachments.

www.prolight.co.uk Evora 740ZP Zoom Wash User Manual 8
Installation
Installation:
1. Fasten each clamp to the omega clamps with a bolt and lock nut through the hole in the
omega clamp.
2. Align and insert the omega clamp quick-lock fasteners with the respective holes on the bottom
of the unit.
3. Tighten both locking fasteners clockwise on each omega clamp ensuring they’re fully secure.
4. Mount the xture onto your truss system via the clamps and tighten to ensure secure.
5. Pull the safety cable through the safety cable holes located on the metal base plate on the
underside of the xture and around the truss.
1
2
3
4
5

www.prolight.co.uk Evora 740ZP Zoom Wash User Manual 9
Operating instructions

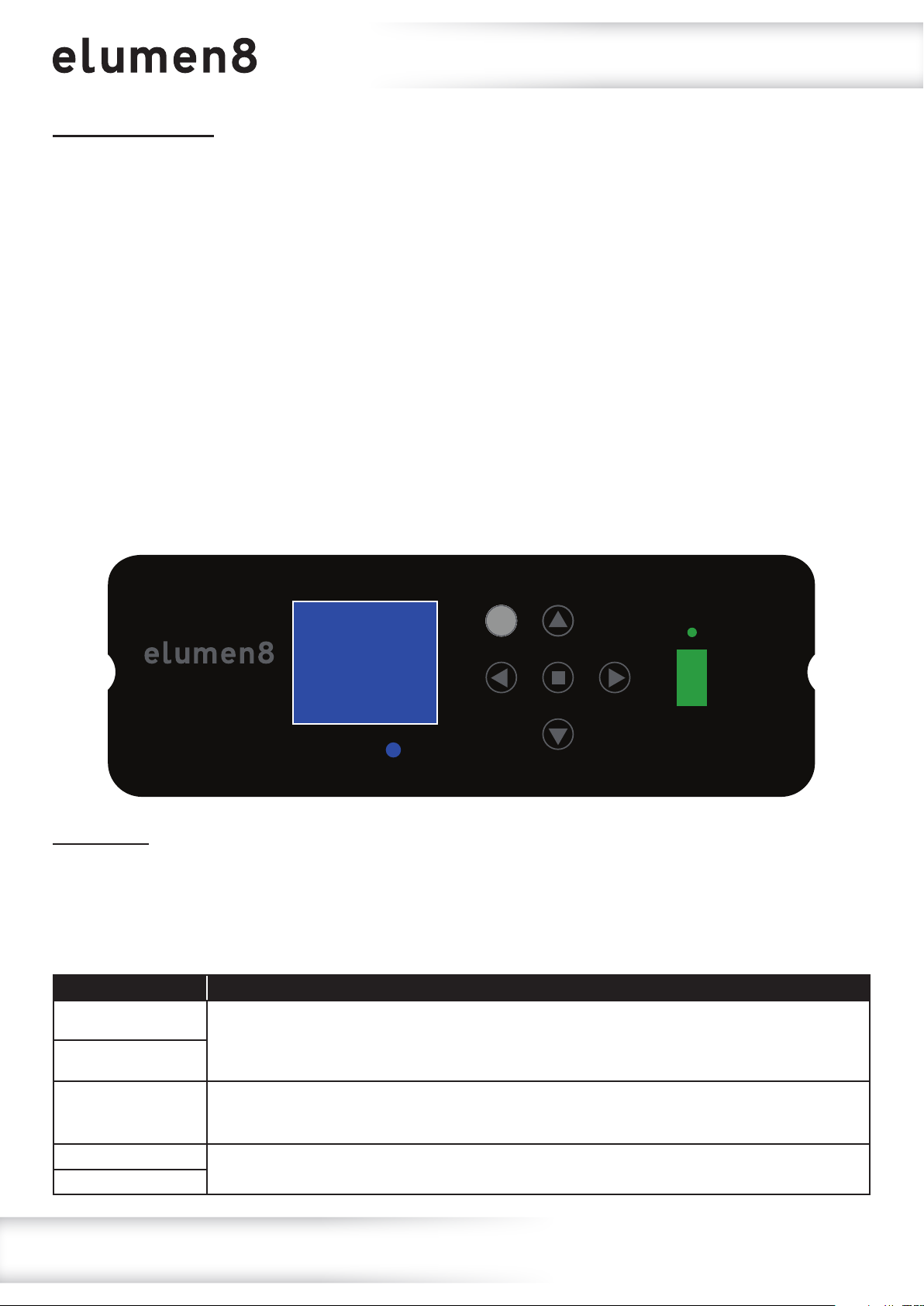

Control Panel Menu:
The LCD control panel situated on the front of the xture allows the user to access the menu system to
adjust the xtures settings.
When the unit has been powered on the display will show “Software Update” followed by “eLumen8
Evora 740ZP” and then “Please Wait...” followed by “Motor Reset Please Wait...”. The xture will then
return to its home screen.
Pressing the “MENU” button once will take the user to the xtures main menu. Using the “UP” and
“DOWN” buttons you can then navigate between the different options in the main menu. Pressing the
“ENTER” button on one of these options allows you to access the sub menu where you can use the
“LEFT” and “RIGHT” buttons to select option/value required. Once the option/value has been selected
press the “ENTER” button once more to conrm the setting.
To exit out of any of the above options, press and hold the “MENU” button.
The LCD control panel can be used via the internal battery. To access this press and hold the
“MENU” button for 5 seconds until the xtures home screen is displayed. The LCD display will
automatically shut off after 20 seconds of inactivity.
Error Codes:
When the unit is powered on the unit will automatically perform a motor reset. If there is a problem with
any of the motors the display will ash and display “Error:” along with a list of motor errors on the LCD
control panel. Please power the unit off and on to reset the motors again.
(The full list of errors codes can be found on the next page).
MENU UP
LEFT ENTER RIGHT
DOWN
USB
DRIVE
WIRELESS
INDICATOR
Evora 740ZP
Zoom Wash
Error Code Description
Pan The movement is not located in the default position after the reset. This message will appear if the
sensor has failed or magnet is missing, or if there is a motor failure (defective motor or a defective
motor IC drive on the main PCB). This error may also be displayed if the yoke was blocked during a
reset function.
Tilt
Zoom
The movement is not located in the default position after the reset. This message will appear if the
sensor has failed or magnet is missing, or if there is a motor failure (defective motor or a defective
motor IC drive on the main PCB).
Temp This message will appear if the sensor or fan has failed or the xtures temperature is too hot.
Fan

www.prolight.co.uk Evora 740ZP Zoom Wash User Manual 10
Operating instructions
Main Menu Sub Menu Options/Values (Default Settings in BOLD) Description
DMX Address 001-512 DMX Address Setting
Channel Mode
Basic (9 channel mode)
DMX Channel Modes
Basic Plus (14 channel mode)
Standard (21 channel mode)
Extend (50 channel mode)
Network
Input OFF Activate/deactivate
network input
ON
Protocol ArtNET Network Protocol Setting
sACN
Address
ServicePIN 000-255 (PIN = 050) Pin to enter Address Menu
Universe 000-255 Universe Setting
(PIN Required)
IP Address xxx.xxx.xxx.xxx
(002.000.000.002)
IP Address Setting
(PIN Required)
Subnet Mask xxx.xxx.xxx.xxx
(255.000.000.000)
IP Subnet Mask Setting
(PIN Required)
KlingNet Disable KlingNet Setting
Enable
DMX Output OFF Output network signal
via DMX
ON
Wireless
W-DMX OFF Activate/deactivate
W-DMX
ON
Transmit/
Receive
Transmit Congure W-DMX as a
transmitter/receiver
Receive
W-DMX Protocol G3 G3 Transmission Standard
G4S G4S Transmission Standard
Tx/Rx Link Link
Link with W-DMX devices.
W-DMX must be active for
all devices and the link
with a transmitter must be
suspended (Receive Reset)
UnLink Unlink all devices
Rx Reset
NO Do not suspend link with
transmitter
YES Suspend link with
transmitter

www.prolight.co.uk Evora 740ZP Zoom Wash User Manual 11
Operating instructions
Main Menu Sub Menu Options/Values (Default Settings in BOLD) Description
Stand Alone
Manual Control
Pan
000-255 Manual Control Settings
Pan Fine
Tilt
Tilt Fine
Strobe
Dimmer
Dimmer Fine
Zoom
Zoom Fine
Red
Green
Blue
White
CCT
Colour Macros
Programs
Show 1 Speed 000-255
Built-in Programs
Fade 000-255
Show 2 (pixel effects) Speed 000-255
Fade 000-255
Show 3 Speed 000-255
Fade 000-255
Show 4 (forward
facing)
Speed 000-255
Fade 000-255
Show 5 (forward
facing with pixel
effects)
Speed 000-255
Fade 000-255
Slave Mode
OFF
Slave Mode
Slave 1 (copies master)
Slave 2 (pan inverts master)
Slave 3 (pan inverts master with contrasting
colours)
Service
Display
Backlight 02M-60M (06M) LCD Backlight Setting
Rotate 180° OFF LCD Display Inverse Setting
ON
Key Lock
OFF Control Panel Lock Setting
(Press and hold MODE
for 3 seconds to unlock)
ON
DispFlash OFF Display Flash Setting
When No DMX Signal
ON
Power Saver Hibernation OFF Hibernation Setting
01M-099M

www.prolight.co.uk Evora 740ZP Zoom Wash User Manual 12
Operating instructions
Main Menu Sub Menu Options/Values (Default Settings in BOLD) Description
Service
DMX Fail
Blackout
DMX Fail Setting
Hold
Programs
Manual
Dimming Curve
Linear
Dimming Curve Setting
Square Law
Inv Square Law
S-curve
Dim Mode
Standard
Dimming Curve Speed
Stage
TV
Architectur
Theatre
Frequency
900Hz
LED Refresh Rate Setting
1000Hz
1100Hz
1200Hz
1300Hz
1400Hz
1500Hz
2500Hz
4000Hz
5000Hz
10kHz
15kHz
20kHz
25kHz
Pan/Tilt
Pan Inverse OFF Pan Inverse Setting
ON
Tilt Inverse OFF Tilt Inverse Setting
ON
Pan Angle 540 Pan Angle setting
630
Fans Head Fan
Auto
Head Fan Speed SettingLow
High

www.prolight.co.uk Evora 740ZP Zoom Wash User Manual 13
Operating instructions
Main Menu Sub Menu Options/Values (Default Settings in BOLD) Description
Service
Calibrate (PIN = 050)
Pan
000-255 Calibration Settings
Tilt
Dimmer
Dimmer Fine
Zoom
Zoom Fine
Red
Green
Blue
White
Auto Test Testing... Auto Test
Motor Reset
All
Motor ResetPan & Tilt
Head
USB Update OFF USB Update
ON
Factory OFF Factory Settings
ON
Information
Runtime
Total Time
Runtime Information
CurrentTime
Password (PIN = 050)
Reset
Temperature xxx° Temperature Information
Units C°/ F°
Fan Speed xxxxRPM Fan Speed Information
Model eLumen8 Evora 740ZP Model Information
RDM UID 0x09A5-xxxxxxxx RDM UID
Firmware
1U: Vx.x.xx
2U: Vx.x.xx
3U: Vx.x.xx
4U: Vx.x.xx
Software Version
Error. Info NONE/Pan, Tilt... (See page 11) Current Fixture Errors

www.prolight.co.uk Evora 740ZP Zoom Wash User Manual 14
Operating instructions
Channel Value Function Default Value
9CH 14CH 21CH 50CH
1 1 1 1 000-2512 Pan movement (8 bit) 127
- 2 2 000-255 Pan ne (16 bit) 127
2 2 3 3 000-255 Tilt movement (8 bit) 127
- 4 4 000-255 Tilt ne (16 bit) 127
- 5 5 000-255 Pan/tilt speed (fast-slow) 000
3 3 6 6 000-255 Master dimmer (0-100%) 000
- 7 7 000-255 Master dimmer ne 000
4488
Strobe
000-031 LED off
000
032-063 LED on
064-095 Strobe (slow-fast)
096-127 LED on
128-159 Pulse strobe (slow-fast)
160-191 LED on
192-223 Random strobe (slow-fast)
224-255 LED on
5 5 9 9 000-255 Red dimmer (0-100%) 000
6 6 10 10 000-255 Green dimmer (0-100%) 000
7 7 11 11 000-255 Blue dimmer (0-100%) 000
8 8 12 12 000-255 White dimmer (0-100%) 000
9 9 13 13 000-255 Zoom 000
- - 14 14 000-255 Zoom Fine 000
-15 15 15
000-005 No function
000
006-050 Show 1
051-100 Show 2 (pixel effects)
101-150 Show 3
151-200 Show 4 (forward facing)
201-255 Show 5 (forward facing with pixel effects)
-11 16 16 000-255 Show speed (slow-fast) 000
- 12 17 17 000-255 Show fade (min-max) 000
-13 18 18
CCT
000-034 1800K
000
... ...
118 6000K
... ...
128 6500K
... ...
255 12850K
DMX channel modes:

www.prolight.co.uk Evora 740ZP Zoom Wash User Manual 15
Operating instructions
Channel Value Function Default Value
-14 19 19
Colour Macros
0-10 Open (white)
000
11-12 Moroccan Pink (LEE 790)
13-14 Pink (LEE 157)
15-16 Special Rose Pink (LEE 332)
17-18 Follies Pink (LEE 328)
19-20 Fuchsia Pink (LEE 345)
21-22 Surprise Pink (LEE 194)
23-24 Congo Blue (LEE 181)
25-26 Tokyo Blue (LEE 071)
27-28 Deep Blue (LEE 120)
29-30 Just Blue (LEE 079)
31-32 Medium Blue (LEE 132)
33-34 Double CT Blue (LEE 200)
35-36 Slate Blue (LEE 161)
37-38 Full CT Blue (LEE 201)
39-40 Half CT Blue (LEE 202)
41-42 Steel Blue (LEE 117)
43-44 Lighter Blue (LEE 353)
45-46 Light Blue (LEE 118)
47-48 Medium Blue Green (LEE 116)
49-50 Dark Green (LEE 124)
51-52 Primary Green (LEE 139)
53-54 Moss Green (LEE 089)
55-56 Fern Green (LEE 122)
57-58 Jas Green (LEE 738)
59-60 Lime Green (LEE 088)
61-62 Spring Yellow (LEE 100)
63-64 Deep Amber (LEE 104)
65-66 Chrome Orange (LEE 179)
67-68 Orange (LEE 105)
69-70 Gold Amber (LEE 021)
71-72 Millennium Gold (LEE 778)
73-74 Deep Golden Amber (LEE 135)
75-76 Flame Red (LEE 164)
77-78 Red Magenta (LEE 113)
79-80 Medium Lavender (LEE 343)
81-82 Pure White (White LEDs only)
DMX channel modes:

www.prolight.co.uk Evora 740ZP Zoom Wash User Manual 16
Operating instructions
Channel Value Function Default Value
-14
(cont.)
19
(cont.)
19
(cont.)
Colour Macros (cont.)
83-84 Pure Red (Red LEDs only)
85-86 Pure Yellow (Red & Green LEDs only)
87-88 Pure Green (Green LEDs only)
89-90 Pure Cyan (Green & Blue LEDs only)
91-92 Pure Blue (Blue LEDs only)
93-94 Pure Magenta (Blue & Red LEDs only)
95-96 Peacock Blue (LEE 115)
97-98 Dark Lavender (LEE 180)
99-100 Double CT Orange (LEE 287)
101-102 Full CT Orange (LEE 204)
103-104 Half CT Orange (LEE 205)
105-106 Deep Straw (LEE 015)
107-190 No function
191-224 Colour scroll ascending (fast-slow)
224-229 Colour scroll stop
230-255 Colour scroll descending (slow-fast)
- - - 20 000-255 Red dimmer 1 (0-100%) 000
---21 000-255 Green dimmer 1 (0-100%) 000
- - - 22 000-255 Blue dimmer 1 (0-100%) 000
- - - 23 000-255 White dimmer 1 (0-100%) 000
---24 000-255 Red dimmer 2 (0-100%) 000
- - - 25 000-255 Green dimmer 2 (0-100%) 000
- - - 26 000-255 Blue dimmer 2 (0-100%) 000
---27 000-255 White dimmer 2 (0-100%) 000
- - - 28 000-255 Red dimmer 3 (0-100%) 000
- - - 29 000-255 Green dimmer 3 (0-100%) 000
- - - 30 000-255 Blue dimmer 3 (0-100%) 000
---31 000-255 White dimmer 3 (0-100%) 000
- - - 32 000-255 Red dimmer 4 (0-100%) 000
- - - 33 000-255 Green dimmer 4 (0-100%) 000
- - - 34 000-255 Blue dimmer 4 (0-100%) 000
- - - 35 000-255 White dimmer 4 (0-100%) 000
- - - 36 000-255 Red dimmer 5 (0-100%) 000
---37 000-255 Green dimmer 5 (0-100%) 000
- - - 38 000-255 Blue dimmer 5 (0-100%) 000
- - - 39 000-255 White dimmer 5 (0-100%) 000
DMX channel modes:

www.prolight.co.uk Evora 740ZP Zoom Wash User Manual 17
Operating instructions
Channel Value Function Default Value
- - - 40 000-255 Red dimmer 6 (0-100%) 000
---41 000-255 Green dimmer 6 (0-100%) 000
- - - 42 000-255 Blue dimmer 6 (0-100%) 000
- - - 43 000-255 White dimmer 6 (0-100%) 000
---44 000-255 Red dimmer 7 (0-100%) 000
- - - 45 000-255 Green dimmer 7 (0-100%) 000
- - - 46 000-255 Blue dimmer 7 (0-100%) 000
---47 000-255 White dimmer 7 (0-100%) 000
- - 20 48
Dimming Curves
000-005 No function
000
006-067 Linear
068-129 Square Law
130-191 Inverse Square Law
192-255 S-curve
- - 21 49
Dimming Modes
0-20 Standard dimming mode
000
21-40 Stage dimming mode
41-60 TV dimming mode
61-80 Architectural dimming mode
81-100 Theatre dimming mode
101-255 Default dimming mode (set on xture)
DMX channel modes:

www.prolight.co.uk Evora 740ZP Zoom Wash User Manual 18
DMX channel modes:
Channel Value Function Default Value
- - - 50
000-015 No function
000
016-024 Blackout while P/T on (hold 3s)
025-032 Blackout while P/T off (hold 5s)
033-040 Invert pan on (hold 3s)
041-048 Invert pan off (hold 5s)
049-056 Invert tilt on (hold 3s)
057-064 Invert tilt off (hold 5s)
065-072 Fan auto (hold 3s)
073-080 Fan low (hold 3s)
081-088 Fan high (hold 3s)
089-096 900Hz (hold 3s)
097-104 1000Hz (hold 3s)
105-112 1100Hz (hold 3s)
113-120 1200Hz (hold 3s)
121-128 1300Hz (hold 3s)
129-136 1400Hz (hold 3s)
137-144 1500Hz (hold 3s)
145-152 2500Hz (hold 3s)
153-160 4000Hz (hold 3s)
161-168 5000Hz (hold 3s)
169-176 10kHz (hold 3s)
177-184 15kHz (hold 3s)
185-192 20kHz (hold 3s)
193-200 25kHz (hold 3s)
201-208 Reset pan/tilt (hold 3s)
209-216 Reset head only (hold 3s)
217-224 Reset all motors (hold 3s)
225-232 KlingNet disable
233-240 KlingNet enable
241-255 No function
Operating instructions

www.prolight.co.uk Evora 740ZP Zoom Wash User Manual 19
04
07
02
01
0506
04
03
Display Position: PAN = 127, TILT = 000
Pixel orientation

www.prolight.co.uk Evora 740ZP Zoom Wash User Manual 20
Setting the DMX address:
The DMX mode enables the use of a universal DMX controller. Each xture requires a “start address”
from 1- 512. A xture requiring one or more channels for control begins to read the data on the channel
indicated by the start address. For example, a xture that occupies or uses 7 channels of DMX and was
addressed to start on DMX channel 100, would read data from channels: 100, 101, 102, 103, 104,
105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in
the chain starts at 107.
DMX 512:
DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent
xtures and controllers. A DMX controller sends DMX data instructions form the controller to the xture.
DMX data is sent as serial data that travels from xture to xture via the DATA “IN” and DATA “OUT”
XLR terminals located on all DMX xtures (most controllers only have a data “out” terminal).
DMX linking:
DMX is a language allowing all makes and models of different manufactures to be linked together
and operate from a single controller, as long as all xtures and the controller are DMX compliant.
To ensure proper DMX data transmission, when using several DMX xtures try to use the shortest
cable path possible. The order in which xtures are connected in a DMX line does not inuence the
DMX addressing. For example; a xture assigned to a DMX address of 1 may be placed anywhere in
a DMX line, at the beginning, at the end, or anywhere in the middle. When a xture is assigned a
DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit,
no matter where it is located in the DMX chain.

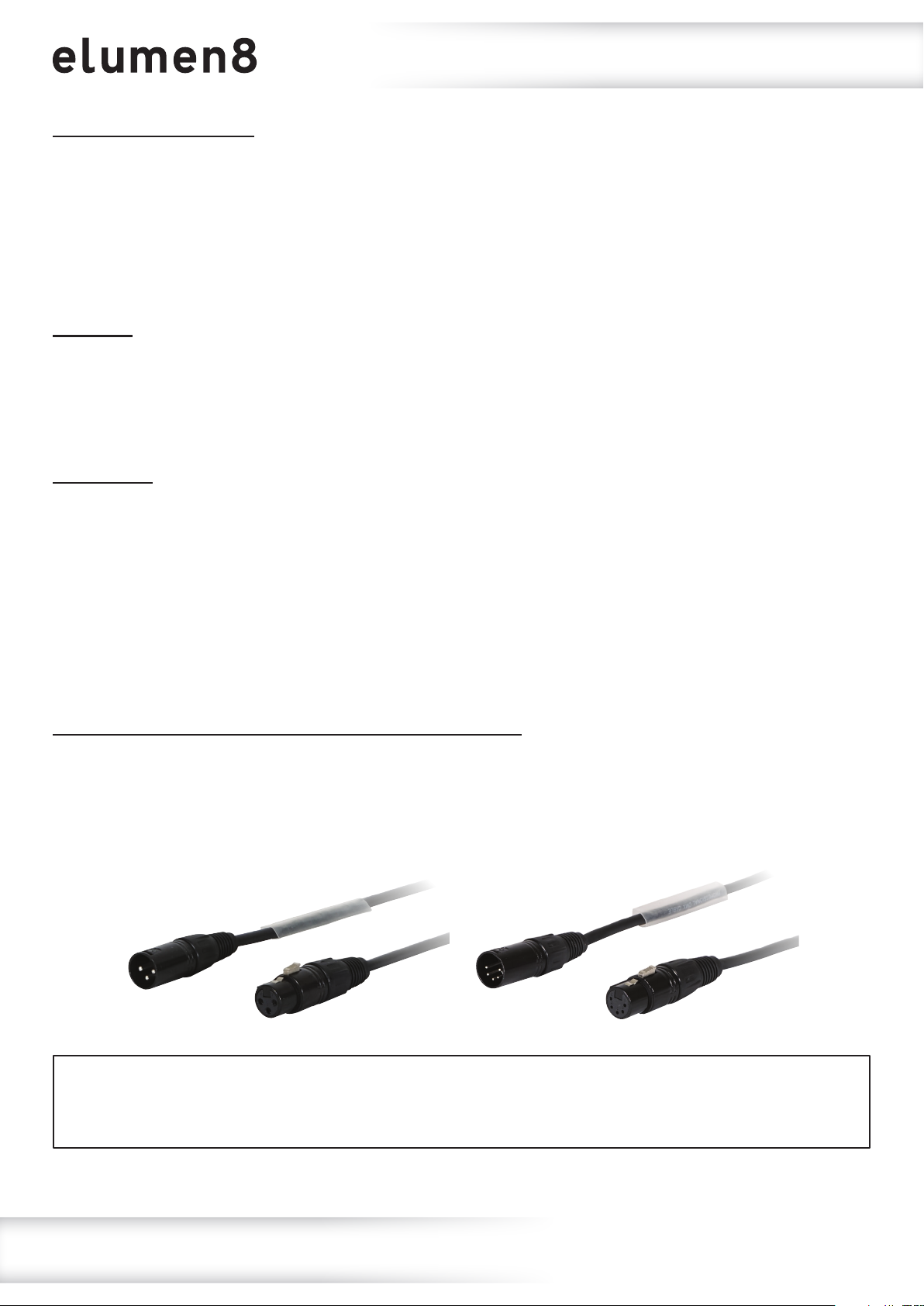

DATA cable (DMX cable) requirements (for DMX operation):
This xture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit.
Your unit requires either a standard 3-pin or 5-pin XLR connector for data input/output,
see images below.
Also remember that DMX cable must be daisy chained and cannot be split.
DMX setup
Further DMX cables can be purchased from all good sound and lighting suppliers or Prolight Concepts dealers.
Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m3-Pin:
CABL185 – 2m CABL187 – 5m CABL188 – 10m5-Pin:
