Thank you
for your trust and the purchase of our product. This quick start guide is supplied to help you get started
using this product.
Make sure you have received an undamaged product. If you do find transport damage, please contact
the seller from which you purchased the product, or the regional warehouse from which it was supplied.
Tack
för ditt förtroende och för köpet av vår produkt. Denna snabbstartsguide medföljer för att hjälpa dig att
börja använda produkten.
Kontrollera att produkten du har tagit emot är oskadad. Om du upptäcker en transportskada, var vänlig
kontakta återförsäljaren som du köpte produkten av, eller den lokala butiken som levererade den.
Takk
for at du valgte ett av våre produkter. Formålet med denne hurtigstartveiledningen er å hjelpe deg å
komme i gang med produktet.
Forsikre deg om at produktet du har mottatt, er uskadet. Hvis du oppdager en transportskade, kontakter
du selgeren du kjøpte produktet av eller lageret som produktet ble levert fra.
Tak,
fordi du har valgt at købe dette produkt. Formålet med denne hurtige startvejledning er at hjælpe dig i
gang med at bruge produktet.
Kontrollér, at apparatet ikke er beskadiget ved modtagelsen. Hvis du opdager en transportskade, skal du
kontakte salgsstedet eller det lager, som apparatet er afsendt fra.
Kiitos
luottamuksestasi ja tuotteemme ostamisesta. Tämä pikaopas on tarkoitettu auttamaan laitteen käytössä
alkuun pääsemisessä.
Tarkista, ettei tuotteessa ole vaurioita. Jos havaitset kuljetusvaurioita, ota yhteyttä tuotteen myyjään tai
paikalliseen myymälään, josta se toimitettiin.
Þakka þér fyrir
fyrir traust þitt og kaup á vöru okkar. Þessar flýtileiðbeiningar eru útvegaðar til að hjálpa þér að byrja að
nota tækið.
Gakktu úr skugga um að þú hafir fengið óskemmda vöru. Ef skemmdir vegna flutninga finnast skaltu
hafa samband við söluaðilann sem þú keyptir vöruna af, eða vöruhúsið á svæðinu þaðan sem því var
dreift.
Language: en-GB, sv-SE, nb-NO, da-DK, fi-FI, is-IS
Publication date: 2022-10-12
This document and its content, including written material and images, are the property of Elon Group AB.
You may not copy, reproduce, modify, republish or distribute this document or any of its content without
express written permission from Elon Group AB. © 2022, Elon Group AB. All rights reserved.

3
© 2022, Elon Group AB. All rights reserved.
This is a quick start guide. For your convenience you can find the user manual online, with full information about
installation, usage, maintenance, and troubleshooting. Please go to elvita.se and use the search function and the
product's model code to find the manual. To find the model code, see the instructions in section "Find the model code",
page 5.
Detta är en snabbstartsguide. Du hittar användarhandboken på webben, med full information om installation,
användning, underhåll och felsökning. Gå till elvita.se och använd sökfunktionen och produktens modellkod för att hitta
handboken. Hur du hittar modellkoden beskrivs i avsnitt "Hitta modellkoden", sida 26.
Dette er en hurtigveiledning. Brukerhåndboken er tilgjengelig i nettversjon, med all informasjon om installasjon, bruk,
vedlikehold og feilsøking. Gå til elvita.se, og bruk søkefunksjonen og produktets modellkode for å finne håndboken. Du
finner modellkoden ved å følge anvisningene i del "Finne modellkoden", side 46.
Dette er en hurtig startvejledning. For nemheds skyld kan du finde brugsanvisningen online med fuldstændige
oplysninger om installation, brug, vedligeholdelse og fejlfinding. Gå til elvita.se, og brug søgefunktionen og produktets
modelkode til at finde brugsanvisningen. Find modelkoden ved at se vejledningen i afsnit "Find modelkoden", side 66.
Tämä on pikaopas. Verkossa on kätevästi saatavilla käyttöohje, joka sisältää kattavat tiedot asentamisesta, käytöstä,
huollosta ja vianmäärityksestä. Löydät käyttöohjeen menemällä osoitteeseen elvita.se ja etsimällä tuotteen mallikoodilla
hakutoiminnosta. Löydät mallikoodin noudattamalla ohjeita kappale "Etsi mallikoodi", sivu 86.
Þetta eru flýtileiðbeiningar. Þér til hægðarauka getur þú fundir notendahandbókina á netinu, með öllum upplýsingum
um uppsetningu, notkun, viðhald og bilanagreiningu. Farðu á elvita.se og notaðu leitaraðgerðina og gerðarkóða vörunnar
til að finna handbókina. Til að finna gerðarkóðann skal sjá leiðbeiningarnar í hluti .
CONTENTS/INNEHÅLL/INNHOLD/INDHOLD/SISÄLLYSLUETTELO/EFNISYFIRLIT
ENGLISH ........................................................................................................................................... 4
SVENSKA ........................................................................................................................................ 25
NORSK............................................................................................................................................ 45
DANSK............................................................................................................................................ 65
SUOMI ............................................................................................................................................ 85
ÍSLENSKA .......................................................................................................................................105

4 Contents - ENGLISH
© 2022, Elon Group AB. All rights reserved.
Contents
READ THIS! 5
SAFETY 6
Admonitions .............................................................................................................................. 6
Intended use ............................................................................................................................. 6
Safety for children and people with disabilities........................................................................ 6
General safety........................................................................................................................... 7
Safety during installation .......................................................................................................... 7
Safety during operation ............................................................................................................ 8
Safety during maintenance ...................................................................................................... 9
Disposal..................................................................................................................................... 10
QUICK START 11
Quick start ................................................................................................................................. 11
GETTING STARTED 12
Before you use the hob............................................................................................................. 12
Hob overview ............................................................................................................................ 12
Control panel............................................................................................................................. 12
Installation parts and accessories............................................................................................. 15
Use the child lock ...................................................................................................................... 15
COOKING WITH THE HOB 16
Hob power levels ...................................................................................................................... 16
Cooking recommendations....................................................................................................... 16
INSTALLATION 18
Unpack the hob......................................................................................................................... 18
Installation options and requirements ...................................................................................... 18
Install the hob............................................................................................................................ 19
Activate the carbon filter countdown........................................................................................ 22
Electrical wiring ......................................................................................................................... 22

Read this! - ENGLISH 5
© 2022, Elon Group AB. All rights reserved.
READ THIS!
WARNING!
Read the safety information and the full instructions before installing or using this product.
Find the full instructions
You will find the full and most recent user information for your product model on the web page www.elvita.se. This
includes details about installation, usage, maintenance, and troubleshooting. You will need the model code to search for
the information.
Find the model code
The model code is printed on a label on the product.
NOTE!
This product and label text are examples. Your
product and text may have a different look
and content.

6 Safety - ENGLISH
© 2022, Elon Group AB. All rights reserved.
SAFETY
Carefully read the instructions before you install and use the product. Save the instructions and keep them near the
product for future reference. All kinds of warranties shall be invalid if these instructions are not followed.
Admonitions
DANGER!
Used when there is a risk for personal injury or death.
WARNING!
Used when there is a risk for personal injury.
CAUTION!
Used when there is a risk for damage to the product.
NOTE!
General information that you should be aware of.
Helpful tips that you may find useful.
Intended use
This product is intended
• for domestic use only.
• for heating and cooking various foodstuff.
• for aspiration of fumes from said heating and cooking.
This product is not intended
• for other purposes than cooking, for example room heating or similar purposes.
Safety for children and people with disabilities
WARNING!
• Keep children younger than 8 years old away from the product unless continuously supervised.
• Only let the following groups use the product if they are supervised or if instructions are provided to them
about how to use the appliance in a safe way. They must understand the hazards involved.
– Children. (Children younger than 8 years old must be continuously supervised.)
– Persons with reduced physical, sensory or mental capabilities.
– Persons with lack of experience and knowledge.
• People with pacemakers and active implants should check whether their device is compatible with the
product before using the induction hob. Their appliance may cause interference that will disturb the
correct operation of the product. There is no guarantee that 100% of the appliance on the market will fulfil
the electromagnetic compatibility with the product. It is also possible that people wearing other devices
such as hearing aids may experience some discomfort.
WARNING!
• Do not let children play with the product.
• Do not let children clean the product without supervision.
• Do not let children perform any maintenance of the product without supervision.

Safety - ENGLISH 7
© 2022, Elon Group AB. All rights reserved.
General safety
DANGER!
Electrocution hazard!
Never turn on a malfunctioning product. If the product is malfunctioning, pull the power plug, switch off
the circuit breaker and contact the support.
•A malfunctioning product may cause electric shock.
•Water leaking into the product may cause electric shock.
•Do not use high-pressure cleaners or steam cleaners to clean the product.
DANGER!
Risk of fire!
Do not place or store any objects on the hob when not using the hob for cooking.
WARNING!
If the power cord is damaged, it must be replaced by its manufacturer or its authorised technical service or a
qualified electrician, in order to avoid any dangerous situation.
WARNING!
In case of fire adjacent to the product, unplug the product and turn off the main switch.
Safety during installation
DANGER!
Use protective gloves during the installation of the product. There is a danger of physical injury due to
sharp edges.
WARNING!
• The installation or maintenance of the product must be carried out by a qualified technician in
accordance with the manufacturer's instructions and in compliance with the local safety regulations.
• To comply with current safety regulations, use a standard-compliant switch for the installation which
ensures complete disconnection of the network during overvoltage conditions.
• Follow the stated facts in the regulations of the local competent authorities for safety measures and
technical measures to be adopted for smoke evacuation.
• Do not plug in the product before the installation.
• The power cord must be plugged into a grounded power outlet.
• Do not use multiple sockets or extensions.
• The power cord must be long enough to allow the product to be connected to the mains.
• After completing the installation, the user should no longer be able to access the electrical components.
• Make sure all parts are whole before installing the product. If there is a broken part, contact the
manufacturer and do not continue the installation.
• Make sure that the electrical voltage and power values are compatible with the network and the
connection cord before connecting the product to the electricity network. In case of doubt, contact a
qualified electrical expert.
WARNING!
• Do not connect the air outlet pipe of this product to air ducts which may contain smoke from other
sources, for example devices that use gas or other fuels.

8 Safety - ENGLISH
© 2022, Elon Group AB. All rights reserved.
CAUTION!
• The furniture that the product will be mounted on should be resistant to 90 °C temperature.
• The reinforcing material used should be heat and moisture resistant.
• Make sure that the durability of the furniture that the product will be mounted on should be ensured after
the cutting operations have been completed. Especially for thin plates, the carrying capacity and
durability should be provided with suitable support parts. Consider the weight of the product by including
additional loads. The weight of the product is specified on the label on the package.
Safety during operation
DANGER!
Warning - Death hazard!
Combustion gases may cause life-threatening danger due to poisoning. Ventilated combustion products,
for example heaters (shower heaters, water heaters, other heaters) burning gas, oil, wood, or coal, use
air from their surroundings for combustion, and discharge the waste gas through a waste gas system (for
example a flue). When a cooker hood is active, it pulls in air from the kitchen and neighbouring rooms. If
sufficient air supply is not provided, negative air pressure will occur, causing the toxic combustion gas in
the flue and waste gas channel to flow back into the room. During simultaneous use of the cooker hood's
air discharge outlet and any ventilated combustion product, make sure there is enough air inflow.
WARNING!
Risk of burns!
• Do not touch hot parts. Cookware and accessible parts of the product may become very hot during use.
• There is a risk of burns from residual heat. The cooking zone is indirectly heated by the heated cookware
and stays hot for a while even after it is turned off.
• Avoid contact with cloth or other flammable materials before all components of the hob are sufficiently
cooled.
• Do not place metal objects like knives, forks, spoons or lids on the cooking zones, as these objects can
become very hot.
• In case of deflagration, turn off the product and cover the flame. Never use water to extinguish the fire.
• Unsupervised cooking on an oil stove can be dangerous and cause a fire.
• Overheated greases and oils can easily catch fire. When cooking food rich in oil, such as frying, keep it
under supervision.
WARNING!
Risk of electric shock!
• If the hob surface breaks, immediately disconnect the product from the mains to avoid possible electric
shock. Do not use the product.
• Use only hob guards designed by the manufacturer or indicated by the manufacturer of the product in
the instructions. The use of inappropriate guards can cause accidents.
WARNING!
• Always supervise the cooking process continuously.
• Do not use high power function such as a booster for heating some liquids such as cooking oil. High
temperature can be dangerous. In these cases, it is recommended to use a lower heating power.
• Do not use external timers or separate remote control systems to control the product.
• Reduce heat input when boiling or heating liquids to prevent liquids from overflowing.
• Always turn off the cooking zone after use by using the touch controls. Do not rely on the cooking zones
automatic turn off when you have removed the cookware.
• When your product is in operation and there is a water overflow or a wet cloth is placed on the hob, your
product shuts down to protect itself. To restart your product, you must unplug the power cord and plug it
in again.

Safety - ENGLISH 9
© 2022, Elon Group AB. All rights reserved.
WARNING!
• Be careful when using the product simultaneously with combustion products, for example heaters that
use gas, diesel fuels, coal, wood, etc., which use air from the same space. The cooker hood leads away
air from the shared space and could adversely affect the combustion. This warning does not apply to
uses without a flue.
• When the product is used simultaneously with products that use gas or other fuels, there must be
sufficient ventilation in the room.
CAUTION!
• The surface is very resistant to temperature changes but can be damaged by falling, heavy objects. The
surface might break immediately or a while after being hit.
• The hob automatically reduces the power level of the cooking zones when high heat is detected.
• Do not insert equipment between the cooking zone and the bottom of the cookware, for example
equipment that makes it possible to use non-magnetic cookware. Use of such equipment may cause
burns and damage on the hob. Make sure the cookware is centred on the cooking zone.
• Do not push pots and pans. Lift and carry cookware to avoid discolouration due to surface damage and
pot friction.
• Make sure the cooking zone and the bottom of the cookware are clean and dry to improve performance
and prevent surface damage.
• Do not place hot pots or pans or a wet towel on the surface of the control panel.
• Do not leave an empty pot or pan on the heater components or without a container.
• Do not use the hob as a storage area as it may result in scratches or damages.
• Do not use aluminium or plastic cookware on hot cooking zones.
• Do not place any plastic objects or aluminium foil on the hob.
• Only use cookware with a flat bottom. Concave or convex bottoms, whether intended or not, may affect
the heating process and damage the hob surface and the cookware.
Safety during maintenance
DANGER!
Use protective gloves during the installation of the product. There is a danger of physical injury due to
sharp edges.
WARNING!
• Do not perform any electrical repairs on the product.
• Do not repair or replace any part of the product, unless it is specifically stated in the instructions.
WARNING!
Do not let children clean the product without supervision.
WARNING!
Before cleaning or performing maintenance, disconnect the product from the mains by unplugging or by
turning off the cabinet's main switch.
WARNING!
• Failure to follow the instructions regarding the cleaning of the product and the cleaning and replacement
of the filters creates risk of fire.
• Clean the inside and outside of the product frequently (at least once a month).
WARNING!
• Do not use wrong or defective spare parts. They may cause injuries or problems such as damages,
malfunctions or complete failure in the product.
• If unauthorised accessories or unauthorised spare parts are used, the manufacturer's warranty is
terminated.
• Purchase spare parts and accessories via contracted seller or customer service.

10 Safety - ENGLISH
© 2022, Elon Group AB. All rights reserved.
WARNING!
• Clean the metal grease filter at least every 2weeks when the metal grease filter cleaning warning is
displayed. There is a risk of fire due to oil sediments in metal grease filter.
• Never operate the product without a metal grease filter.
WARNING!
Do not clean the active carbon filter or the water tank in the dishwasher. Wash the water tank with a soft cloth
in warm soapy water, the active carbon filter can not be cleaned but needs to be replaced when needed.
CAUTION!
• Do not use steam cleaners to clean the product.
• Do not use dry cloths, sponges that may scratch, materials that require rubbing to clean the hob surface.
Aggressive cleaning agents containing sand, soda, acid or chlorine and other unsuitable liquid cleaners
may also damage the surface.
• Never use aggressive and/or abrasive cleaning agents such as abrasive dishwashing sponges or stain
removers because the surface of the product could be damaged and discoloured. Use cleaning and
protective substances that are recommend by the manufacturer.
• Do not use excessively effective, acidic or alkaline cleaning agents.
• Do not apply spray cleaning supplies directly to the product.
• Do not keep flammable and/or heavy decorative items on the product.
• Material damage may occur due to falling of the metal grease filter. Remove the filter carefully using both
hands.
• Do not put the water tank in the dishwasher.
• Always wait for the product to cool down before cleaning.
Disposal
Dispose of packaging in an environmentally-friendly manner. Recycling packaging, while observing national
and local regulations, can reduce the consumption of raw materials and the amount of waste in landfill
sites.
This product is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic
Equipment (WEEE). The symbol on the product or on its packaging indicates that this product should not be
treated as household waste. Instead it shall be handed over to the applicable collection point for the
recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for
the environment and human health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product, please contact the relevant
municipal body in charge of waste management, your household waste disposal service or the store where
you purchased the product.

Quick start - ENGLISH 11
© 2022, Elon Group AB. All rights reserved.

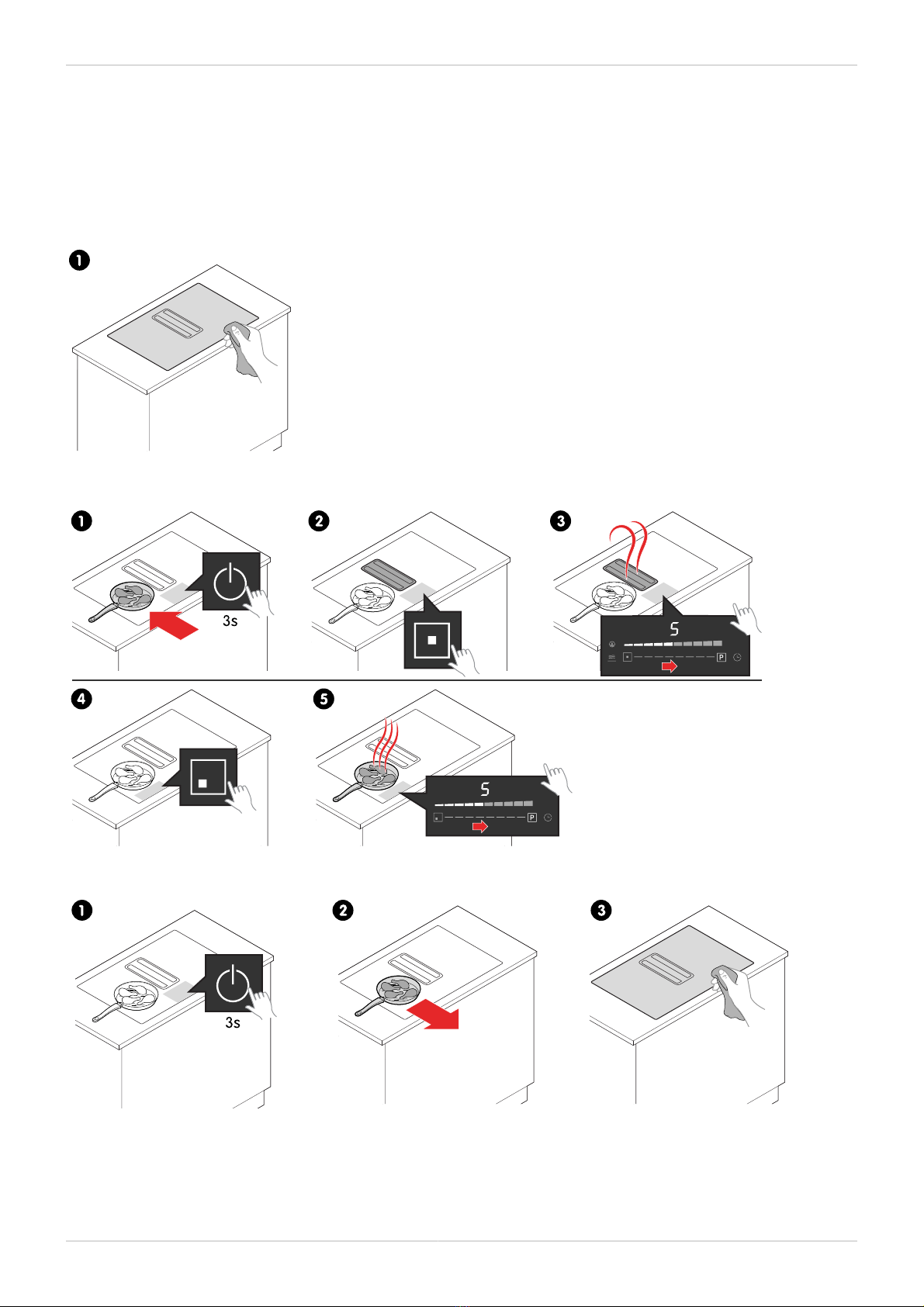

QUICK START
Quick start
Before cooking
Cooking
After cooking

12 Getting started - ENGLISH
© 2022, Elon Group AB. All rights reserved.
GETTING STARTED
Before you use the hob
CAUTION!
Never use aggressive and/or abrasive cleaning agents such as abrasive dishwashing sponges or stain
removers because the surface of the product could be damaged and discoloured. Use cleaning and
protective substances that are recommend by the manufacturer.
1. Remove all transport packaging and accessories from the hob and cooker hood.
2. Clean all accessories and utensils with warm water and regular detergent.
3. Install all accessories.
4. Clean the hob's glass-ceramic surface with a damp cloth and some washing-up liquid.

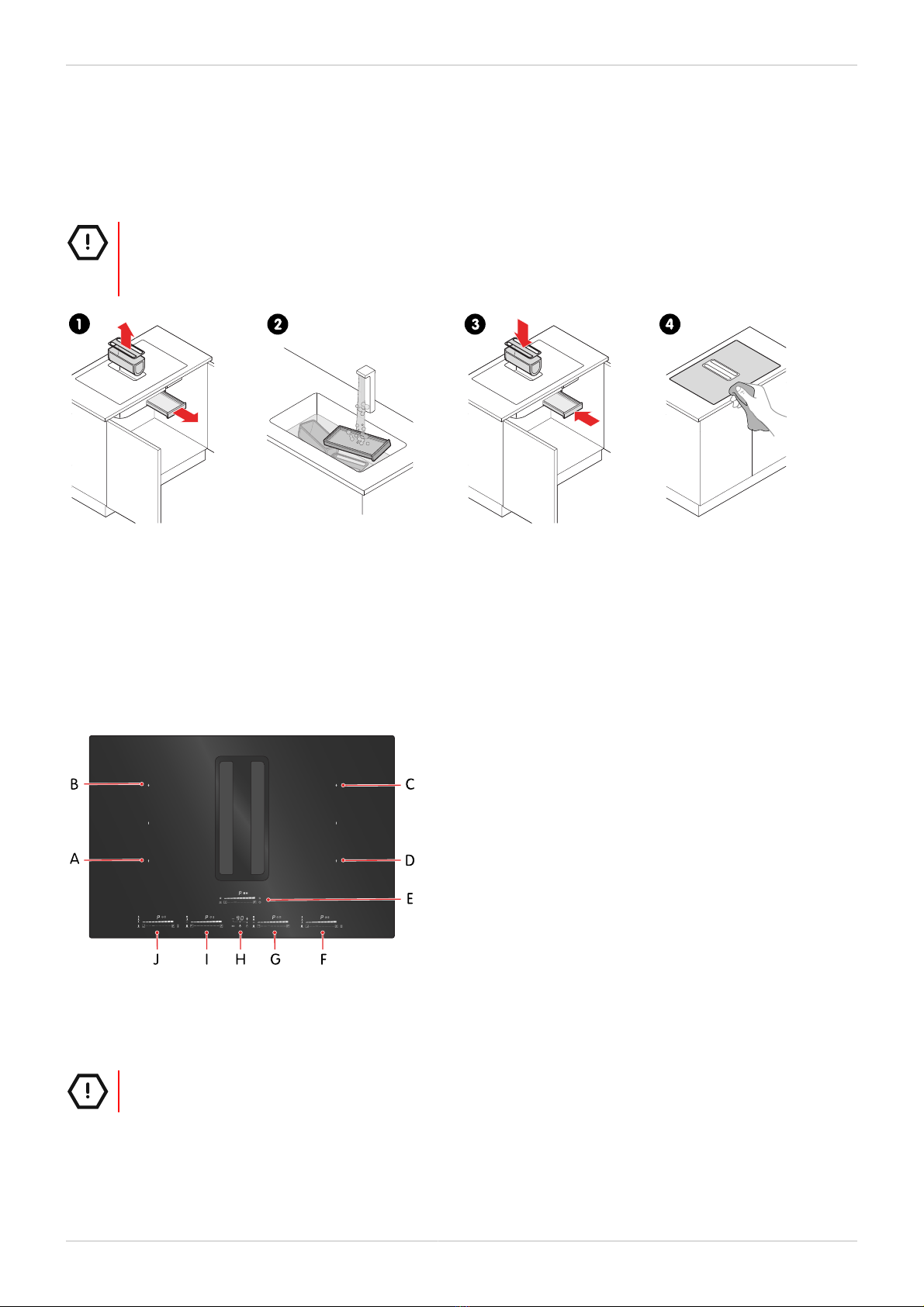

Hob overview
A. Front left cooking zone
B. Rear left cooking zone
C. Rear right cooking zone
D. Front right cooking zone
E. Hood panel
F. Hob panel, front right cooking zone
G. Hob panel, rear right cooking zone
H. Timer panel
I. Hob panel, rear left cooking zone
J. Hob panel, front left cooking zone
Control panel
Use the touch buttons to control the hob.
CAUTION!
Do not place a wet towel or a very hot pot on the control panel.

Getting started - ENGLISH 13
© 2022, Elon Group AB. All rights reserved.
Hob buttons
A. Temperature mode
B. On/Off, cooking zone
C. Power level
D. Power boost
Hob symbols
A. Temperature mode levels
B. Power level
C. Display
D. Timer
E. Bridge function
Hood buttons
A. Automatic ventilation
B. On/Off, hood
C. Ventilation level
D. Power boost
E. Timer

14 Getting started - ENGLISH
© 2022, Elon Group AB. All rights reserved.

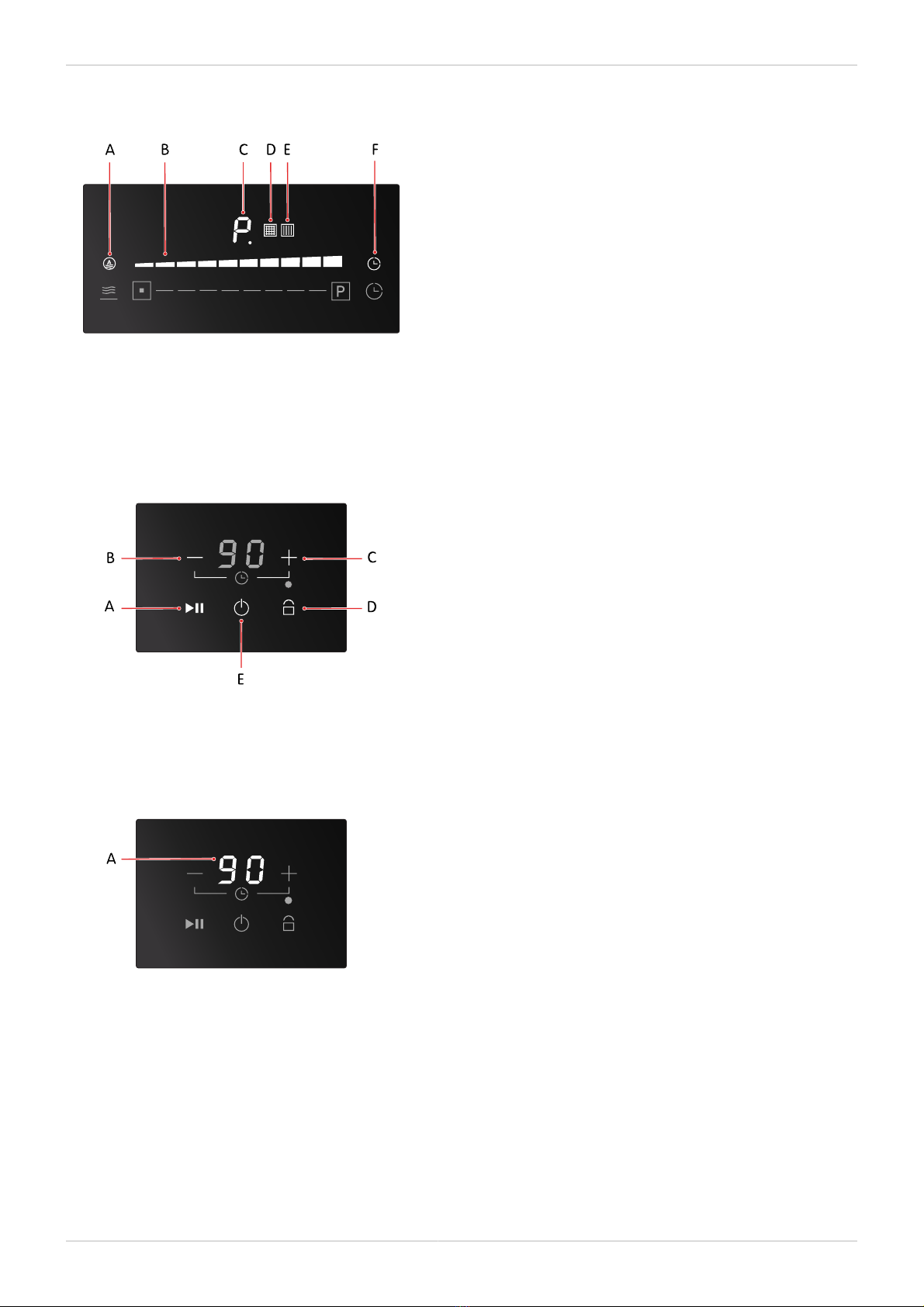

Hood symbols
A. Automatic ventilation
B. Ventilation level
C. Display
D. Metal grease filter warning
E. Carbon filter warning
F. Timer
Timer buttons
A. Pause/Resume
B. Time decrease
C. Time increase
D. Child lock
E. On/Off, hob
Timer symbols
A. Time

Getting started - ENGLISH 15
© 2022, Elon Group AB. All rights reserved.
Installation parts and accessories
A. Decorative lid
B. Metal grease filter
C. Body
D. Elbow pipe
E. Rectangular pipes
F. Flexi pipe
G. Sealing Tape
H. Water tank
I. Carbon filter
J. Carbon filter housing
K. Sealing and heat isolating tape
Use the child lock
Use the child lock to prevent accidental operation of the hob. When the child lock is active, all touch symbols except are
locked.
1. To turn on the child lock, touch and hold for 3 seconds.
The child lock is turned on and LO is displayed.
2. To turn off the child lock, touch and hold for 3 seconds.
The child lock is turned off and LO is not displayed.
If you turn off your hob while the child lock is turned on, you cannot activate your hob without disabling the child lock.

16 Cooking with the hob - ENGLISH
© 2022, Elon Group AB. All rights reserved.
COOKING WITH THE HOB
Hob power levels
Select the power level best suited for what you want to do.
Here are some examples of how to use the different power levels.
Power level Use for
0 (off) Standby mode. Use only remaining heat.
1-2 (low power) Melting, defrosting small quantities and mixing. Keep food warm.
2-3 (medium power) Cooking, boiling, thickening and mixing. For example cooking foods with liquid (less than 1 litre)
for a long time.
3-4 (medium power) Cooking, boiling, thickening and mixing. For example cooking foods with liquid for a long time.
4-5 (medium power) Cooking (prolonged), frying, sautéing, moderate boiling and grilling. Slowly cook larger
quantities.
6-7 (high power) Frying, cooking, boiling, sautéing (medium duration, 12-22 min), preheating and grilling.
7-8 (high power) Roasting, sautéing (short duration, 7-12 min), boiling and grilling.
8-9 (max power) Frying and boiling. Cook large quantities. Start cooking faster. Fry frozen food.
Power boost
(max power) Quick heating. Start the cooking process. Heat large quantities of water. Cook very large quantities of food. Fry frozen food.
Cooking recommendations
Select the power level best suited for what you want to do.
Here are some examples of how to use the power levels.
Food type First step Second step
Cooking method Power level Cooking method Power level
Pasta (fresh) Heating water 9-booster Cooking pasta and
continuing boiling 6-7
Rice Frying 7-8 Cooking 3-4
Vegetable (boiling) Boiling water 9-booster Boiling 6-7
Vegetable (fried) Heating oil 9-booster Frying 6-7
Vegetable
(sautéed) Heating accessories 7-8 Cooking 5-6
Meat (poaching) Heating pots 6-7 Cooking 4-5
Meat (rosto) Sealing 7-8 Cooking 4-5
Meat (pan frying) Frying with oil* 7-8 Cooking 4-5
Chicken (thawing) Heating
accessories 1 Defrost 1
Chicken (pan
frying) Cooking 7 Cooking chicken and continuing boiling 6-7
Potatoes (fried) Heating oil 9 Frying 9

Cooking with the hob - ENGLISH 17
© 2022, Elon Group AB. All rights reserved.
Food type First step Second step
Cooking method Power level Cooking method Power level
Egg (fried) Heating pan with
butter or oily food 6-7 Cooking 5-6
Egg (boiling) Boiling water 9-booster Boiling 6-7
Bechamel sauce Boiling 6-7 Cooking 6-7
Pancakes Heating
accessories 6 Baking 6
Pudding Heating milk 5-6 Continuing simmering 3-4
Custard Heating milk 5-6 Cooking 5-6
Chocolate (melted) Start melting 1-2 Melting 1-2
Rice pudding Started cooking 6-7 Cooking (boiling) 3-4
NOTE!
* Oil starts heating in the 3rd minute.

18 Installation - ENGLISH
© 2022, Elon Group AB. All rights reserved.
INSTALLATION
Unpack the hob
DANGER!
Warning - Choking Hazard
Remove the packaging material, as it can be dangerous for children. Never allow children to play with
packaging materials.
1. Check the packaging and product for any damage. If the packaging or product is damaged, contact the transport
operator and the retailer where the product was purchased.

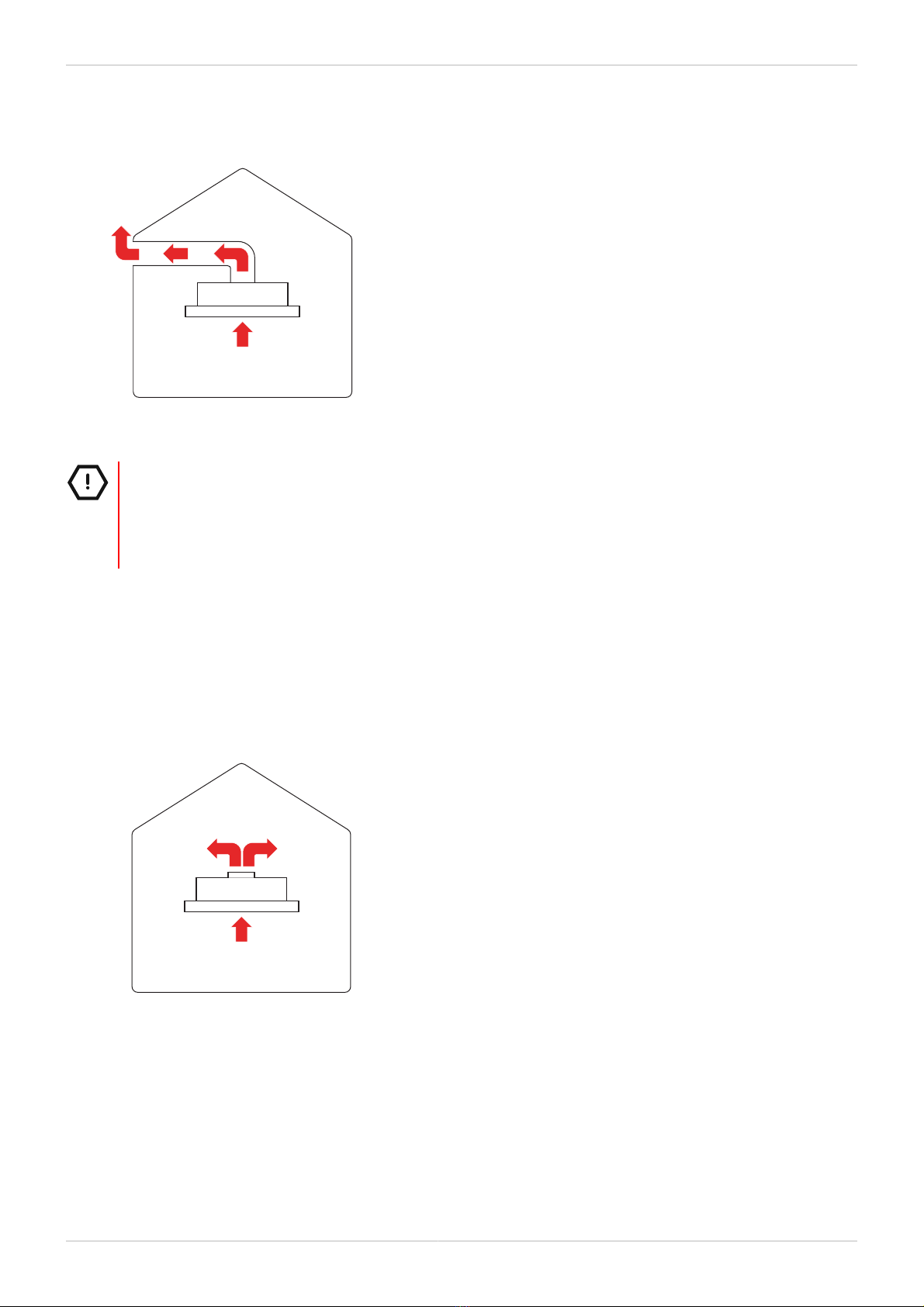

Installation options and requirements
This cooker hood can be installed without carbon filter or with carbon filter. In flue-connected use, the cooker hood must
be connected to a flue that will discharge the air outdoors.
DANGER!
Warning - Death hazard!
Combustion gases may cause life-threatening danger due to poisoning. Ventilated combustion products,
for example heaters (shower heaters, water heaters, other heaters) burning gas, oil, wood, or coal, use
air from their surroundings for combustion, and discharge the waste gas through a waste gas system (for
example a flue). When a cooker hood is active, it pulls in air from the kitchen and neighbouring rooms. If
sufficient air supply is not provided, negative air pressure will occur, causing the toxic combustion gas in
the flue and waste gas channel to flow back into the room. During simultaneous use of the cooker hood's
air discharge outlet and any ventilated combustion product, make sure there is enough air inflow.
WARNING!
• Comply with the rules and instructions regarding discharge of outgoing air, stipulated by the relevant
authorities.
• When you make a flue connection for your product, the length of the duct connection as well as the
number of elbows must be as minimum as possible. Minimising the way from the flue to the pipe system
maximises the operating efficiency of the cooker hood.
WARNING!
Do not connect the cooker hood to:
• A flue used for discharging fume generated by products that use gas or other fuels;
• Air ducts which could contain smoke.

Installation - ENGLISH 19
© 2022, Elon Group AB. All rights reserved.
Installation without carbon filter
The absorbed air is cleaned by the grease filters and is discharged through a piping system.
Installation requirements:
CAUTION!
Exhaust air must not be transferred to;
• An active smoke flue;
• An active waste gas flue;
• A flue used for ventilation of spaces where heat sources are installed.
• If the installation requires transfer of exhaust air to an inactive smoke or waste gas flue, permission must be obtained
from an authorised chimney sweep.
• If exhaust air is discharged through the external wall, a telescopic wall safe must be used.
• Consult an authorised retailer to know the different opportunities available for flue connection. Accessories required
for flue connection can be bought from an authorised service provider.
Installation with carbon filter
The absorbed air is cleaned by the grease filters and an active carbon filter and is transferred back to the kitchen.
Installation requirements:
• An active carbon filter must be installed, in order to catch substances which cause stink in the circulating air.
• Consult an authorised retailer to know the different opportunities available for enabling the cooker hood to function in
circulating air mode. Accessories required for this process can be bought from an authorised service provider.
Install the hob
Make sure to mount the hob considering the measurements and other factors described in this section.

20 Installation - ENGLISH
© 2022, Elon Group AB. All rights reserved.
WARNING!
Use protective equipment during installation because of sharp edges inside the product.
WARNING!
Make sure the adjacent walls and furniture are temperature resistant to at least 90°C.
CAUTION!
• Check the durability of the furniture that the hob will be mounted in.
• Check the thickness and carrying capacity of the benchtop that will carry the hob. Check the durability
after the cuts are done. See section for the net weight of the product. Add supporting parts if needed.
• The cabinet and the benchtop material and surface must be heat- and moisture resistant. Cover the cut
surfaces so that they are heat resistant and waterproof.
• The cross-sectional surface angle to the working plate should be 90°.
• Clean the sawdust after cutting.
• Leave 450 mm space to allow removal of the water tank.
