elvita CSF1600V User manual

User manual
Kitchen Hood
Bruksanvisning
Köksfläkt
CSF1600V

2
© 2022, Elon Group AB. All rights reserved.
Thank you
for your trust and the purchase of our product. This user manual is supplied to help you
use this product. The instructions should allow you to learn about your new product as
quickly as possible.
Make sure you have received an undamaged product. If you do find transport damage,
please contact the seller from which you purchased the product, or the regional
warehouse from which it was supplied.
Tack
för ditt förtroende och för köpet av vår produkt. Denna bruksanvisning medföljer för att hjälpa
dig att använda produkten. Med hjälp av instruktionerna kan du lära dig om din nya produkt
så snabbt som möjligt.
Kontrollera att produkten du har tagit emot är oskadad. Om du upptäcker en transportskada,
var vänlig kontakta återförsäljaren som du köpte produkten av, eller den lokala butiken som
levererade den.
Publication date: 2022-03-28
This document and its content, including written material and images, are the
property of Elon Group AB. You may not copy, reproduce, modify, republish or
distribute this document or any of its content without express written permission from Elon Group AB. ©
2022, Elon Group AB. All rights reserved.

3
© 2022, Elon Group AB. All rights reserved.
WARRANTY
Guarantee of quality for the consumer (does not include wear parts).
GARANTI
Kvalitetsgaranti gäller för konsument (omfattar ej förbrukningsdelar).

4
© 2022, Elon Group AB. All rights reserved.
CONTENTS/INNEHÅLL
ENGLISH 5
SVENSKA 33

5
© 2022, Elon Group AB. All rights reserved.
Contents
INPUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
TECHNICAL DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
WARNING AND SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
LETHAL RISK, DANGER OF POISONING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
USAGE WITH AND WITHOUT CARBON FILTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
CARBON FILTER REPLACEMENT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
CLEANING AND PREVENTIVE MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
APPLIANCE POSITION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

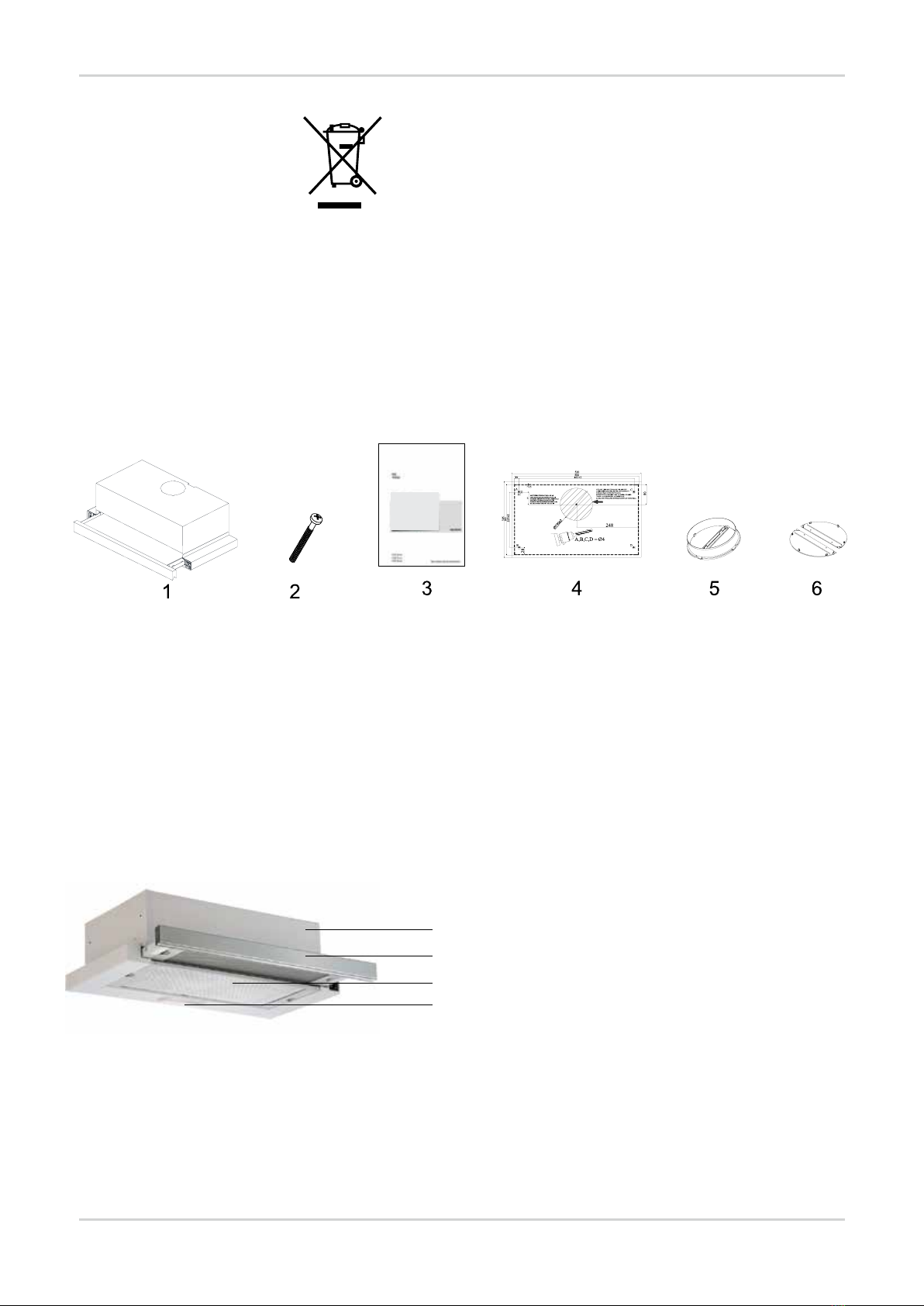

CONTENT OF PACKAGE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
OVERVIEW OF HOOD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
ASSEMBLY OF PRODUCT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
USE OF PRODUCT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
REPLACING THE LAMPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
AUTHORIZED SERVICE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
TECHNICAL TABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

6
© 2022, Elon Group AB. All rights reserved.
INPUT
This guideline and the safety data includes all necessary information
for a safe mounting as well as a safe use without defects.
• Please read all of this guideline and safety data before using the device.
• Keep the guideline in an appropriate place.
• If you pass the device onto others, make sure you also give this guideline
and safety data.
• Disregarding this guideline may result in severe injuries and defects in the
device.
• Please keep in mind that we won’t be responsible for the defects arising
from not taking this guideline into account.
The figures in this guideline aim to visually describe the actions. In
these figures only one model of the device is illustrated. However,
all instructions or figures also represent other models.

7
© 2022, Elon Group AB. All rights reserved.
TECHNICAL DRAWING
Fig. 1:
600
20
41
284
500
462
223
134
50
40
284
AX 425
174

8
© 2022, Elon Group AB. All rights reserved.
• This appliance can be used by children of 8 years and older, people with
physical, sensory or mental capability deficiency or people with lack of
experience or knowledge; as long as they are provided supervision or
instructions for the safe use of the appliance and they comprehend the
dangers.
• Children should not tamper with the appliance. Cleaning and user
maintenance operations must not be performed by children unless
supervised.
• This product is designed for home use.
• Usage voltage of your product is 220-240 Volt~50-60 Hz.
• Power cord of your product is fitted with a grounded plug. This cord must be
plugged into a grounded outlet.
• The whole electrical wiring must be installed by a qualified electrician.
• Installation by unauthorized persons could lead to poor operation
performance, damage to the product, and accidents.
• Feeder cable of the appliance mustn’t be exposed to jamming or crashing
during assembly. Feeder cable mustn’t be placed near the cooker. In such
cases, it might melt down and lead to fire.
• Do not plug in the appliance before the installation.
• Make sure that the installation place allows the user to easily unplug the
power cable in case of any danger.
• Do not touch your product’s lamps when they work for a long time. The
lamps may burn your hand as they will be hot.
• Kitchen hoods are manufactured for household use in normal home
cooking. There is a risk of malfunction in other types of use, and the product
guarantee will be void.
• Comply with the rules and instructions regarding discharge of outgoing air,
stipulated by the relevant authorities. (This warning does not apply to uses
without flue.)
• Flammable foods must not be cooked under the appliance.
• Start your product after you place pot, pan etc. on the stoves. Otherwise,
high temperature may cause same parts of your products to deform.
• Turn off the cooker’s burner before taking the saucepan, pan, etc. off the
cooker.
• Do not leave boiling oil on the stove. Pots that contain boiling oil may catch
fire by itself.
• Since oils could catch fire when you cook fried foods in particular, be careful
about your curtains and tablecloths.
• Ensure timely replacement of the filters. Filters not replaced in a timely
manner pose risk of fire due to accumulated grease deposits on them.
• Do not use non-fire-resistant filtering materials instead of the filter.
WARNING AND SAFETY PRECAUTIONS

9
© 2022, Elon Group AB. All rights reserved.
• Do not operate your product without filter, and do not remove the filters
when the product is in operation.
• In case of any fire, de-energize the hood and any other cooking devices.
(Plug off the appliance or turn off the main switch.)
• If your product’s periodic cleaning is not made in a timely manner, it could
pose risk of fire.
• De-energize the appliance before any maintenance operations. (Plug off the
appliance or turn off the main switch.)
• When electric cooker hood and devices fed with energies other than
electricity operate simultaneously, the negative pressure in the room must
not exceed 4 Pa ( 4 X 10 bar ).
• Gas or fuel oil burning appliances, such as room heaters, which share
the same environment with your product, must be fully insulated from the
exhaust of this product or they must be hermetical.

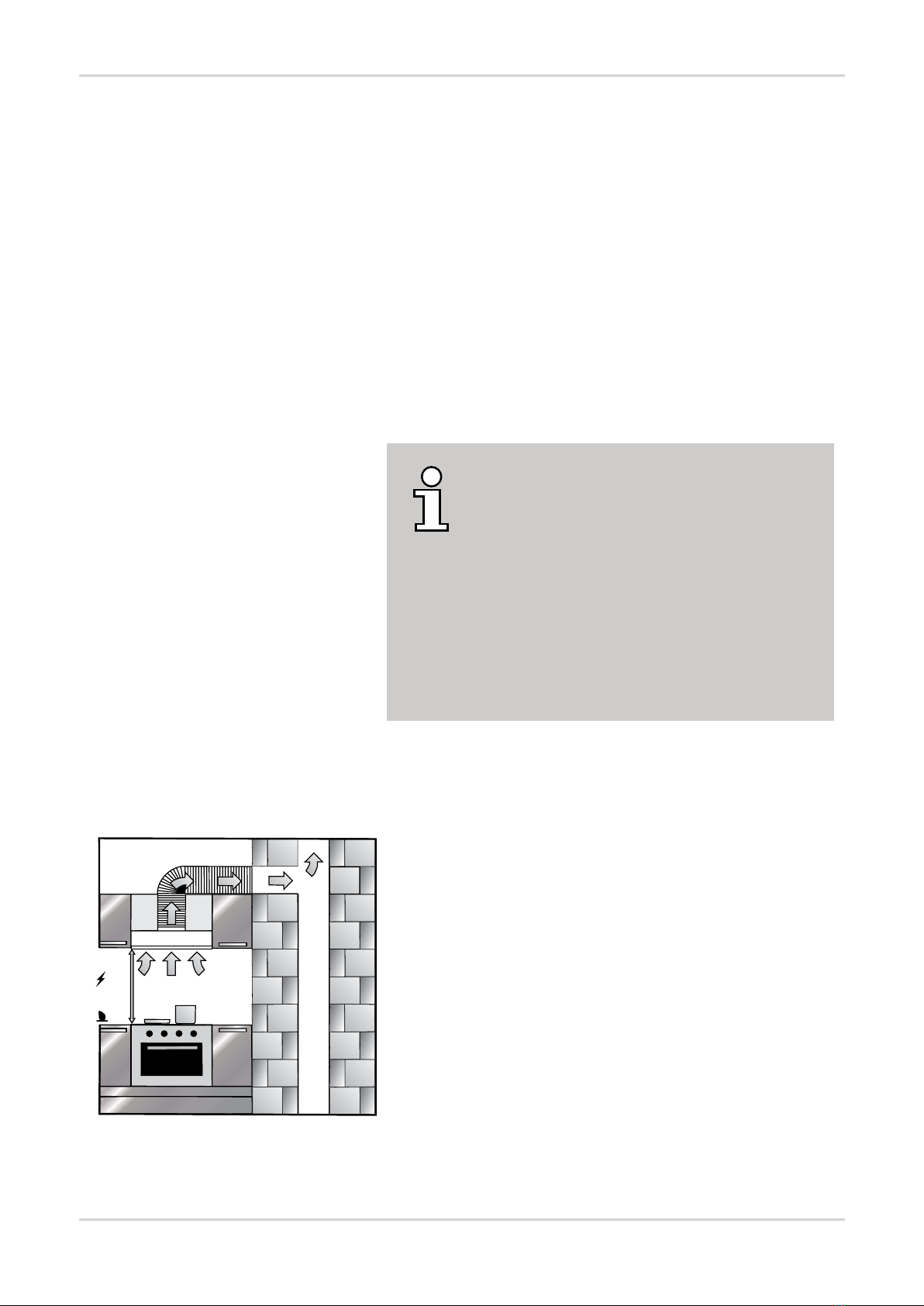

• When you make a flue connection for your product, use pipes with a
diameter of 150mm or 120 mm. The length of the duct connection as well as
the number of elbows must be as minimum as possible.
• Children must not play with the appliance.
• For your safety, use ”MAX 6 A” fuse in the hood system.
• Since the packing materials could be dangerous, keep them away from
children.
• If the feeder cable is damaged, it must be replaced by its manufacturer or
its authorized technical service or any other personnel qualified at the same
level, in order to avoid any dangerous situation.
• In case of any deflagration, de-energize the cooker hood and cooking
appliances, and cover the flame. Never use water to extinguish the fire.
• When cooking appliances are in operation, their accessible parts could be
hot.
• This appliance is not intended to be used by people with physical, sensory
and mental disabilities (including children) or those who do not have
adequate experience and knowledge regarding its use, unless they
are under the supervision of a person responsible for the safety of the
appliance.
• After the installation of the hood, the minimum distance must be 65 cm
between the product and any electric cooker; and 75 cm between it and
any gas ranges or cookers burning other fuels.
• Output of the hood must not be connected to air ducts, where smoke from
other sources could exist.
• You must be careful when using the appliance spontaneously with other
appliances (e.g. gas, diesel fuels, coal, wood, etc. burning heaters, shower
heaters), which use the same air in the same environment. Attention must
be paid when using them simultaneously. It is because the hood could
adversely affect the combustion, by discharging the ambient air.
• This warning does not apply to uses without flue.
• When electric cooker hood is used simultaneously with devices that use
gas or other fuels, there must be sufficient ventilation in the room (might not
apply to devices that discharges the air back into the room).

10
© 2022, Elon Group AB. All rights reserved.
LETHAL RISK, DANGER OF POISONING
DANGER!
Warning - Choking Hazard!
The packaging materials are dangerous for
children. Never allow children to play with
packaging materials.
DANGER!
Warning - Death Hazard
There are life-threatening danger and
poisoning danger due to reabsorbed
combustion gases. During the air discharge
outlet use, unless sufficient air supply is
provided, do not use the appliance
simultaneously with devices that discharge
toxic gases through flue such as ventilated,
gas, oil, wood or coal burning heaters, shower
heaters, water heaters, etc.Fig. 2
Ventilated goods (e.g. gas, oil, wood or coal burning heaters,
shower heaters, water heaters) take combustion air from the
installation location, and discharge the waste gas through a
waste gas system (e.g. flue). When the cooker hood is active,
it absorbs air from the kitchen and neighbouring rooms.
If adequate air entry is not provided, vacuum emerges. In
such a case, the toxic gases are absorbed from the flue and
waste gas hannel, and are taken into the door again. Fig. 2
• Therefore, adequate fresh air ingress must always be
ensured.Fig. 3
Fig. 2: Poisoning Danger
Fig. 3

11
© 2022, Elon Group AB. All rights reserved.
WARNING!
Fire danger!
– The oil residue in the grease filter may catch fire.Clean
the grease filter at least once every 3 months.Never
operate the device without the grease filter .
– The oil residue in the grease filter may catch fire. Never
work with open flame (ex. flambe) near the device. The
apparatus is allowed to be installed near a solid fuel (e.g.
wood or coal) heater only if it has a non-removable cover.
No sparks should be scattered.
– Hot oils and fats catch fire easily. Hot oils and fats
should never be left unattended. Never try to put out fire
with water. Turn off the cooker. Kill the flames carefully
using a cover, fire blanket or a similar material.
– Gas operated cookers that do not have a cooking pot
on create high heat during operation. A ventilation device
placed over the cookers can be damaged or burned for
this reason. Operate gas cookers only when there
is a cooking pot on them.
– Operating multiple gas cookers simultaneously creates
high heat. A ventilation device placed over the cookers
can be damaged or burned for this reason. Never
operate two gas cookers longer than 15 minutes on high
flame setting. A large burner over 5kW (Wok) has the
power of two gas burners.
WARNING!
Electrocution hazard!
– A malfunctioning device may cause electric shock.
Never turn on a malfunctioning device. Pull the power
plug and switch off the circuit breaker. Call customer
service.
– Unsuitable repairs pose hazards. Repairs and
replacement of damaged power cords must be
performed only by a customer services technician trained
by us. If the device is malfunctioning pull the power plug
and switch off the circuit breaker. Call customer service.
– Water leaking into the device may cause electric shock.
High pressure or steam cleaners must not be used.

12
© 2022, Elon Group AB. All rights reserved.
DANGER!
Danger of physical injury!
– During the installation, there is a danger of
physical injury due to the sharp edges. Use protective
gloves throughout the installation process of the
appliance.
– Due to risk of dropping the appliance, assembly of all
safety bolts and covers must be performed as specified in
the user manual.
– Objects placed on the appliance may fall over. Do not
place any objects on the device.
– LED lights are very bright and may damage eyes (Risk
group 1). You must not look directly at running LED lights
for longer than 100 seconds.
WARNING!
Risk of burn, risk of electric shock!
– Allow the appliance to cool before cleaning or
maintenance process. Switch off the fuse or pull out the
mains plug from the socket.
– There is risk of damage due to ingress of moisture in
the electronics. Do not clean the control components with
a wet cloth.
– The surface could be damaged due to a wrong
cleaning process. Clean stainless steel surfaces only
in their brushing direction. Do not use a stainless steel
cleaner for the control elements.
– The surface could be damaged due to aggressive
and abrasive cleaning agents. Never use aggressive and
abrasive cleaning agents.
WARNING!
Dangers of fire and physical injury!
In case of repairing that is not performed according to the
rules or as required, turn off the fuse or unplug the feeder
cable of your appliance. Repairing must be performed
only by the authorized technical service or authorized
experts.

13
© 2022, Elon Group AB. All rights reserved.
NOTICE!
If the appliance is faulty or damaged, turn off the fuse or
unplug the feeder cable of your appliance and call the
authorized service.
NOTICE!
If the feeder cable is damaged, it must be replaced by its
manufacturer or its authorized technical service or any
other personnel qualified at the same level, in order to
avoid any dangerous situation.
CAUTION!
Accessible components might be heated when used with
cooking devices.
NOTICE!
When the bulbs of the device malfunction, switch off the
circuit breaker and unplug the device’s power plug from
the socket. Replace the defective bulbs immediately (leave
bulbs to cool down first), in order to protect the remaining
bulbs against overloading.
DANGER!
Air outlet pipe of this appliance mustn’t be connected in
the flue used to discharge the fume generated by devices
that use gas or other fuels.

14
© 2022, Elon Group AB. All rights reserved.
CAUTION!
Damage hazard due to corrosion. Always run the
appliance to prevent condensate formation while cooking.
Condensates may cause corrosion damage. Replace the
malfunctioning lamp right away to prevent overloading of
other lamps. Moisture intrusion in electronic parts poses a
risk of damage. Never clean the control elements with a
wet cloth. The surface could be damaged due to a
wrong cleaning process. Clean stainless steel surfaces
only in their brushing direction. Do not use a stainless
steel cleaner for the control elements. The surface could
be damaged due to aggressive and abrasive cleaning
agents. Never use aggressive and abrasive cleaning
agents. There is a risk of damage due to condensate
liquid backflow. Install the air exit canal with a small
downward inclination (1° inclination) from the appliance.
Damage reasons

15
© 2022, Elon Group AB. All rights reserved.
USAGE WITH AND WITHOUT CARBON FILTER
You can use this appliance in exhaust air
mode and ventilated air mode.
NOTICE!
Exhaust air must not be transferred to an
active smoke or waste gas flue; or a flue
used for ventilation of the places, where
heat sources are installed.
Absorbed air is cleaned by the grease
filters and an active carbon filter, and then
it is transferred back to the kitchen.Fig. 5
You need to install an active carbon
filter, in order to catch the substances,
which cause stink in the circulating air.
Consult your authorized dealer to know
the different opportunities available for
enabling the appliance to function in
circulating air mode. You can buy the
accessories required for this process from
the relevant outlets, authorized technical
service or online sales center.
Exhaust air mode
The absorbed air is cleaned by the grease filters, and is
discharged through a piping system.Fig. 4
Fig. 4: Air Outlet without Carbon Filter
Fig. 5: Air Circulation with Carbon
Filter
• If you want to transfer exhaust air to an inactive
smoke or waste gas flue, you need to obtain
permission from an authorized chimney sweep.
• If exhaust air is discharged through the external
wall, a telescopic wall safe must be used.
Ventilated air mode

16
© 2022, Elon Group AB. All rights reserved.
CARBON FILTER REPLACEMENT
If carbon filter does not fit in completely, it
might drop and damage your product.
1. Place the carbon filter to its housing Fig. 6.
2. Please mount the carbon filter by turning it on the its
right side and be sure that it is fixed.Fig. 6.
The device you have bought is suitable for carbon-filter
use.
DANGER!
Never wash the carbon filters.
Keep carbon filters away from children.
CARBON FILTER
Fig. 6: CARBON FILTER

17
© 2022, Elon Group AB. All rights reserved.
CLEANING AND PREVENTIVE MAINTENANCE
CAUTION!
Cleaning and user maintenance of the
appliance shall not be performed by
unattended children.
• The surface could be damaged due to aggressive
and abrasive cleaning agents. Never use
aggressive and abrasive cleaning agents. Procure
your cleaning and protective substances that are
appropriate for your appliance from the authorized
technical service. Surface of appliance and control
units are sensitive to scratching.
• Clean the surfaces with a soft and damp cloth, dish-
washing liquid or mild glass cleaning agent. Soften
the dry, sticky dirt with a damp cloth. Do not scrape!
• It is not appropriate to use dry cloths, sponges that
may scratch, materials that require rubbing, and
other aggressive cleaning agents containing sand,
soda, acid or chlorine.
• Clean the stainless steel surfaces in their brushing
direction only.
• Do not use stainless steel cleaning agents and wet
clothes for control units. Cleaning of metal grease
filters Used metal grease filters retain the greasy
particles in the moisture and vapour generated in the
kitchen. Clean the metal grease filters about every
three months, under normal use conditions (1 to 2
hours a day).
• Do not use excessively effective, acidic or alkaline
cleaning agents.
• For cleaning the metal grease filters, clean the holder
parts of the metal grease filters in the appliance, with
a damp cloth as well.
• You can clean the metal grease filters in the
dishwasher or by hand.
• Do not apply spray cleaning supplies directly to the
product.
• Do not keep flammable and/or heavy decorative
items on the product.

18
© 2022, Elon Group AB. All rights reserved.
In case of washing in dishwasher, a slight change might
occur in colour. This has no effect on the function of the
metal grease filter.
• Do not clean too dirty metal grease filters together
with utensils in the dishwasher.
• Place the metal grease filters loosely and freely in the
dishwasher. Metal grease filters must be placed in the
dishwasher without jamming.
When the hood is installed, the product must have at
least 65cm clearance with the electricity cookers and
75cm with cookers operating on gas or other fuels
(Fig. 7).
Fig. 7:
Washing in Dishwasher
Hand Wash
APPLIANCE POSITION
For stubborn dirts, you can use a special
grease solvent. You can buy such an agent
from the authorized sales centre.
– Soften the metal grease filters in a hot
water with dish-washing liquid.
– Use a brush for cleaning and wait for
the liquid in metal grease filters to flow off
completely.
– Rinse the filters thoroughly after cleaning.
Min.65 cm
Min.75 cm

19
© 2022, Elon Group AB. All rights reserved.
Your new appliance is exclusively
energy saving. Here, you can find some
recommendations on how you can save
more energy while using your appliance
and some advice required to dispose of
your appliance properly
Installation and Unpacking of the Appliance
Recommendations for Energy Saving
• Check that your appliance is not deformed.
• Report any transport issues immediately to
transport operator.
• Any faults encountered shall be reported to the
dealer, too.
• Do not allow children to play with the packaging
materials!
Save energy
• Ensure there is adequate air inlet to enable your
good to work efficiently with low operating noise.
• Adjust the fan speed according to the intensity
of kitchen vapour. Use the intense setting only in
cases of need. A lower fan setting means less
energy consumption.
• If high amounts of kitchen smoke shall be
present, select a higher fan speed beforehand.
Hood has to run for a much longer duration
in order to clear kitchen smoke that is already
spread in the kitchen.
• Turn off the hood when not needed.
• Clean or replace the filter in the specified time
intervals, this way you can increase ventilation
efficiency and avoid fire hazard.

20
© 2022, Elon Group AB. All rights reserved.
1- Slide-in Cooker Hood
2- 4x 4x40 Mount Screw
3- User Manual
4- Ø120mm Plastic Flue Adapter
5- Flue Flap
1- Body
2- Front Panel
3- Aluminium Filter
4- Cooker Lighting
CONTENT OF PACKAGE
OVERVIEW OF HOOD
Fig. 8
Disposal in environmentally compliant way
Dispose of the packaging material in an
environmentally compliant way.
This appliance is marked in accordance with
European directive 2012/19/EG (waste electrical and
electronic equipment – WEEE) This directive sets the
framework for the recovery and recycling of old
appliances and the related EU-wide applications.
1
2
3
4
