Embedded Systems LogicMachine5 User manual
Embedded Systems SIA © 2021 www.logicmachine.net
LogicMachine5 Dimmer
LogicMachine (LM) is your easiest way to
program complex logic in KNX/EIB, Modbus,
BACnet and other networks. LM will enable you
to efficiently customize building automation
processes, easily delivering unlimited flexibility
benefit to end users in a cost-effective way.
LM5-RD is an embedded platform with
integrated Ethernet, USB, KNX/EIB, EnOcean
transceiver (optional), two DALI master, 1-Wire,
Serial interfaces and I/O ports. LM allows to use
it as cross-standard gateway, logic engine,
visualization platform, IP Router. Scripting
templates provides user-friendly, flexible configuration interface and integration with cloud/web
services, 3rd party devices. Via applying custom scripts LM can simultaneously act as thermostat,
security panel, lighting controller, etc. LogicMachine application store and external app
development possibility allows to extend device functionality and adjust to a specific market
segment
LM5-RD is optionally available with 3x more powerful CPU than all previous LogicMachine
versions.
ENG - Data sheet
Issue date 26.11.2021
Embedded Systems SIA © 2021
www.logicmachine.net
LM5p2-RD, LM5p2-RDE
Data sheet / Issue date 26.11.2021
Page 2 / 16
Application
•Logical functions
•WEB SCADA visualization for PC and touch-devices
•cross-standard gateway
•integration with third party devices over USB, RS485 serial port, Ethernet –AV, IR, HVAC
•Data logger with trends
•KNX IP Router
•Presence monitoring
•Lighting regulation
•Universal controller (lighting, shutter etc.)
•Health/activity monitoring
•Internet-of-Things
•Cloud server/client
•…
Embedded Systems SIA © 2021
www.logicmachine.net
LM5p2-RD, LM5p2-RDE
Data sheet / Issue date 26.11.2021
Page 3 / 16
Types of product
LogicMachine5 Reactor Dimmer Power LM5p2-RD
LogicMachine5 Reactor Dimmer Power EnOcean LM5p2-RDE
Standards and norms compliance
EMC: EN61000-6-1
EN61000-6-3
PCT Certificate
Technical data:
Power supply: 12V-30V DC on terminal connectors or
12V-30V DC Passive Power-over-Ethernet
Power consummation: 1.3W
Interface: KNX/EIB TP1 1
DALI master 2 (up to 128 DALI ballasts in
total)
EnOcean 868MH with 1
antenna (optional)
1-Wire 1
10BaseT/100BaseTX 1
RS-485 1
RS-485/RS-232 1
(switchable in software –
full-duplex=RS232,
half-duplex=RS485)
USB2.0 1
Analog input/Digital output 8
380 mA continues current on
output. Optoislated from
KNX/EIB bus
Analog outputs 3 x 0-10 V,
1 x 4..20 mA
Connections: KNX bus Bus Connection Terminal
0.8mm2
Power supply Screw, 1.5mm2
Serial Screw, 1 mm2
I/O Screw, 1 mm2
Embedded Systems SIA © 2021
www.logicmachine.net
LM5p2-RD, LM5p2-RDE
Data sheet / Issue date 26.11.2021
Page 4 / 16
DALI Screw, 1.5 mm2
1-Wire Screw, 1.5 mm2
Operating elements LED 1 –CPU load
1 - Activity
Enclosure: Material: Polyamide
Color: Gray
Dimensions: 61(W)x90(H)x108(L) mm
Usage temperature: 0C ... +45C
Storage temperature: -15C ... +55C
Weight: 150g
Warranty: 2 years
Relative Humidity: 10...95 % without condensation
Caution
Security advice
The installation and assembly of electrical equipment may only be performed by skilled electrician.
The devices must not be used in any relation with equipment that supports, directly or indirectly,
human health or life or with application that can result danger of people, animals or real value
Mounting advice
The devices are supplied in operational status. The cables connections included can be clamped to
the housing if required.
Electrical connection
The devices are constructed for the operation of protective low voltage (SELV). Grounding of
device is not needed. When switching the power supply on or off, power surges must be avoided.
Embedded Systems SIA © 2021
www.logicmachine.net
LM5p2-RD, LM5p2-RDE
Data sheet / Issue date 26.11.2021
Page 6 / 16
Powering over Ethernet
LM5 supports two powering modes:
-regular powering over screw terminals (Jumpers up or down)
-passive PoE powering over 24V DC (Jumpers down)
-when using active PoE 48V, jumpers have to be UP or the product will be damaged!
Please note that there are two PoE types of PoE switches/adapters –passive and active (802.3af).
In passive mode 4 Ethernet cable wires are used for data and 4 are used for power. In active PoE
mode data and power goes together.
Embedded Systems SIA © 2021
www.logicmachine.net
LM5p2-RD, LM5p2-RDE
Data sheet / Issue date 26.11.2021
Page 9 / 16
RS-485 connection
There can be used max two RS-485 on LM5 Lite. First one is definitive, second one is software
switchable –either it works as RS-485 or as RS-232 :
-If it is set up as full-duplex it will operate as RS-232 and respective TX/RX/GND screw
terminals should be used
-If it is set up as half-duplex (*) it will operate as RS-485 and respective A/B/GND screw
terminals should be used
*RS-485 is chosen in this case, RS-232 is not activated
Embedded Systems SIA © 2021
www.logicmachine.net
LM5p2-RD, LM5p2-RDE
Data sheet / Issue date 26.11.2021
Page 10 / 16
RS-485/RS-232 connection
If second serial port is set as full-duplex in LogicMachine configuration, it will operate as RS-232
and respective TX/RX/GND screw terminals should be used.
*RS-232 is chosen in this case, RS-485 is not activated
Embedded Systems SIA © 2021
www.logicmachine.net
LM5p2-RD, LM5p2-RDE
Data sheet / Issue date 26.11.2021
Page 16 / 16
Quick startup guide
1) Mounting the device on DIN rail
2) Connect the KNX bus cable
3) Connect 24V power supply to the device (either through separate 24V crew terminals or
through Passive 24V DC Power-Over-Ethernet)
4) Connect Ethernet/LAN cable coming from the PC/switch
Default IP configuration
Login name
admin
Password
admin
IP address
192.168.0.10
Network mask
255.255.255.0
Reset device
You can either reboot the device by pressing RESET button or reset the configuration to factory
defaults:
•Press and hold for <10 sec –reboot the device
•Press and hold for >10 sec –reset networking with IP to factory default
•Press and hold for >10 sec and again press and hold for >10 sec –full reset of configuration
to factory defaults
Other manuals for LogicMachine5
3
This manual suits for next models
2
Table of contents
Popular Dimmer manuals by other brands
Schalk

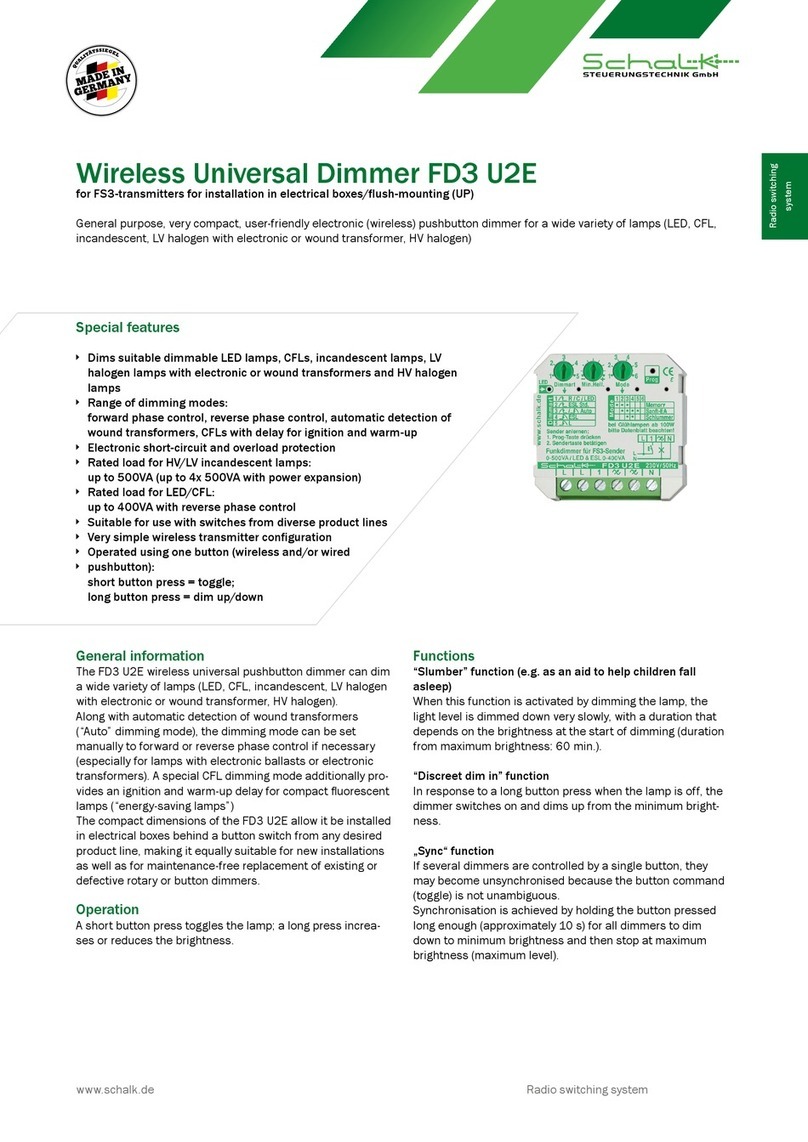

Schalk FD3 U2E manual
elsner elektronik
elsner elektronik RF-L UN-ST Technical specifications and installation instructions
Ekinex

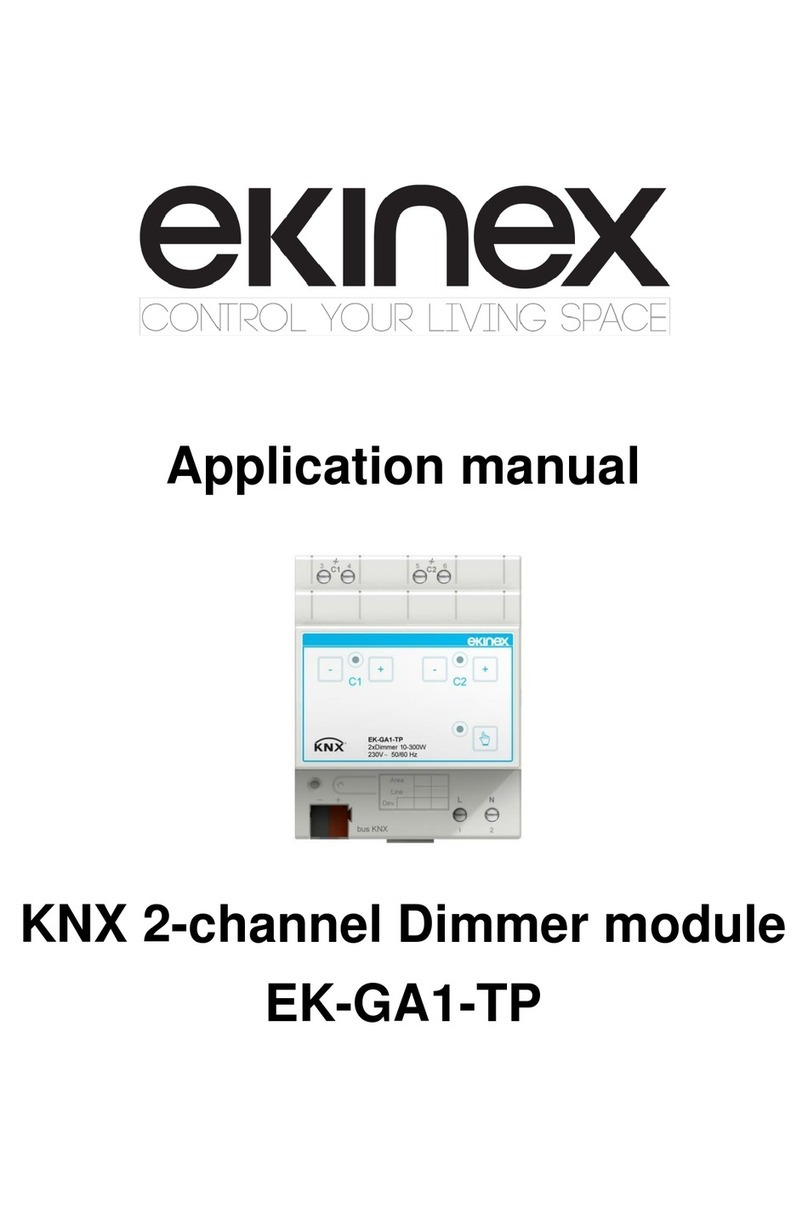

Ekinex EK-GA1-TP Applications manual
Lutron Electronics
Lutron Electronics Maestro Wireless MRF2-600M Quick start quide
Marmitek
Marmitek LW11G user manual
LEGRAND

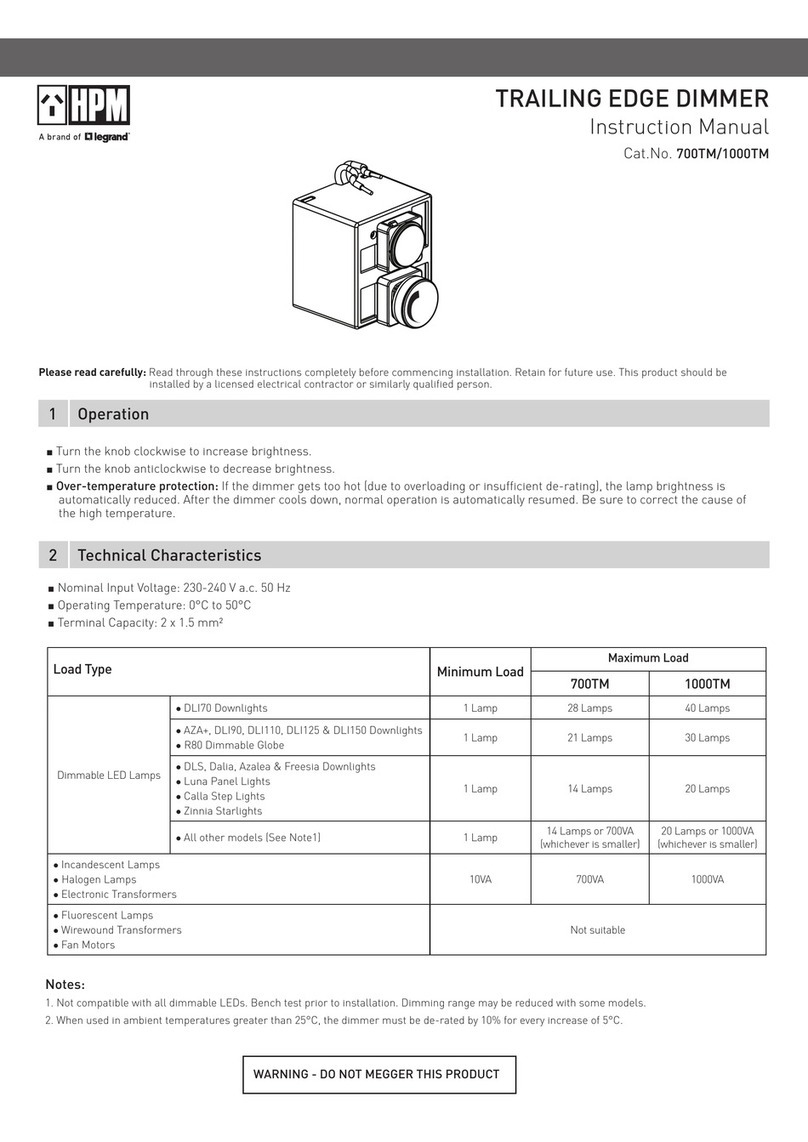

LEGRAND HPM 700TM instruction manual
Gewiss

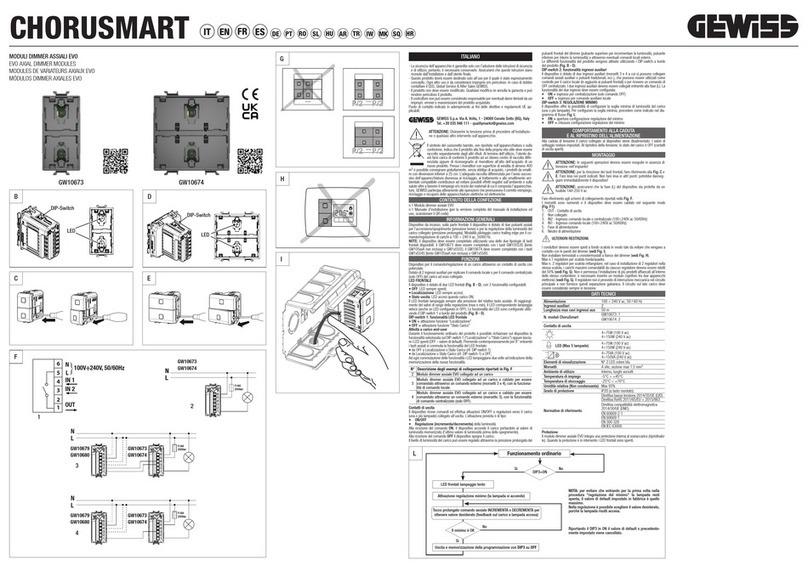

Gewiss CHORUSMART GW10673 quick start guide
DINUY

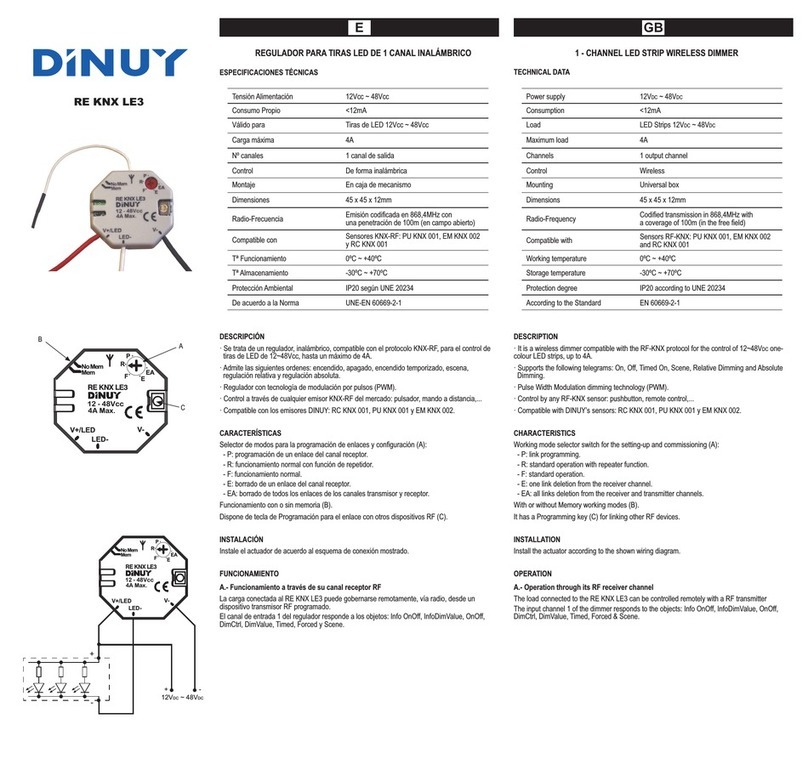

DINUY RE KNX LE3 quick start guide
Leviton
Leviton DDS3600R Installation and operation guide
Philio Technology Corporation
Philio Technology Corporation PAD07 Quick user guide
Plejd

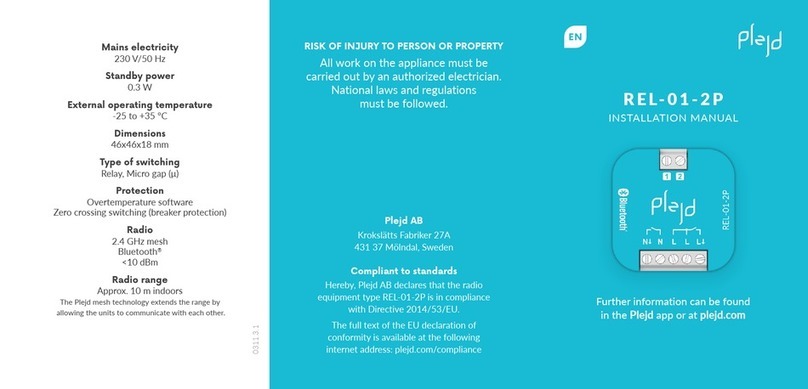

Plejd REL-01-2P instruction manual
