Arena Luci CO670L User manual

DMXDimmerPack6ch
User'sManual
10Ax6channelsdimmerpackwithdigitalDMX/analog010Vinputcontrolandpreheatfunction
CO670L

2/8
CO670L
This unit should only be used for purpose for
which it has been intended and should be
installed using the instructions which are
provided. Arena Luci cannot be held liable for
damages to person, animals or objects as a
result of improper, unreasonable and wrong
usage.
This instruction manual contains important
information about the installation and use of the
projector. Please read and follow these
instructionscarefully.
The security of this device is guaranteed only
with the proper use of the following instructions,
thereforetheymustbekeptcarefully.
Never install the device in locations easily
accessiblebypeoplewhoignoretheexistenceof
thisuser'smanualandsafetyinstructions.
Disconnecttheunitfromanypowersupplybefore
attempting any operation in contact or inside the
unit,andwhennotinuse.
It is essential that each device is correctly
earthedandthatelectricalinstallationconformsto
all relevant standards. Never supply the unit
withouttheearthlink.
Prior to connect the unit to the mains supply,
check the output voltage fits the technical
requirementsonthelabel.
Never let the power cord come into contact with
othercables.
Nevertouchtheelectricalcontacts,eitherdirectly
withyour fingers,orindirectly bymeansofsharp
ormetalobjects.
Makesurethatcablescannotcausetriphazard.
Donotattempttodismantleandmodifytheunit.
Due to the high technological level of this unit,
anyservicemaintenanceshouldbeperformedby
specialisedoperators.PleasecontactyourArena
Lucidealerforanyoperation.
Alwaysensurethatthestructuretowhichyouare
attachingtheunitissecureandisabletosupport
theweightofeachunit.
Do not allow contact with water or any other
fluids,ormetallicobjects(IP20).
Do not install the projector in areas of high
humidity. The unit is intended only for indoor
purposes.
Avoidinstallingtheunitclosetoheatsources.
Neverleanthepowercordonhotunitsurfaces.
Not allowed to be mounted directly on
inflammablesurfaces.
Installtheunitwhereitcanbeeasilyaerated.
Avoidobstructionofin/outvents.
Maximumambienttemperature35°C.
If the unit is installed in a rack, then the
temperatureinsidetherackmustbebelow45°C.
RelativeHumiditybetween40%and80%.
Do not use any solvent based cleaning agents.
Useonlyasoft,dryantistaticcloth.
The installation should be performed only by a
qualifiedoperator.
Avoid contact with either corrosive agents or
humidity and moisture on delicate elements:
damages from corrosion are not refunded as
componentdefects.
WARNINGS
Please note that as part of Arena Luci's ongoing commitment to continuous product development,
specifications are subject to change in the course of product improvement without notice.Arena Luci is not
responsiblefordamagesresultingfromimproperordifferentusethanexpected.

3/8
USER'SMANUAL
BEFORESTARTING
Remove the product from the shipping carton,
checking that all the components supplied are
presentinthe box. Refer to the following packing
list to check which components must be present
in the packaging. If any component is missing or
damaged, contact your Arena Luci dealer
immediately.
n°1dimmerpackCO670L
Before starting the installation of your product
make sure that there are no evident damages
causedbytransportation.Intheeventthattheunit
isdamaged,donotplugitinanddonotattemptto
use it until you contacted yourArena Luci dealer
forassistance.
INTRODUCTION
This unit is intended to dim the following type of
fixtures: incandescent lamps, halogen lamps, low
voltagehalogenlampswithballast.
To ensure the normal total working hours of this
dimmer pack, please observe the following
suggestions.
If dimmer pack is installed in a rack, make sure
the rack has adequate ventilation. Otherwise the
unit will become overheat and will result in a
malfunction.
The maximum output current of each channel is
10A: this is a testing condition and must be held
for30minutesmaximum.
If the output current of each channel is less than
8A, the unit can work for several hours in
Theaters,StagesandStudios.
If the output current of each channel is less than
8A,theunitcanwork24/7withoutswitchingoffin
Hotels,Restaurants,Buildings.
This dimmer pack provides 6 dimming channels.
Each output channel has a 10A magnetic circuit
breaker.
Theunitisequippedwithathermalcontrolledfan.
When the temperature is over 45°C, the fan will
startautomatically.
Theautotrackingoffrequencyandphaseenables
stabledimmingoutputindifferentfrequencies.
The unit provides a testing function to perform
testswithoutconnectingtoaconsole.
Preheat function to protect the loads (Warmup
settingisfrom0%to6%).
FRONTPANEL
(1)Poweron/offswitch
(2)DMXIN/OUT(XLR5pin)
(3)DMXIN/OUT(RJ11,phonejack)
(4)LEDdisplay
(5)FunctionKeys
(6)Dimmingslidersofchannels16
(7)Analog010Vinput(9pin)
(8)Magneticcircuitbreakers
8 8 76543 2 1

4/8
CO670L
REARPANEL/TERMINALBOARD
(9)DMXIN/OUT(XLR3pin)
(10)DMXIN/OUT(RJ11,phonejack)
(11)Outputterminalboard
(12)Powerinputterminalboard(20Aeachphase)
INSTALLINGTHEUNIT
Theunitmustbefixedonasuitablesupportwhich
remains stable during operation. Always make
suretherackorstructuretowhichyouaresetting
theunitissecureandisabletobeartheweightof
7kgofeachunit.
Disconnectthemainsvoltagefromthesystem.

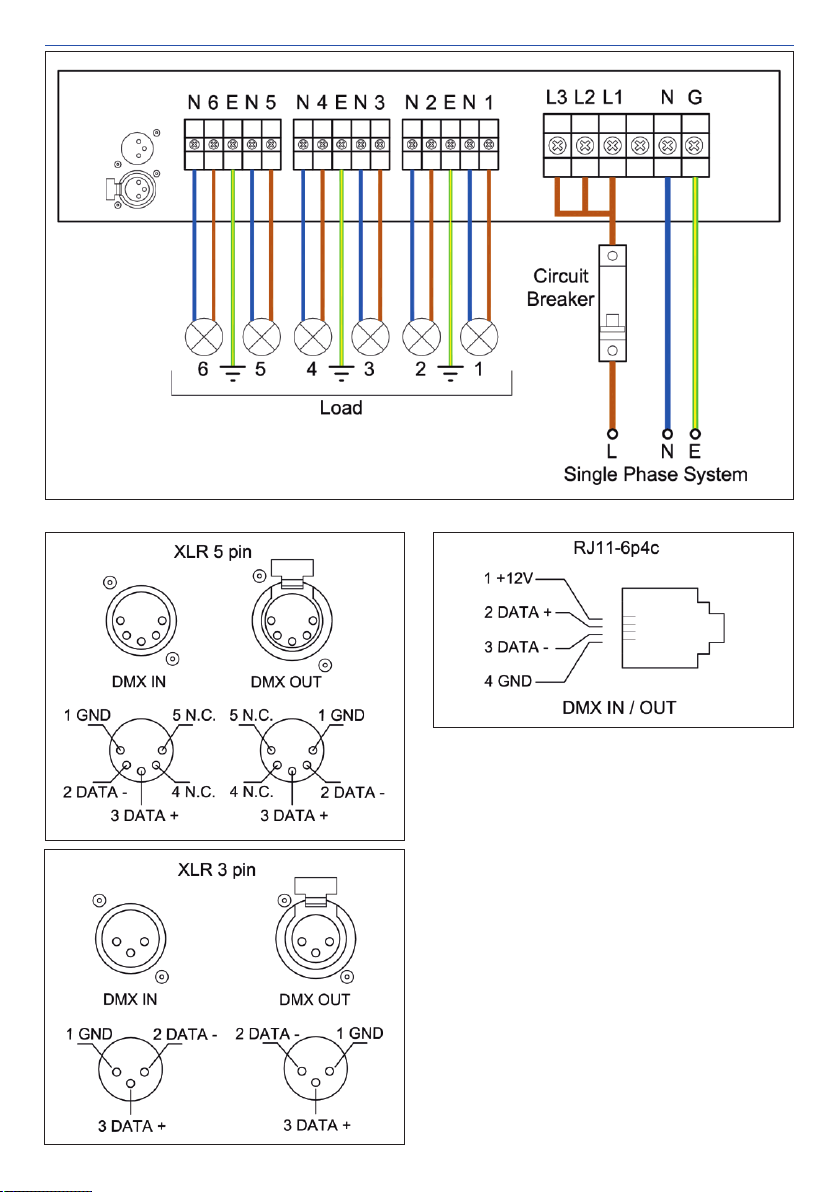

Inthefollowingconnectiondiagrams youcanfind
how to connect to the mains voltage for both
ThreePhaseSystemandSinglePhaseSystem.
Respect the LNE polarity indicated on the
terminals(colorbrown=L1orL,black=L2,grey
=L3,blue=N,yellow/green=E).
It is essential that each unit is correctly earthed
and that electrical installation conforms to all the
standardsofgoodpracticeandsafetyregulations.
It is recommended that the unit is connected to
themainsviaapropercircuitbreaker.
Use the on/off switch to turn on and off the
dimmerpack.
9 10 11 11 11 12

5/8
USER'SMANUAL
CONNECTINGCONTROLSIGNALS
The dimmer pack, in order to be remotely
controlled, requires a digital signal DMX 512
(1990). The connection between controller and
dimmer pack and between dimmer pack and
dimmer pack must be made with twocore
shielded cable with a section of at least 0.5mm2
and connectors model Canon XLR. The unit also
provides RJ11 connectors for DMX signal. In
carrying out the wiring of the connectors it is
important that the signal wires do not make
contact with each other and do not touch the
casingoftheplug.Thecasingoftheplugmustnot
be in contact with other objects possible sources
of disturbance. The three terminals have the
numbering referred to the poles of the XLR
connectors normally used for the connection of
theDMX:pin1=GNDorbraidedscreen,pin2=
DATA or cold pole, pin 3 = DATA + or hot pole.

6/8
CO670L
Pin 4 and pin 5 are not connected. For RJ11
plugs:pin1=+12V,pin2=DATA+,pin3=DATA
,pin4=GND.
Connect the signal coming from the controller to
the DMX socket of the unit labeled DMX IN.
Continue connecting the DMX OUT socket to the
DMXINsocketofthenextunit.
TerminationoftheDMXsignal
For installations where the cable signal must
travellongdistancesorwhere there are electrical
noises, for example a discotheque, it is
recommendedtouseaDMXterminator.TheDMX
terminator is simply an XLR connector with a
resistance of 120Ω (Ohm) between pins DATA
and DATA+. The connector is then plugged into
the DMX OUT socket on the last device in the
chain.
Analoginput
The dimmer pack can also be controlled via an
analog 010V dc control signal. The input socket
for this analog signal is located in the front panel
oftheunitandusesaDB9femaleconnector.
Thesix control valuesare connected topins 1 to
6throughaDB9maleflyingconnector.
PROJECTORADDRESSES
The unit, to be remotely controlled, requires 6
DMXchannels.Eachdimmerpackmustbegiven
adigital start addressnumber so thatthe correct
unit responds to the correct control signals. This
digital start address is the channel number from
whichtheunitstartsto“listen”tothedigitalcontrol
informationbeingsentoutfromthecontroller.This
digitalencodingmustbedoneoneachunit.
The start address of the coding is assigned by
setting the desired value using the display
interfaceonthefrontpanel.
Press and hold the DMX button on the keypad,
thenusethe▲or▼buttonstoselectthedesired
starting address (ie. dimmer 1 address 1 D.001,
dimmer2address7D.007,dimmer3address13
D.013,etc.); for fast forward pressandhold the
button.
OPERATION
After supplying the device, the software performs
areset;attheendoftheelectronicsresetroutine,
thedisplayshowstheidlestate.
In the idle state the following informations are
shown:
d.001
d001isthebaseaddressofthedimmerpack.
. (blinking dot) indicates the presence of a valid
DMXsignal.
In the absence of DMX signal (XLR connector
unplugged),theblinkingdotisoff.
Set the base address of the unit as seen before
and connect the signal from DMX controller to
control the intensity of various lighting fixtures
connected.

7/8
USER'SMANUAL

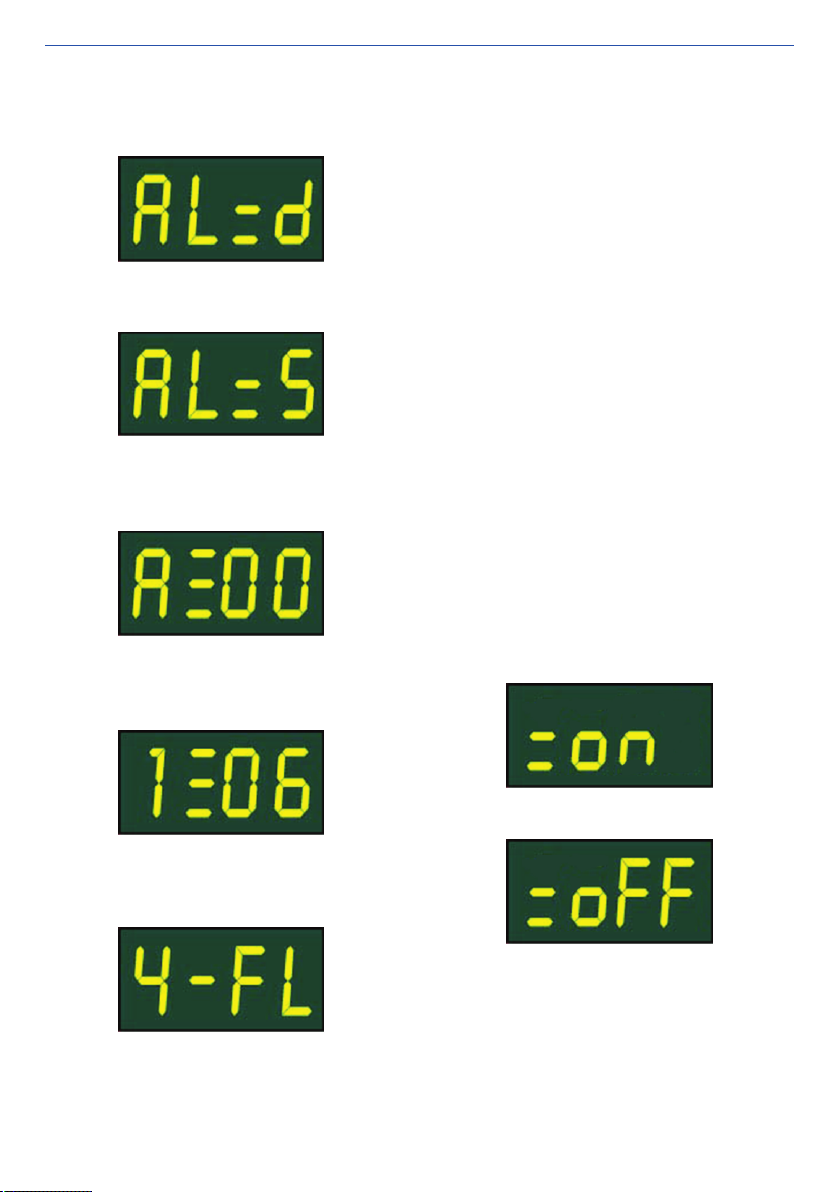

Dimming/SwitchSetting
PressDMXbuttonintoDMXstatus.
PressandholdtheFNCbuttonfor3seconds.
The default setting for all channels (AL) is
dimmingmode(=d).
PressFNCbuttontoselectchannel.
Press ▲ or ▼ to select dimming mode (=d) or
switchmode(=S).
WarmUpSetting(0–6%)
Press FNC button. The default setting for all
channels(A)isnopreheat(00).
PressFNCbutton to select the channel, ieselect
channel1
Press ▲ or ▼ to adjust. The warmup level can
beadjustedfrom1%to6%.
ChannelOutputStatusPreview
EntertoDMXstatusandpressDMXbutton.
Press▲or▼topreview.
ManualDimming
Move the sliders VR1VR6 to dim the intensity of
thecorrespondingoutputchannel.
When a DMX signal input from a console is also
present, the corresponding output channel will
take the higher value between DMX signal and
slidervalue.
WhenthedimmerpackisreceivingaDMXframe,
if the signal is lost (or the cable is disconnected)
theoutputswilltakethevaluesetbythesliders.
Also, if the projector is turned on and it is not
connectedtoavalidDMXsignal,thelightintensity
isbroughttothelevelssetbythesliders.
Display the Dimming Value of DMX Channel
andInternalTemperature
Press L button to display the dimming value of
DMXchannel.
PressTbuttontodisplaytheinternaltemperature.
DMX512Status&DMX512Address
PressDMXbuttontoDMXstatus.
The LED will return to DMX status after 10
minutesidle.
ProtocolControl
When the protocol control turns on, it only
receives the DMX signal whose break width
rangesfrom88μsto230μs.
Press FNC button to enable or disable the
protocolcontrol.
Press ▲ and LED displays as below, protocol
controlisON.
Press ▼ and LED displays as below, protocol
controlisOFF.

8/8
CO670L
WARRANTYCONDITIONS
Theunitisguaranteedfor24monthsfromthedate
of purchase against defects in workmanship or
materialsthatcomposeit.
This warranty does faults due to incorrect or
improperuseofthedevice.
The warranty is immediately void if the unit has
been tampered with or opened by unauthorized
personnel.
The warranty provides, at the discretion of Arena
Luci,repairorreplacementoffaultyequipment.
The serial number and model of the device are
requiredtoobtaininformationorassistancefromthe
dealer.Weinviteyoutotranscribethemintime:for
anyrequestofinformationorservices,thiswillresult
inaquickandeffectiveoperation.
CERULES
Thedevicemeetsthe essentialrequirementsofthe
Directives LVD 2014/35/UE, EMC 2014/30/UE,
RAEE 2012/19/UE, RoHS 2011/65/UE, Ecodesign
2009/125/CE reg. (UE) 1194/2012, Energy label
2010/30/UE reg. (UE) 874/2012 reg. (UE)
518/2014,GPSD2001/95/CE.
Warnings
Disposal of Old Electrical & Electronic Equipment
(applicable in the European Union and other
European countries with separate collection
systems).
Theproductshallnotbetreatedashousehold
waste but must be handed over to the
applicable collection point for the recycling of
electrical and electronic equipment. By
ensuringthisproductiscorrectlydisposed,youwillhelp
prevent potential negative consequences for the
environment andhumanhealth, which could otherwise
be caused by inappropriate waste handling. The
recycling of materials will help to conserve natural
resources. For more detailed information about
recyclingofthisproduct,pleasecontactyourcityoffice,
yourhouseholdwastedisposalserviceoryoursupplier.
ArenaLucisrlviaSvizzera12/1446042CastelGoffredo(MN),Italy
Tel.+390376782411Fax+390376780973
www.arenaluci.com[email protected]t
Powersupply
Outputcurrent
Control
Control
Channels
Connection
Material
Colour
Insulationclass
Weight
Dimensions
Protection
AmbientTemperature
Notallowedtobefittedonnormallyinflammablesurfaces
Appliedstandards
90÷240VAC4563Hz
10Amaxeachchannel
StandardDMX512/1990controlsignal,6controlchannels
ConnectorXLR5pinIN/OUT(front)ConnectorXLR3pinIN/OUT(rear)
ConnectorRJ116p4cphonejackIN/OUT(front+rear)
AnalogsignalDC010V,6controlchannels
ConnectorDtypeplug9pinFemale
6independent,phasecutdimming,230Vacoutputs
Terminalblocks,inputandoutput
Aluminiumandsteelplate
Epoxypowderpaintfinish,black
I
7kg
482x88x300mmStandardrack19"2U
IP20
From0°Cto+35°C
TECHNICALSPECIFICATION
CO670LENR0|07/2018
Table of contents
