Embedian SBC-SMART-MEN User manual

Embedian, Inc.
1
SBC-SMART-MEN User’s Manual Document Revision v.1.0
SMART Series Single Board Computer
SBC-SMART-MEN

Embedian, Inc.
2
SBC-SMART-MEN User’s Manual Document Revision v.1.0
Revision History
Revision Date Changes from Previous Revision
1.0 2014/04/08 Initial Release

Embedian, Inc.
3
SBC-SMART-MEN User’s Manual Document Revision v.1.0
USER INFORMATION
About This Manual
This document provides information about products from EMBEDIAN, INC.
No warranty of suitability, purpose, or fitness is implied. While every
attempt has been made to ensure that the information in this document is
accurate, the information contained within is supplied “as-is” and is subject
to change without notice.
For the circuits, descriptions and tables indicated, EMBEDIAN assumes
no responsibility as far as patents or other rights of third parties are
concerned.
Copyright Notice
Copyright © 2013 EMBEDIAN, INC..
All rights reserved. No part of this manual may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language or
computer language, in any form or by any means (electronic, mechanical,
photocopying, recording, or otherwise), without the express written
permission of EMBEDIAN.
Trademarks
The following lists the trademarks of components used in this board.
ARM is a registered trademark of ARM Limited.
Android is a registered trademark of Google
Linux is a registered trademark of Linus Torvalds.
WinCE is a registered trademark of Microsoft
TI is a registered trademark of Texas Instruments
All other products and trademarks mentioned in this manual are
trademarks of their respective owners.
Standards
EMBEDIAN is ISO 9001:2008 and ISO14001-certified manufacturer.
SMARC is an SGET standard for ARM computer on module.
Warranty
This EMBEDIAN product is warranted against defects in material and
workmanship for the warranty period from the date of shipment. During
the warranty period, EMBEDIAN will at its discretion, decide to repair or
replace defective products.
Within the warranty period, the repair of products is free of charge as long
as warranty conditions are observed.
The warranty does not apply to defects resulting from improper or
inadequate maintenance or handling by the buyer, unauthorized
modification or misuse, operation outside of the product’s environmental

Embedian, Inc.
4
SBC-SMART-MEN User’s Manual Document Revision v.1.0
specifications or improper installation or maintenance.
EMBEDIAN will not be responsible for any defects or damages to other
products not supplied by EMBEDIAN that are caused by a faulty
EMBEDIAN product.
Technical Support
Technicians and engineers from EMBEDIAN and/or its subsidiaries and
official distributors are available for technical support. We are committed
to making our product easy to use and will help you use our products in
your systems.
Before contacting EMBEDIAN technical support, please consult our Web
site for the latest product documentation, utilities, and drivers. If the
information does not help solve the problem, contact us by e-mail or
telephone.

Embedian, Inc.
5
SBC-SMART-MEN User’s Manual Document Revision v.1.0
Table of Contents
CHAPTER 1 INTRODUCTION................................................................................................................9
1.1 FEATURE SET OVERVIEW...............................................................................................................9
1.2 BLOCK DIAGRAM .......................................................................................................................... 11
1.3 PERIPHERAL OVERVIEW..............................................................................................................13
FIGURE 2: SBC-SMART-MEN PERIPHERAL DIAGRAM...................................................................13
1.4 LAYOUT DIAGRAM.........................................................................................................................14
FIGURE 3: SBC-SMART-MEN CONNECTORS, HEADERS AND JUMPERS .....................................14
1.5 MOUNTING HOLES MECHANICAL DRAWING ...........................................................................15
1.6 DOCUMENT AND STANDARD REFERENCES..............................................................................16
CHAPTER 2 JUMPERS, SWITCHES AND LEDS.................................................................................19
2.1 JUMPERS.........................................................................................................................................19
FIGURE 5: JUMPER LOCATIONS.......................................................................................................19
2.2 SWITCHES.......................................................................................................................................23
FIGURE 6: SWITCH LOCATIONS........................................................................................................23
2.3 LEDS ................................................................................................................................................25
FIGURE 7: LED LOCATIONS...............................................................................................................25
CHAPTER 3 HEADERS AND CONNECTORS......................................................................................27
3.1 CONNECTORS.................................................................................................................................27
FIGURE 8: CONNECTOR LOCATIONS (TOP SIDE)..........................................................................27
FIGURE 9: CONNECTOR LOCATIONS (BOTTOM SIDE)..................................................................28
FIGURE 10: 24-BIT SINGLE PIXEL TRANSMISSION, UNBALANCED .............................................36
FIGURE 11: 18-BIT SINGLE PIXEL TRANSMISSION, UNBALANCED..............................................39
3.2 HEADERS ........................................................................................................................................46
FIGURE 12: HEADER LOCATIONS.....................................................................................................46
FIGURE 13: 10-WAY BOX HEADER TO DB9 CABLE .........................................................................48
FIGURE 14: PIN ORDER OF P1 AND P2 CONNECTOR....................................................................52
CHAPTER 4 I2C0 DEVICES AND CARRIER EEPROM FORMAT......................................................62
4.1 I2C0 DEVICES.................................................................................................................................62
4.2 MODULE EEPROM FORMAT........................................................................................................63
4.3 CARRIER EEPROM FORMAT ........................................................................................................64
CHAPTER 5 QUICK START GUIDE.....................................................................................................67
STEP1. PLUG A WORKING SD CARD INTO SD SLOT.......................................................................67
STEP2. CHECK JUMPERS AND SWITCHES.......................................................................................68
STEP3. WIRED THE CONSOLE AND ETHERNET CABLE.................................................................69
STEP4. POWER 5V TO THE DEVICE...................................................................................................70

Embedian, Inc.
6
SBC-SMART-MEN User’s Manual Document Revision v.1.0
Using this Manual
This guide provides information about the Embedian SBC-SMART-MEN Single
Board Computer based on TI Sitara AM335x Cortex-A8 processor and
SMARC T335X module.
Conventions used in this guide
This table describes the typographic conventions used in this guide:
This Convention Is used for
Italic type Emphasis, new terms, variables, and
document titles.
monospacedtypeFilenames, pathnames, and code
examples.
Embedian Information
Document Updates
Please always check the product specific section on the Embedian
support website at www.embedian.com/ for the most current revision of
this document.
Contact Information
For more information about your Embedian products, or for customer
service and technical support, contact Embedian directly.
To contact Embedian by Use
Mail Embedian, Inc.
4F-7. 432 Keelung Rd. Sec. 1,
Taipei 11051, Taiwan
World Wide Web http://www.embedian.com/
Telephone + 886 2 2722 3291

Embedian, Inc.
7
SBC-SMART-MEN User’s Manual Document Revision v.1.0
Additional Resources
Please also refer to the most recent SBC-SMART-MEN User’s Manual and TI
AM335x processor reference manual and related documentation for additional
information.

Embedian, Inc.
8
SBC-SMART-MEN User’s Manual Document Revision v.1.0
Introduction
This Chapter gives background information on the
SBC-SMART-MEN single board computer.
Section include：
Feature Set Overview
Block Diagram
Peripheral Overview
Layout Diagram
Mounting Holes Mechanical Drawing
Document and Standard References

Embedian, Inc.
9
SBC-SMART-MEN User’s Manual Document Revision v.1.0
Chapter 1 Introduction
This document serves as a user manual and technical reference for the
EMBEDIAN SBC-SMART-MEN single board computer. The manual is
intended for use by engineering personnel working with SBC-SMART-MEN
systems.
By adding a USB hub and Silicon Lab CP2108 and CP2102,
SBC-SMART-MEN expand many RS232s and USB Host ports for users to
interface with their legacy devices.
SBC-SMART-MEN single board computer is a hybrid approach combines a
SMARC COM for the CPU engine with a baseboard for the I/O and application
interface. The advantages of this architecture are that system can be easily
upgraded by simply changing the SMARC module or expanded by replacing
the carrier board. The SMARC module is an industrial standard.
1.1 Feature Set Overview
The SBC-SMART-MEN has the following features:
Length x Width: 102mm x 145mm (4.0" x 5.7"), 3.5-inch form factor
24-bit color packing, single channel LVDS port.
18-bit color packing, single channel LVDS port
3.3V or 5V LCD signaling option
Reset Jumper
5V LED Backlight support
1 x Buzzer
6 x RS232 ports
1 x RS422/RS485 (Share with RS232 Port 1)
3 x USB Host 2.0
1 x USB OTG
1 x Serial-to-USB
2 x Fast Ethernet (10/100Mbps) ports with integrated magnetics.
Audio: Microphone Input and Headset Output
1 x CAN Bus (with transceiver)
2 x I2C Bus
11 x GPIOs
2 x SPI Bus
Boot Option Switch
SD Card slot.

Embedian, Inc.
10
SBC-SMART-MEN User’s Manual Document Revision v.1.0
4-wire Touch Connector
RTC backup power sources – Lithium coin cell onboard.
5V input voltage
External WDT option
Two 4KB EEPROM is provided on I2C0 that holds the board information
of SMARC module and Carrier Board. This information includes board
name, part number, serial number, and revision information.

Embedian, Inc.
11
SBC-SMART-MEN User’s Manual Document Revision v.1.0
1.2 Block Diagram
An overall system block diagram for the SBC-SMART-MEN single board
computer is shown on the following page. The following color coding is used
on the block diagram:
Industry standard wired I/O connectors are shown in orange.
Embedian defined wired I/O connectors and headers are shown in red.
Industry standard mezzanine and slot format connectors are shown in
blue.
ICs on the board are shown in pale yellow.
Miscellaneous features (jumpers, switches) are shown in drab green.
Much may be gleaned from this diagram:
What the major features are.
An indication of the power supply architecture.

Embedian, Inc.
12
SBC-SMART-MEN User’s Manual Document Revision v.1.0

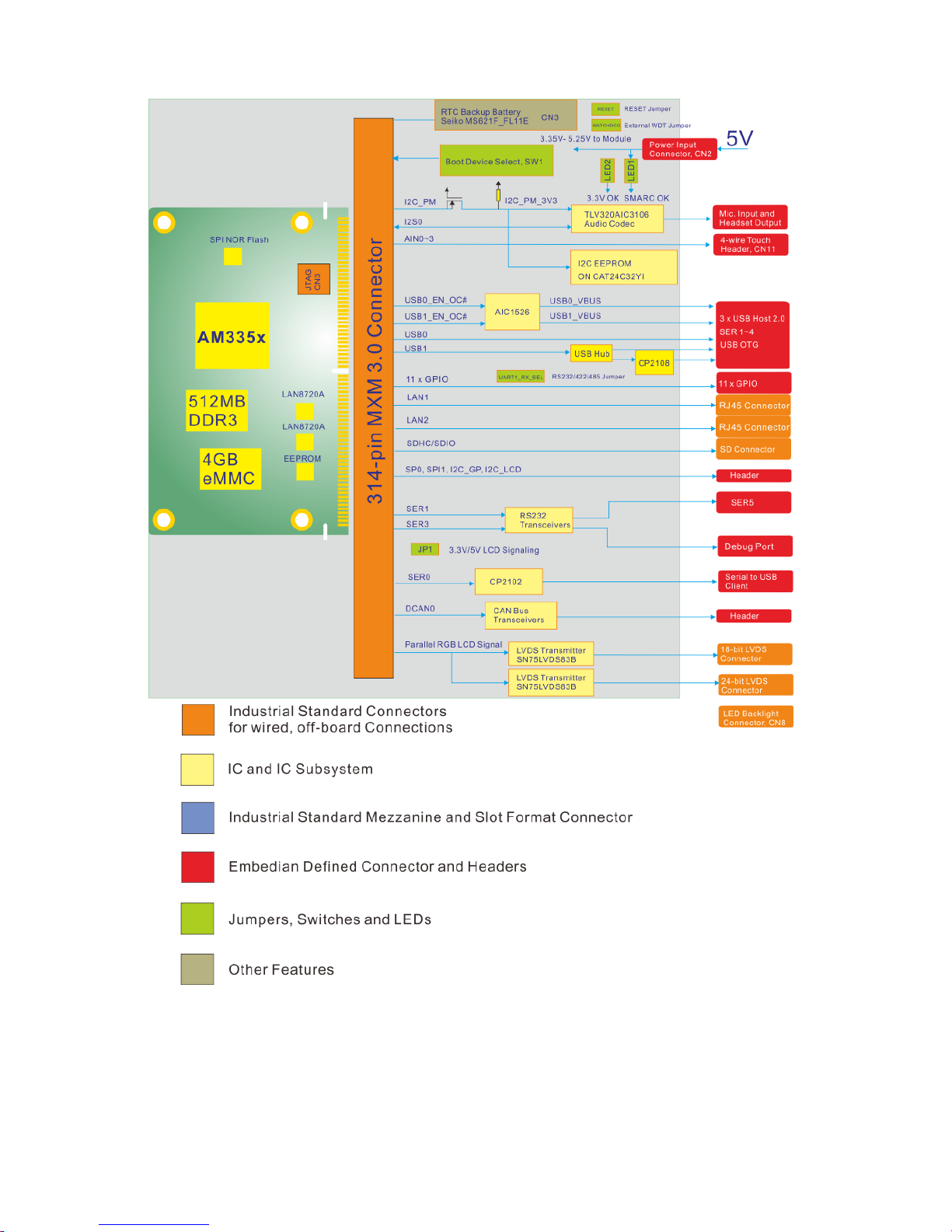

Figure 1: SBC-SMART-MEN Block Diagram
Details for this diagram will be explained in the following chapters.

Embedian, Inc.
13
SBC-SMART-MEN User’s Manual Document Revision v.1.0
1.3 Peripheral Overview
The following diagram shows the function of all peripherals including of
connectors, headers, configuration jumpers and other important features on
the SBC-SMART-MEN single board computer.
Figure 2: SBC-SMART-MEN Peripheral Diagram

Embedian, Inc.
14
SBC-SMART-MEN User’s Manual Document Revision v.1.0
1.4 Layout Diagram
The following section shows the physical location and reference designator of
connectors, configuration jumpers and other important features on the
SBC-SMART-MEN single board computer.
Figure 3: SBC-SMART-MEN Connectors, Headers and Jumpers

Embedian, Inc.
15
SBC-SMART-MEN User’s Manual Document Revision v.1.0
1.5 Mounting Holes Mechanical Drawing
Figure 4 shows the mounting holes information of SBC-SMART-MEN. The
diameter of mounting hole is 3.2mm and diameter of ring is 6mm.
Figure 4: SBC-SMART-MEN Mounting Holes Mechanical Drawing
Information

Embedian, Inc.
16
SBC-SMART-MEN User’s Manual Document Revision v.1.0
1.6 Document and Standard References
1.6.1. External Industry Standard Documents
eMMC (Embedded Multi-Media Card) the eMMC electrical standard is
defined by JEDEC JESD84-B45 and the mechanical standard by
JESD84-C44 (www.jedec.org).
The I2C Specification, Version 2.1, January 2000, Philips
Semiconductor (now NXP) (www.nxp.com).
I2S Bus Specification, Feb. 1986 and Revised June 5, 1996, Philips
Semiconductor (now NXP) (www.nxp.com).
JTAG (Joint Test Action Group defined by IEEE 1149.1-2001 - IEEE
Standard Test Access Port and Boundary Scan Architecture
(www.ieee.org).
MXM3 Graphics Module Mobile PCI Express Module
Electromechanical Specification, Version 3.0, Revision 1.1, © 2009
NVIDIA Corporation (www.mxm-sig.org).
PICMG® EEEP Embedded EEPROM Specification, Rev. 1.0, August
2010 (www.picmg.org).
SD Specifications Part 1 Physical Layer Simplified Specification,
Version 3.01, May 18, 2010, © 2010 SD Group and SD Card
Association (Secure Digital) (www.sdcard.org).
SPI Bus – “Serial Peripheral Interface” - de-facto serial interface
standard defined by Motorola. A good description may be found on
Wikipedia
(http://en.wikipedia.org/wiki/Serial_Peripheral_Interface_Bus).
USB Specifications (www.usb.org).
1.6.2. Embedian Documents
The following documents are listed for reference. The schematic is not
usually available outside of Embedian, without special permission. Contact
your Embedian representative for more information.
SBC-SMART-MEN User’s Manual
SBC-SMART-MEN Pinmux File
1.6.3. TI Documents
AM335x ARM Cortex-A8 Microprocessors (MPUs), April 15 2013 (rev.
F)

Embedian, Inc.
17
SBC-SMART-MEN User’s Manual Document Revision v.1.0
AM335x Schematic Checklist, Oct 31 2011
AM335x ARM Cortex-A8 Microprocessors (MPUs) Technical
References Manual, April 15 2013 (rev. H)
AM335x Power Consumption Summary, Oct 31 2011
1.6.4. TI Development Tools
Pin Mux Utility for ARM® Microprocessors
Power Estimation Tool (PET)
1.6.5. TI Software Documents
LINUXEZSDK-AM335x
ANDROIDDEVKIT-JB-AM335x
1.6.6. Embedian Software Documents
SBC-SMART-MEN Linux BSP
SBC-SMART-MEN Android BSP
SBC-SMART-MEN Linux BSP User’s Guide
SBC-SMART-MEN Android BSP User’s Guide
1.6.7. TI Design Network
Beaglebone
Beaglebone Blask
Adeneo Embedded (Windows Embedded Compact 7)
Nucleus
QNX

Embedian, Inc.
18
SBC-SMART-MEN User’s Manual Document Revision v.1.0
Jumpers, Switches
and LEDs
This Chapter provides SBC-SMART-MEN jumpers,
switches and LEDs information.
Section include：
Jumpers
Switches
LEDs

Embedian, Inc.
19
SBC-SMART-MEN User’s Manual Document Revision v.1.0
Chapter 2 Jumpers, Switches and
LEDs
This chapter gives detail information of the jumpers, switches and LEDs.
2.1 Jumpers
The SBC-SMART-MEN has a number of jumpers that allow you to configure
your system to suit your application. All use 2mm shorting blocks (shunts) to
select settings. Turn off power to the SBC-SMART-MEN before changing the
position of a shunt.
2.1.1. Jumper Location
Figure 5: Jumper Locations

Embedian, Inc.
20
SBC-SMART-MEN User’s Manual Document Revision v.1.0
2.1.2. List of Jumpers
The table below lists the function of various jumpers.
Label Function
LVDS_VDD_SEL 3.3V/5V LCD Signaling Voltage
UART_RX_SEL RS232/RS422/RS485 Setting for SER0
(UART0)
RESET Hardware Reset
WDT External WatchDog Timer
2.1.3. Jumper Settings
The following tables describe how the jumper shunts to various
configurations.
LVDS_VDD_SEL: Location on Board, H4
LVDS_VDD_SEL 3.3V/5V LCD Signaling Voltage
Setting Function
LVDS_VDD_SEL (1-2) 3.3V
LVDS_VDD_SEL (2-3) 5V
UART_RX_SEL: Location on Board, C2
UART_RX_SEL RS232/RS422/RS485 Settings
Setting Function
UART_RX_SEL (1-2) RS232
UART_RX_SEL (3-4) RS422/RS485 half duplex
UART_RX_SEL (5-6) RS422/RS485 full duplex
