EMC2 302-000-589 Installation instructions

Abstract
This document provides guidance for end-of-life recyclers on how to
identify and disassemble reportable materials in compliance with the
Waste Electrical and Electronic Equipment (WEEE) directive. The document
does not replace disposal instructions in EMC contracts, or those included
in
EMC Product and Residuals Disposal Guidelines .
December 2013
WEEE DISASSEMBLY INSTRUCTIONS
for the Li Ion Standby Power Supply (SPS)

2
WEEE Disassembly Instructions for the Li Ion (SPS), doc #302-000-589
Copyright © 2013 EMC Corporation. All Rights Reserved.
EMC believes the information in this publication is accurate as of its
publication date. The information is subject to change without notice.
The information in this publication is provided “as is.” EMC Corporation
makes no representations or warranties of any kind with respect to the
information in this publication, and specifically disclaims implied
warranties of merchantability or fitness for a particular purpose.
Use, copying, and distribution of any EMC software described in this
publication requires an applicable software license.
For the most up-to-date listing of EMC product names, see EMC Corporation
Trademarks on EMC.com.
Part Number: 302-000-589

3
WEEE Disassembly Instructions for the Li Ion (SPS), doc #302-000-589
Table of Contents
1.0
Document Purpose ............................................................................................................ 4
2.0
Important Notice................................................................................................................ 4
3.0
How to Use These Instructions............................................................................................ 4
4.0
Related Documentation...................................................................................................... 4
5.0
Brand Owner Identification................................................................................................. 4
6.0
Acronyms.......................................................................................................................... 5
7.0
Product Identification ........................................................................................................ 7
8.0
Product Photos.................................................................................................................. 8
8.1 Li Ion SPS Photos— Front/Back Labeled................................................................................. 8
8.2 Li Ion SPS Battery-pack .......................................................................................................... 9
8.3 Li Ion SPS Chassis ................................................................................................................. 9
9.0
Locating Materials ........................................................................................................... 10
9.1 Locating Materials on a Li Ion SPS Battery-pack ................................................................... 11
9.2 Locating Materials on a Li Ion SPS Chassis........................................................................... 12
9.3 Locating Materials on a Li Ion SPS Main PCB ........................................................................ 13
9.4 Accessories and Optional Equipment................................................................................... 14
10.0
Li Ion SPS PCBs ............................................................................................................... 15
11.0
Reportable Materials........................................................................................................ 17
11.1 Materials of Interest to Recyclers ....................................................................................... 18
11.2 Precious Metals ................................................................................................................. 19
11.3 Plastic Part Markings ......................................................................................................... 19
12.0
Disassembling the Li Ion SPS ........................................................................................... 20
12.1 Prerequisites ..................................................................................................................... 20
12.1.1 Required Tools for Disassembly.................................................................................. 20
12.1.2 Safety Precautions and Battery Warnings.................................................................... 20
12.2 Disassembly Sequence...................................................................................................... 21
12.3 Removing the battery-pack from the SPS chassis ............................................................... 22
12.3.1 Disassembling the battery-pack ................................................................................. 23
12.4 Disassembling the SPS chassis ......................................................................................... 29
13.0
RoHS Restricted Materials ................................................................................................ 35

4
WEEE Disassembly Instructions for the Li Ion (SPS), doc #302-000-589
1.0
Document Purpose
This document provides the most accurate information available on the location and removal of
reportable materials as required by the European Union (EU) Waste Electrical and Electronic
Equipment (WEEE) Directive 2002/96/EC.
For more information on EMC’s environmental initiatives, policies, and goals go to:
http://www.emc.com/corporate/sustainability/index.htm
2.0
Important Notice
This document does not in any way replace disposal instructions in EMC contracts, or those included
in
EMC Product and Residuals Disposal Guidelines.
3.0
How to Use These Instructions
EMC recommends that you adopt the following workflow to ensure the greatest efficiency in
compliance with WEEE legislation.
1. See 8.0 Product Photos to familiarize yourself with the hardware.
2. Review the items listed in 11.0 Reportable Materials, 11.1 Materials of Interest to Recyclers, and
11.2 Precious Metals to learn the recyclable materials present in this product.
3. Review 12.1.2 Safety Precautions and Battery Warnings prior to disassembling the product.
4. Review 12.2 Disassembly Sequence and subsequent tasks for removal procedures.
4.0
Related Documentation
EMC provides separate WEEE disassembly instructions per product platform. Contact the EMC WEEE
administrator at [e-mail] to request additional documentation as required.
5.0
Brand Owner Identification
EMC Corporation
176 South Street
Hopkinton, Massachusetts 01748
U.S.A
http://www.emc.com

5
WEEE Disassembly Instructions for the Li Ion (SPS), doc #302-000-589
6.0
Acronyms
Table 1 defines acronyms that may be used in the document.
Table 1. Acronyms List
ABS Acrylonitrile butadiene styrene
Ag Silver
Au Gold
BBU Battery Backup Unit
Cd Cadmium
CFC Chlorofluorocarbons
CPU Central Processing Unit
Cr Vl Hexavalent Chromium
Cu Copper
DAE Disk Array Enclosure
DIMMs Dual in-line Memory Modules
DPE Disk Processor Enclosure
DRL Device Regulatory Label
EMI Electromagnetic Interference
ESD Electrostatic discharge
EU European Union
GWP Global Warming Potential
HC Hydrocarbons
HCFC Hydrochlorofluorocarbons
HDPE High-Density Polyethylene
Hg Mercury
LCC Link Control Card
LDPE Low-Density Polyethylene
Li Ion Lithium Ion
Pb Lead
PBB Polybrominated Biphenyls
PBDE Polybrominated Diphenyl Ethers
PC Polycarbonate
PCB Printed Circuit Board
PCT Polychlorinated Terphenyl
Pd Palladium

6
WEEE Disassembly Instructions for the Li Ion (SPS), doc #302-000-589
PETE or PET Polyethylene Terephthalate
PP Polypropylene
PS Polystyrene
Pt Platinum
PVC Polyvinyl Chloride
RoHS Restriction of Hazardous Substances
SAS Serial Attached SCSI
SP Storage Processor
SPE Storage Processor Enclosure
SPS Standby Power Supply
SSD Solid State Disk
V Volt
WEEE Waste Electrical and Electronic Equipment

7
WEEE Disassembly Instructions for the Li Ion (SPS), doc #302-000-589
7.0
Product Identification
Li Ion SPS (Standby Power Supply)
Note:
EMC uses the
Product Model Name
as the main identifier throughout this document.
Table 2. Product Model Name and Specifications
Product Model Name Li Ion SPS
Product Description
208Vac nominal input standby power supply (SPS),
Lithium-ion, with a 2.2KVA AC output and a 2.2KW
Watt DC output capability, accepting domestic and
international single-phase input sources.
Part Number 078-000-080
Note:
The part number cited above denotes the
complete SPS assembly including the tray and
battery-pack.
Li Ion battery-pack part numbers:
•078-000-082
•078-000-110-00
•078-000-111-00
Mass 29 lbs. (63.8 kg) max (includes battery-pack)
Dimensions Height: 8.59 cm (3.38 in)
Width: 20.96 cm (8.25 in)
Depth: 71.12 cm (28.0 in)

8
WEEE Disassembly Instructions for the Li Ion (SPS), doc #302-000-589
8.0
Product Photos
Components with reportable items are referred to consistently using a yellow blocked item number.
Sub-components are identified by appending that number with a letter. All reportable items are
cross-referenced in 9.0 Locating Materials
8.1
Li Ion SPS Photos— Front/Back Labeled
There are only two primary components of the Li Ion SPS, the SPS chassis and the removable battery-
pack.

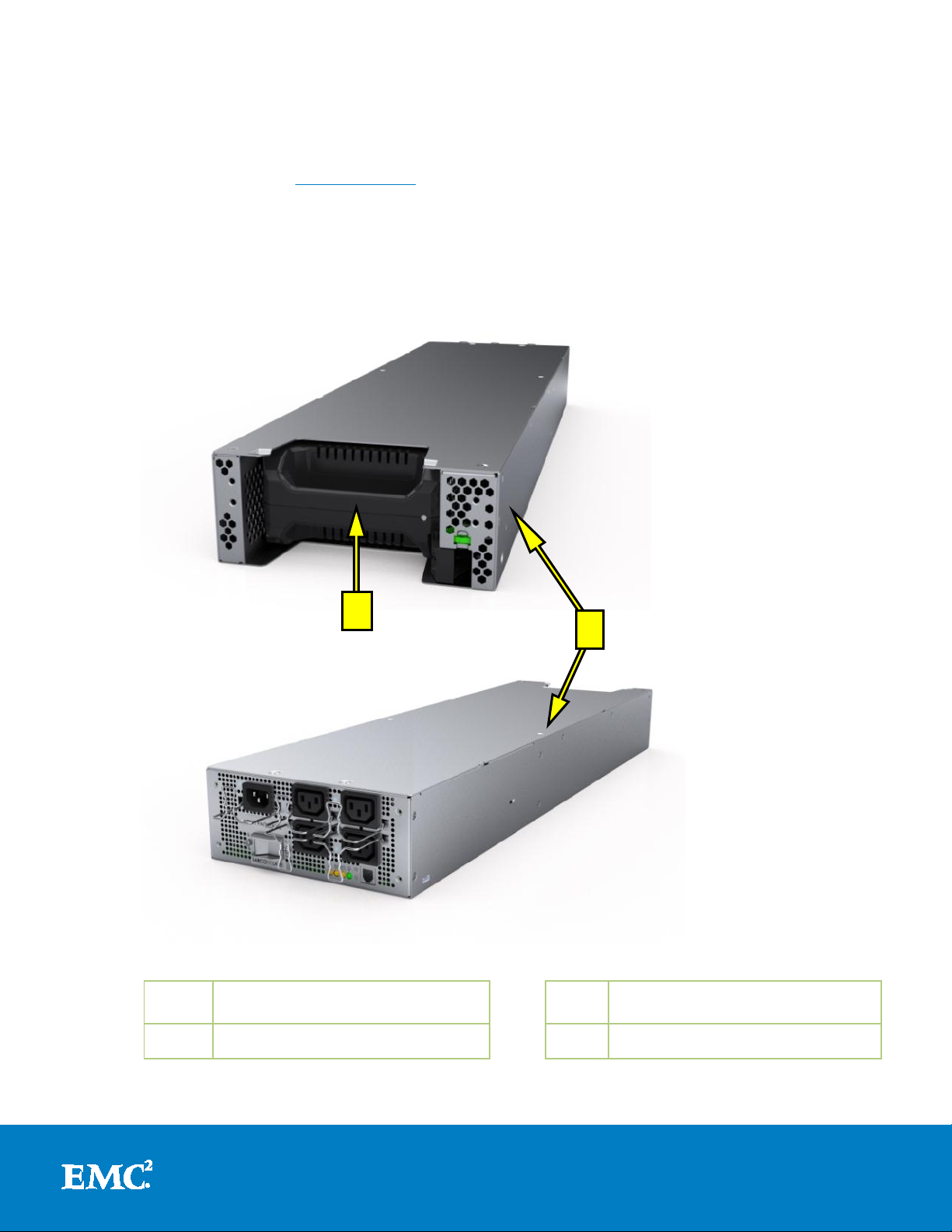

Figure 1. Front view
Figure 2. Rear view
Table 3. Main components with reportable items
Item #
Item Description
Item #
Item Description
1 Lithium-ion battery-pack 2 SPS chassis
2
1

9
WEEE Disassembly Instructions for the Li Ion (SPS), doc #302-000-589
8.2
Li Ion SPS Battery-pack
Figure 3. Li Ion SPS battery-pack
8.3
Li Ion SPS Chassis
Figure 4. Li Ion SPS chassis
1
2

10
WEEE Disassembly Instructions for the Li Ion (SPS), doc #302-000-589
9.0
Locating Materials
Each of the main components may have subcomponents that have specific reportable items. In that
case, a lower case letter is appended to the main component number. Refer to Table 4.
Table 4. Component/sub-component ID table
Item #
Item Description
Sub-
Item #
Sub-component Description
1 Li Ion SPS Battery-pack
See:
12.3.1 Disassembling the battery-pack
1a Cover, lid, plastic (316g <PC>)
1b Cover, base, plastic (325g <PC>)
1c Lithium-ion battery (Qty = 48)
1d Battery main PCB
1e Battery connector PCB
1f Copper bus bar, large
1g Copper bus bar, small
1h Light pipes
(<25 grams of unmarked plastic)
1i Battery-pack holders (2), plastic
1j Battery connectors, nickel (96)
2 Li Ion SPS Chassis
See:
12.4 Disassembling the SPS chassis
2a SPS chassis lid
2b SPS chassis frame
2c SPS Main PCB
2d SPS fan
2e Plastic battery-pack rails (4)
(each <25 grams of unmarked plastic)
2f SPS midplane PCB
2g Plastic battery-pack latch
(28.5 grams of unmarked plastic)
2h SPS midplane PCB plastic shield
(<25 grams of unmarked plastic)
2i Colored plastic wheel indicator
(<25 grams of unmarked plastic)
3 Li Ion SPS Main PCB 3a Heatsinks, non-ferrous metal
3b Copper coils
3c Large capacitors

11
WEEE Disassembly Instructions for the Li Ion (SPS), doc #302-000-589
9.1
Locating Materials on a Li Ion SPS Battery-pack
To remove this component, see: 12.3 Removing the battery-pack from the SPS chassis.
Figure 5. Li Ion SPS battery-pack components
Table 5. List of Li Ion SPS battery-pack components
Item
Component
Item
Component
1a Cover, lid, plastic (316g <PC>) 1f Copper bus bar, large
1b Cover, base, plastic (325g <PC>) 1g Copper bus bar, small
1c Lithium-ion battery (Qty = 48) 1h Light pipes
(<25 grams of unmarked plastic)
1d Battery main PCB 1i Battery-pack trays (2), plastic
1e Battery connector & PCB 1j Battery connectors, nickel (96)
1b
1d
1c
1a
1e
1g
1h
1f
1i
1i
1j

12
WEEE Disassembly Instructions for the Li Ion (SPS), doc #302-000-589
9.2
Locating Materials on a Li Ion SPS Chassis
For instructions regarding the disassembly of this component, see:
12.4 Disassembling the SPS chassis.
Figure 6. Li Ion SPS chassis partially disassembled for clarity
Table 6. List of Li Ion SPS chassis components
Item
Component
Item
Component
2a SPS chassis lid, ferrous metal 2d SPS fan
2b SPS chassis frame, ferrous metal 2e Plastic battery-pack rails (4)
(each <25 grams of unmarked plastic)
3 SPS Main PCB 2f SPS Connector PCB
2g Plastic battery-pack latch
(28.5 grams of unmarked plastic)
2h SPS midplane plastic baffle
(<25 grams of unmarked plastic)
2i Colored plastic wheel indicator
(<25 grams of unmarked plastic)
2j SPS chassis internal wire harness.
(copper red and black wires)
2e
2d
2a
3
2b
2h
2i
2e
2f
2g
2j

13
WEEE Disassembly Instructions for the Li Ion (SPS), doc #302-000-589
Figure 7. Li Ion SPS, side view
9.3
Locating Materials on a Li Ion SPS Main PCB
For instructions regarding the removal of this component, see: 12.4 Disassembling the SPS chassis.

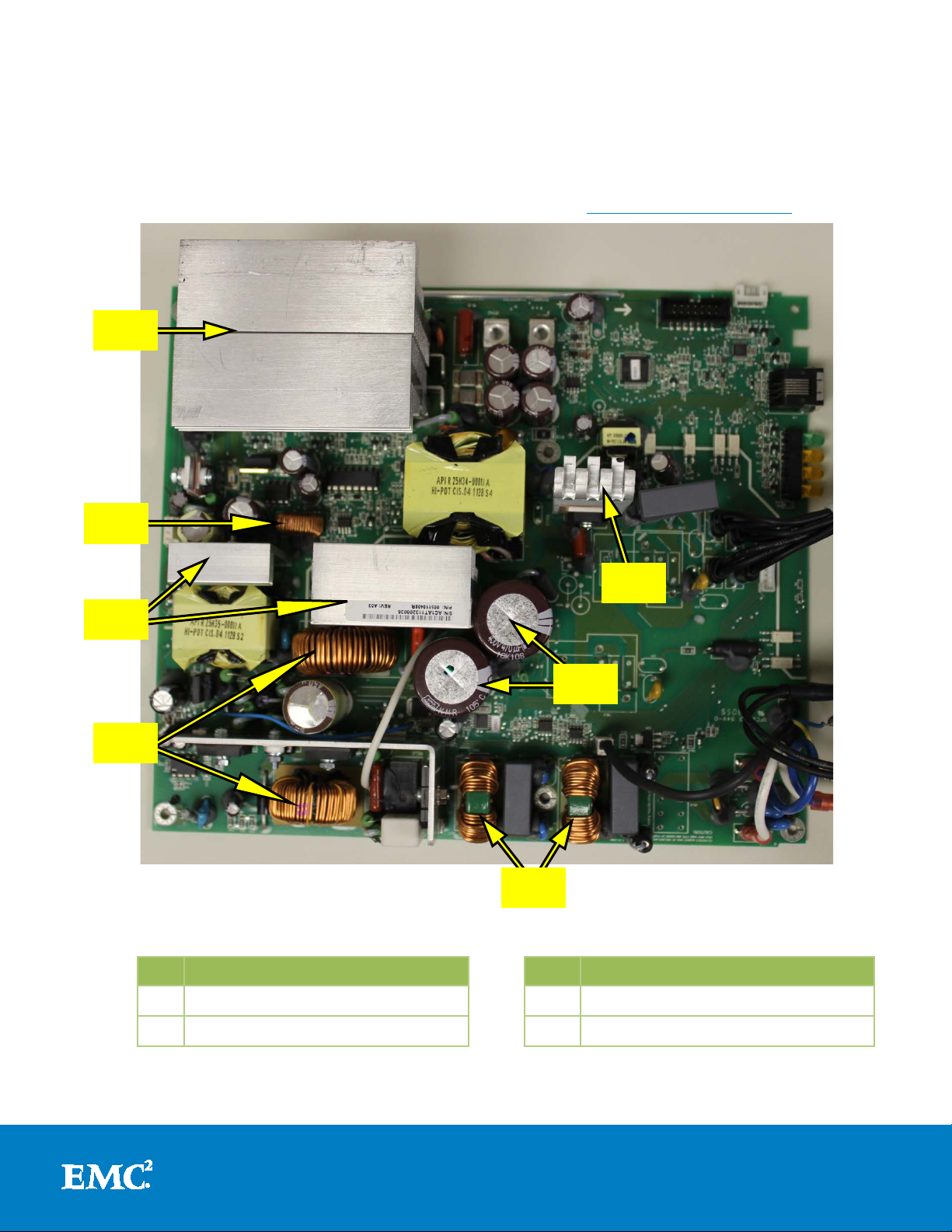

Figure 8. Li Ion SPS main PCB
Table 7. List of Li Ion SPS main PCB components
Item
Component
Item
Component
3a Heatsinks, non-ferrous metal, aluminum 3c Large capacitors, aluminum electrolytic
3b Copper coils
3a
3a
3b
3b
3b
3c
3a

14
WEEE Disassembly Instructions for the Li Ion (SPS), doc #302-000-589
9.4
Accessories and Optional Equipment
Table 8 lists accessories and optional equipment.
Table 8. Accessories and Options
Component
Disassembly Required?
AC Power Cord No
See Table 10 to identify
materials
.

15
WEEE Disassembly Instructions for the Li Ion (SPS), doc #302-000-589
10.0
Li Ion SPS PCBs
The following PCBs may be located within the system. Some variation may exist depending on
configuration.
Table 9. PCBs within the system
Battery, main PCB
Battery, connector PCB
1e
1d

16
WEEE Disassembly Instructions for the Li Ion (SPS), doc #302-000-589
SPS, main PCBs
SPS Connector PCB
2c
2h

17
WEEE Disassembly Instructions for the Li Ion (SPS), doc #302-000-589
11.0
Reportable Materials
Table 10 lists components that require selective treatment. To locate specific items, refer the tables
and images in 8.0 Product Photos and 9.0 Locating Materials.
Table 10. Complete list of Reportable Materials
Material Item Location
Polychlorinated biphenyl (PCB) containing capacitors and
all Polychlorinated Terphenyl (PCT) containing electrical
equipment
Absent
Mercury – containing components such as switches or
backlighting lamps Absent
Batteries & Accumulators 1c 48 Rechargeable Lithium-ion batteries
Printed circuit boards of mobile phones generally, and of
other devices if the surface of the printed circuit board is
greater than 10 cm2
1d Battery, main PCB
1e Battery, connector PCB
2f SPS Connector PCB
3 SPS main PCB
Ink & toner cartridges, liquid and pasty, as well as color
toner Absent
Plastic containing brominated flame retardants Absent
Asbestos waste and components which contain asbestos Absent
Cathode ray tubes Absent
Chlorofluorocarbons (CFC), Hydrochlorofluorocarbons
(HCFC), Hydrofluorocarbons (HFC)or,
Hydrocarbons (HC)
Absent
Gas discharge lamps Absent
Liquid crystal displays (together with their casing where
appropriate) of a surface greater than 100 cm2 and all
those back-lighted with gas discharge lamps
Absent
External electric cables See
Table
8
AC power cord
Embedded electric cables 2j SPS chassis internal wire harness.
(copper red and black wires)
Components containing radioactive substances, or
materials that become radioactive as a result of the
function of the product, such as ionizing radiation
Absent
Electrolytic capacitors containing substances of concern
(height > 25 mm, diameter > 25 mm or proportionately
similar volume)
3c SPS main PCB

18
WEEE Disassembly Instructions for the Li Ion (SPS), doc #302-000-589
Material Item Location
Equipment containing gases that are ozone-depleting or
have a global warming potential (GWP) about 15, such as
those contained in foams and refrigeration circuits
Absent
Ammonia-water solutions containing chromium VI
(Hexavalent Chromium) in the case of absorption
refrigerators
Absent
Any other liquid, such as oils and acids in particular Absent
Components containing refractory ceramic fibers Absent
Photo-conducting drums containing cadmium or selenium Absent
11.1
Materials of Interest to Recyclers
Table 11 lists materials for recycling. To locate specific items, refer the tables and images in 8.0
Product Photos and 9.0 Locating Materials.
Table 11. Complete list of Recyclable Materials
Material Item Location
Non-ferrous Alloys 3a SPS main PCB, heatsinks, aluminum
3b SPS main PCB copper coils
2j SPS chassis internal wire harness.
(copper red and black wires)
1j Nickel battery connectors
1f Copper bus bar, large
1g Copper bus bar, small
Ferrous Alloys 2a SPS chassis lid, screws/fasteners
2b SPS chassis frame, screws/fasteners
1 Battery screws/fasteners
ABS 2d Fan assembly, ABS plastic
Polyethylene Terephthalate (PETE or PET) Absent
High-Density Polyethylene (HDPE) Absent
Polyvinyl Chloride (PVC) Absent
Low-Density Polyethylene (LDPE) Absent
Polypropylene (PP) Absent
Polystyrene (PS) Absent
Other plastics, (e.g. acrylic; polycarbonate; nylon;
fiberglass) 1e Battery-pack connector
1h Battery light pipes
2e Plastic battery-pack rails (4)

19
WEEE Disassembly Instructions for the Li Ion (SPS), doc #302-000-589
Material Item Location
2h SPS midplane plastic baffle
2i SPS colored plastic wheel
11.2
Precious Metals
Table 12 lists precious metals for recovery. To locate specific items, refer the tables and images in
8.0 Product Photos and 9.0 Locating Materials.
Table 12. Precious Metals
Material Item Location
Copper (Cu) 1f Copper bus bar, large
1g Copper bus bar, small
3b SPS main PCB, copper coils
Gold (Au) 1d,
1e,
2f, 3
PCBs, very small quantity.
Palladium (Pd) Absent or not at an appreciable level
Platinum (Pt) Absent or not at an appreciable level
Silver (Ag) Absent or not at an appreciable level
11.3
Plastic Part Markings
Table 13 lists markings for plastic parts that weigh more than 25 grams. To locate specific items,
refer the tables and images in 8.0 Product Photos and 9.0 Locating Materials.
Table 13. Plastic Part Markings
Part Name
Weight
grams (g) Item ISO 11469:2000 Marking
Battery cover, lid 316g 1a <PC>
Battery cover, base 325g 1b <PC>
Battery trays (2) 216g 1i <PPO>
SPS battery-pack latch 28.5g 2g No markings

20
WEEE Disassembly Instructions for the Li Ion (SPS), doc #302-000-589
12.0
Disassembling the Li Ion SPS
The following sections describe how to remove the components and associated materials.
12.1
Prerequisites
Gather the required tools and familiarize yourself with the safety precautions before commencing
disassembly.
12.1.1
Required Tools for Disassembly
Table 14 lists the tools that may be required to disassemble the product.
Table 14 Tools
Tool
Description
Phillips screwdriver small
Phillips screwdriver medium
Flat-head screwdriver medium
T10 Torx driver T10 Torx driver required for battery-pack disassembly
Needle-nose pliers Use to remove precise hardware from PCBs.
Wire Cutters Use to remove capacitors, or cut wires.
Soldering Iron Use to unsolder the leads that attach some components to
a PCB.
12.1.2
Safety Precautions and Battery Warnings
Comply with the following precautions:
•Wear protective glasses during disassembly.
•Follow the recommended disassembly method and sequence.
•Always use the tool specified in the removal procedures.
•Follow standard industry best practices, including all applicable health and safety regulations.
Battery Warnings:
•Only trained personnel should handle the battery.
•Danger of explosion if battery is incorrectly replaced.
•Danger of explosion if system batteries or components with batteries
are processed in a shredder.
•Discard used batteries according to manufacturer’s instructions.
•Do not attempt to reuse or install batteries in any other system, for any
other purpose.
•The Lithium-ion batteries within the battery-pack may cause chemical
hazards and present an energy hazard if mishandled.
See MSDS if necessary.
• Do NOT transport used battery-pack by AIR.
