Emed UM2150 User manual

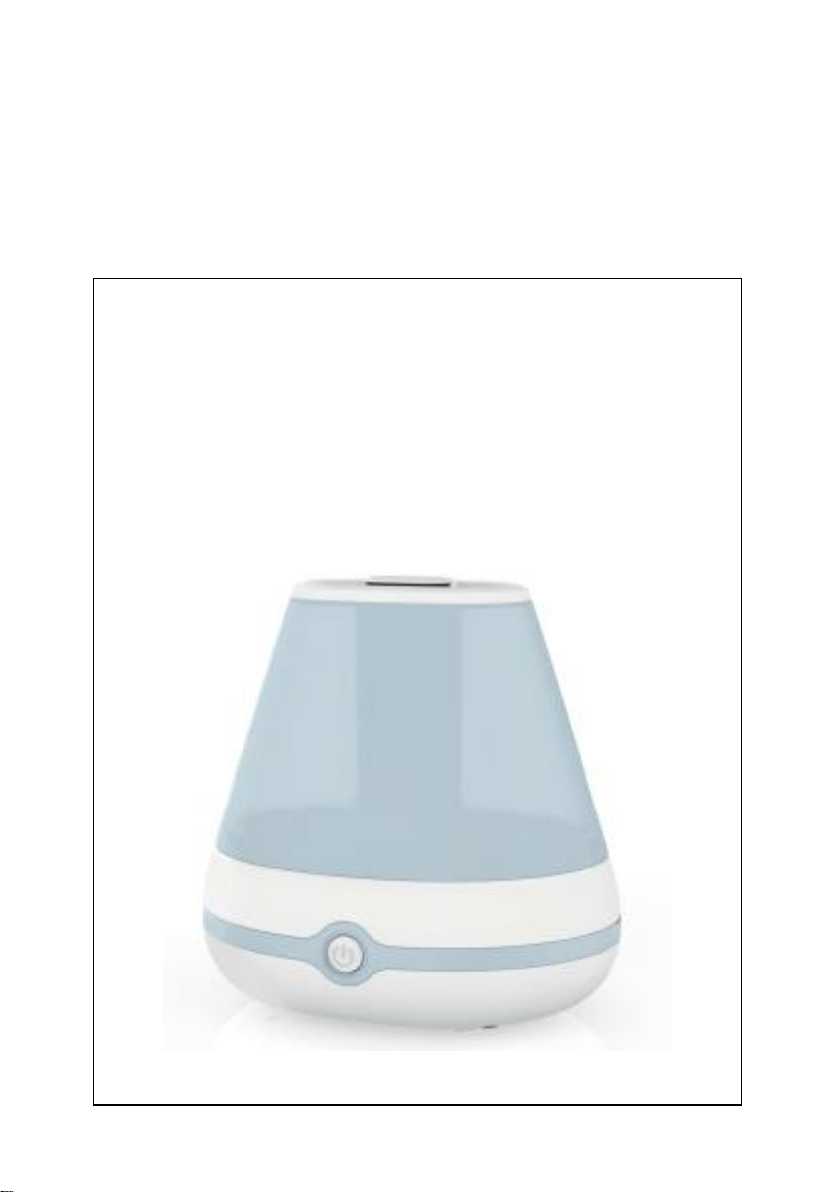

HOT HUMIDIFIER
UM2150

GB - Instructions for Use
Please read before use these instructions and keep them for
future reference.
SAFETY WARNINGS
ATTENTION!
• This unit is designed as a “humidifier for domestic
environments”; any other use is to be considered inappropriate
and therefore dangerous. The manufacturer cannot be held liable
for any damages caused by improper, erroneous or
unreasonable use.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Cleaning and user maintenance shall not be made by children
without supervision.
• Children shall not play with the appliance
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
• Only place the appliance on hard, flat and stable surfaces which
are not accessible to children.
• Care should be taken when using the appliance due to the
emission of hot water vapour.
• When the appliance is running, do not remove the tank or the
and always pay very careful.
• Unplug the appliance during filling and cleaning.
• Warning: do not obstruct the steam outlet hole with cloths,
objects or your hands as the temperature of the steam could
cause burns or severe scalding.

• Never add balsamic oil or aromatic substances to the water
contained in the tank.
• Add balsamic/aromatic essences or oils to the essence
container, carefully making sure that the liquid does not come
into contact with the outer surfaces of the tank or spills over,
penetrating the inside of the appliance through the outlet hole.
WARNING. In this case, hot water could escape from the
appliance and may cause burns or severe scalding.
• WARNING: do not add balsamic/aromatic essences or oils to
the essence container when the appliance is on as the
temperature of the exiting steam could cause serious burns.
•Never leave the water in the reservoir if the appliance is not in
use
•Keep the appliance out of the reach of children. Steam and
boiling water may cause burns.
•Microorganisms that may be present in the environment where
the appliance is used or stored, can grow in the water reservoir
and be blown in the air causing very serious health risks when
the water is not renewed and the tank is not cleaned properly
every 3 days.
•Be aware that high humidity levels may encourage the growth
of biological organisms in the environment.
•Do not permit the area around the humidifier to become damp
or wet. If dampness occurs, turn the output of the humidifier
down. Do not allow absorbent materials, such as carpeting,
curtains, drapes, or tablecloths, to become damp.
•Empty the tank and refill every third day. Before refilling, clean it
with fresh tap water. Remove any scale, deposits, or film that has
formed on the sides of the tank or interior surfaces, and wipe all
the surface.

Hot Humidifier
UM2150
WARNING:
Read the safety instructions at the beginning of the manual.
The right degree of humidity of the environment helps maintain the natural
protective functions of the nasal mucous membranes and respiratory tract,
thus creating the best conditions for the wellbeing of babies. Before turning on
the humidifier, carefully check the temperature and relative humidity of the
surrounding environment.
This item allows to have the same nebulization capacity of a common Hot
Humidifier with a warm steam that prevent burns and injuries.
Temperature of approximately 16°/20°C
Healthy child 40-60%
Child with cold and/or cough 60-70%
Child suffering from asthma 35- 50% (as a preventive measure)
LEGEND (Fig.1)
A. On (I)/ off (O) switch
B. Appliance power on and water indicator light
C. Tank
D. Essence container
E. Cap
F. Steam outlet
G. Power cable
H. Insert
I. Steam chamber cover
J. Heating unit (supply channel, heating tank and resistance)
K. Water tank
WARNINGS
• This product is not a toy. Keep the appliance, the essence container the
steam outlet, the lid, the steam duct and the power cable out of the reach of
children.

• After having removed the appliance from its packaging, ensure that it is
intact and that there is no visible damage. When in doubt, do not use the
appliance and only contact technically competent personnel or retailers.
• Keep all components of the packaging out of the reach of children.
• Before connecting the appliance, ensure that the information on the power
data plate is compatible with your electricity distribution network. The data
plate is located on the bottom of the appliance.
• Connect the appliance to a socket that is only easily accessible by an adult.
• Do not place the appliance on delicate surfaces or surfaces which are
sensitive to heat, water and moisture.
• Position the product so that the steam is not directed towards persons,
furniture, curtains, walls, electrical appliances or objects affected by heat,
water and/or moisture.
• Only fill the tank with cold drinking water.
• WARNING: the heating unit in contact with the water reaches high
temperatures and should not be touched unless the appliance is cold.
• Do not move, lift, tilt, or perform any cleaning or maintenance when the
humidifier is in use or connected to the mains or is still hot.
• Before cleaning or drying of the appliance, remove the plug of the power
cord from the socket and always wait for the heating unit to cool: contact with
the heating unit when it is still hot could cause serious burns.
• When the tank, the essence container the steam chamber cover are
removed, pay attention to condensation and any residual water that may drip,
causing harm to persons, animals or property.
• Never leave the power cable plug inserted in the socket when the unit is not
being used or when it is unattended.
•Do not use accessories, spare parts or components not provided/supplied by
the manufacturer.
• Any repairs should only be performed by competent technical personnel or
by repairers authorized.
• The use of any electrical appliance requires compliance with certain basic
rules:
- Never touch the unit with wet or humid hands.
- Do not pull the power cord or the appliance itself to remove the plug from the
socket.
- Never leave the appliance exposed to weathering (rain, sun, etc.).
- Keep the appliance and the power cable away from sources of heat.
- Never immerse the appliance in water or other liquid or place it under
running water.

- Do not touch the appliance if it is accidentally dropped into water;
immediately turn the power off, lowering the general electrical system switch in
your home switch and remove the plug from the socket before touching the
appliance. Do not reuse the appliance but contact the retailer or a service
centre authorized.
- This appliance does not contain user serviceable or reusable parts and can
only be opened with special tools. In the event of a failure and/or poor
operation of the unit, switch it off immediately and remove the plug from the
socket. Do not attempt to tamper with the unit and only contact the retailer or a
service centre authorized.
• The appliance must be thoroughly cleaned and dried after each operating
cycle.
• If the unit is not used for an extended period of time, it must be stored as
detailed in the paragraph regarding Cleaning and maintenance.
• Should the unit no longer be used, after removing the plug from the socket, it
is advisable to make it inoperative by cutting the power cable.
• Do not dispose as household waste but recycle, as it is electrical/electronic
equipment (WEEE), as required by applicable laws and EU directives.
• To avoid the risk of fire, do not pass the power cable under rugs or near
radiators, stoves and heaters.
• Do not keep the humidifier in environments with extreme temperatures.
• Product features may be subject to change without notice.
• If you have doubts about the interpretation of any contents of this instructions
manual, contact your retailer or the manufacturer.
INSTRUCTIONS FOR USE
PRELIMINARY OPERATIONS
1. Position the appliance in its selected position, observing the requirements
outlined in the Warnings paragraph.
2. Position the product so that the steam is not directed towards persons,
furniture, curtains, walls, electrical appliances or objects affected by heat,
water and/or moisture.
3. Remove the tank, then check that the steam chamber cover is correctly
inserted and secured in the middle housing.
4. Take off the cap from the tank turning it in anticlockwise. Fill the tank with
cold drinking or distilled water. Once the operation is completed, close the
cap. Ensure that the cap is positioned correctly.
5. Put the tank filled with water on the middle housing. If desired, insert a few
drops of oil or aromatic liquid into the essence container.

Always make sure the oil or aromatic liquid does not come in contact with the
outer surfaces of the water tank or spills over, penetrating the inside of the
appliance through the steam outlet hole.
5. Connect the power cable plug to a socket that is only easily accessible by
an adult.
SWITCHING THE APPLIANCE ON AND OFF
6. Push the on/off switch into position, the indicator light will come on.
7. Warning: the flow of steam will only start a few minutes after the unit is
switched on (about 5 minutes).
8. Warning: never place your face or hands near the steam outlet, or block it
with objects. The temperature of the steam can cause serious burns.
9. Warning: When the water contained in the tank finishes and the water
inside the middle housing reaches the minimum filling level, the machine stops
heating after a few minutes, the switch button remains in position and the light
turns off. Switch off the unit on by pressing the switch into off position, remove
the plug from the socket and refill the tank as indicated in the paragraph on
Preliminary operations.
WARNING: The appliance is equipped with an automatic device which turns
off the heating element for the production of steam when the water contained
in the water tank is finished.
10. To reactivate the production of steam, always first switch off, then wait for
the heating element to cool down sufficiently, then switch back on via the
switch.
Warning: Never remove the lid or the essence container without first switching
off the appliance and removing the plug of the power cable from the socket.
11. To completely switch off the appliance, push the switch into position.
12. WARNING: Immediately after switching off the appliance, the water
contained in the heating tank may continue to boil for a few minutes.
13. WARNING: If, as a result of filling or emptying of the water tank, the
outside walls of the product (including its base) should become wet,
immediately dry them with a clean cloth, before inserting the plug into the
socket and switching on the appliance once again.
CLEANING AND MAINTENANCE
Warning!!
Before performing the following cleaning/ maintenance
operations, always switch off the appliance, unplug the power

cable from the socket and allow the unit to completely cool,
including the lid, the essence container and the steam duct.
Cleaning of the water tank and the middle housing
During normal use of the appliance, due to salts in the water,
scale deposits may form on the heating element and in the steam
duct. These deposits could form fairly quickly according to the
type of water, its hardness and frequency of use of the appliance.
The higher the water hardness, the faster the formation of
deposits. Deposits decrease performance and may impede
normal operation of the appliance. As such decalcify at least
once a week as follows:
1. Remove the Steam outlet and the Tank.
2. Remove the steam chamber cover from its seat by turning it
clockwise.
3. Refill the tank with cold drinking water.
4. Rinse several times, allowing the water to drain from the drain
point on the side of the appliance.
5. Clean the heating unit (supply channel, heating tank and
resistance) located at the centre of the water tank, removing the
calcium deposits.
6. After having removed any residual water, pour about 50ml of a
solution made up of equal parts water and white wine vinegar
into the middle housing steam chamber and wait about 4 hours.
Then gently shake the appliance for a few minutes and remove
any residues of calcium with a cloth. Rinse the middle housing
several times with drinking water, the tank and in particular the
steam duct and the steam chamber. Allow to drain and dry
thoroughly with a soft cloth.
7. Dry the inside, passing a dry cloth gently over the entire
surface of the appliance.
8. Reposition the steam chamber cover in its seat on the inside of
the tank turning it anti-clockwise and re-insert its cover.
9. Reposition the Tank and the Steam outlet.

10. If the appliance is not to be used for a long period, after
cleaning, dry all parts of the unit immediately, then store it in a
dry and protected place.
External cleaning of the appliance
Clean the outer parts of the appliance using a soft cloth. Do not
use abrasive cleaners, alcohol, solvents or similar products which
could cause irreparable damage to the surfaces of the appliance.
Warning!
1. Do not immerse the appliance in water or other liquid. Do not
place the appliance under water or use near jets of water; if
electrical parts come into contact with water, do not use the
appliance and contact your retailer or a service centre authorized
by the distributor.
2. Keep water away from the power cord and switch zone.
3. Do not scrape the heating unit and do not use chemicals or
abrasives to clean it.
4. Any repairs must only be performed by a service centre
authorized by the distributor.
PROBLEMS AND SOLUTIONS
Problem
a) The humidifier does not work
b) The appliance is very noisy
c) Strange smell Solution
a)
1) Check that the power cord is connected to the socket.
2) Check that the switch is in the on position.
3) Check that there is enough water in the tank.
4) To reactivate the production of steam after a cycle of use, always first
switch off, then wait for the heating element to cool down sufficiently, then
switch the appliance back on via the switch.
b)
1) Perform the usual cleaning operations as indicated in the CLEANING AND
MAINTENANCE paragraph, then air the water tank in a cool place for 4 hours.
c)
1) Perform the usual cleaning operations as indicated in the CLEANING AND
MAINTENANCE paragraph, then air the water tank in a cool place for 4 hours.

The copy of this instruction manual can be found on the site
www.elettroplastica.com
TECHNICAL FEATURES
MOD. UM2150
Nominal voltage: 220-240V~ 50/60Hz
Absorbed power: 200W
Water tank capacity: 2.0 L
approx Autonomy: ~8 hours
Weight: 1kg
Measurements: 240x190x235mm
Storage environmental conditions:
Ambient temperature: -10 ÷ +70 °C
Relative humidity: 10 ÷ 90%
CE Conformity:
This humidifier appliance –Brand EMED UM2150 complies with all the
essential requirements and other provisions indicated in the EU Directives
2014/30/EU (electromagnetic compatibility) and 2014/35/EU (electrical safety).
To request a copy of the EC declaration please feel free to contact the
Manufacturer EP S.p.A - via del Commercio, 1 –25039 Travagliato (BS) Italy
SYMBOLS KEY
Equipment in compliance with the essential requirements laid down in the EC
Directives in force
Warning!
Warning! Hot water vapour
Please read instructions booklet
Warning! Hot surface
Users instructions
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To return your used device, please use
the return and collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.

This product complies to EU directive 2012/19/EU. The crossed bin symbol
on the appliance indicates that the product, at the end of its life, must be
disposed of separately from domestic waste, either by taking it to a separate
waste disposal site for electric and electronic appliances or by returning it to
your dealer when you buy another similar appliance. The user is responsible
for taking the appliance to a special waste disposal site at the end of its life. If
the disused appliance is collected correctly as separate waste, it can be
recycled, treated and disposed of ecologically; this avoids a negative impact
on both the environment and health, and contributes towards the recycling of
the product’s materials. For further information regarding the waste disposal
services available, contact your local waste disposal agency or the shop
where you bought the appliance.
Other manuals for UM2150
1
Table of contents
Other Emed Humidifier manuals
