Emerson SR110 User manual

Part No. F40BP72700000 Form No. BP7270
READ AND SAVE THESE INSTRUCTIONS
SR110 & SW105
Ceiling Fan/Light
Remote Control & Receiver
Owner's Manual
For use only with Emerson Ceiling Fan Models
F2100 1, F2200 1, F2300 1, CF1 0, CF2300 0, CF2400 1,
CF2500 0, CF2800 0, CF3900 0, CF4500 1, and CF4800 1.
®
OFF
REV
LOW
MED
HIGH
UP DN

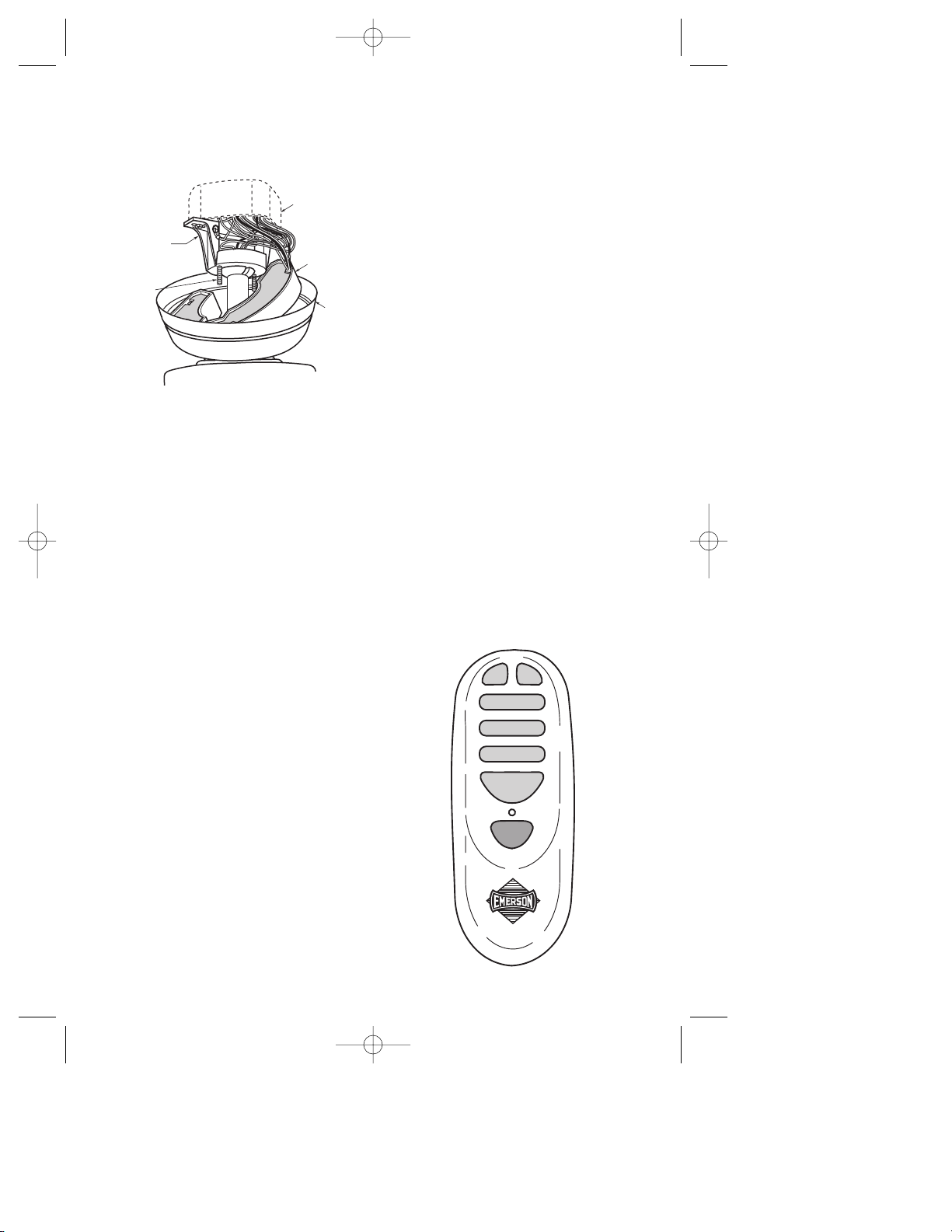

Model
SR110
Remote Control
Model
SW105
Receiver
NOTE: The SR110 Remote
Control must be used with
a SW105 Receiver.
BP7270-1 5/6/05 1:29 PM Page 1

2
Safety Instructions
WARNING: To avoid fire, shock, and serious personal injury, follow all instructions
carefully.
1. Read your Owner's Manual carefully before installing the Remote Control or Receiver.
Retain Owner's Manual for future reference.
2. Before servicing or cleaning the ceiling fan, switch power off at service panel and lock
service panel to prevent power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a warning device such as a
tag, to the service panel.
ADDITIONAL SAFETY INSTRUCTIONS FOR INSTALLATION
1. To avoid possible electrical shock, be sure electricity is turned off at the main fuse or
circuit breaker box before wiring.
2. Make certain no bare wires are exposed outside the wire connectors.
3. All wiring must conform to National and Local Electrical Codes.
4. Follow the recommended instructions for the proper method of wiring your new
Remote Control or Receiver. If you feel you do not have enough electrical wiring
knowledge or experience, have your Remote Control or Receiver installed by a
licensed electrician. Any electrical work not described in this manual should be
performed by a licensed electrician.
WARNING
!
DATE CODE:
The date code of this fan may be found on the box, stamped in ink on a white label.
You should record this data above and keep it in a safe place for future use.
INSTRUCTION TO THE USER (if device contains a digital device)
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment has been certified to comply with the limits for a class B computing device,
pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables
must be used with this equipment. Operation with non-approved equipment or unshielded
cables is likely to result in interference to radio and TV reception. The user is cautioned that
changes and modifications made to the equipment without the approval of manufacturer could
void the user’s authority to operate this equipment.
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
BP7270-1 5/6/05 1:29 PM Page 2

3
General
Your Emerson Ceiling Fan/Light Control
consists of a hand-held SR110 Remote
Control (transmitter) and a SW105
Receiver which is mounted under the fan
ceiling cover. The remote control is
designed to control your ceiling fan speed,
airflow direction, and light intensity.
NOTE: The remote control is to be used
only with the following Emerson ceiling
fan models: F2100, F2200, CF1,
CF2300, CF2400, CF2500, CF2800,
CF3900, CF4500 and CF4800.
The SW105 Receiver may also be used
with the SW115 Wall Control.
Unpackaging
The carton with the SR110 Remote
Control transmitter also contains a storage
bracket with two mounting screws.
The carton with the SW105 Receiver also
contains a reversing module, seven wire
connectors, and four pull chain switch
plugs. Preset Memory Feature
Your Emerson remote control receiver is
equipped with a preset memory feature.
The receiver will remember the light
intensities and fan speed when the lights
and fan are turned off from the wall switch.
When the wall switch is turned back on,
the lights and fan will resume operation as
they were prior to being turned off.
Installation of Battery
1. Remove the battery cover and install
four AAA batteries (not supplied),
oriented as shown in the battery
compartment (Figure 1).
IMPORTANT
This Owner’s Manual is divided into
two sections. The first section,
REMOTE CONTROL PROCEDURES,
describes how to install the four
alkaline batteries (not supplied) in the
remote control transmitter, and how to
set the operating frequency of the
transmitter and receiver. These
instructions must be performed prior to
installation of the ceiling fan as
described in the second section,
CEILING FAN PROCEDURES.
REMOTE CONTROL
PROCEDURES
General
Your Emerson Ceiling Fan/Light Remote
Control consists of a hand-held transmitter
and a receiver which is mounted under the
fan ceiling cover. The remote control is
designed to separately control your ceiling
fan and light intensities. There are four
push buttons (HI, MED, LOW, OFF) to set
the fan speed and turn the fan off.
The REV push button changes the airflow
direction of the fan blades. The UP
(uplight) and DN (downlight) push buttons
turn the lights on and off and control the
light intensities. The red indicator light will
illuminate while any button is pressed,
indicating that the battery is good.
The remote control transmitter is powered
by four AAA alkaline batteries (not
supplied). To prevent possible damage if
the batteries should leak, be sure to
remove the batteries when the control is
not to be used for an extended period of
time.
Code switches in the transmitter and
receiver may be set in 16 different
positions. If your fan and light go on and
off without using your control, you may be
getting interference from other remote
units such as garage door openers, car
alarms or security systems. To remedy this
situation, simply change the combination
code in your transmitter and receiver.
SWITCH LEVERS
CODE SWITCH
REMOTE CONTROL
TRANSMITTER
CODE
SWITCH RECEIVER
CODE
SWITCH
BATTERY
COVER
AAA
AAA
AAA
AAA
ON
2341
Figure 1
BP7270-1 5/6/05 1:29 PM Page 3

4
Setting Operating
Frequency of Transmitter
and Receiver
Your remote control transmitter and
receiver have code switches which must
be set on one of 16 possible code
combinations. The four levers (numbered
1, 2, 3, and 4) on the switches are factory-
set in the ON (up) position. Do not use this
setting. Change the switch settings as
follows:
1. Slide the four switch levers (Figure 1) in
the remote control transmitter to your
choice of ON (up) or down positions.
Use a ball-point pen or small
screwdriver and slide the levers firmly
up or down.
2. In the receiver, slide the four switch
levers in the same positions as set in
the transmitter. Make sure the levers on
both switches are in the same
positions; otherwise the fan will not
operate.
3. Position the batteries in the transmitter
battery compartment and replace the
battery cover.
CEILING FAN
PROCEDURES
Installation to Operate the
Ceiling Fan, Downlight
and Uplight
IMPORTANT
It is important that you also follow the
installation instructions contained in
the Owner’s Manual supplied with your
Ceiling Fan. Pay particular attention to
the Safety Instructions and WARNING
notes.
1. Remove and retain the screws
securing the housing cover to the
switch housing (Figure 2).
2. All Ceiling Fan Models. Disconnect
the motor connector from the wiring
harness connector (Figure 2). Remove
the knurled nut securing the speed
control switch to the switch housing.
HOUSING COVER
(TYPICAL)
SCREW (TYPICAL)
SCREW (2)
KNURLED
NUT
SPEED
CONTROL
SWITCH
PULL
CHAIN PLUG REVERSING SWITCH
SWITCH HOUSING
CAPACITOR
MOTOR
CONNECTOR
WIRING
HARNESS
CONNECTOR
Figure 2
3. For Ceiling Fan Models CF2400,
CF4500 and CF4800 Only. Remove
the wire connector joining the three
blue wires. (Figure 3). Separate the
blue wire coming from the ceiling fan
and cap this wire using a wire
connector (supplied). On Models
CF4500 and CF4800 only, cut the
yellow wire coming from the uplight
switch; cap the end of this wire coming
from the center of the motor using a
wire connector. On Model CF2400 only,
remove the wire connector joining the
two yellow wires; cap the yellow wire
coming from the motor using a wire
connector (orange wire on older
models). Remove the knurled nut
securing the uplight switch to the switch
housing and remove the uplight switch.
NOTE: Keep the uplight switch if you
think you may like to return to manual
control in the future.
PULL CHAIN
PLUG
UPLIGHT SWITCH
CUT THE
YELLOW WIRE
AND CAP USING
WIRE
CONNECTOR
SEPARATE BLUE WIRE COMING FROM CEILING
FAN AND CAP USING WIRE CONNECTOR
2
REMOVE WIRE
CONNECTOR SECURING
THREE BLUE WIRES
1
3
KNURLED NUT
Figure 3
BP7270-1 5/6/05 1:29 PM Page 4

5
5. For Ceiling Fan Models F2100, F2200
and CF2300 Only. Remove the knurled
nut securing the reversing switch to the
switch housing (Figure 4).
6. For Ceiling Fan Models CF1 and
CF2800 Only. Locate the gray
capacitor wire which is connected to
the yellow wire (gray wire on older
models) coming from the center of the
motor. Remove the wire connector and
separate the gray and yellow wires.
Cap the yellow wire using a wire
connector (supplied) (Figure 5).
KNURLED
NUT
PULL
CHAIN
PLUG
REVERSING SWITCH
Figure 4
WIRE CONNECTOR
REVERSING
MODULE
MOTOR
CONNECTOR
WHITE
REVERSING
MODULE WIRE
WHITE MOTOR
WIRE
REVERSING MODULE
CONNECTOR
CF1 & CF2800 INSTALL
WIRE CONNECTOR ON
YELLOW WIRE
(CF2400 - INSTALL
WIRE CONNECTOR ON
GRAY WIRE)
CF1 & CF2800
YELLOW WIRE (GRAY
ON OLDER MODELS
AND ON CF2400)
GRAY
CAPACITOR
WIRE
CAPACITOR
Figure 5
7. All Ceiling Fan Models. Separate the
capacitor (held in place with two-sided
tape) from the switch housing (Figure
2) and remove the wiring harness and
switch(es) from the switch housing.
NOTE: Keep the wiring harness if you
think you may like to return to manual
control in the future.
8. All Ceiling Fan Models. Close the
hole(s) for the speed control switch and
the uplight switch or reversing switch
by installing pull chain plug(s)
(supplied) in the hole(s). (See Figures
2, 3, and 4). Choose the color that best
matches our ceiling fan.
9. Position the reversing module
(supplied) in the switch cup; connect
the reversing module connector to the
motor connector (Figure 6). The
connectors are color-coded and keyed
and can be connected in only one
manner.
Figure 6
10. Using a wire connector (supplied),
connect the white wire from the motor
to the reversing module white wire
(Figure 6).
11. Position the housing cover (Figure 2)
on the switch housing and secure
using the screws removed in Step 1.
NOTE: If you are planning to install an
optional Emerson Light Fixture on your
ceiling fan, do not install the housing
cover (Step 11) at this time.
12. Place the fan housing (top of motor
facing upward) in the lower styrofoam
pad. The lower pad serves as a
holder for the fan during the following
procedures.
6A. For Ceiling Fan Model CF2400
Only. Locate the gray capacitor wire
which is connected to the gray wire
coming from the center of the motor
(yellow wire on older models).
Remove the wire connector and
separate the gray wires. Cap the gray
wire using a wire connector (supplied)
(Figure 5).
4. For Ceiling Fan Models CF2500,
CF3900, CF4500 and CF4800 Only.
Remove two screws securing the
reversing switch to the switch housing
(Figure 2).
BP7270-1 5/6/05 1:29 PM Page 5

6
13. For Ceiling Fan Models F2100,
F2200, CF2300, CF2500 and
CF3900 Only. Locate and remove the
connector from the yellow wire from
the uplight (Figure 7). Separate,
untwist and unkink the 80” yellow wire
lead (supplied with the fan) and cut off
the connector from the end of the
wire. Strip 1/2-inch of insulation from
the end of this wire. Then join the 80”
yellow wire to the yellow wire from the
uplight using a wire connector
(supplied).
NOTE: The red and brown wires
coming from the top of the motor are
capped with wire connectors. DO NOT
remove these connectors.
2
1
80" YELLOW WIRE
BROWN
WIRE
DO NOT REMOVE THESE
WIRE CONNECTORS
RED WIRE YELLOW WIRE
FROM UPLIGHT
REMOVE WIRE CONNECTOR
FROM YELLOW WIRE FROM
UPLIGHT
JOIN 80" YELLOW WIRE
USING WIRE CONNECTOR
Figure 7
14. For Ceiling Fan Models CF4500
and CF4800 Only. Locate the two
yellow wires terminated by a wire
connector. Remove the wire
connector and separate the wires
(Figure 8). One yellow wire comes
from the motor coupling; cap the end
of this wire using a wire connector
(supplied) (Figure 9). Separate,
untwist and unkink the 80” yellow wire
lead (supplied with the fan) and cut off
the connector from the end of the
wire. Strip 1/2-inch of insulation from
the end of this wire. Then join the 80”
yellow wire to the yellow wire from the
uplight using a wire connector
(supplied). (Figure 9).
NOTE: The red and brown wires
coming from the top of the motor are
capped with wire connectors. DO NOT
remove these connectors.
14A. For Ceiling Fan Models CF2400
Only. Cut the yellow wire midway
between the motor coupling and the
grommet in the inside of the housing
(orange wire on older CF2400
models). Cap the yellow wire coming
from the motor coupling using a wire
connector (supplied). Separate,
untwist and unkink the 80” yellow
wire lead (supplied with the fan) and
cut off the connector from the wire.
Strip 1/2-inch of insulation from the
end of this wire. Then join the 60”
yellow wire to the yellow wire coming
from the inside of the housing using
a wire connector.
YELLOW WIRE FROM
MOTOR COUPLING
BROWN
WIRE
DO NOT REMOVE THESE
WIRE CONNECTORS
RED WIRE YELLOW WIRE
FROM UPLIGHT
REMOVE WIRE
CONNECTOR
MOTOR COUPLING
21
Figure 8
INSTALL WIRE
CONNECTOR
INSTALL 80" YELLOW WIRE
BROWN
WIRE
DO NOT REMOVE THESE
WIRE CONNECTORS
YELLOW WIRE
FROM UPLIGHT
RED WIRE MOTOR
COUPLING
YELLOW WIRE
FROM MOTOR COUPLING
INSTALL
WIRE
CONNECTOR
3
24
Figure 9
15. For Ceiling Fan Models CF1 and
CF2800 Only. No wiring changes are
required on top of the motor; proceed
to Step 16.
BP7270-1 5/6/05 1:29 PM Page 6

The hairpin clip must be properly
installed to prevent the clevis pin from
working loose. Pull on the downrod to
make sure the clevis pin is properly
installed.
19. Install the setscrew (supplied with
ceiling fan) in the motor coupling
(Figure 11). While pulling up on the
downrod, tighten the setscrew using
the 5/32” setscrew wrench (supplied
with ceiling fan).
NOTE: The setscrew must be properly
installed as described above, or fan
wobble could result.
20. Screw two 1” threaded studs
(supplied with ceiling fan) into the
motor (Figure 12). Leave approxi-
mately 7/8” of the stud extending
above the motor. Slide the motor
cover over the downrod and rotate the
cover until the threaded studs
protrude; install two knurled knobs
(supplied with ceiling fan).
NOTE: Make sure the red and brown
leads are capped with wire connectors
and all wires are completely inside
motor cover and not pinched between
the motor cover and motor.
16. Remove the hanger ball by loosening
the setscrew in the hanger ball until
the ball falls freely down the downrod
(Figure 10). Remove the pin from the
downrod, then remove the hanger
ball. Retain the pin and hanger ball for
reinstallation in Step 22.
17. Separate, untwist and unkink the 80”
white, black, and blue motor lead
wires. Route the three motor leads
and the 80” yellow lead wire (used
only on fans with uplight) through the
downrod. Seat the downrod firmly in
the motor coupling (Figure 11).
18. Align the clevis pin holes in the
downrod with the holes in the motor
coupling. Install the clevis pin
(supplied with the ceiling fan) and
secure with the hairpin clip (Figure
11). The clevis pin must go through
the holes in the motor coupling and
the holes in the downrod. Push the
straight leg of the hairpin clip through
the hole near the end of the clevis pin
until the curved portion of the hairpin
clip snaps around the clevis pin.
DOWNROD
CLEVIS PIN
SETSCREW
HANGER
BALL
Figure 10
7
SETSCREW
CLEVIS PIN MOTOR
COUPLING
DOWNROD
HAIRPIN
CLIP
DOWNROD
MOTOR COUPLING
CLEVIS
PIN
HAIRPIN
CLIP SETSCREW
Figure 11
It is critical that the pin in the hanger ball
is properly installed and the setscrew
securely tightened. Failure to verify that
the pin and setscrew are properly
installed could result in the fan falling.
WARNING
!
KNURLED KNOB (2)
MOTOR COVER
1" THREADED
STUD (2)
RED AND BROWN WIRES
Figure 12
BP7270-1 5/6/05 1:29 PM Page 7

8
21. Position the ceiling cover over the
downrod (Figure 13). Be sure the
cover is oriented correctly, with the
large opening at the top.
22. Reinstall the hanger ball on the
downrod (Figure 13) as follows.
Route the motor leads through the
hanger ball and slide the hanger ball
over the downrod. Install the pin
through the holes at the top of the
downrod and slide the hanger ball up
the downrod, aligning the ball so the
pin is captured in the groove in the top
of the hanger ball. Pull the hanger ball
up tight against the pin and securely
tighten the setscrew in the hanger
ball. A loose setscrew could create
fan wobble.
23. Cut the wire leads from the downrod
approximately 6-inches above the
hanger ball. Strip back insulation 1/2-
inch from the end of the leads.
It is critical that the pin in the hanger ball
is properly installed and the setscrew
securely tightened. Failure to verify that
the pin and setscrew are properly
installed could result in the fan falling.
WARNING
!
SETSCREW
DOWNROD
PIN
HANGER BALL
CEILING
COVER
Figure 13
24. Install the hanger bracket and hang
the fan in accordance with the
instructions in the Ceiling Fan
Owner’s Manual.
25. Pull the wire leads, coming from the
end of the downrod, and the supply
wires through the open side of the
hanger bracket. (Figure 14).
26. Position the SW105 Receiver in the
ceiling cover so that the flat side of
the receiver faces up and the open
portion of the receiver is to the right,
as shown in Figure 14.
OUTLET BOX
BLACK SUPPLY WIRE
BLACK/WHITE RECEIVER WIRE
BLACK FAN WIRE
BLUE FAN WIRE
BLUE RECEIVER
WIRE
YELLOW FAN WIRE
YELLOW RECEIVER WIRE
CEILING COVER
WHITE RECEIVER WIRE
WHITE FAN WIRE
WIRE CONNECTOR
RECEIVER
WHITE SUPPLY
WIRE
SUPPLY GROUND
WIRE (GREEN OR
BARE)
HANGER BALL
GROUND WIRE
(GREEN)
HANGER BRACKET
GROUND WIRE
(GREEN)
HANGER BRACKET
BLACK RECEIVER WIRE
OPEN
PORTION OF
RECEIVER
HERE
Figure 14
BP7270-1 5/6/05 1:29 PM Page 8

9
DOWNROD
MOTOR COUPLING
FAN HOUSING
OPTIONAL
LIGHT FIXTURE
YELLOW UPLIGHT WIRES
(NOT PRESENT ON ALL FANS)
RED AND BROWN
WIRES - CAPPED.
DO NOT REMOVE
WIRE CONNECTORS
WHITE SUPPLY WIRE
BLACK FAN WIRE
SW105 RECEIVER TO
110V SUPPLY LISTED GENERAL
USE ON/OFF WALL
SWITCH OR
OPTIONAL
EMERSON SW115
WALL CONTROL
YELLOW RECEIVER WIRE**
WHITE FAN WIRE BLUE RECEIVER WIRE*
BLUE FAN WIRE
BLACK
SUPPLY
WIRE
WHITE RECEIVER WIRE
BLACK RECEIVER WIRE
BLACK/WHITE RECEIVER WIRE
* IF YOUR CEILING FAN DOES NOT
HAVE A DOWNLIGHT, CAP THE BLUE
RECEIVER WIRE USING A WIRE
CONNECTOR.
** IF YOUR CEILING FAN DOES NOT
HAVE AN UPLIGHT, THERE WILL BE
NO YELLOW FAN WIRE.
IN THIS CASE, CAP THE YELLOW
RECEIVER WIRE USING A WIRE
CONNECTOR.
EMERSON
®
HI
MED
LOW
FANOFF
ONOFF
REV
D/L
U/L
YELLOW FAN WIRE
(FROM UPLIGHT)
Figure 15
27. Using wire connectors (supplied),
make wiring connections as follows
(Figure 14 and 15):
a. Connect the green ground wires
from the hanger bracket and the
hanger ball to the supply ground
wire (bare or green).
b. Connect the white fan wire and the
white supply wire to the white
receiver wire (AC IN/MOTOR N).
c. Connect the black fan wire to the
black receiver wire (TO MOTOR
L).
d. Connect the black supply wire to
the black/white receiver wire (AC
IN L).
e. Connect the blue fan wire to the
blue receiver wire (BOTTOM
LIGHT).
f. Connect the yellow fan wire to the
yellow receiver wire (UPPER
LIGHT).
CAUTION: If your ceiling fan does NOT
have an uplight, there will be NO yellow
fan wire. In this case, cap the yellow
receiver wire using a wire connector
(supplied). If your ceiling fan does NOT
have a downlight, cap the blue receiver
wire using a wire connector (supplied).
BP7270-1 5/6/05 1:29 PM Page 9

10
28. Insert the connected ends of the wires
up through the open side of the
hanger bracket and into the outlet box
as shown in Figure 16.
29. Screw two 1-1/4” threaded studs
(supplied with the ceiling fan) into the
tapped holes in the hanger bracket
(Figure 16).
30. Slide the receiver up and over the
hanger bracket. Press the receiver
against the ceiling, holding it in place
while installing the ceiling cover in
accordance with the instructions in
the Ceiling Fan Owner’s Manual.
31. Install the fan blades in accordance
with the instructions in the Ceiling Fan
Owner’s Manual.
32. Install the optional Emerson Light
Fixture in accordance with the
instructions in the Light Fixture
Owner’s Manual.
NOTE: To prevent damage to the
receiver, turn “off” the electricity at the
wall switch before installing or
removing light bulbs on the ceiling fan
or light fixture.
OUTLET BOX
RECEIVER
CEILING
COVER
HANGER
BRACKET
1-1/4"
THREADED
STUDS (2)
Figure 16
Operation
IMPORTANT
Fan installation must be completed,
including the installation of the fan
blades, before testing of the remote
control.
Your remote control (Figure 17) has full
control of your fan and lights.
NOTE: Prior to operation of the
downlight from the remote control,
make sure the switch on the light is ON.
1. To set the desired fan speed, press the
HI, MED, or LOW button to operate
your fan on high, medium, or low
speed.
2. To turn your fan off, press the OFF
button.
3. To change the airflow direction of the
fan blades, press the REV button.
4. To turn the downlight on, press and
release the DN button. The light will
turn on at the light intensity previously
selected.
5. To turn the uplight on, press and
release the UP button. The light will
turn on at the light intensity previously
selected.
6. To vary the intensity of the light, hold
the DN or UP button down until the
desired light intensity is reached, then
release the button.
®
OFF
REV
LOW
MED
HIGH
UP DN
Figure 17
BP7270-1 5/6/05 1:29 PM Page 10

11
Installation of Storage
Bracket
A storage bracket is supplied with the
remote control for holding the control unit
when not in use. If you desire to use the
bracket, use the two screws (supplied)
and install it on a wall that is away from
excessive heat or humidity.
Trouble Shooting
FAN/LIGHT FAILS TO OPERATE
• Check that the light switch on the light
fixture is on.
• Check that the battery is good (red
indicator light should light when any
button is pressed).
• Check that the receiver is wired
properly.
• Check that the ON/OFF wall switch is in
the ON position.
• Check that the receiver and transmitter
code switches are set in the same
position.
BP7270-1 5/6/05 1:29 PM Page 11

LIMITED WARRANTY
What The Warranty Covers:
All products covered by this Owner’s Manual are warranted against all defects in workmanship and materials.
You must be the original purchaser or user of the product to be covered.
What The Period Of Coverage Is:
All components are covered by this warranty for one year from the date you purchased your Remote Control
or Receiver ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
MADE WITH RESPECT TO COMPONENTS AND ACCESSORIES IS ALSO LIMITED TO ONE YEAR.
What Will Emerson Electric Co. Do To Correct Problems:
Emerson will replace a defective Emerson Remote Control or Receiver at no charge to you. We will ship the
repaired product or replacement to you at no charge, but you are responsible for all costs or removal,
reinstallation and shipping of the product to Emerson.
How Can You Get Service:
YOU MUST HAVE PROOF OF YOUR PURCHASE OF THE REMOTE CONTROL OR RECEIVER TO OBTAIN
LIMITED WARRANTY SERVICE. KEEP YOUR RECEIPT OR OTHER PROOF OF PURCHASE. You can return the
product to our factory or to your nearest authorized service center.
• To return the product to the factory, obtain a return authorization and service identification tag by writing to
Air Comfort Products, Division of Emerson Electric Co., 8100 W. Florissant Ave., St. Louis, MO 63136.
Include all model numbers shown on the product with your request.
• To return the product to an authorized service center, call 1-800-654-3545 for the address of the nearest
authorized service center.
You will be responsible for all insurance, freight or other transportation charges to our factory or authorized
service center. Your Emerson Remote Control or Receiver should be properly packed to avoid damage in transit
since we will not be responsible for any such damage.
What Is Not Covered:
This warranty also does not cover any defects, malfunctions or failures caused by:
• Repairs by persons not authorized by Emerson Electric Co.,
• Use of parts or accessories not authorized by Emerson Electric Co.,
• Mishandling, improper installation, modifications or damage to your remote control while in your
possession, or
• Unreasonable use, misuse, abuse, including failing to do reasonable and necessary maintenance, and normal
wear and tear.
Additionally, this warranty and any implied warranty of merchantability or fitness for a particular purpose are
voided when:
• The original purchaser or user ceases to own the product, or
• The ceiling fan is moved from its original point of installation.
This warranty is only valid within the 50 states of the United States and the District of Columbia. No other
written or oral warranties apply, and no employee, agent, dealer or other person is authorized to give any
warranties on behalf of Emerson Electric Co.
REPAIR, REPLACEMENT OR A REFUND ARE THE EXCLUSIVE REMEDIES AVAILABLE UNDER THIS
WARRANTY AND EMERSON IS NOT RESPONSIBLE FOR DAMAGES OF ANY KIND, INCLUDING INCIDENTAL
AND CONSEQUENTIAL DAMAGES. Incidental damages include but are not limited to such damages as loss of
time and loss of use. Consequential damages include but are not limited to the cost of repairing or replacing
other property which was damaged if this product does not work properly.
How State Law Relates To The Warranty:
Some states do not allow the exclusion or limitation of incidental or consequential damages so the above
exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
Part No. F40BP72700000 Printed in China 05/05 Form No. BP7270
Air Comfort Products
DIVISION OF EMERSON ELECTRIC CO.
8100 W. Florissant ¥ St. Louis, MO 63136
BP7270-1 5/6/05 1:29 PM Page 12
