EMKO B01 Series User manual

Instruction manual
B01 SERIES
Smart Toilet

※ Please read this manual thoroughly before using the product.
※ Please do not hesitate to contact us if you have any questions in the installation or usage.
※ Please safekeeping this manual after reading.

Safety precautions.......................................................................1
Bill of material..............................................................................4
Specification................................................................................5
Product drawing ..........................................................................6
Power and water connection........................................................6
Function instruction .....................................................................7
Installation...................................................................................8

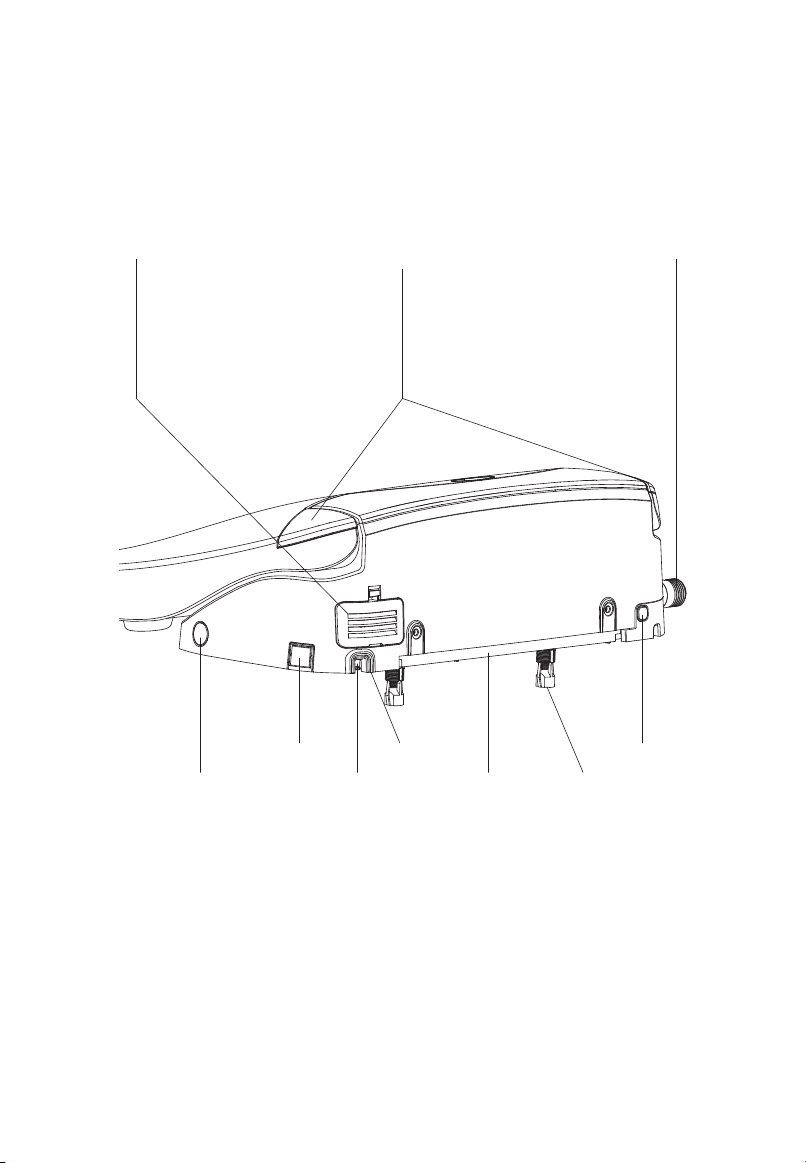

Parts name................................................................................10
Remote control panel overview..................................................12
Using instructions......................................................................13

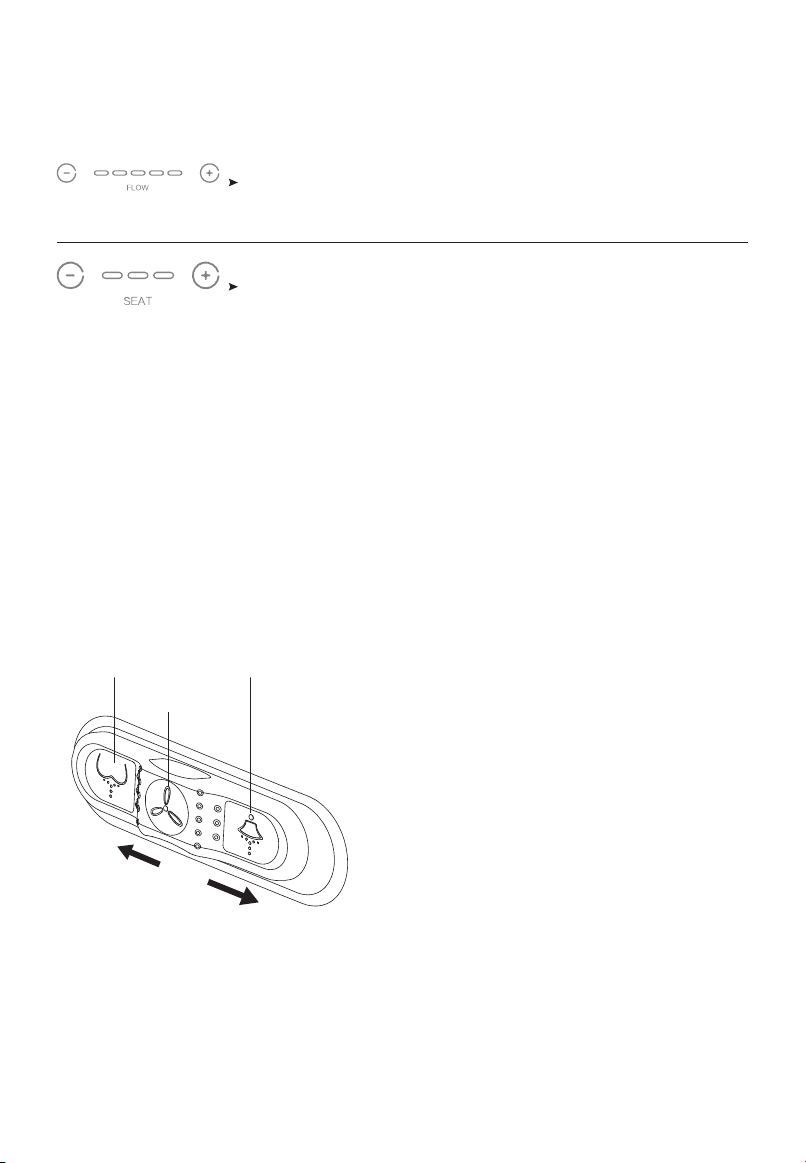

Side push button instruction.......................................................14
Instructions for remote control Installation..................................15
Take care of product when long time not in use .........................16
Inlet filter screen cleaning..........................................................17
Nozzle cleaning.........................................................................18
Common trouble and shooting...................................................19
Maintenance service sheet........................................................21
The maintenance record............................................................22
Contents

-1-
The sign and its implication
Safety precautions
To avoid the damage and asset losing to user and other people, please strictly
follow up the safety warming and noting list. Please ensure to carefully read through
the user manual before the assembly, and strictly follow up the user manual to do
the assembly, please keep the user manual after reading.
It means that if you ignore this sign, it may cause personal injury
or death.
It means that if you ignore this sign, it may cause personal injury
or property damage.
The following signs are used to indicate important safety precautions when using the
product.
ATTENTION
WARNING
It means not allowed, forbidden.
It means the contents that must obey.
■
■
Due to the continuous improvement of our products, we reserve the right of final
interpretation of product changes.
Some characteristics of the product you purchased may be inconsistent with the
instructions, subject to physical products.

-2-
WARNING
WARNING
It is not allowed to continue using if the product has some breakdown
Breakdown: product heat abnormally
Product has smoking
Product has abnormal sound and smell
Product has leakage, breaking or damage
Toilet pan is blocked, etc.
When the breakdown happens, if it do not handle in time and continue using,
it might trigger the problems like electric shock, injury, firing or water
penetration inside the room etc.
Banana water, gasoline, putty-powder, nylon brush or other (non-neutral)
mundificant is not allowed to clean the plastic parts like toilet seat cover,
otherwise it might trigger chemical reaction or leakage, damage the product
and cause people injury.
Prohibited
Prohibited
It is not allowed to disassemble, repair this product, (it must go for
professional repair person service if it is necessary to repair), otherwise, it
might cause the damage to this product.
Loosen electric outlet is not allowed as it might trigger electric shock or firing.
It is not allowed to pull out and plug in the electric plug by wet hand as it
might trigger electric shock or firing.
It is not allowed to touch the electric plug when it is thundering and lighting
as it might trigger electric shock.
It is not allowed to use other electric resource, the load of using electric
outlet could not be too big, as it might trigger firing due to over-heat.
Detergent, water, wash detergent or urine is not allowed to spot into body
and electric outlet, as it might trigger electric shock or firing.
It is not allowed to let child standing or put heavy goods on the seat and
cover, toilet pan or seat body, heavy hitting or knocking is not allowed.
The stove or lighted cigarette is not allowed to be placed next to the toilet
pan, cigarette butt etc is not allowed to be thrown into toilet pan.
Do not randomly damage the electric plug and electric line, if the electric line,
electric plug is damaging, please do not use it any longer or change by one
self, it must be changed by professional person, otherwise, it might trigger
short-circuit, electric shock, firing.

-3-
ATTENTION
ATTENTION
Please ensure to cut off the electric power before taking off this product,
otherwise it might trigger electric shock or fire.
Must notice the assembly location of electric wiring plug, electric plug need
to use the water-proof plug;
Assembly location of electric plug must be over 0.5m above the floor, and far
away from shower, bathtub, otherwise it might cause electricity leakage.
Please ensure to cut off the electric power before washing this product, must
not use water to directly wash this product, otherwise it might trigger the
electric shock or fire.
Please put and use this product in the shadow, must not put directly beneath
the sun, otherwise it might cause the color-fading, or let the sunlight burn the
surface of product due to the un-stability of temperature.
The grounding wire of this product must conform to the stipulated
construction mode, and the three-level grounding structure must be
grounded, otherwise the use of this product is prohibited.
Someone with heart-disease need to carefully and cautiously use this
product, or use it under the guardian person.
It is not allowed to let child to play this product, child is not allowed to use or
touch this product alone.
Do not use industrial water, wastewater, seawater, reclaimed water and other
sewage, otherwise it may cause skin inflammation and other problems.
Electric plug need to plug in the electric with air switch.
When installing this product, please remove the old hose assemblies owned
by users and install them with new hose assemblies. Do not reuse the old
hose assemblies to avoid related safety problems.
Please
follow the
rules
Please
follow the
rules
When using in shower room, please install air exchange equipment to ensure
the airy and drying in the shower room. This product is electric products, it is
not allowed to install it in the place that is easy high wet, easy split by water,
otherwise it might trigger electric shock or fire.
Persons (including children) with physical, perceptual, intellectual disabilities
or lack of experience and common sense need to use the product under the
guidance or supervision of someone else, or they may cause electric shock,
injury or fire.

-4-
Bill of material
MAIN ENGINE
REMOTE CONTROL REMOTE EXPANSION
SCREW GROUP (EACH 2pcs)
TWO 7TH
BATTERY
INSTRUCTIONS QC 30CM INLET HOSE TEE-JUNCTION
COMPONENT(1pcs)
EXPANSION SCREW COMPONENT(EACH 2pcs)
20CM INLET HOSE
FAST MOUNTING PLATE ADJUSTMENT SHEET(2pcs)
REMOTE CONTROL
HOLDER
Instruction manual
B01 SERIES
Smart Toilet
QC
Rev 1.1
Inspector:
Product Model:
Product Name:
Standard:
Date:
Refet to package label
Refet to package label
GB4706.1-2005
GB4706.53-2008
Refet to package label
ONE FILTER
指示灯 试验键
复位键
DOUBLE FACED
ADHESIVE TAPE

-5-
Specification
Model：B01 SERIES
Rated voltage and rated frequency 220-240V~ 50/60Hz
Length of wire
Posterior cleaning
Feminine cleaning
Swing cleaning
Drying temperature control
Safety device
Temperature range
Soft-close control for seat
cover
Safety device
Room temperature~42℃（3 grades device and closes）
Damper device
Temperature sensor & Temperature control switch & Temperature fuse
Antibacterial seat cover/
nozzle
Self-cleaning nozzle
Deodorzation
Rated power Maximum poweer
980W
4℃~35℃
Temperature of
supplied-water
Ambient
temperature
Waterproofing
grade
1600W
3℃~40℃
IPX4
※1：The rated power：water pressure is 0.18MPa + 0.02MPa under the ambient temperature of 23℃±2℃，And under the
condition of 15℃±0.5℃ water-inflow temperature，heighten the water quantity，the seat temperature and the water
temperature in turn，to stat the posterior cleaning in a average power.
※2：Maximum power：water pressure is 0.18MPa+0.02MPa under the ambient temperature of 23℃±2℃，Andunder the
condition of 5℃±1℃ water-inflow theperature，heighten the water quantity，the seat temperature and the water
temperature in turn，to start the feminine cleaning in a average power.
Pressure of
supplied-water 0.07MPa（Dynamic）~0.75MPa（Static）
Deodorant way Activated carbon deodorant
It’s made of anti-bacteria plastic
Self-cleaning
About 32℃~57℃（Top Gear）
Temperature control switch & Temperature fuse
Massage cleaning
The adjustment of the water
gear and nozzle place
Effluent-water temperature
range
Safety device Limiting the circuit by the software of over-temperature fast
Temperature control switch & Temperature fuse
Interval clearing、Powerful clearing
5 grades device
About 35℃~42℃（Top Gear）
Swing cleaning back and forth
Water
yield
Washing
equipments
Seat cover
Drying
device
Self-cleaning
About 0.4~0.7L/min(hydraulic pressure of 0.2Mpa)
About 1.5m

-6-
Product drawing

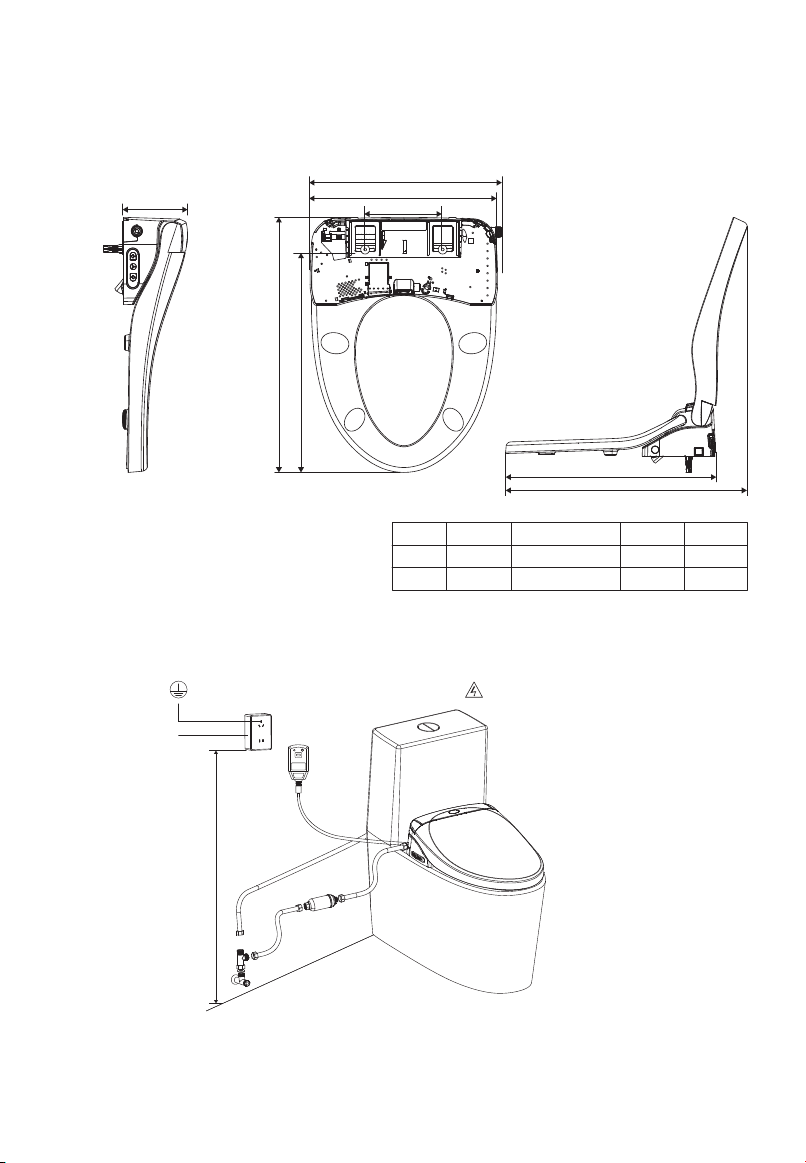

The power outlet and the inflow-water connection (reminder)
※ If the power cord length is not long enough，please choose the professional extension line which is made by manufacturers!
※ Only for reference. Please be subject to the physical truth.
Connect to ground electrode
waterproof sockets
More than 500mm
Connect to ground electrode
（unit：mm）
128
Installation range
Size a
382
392
Size b
Model Size a Size b Size cInstallation range
①518
490
510
482
563
513
452~496
424~468
②
Size c
125-190

-7-
※ The function may be differences for the different model.
Functions introduction

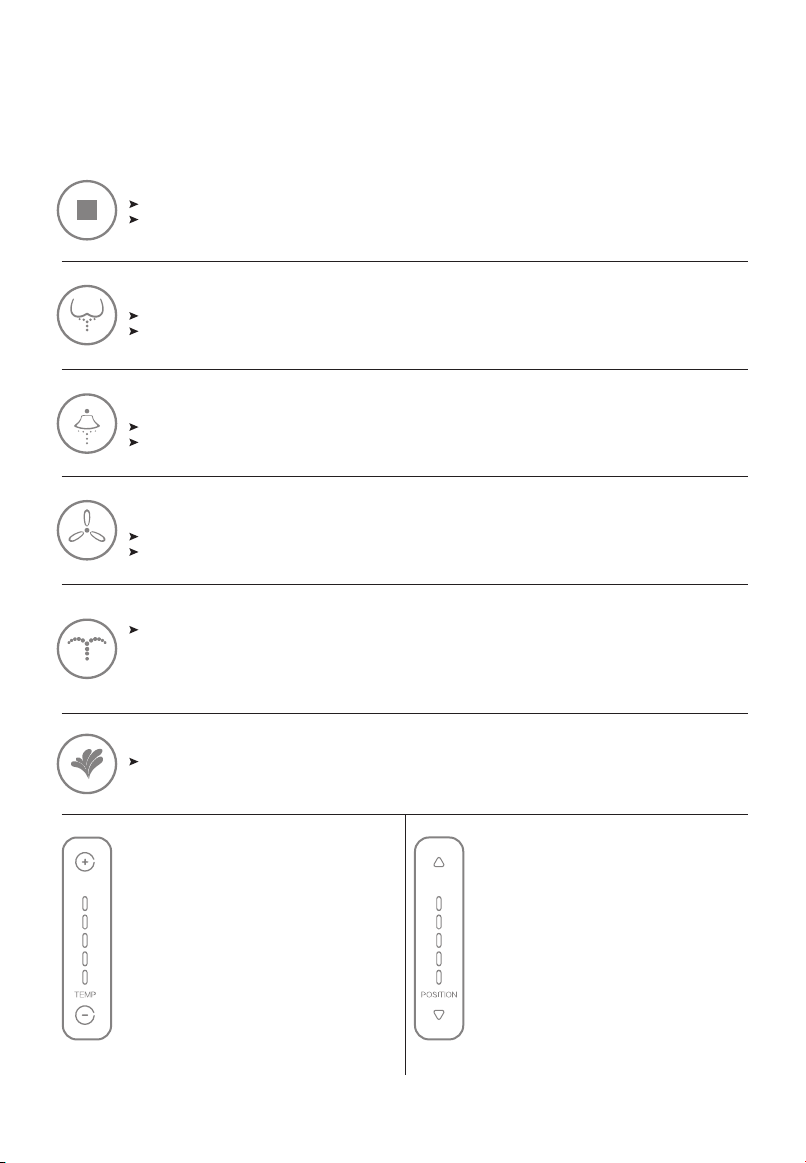

Cleansing function
Posterior cleaning
femininecleaning
Spray position adjusting
Water flow adjusting
Massage cleaning
Swing cleaning
Cleaning Plsterior
Cleaning feminine body
Adjust nozzle position to expand cleaning scope.
Adjust water flow.
The nozzle spray variable intensity water column to massage
Swing back and forth to cleansing most area.
Comfort functions
Seat heated
Dry warmly
Temperature adjusting
Deodorization
Seat sensor
Soft close function
LED
Prevent the low
temperature scald
Heat seat and keep temperature.
Warm dry cleaned body parts.
Adjusting temperature of water，seat or warm dry.
Auto-deodorize after seated.
Functions effective after seated.
Soft-closed toilet cover and seat
LED on or off by light.
To prevent scalding users，the seat temperature will decrease automatically
after seated 15mins.
Cleaning function
Anti-bacteria
Nozzle cleaning
Water emission
It’s anti-bacterial treated on the parts which is directly touched by users,
such as cover and seat.
Nozzle will be cleaned when it reach out or pull back.
Drain the remain water in the toilet to make water cleaner.

-8-

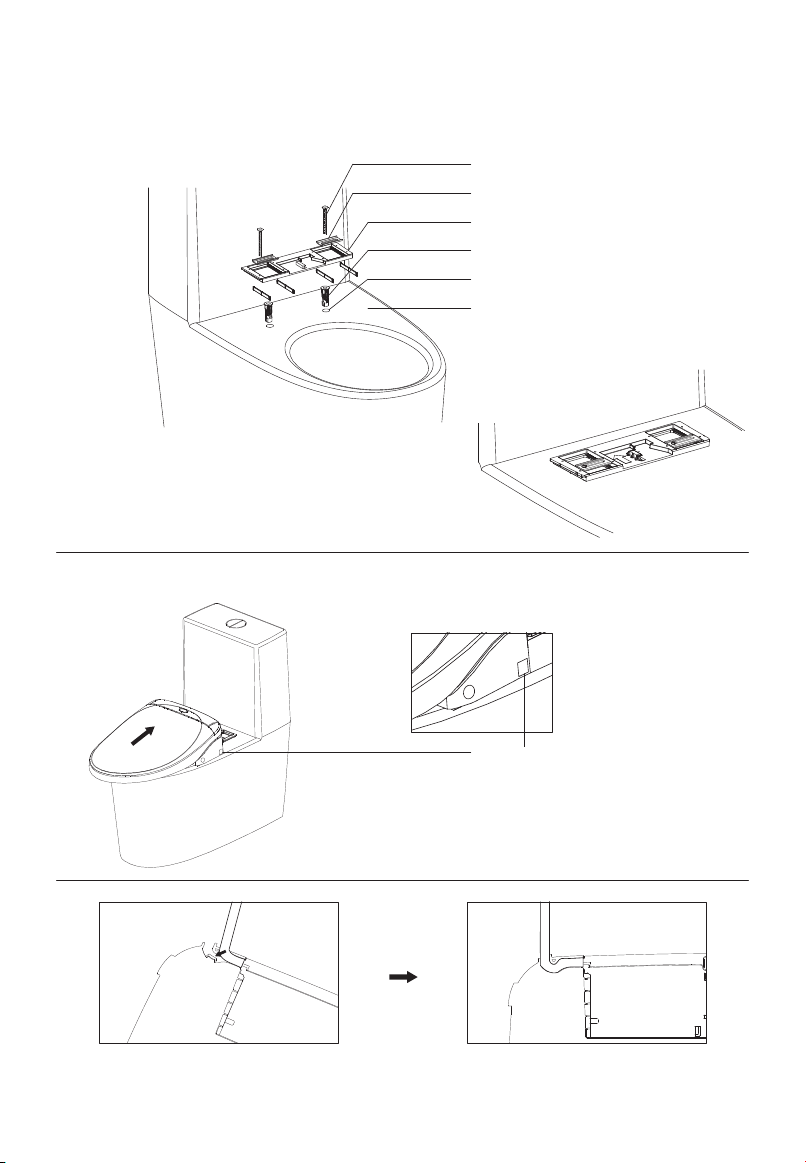

Product installation
【TIps】

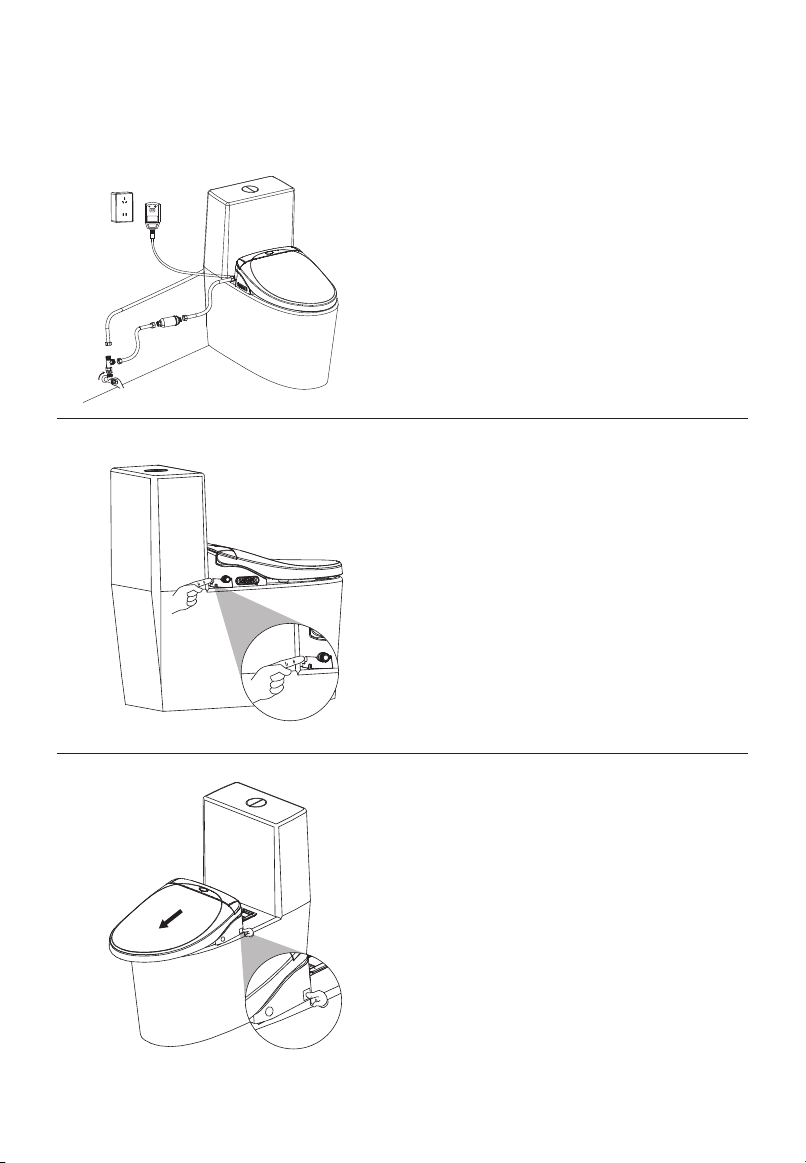

1、Put expansion nuts into installation holes;
2、Put fast-install baseboard on installation holes;
3、Put adjustable sliding vane on fast-install baseboard;
4、Fix adjustable sliding vane and baseboard to ceramic
body through expansion screws.
Put the cover seats in direction of fast-install
baseboard，and push cover seas as the arrow
shown.cover seat is installed after sounded.
Fast-install button
Tips for installation of fast baseboard
1、Install the baseboard and cover seat ont fully tightened
and adjust the position.
2、Take out the cover seat after press the button again.
3、Fix the baseboard，then install the cover seat.
Expansion screws
Adjustable sliding vane
Fast-install baseboard
Expansion nuts
Install action holes
Ceramic body
Press the arrow to indicate the fixed power line

-9-
Water supplied by connecting products
①、Connecting tee coupling to inlet angle valves.
②、Connecting short braided pipe (20cm) to tee coupling.
③、Connecting the filter to short braided pipe(20cm).
④、Connecting long braided pipe (30cm) to the filter.
⑤、Connecting long braided pipe (30cm) to water inlet connector of toilet.
⑥、Connecting tank braided pipe to tee coupling.
※ WARM PROMPT
※ After finish installation，turn on the inflow valve to make sure that the seat sensor is sensible，
and then press each button to check if the toilet is worked after sitting induction is ok.
The products has been test by water，and it is normal if dropping out little amount of water when taking
out products.
It works when light on
after pressing power
plug，the reset button.
There will be sounded
after connected to power.
1、Leakage protection
worked after pressing
test button when indicator
off.
2、Electronic reply after
pressing reset button
when indicator on.
①
②
③④
⑤
⑥

-10-
Parts name
Posterior cleaning button
Ring
Spray
Posterior cleaning
Feminine cleaning
Sitting induction
Warm dry
Decoration panel
Poweer indicator
Cover
Pads
Warm dry button
Feminine cleaning button

-11-
Parts name
Side window for receiving
Deodorization window Inlet connectorDecorative sheets
（The appearance of some models is different）
Power cord buckle Fast-install baseboard
Fast-install button
Expansion bolt components
Water-outflow buttonBaseboard

-12-
Introduction for remote panel
BIDET
Massage
Signal light
Stop
Posterior cleaning
Turn up temperature
of water or wind
Dry
Turn down temperature
of water or wind
Turn down ring temperature
Water indicator
Ring temperature indicator
Decrease water outflow
Water/wind
temperature indicator
Swing
Move forward
the spray bar
feminine cleaning
Increase water
outflow
Turn up ring
temperature
Move backward
the spray bar
Spray bar
position indicator

-13-
Instructions
Stop
Press the button，all functions off.
Atmosphere light could be off or on by holding the“stop”button more than 2 seconds.(Some models
do not have this function)
Posterior cleaning
Press the button，rear function on after sounded，auto off after 2 mins or off by pressing the stop button.
Function will stop if user leaves.
Feminine cleaning
Press the button，bidet function on after sounded，auto off after 2 mins or off by pressing the stop button.
Function will stop if user leaves.
Dry
press the button，dry function on after sounded，auto off after 2 mins or off by pressing the stop button.
Function will stop if user leaves.
Swing
Under Posterior/Feminine Cleaning mode，press the“swing”button，the nozzle starts back and forth
cleaning with the buzzer sounded one time；press the“swing”button again，stop back and forth
cleaning.The Posteri or/Feminine Cleaning mode stops work by pressing the“stop”button.
Water tempeerature setting
Under rear mode or bidet mode，the initial
gear is 3，press plus button will increase the
water temperature，press minus button will
decrease the water temperature.Total 5
gears，and corresponding indicator will on
under different gear.
Spray position adjusting
Under Posterior and feminine mode，the initial
gear is 3，press plus button will forward the spray
position，press minus button will backward the
spray position.Total 5 gears，and corresponding
indicator will on under different gear.
Wind temperature setting
Under dry mode，the initial gear is 3，press
plus button will increase the wind temperature,
press minus button will decrease the wind
temperature.Total 5 gears，and corresponding
indicator will on under different gear.
Massage
Under Posterior/Feminine Cleaning mode，work mode could be switched by clicking on themassage
button with the buzzer sounded one time.
1、Interval massage mode：the nozzle sprays the changeable pressure water to clean the body.
2、Powerful massage mode：the nozzle sprays pressurized water to clean the body.
Remark：Massage work cycle order is interval massage-strong massage-no massage.

-14-
Instructions
Side push button instruction
※ Warm prompt
Please adjust seat temperature to ordinary or low temperature.
To prevent user is scalded，system will decrease seat temperature after seated 15mins.
Please click remote control softly and keep it properly；please push side button softly.
Posterior & Feminine cleaning function show:
Function 1：Press posterior/feminine cleaning button to start clean
hip/women’s private parts.
Function 2：Based on Function 1 as above，press relevant button
again to stop cleaning.
Function 3： Hold the“Posterior/osterior/Feminine”Cleaning
button more than 2 seconds to starts funlly auto-
working mode，the work steps are as below：Back
and forth Posterior/Feminine Cleaning 30S-back and
forth powerful massage 60s-drying 2 minute Stop
working.
Remark：remote could stop or start back and forth cleaning &
switch massage working mode.
Press the posterior cleaning button more than 5 seconds it can turn
off/on LED.
Dry function show：
Function 1：Press the dry button to start dry the moist parts with
warm wind.
Function 2：Underdry mode，press the dry button to stop drying.
Push button function show：
Function 1：Under posterior/feminine cleaning mode，push forward
the side button to adjust the position of the nozzle;
(default gear is 3,total 5 gears)
Function 2：Under posterior/feminine cleaning mode，push forward
the side button to adjust volume of water;
(default gear is 3，total 5 gears)
Remark：The way to switch the above two functions is to hold the dry
button more than 2 seconds，the function switch successfully
after it sounded “Di”
Function 3：Under the dry mode，push forward the side button to adjust
temperature;(default gear is 3，total 5 gears)
※ If the buzzer sounded two，it means that the
function has reached limit when in use.
Posterior cleaning button
Button(the button moves backward or forward)
feminine cleaning button
Dry button
Flow adjusting
Under rear mode or bidet mode，press plus button will increase the water flow，press
minus button will decrease the water flow.Total 5 gears，and corresponding indicator
will on under different gear.
Seat temperature adjusting
Seat heated after opened，press plus button will increase seat temperature，press
minus button will decrease seat temperature.Total 5 gears，and corresponding
indicator will on under different gear.

-15-
Instructions for remote control Installation
Method 1
Method 2
Put the remote controller on the fixed base after installing the battery，and the remote controller can automatically
absorb on the fixed base.
note：
① Install the remote controller fixing panel with a magnet on the remote control fixed seat and lock tightly.
Note：pay attention to the polarity when installing the magnet.Place the larger side of the magnet hole
outside the fixed panel，and enclose the small hole surface inside the fixed panel；as shown in the below
figure 1.
② Put the double sided tape on the remote control fixed seat.
③ Clean dust,grease，water droplets on the walls and wipe them clean.
④ Press the remote control fixed seat with double sided tape on it.Press it evenly for 3 to 5 minutes.
Attach the remote control fixed seat to the wall
Note：The method is applicable to glazed tiles，glass and smooth walls.
① Drill hole of 46mm~52mm length and 22mm depth on the wall by the drill with the diameter of 6mm.
Note：the position of the hole shall be satisfied when the person is seated on the seat cover，it is
convenient for the user to catch the remote control.
②After installing the expansion plug in the wall，align the fixing hole of the remote controller at the
expansion plug and then locking the bolt. Install the remote controller fixing panel with a magnet on the
remote control fixed seat and lock tightly.
Note：pay attention to the polarity when installing the magnet.Place the larger side of the magnet hole
outside the fixed panel，and enclose the small hole surface inside the fixed panel；as shown in the
below figure 2.
※ Please place the remote on the fixed place if not use.(To avoid the remote falling down)
※ It may cause damage if the remote controller falls down.
※ Please do not spill water on the remote control or drop into the water，or it may cause damage.
figure 1 ① ② ③ ④
magnet
double
sided
tape
magnet
figure 2
① ②
46mm 52mm

-16-
Measures for remve instructions
① Pull the power supply poug，turn off inlet valves. And turn on
the long braided pipe（30cm）and drain water out of pipe.
② Press water outflow button to drain water out of toilet.
③ Press fast-install button，remove cover seat from toilet.
※ WARM PROMPT
Please check and test before use the products again.
