EMMO Monster User manual

1 | Page
Emmo Monster
Owner’s Manual
T. Lac V 1.0

2 | Page
Table of Contents
E-bike MTO Label……………………………………………………………………………………………………..3
Specifications…………………………………………………………………………………..……………………….4
Charging Your E-bike……………………………………………………………………………….……………5-6
Brakes……………………………………………………………………………………………………………………...7
Kickstand………………………………………….……………………………………………………………………..8
Pedals………………………………………………………………………………………………………………………9
Greasing Bike Chain and Rear Drum Brakes………………………..…….………………………..…10
Front Drum Brakes and Tubeless Tires……………………….…………………………………………11
Circuit Breaker…………………………………………………………………………………………….………...12
Ignition and Seat Lock……………………………………………………………………..……………………..13
Remote Controller………………………………………...……………………………………………………….14
Right and Left Side of the Handlebar and Throttle………………………...………………….15-16
Dashboard……………………………………….………………………………………………….…………………17
MP3 Controls...........…………………………………...……………………………………………………………18
E-bike Registration/Contact Information……………………………………………………....…19-20

3 | Page
E-bike MTO Label
WARNING!
Please make sure this MTO label is on your e-bike. If this label is not present, please ask
your dealer to put one on. All electric bicycles are required to have this sticker on the bike
for it to be a legal vehicle.

4 | Page
Specifications
Color:
Black
Dimension (LxWxH):
208cm x 76cm x 125cm
Wheel Size:
10'' x 4.5''
Net Weight:
105
kg
Maximum Speed:
32 km/h
Travel
Range:
6
0-70km
Charging Time:
5
– 10 Hours
Climbing Angle:
30
Degrees
Load Capacity:
300
kg
Motor:
Continuous 500W (Super Torque Motor)
Battery:
72
V/20Ah
Charger:
AC100
-120V, Smart Charger (Battery maintained while charging)
Front Brake:
Disc Brake
Rear Brake:
Disc
Brake
Lock System:
Remote Alarm / Remote Starter / Key Ignition Lock / Steer Lock / Motor Lock
Meter & Indicator:
Speedometer, Battery Strength Indicator, Light Indicator
Lighting System:
Headlight w/High Beam, Turning Signals, Brake L
ight, Tail Light, Indicator Light
Storage:
Lockable Under
-Seat Storage, Lockable Rear Box (optional),
Travel range is based on riding on level ground, no stops, no winds, warm temperatures for a 175lb rider with
no extra cargo.

5 | Page
Charging the Bike (Type of Battery)
There are two different plugs on your charger: one end that goes into an 110V power outlet(Male plug), and the other into
the charger port(Female plug).
1. Take one end of the charger and plug it into the charger port located on the bike (Please make sure that it is fully
plugged in)
2. Plug the other end of the charger into the power outlet.
3. Confirm that the charging indicator turns red.
Note: When the battery is fully charged, the charging indicator will turn green.
4. Unplug the charger from the power outlet.
5. Unplug the charger from the battery/bike.
6. It takes 10 hours to fully charge the bike from 0% battery life to 100% battery life.
Note: The charger light must be red when both plugs are plugged in. It will always turn red first if the bike has been used.
It will turn green after it is fully charged.
WARNING!
Charge the bike for no more than 12 hours.
Fully charge the bike once a month during long periods of inactivity and turn off the circuit breaker. (i.e.
during the wintertime)

6 | Page
WARNING!
*CHARGING THE E-BIKE SHOULD
TAKE A MAXIMUM OF 10 HOURS.
*DO NOT CHARGE THE E-BIKE
FOR MORE THAN 12 HOURS.
OVERCHARGING WILL OVERHEAT
THE BATTERY, CAUSING DAMAGE
TO THE BATTERY.
*MAKE SURE TO FULLY CHARGE
THE E-BIKE ONCE A MONTH
DURING LONG PERIODS OF
INACTIVITY (i.e. WINTERTIME).
TURN ON THE CIRCUIT BREAKER
BEFORE CHARGING THE BIKE
AND FULLY CHARGE THE BIKE.
AFTER CHARGING IT, TURN OFF
THE CIRCUIT BREAKER.

7 | Page
Front Brake (right side)
To activate the front brake, the rider can pull this lever.
Rear Brake (left side)
To activate the rear brake, the rider can pull this lever.
Note: When either brake is activated, all power to the motor will be disconnected (safety design). Always use the
back brake first, then the front brakes.(adjust this depending on what brakes are available on the bike)

8 | Page
WARNING!
Please do not engage the side stand when the bike is left unattended. The bike is not completely stabilized with this
kickstand. It is very easy for the bike be tipped over.
Side Stand
The side stand is similar to other bicycles – flick it
downwards such that it sticks out, as shown in the picture,
then lean it to the left.
Centre Stand
The centre kick stand is better used for all situations. In
order to engage the kickstand, apply pressure with your
foot downwards and gently lift the bike upwards, NOT
BACKWARDS.

9 | Page
Foldable Bike Pedals
To fold the bike pedals, push the pedal inwards and lift up.(change if necessary
WARNING!
The law requires all e-bikes to have pedals installed. If the pedals are off, the vehicles will be considered a
motorcycle which does not follow the same regulations as e-bikes.

10 | Page

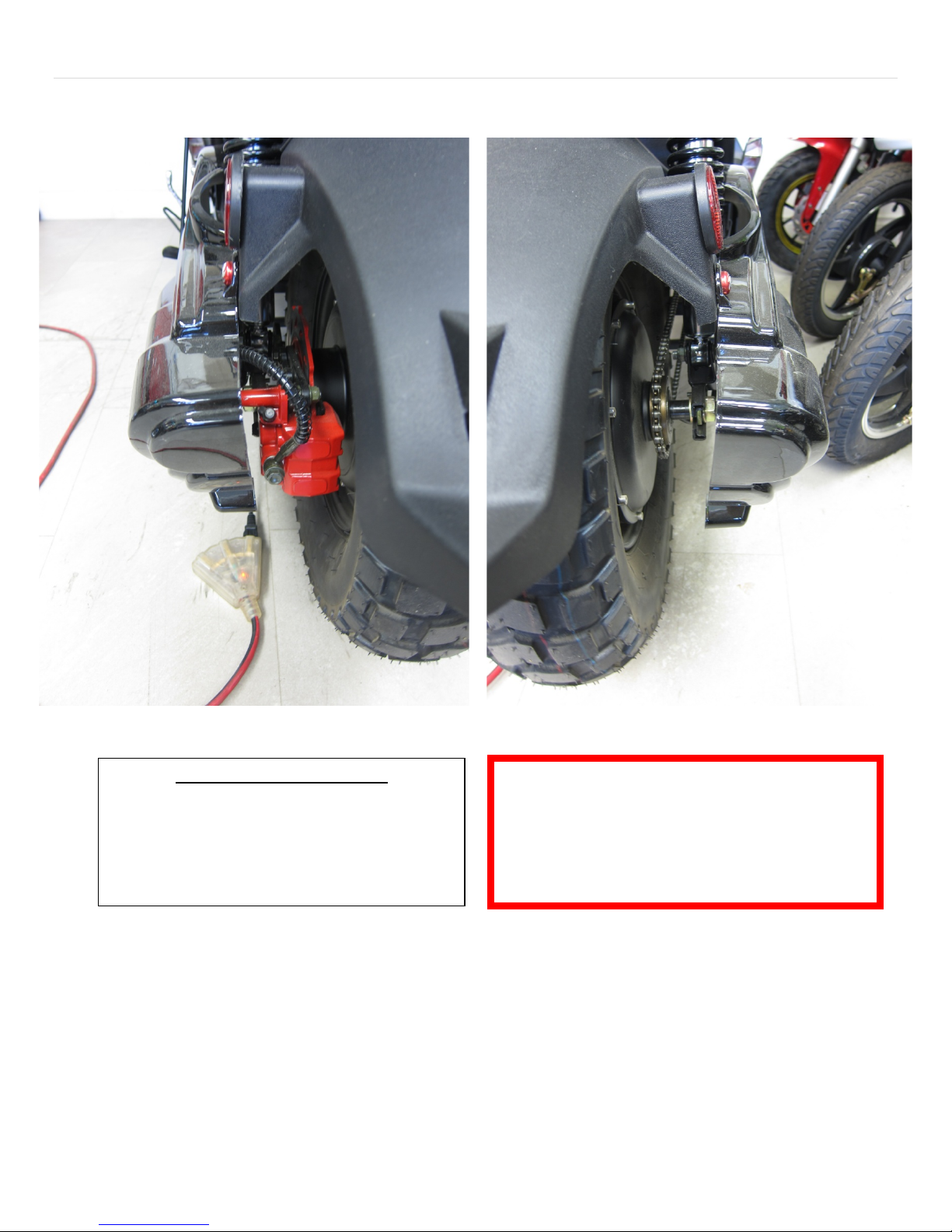

Note: Remember to grease the chains once a
month.
Please also make sure that the back wheel is not
over tighten after adjustment.
Disk Brakes (Rear) and Tire.
This bike features a hydraulic disk brake system
that adjusts by itself, no maintenance is required.
We recommend 40 PSI for the back and to check
the pressure once a month.

11 | Page

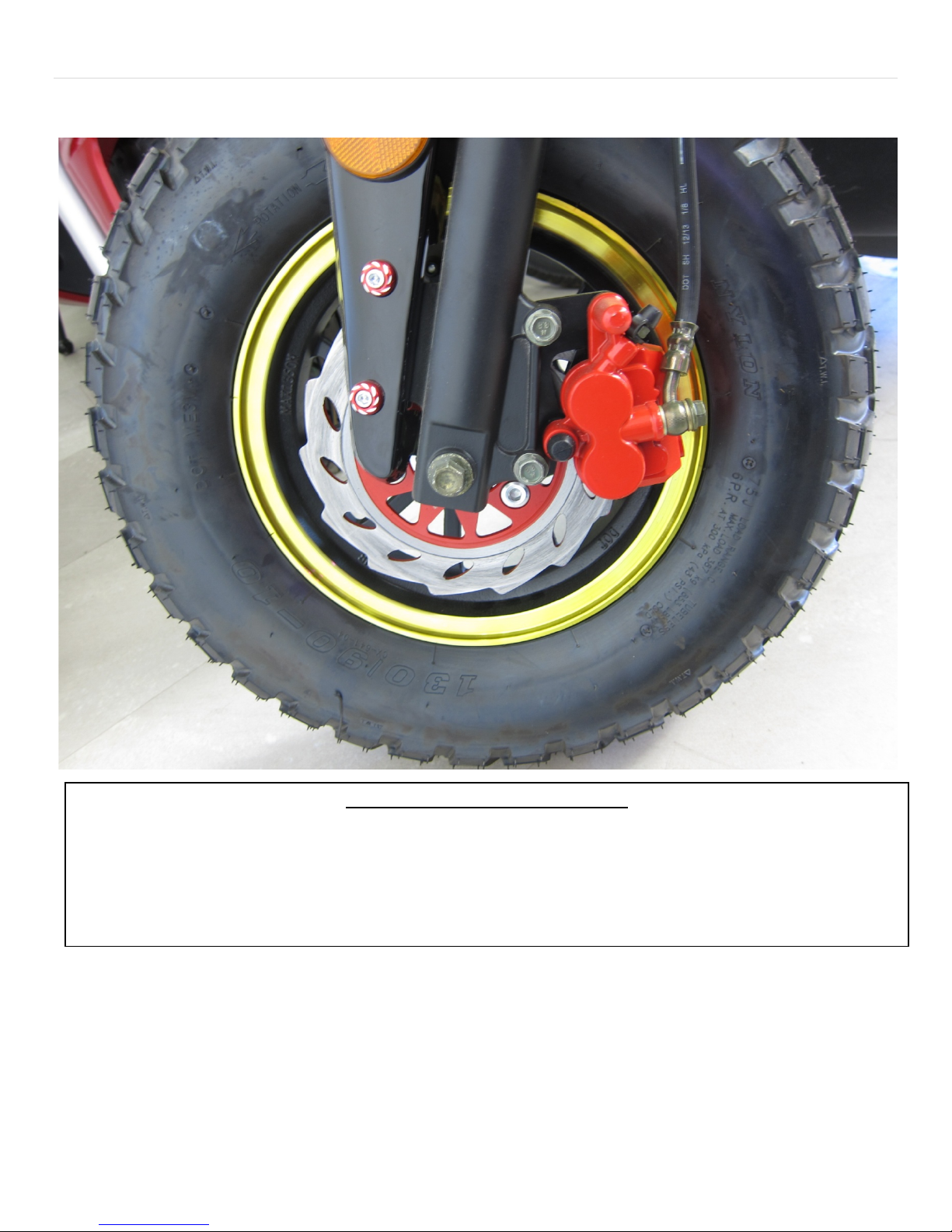

Disc Brakes (front) and Tubeless Tires
The Emmo Monster is assembled with front disc brakes, as opposed to drum brakes, and tubeless tires. These brakes
are virtually maintenance free; the only maintenance required is the replacement of the fluid every 10,000km. They are
also stronger, more resistant to wear and tear, and last longer than the opposing drum brakes. The tubeless tires are
extremely difficult to puncture, so that chance of getting a flat tire is very slim. Additionally, air rarely escapes from
these tires. We recommend 40 PSI for the front tire and we recommend that it is checked once a month.

12 | Page
Circuit Breaker
The circuit breaker controls the power running
through the bike from the battery. When the switch
is on, power flows throughout the bike and all
functions work. When the switch is off, power does
NOT flow through the bike, and none of the
electrical aspects will work on the bike.
WARNING!
In the winter time, fully charge the bike (with the circuit breaker on). After the bike is fully charged, properly
unplug the charger and turn the circuit breaker off. Repeat this once a month for every month of inactivity.
Don’t leave it uncharged for extended periods of time!

13 | Page
WARNING!
Do not turn on the bike without sitting on it first,
otherwise you will risk touching the throttle by
accident and having it run off by itself.
Key Positions in Ignition
1. This is the handlebar lock position. This position is
reached when the key is pushed in, and then turn
counter clockwise, from the off position. This locks
the handlebar when it is turned half way to the left.
(The handlebar must be turned half way to the left
before the key will turn).
2. This is the ‘off’ position. The key simply rests in
the bike, and the bike is not turned on.
3. This is the ‘on’ position. This position is reached
when the key is turned clockwise, from the off
position. The bike will turn on, and all functions on
the handlebars will work.

14 | Page

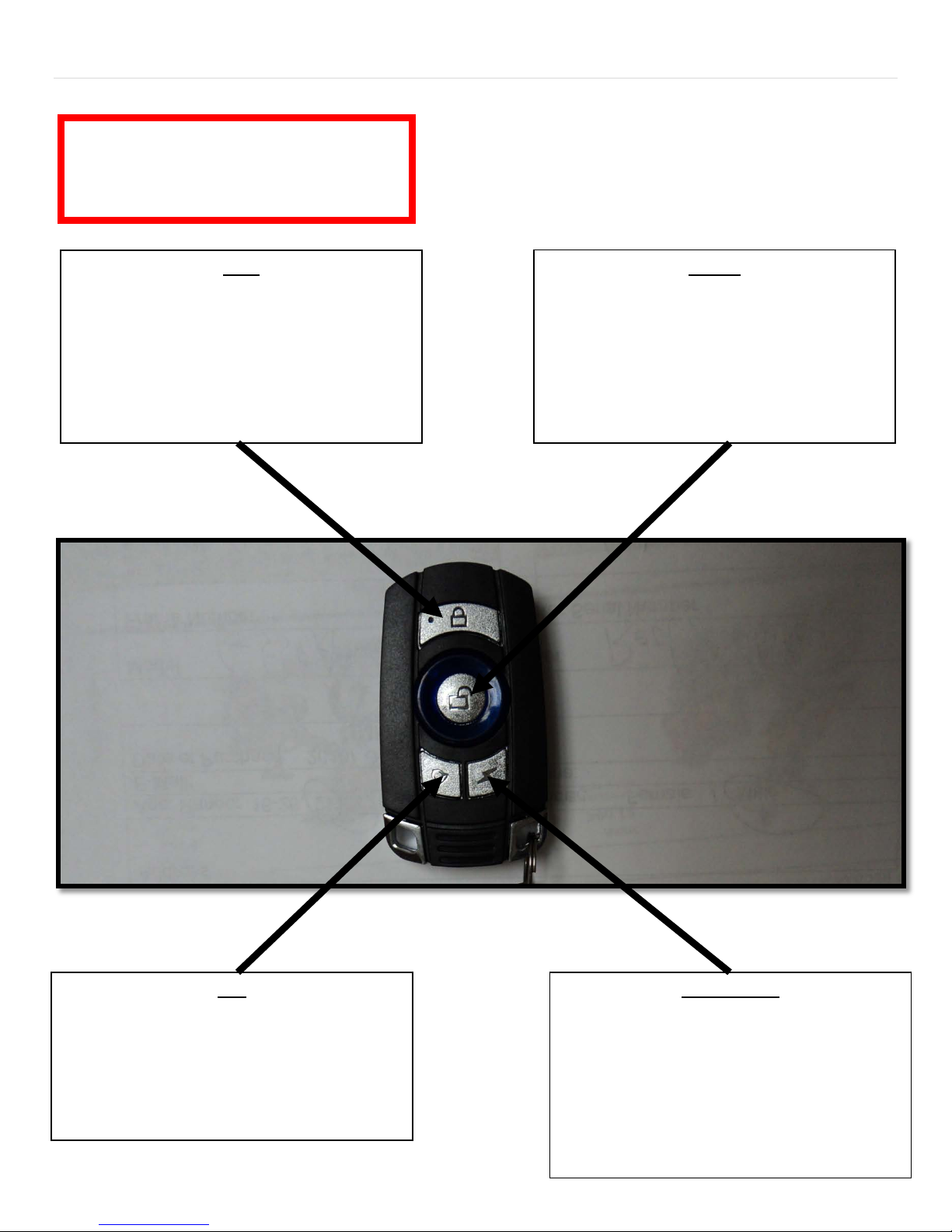

Note: If the bike is turned on using the
remote start, it can only be turned off using
the ‘unlock’ button on the remote.
Lock
This button arms the bike. When the bike is
armed, any physical movement or vibrations to
the bike will cause the alarm to activate. If the
back wheel is moved when the bike is locked,
the back wheel will lock up and the alarm will
sound loudly.
Unlock
This button unlocks the bike. It cancels all the
functions of the ‘lock’ button. (Alarm sounding,
back wheel lock) It also turns the bike off when
the remote start is activated.
Bell
When this button is clicked, the bell sounds.
(Similar sound to the alarm) This button is useful
for locating your bike.
Remote Start
This button turns on your bike, without the use
of the key, when it is clicked twice in succession.
This performs the same actions as manually
turning the key to the right in the ignition to start
the bike. (All the functions on the handlebar can
be used also this does not open the storage under
the seat).

15 | Page
Light Switch
This switch controls the amount of lightning
on your bike. When the switch is pushed to
the right, no extra lights are turned on. (Only
brake lights work) When the switch is in the
middle, the dashboard light and tail light
turns on. When the switch is pushed to the
left, the head-lights, tail-lights, and
dashboard light are turned on.

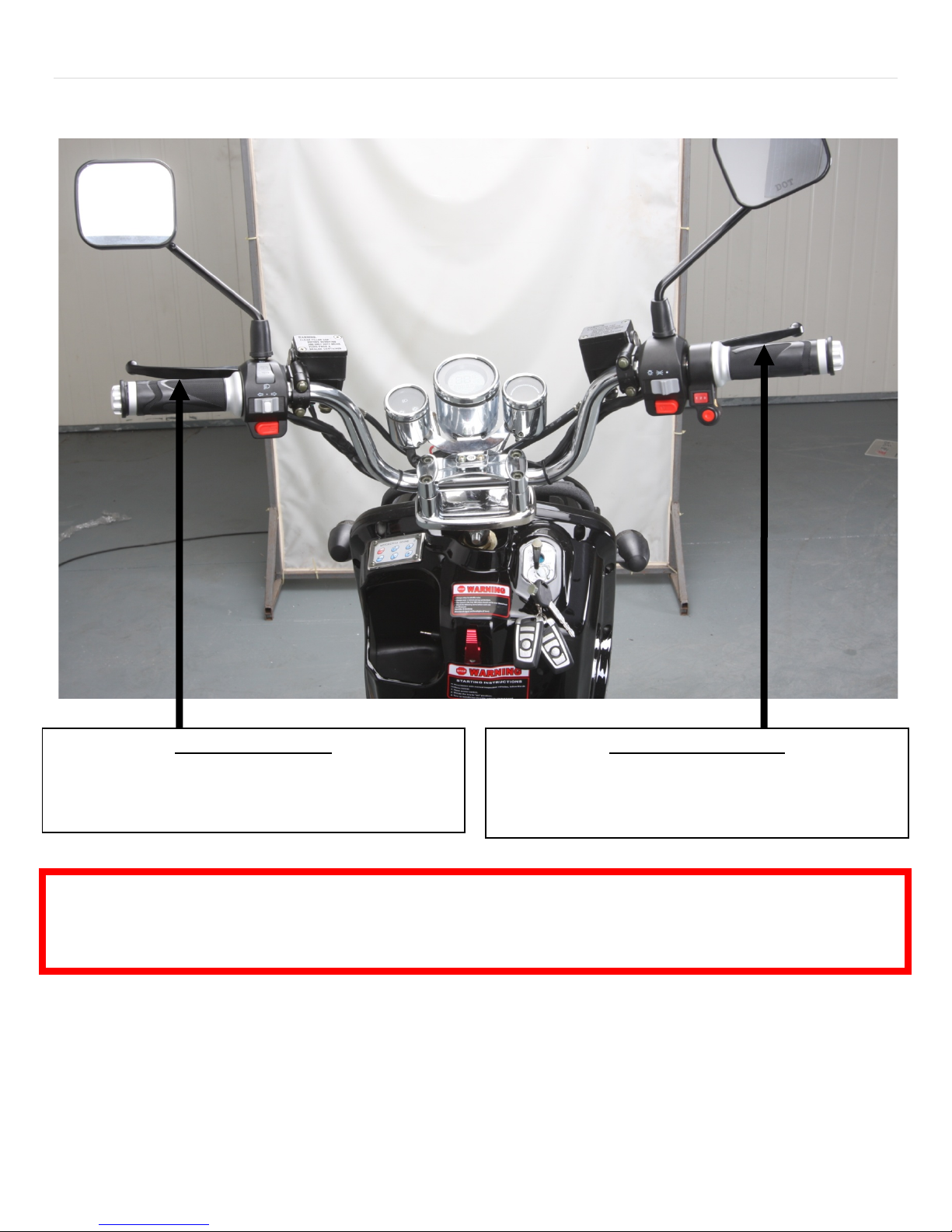

Throttle
When the throttle is turned
backwards (toward the rider) it
makes the e-bike move forward.
(The amount of speed that the
rider gets depends on how far the
throttle is pulled)
Cruise Control
This button activates the cruise
control. When the bike is running at
a certain speed and this button is
pressed, the bike will continue to
run at that speed regardless of
whether or not the throttle is being
used. Pressing the button again,
pulling the brake, or using the
throttle when this happens turns off
the cruise control
Speed Control
This button controls and limits
the speed of your bike. 3 is the
fastest speed, 1 is the slowest
speed. Starting in speed 1 is
ideal for initial pickup. When
you hit the top speed, switch to
speed 2, then to speed 3.
Note: Some versions of the
Monster have these speeds
reversed. (i.e. 3 is the fastest, 1
is the slowest)
Throttle Control
This buttons controls the
throttle. When this button is
pushed out, pulling the throttle
will not cause anything to
happen. When the button is
pushed in, the throttle works
as normal. (This function is
disabled on some versions of
the bike)

16 | Page
High/Low Beam Switch
Pushing the switch up activates the high beams for the front
headlights, pushing it down deactivate the high beams
(make sure the light switch is on first).
Turning Signals
Pushing the switch to either the left or
right positions will turn on the
respective front/rear turning signals.
Pushing the middle white button will
turn off your turning signals.
Horn
Pushing this button sounds the
horn.

17 | Page
Power Gauge
This meter demonstrates the remaining amount of
electricity available in your battery. H indicates High
energy and L indicates Low energy.
Left turning signal light
This light turns on when
the left turning signal is
pressed
Right turning signal
light
This light turns on when
the right turning signal
is pressed
High Beam indicator
This light turns on when
the high beam for the head
light is activated
Speedometer
This shows the speed
you are going at once
the bike is running.
Odometer
This counter keep track
of how many kilometres
the bike has traveled

18 | Page
On/Off
Pushing this button
turns the speakers
on or off.
Mp3/FM
Pushing this button switches
the input to your speakers –
alternating between Mp3 and
FM.(any type of radio is
disabled on this bike).
Volume Control
The ‘V+’ button increases
the volume of the
speakers, while the ‘V-
‘button decreases the
volume of the speakers.
Disabled Functions
Power Light
This light indicates whether or not the
speakers are on. The light is on when
the speaker is on and the light is off
when the speaker is off

19 | Page
E-bike Registration
Once you have purchased an Emmo E-bike, please register your vehicle with
us to validate your warranty.
In order to register your e-bikes, please follow the steps listed below:
1. Fill out the following form:
Invoice Number:
Purchase Date:
Motor Number:
E-bike Model and Colour:
Store Location:
Customer Name:
Home Address:
Phone Number:
E-mail:
Survey:
How did you find out about Emmo Inc.? (Please select the options that
apply)
□ Returning Customer □Family/Friend □Passing by Store □Kijiji
□TERA □Google □Yelp □Other________________
2. Send the information listed above to our e-mail: [e-mail]
3. Wait for a confirmation e-mail from Emmo Inc.

20 | Page
Thank you for Choosing
Connect With Us!
Stay tuned for updates regarding new e-bike models, special deals and more!
Official Website: www.emmo.ca
www.facebook.com/EmmoCanada
[e-mail]
Any laws/regulations regarding “E-bikes” can be found on the Ministry of Transportation website:
www.mto.gov.on.ca
If you have further questions, please contact us at:
438 Spadina Avenue, Toronto ON
Toll Free: 1 888 510 3666 Tel: [phone] Fax: [phone]
Email: inf[email protected]
