EMMO T345 User manual
Emmo T345
MOBILITY SCOOTER
Owner’s Manual
Contents
A Message from MTO .................................................................................................1
Safety............................................................................................................................2
Specifications................................................................................................................3
Charging the Bike.........................................................................................................4
Charging the Bike (Lead Acid Battery)......................................................................5
Features.........................................................................................................................7
Keys............................................................................................................................11
Riding Instructions .....................................................................................................12
Speedometer ...............................................................................................................14
60 Second check and Service.....................................................................................15
E-Bike Registration....................................................................................................16
1/ 18
A Message from MTO
Personal Mobility Devices (Motorized Wheelchairs and Medical Scooters)
Do not require registration, license plates, driver's license or vehicle insurance.
Persons operating motorized wheelchairs are treated in the same way as pedestrians.
Wheelchairs can be driven by muscular power or other types of power and are designed for
and used by people whose mobility is limited by one or more conditions or functional
impairments. In general, municipalities establish by-laws for where wheelchairs can or cannot
be used. Operators should check with their local municipality to ensure by-laws permit their
use on sidewalks.
A sidewalk should be the first choice for someone using a wheelchair or medical scooter.
When there is no wheelchair accessible curb, the person should return to the sidewalk at the
first available opportunity.
If there is no sidewalk available, people using wheelchairs or personal mobility devices
should travel, like pedestrians, along the left shoulder of the roadway facing oncoming
traffic.
For more information, please check www.mto.gov.on.ca.
2/ 18
Safety
When operating the T345 please make sure you adhere to
the following:
Always check your mirrors and blind spots when operating the vehicle. Turn on headlights when
in need of additional visibility.
Make sure that your battery power is sufficient before you go out to ride
Obey all laws of the road.
Periodically charge the unit when not in use for long periods of time If you bring your charger
avoid shaking / rattling charger while riding Perform the 60 second check before riding.
Do not take a second passenger.
Do not over charge the battery by leaving the charger in the charging port. Once the battery is fully
charged remove the charger immediately.
Do not try to operate the unit while charging.
Do not let anyone under the age of 16 years old operate thisvehicle. Do not make sharp / abrupt
turns at high speeds to avoid tipping.
Do not operate under the influence of any use of drugs oralcohol
Do not completely submerge the unit in water Do not operate in harsh weather conditions.
3/ 18
Specifications
Color
Blue; Dark Red; Silver
Special Features
24V/45Ah Lead Acid Battery, Dual Speeds
Tire Size
10″ x 3.0″ Tubeless Tire
Gross Weight
90 kg
Dual Speed
Forward Max 8 or 15km/h; Backward 4km/h
Travel Range
Up to 55 km*
Charging Time
3 –8 Hours
Climbing Angle
20 Degrees
Motor
DC 24V / 500W Continuous
Battery
12V/45Ah x 2 Lead Acid
Charger
AC100-120V, Smart Charger (Battery maintained while charging)
Controller
Curtis 24V90A microprocessor-based PMV system providing optimal levels
of torque and power
Brake System
Electromagnetic Regenerative
Lock System
Remote alarm / Key Ignition Lock / Back Wheels Lock
Meter &
Indicator
Battery Strength Indicator, Light Indicator, Speedo Meter
Lighting System
Headlight, Turning Signals, Brake Lights, Tail Lights, Indicator Light
Storage
Front Glove Box; Under-Seat Storage; Rear Bag
*Travel range is based on riding on level ground, no stops, no winds, warm temperatures for a 175lb rider with no
extra carg
4/ 18
Charging the Bike
WARNIN
G!
*CHARGING THE E-BIKE
SHOULD TAKE A MAXIMUM
OF 8 HOURS.
*DO NOT CHARGE THE E-
BIKE FOR MORE THAN 12
HOURS. OVERCHARGING
WILL OVERHEAT THE
CHARGER AND WILL
RESULT IN THE CHARGER
DAMAGING THE BATTERY.
*MAKE SURE TO FULLY
CHARGE THE E-BIKE ONCE
A MONTH DURING LONG
PERIODS OF INACTIVITY
(i.e. WINTERTIME).
5/ 18
Charging the Bike (Lead Acid Battery)
There are two different plugs on your charger: one end that goes into an 110V power outlet,
and the other into the charger port.
1. Take one end of the charger and plug it into the charger port located on the bike (Please
make sure that it is fully plugged in)
2. Plug the other end of the charger into the power outlet.
3. Confirm that the charging indicator turns red.
Note: When the battery is fully charged, the charging indicator will turn green.
4. Unplug the charger from the power outlet.
5. Unplug the charger from the battery/bike.
Note: The charger light must be red when both plugs are plugged in. It will always turn red first
if the bike has been used. It will turn green after it is fully charged.
Best practices
Charge as needed, it is not necessary to charge the battery from 0 power. Plug the charger into the
wall first and then the unit
Do not leave the charger charging after it is fully charged. If you see the charge is green unplug it.
It is recommended to get an outlet timer and set it for the recommended charging hours, so that as
soon it is done charging the timer will cut out the power completely.
WARNING!
Charge the bike for no more than 12 hours.
Fully charge the bike once a month during long periods of inactivity. (i.e. during the
wintertime)
6/ 18
Gear Switch
This lever changes the gear on the bike; it
affects the movement of the bike.
When the lever is pushed upwards, the bike can
be pushed forwards and backwards. In this
position, if the bike is turned on, the throttle
will not move the bike.
When the lever is pushed downwards, the bike
wheels are locked; the bike cannot be pushed
forwards or backwards. In this position, the
throttle will move the bike.
Note: Ignition has to be turned off before
making any changes to the gear switch.
7/ 18
Features
Drum Brakes and Tubeless Tires
The Emmo T345 is assembled with front drum brakes, as opposed to disc brakes, and tubeless tires. The only
maintenance required is the replacement of the brake ped every 10,000km. They are also stronger, more resistant to
wear and tear. The tubeless tires are extremely difficult to puncture, so that chance of getting a flat tire is next to zero.
Additionally, air rarely escapes from these tires.
Note: The back wheels for the T345 run on an electronic brake system; the wheels only move when the throttle is
being used. When the throttle is released, the back wheels will slowly come to a stop. (The axle controlling the
movement of the back wheels will stop within a short distance.)
8/ 18

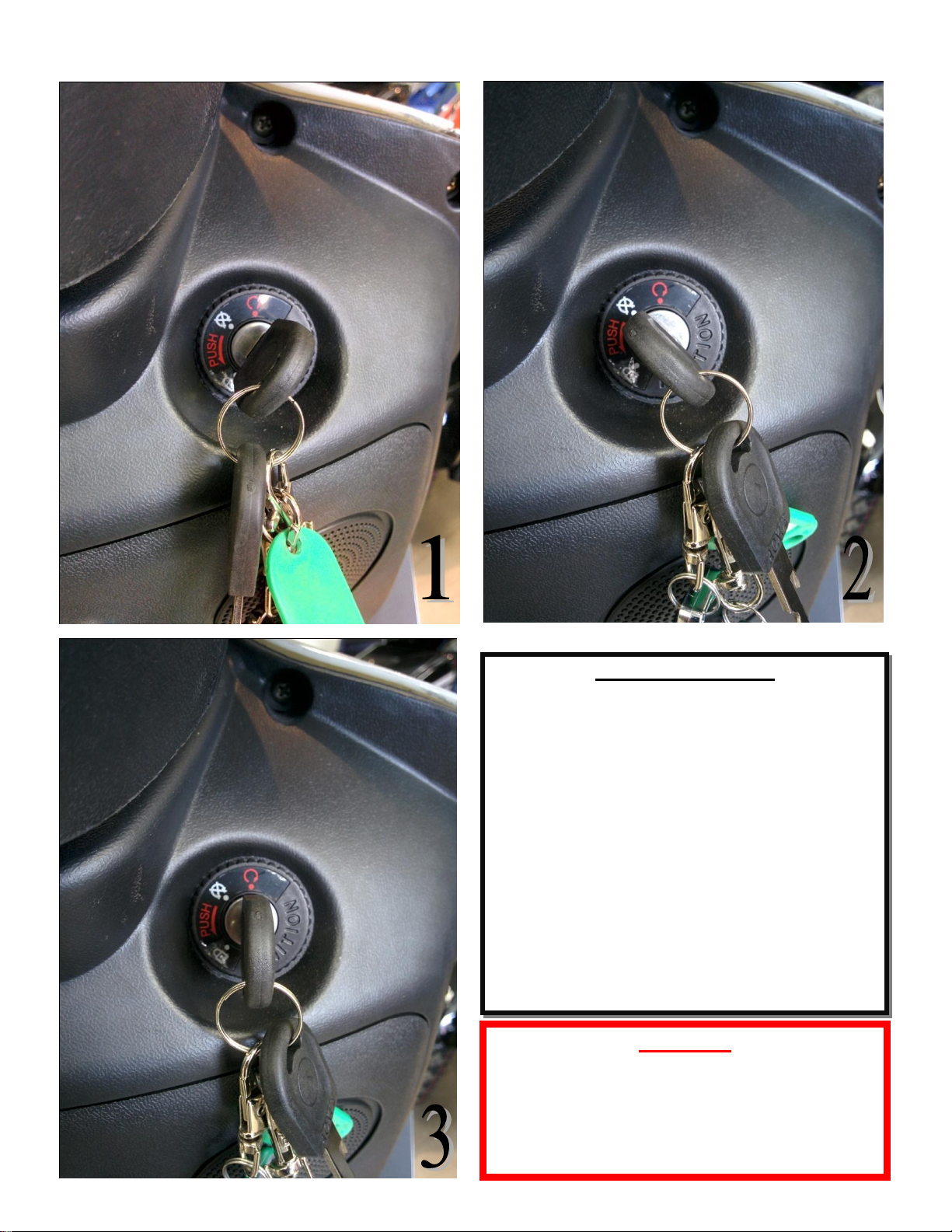

Key Positions in Ignition
1. This is the handlebar lock position. This position is
reached when the key is pushed in and turned to the
left, from the off position. This locks the handlebars
when they are turned all the way to the left. (The
handlebars must be turned all the way to the left before
the key will turn.)
2. This is the ‘off’ position. The key simply rests in the
bike, and the bike is not turned on.
3. This is the ‘on’ position. This position is reached
when the key is turned to the right, from the off
position. The bike will turn on, and all functions on
the handlebars will work.
WARNING!
Do not turn on the bike without sitting on it first,
otherwise you will risk touching the throttle by
accident and having it run off by itself.
9/ 18
Seat Adjustments
Picture 1 and 2 shows that you can
adjust the arm directly.
Picture 3 shows that pulling this lever
up allows for the seat to be adjusted.
(Back and forth)
10 / 18

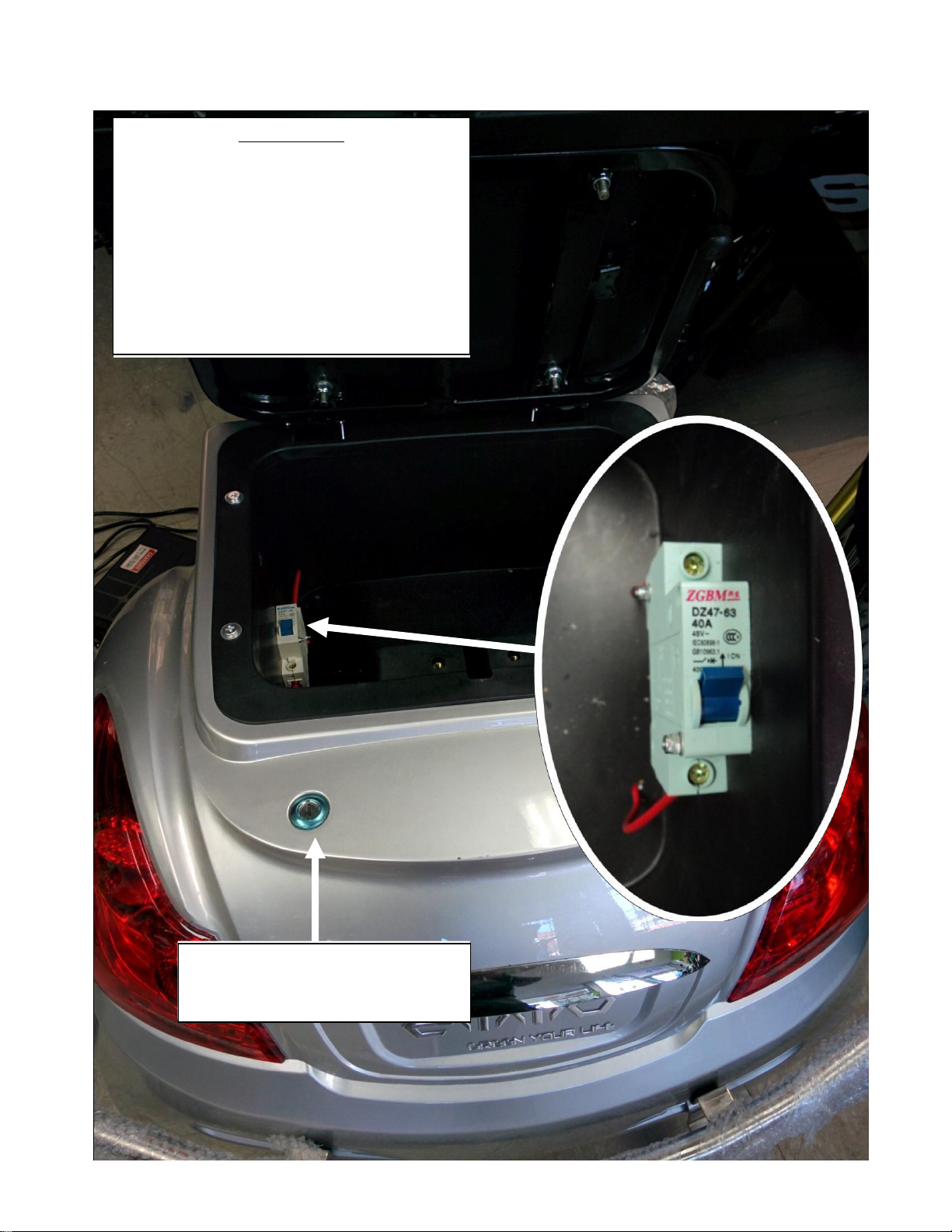

Circuit Breaker
The circuit breaker controls the power running
through the bike from the battery. When the
switch is flicked upwards, power flows
throughout the bike and all functions work.
When the switch is flicked downwards, power
does NOT flow through the bike, and none of
the electrical aspects will work on the bike.
To open the storage space beneath the
T345 seat, insert your key into this key
slot, turn to right and lift the seat.
11 / 18
Keys

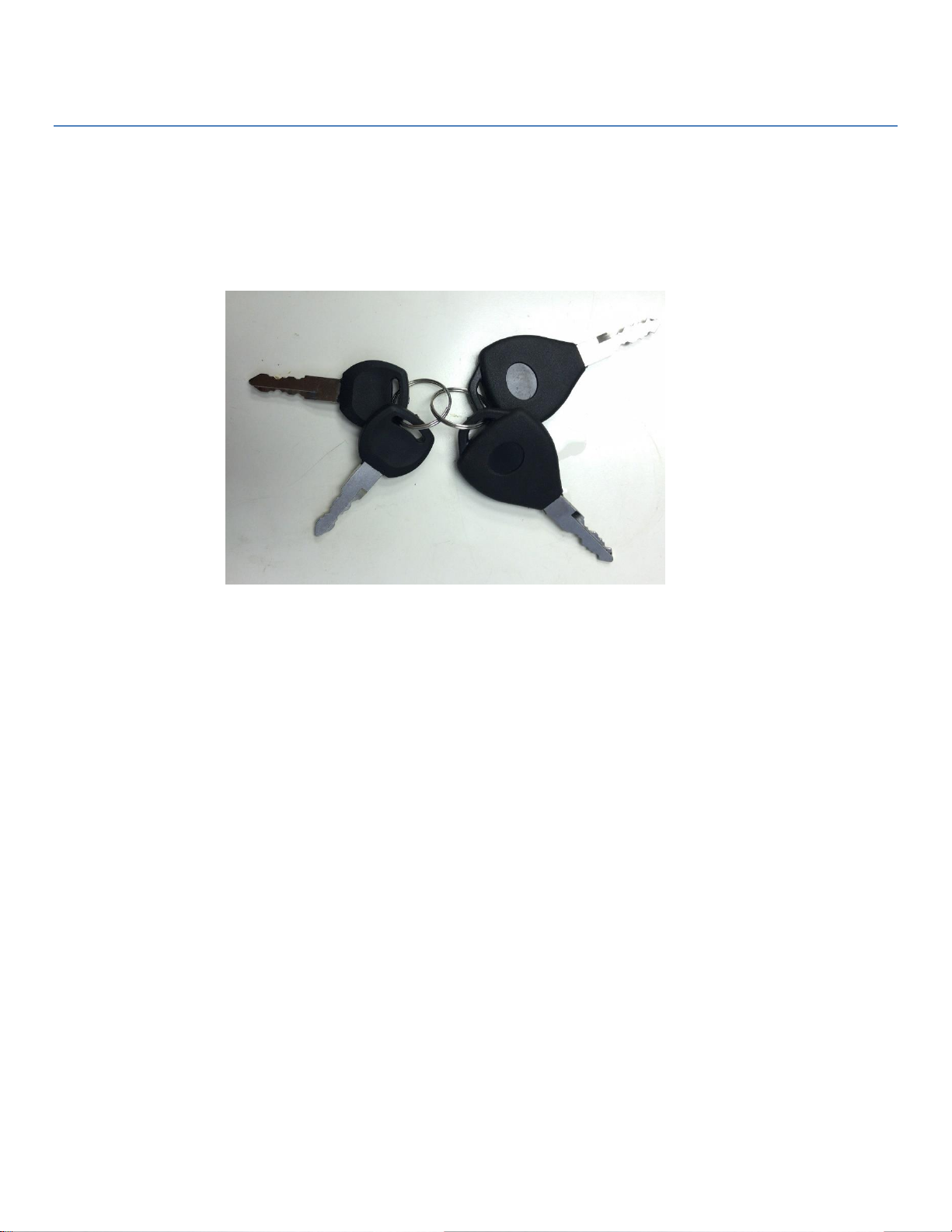

The EMMO T345 comes with two style keys
Bigger key: This key works for the ignition and open the seat.
Smaller key: This key works for the tail box.
12 / 18
Riding Instructions

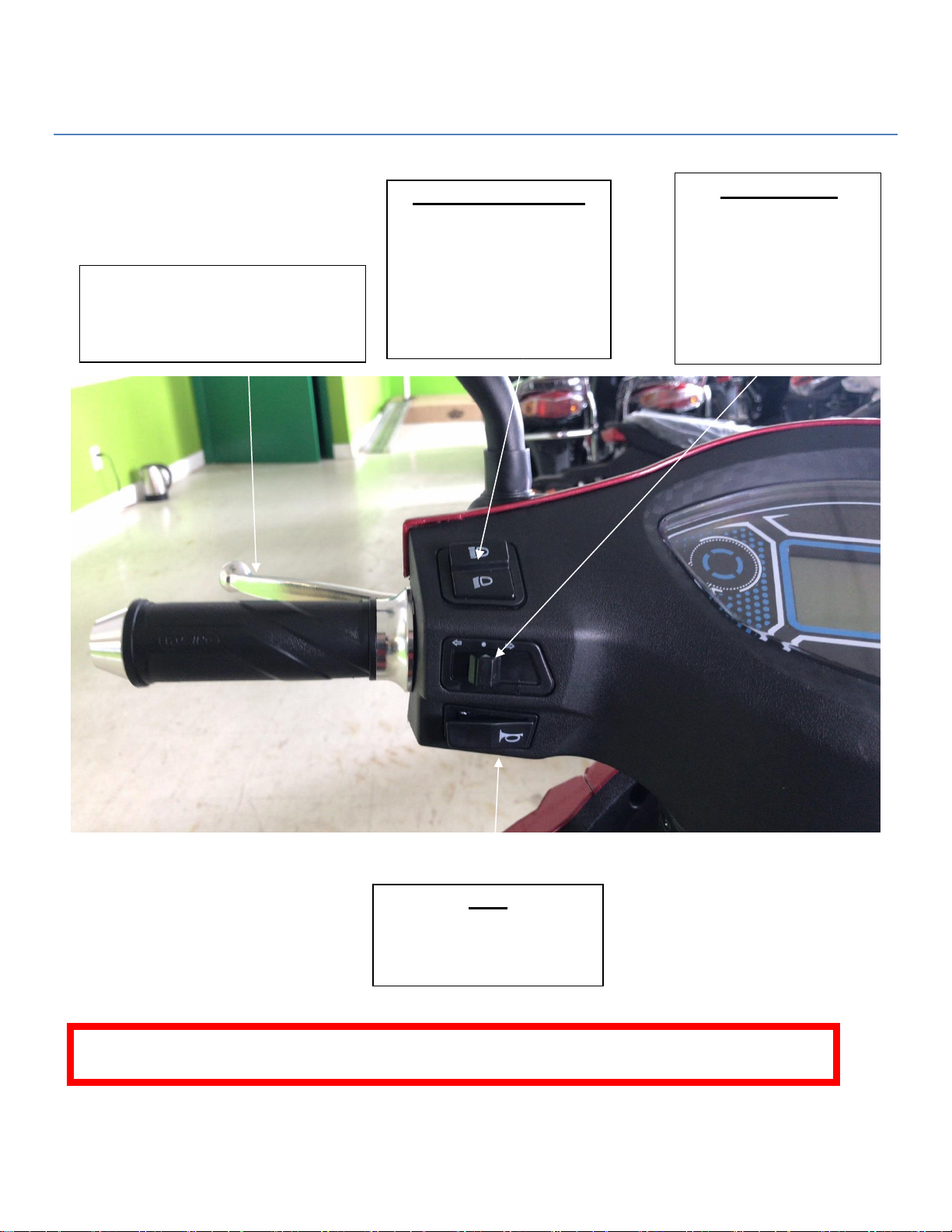

Turning Signals
Pushing the switch to either
the left or right positions will
turn on the respective
front/rear turning signals.
Pushing the switch in will
turn off your turning signals.
Horn
Pushing this button sounds
the horn.
High/Low Beam Switch
Pushing the switch up
activates the high beams for
the front headlights, pushing
it down deactivates the high
beams.
Brakes (silver part): Pull that
towards you to slow down and
disengage the motor.
Please note that the turn signals do not turn itself off automatically when you turn it off
13 / 18
Light Switch
This switch controls the amount of lightning on
your bike. When the switch is pushed to the
right, no extra lights are turned on. (Only brake
lights work) When the switch is in the middle,
the display light and tail light turns on. When
the switch is pushed to the left, the head-lights,
display lights, and tail-lights are turned on.
Throttle
Make sure that you are
properly situated on the unit.
Once the vehicle is on (you
will see that the dashboard is
lit up). Use the throttle on
the right hand to rotate
towards you.
Throttle: Rotate that towards
you to drive.
Forward/Backward
When this button is pushed to the left,
the bike moves forwards when the
throttle is activated. When this button
is pushed to the right the bike moves
backwards when the throttle is
activated.
14 / 18
Speedometer
The T345 features a digital LED display to show your speed travel time and more.
A) Speed - Your current speed that you are traveling in KM/h
B) Battery / Voltage reading - Shows how much power you have. 8 Bars means it has a full
battery.
**Please note that the accurate remaining battery reading is what it is showed at cruising speed,
not at a stop or during acceleration.
C) Odometer - Shows how many Kilometers traveled total
15 / 18
60 Second check and Service
60 Second check
Check brake levers to make sure they are birth firm.
Check tires to make sure it is firm and that all bolts are tight.
Turn on your bike and check your battery to make sure that you can get to where you need to.
Make sure your mirrors are tightly secured and adjusted as needed to see behind you.
Service
For all technical service please contact us at 1-888-217-1217 for help or visit us online at emmo.ca
We recommend that you don’t try to fix things yourself and that you should have a trained
technician do any service work
16 / 18
E-Bike Registration
Once you have purchased an Emmo E-bike, please register your vehicle with us to validate
your warranty.
In order to register your e-bikes, please follow the steps listed below:
1. Fill out the following form:
Invoice Number:
Store Location:
Customer Name:
Address:
Phone Number:
E-mail:
Survey:
How did you find out about Emmo Inc.? (Please select the options that apply)
□Returning Customer □Family/Friend □Passing by Store □Kijiji
□TERA □Google □Yelp □Other
2. Send the information listed above to our e-mail: info@emmo.ca
3. Wait for a confirmation e-mail from Emmo Inc.
