EMPERO EMP.SCM.01 User manual

1
STRETCHING MACHINE
Kasap Tip Dik Buzdolapları
CONTENTS
A GENEREAL INFORMATION Page 2
A1 PRODUCT DESCRIPTION Page 3
A2 TECHNICAL INFORMATION Page 3
A3 TRANSPORTATION Page 4
A4 UNPACKING Page 4
B INSTALLATION Page 4
C SAFETY INSTRUCTIONS Page 5
D OPERATION Page 6
E CLEANING & MAINTENANCE Page 7
F TROUBLESHOOTING Page 8
G SPARE PART LIST- EXPLODING DRAWINGS Page 9
H ELECTRIC CIRCUIT SCHEMA Page 11

2
STRETCHING MACHINE
Kasap Tip Dik Buzdolapları
A GENERAL INFORMATION
Before installing the appliance, read operation and maintenance instructions
carefully.Wrong installation and part changing may damage the product or may cause
injury on people.These are not in our company’s responsibility to damage the
appliance intentionally,negligence,detriments because of disobeying instructions and
regulations,wrong connections.Unauthorized intervention to appliance invalidates the
warranty.
1. This instruction manual should be kept in a safe place for future reference.
2. Installation should be made in accordance with ordinances and security rules of
that country by a qualified service personnel.
3. This appliance has to be used by trained person.
4. Please turn off the appliance immediately in the event of malfunction or failure.The
appliance should be repaired only by authorized service personnel.Please demand
original spare part.

3
STRETCHING MACHINE
Kasap Tip Dik Buzdolapları
A1 PRODUCT DESCRIPTION
*Professional Stretching Machine, that provides high efficiency has been designed to be used
in industrial kitchens.
Product Code
Dimensions (mm)
Weight (kg)
Packaging
Dimensions (mm)
EMP.SCM.01
500x440x210
7
520x470x260
A2 TECHNICAL INFORMATION
Product Code
EMP.SCM.01
Film Capacity (mm)
450
Power (Kw)
0,17
Operating Voltage (V)
220
Cable (mm²)
3x1,5
Fuse (A)
2

4
STRETCHING MACHINE
Kasap Tip Dik Buzdolapları
A3 TRANSPORTATION
*This appliance can be moved by hand from area to area.Do not crash and drop the appliance
while transporting.
A4 UNPACKING
*Please unpack the package according to the security codes and ordinances of current
country and get rid from the pack.Parts which contacts with food are produced by stainless
steel.All plastic parts are marked by material’s symbol.
*Please check that all the parts of appliance had come completely and if they are damaged or
not during the shipping.
B INSTALLATION
*Please place the product to straight and sturdy ground,please take necessary steps against
possibility of overturn.
*Technician who will serve for installation and service for the appliance must be professional
on this subject and must have installation and service licenses by the company.
*Connection to Electric Power Supply must be done by authorized person.
*Please be sure that the voltage connected to appliance must be equal with the voltage which
is on appliance’s label.
This appliance must be connected to an earthed outlet in accordance with safety rules
and standards.
*Appliance’s earthing must be connected to earthing line on panel which is nearest to electric
installation.
*Connection to the main fuse and leak current fuse must be done in accordance with the
current regulations.
!

5
STRETCHING MACHINE
Kasap Tip Dik Buzdolapları
C SAFETY INSTRUCTIONS
*Do not use the appliance in insufficient lighted place.
*Do not touch the moving attachments while the appliance operates.
*Do not install the appliance in the presence of flammable or explosive materials.
*Do not operate the appliance when the machine is empty.
*Get the necessary cautions against electric danger.
*Do not attempt to use the appliance without suitable protective equipments.
*Because of any reason if there is a fire or flame flare where the appliance is
used,turn off all gas valves and electric contactor switch quickly and use fire
extinguisher .Never use water to extinguish the fire.
*All the damages because of not having earthing connection will not be on
warranty
!

!
!
!
!
!


6
STRETCHING MACHINE
Kasap Tip Dik Buzdolapları
D OPERATION

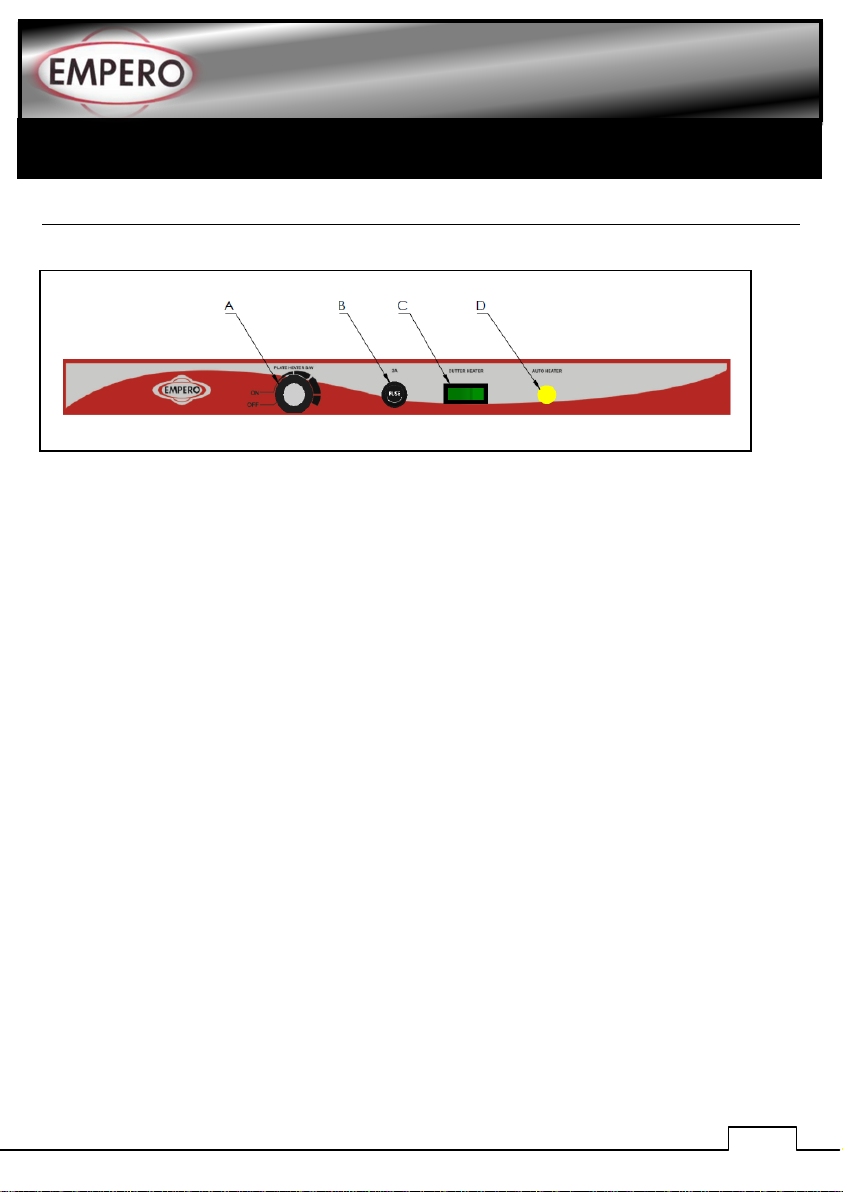

*Control Panel:
A: Plate resistance on/off / temperature setting
B: Fuse
C: Cutter resistance on/off
D: Indicator lamp
* Operating:
Before operating the appliance,insert the Equipment ( stretch film ).
Plug in the appliance.
Turn on stand resistance and cutter resistance.See the indicator lamp is on.
Put the product that will be stretched on to the appliance.
Close the product by pulling roll film and then put it on to the heater plate..
When the film is pulled to heater plate,it will be cut by heated cutter.
When the operation is done,unplug the appliance.

7
STRETCHING MACHINE
Kasap Tip Dik Buzdolapları
E CLEANING & MAINTENANCE
CLEANING AND MAINTENANCE AFTER EVERY USE
Clean outer surface of appliance with hot water and then dry.
Always turn off the appliance and disconnect from the power supply before cleaning.
Do not use abrasive cleaning chemicals as these can leave harmful residues.
Do not clean the appliance by spraying water directly,otherwise electrical part may
get damaged.
PERIODIC CLEANING AND MAINTENANCE
Maintenance should be done by qualified person.
Get the periodic maintenance of the appliance once in every 15 days.
Check that if the power cable has error or not.If there is error at the cable,definitely
do not use the appliance.Provide the cable to be changed by authorized technic
service.

8
STRETCHING MACHINE
Kasap Tip Dik Buzdolapları
F TROUBLESHOOTING
THE APPLIANCE DOESN’T OPERATE
1. Check if the appliance is plugged in.
2. Check the electrical connections and
voltage.
STRETCHING IS NOT SUCCESSFUL
1. Check the film roll.If it is finished,place a
new one.
2. Check the resistances.
3. Provide the heater and cutter plate
temperatures not to be more than
highest level.
THE APPLIANCE STOPPED
1. The appliance can stop due to low
voltage.In this situation check the
voltage.
If stretching is not done at suitable quality
If any function of security doesn’t work
Do not use the appliance.
*If these problems are still going on,contact with our authorized service.

9
STRETCHING MACHINE
Kasap Tip Dik Buzdolapları

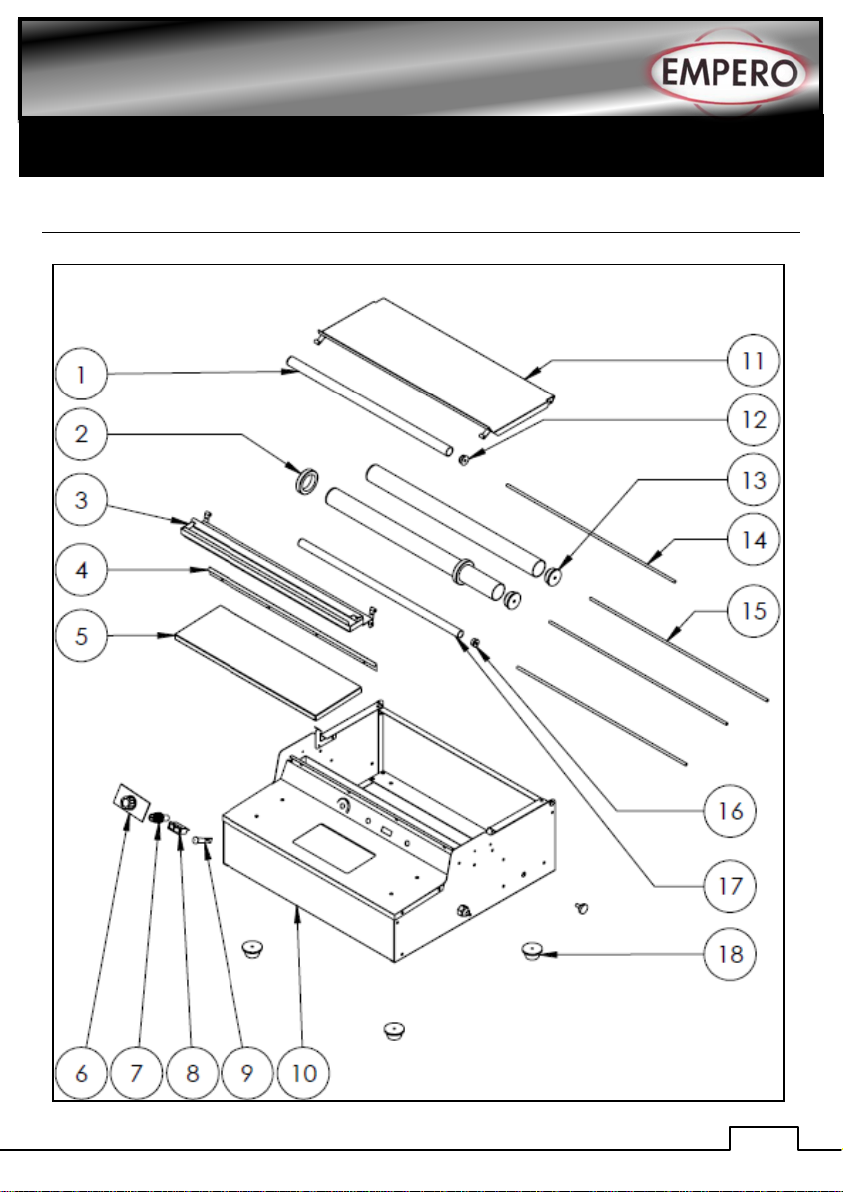

G SPARE PART LIST- EXPLODING DRAWINGS

10
STRETCHING MACHINE
Kasap Tip Dik Buzdolapları
G SPARE PART LIST- EXPLODING DRAWINGS
PRODUCT CODE: EMP.SCM.01
NO
PRODUCT NAME
PRODUCT CODE
1
MID-ROLLER
Y.EMP.SCM.01.001
2
BIG ROLLER CIRCLE
Y.EMP.SCM.01.002
3
CUTTER RESISTANCE SAFETY
Y.EMP.SCM.01.003
4
CUTTER RESISTANCE
Y.EMP.SCM.01.004
5
PLATE RESISTANCE
Y.EMP.SCM.01.005
6
HEATING CARD
Y.EMP.SCM.01.006
7
2A FUSE
Y.EMP.SCM.01.007
8
0-1 SWITCH
Y.EMP.SCM.01.008
9
INDICATOR LAMP
Y.EMP.SCM.01.009
10
BASE FRAME
Y.EMP.SCM.01.010
11
TOP LID
Y.EMP.SCM.01.011
12
MIDDLE ROLLER STOPPER
Y.EMP.SCM.01.012
13
BIG ROLLER STOPPER
Y.EMP.SCM.01.013
14
ROLLER SHAFT
Y.EMP.SCM.01.014
15
BIG ROLLER SHAFT
Y.EMP.SCM.01.015
16
SMALL ROLLER STOPPER
Y.EMP.SCM.01.016
17
SMALL ROLLER
Y.EMP.SCM.01.017
18
FEET
Y.EMP.SCM.01.018

11
STRETCHING MACHINE
Kasap Tip Dik Buzdolapları
H ELECTRIC CIRCUIT SCHEMA
A1
0-1 RESİSTANCE SWITCH
F1
FUSE 2A
R1
CUTTER RESISTANCE SWITCH 40W
R2
PLATE HEATING RESISTANCE 70W
L1
PLATE HEATING INDICATOR LAMP
