IRB-MON
UNIVERSAL SAFETY PHOTOEYE
U L 3 2 5 - 2 0 1 6 M O N I T O R E D D E V I C E

IRB-MON Operating Instructions 1
Document no. 10280104
Contents
Cautions and Warnings
2
Product Overview
2
Specifications
3
Configuration settings
and indicators
3
Installation
9
Verification and
Operation
10
Troubleshooting
11
Ordering Information
12
Accessories
12
Warranty
12

IRB-MON Operating Instructions 2
Document no. 10280104
Cautions and Warnings
1. Read and follow all operating and Installation instructions.
2. Always follow gate operator manufacturer installation instructions regarding
installation of TYPE B1 sensor to the operator.
3. Disable the gate so it is unable to move.
Refer servicing to qualified service personnel.
IMPORTANT:
This product is an accessory or part of a system. Always read and follow the manufacturer’s
instructions for the equipment before connecting this product. Comply with all applicable
codes and safety regulations. Failure to do so may result in damage, injury or death.
Product Overview
The IRB-MON is a thru-beam photo eye and is an external entrapment protection device type
B1, non-contact sensor for use with automatic gates and doors. The light beam is near
infrared and pulses at a rate of 300/second (300Hz). The IRB-MON provides a signal to the
gate or door operator that the beam is not obstructed. The operating range is up to 115ft. The
IRB-MON operates over a wide range of 6-35VDC and 12-24VAC.
A green alignment indicator on the receiver provides status information at a glance, making
set-up and alignment easy.
The IRB-MON includes 3 selectable operating configurations providing compatibility with most
operators that accommodate monitored external entrapment protection devices per UL325-
2016.
REFER to operator installation instructions for proper configuration selection.
CONFIGURATION 0 - NON-MONITORED and MONITORED
Intended for use with operators that require simple relay contact activation to
indicate beam obstruction. Reference Light ON/Dark ON setting. Jumper
available for compatibility with Normally Open 10K termination operators.
CONFIGURATION 1 –MONITORED, HEARTBEAT 300Hz / 0Hz
Intended for use with operators designed to accept a “heartbeat” form of
monitoring, 300Hz when aligned, no obstruction, 0Hz when beam is obstructed.
CONFIGURATION 2 –MONITORED, HEARTBEAT 300Hz / 2Hz / 0Hz
Intended for use with operators designed to accept a “heartbeat” form of
monitoring, 300Hz when aligned, no obstruction, 2Hz when beam is obstructed,
and 0Hz for a failure.

IRB-MON Operating Instructions 3
Document no. 10280104
Specifications
Specifications
Operating range
Up to 115 ft. (35m)
Detection angle
24°
Sensitivity adjustment
potentiometer
Power indicator
Green LED
Detect indicator
Flashing green LED
Mode selection switch
3 modes: relay output, pulsed (3 frequency), pulsed (2
frequency
Relay output operation
Light ON/dark ON
Relay output
Form C contacts (NO, COM, NC)
Power protection
Thermal fuse
Transmitter power cycle
>300mS (for use in configuration 0 Monitored)
Power (see Cautions and Warnings)
6…35VDC, 12…24VAC (Configuration 0 RELAY only)
Current (Config. 0)
60mA (relay activated)
Current (Config 1 & 2)
15mA (12VDC, includes TX and RX wired in parallel)
Operating temperature
-40°…170°F (-40°…77°C)
Environmental
NEMA 4X
Dimensions (L x W x H)
2.3” (57mm) x 2.6” (65mm) x 3.7mm (94mm)
Weight
TX –0.35 lbs (159g), RX - 0.35 lbs (159g),
Connections
TX –2 terminals, RX –5 terminals
CONFIGURATION SETTINGS - Remove power when changing configuration settings
SW4
SW3
SW2
SW1
JUMPER
FUNCTION
ON
OFF
OFF
OFF
NC
Configuration 0 - relay operation
ON
OFF
OFF
OFF
10K
Configuration 0 –Install jumper for 10K resistive termination
OFF
OFF
OFF
ON
NC
Configuration 1 - heartbeat output, 300Hz, 0Hz, no relay activation
OFF
OFF
ON
OFF
NC
Configuration 2 - heartbeat output, 300Hz, 2Hz, no relay activation
ON
OFF
ON
ON
NC
Configuration 0 - relay operation
ON
X
X
X
NC
Dark on - N.O. contact closed when beam obstructed
OFF
X
X
X
NC
Light on –N.O. contact closed when beam is not obstructed
See the following pages for detailed descriptions, switch settings and wiring
GREEN STATUS INDICATOR
IRB-MON-T (transmitter)
ON
Power
IRB-MON-R (receiver)
Flashing
Blocked beam or not aligned
IRB-MON-R (receiver)
ON
Aligned
IRB-MON-R (receiver)
OFF
Receiver/Transmitter are too close
See Troubleshooting Guide
Configuration settings and indicators

IRB-MON Operating Instructions 4
Document no. 10280104
RESISTIVE
NOTE: Remove power when changing Configuration settings
NOTE: The relay contacts on the board and the references to them in these Instructions are
shown in the energized state, no obstruction, Dark ON setting.

IRB-MON Operating Instructions 5
Document no. 10280104

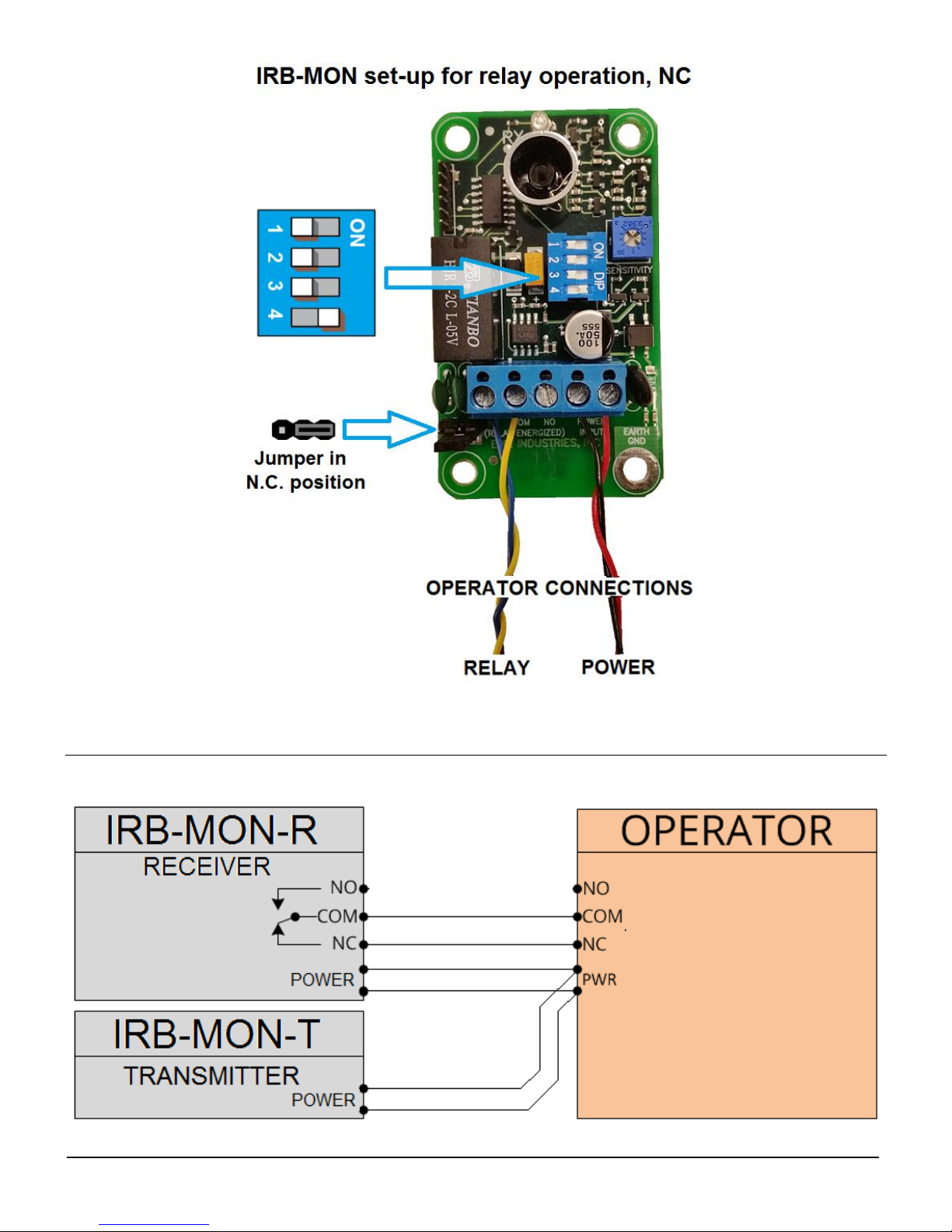

WIRING DIAGRAM A
N.C.
NOTE: Remove power when changing Configuration settings
NOTE: The relay contacts on the board and the references to them in these Instructions are shown
in the energized state, no obstruction, Dark ON setting.

IRB-MON Operating Instructions 6
Document no. 10280104

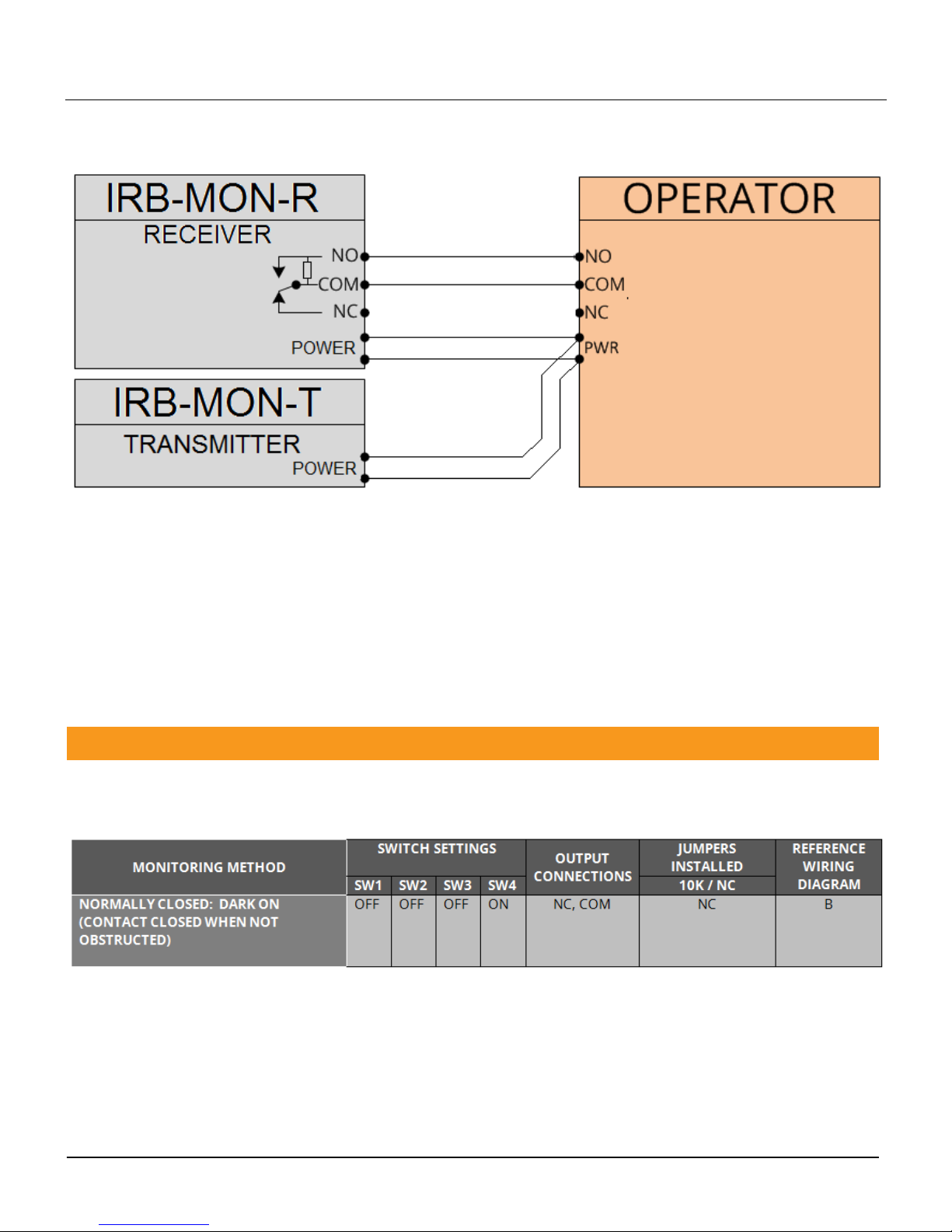

WIRING DIAGRAM B

IRB-MON Operating Instructions 7
Document no. 10280104

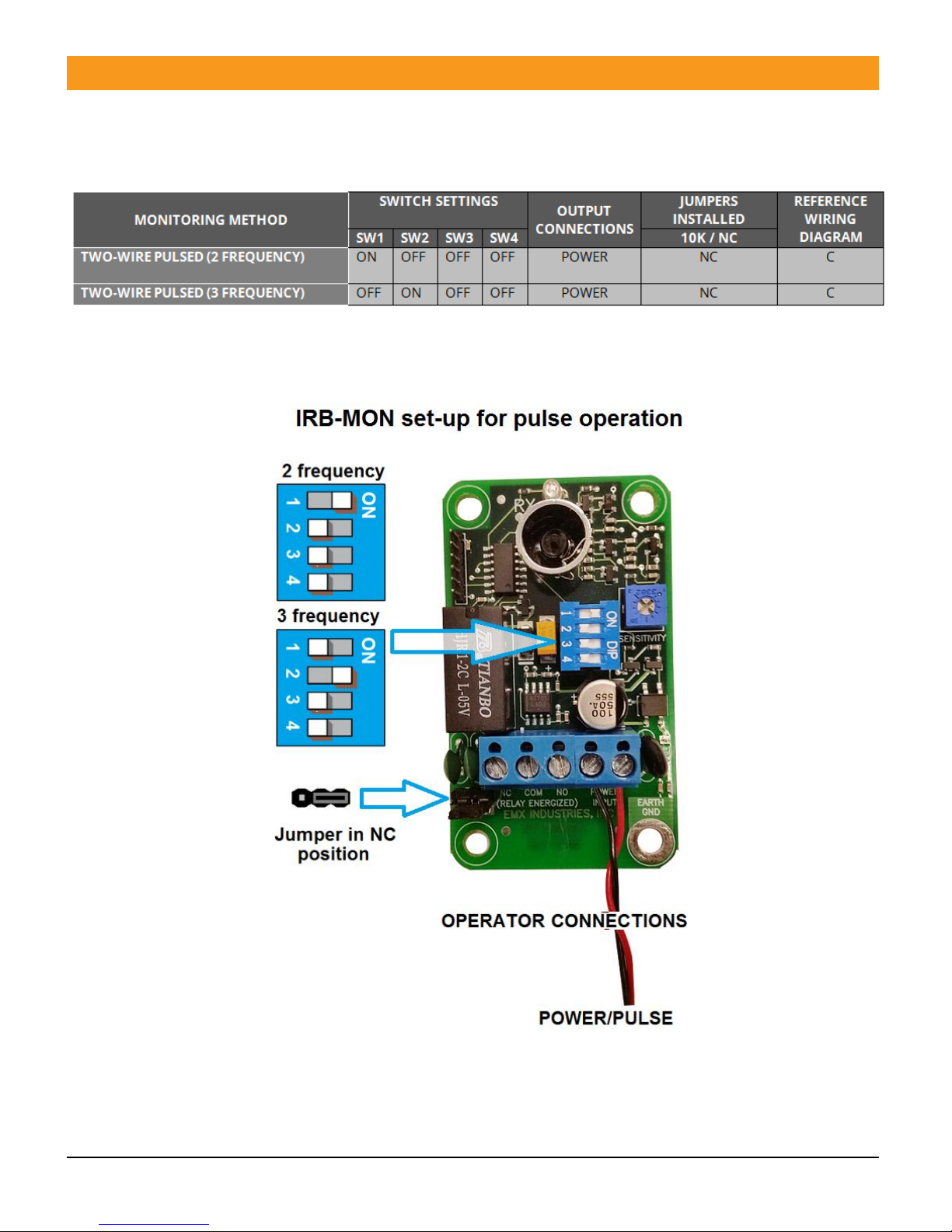

PULSE
NOTE: Remove power when changing Configuration settings

IRB-MON Operating Instructions 8
Document no. 10280104
WIRING DIAGRAM C
TRANSMITTER WIRING

IRB-MON Operating Instructions 9
Document no. 10280104
Installation
Install the IRB-MON according to instructions from the gate operator
manufacturer. The intent of External Entrapment Protection Device Type
B1 non-contact sensor is to protect a person from being accidentally
injured by the moving gate or door.
DO NOT USE 12-24VAC IN PULSE CONFIGURATIONS.
1. Disconnect the IRB-MON from power before installing or servicing the device.
2. Always follow the instructions of the gate operator manufacturer regarding installation of type
B1 sensors on the gate operator. The instructions of the gate operator manufacturer always
supersede any instructions given in this or any other instructions by EMX Industries Inc.
3. Connect the IRB-MON power supply per requirements indicated in the specification table.
4. When using the relay outputs, do not exceed the voltage/current ratings indicated in the
specification table.
5. Connect power to the terminals on the transmitter marked “TX”, polarity is not required.
6. Connect power to terminals marked “POWER INPUT” on the receiver, marked “RX” polarity is
not required.
7. FOR CONFIGURATION 0 ONLY. Operators that require normally closed contact for
entrapment protection, connect terminal NC and COM to the designated terminals in the gate
operator. Operators that require normally open contact for entrapment protection, connect
terminals COM and NO to the designated terminals in the gate operator.
8. Install the IRB-MON according to instructions from the gate operator manufacturer. The intent
of External Entrapment Protection Device Type B1 non-contact sensor is to protect a person
from being accidentally injured by the moving gate or door.
9. The IRB-MON is housed in a NEMA 4X enclosure. To insure the integrity of the enclosure make
sure the covers are attached and closed tight using all four plastic screws provided. The wiring
to the enclosure must enter via UL Listed watertight fitting such as a strain relief or watertight
conduit connector.
10. The IRB-MON must be powered by Class 2 circuits only, wiring must be segregated from other
circuits or insulation must be provided that is suitable for the highest voltage for those circuits.
11. NOTE: REDUCE SENSITIVITY (COUNTER-CLOCKWISE) WHEN INSTALLING AT <20 FT.

IRB-MON Operating Instructions 10
Document no. 10280104
Verification and operation
Verify proper operation of the IRB-MON according to instructions from the
gate operator manufacturer. The intent of External Entrapment Protection
Device Type B1 non-contact sensor is to protect a person from being
accidentally injured by the moving gate or door.
1. Verify that the IRB-MON transmitter and receiver in line of sight and apply power.
2. Place an obstruction (ex. hand) between the IRB-MON transmitter and receiver. The green LED
on the receiver is flashing. Check the operator control board that the safety input is actuated.
3. Remove the obstruction and green LED will be on.
4. If the IRB-MON does not respond to the obstruction, lower the sensitivity by adjusting the
SENSITIVITY pot counter-clockwise.
5. If the IRB-MON indicates an obstruction when there is no obstruction, increase the sensitivity
by adjusting the SENSITIVITY pot clockwise.
6. Follow gate/door manufacturer’s installation instructions and safety checks to verify that the
IRB-MON is operating properly.

IRB-MON Operating Instructions 11
Document no. 10280104
Troubleshooting
Symptom
Possible cause
Solution
Does not detect obstruction
of beam
Sensitivity too high
Signal is reflecting off another
surface
Adjust SENSITIVITY pot
counter-clockwise
Check area for highly reflective
surfaces
Green LED flashes
continuously (indicating an
obstruction when an
obstruction is not present)
Sensitivity too low
Transmitter does not have
power
Receiver does not “see”
transmitter
Adjust SENSITIVITY pot
clockwise
Check power source for
transmitter
Make sure transmitter and
receiver have line of sight
alignment
Receiver activates but does
not transmit signal to
operator
Faulty connection between
receiver and operator control
input
Verify all wires and terminal
connections
Receiver green LED off (1)
Transmitter too close to
receiver
Adjust SENSITIVITY pot
counter-clockwise
Increase distance between
transmitter and receiver
(1) When transmitter is too close to the receiver the green LED will turn off, this prevents
mounting the photo eyes in close proximity.

IRB-MON Operating Instructions 12
Document no. 10280104
Ordering Information
IRB-MON Infrared photocell includes transmitter and receiver
Accessories
IRB-HD-SET Protective hood, aluminum, gold anodized
IRB-SD-SET Protective hood, steel, gray powder-coat
IRB-BR Mounting bracket, “L” shape
IRB-SP Strain relief, water-tight
IRB-S Nylon screws, set of 2 with nuts
Warranty
EMX Industries Incorporated warrants all products to be free of defects in
materials and workmanship for a period of two years under normal use and
service from the date of sale to our customer. This warranty does not cover
normal wear and tear, abuse, misuse, overloading, altered products, damage
caused by incorrect connections, lightning damage, or use other than intended
design.
There is no warranty of merchantability. There are no warranties expressed or
implied or any affirmation of fact or representation except as set forth herein.
EMX Industries Inc. sole responsibility and liability, and the purchaser’s
exclusive remedy shall be limited to the repair or replacement at EMX
Industries option of a part or parts found not conforming to the warranty. In
no event shall EMX Industries Inc. be liable for damages, including but not
limited to damages resulting from non-conformity, defect in material or
workmanship.
Effective date: January 1st, 2002

IRB-MON Operating Instructions 13
Document no. 10280104
