Thank you for purchasing the DÖRR SL-45 Studio Ring Light.
The DÖRR SL-45 ring light is especially designed for portraits and product photography.
Frontal use around the lens the ring light produces an almost shadow free illumination and creates a circle round reflection in the eye. Lateral use creates a three-
dimensional illumination. Well suited as main or additional illumination.
1. SAFETY HINTS
• Protecttheringlightfromrainandhumidity.Donotexposetheringlighttoextremetemperatures.
• Donotusetheringlightifitisdamaged.Donotattempttodisassembleandrepairtheringlight.Ifarepairbecomesnecessary,contactalocalserviceagent.
• Disconnectthedevicefromthepowersupply,ifyouwishtocleantheringlightorifyouplannottouseifoveralongerperiod.
• Donotcleantheringlightwithbenzineorotherstrongcleaningagents.Werecommendtheuseofau-freedampmicrobertissuetocleantheoutercomponentsoftheringlight.
• Keepthedeviceoutofreachofchildren.

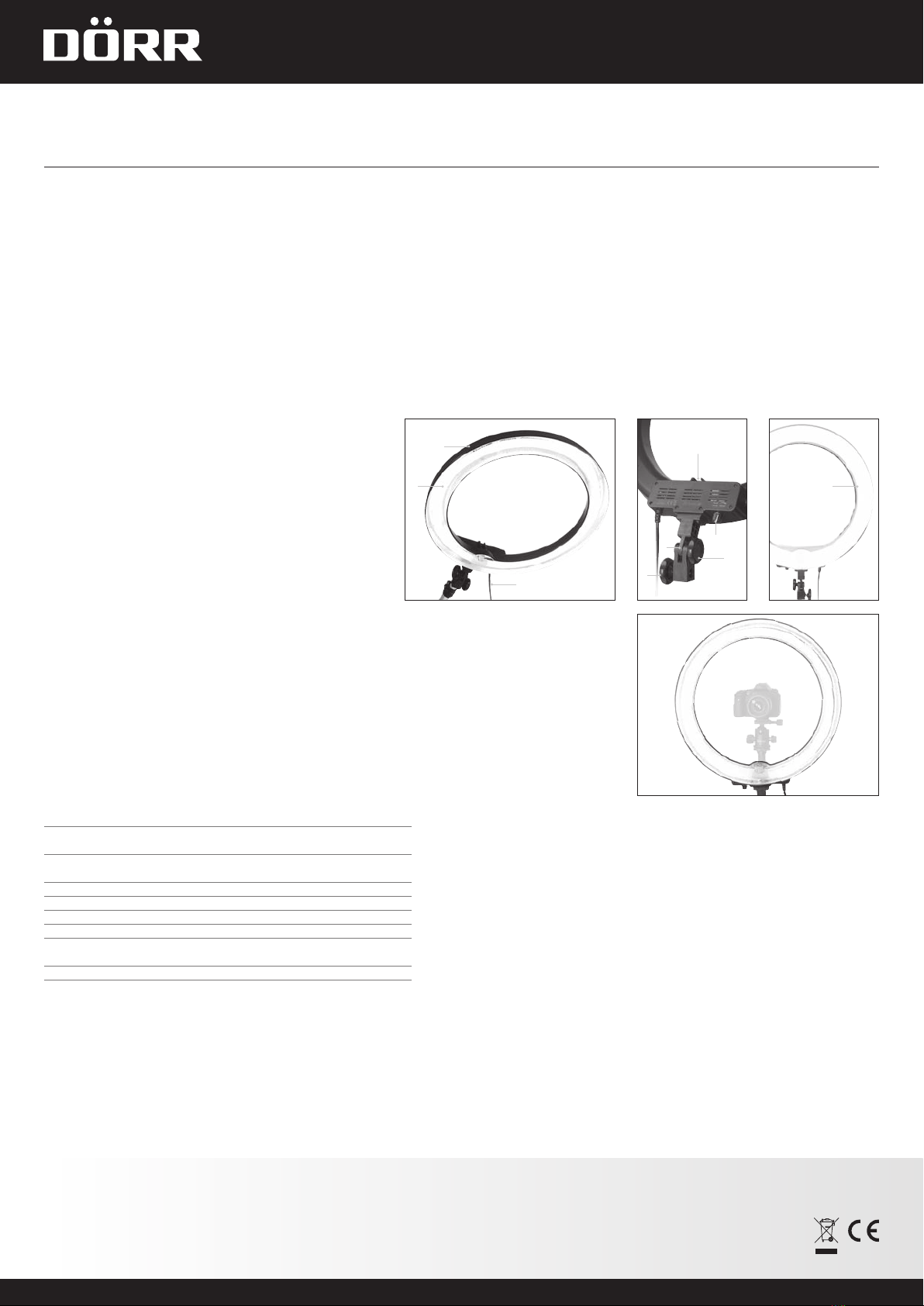

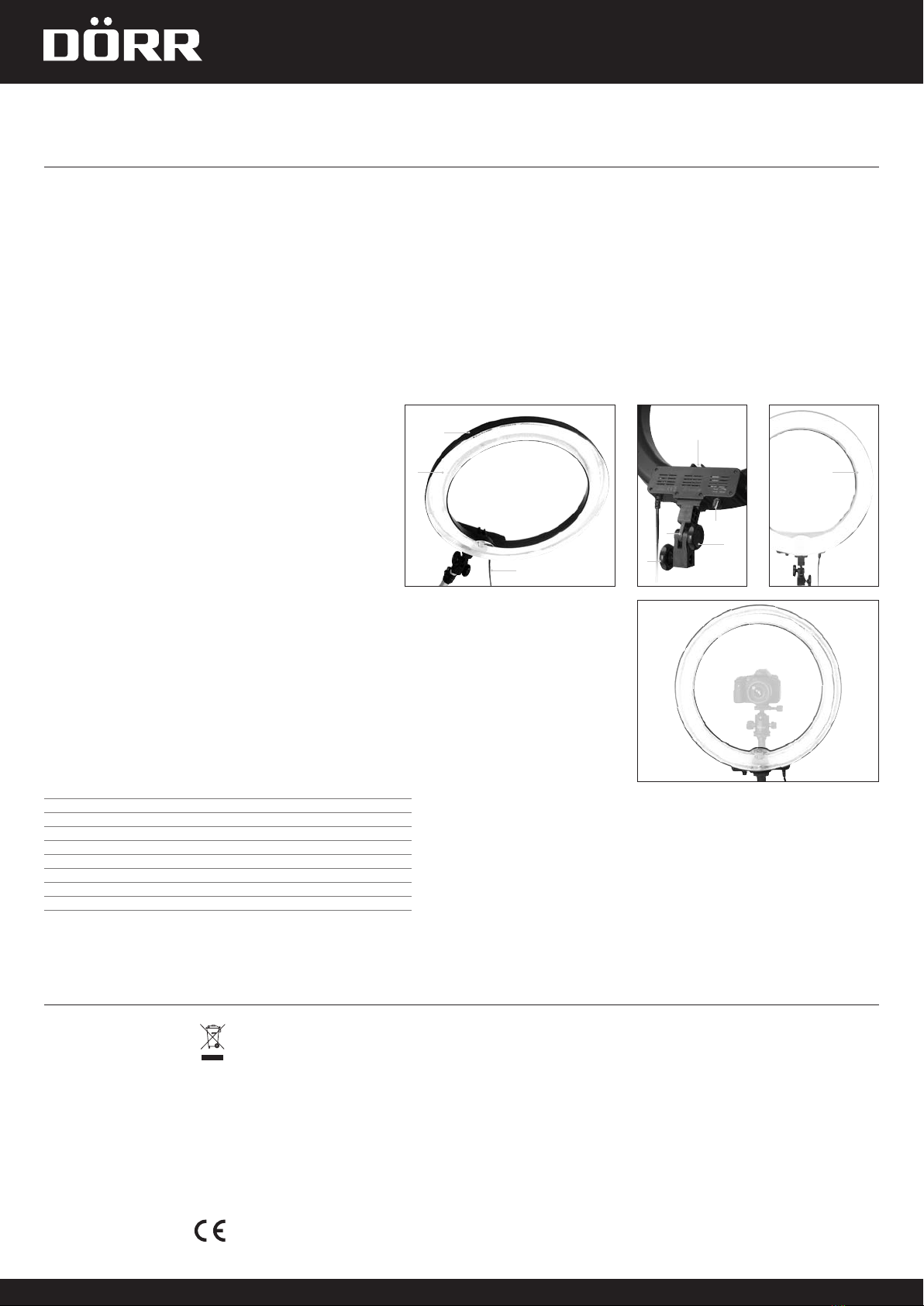

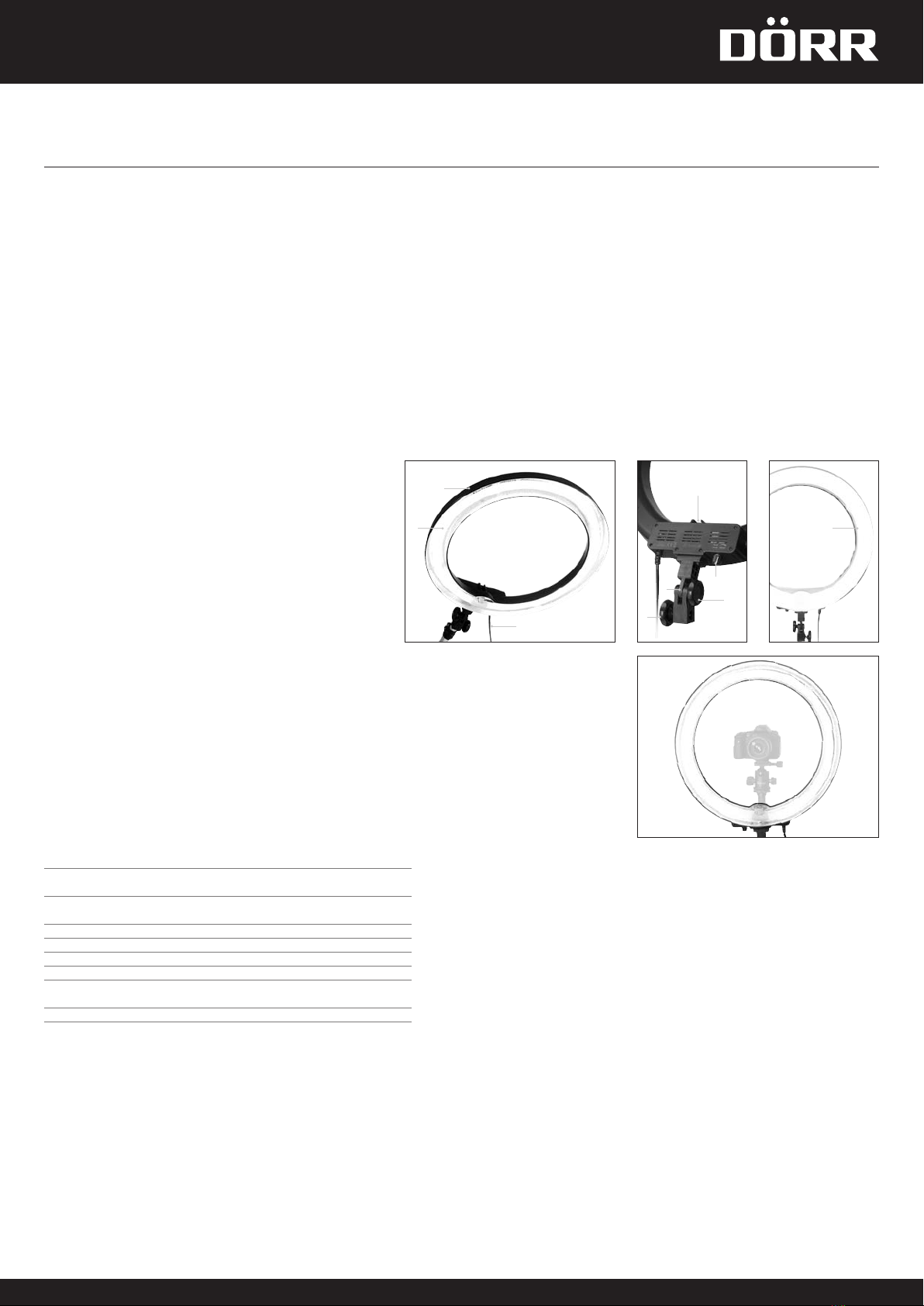

2. NOMENCLATURE
1. Aluminum housing
2. On/O switch with dimmer
3. Power Plug
4. 75W bulb
5. Tripod mount with tilt function for light stands
6. Locking screw for tripod mount
7. Locking screw for tilt function
8. Diusor cover
9. Support for tripod heads or mounting systems with universal hot shoe
3. MOUNTING
• Placetheringlightwithtripodmount(5)toyourlightstandandtightenthelockingscrew(6).
• Loosenthelockingscrewforthetiltfunction(7)andsetthedesiredilluminationangle.
• Forportraitsplaceyourcameraontoatripodandchosepositionbehindthelightinthecenter(gure1).
Alternatively, you can mount the camera onto a tripod head or holding system with universal hot shoe
(optional) and slide directly to the hot shoe support (9).
4. USAGE
Connect power plug (3) with power supply and switch on the ring light turning the On/O switch (2).
By turning the On/O switch, the brightness can be dimmed. The supplied diusor cover creates an even more soft light.
5. SPECIFICATIONS
GB USER MANUAL
SL-45 Studio Ring Light 75W
6. CONTENT
Ring light, case, diusor cover, Tripod mount with tilt function, user manualRingleuchte, Netzstecker, Transporttasche, Diusorbezug, Halterung mit Neigefunktion, Bedienungsanleitung
Light intensity 290 - 860 lx/1 m variably adjustable
Color temperature 5300 K (+/- 200 K)
Diameter 48 cm
Illumination 75 W plug-in tube, easy to exchange
Energy source AC 220-240V/50 Hz
Housing sturdy aluminum housing
Mount with tilt function for light stands
Weight approx. 1240 g
WEEE INFORMATION
The Waste Electrical and Electronic Equipment Directive (WEEE Directive) is the European community directive on waste electrical and electro-
nic equipment, which became European law in February 2003. The main purpose of this directive is to prevent electronic waste. Recycling and
other forms of waste recovery should be encouraged to reduce waste. The symbol (trash can) on the product and on the packing means that
used electrical and electronic products should not be disposed of with general household waste. It is your responsibility to dispose of all your
electronic or electrical waste at designated collection points. Disposing of this product correctly will help to save valuable resources and it is
a significant contribution to protect our environment as well as human health. For more information about the correct disposal of electrical and
electronic equipment, recycling and collection points please contact your local authorities, waste management companies, your retailer or the
manufacturer of this device.
ROHS CONFORMITY
This product is compliant with the European directive 2011/65/EU of January 03, 2013 for the restriction of use of certain hazardous substances in
electrical and electronic equipment (RoHS) and its amendments.
CE MARKING
The CE marking complies with the European directives.
1
4 8
5
6
3
7
9
2
figure 1
