Chapter 1: Introduction
The ENXTV-X4 is an excellent solution in combining a computer and a TV system without
the need for a screw driver or software driver. Enhance your computer to a home theater
quality system adding an HDTV resolution receiver, just plug in cables and power adapter,
and you will experience high resolution TV programs.
The ENXTV-X4 provides high quality, high resolution of up to1920x1200. Watch your
favorite TV program in HDTV resolution while using your computer at the same time or
watch your favorite TV program in HDTV resolution even when your computer is turned-off

3
www.encore-usa.com
1.1 Features
Use of digital frequency multiple technology. Supports 8 resolution modes, up to
1920 x 1200
Pure Plug-and-Play: no driver or software needed
PIP function, capable of watching TV while surfing on the internet
3D Motion adaptive de-interlace, digital image enhancement and digital noise
reduction technology bring you clearer and sharper image
Full TV channel supplement: suitable to receive signals via either wire or wireless
connection, compatible to PAL/NTSC
Supports PAL, NTSC TV standard, with VIDEO, and S-VIDEO input for easy
connection of video camera, DVD, TV game player, etc
Supports multi-channel display (TV wall) to preview all channels conveniently
PC-Free Mode: watch TV programs or play console games without turning on your
PC
Watch PC and TV on the same screen
Full Function Remote Control
1.2 System Requirements
LCD, CRT or other types of monitors/projectors with PC VGA (D-sub) input.
A computer is necessary when in PIP mode. No specific PC system required.
Video source (broadcast TV, cable TV, PC, DVD Player, camcorder, game console,
etc.)

4
www.encore-usa.com
1.3 Specifications
TV format NTSC M / NTSC N, PAL M / PAL N
Resolution
Output video mode: 4:3
(800x600, 1024x768, 1280x1024, 1600x1200)
Output video mode: 16:10
(1440x900, 1680x1050, 1920x1200)
Output video mode: 16:9
(1366x768, 1600x900, 1920x1080)
TV input 75 Ohm impedance, F or PH type
Video input RCA Video in, S-Video in
Audio input RCA L/R,
3.5mm connector (for PC use)
Audio output 3.5mm connector
RGB output D-SUB 15 Pin
Environmental
Operating Temperature:0°C~40 °C
Storage Temperature: -5°C~50°C
Operating Humidity: 0%~80% RH, non-condensing
Certification FCC, CE, RoHS

5
www.encore-usa.com
1.4 Package Contents
ENXTV-X4 External TV Tuner HD II
Remote control
Power adapter
VGA-In Loop Back cable (for PIP mode)
3.5 mm Stereo Audio cable
User manual

6
www.encore-usa.com
Chapter 2: Getting Started

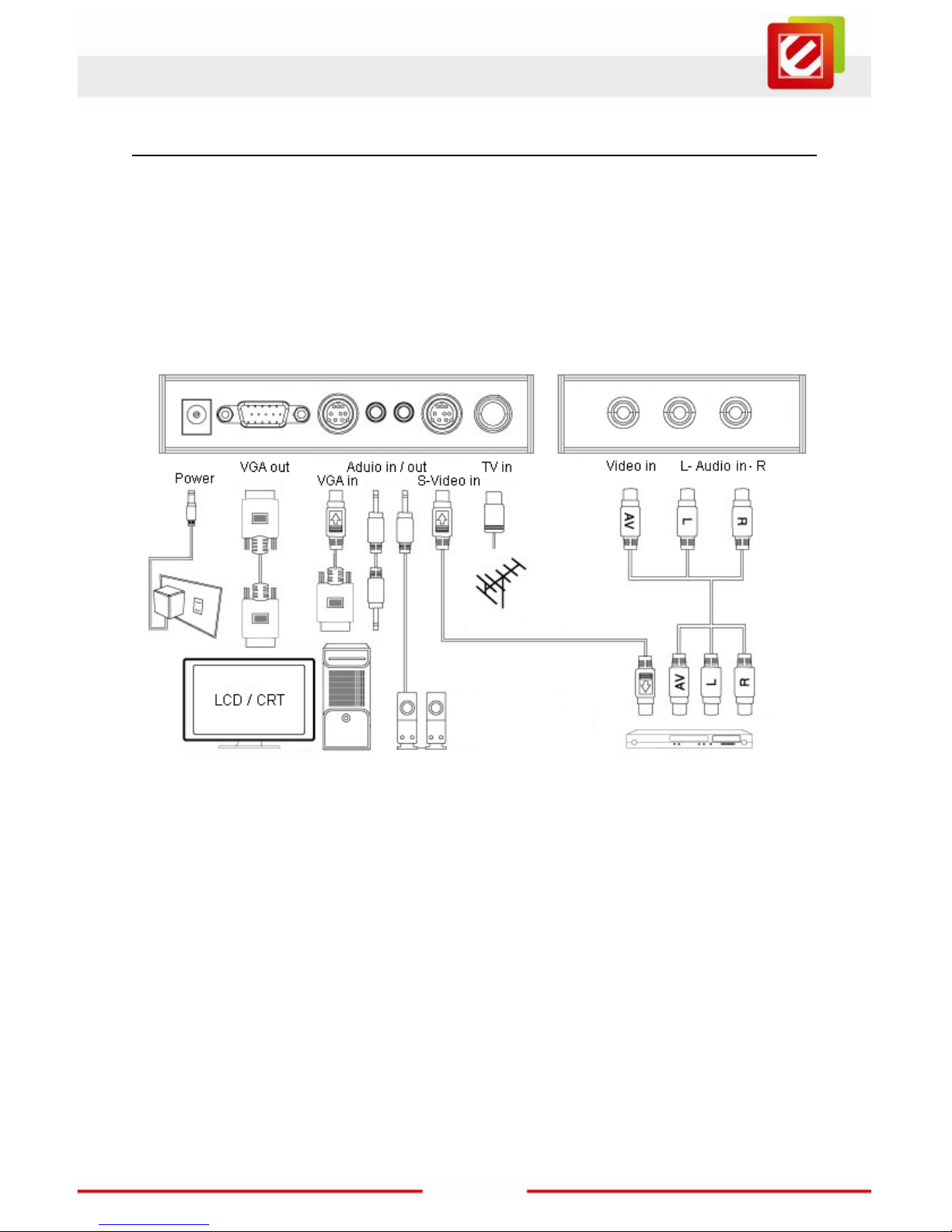

ENXTV-X4 cable connection is easy. The most typical cable connections are shown in the
picture diagram below. Do not connect the power cable before you connect these cables.
Note:
If the speaker cable is connected to the computer’s sound card, the audio will not work.
The audio speaker cable should be connected to the ENXTV-X4 Audio-Out port when you
are watching the TV without turned on the computer.

7
www.encore-usa.com
2.1 Rear Panel Connectors
Insert the provided CD into the CD-ROM drive, and then follow the on-screen instructions
below.
CONNECTOR TYPE DESCRIPTION
DC In 5mm, INT+, EXT- AC adapter, power in (5V, 1 A)
VGA Out 15 pin D-Sub connector ENXTV-X4 main video output. Connects
to CRT/LCD Monitor
VGA In 8 pin Mini DIN connector VGA-In loop back cable. The other end
of this cable connects to the PC’s VGA
D-sub 15 pin connector.
Audio In 3.5mm stereo connector Audio In connects to PC sound system.
Audio Out 3.5mm stereo connector Audio out connects to the speaker.
S-Video In 4 Pin Mini Din S-VHS type external video input source.
Can be used for DVD, VCR or
Camcorder
TV in TV antenna connector TV or CATV signal-in connector
2.2 Right Side Panel Port Connectors
CONNECTOR TYPE DESCRIPTION
Video In RCA Jack External composite video input source, can be
connected to DVD, VCR or Camcorder.
Audio In (L/R) RCA Audio jack RCA audio jack used for external audio input
source.

8
www.encore-usa.com
2.3 Panel Controller Functions
1. Manual / Power:
2. Vol -: Left / Volume down
3. Vol +: Right / Volume up
4. CH -: Down / Channel down
5. CH +: Up / Channel up
6. Speaker

9
www.encore-usa.com
Chapter 3: Using the ENXTV-X4
3.1 PC side VGA Resolution Setting
ENXTV-X4 can be used independent of PC system for a full screen display. In addition to
the full screen display, when it is connected in conjunction with the computer system, the
PIP sub video window can also be displayed at the top of PC monitor screen to let the user
watch TV while using the computer at the same time, or just enjoy full screen TV viewing.
When the ENXTV-X4 is used as a standalone TV box (computer is turned off), it is
completely independent with the computer’s VGA or monitor screen settings. Resolution
and other adjustments depend on the monitor or the ENXTV-X4 settings.
While in PIP mode (computer is turned on and in PIP mode), in order to have the optimized
resolution and performance, we recommend setting the computer VGA in WUXGA mode
(1920x1080 or 1920x1200@60Hz) and monitor’s refresh rate at 60Hz. See the illustration
computer VGA settings below.

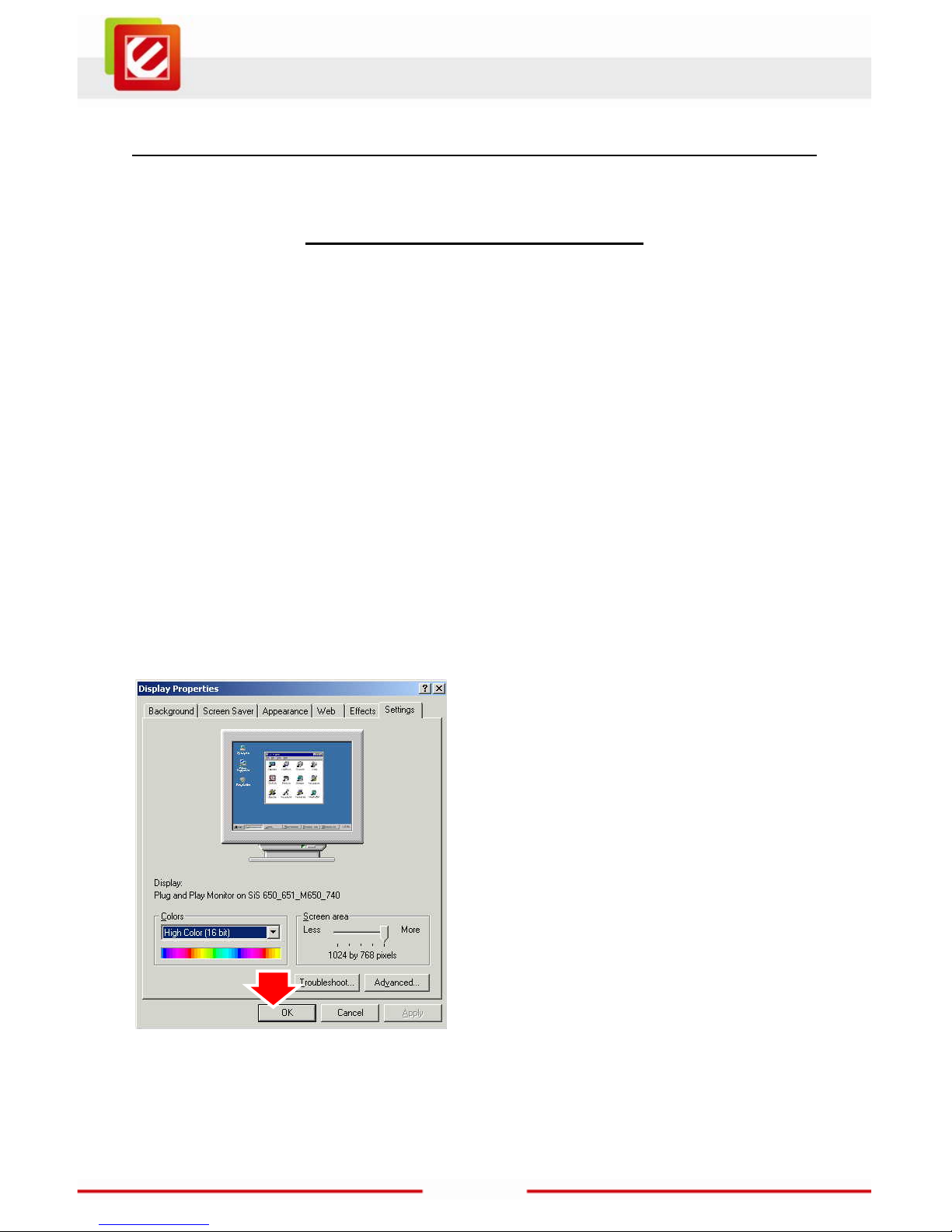

1. Under Windows systems, the VGA
resolution setting page can be invoked by a
right click on the mouse when it is pointed
at an empty desktop area.
2. When the “Display properties” page is
shown, select the recommended value
1920x1080 or 1920x1200.
3. Click on the “Advanced” button, to select
the monitor refresh rate, the recommended
value is 60Hz.
4. Click on “OK” to close the property page.

10
www.encore-usa.com
5. Windows system will change the display
mode to your setting and ask whether to
use this display mode or not, please click
on OK to confirm the setting.

11
www.encore-usa.com
Chapter 4: Using the Remote Control
The included infrared remote control allows you to operate ENXTV-X4 remotely, such as
turning your TV on/off, changing channels, adjusting volume, etc. Aim the front of the
remote control at the remote control receiver and press the control buttons as you would
on the infrared receiver.

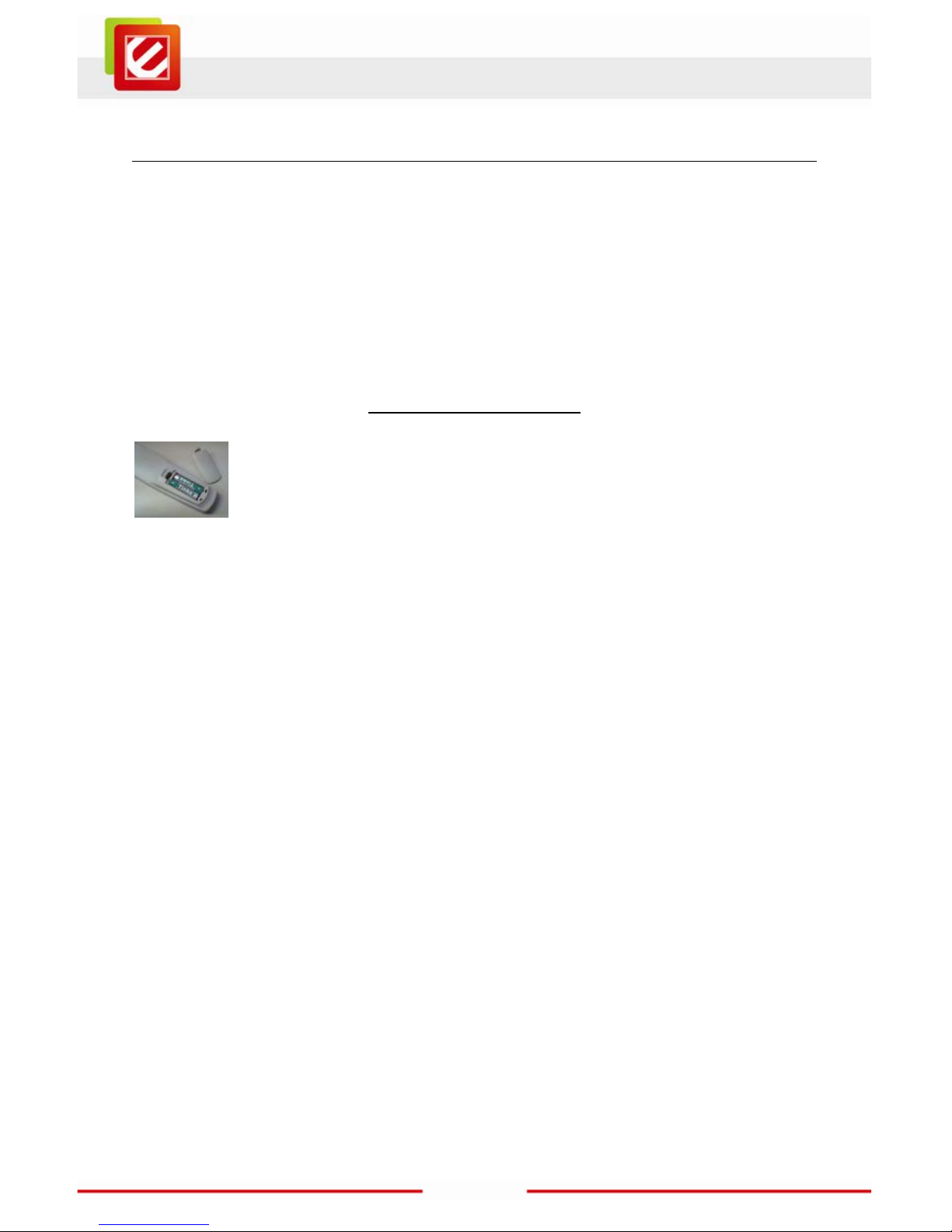

4.1 Installing Batteries
Open the back cover of remote controller and put in two pieces of AAA
batteries (alkaline battery recommended).

12
www.encore-usa.com

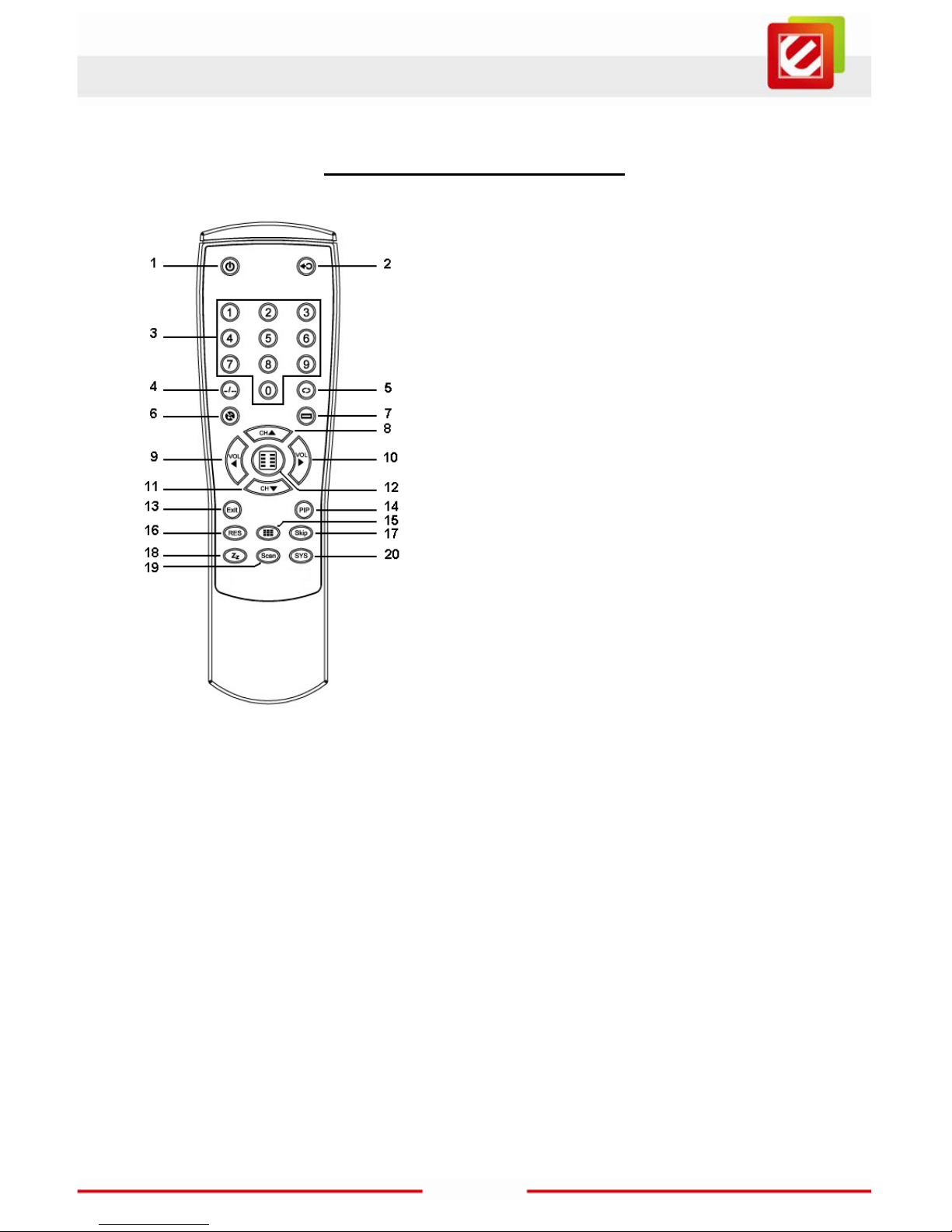

4.2 Remote controller functions
1. Power / Standby
2. Video Source
3. Program number select
4. Single or Double digits channel
5. Return to the previous channel last viewed
6. Mute
7. Display ratio aspect
8. Channel +
9. Volume +
10. Volume -
11. Channel -
12. Manu / Enter
13. OSD back to previous page
14. PIP function
15. Multi-channel display
16. Display resolution switch
17. Channel Skip
18. Sleep timer
19. Auto Channel scanning
20. TV System setting

13
www.encore-usa.com

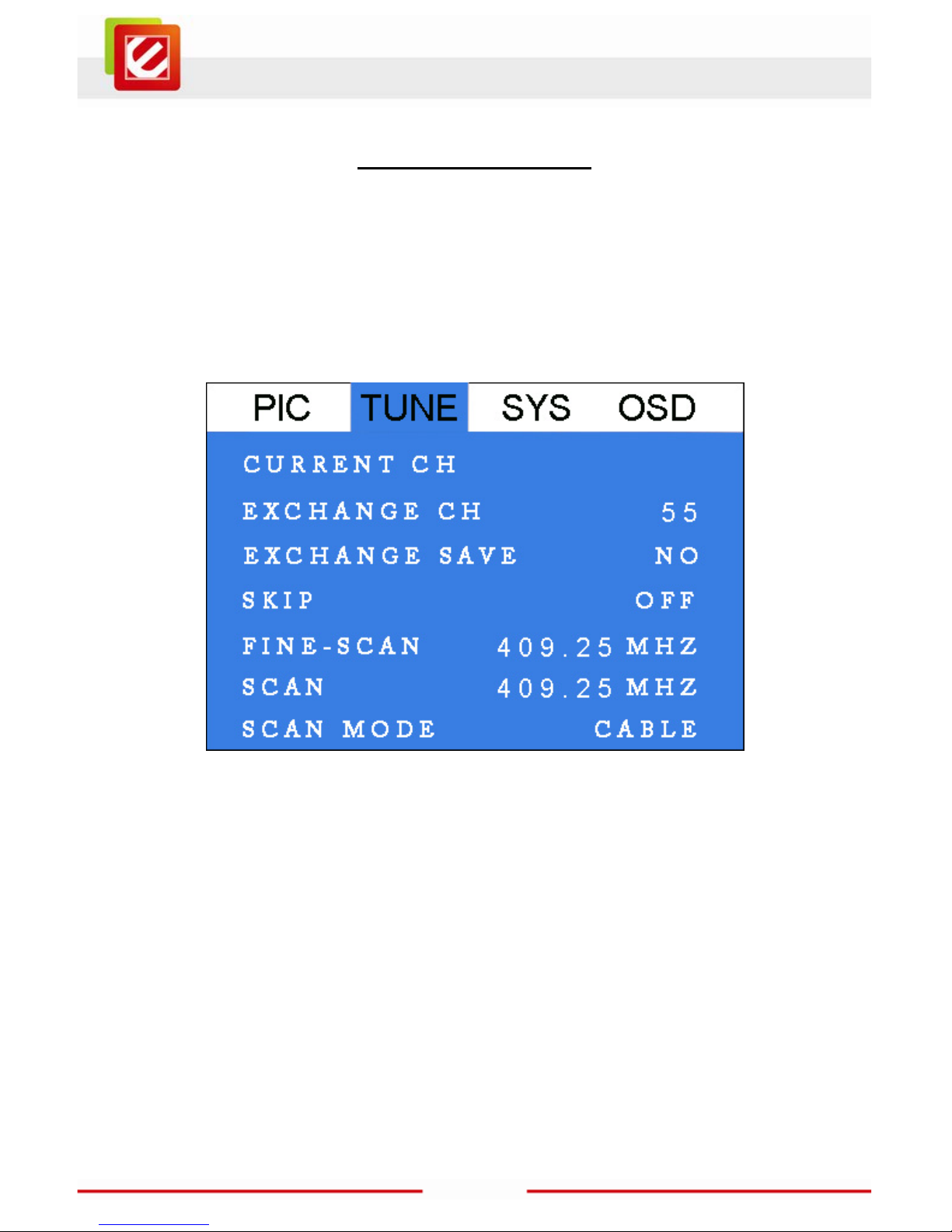

4.3 How to use the Menu
In this section the ENXTV-X4 Main Menu and its operations will be discussed here. TV
mode must be in Full Screen Mode.
Press the MENU button from the remote control to get to this screen.
Use the CH+/CH-keys to move the cursor to the desired item (Left and Right).
Use the VOL+/VOL-keys to move the highlights down to every sub menus and use
CH+/CH- keys to select.
Use the EXIT key returns to previous setting menu or exit from the main menu.
If there is no activity within 5 seconds, the OSD menu display will hide automatically

14
www.encore-usa.com

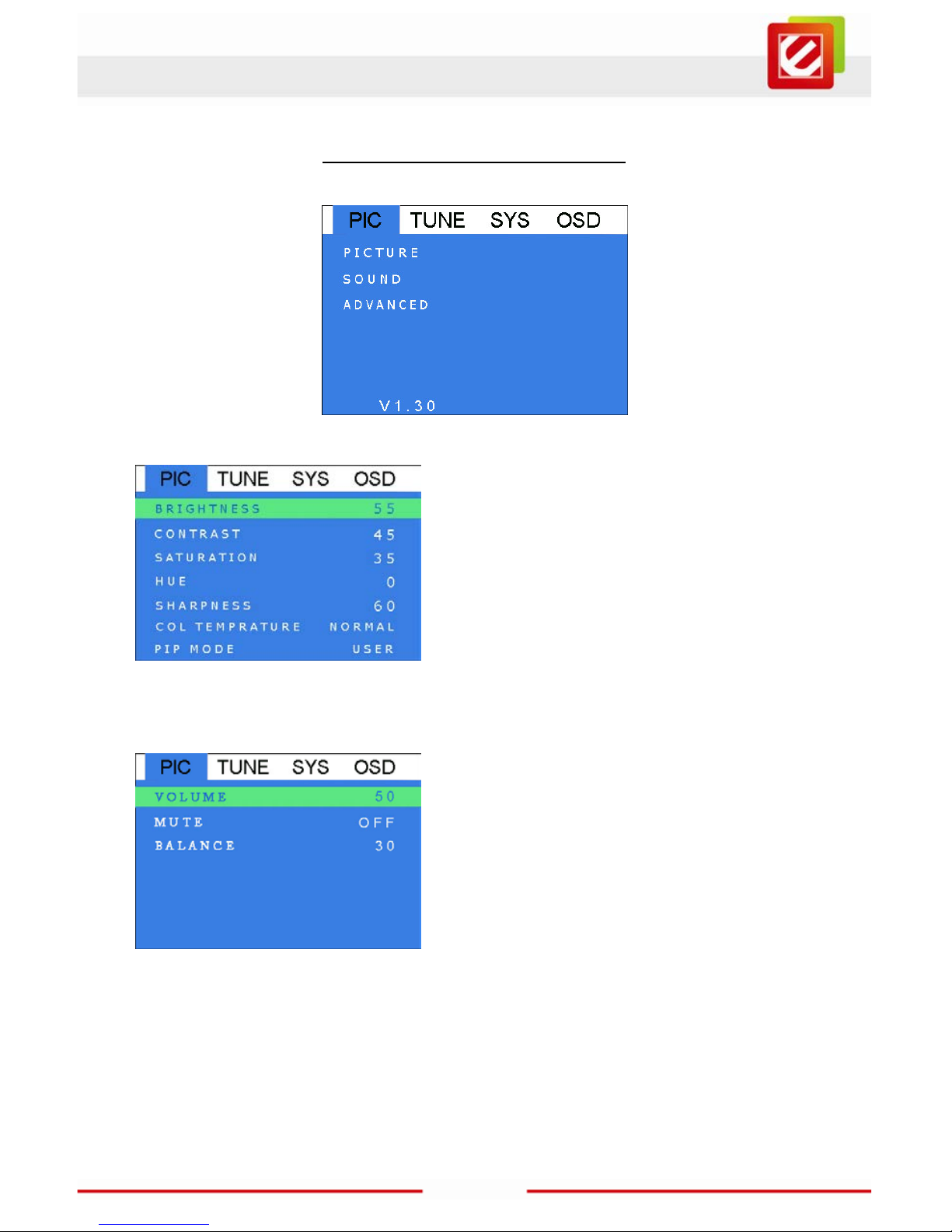

4.4 OSD Display MENU Settings
PIC:
PICTURE:
BRIGHTNESS: Sets for screen brightness
CONTRAST: Sets for screen contrast
SATURATION: Sets for saturation
HUE: Sets for Color Hue
SHARPNESS: Sets for sharpness
COL TEMPRATURE: set for color temperature
PIP MODE SET: Picture in picture screen size
SOUND
VOLUME: To adjust audio Out volume
MUTE: Audio out volume mute
BALANCE: To adjust Audio Left or right track Out
volume

15
www.encore-usa.com

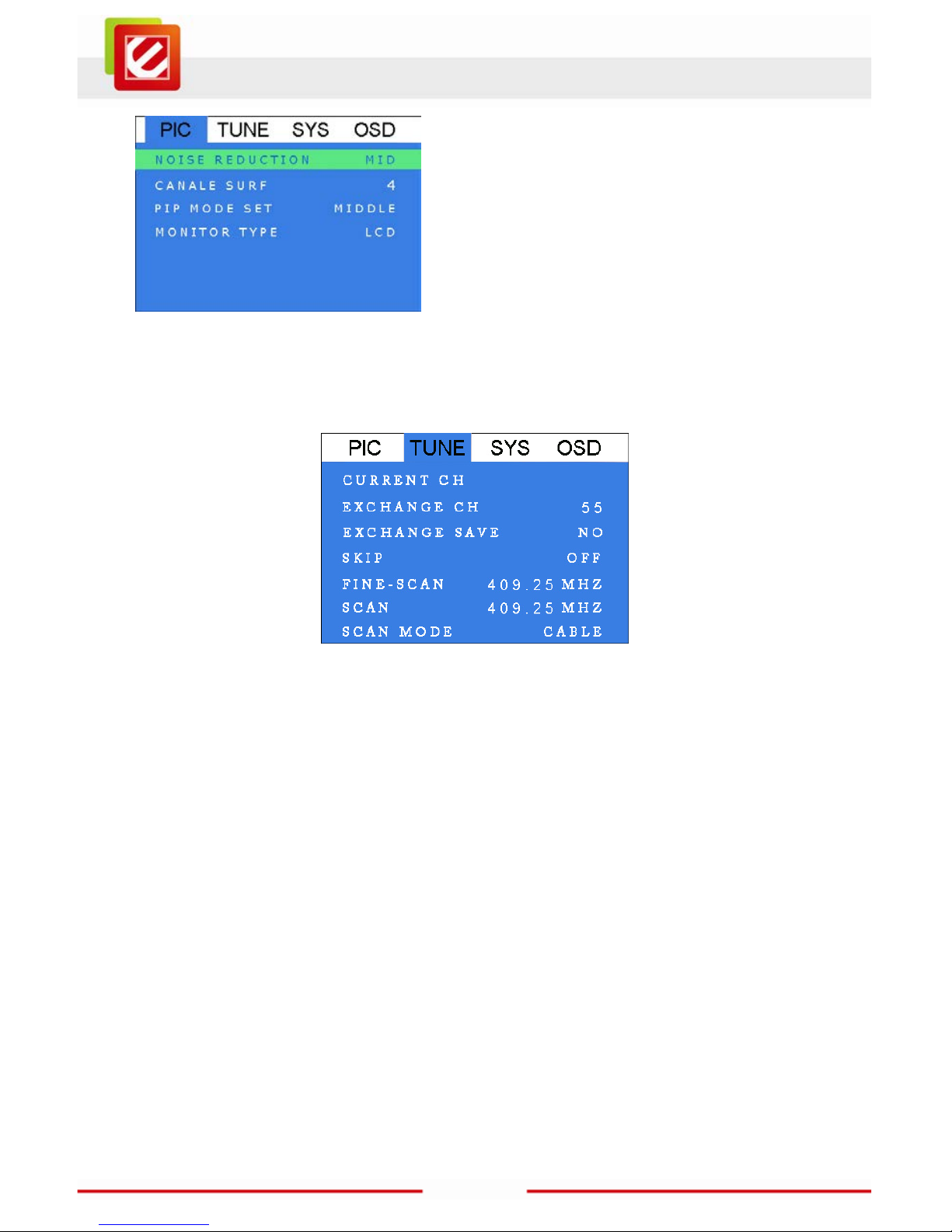

ADVANCED SETTING
NOISE REDUCTION:
3 degrees adjust image noise
reduction
CHANNEL SURF: 4,9,16 video division of TV wall
mode
MONITOR TYPE: LCD
TUNE
CURRENT CH: Display current TV channel
EXCHANGE CH: Change the current channels sequence list
EXCHANGE SAVE: Save the adjusted channels sequence list
SKIP: Skip/no skip current TV channel
FINE-SCAN:Adjust current TV signal quality
SCAN: Auto process of scanning TV signal
SCAN MODE:manual process of scanning TV signal

16
www.encore-usa.com
SYS
VIDEO SYS:PAL system standard setting
BLUE SCREEN: Background color is blue when no signal input
VIDEO SOURCE: TV\AV\SV input video source selection
RESOLUTION: Output image resolution selection
SCALE: Switch to wide image resolution
RESET: Comeback factory default setting
OSD
LANGUAGE: OSD menu language selection: English
H POSITION: Adjust OSD Horizontal position
V POSITION: Adjust OSD vertical position
BACK COLOR: Change the OSD back color
TRANSPARENCY: Adjust OSD background transparency
OSD TIMEOUT: OSD caption reserved time

17
www.encore-usa.com
Chapter 5: Technical Support
Please visit www.encore-usa.com for the latest product information and downloads.
Appendix A: User’s Notice
This manual is provided “as is” without warranty of any kind, either express or implied,
including but not limited to the implied warranties or conditions of merchantability or fitness
for a particular purpose. In no event shall we, its directors, officers, employees or agents
be liable for any indirect, special, incidental, or consequential damages (including
damages for loss of profits, loss of business, loss of use or data, interruption of business),
even if we have been advised of the possibility of such damages arising from any defect or
error in this manual or product.
Specifications and information contained in this manual are furnished for information use
only, and are subject to change at any time without notice, and should not be construed as
a commitment by us. We assume no responsibility or liability for any errors or inaccuracies
that may appear in this manual, including the products and software described in it.
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form or by any means, except documentation kept by the purchaser for
backup purposes, without the express written permission of us.
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing by us; or (2)
the serial number of the product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identification
or explanation and to the owners’ benefit, without intent to infringe.
Windows, MS-DOS, and DirectX are registered trademarks of Microsoft
Corporation.
Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.
The product name and revision number are both printed on the product itself. Manual
revisions are released for each product design represented by the digit before and after
the period of the manual revision number. Manual updates are represented by the third
digit in the manual revision number.
