ENCRAJE ROLLSROLLER ENTRY User manual

ROLLSROLLER
ENTRY

45
1. 2. 3. 4.
5. 6. 7. 8.
9.
1. 2. 3. 4.
5. 6. 7. 8.
9. 10. 11. 12.
13. 14. 15. 16. 16.
PARTS
LIST FOR ASSEMBLY,
USE THE FOLLOWING TOOLS
ROLLSROLLER ENTRY PACKAGE
INCLUDES THE FOLLOWING PARTS.
BE CAREFUL WHEN UNPACKING.
1. Owner’s manual- CD 1 pcs
2. Fast connection regulator 1 pcs
3. Stop Static 1 pcs
4. Scissors 1 pcs
5. Aluminum prole 1pcs
6. Locking knob roll holder 1 pcs
7. End cover Glide beam 1 pcs
8. End stop for Glide beam 2 pcs
9. Glide feets 2 pcs
10. Glide beam 1 pcs
11. Roll core holder Glide beam 2 pcs
12. Roll holder arms,
Glide Beam
2 pcs
13. Roll holder plate, Glide beam 1 pcs
14. Roll holder tube 1 pcs
15. Flatbed 1 pcs
16. Spanner 19mm. + 13mm. 2 pcs
TO ASSEMBLE THE ROLLSROLLER ENTRY,
USE THE FOLLOWING TOOLS:
1. Allen key set
2. Wrench alt. Spanners (mm.)
3. Screwdriver
4. Bit set
5. Masking tape
6. Pen
7. Metal shear
8. Box cutter
9. Tape measure

6 7
UNPACK THE
ROLLSROLLER ENTRY
NOTE
■Be careful while unpacking the
ROLLSROLLER Entry to avoid
damaging any parts.
■NOTE THAT YOU NEED LONG
FORKS
minimum 1800 mm/
5ft. 11in.
■DO NOT walk under the hanging
goods
1. ROLLSROLLER Entry crated. 2. Use a metal shear to cut the steel bands.
3. Loosen the screws that seal the crate. 5. Remove the screws holding the side cover.
6. Remove the side cover.
4. Remove the top cover.
7. Remove the steel bands holding the ROLLSROLLER Entry in place (see left & right picture).
Then cut the straps holding the legs (see right picture).
1. Lift the atbed out of the crate with a forklift or by hand. Left picture illustrates where to lift the atbed by hand. The
right picture illustrates where to put the forks when lifted by forklift.
FOR THIS STEP YOU WILL NEED
■Metal shear
■Screwdriver
■Box cutter/scissors
FOLD OUT
THE LEGS
NOTE
■Important. Lift the atbed
horizontally out of the crate.
Otherwise damage can occu-
re to the atbed or the parts
included in the crate.
■Never turn the table upside
down.
■If lifted with forklift, note
that long forks must be used
(minimum 1800 mm / 5ft.
11in.).
■Do not walk under the hang-
ing goods
2. When the atbed is lifted the legs will be foulded
down by gravity.
3. Before puting down the atbed make sure the pins
locks in it’s right position (see picture above).
4. When the pin is in its right position lock the bolt
to secure the leg’s stability (use a 19mm spanner or
the spanner included).

8 9
ROLLSROLLER ENTRY IS DELIVERD WITH MACHINE FEET AS STANDARD. FOLLOW STEP 5-6.
IF DELIVERED WITH WHEELS FOLLOW STEP 7-8.
5. Place the table at it’s nal position.
7. Place the table at it’s nal position. 8. Adjust the level of the machine feet with a spanner to make sure that the table is
standing stably on the oor.
6. If needed, adjust the machine feet with a spanner (13mm.) to make sure that the
table is standing stably on the oor.
INSTALL THE
GLIDE BEAM
2. Place the Glide beam on the side of the atbed
that has no end stop mounted on the rail.
3. First remove the wrapping from the lower parts of
the beam.
4. Unpack the glide feets.
6. Connect the air hose to the beam. 7. Slide the Glide beam onto the rail.
NOTE
■If you unpack the roller with a
box knife or scissors, take care
so you don’t damage the roller.
1. Lift out the Glide beam from the crate.
8. Fasten the end stop with a 10 mm. spanner and
attach the end cover to the rail.
FOR THIS STEP YOU WILL NEED
■Box cutter
■Allen key
■Spanner
■Tape measure
■Pen
5. Place the Glide beam with the legs outside the
atbeds short side. Make sure that the hose foot
is placed on the same side as the regulator (see
picture 10 on page 10).

10 11
9. Remove all the wrapping from the beam.
(Take care not to damage the roller.)
11. Adjust the distance from the Glide beam’s legs to the table side according to the written measurement. 12. Put the Glide beam to the short side and lower
the roller. NOTE: Don’t raise the roller until steps
13-19 are done.
13. Place the Aluminum prole against the roller. Point out the distance from the prole to the end of the table (see
the blue circle). Make sure the distance is equal (+/- 1 mm. ) on both sides, otherwise release the pressure and
change the position of the Glide beam (shake the roller back and forth to change it’s position), repeat the procedure
until the measurement is the same on both sides.
14. Adjust the angle of the bearings with the screws
underneath the glide feet so they align with the
glide rail (see pictures 15-16).
10. Connect the Glide beam air hose to the regulator (hose A). If using a ROLLSROLLER compressor connect air
hose B to the regulator. If using an external air system, connect hose C to the regulator.
A B A C
17. First, lightly tighten the horizontal clamping
screws. Then use the allen key to tighten the screws
in the following pattern A, B, C, D (se right picture
above). Follow this pattern until the clamping screws
are secured properly.
19. Attach the Glide beams end covers on both
sides.
18. Lock all six clamping screws.
20. Raise the roller and the Glide beam is now installed.
15. This image shows the correct angle of the bearing (approximately 90°). 16. If the bearings do not align with the glide rail (see picture above),
adjust the lower clamping screws until the angle is correct (picture 15).
C
A
D
B

12 13
1. Apply masking tape as shown in the picture above on both sides
(4 marks).
2. Push the roller over the masking tape.
3. Using a pen, mark the position of the roller (left & right side) on the tape before
moving the beam.
4. Then lift the roller and push the Glide beam to the other end of the table and repeat
the procedure.
ADJUST THE
ROLLER POSITION
FOR THIS STEP YOU NEED:
■Masking tape
■Pen
■Measuring tape
■Allen key
NOTE
■To obtain an exact
measurement, don’t start
measuring from the beginning
of the measuring tape. For
example, start measuring from
100mm.
5. Use the measuring tape to measure both diagonals from cross to cross. The measured distances must not deviate by more than 1 millimetre.
If measured length A is longer than measured length B, the roller must be adjusted in the direction of the arrow, and vice versa (see illustration).
If A is 4 mm longer then B, move the roller approximately 2 mm in direction of the arrow, and vice versa. To adjust follow the steps in picture 6-9.
A B
7. Loosen the four screws holding the
air cylinder.
6. Remove overlaying panel on the
side you want to adjust. Measure the
distance from the piston to the edge of
the Aluminum prole and write it down,
so you don’t forget it.
8. Adjust the air cylinder. Move it right
or left depending on which way you
need to adjust the roller.
9. After adjusting the roller to the right
position, tighten the 4 screws holding
the air cylinder housing and then
reattach the overlaying panel.

14 15
MOUNT THE
MEDIA HOLDER
1. Attach the roll holder plate and the roll holder arm. Lock the arm in the right position
with the locking knob.
2. Place the aluminum bar in the roll holder arms.
The ROLLSROLLER Entry is now
fully assembled and ready to use.
Read the Owner’s manual
carefully before using it.
ENJOY YOUR ROLLSROLLER PRODUCT.
UPGRADE AND GET
MORE VALUE
ACCESSORY DESCRIPTION
1 Long reach cutter 60 Cutter with an extended handle. 600mm / 2ft.
2 Long reach cutter 90 Cutter with an extended handle. 900 mm / 3ft.
Spare blades for long reach cutter 10 spare blades
3 Contact cleaner hand roller 30 A hand held roller that removes particles and dust from the material being applied.
Including automatic cleaning station. Width 300 mm / 12in.
Roll of cleaning tape 30 1 roll with 60 sheets of cleaning adhesive for contact cleaner 30.
Roll of cleaning tape 30 4 rolls with 60 sheets of cleaning adhesive for contact cleaner 30.
4 ROLLSROLLER scissors The original ROLLSROLLER scissors
5 Guide sign jig A jig that creates a support when applying to guide signs. Fits on ROLLSROLLER Basic and Premium. 2 000 x
400 mm / 6ft. 7in. X 1ft. 3in. Custom made size on request.
6 ROLLSROLLER long life compressor Oil free, quiet and maintenance free compressor with high durability. 57db, 3 years warranty.
Filter ROLLSROLLER long life compressor Kit includes outlet and inlet lters. Replace once a year.
7 ROLLSROLLER compressor Oil free standard compressor. 60db, 2 years warranty.
Filter ROLLSROLLER compressor Kit includes outlet and inlet lters. Replace once a year.
8 Air blow gun Facilitates cleaning.Easily takes blows cuttings of metal from the surface.
9 Additional roll holder on short side Mediaholder is used for holding a roll of print or other roll-media.
1.
2.
3.5. 6.
7.8.
9.
SELF HEALING CUTTING MATS
STANDARD CUTTING MAT CUTTING MAT 280/145 CUTTING MAT 340/145
Dimensions 2 800 x 1 450 mm / 9ft. 2 in. X 4ft. 9in. 3 400 x 1 450 mm / 11ft 2in X 4ft. 9in.
■Don’t forget to replace your old cutting mat. A worn cutting mat may affect lamination quality.
■Our cutting mats can also be used to protect your regular cutting table.
4.
Table of contents
Popular Lathe manuals by other brands

Axminster

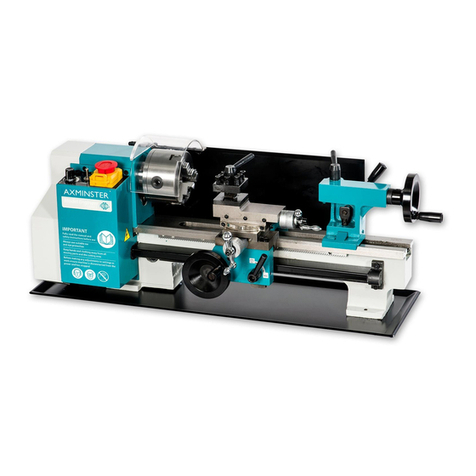

Axminster SIEG Model Engineer Series Original instructions

Jet
Jet EVS-1440B Operating instructions and parts manual

Optimum

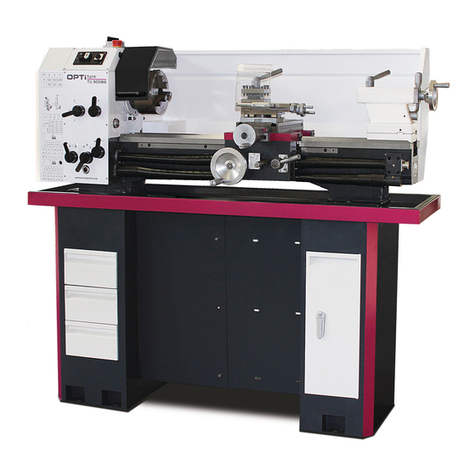

Optimum OPTI turn TU 3008G operating manual

Brevetti Motta
Brevetti Motta SMART Instruction manual and maintenance

Palmgren
Palmgren 84315 Operating manual & parts list

Butler
Butler KARACTER.TLX instruction manual

Pragati
Pragati BTP-50 instruction manual

Pragati
Pragati BTP-50 instruction manual

CHIZHOU JOUSEHOLD MACHINE TOOL

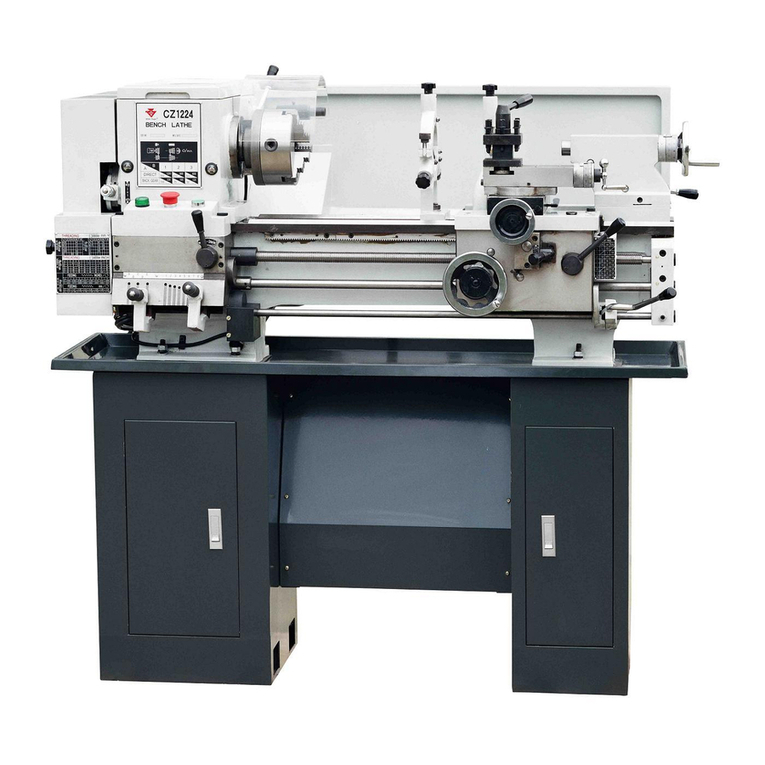

CHIZHOU JOUSEHOLD MACHINE TOOL CZ1224 operating manual

VEVOR

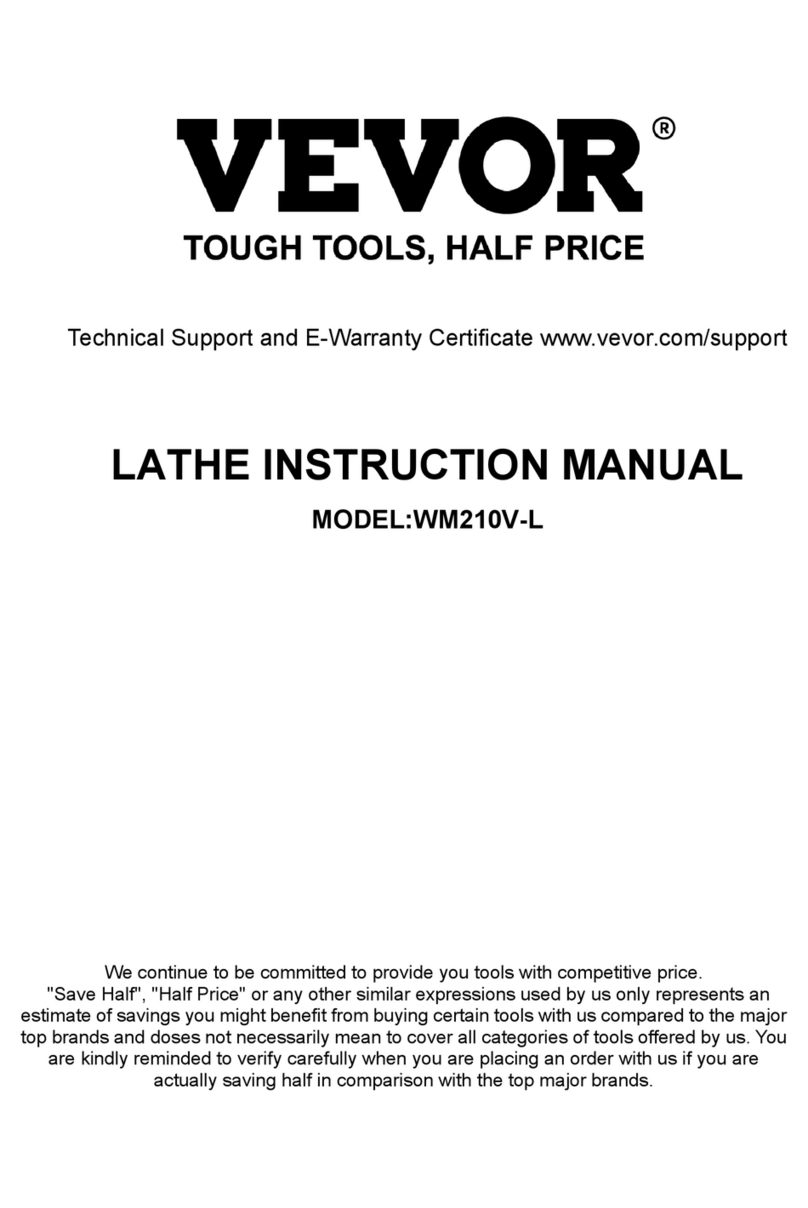

VEVOR WM210V-L instruction manual
