Endress+Hauser SWA70 User manual

BA061S/04/en/03.09
Version 1.00.xx
71092068
Operating Instructions
WirelessHART Adapter SWA70
Intelligent wireless modem
with power supply for field devices

WirelessHART Adapter SWA70 Table of Contents
Endress+Hauser 1
Table of Contents
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Registered Trademarks . . . . . . . . . . . . . . . . . . . . . . 2
1 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation, commissioning and operation . . . . . . . . 4
1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Conformance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.5 Technical improvement . . . . . . . . . . . . . . . . . . . . . . 5
1.6 Conventions and icons . . . . . . . . . . . . . . . . . . . . . . 6
2 Identification . . . . . . . . . . . . . . . . . . . . 7
2.1 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1.1 Visual inspection . . . . . . . . . . . . . . . . . . . . . 7
2.1.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . 7
2.1.3 Storage und transport . . . . . . . . . . . . . . . . . 7
2.2 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3 Licensing agreement . . . . . . . . . . . . . . . . . . . . . . . . 9
3 Function and System Design . . . . . . . 10
4 Mechanical Installation . . . . . . . . . . . 11
4.1 Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.2 Mounting location . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.3 Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.4 Installation on a field device . . . . . . . . . . . . . . . . . 13
4.5 Separate mounting . . . . . . . . . . . . . . . . . . . . . . . . 14
4.5.1 Wall mounting . . . . . . . . . . . . . . . . . . . . . 14
4.5.2 Pipe mounting . . . . . . . . . . . . . . . . . . . . . . 15
4.6 Final check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5 Electrical Installation . . . . . . . . . . . . . 16
5.1 Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.1.1 Passive two-wire device (loop-powered) . . 16
5.1.2 Active four-wire device . . . . . . . . . . . . . . . 17
5.1.3 Two-wire device with external
power supply . . . . . . . . . . . . . . . . . . . . . . . 17
5.1.4 HART device with external power . . . . . . . 18
5.2 Wiring up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.2.1 Connecting cables and cable glands . . . . . . 19
5.2.2 Wiring procedure . . . . . . . . . . . . . . . . . . . 19
5.2.3 Electrical specification . . . . . . . . . . . . . . . . 20
5.3 Final check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6 Operation . . . . . . . . . . . . . . . . . . . . . 21
6.1 Operating and display elements . . . . . . . . . . . . . . . 21
6.1.1 Pushbutton . . . . . . . . . . . . . . . . . . . . . . . . 22
6.1.2 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.2 Local and remote operation . . . . . . . . . . . . . . . . . . 23
7 Commissioning . . . . . . . . . . . . . . . . . 24
7.1 Connected HART device(s) . . . . . . . . . . . . . . . . . . 24
7.2 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7.3 HART modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7.4 DTMs and drivers . . . . . . . . . . . . . . . . . . . . . . . . . 26
7.4.1 Installing the Adapter DTM . . . . . . . . . . . . 26
7.4.2 Update the FieldCare DTM catalog . . . . . . 27
8 Configuration with FieldCare . . . . . . 28
8.1 Create a FieldCare Project . . . . . . . . . . . . . . . . . . . 28
8.1.1 Add the HART Communication CommDTM .
28
8.1.2 Configure the HART Communication Comm-
DTM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8.1.3 Scan for the adapter . . . . . . . . . . . . . . . . . . 30
8.1.4 Open the adapter DTM . . . . . . . . . . . . . . . 31
8.2 Online parameterization . . . . . . . . . . . . . . . . . . . . 32
8.2.1 Identification . . . . . . . . . . . . . . . . . . . . . . . 32
8.2.2 Wireless Communication . . . . . . . . . . . . . . 33
8.2.3 Wired Communication . . . . . . . . . . . . . . . 34
8.2.4 Device Variable Mapping . . . . . . . . . . . . . . 36
8.3 Application settings . . . . . . . . . . . . . . . . . . . . . . . . 37
8.3.1 4–20 mA . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8.3.2 Burst Mode . . . . . . . . . . . . . . . . . . . . . . . . 39
8.3.3 Event Notification . . . . . . . . . . . . . . . . . . . 41
8.4 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
9 Additional DTM functions . . . . . . . . 45
9.1 Offline Parameterize . . . . . . . . . . . . . . . . . . . . . . . 45
9.2 Observe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
9.3 Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
9.3.1 Identification . . . . . . . . . . . . . . . . . . . . . . . 46
9.3.2 Wireless Communication . . . . . . . . . . . . . . 47
9.3.3 Wired Communication . . . . . . . . . . . . . . . 47
9.3.4 Health Status . . . . . . . . . . . . . . . . . . . . . . . 48
9.3.5 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
9.4 Additional Functions . . . . . . . . . . . . . . . . . . . . . . . 50
9.4.1 Simulation . . . . . . . . . . . . . . . . . . . . . . . . . 50
9.4.2 Lock/Unlock . . . . . . . . . . . . . . . . . . . . . . . 51
9.4.3 Update Firmware . . . . . . . . . . . . . . . . . . . . 51
9.4.4 Device DTM Info . . . . . . . . . . . . . . . . . . . . 52
9.4.5 Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . 52
9.4.6 About . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
10 Maintenance and Repair . . . . . . . . . . 53
10.1 battery unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
10.1.1 Exchanging the battery unit . . . . . . . . . . . . 53
10.1.2 Disposal of the battery unit . . . . . . . . . . . . 53
10.2 Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.2.1 Return to Endress+Hauser. . . . . . . . . . . . . 54
10.2.2 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.2.3 Contact addresses . . . . . . . . . . . . . . . . . . . 54
10.3 Spare parts and accessories . . . . . . . . . . . . . . . . . . . 54

Index WirelessHART Adapter SWA70
2Endress+Hauser
11 Trouble-Shooting . . . . . . . . . . . . . . . . 55
12 Technical Data . . . . . . . . . . . . . . . . . . 56
12.1 Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
12.2 Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
12.3 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
12.4 Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
12.5 Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
12.6 Mechanical Construction . . . . . . . . . . . . . . . . . . . 58
12.7 Operability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
12.8 Certificates and Approvals . . . . . . . . . . . . . . . . . . 59
Index . . . . . . . . . . . . . . . . . . . . . . . . . 61

WirelessHART Adapter SWA70
Endress+Hauser 3
Revision History
Registered Trademarks
HART
®
Registered trademark of the HART Communication Foundation, Houston, USA
Microsoft
®
, Windows
®
, Windows 2000
®
,Windows XP
®
, Windows 2003 Server
®
, Windows
Vista
®
and the Microsoft logo are registered trademarks of the Microsoft Corporation.
Acrobat Reader
®
is a registered trade mark of the Adobe Systems Incorporated.
All other brand and product names are trademarks or registered trademarks of the companies and
organisations in question
Product
version Manual Changes Remarks
1.00.xx BA061S/04/en/03.09 – Original manual

1Safety WirelessHART Adapter SWA70
4Endress+Hauser
1 Safety
1.1 Designated use
Wireless Adapter SWA70 is an intelligent wireless modem designed for the transmission of
measured values from connected 4...20 mA or HART devices to a WirelessHART gateway. The
approved usage of the connected device(s) and gateway can be taken from the corresponding parts
of their operating instructions.
1.2 Installation, commissioning and operation
Wireless Adapter SWA70 has been designed to operate safely in accordance with current technical
safety and EU directives. Field devices connected to the adapter must also be designed to operate
safely in accordance with current technical safety and EU directives.
If devices are installed incorrectly or used for applications for which they are not intended, or if the
wireless adapter is not configured correctly, it is possible that dangers may arise. For this reason, the
system must be transported, stored, installed, connected, configured, operated and maintained
according to the instructions in this and the associated manuals: personnel must be authorised and
suitably qualified.
1.3 Operational safety
Location The Wireless Adapter SWA70 fulfils the requirements of EU Guidelines for a number of applications.
The associated environmental conditions described in Chapter 11, Technical Data, must be upheld.
Hazardous areas Wireless Adapter SWA70 is available in a version suitable for use in hazardous areas.
• The Non-Ex version must be installed in a safe area
• The Ex-version can be installed in a hazardous location.
The device(s) connected to the adapter must also be suitable for use in hazardous areas
When installing components in explosion hazardous areas:
• Ensure that all installation and maintenance personnel are suitably qualified
• Check that all equipment has the appropriate safety certificates
• Observe the specifications in the device certificates as well as national and local regulations.
Batteries The Wireless Adapter SWA70 uses a battery unit containing non-rechargable, high-power lithium
thionylchloride batteries. These batteries are non-hazardous when used according to the
recommendations of the manufacturer; they do, however, contain hazardous substances. Please
refer to the accompanying Material Safety Data Sheet when storing, handling, transporting and
disposing of the batteries (CD ROM folder Material Safety Data Sheet).
Maintenance The wireless adapter housing contains a single maintainable element, the battery unit. There are no
components which can be repaired by the user. In the event of a malfunction or defect, please return
the adapter, without batteries , to Endress+Hauser for repair.
# Warning!
• The adapter may be opened in a Dust-Ex hazardous area only after all traces of dust have been
removed from it and the associated measuring point.
• Any tampering with the electronics or battery unit invalidates Endress+Hauser’s warranty as well
as the telecommuncation compliance and any hazardous area approval.
The Ex-version of the adapter may be opened in a gas hazardous area for battery exchange and
commissioning.

WirelessHART Adapter SWA70 1 Safety
Endress+Hauser 5

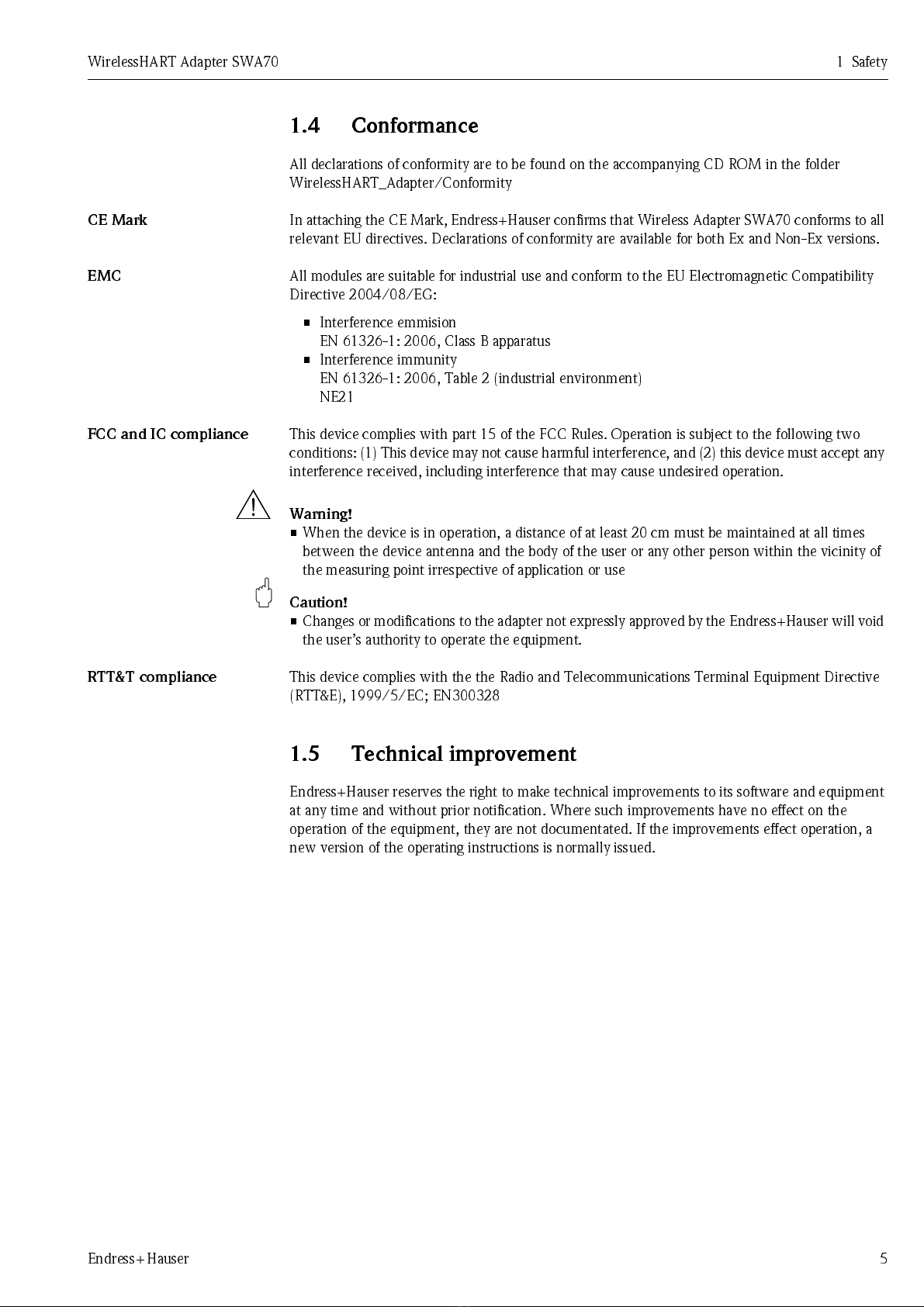

1.4 Conformance
All declarations of conformity are to be found on the accompanying CD ROM in the folder
WirelessHART_Adapter/Conformity
CE Mark In attaching the CE Mark, Endress+Hauser confirms that Wireless Adapter SWA70 conforms to all
relevant EU directives. Declarations of conformity are available for both Ex and Non-Ex versions.
EMC All modules are suitable for industrial use and conform to the EU Electromagnetic Compatibility
Directive 2004/08/EG:
• Interference emmision
EN 61326-1: 2006, Class B apparatus
• Interference immunity
EN 61326-1: 2006, Table 2 (industrial environment)
NE21
FCC and IC compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
# Warning!
• When the device is in operation, a distance of at least 20 cm must be maintained at all times
between the device antenna and the body of the user or any other person within the vicinity of
the measuring point irrespective of application or use
" Caution!
• Changes or modifications to the adapter not expressly approved by the Endress+Hauser will void
the user’s authority to operate the equipment.
RTT&T compliance This device complies with the the Radio and Telecommunications Terminal Equipment Directive
(RTT&E), 1999/5/EC; EN300328
1.5 Technical improvement
Endress+Hauser reserves the right to make technical improvements to its software and equipment
at any time and without prior notification. Where such improvements have no effect on the
operation of the equipment, they are not documentated. If the improvements effect operation, a
new version of the operating instructions is normally issued.

1Safety WirelessHART Adapter SWA70
6Endress+Hauser
1.6 Conventions and icons
In order to highlight safety relevant or alternative operating procedures in the manual, the following
conventions have been used, each indicated by a corresponding icon in the margin.
Safety conventions .
Explosion protection .
Electrical symbols .
Icon Meaning
Note!
A note highlights actions or procedures which, if not performed correctly, may indirectly affect operation or
may lead to an instrument response which is not planned
Caution!
Caution highlights actions or procedures which, if not performed correctly, may lead to personal injury or
incorrect functioning of the instrument
Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to personal injury, a
safety hazard or destruction of the instrument
Icon Meaning
Device certified for use in explosion hazardous area
If the device has this symbol embossed on its name plate it can be installed in an explosion hazardous area
in accordance with the specifications in the certificate or in a safe area
Explosion hazardous area
Symbol used in drawings to indicate explosion hazardous areas. Devices located in and wiring entering
areas with the designation “explosion hazardous areas” must conform with the stated type of protection
Safe area (non-explosion hazardous area)
Symbol used in drawings to indicate, if necessary, non-explosion hazardous areas. Devices located in safe
areas stiill require a certificate if their outputs run into explosion hazardous areas
Icon Meaning
Direct voltage
A terminal to which or from which a direct current or voltage may be applied or supplied
Alternating voltage
A terminal to which or from which an alternating (sine-wave) current or voltage may be applied or supplied
Grounded terminal
A grounded terminal, which as far as the operator is concerned, is already grounded by means of an earth
grounding system
Protective grounding (earth) terminal
A terminal which must be connected to earth ground prior to making any other connection to the
equipment
Equipotential connection (earth bonding)
A connection made to the plant grounding system which may be of type e.g. neutral star or equipotential
line according to national or company practice

WirelessHART Adapter SWA70 2 Identification
Endress+Hauser 7
2 Identification
2.1 Unpacking
2.1.1 Visual inspection
During unpacking:
• Check the packing materials for signs of transportation damage
• Remove the packaging material with care, so as not to damage the adapter
• Store the original packing material, in case the adapter must be shipped again
• Keep the documentation supplied with the adapter in a safe place
# Warning!
• If the battery unit is found to be damaged, proceed according to the Material Safety Data Sheet
on the CD ROM
• If the adapter is found to be damaged, it must not be commissioned and installed.
In the event of damage to the adapter, contact your Endress+Hauser Sales Center. Where possible,
return the adapter to us in its original packing.
2.1.2 Scope of delivery
Please check that the delivery is complete and free of defects before starting installation. The scope
of delivery comprises the following parts:
• WirelessHART Adapter with installed battery unit, if ordered
• Short instructions and CD-ROM
Depending on order:
• Wall/pipe mounting kit
• 38 cm cable for connecting the adapter to a field device.
• An adapter piece for connecting to the cable entry of a field device:
M20/M20, M20/G 1/2, M20/NPT 1/2, or M20/NPT 3/4 with two Viton gaskets
• Cable gland
• FieldCare Device Setup DVD
2.1.3 Storage und transport
Although the WirelessHART adapter is of robust construction, appropriate measures must be taken
to ensure correct storage and transportation:
Storage
Transport When transporting the adapter take care that it is not subject to excessive vibration or shock.
# Warning!
• If the adapter is to be shipped with battery unit to another site, the requirements in the Material
Safety Data Sheet must be observed.
Condition Adapter w/o battery unit Adapter with battery unit battery unit alone
Temperature –40°C to +80°C/
–40°F to 176°F <30°C/86°F <30°C/86°F
Special precautions None Store with battery disconnected Store in a cool and ventilated
area, away from moisture,
sources of heat, open flames,
food and drink..
To minimize self discharging a
temperature <21°C/70°F is
recommended

2 Identification WirelessHART Adapter SWA70
8Endress+Hauser

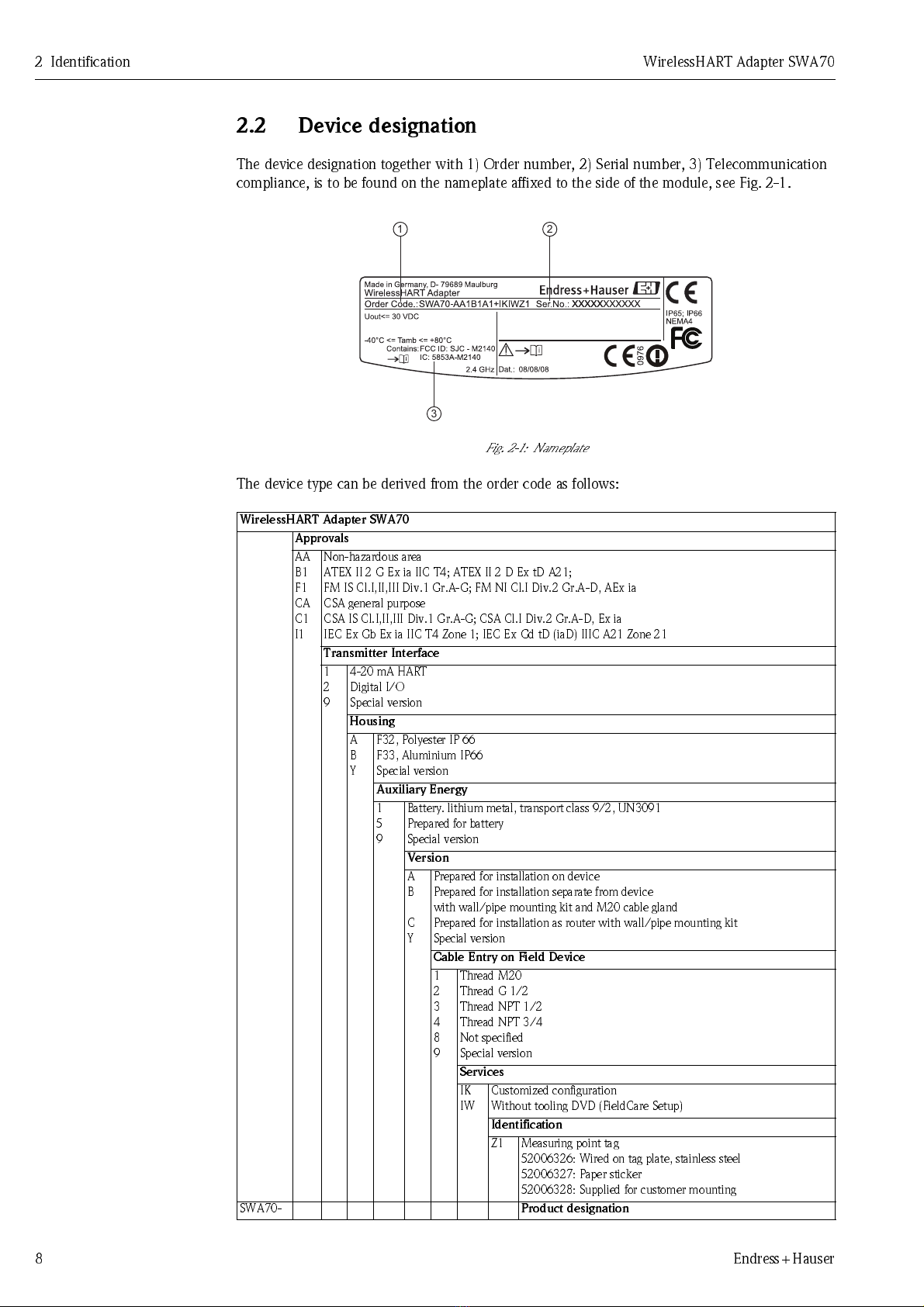

2.2 Device designation
The device designation together with 1) Order number, 2) Serial number, 3) Telecommunication
compliance, is to be found on the nameplate affixed to the side of the module, see Fig. 2-1.
Fig. 2-1: Nameplate
The device type can be derived from the order code as follows:
3
12
WirelessHART Adapter SWA70
Approvals
AA
B1
F1
CA
C1
I1
Non-hazardous area
ATEX II 2 G Ex ia IIC T4; ATEX II 2 D Ex tD A21;
FM IS Cl.I,II,III Div.1 Gr.A-G; FM NI Cl.I Div.2 Gr.A-D, AEx ia
CSA general purpose
CSA IS Cl.I,II,III Div.1 Gr.A-G; CSA Cl.I Div.2 Gr.A-D, Ex ia
IEC Ex Gb Ex ia IIC T4 Zone 1; IEC Ex Gd tD (iaD) IIIC A21 Zone 21
Transmitter Interface
1
2
9
4-20 mA HART
Digital I/O
Special version
Housing
A
B
Y
F32, Polyester IP 66
F33, Aluminium IP66
Special version
Auxiliary Energy
1
5
9
Battery. lithium metal, transport class 9/2, UN3091
Prepared for battery
Special version
Version
A
B
C
Y
Prepared for installation on device
Prepared for installation separate from device
with wall/pipe mounting kit and M20 cable gland
Prepared for installation as router with wall/pipe mounting kit
Special version
Cable Entry on Field Device
1
2
3
4
8
9
Thread M20
Thread G 1/2
Thread NPT 1/2
Thread NPT 3/4
Not specified
Special version
Services
IK
IW Customized configuration Without tooling DVD (FieldCare Setup)
Identification
Z1 Measuring point tag
52006326: Wired on tag plate, stainless steel
52006327: Paper sticker
52006328: Supplied for customer mounting
SWA70- Product designation

WirelessHART Adapter SWA70 2 Identification
Endress+Hauser 9
2.3 Licensing agreement
The CD-ROM supplied with the WirelessHART adapter contains a number of components that are
required for its commissioning. These can be installed free-of-charge on the computer to be used
with the adapter under the following operating systems:
• Microsoft Windows Vista Business, Enterprise, Ultimate (x32)
• Microsoft Windows Server 2003 R2 Service Pack 2 Standard, Enterprise (x32)
• Microsoft Windows 2000 Service Pack 4,
• Microsoft Windows XP Service Pack 3 (x32)
Windows XP/Vista MUI Packages (multiple language support) are not supported. If another
language is required, the appropriate language version of Windows XP/Vista must be installed.
The full licensing agreement is also to be found on the CD-ROM. The software required for start-
up and commissioning, i.e. the Internet browser, is either freely available or is subject to the
licensing conditions of its manufacturer. Installation of this software on your computer implies that
you accept the terms of the corresponding licensing agreement.

3 Function and System Design WirelessHART Adapter SWA70
10 Endress+Hauser
3 Function and System Design
Wireless Adapter SWA70 Wireless Adapter SWA70 is an intelligent interface module that connects HART and 4...20 mA
devices to a WirelessHART network. It transmits the measurement and diagnosis information
acquired from the connected device to a host application via a WirelessHART fieldgate.
The adapter is availablein both a standard and Ex-version with aluminium or plastic housing. In the
latter case, the connected device must also have the appropriate Ex certification.
The adapter is battery powered. Where appropriate, the battery also provides loop-power to the
connected device. Alternatively, the connected device may be powered externally, see Chapter 5.
Fig. 3-1: WirelessHART network
WirelessHART network The WirelessHART network is self-organizing. After installation and configuration, every wireless
adapter is in a position to recognise its neighbours. It checks the strength of their signals, sychronizes
them, receives frequency information and establishes connection with other participants in the
network. The adapter joins the network automatically without any intervention from the user.
Host applications
Ethernet
WirelessHART Fieldgate
Field devices with
Wireless Adapter SWA70

WirelessHART Adapter SWA70 4 Mechanical Installation
Endress+Hauser 11
4 Mechanical Installation
4.1 Getting started
Wireless Adapter SWA70 can be mounted in one of three ways:
• direct connection to the field device
• separate from the field device, but connected by a cable
• when used as a repeater, as an autark unit.
The direct connection to a field device is made by means of an adapter piece which is screwed into
the cable entry at the side of the adapter.
Depending on the order, the following parts may be supplied:
• adapter piece for connection to a field device with a M20 cable entry
• adapter piece for connection to a field device with a G 1/2 cable entry
• adapter piece for connection to a field device with a NPT 1/2 cable entry
• adapter piece for connection to a field device with a NPT 3/4 cable entry
• M20 cable gland for separate mounting
• Wall/pipe mounting kit.
4.2 Mounting location
Wireless Adapter SWA70 is designed for stationary use in an unprotected location. More details on
environmental conditions can be found in Chapter 11, Technical Data.
In order to avoid unnecessary attentuation of the wireless signal with the resulting impairment of
operation, the following must be observed when mounting the adapter:, see also Fig. 4-1.
• The antenna must be at least 6 cm/2.5" away from any wall (1)
• The adapter must be mounted such that the antenna is not between it and a wall/post (2)
• The antenna must be at least 6 cm/2.5" from any metallic material running parallel to it (3).
• The antenna must always be aligned to the vertical (4).
Fig. 4-1: Things to be avoided when mounting
Wall 12
34
Wall
Pipe
<6 cm
<6 cm

4 Mechanical Installation WirelessHART Adapter SWA70
12 Endress+Hauser
4.3 Design
A dimensional drawing is to be found in Chapter 12, Technical Data.
Fig. 4-2 shows the parts of the housing relevant to mounting.
Fig. 4-2: Lateral view of Wireless Adapter SWA70
The antenna (1) is mounted on the lefthand side of the housing. A counternut (2) is used to fix the
housing in position. The M20x1.5 cable entry (3) accepts the adapter piece (4), not shown, from
the field device, or in the case of separate mounting is closed by a blind plug. The secondary
M20x1.5 cable entry (5), normally closed by a blind plug, may be used for separate mounting. The
battery unit is contained within the housing, the cover of which (6) can be open by unscrewing the
four captive Phillips screws.
1
2
3
4
5
6

WirelessHART Adapter SWA70 4 Mechanical Installation
Endress+Hauser 13
4.4 Installation on a field device
You require the following tools to install the Wireless Adapter SWA70
• Metric spanner AF 24 (SW 24) for the adapter piece
• Metric spanner AF 25 (SW 25) for the counternut
Fig. 4-3: Installation on a field device
! Note!
• Loosening the counternut allows the adapter piece to be screwed into position without the need
to turn the adapter housing.
Procedure Mount the adapter directly on a field device as follows:
1 Remove the blind plug from the cable entry at the side of the adapter
2 Push a Viton gasket on either side of the adapter piece supplied with the adapter
3 Using a spanner, screw the adapter piece tightly into the cable entry of the field drive
4 Loosen the counternut on the adapter
5 Insert the other end of the adapter piece into the cable enttry of the adapter and screw tight
6 Align the adapter so that the antenna is vertical, then tighten the counternut.
loosen
tighten
loosen
tighten

4 Mechanical Installation WirelessHART Adapter SWA70
14 Endress+Hauser

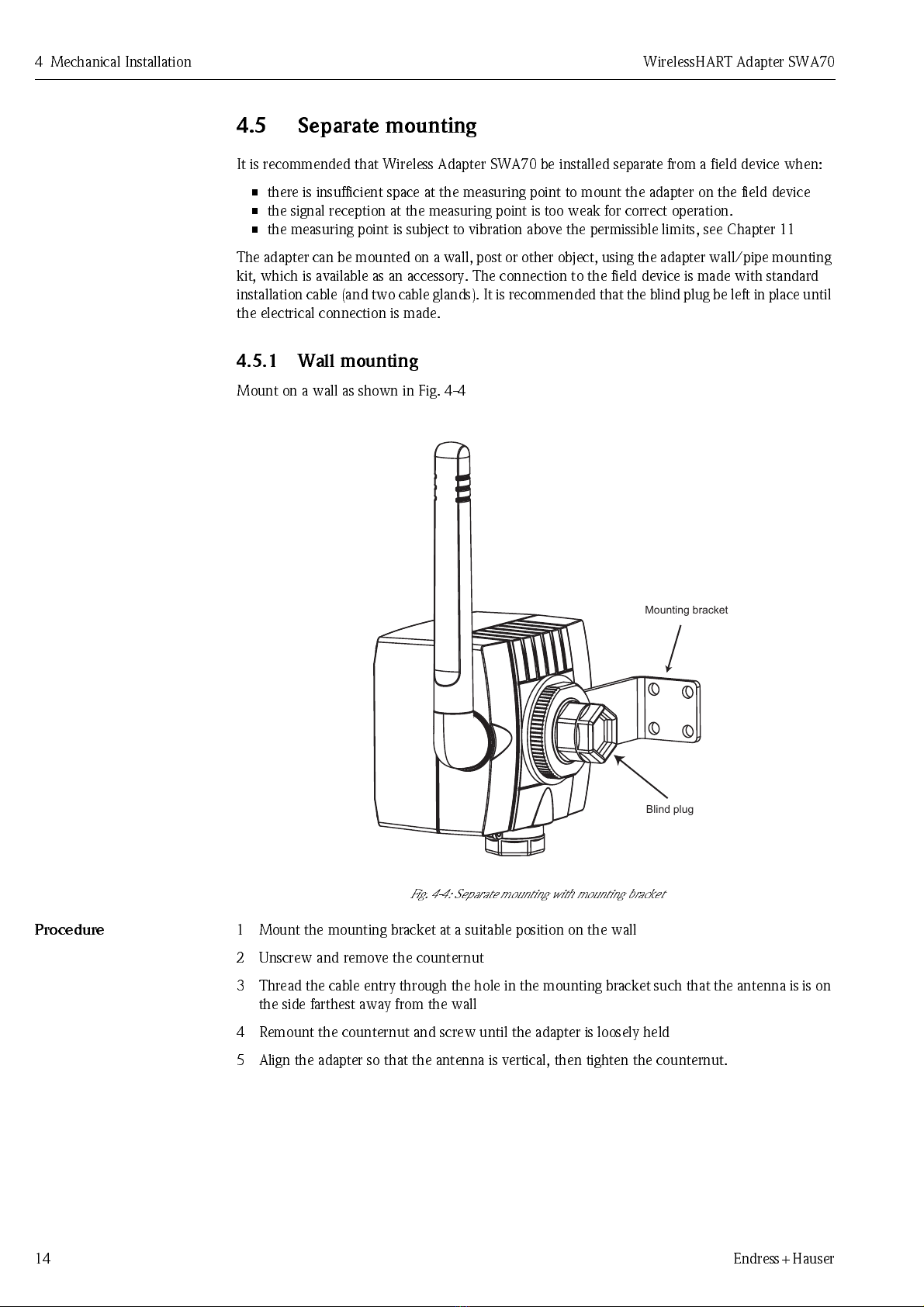

4.5 Separate mounting
It is recommended that Wireless Adapter SWA70 be installed separate from a field device when:
• there is insufficient space at the measuring point to mount the adapter on the field device
• the signal reception at the measuring point is too weak for correct operation.
• the measuring point is subject to vibration above the permissible limits, see Chapter 11
The adapter can be mounted on a wall, post or other object, using the adapter wall/pipe mounting
kit, which is available as an accessory. The connection to the field device is made with standard
installation cable (and two cable glands). It is recommended that the blind plug be left in place until
the electrical connection is made.
4.5.1 Wall mounting
Mount on a wall as shown in Fig. 4-4
Fig. 4-4: Separate mounting with mounting bracket
Procedure 1 Mount the mounting bracket at a suitable position on the wall
2 Unscrew and remove the counternut
3 Thread the cable entry through the hole in the mounting bracket such that the antenna is is on
the side farthest away from the wall
4 Remount the counternut and screw until the adapter is loosely held
5 Align the adapter so that the antenna is vertical, then tighten the counternut.
Mounting bracket
Blind plug

WirelessHART Adapter SWA70 4 Mechanical Installation
Endress+Hauser 15
4.5.2 Pipe mounting
Mount on a pipe of max. 70 mm diameter as shown in Fig.4-5.
Procedure 1 Mount the pipe mounting bracket at a suitable position on the pipe and screw tight
2 Using the four screws supplied, screw the mounting bracket to the pipe mounting bracket
3 No mount the adapter as described in Chapter 4.5.1.
4.6 Final check
To complete the mechanical installation, check the following points:
• Has the adapter been damaged in any way during installation?
Damaged adapters should not be commisioned.
• Does the mounting location fulfil the enviromental conditions for correct operation:
ambient temperature, relative humidity, vibration etc.?
• Is the antenna vertical?
• Does the position of mounting correspond to the requirements in Chapter 4.2?
• Is any mounting bracket correctly mounted and screwed tight?
• Are the adapter piece and counternut screwed tight?
Pipe mounting bracket
Pipe or post
max. 70 mm dia
Mounting bracket

5 Electrical Installation WirelessHART Adapter SWA70
16 Endress+Hauser
5 Electrical Installation
5.1 Wiring diagrams
The Wireless Adapter SWA70 can be connected to the following the device types/configurations:
• Passive two-wire device - adapter provides loop power
• Active four-wire device - device is externally powered
• Two wire device with external power supply - device has no communication resistor
• HART device with external power - only HART communication is used.
This configuration is used for HART multidrop with 2, 3 or 4 devices
The devices are connected to the screw terminals that are located inside the adapter housing.
Connection facilities The devices are connected to a 6-port terminal block located inside the adapter housing:
5.1.1 Passive two-wire device (powered by adapter)
By connecting to terminals 1 and 2 the following functions are possible, see Fig- 5-1:
• Loop-powering of the field device by adapter
• Current measurement via 4...20 mA interface
• Digital HART communication
Fig. 5-1: Connection of loop-powered device
Terminal Circuit Function
1 Device supply
2 HART/4...20 mA
3 External Supply/GND
4 HART high impedance
5, 7 HART high impedance
6, 8 High impedance GND
R
V
COM
COM
1 2 3 4 5 6
Field device
(passive)
Adapter (active)
HART
4...20 mA

WirelessHART Adapter SWA70 5 Electrical Installation
Endress+Hauser 17
5.1.2 Active four-wire device
By connecting to terminals 2 and 3 the following functions are possible, see Fig- 5-2:
• Current measurement via 4...20 mA interface
• Digital HART communication
Fig. 5-2: Connection of four-wire device
5.1.3 Two-wire device with external power supply
(without communication resistor)
By connecting to terminals 2 and 5 the following functions are possible, see Fig- 5-3:
• Current measurement via 4...20 mA interface
• Digital HART communication
The power supply is connected to terminals 3 and 4.
Fig. 5-3: Connection of two wire device and power supply
1 2 3 4 5 6
4-wire device
(active)
Adapter (passive)
HART
4...20 mA
1 2 3 4 5 6
Field device
(passive)
PLC, Remote I/O,
DC power supply
without
communication resistor
HART
4...20 mA

5 Electrical Installation WirelessHART Adapter SWA70
18 Endress+Hauser

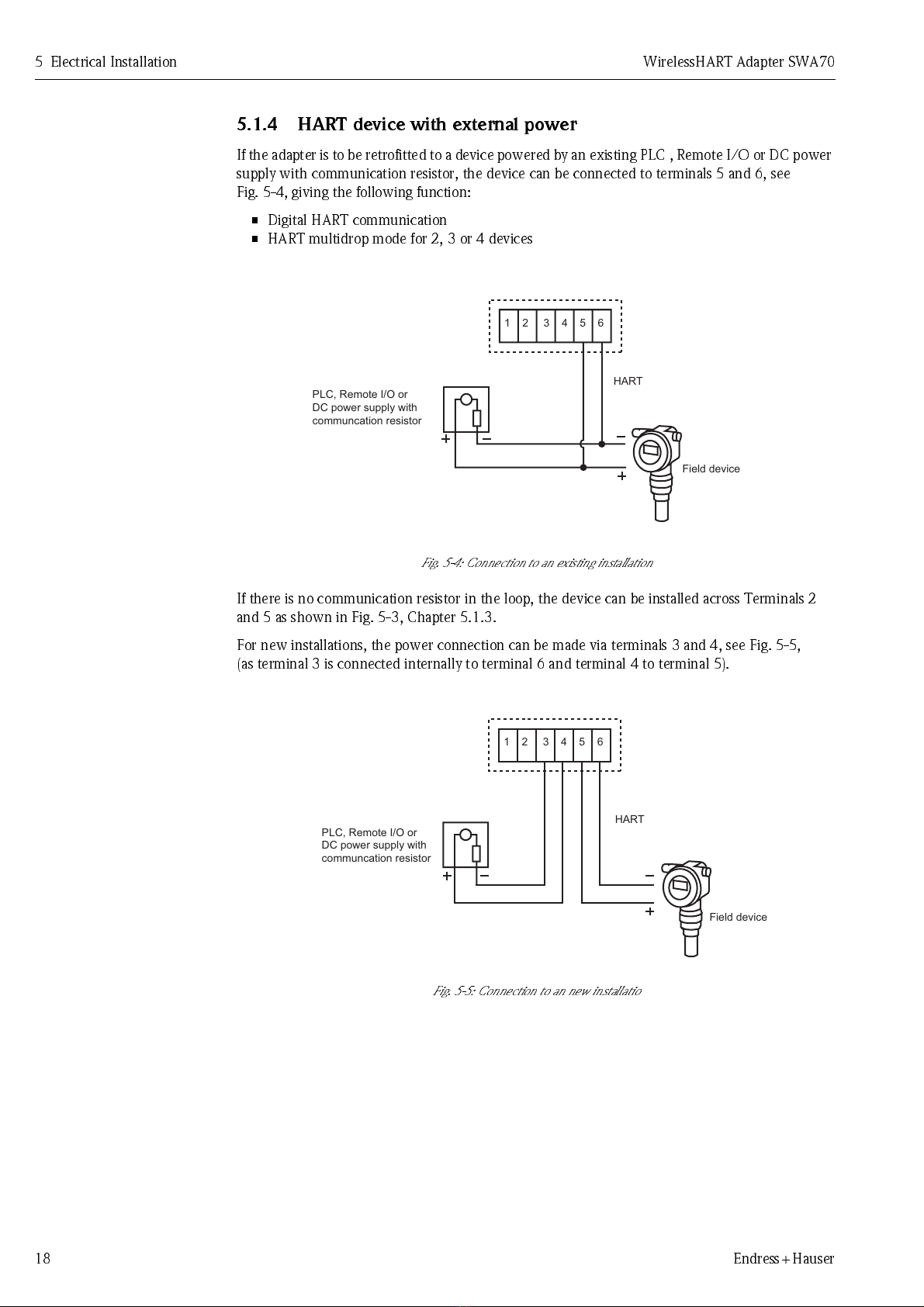

5.1.4 HART device with external power
If the adapter is to be retrofitted to a device powered by an existing PLC , Remote I/O or DC power
supply with communication resistor, the device can be connected to terminals 5 and 6, see
Fig. 5-4, giving the following function:
• Digital HART communication
• HART multidrop mode for 2, 3 or 4 devices
Fig. 5-4: Connection to an existing installation
If there is no communication resistor in the loop, the device can be installed across Terminals 2
and 5 as shown in Fig. 5-3, Chapter 5.1.3.
For new installations, the power connection can be made via terminals 3 and 4, see Fig. 5-5,
(as terminal 3 is connected internally to terminal 6 and terminal 4 to terminal 5).
Fig. 5-5: Connection to an new installatio
1 2 3 4 5 6
Field device
PLC, Remote I/O or
DC power supply with
communcation resistor
HART
1 2 3 4 5 6
Field device
PLC, Remote I/O or
DC power supply with
communcation resistor
HART
