Endura Z-Articulating Cap Sill Series Guide

ENDU R A P R ODU C T S >INS T R U C TIONS> Z - A C ™F IELD R E PLACEME N T INS T R U C TIONS
1
1. Flathead Screw Driver or Stiff Scraper:
To remove old Z-Series sill cap.
2. Small Wood Block: To protect
aluminum sill deck when prying off sill
cap.
3. Measuring Tape: For sizing new cap and
door bottom before cutting to proper
length.
Required Tools and Materials
ADDITIONAL TOOLS FOR FRENCH DOORS
1. 7/8'' Diameter Drill Bit
2. Power Driver: For anchor
screw

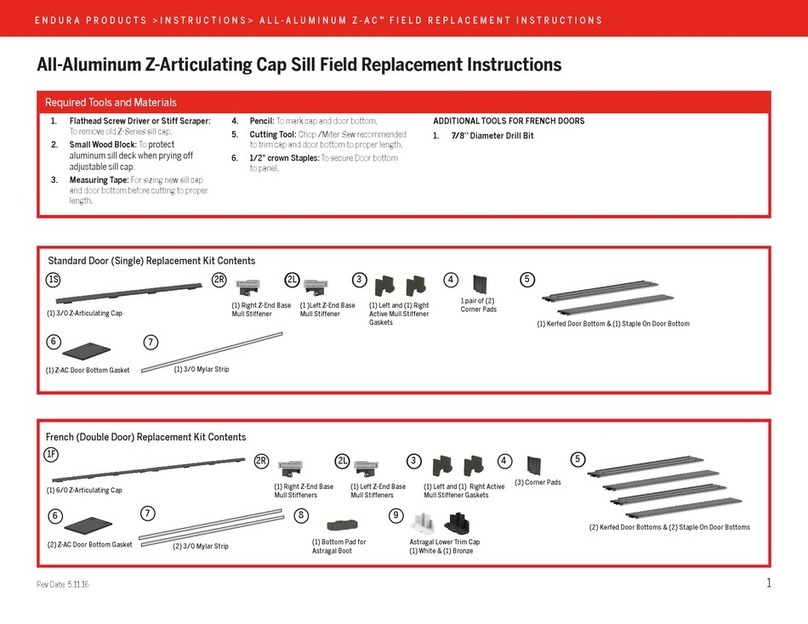

Z-Articulating Cap Sill Field Replacement Instructions
4. Pen or Pencil: To mark cap and door bottom.
5. Cutting Tool: Chop /Miter Saw recommended
to trim cap and door bottom to proper length.
6. Aluminum Epoxy/Putty: to repair hole in
aluminum Deck from Z-AC 1.0/1.1 Pin Capture.
7.1/2" Crown Staples: To secure door bottom
to panel.
1 - 6/0 Z-Articulating Cap
(2) Kerfed Door Bottoms & (2) Staple On Door Bottoms
Right Z-End Base
Mull Stiffener
Right Z-End Base
Mull Stiffeners
Left Z-End Base
Mull Stiffener
Left Z-End Base
Mull Stiffeners
Left and Right
Active Mull
Stiffener Gaskets
Left and Right
Active Mull
Stiffener Gaskets
1 Bolt Receiver Pin Capture
(French Doors Only)
Astragal Lower Trim
Cap (White & Bronze)
1 pair (2) of
Corner Pads
(3) Corner Pads Instructions
Instructions
(1) Bottom Pad for
Astragal Boot
(2) Pin Capture
Mounting
Screws
1. FlatheadScrewDriver:
toremoveZ-Seriessill cap.
2.Board: to protect aluminum
silldeck.
3. MeasuringTape:forsizingnew sill
capbeforecuttingto proper length.
4.Cutting Tool: Chopsaw recommended
totrimcapto proper length.
RequiredTools
2
Remove
SimpleSolution
CornerPad
fromeachjamb.
RemoveCornerPads
TOPDOWN
VIEW
ofSimple
Solution
CornerPad
Weather-
stripping
Z-ArticulatingCap
ReplacementInstructions
THISINSTRUCTIONISAPPLICABLE TO Z-SERIES INSWING SILLS ONLY
1
8817WestMarketStreet
Colfax,NC27235
800.334.2006
www.enduraproducts.com
ADDITIONALTOOLSFORFRENCH DOORS
1. Pencil:tomarksill cup.
2.Drill: To drill receiver cap hole.
3.5/8”Diameter Drill Bit
4.Rubber Mallet: totapinboltreceiver
cup.
5.Power Driver: For anchor screw
MeasureSpacingBetween Door Panel and Cap
Ensurecapisadjusted all
thewayinthe down position.
a1)
a2)
a3)
b)
(ThisStepapplies when replacingZ-Series Adjustable cap only)
Measuredistancebetweenthe top of the
capandthebottom of the panel at the
capendonthe latch side. Record this
measurementforstep5.
*ForFrench(double)doors, the measurement should be
takenattheastragal end of each panel
Makesuretomeasure to the panel and not to the plastic door
bottom
Removecapplugs.
Usingascrewdriver,turn the
hardwarecounter-clockwise
untilitstops.
Pressdownonthe cap to
ensureitisall the way down.
X
a1) a2)
a3)
b)
Includedinreplacement kit:
1pairof
CornerPads
1pairof
Corner
Pads
1PairofTightMarginBases
1Kerfedand1StapleOn Door Bottom
1RightBase
LeftBase
LeftBase
RightBase
#8x21/2”Screw
#8x1”Screw
2Center
Bases
Center
Base
Center
Base
FrenchKit(DoubleDoor)
StandardKit(SingleDoor)
2CenterTight
MarginBases
1Standardor
Structural
BoltReceiver
2Kerfedand2StapleOn Door Bottoms
1Z-ArticulatingCapPre-assembled 2Z-Articulating Caps Pre-assembled
3
RemoveOLDSill Cap
Protectaluminumsilldeck with a thin
boardtopreventdamage when prying
offsillcap.
a)
b)
a)
b)
Screwdriver
underfrontleg
ofsillcapat one
end.Thenpry
sillcapupwith
screwdriver,
workingfromone
endtotheother.
Pullsillcapout of
channel.
Measurethelength
ofthesill.
CAUTION:Measurecarefullyandcut precisely to ensure proper operation.
CutNEWZ-ArticulatingSill Cap to Length
4
a)
b)
c)
ForSingleDoorapplications, measure and cut
newcaptomatch length of the sill minus 1/4”
ForFrench(Double)Doorapplications, cut Both the new
capstomatchlength of the sill minus 1-1/16” divided by 2.
Measurefromthisendofthe cap- do not include pad Cut cap to
lengthat
thisend
SillLengthminus1/4”
Measurefromthisendofthe cap- do not include pad
Cutcapto
lengthatthis
end
(SillLengthminus1-1/16”)/2
Center
Bases
1. Flathead Screw Driver:
toremoveZ-Seriessill cap.
2.Board: to protect aluminum
silldeck.
3. MeasuringTape:forsizingnew sill
capbeforecuttingto proper length.
4.Cutting Tool: Chopsaw recommended
totrimcapto proper length.
RequiredTools
2
Remove
SimpleSolution
CornerPad
fromeachjamb.
RemoveCornerPads
TOPDOWN
VIEW
ofSimple
Solution
CornerPad
Weather-
stripping
Z-ArticulatingCap
ReplacementInstructions
THISINSTRUCTIONISAPPLICABLE TO Z-SERIES INSWINGSILLS ONLY
1
8817WestMarketStreet
Colfax,NC27235
800.334.2006
www.enduraproducts.com
ADDITIONALTOOLSFORFRENCH DOORS
1. Pencil: to mark sill cup.
2.Drill: To drill receiver cap hole.
3.5/8” Diameter DrillBit
4.Rubber Mallet: totapinboltreceiver
cup.
5.Power Driver: For anchor screw
MeasureSpacingBetween Door Panel and Cap
Ensurecapisadjusted all
thewayinthe down position.
a1)
a2)
a3)
b)
(ThisStepapplies when replacing Z-SeriesAdjustable cap only)
Measuredistancebetweenthe top of the
capandthebottom of the panel at the
capendonthe latch side. Record this
measurementforstep5.
*ForFrench(double)doors, the measurement should be
takenattheastragal end of each panel
Makesuretomeasure to the panel and not to the plastic door
bottom
Removecapplugs.
Usingascrewdriver,turn the
hardwarecounter-clockwise
untilitstops.
Pressdownonthe cap to
ensureitisall the way down.
X
a1) a2) a3)
b)
Includedinreplacement kit:
1pairof
CornerPads
1pairof
Corner
Pads
1PairofTightMarginBases
1Kerfedand1StapleOn Door Bottom
1RightBase
LeftBase
LeftBase
RightBase
#8x21/2”Screw
#8x1”Screw
2Center
Bases
Center
Base
Center
Base
FrenchKit(DoubleDoor)
StandardKit(SingleDoor)
2CenterTight
MarginBases
1Standardor
Structural
BoltReceiver
2Kerfedand2StapleOn Door Bottoms
1Z-ArticulatingCapPre-assembled 2Z-Articulating Caps Pre-assembled
3
RemoveOLDSill Cap
Protectaluminumsilldeck with a thin
boardtopreventdamage when prying
offsillcap.
a)
b)
a)
b)
Screwdriver
underfrontleg
ofsillcapat one
end.Thenpry
sillcapupwith
screwdriver,
workingfromone
endtotheother.
Pullsillcapout of
channel.
Measurethelength
ofthesill.
CAUTION:Measurecarefullyandcut precisely to ensure proper operation.
CutNEWZ-ArticulatingSill Cap to Length
4
a)
b)
c)
ForSingleDoorapplications,measure and cut
newcaptomatch length of the sill minus 1/4”
ForFrench(Double)Doorapplications,cu t Both the new
capstomatchlength of the sill minus 1-1/16” divided by 2.
Measurefromthisendofthe cap- do not include pad Cut cap to
lengthat
thisend
SillLengthminus1/4”
Measurefromthisendofthe cap- do not include pad
Cutcapto
lengthatthis
end
(SillLengthminus1-1/16”)/2
Center
Bases
1 - 3/0 Z-Articulating Cap
1 Kerfed Door Bottom & 1 Staple On Door Bottom
French (Double Door) Replacement Kit Contents
Standard Door (Single) Replacement Kit Contents
1S
1F
2R
2R
7 8 9
2L
2L
4
4
10
5
3
356
6
(2) Z-AC Door Bottom Gasket
) Z-AC Door Bottom Gasket

ENDURAP RODU C T S >INS T R U C TIONS> Z - A C ™F IELD R E PLACEME N T INS T R U C TIONS
2
Identifying Your Sill System
ZAI to Z-AC 2.0 SEE PAGE 4 Z-AC 1.0/1.1 Z-AC 2.0 SEE PAGE 16
Z-AC 2.0 to Z-AC 2.0 SEE PAGE 28
Z-Series Adjustable Sill (ZAI )
ZAI Features
Z-AC 2.0 Features
Z-AC 1.0/1.1 Features
Z-Series Articulating Sill 1.0/1.1 (Z-AC 1.0/1.1 )
Z-Series Articulating Sill 2.0 (Z-AC 2.0 )
• Flat Cap
• Screw Hole Covers
ZAI Sill
Screw Hole
Cover
Bolt Receiver Cup
(French Doors Only) 1.0 Angular
End Base
Z-End Base
1.1 Slanted
End Base
1.0/1.1 Pin Capture
(French Doors Only)
2.0 Pin Capture
(French Doors Only)
Z-AC Sill 1.0/1.1 Sill
Z-AC Sill 2.0 Sill
• Slanted Cap
• End Bases with Angular/Slanted Rigid
Wall
• Exposed Pin Capture
• Slanted Cap
• Z-End Bases with Weatherstrip Locator
• Pin Capture Under Cap
• Receiver Cup Under Cap

ENDU R A P R ODU C T S >INS T R U C TIONS> Z - A C ™F IELD R E PLACEME N T INS T R U C TIONS
3
Z-Articulating Cap Sill Field Replacement Instructions
Table of Contents
1. Remove Corner Pads Page 5
2. Remove OLD Adjustable Cap Page 6
3. Install Z-End Base Mull Stiffeners Page 7
4. Cut NEW Z-Articulating Sill Cap to Length Page 8
5. Check Cap Assembly Page 10
6. Install Z-AC 2.0 Pin Capture From An Adjustable Sill
Page 11
7. Insert NEW Sill Cap Page 13
8. Drill Cap For Astragal Bolt Page 14
9. Replace Astragal Bottom Sealing Pad and Corner Pad
Page 15
10. Replace Door Bottom Sweep Page 16
11. Stapling Door Bottom to Panel Page 17
12. Replace Corner Pads Page 18
13. Check the Operation of the Door Page 18
ZAI to Z-AC 2.0 PAGE 4
1. Remove Corner Pads Page 17
2. Remove OLD Z-AC 1.0/1.1 Page 18
3. Install Z-End Base Mull Stiffeners Page 18
4. Cut NEW Z-Articulating Sill Cap to Length Page 19
5. Check Cap Assembly Page 20
6. Install Z-AC 2.0 Pin Capture When Converting From
ZAC 1.0/1.1 Page 21
7. Insert NEW Sill Cap Page 22
8. Drill Cap For Astragal Bolt Page 23
9. Replace Astragal Bottom Sealing Pad and Corner
Pad Page 24
10. Replace Door Bottom Sweep Page 25
11. Stapling Door Bottom to Panel Page 26
12. Replace Corner Pads Page 27
13. Check the Operation of the Door Page 27
Z-AC 1.0 & 1.1 to Z-AC 2.0 PAGE 16
1. Remove Corner Pads Page 29
2. Remove Z-AC 2.0 (Single and French) Page 30
3. Remove Z-AC 2.0 (Sidelite, Hinged Patio and
Page 31
4. Cut NEW Z-Articulating Sill Cap to Length Page 32
5. Check Cap Assembly Page 33
6. Install New Z-AC Pin Capture Page 34
7. Insert NEW Sill Cap Page 35
8. Drill Cap For Astragal Bolt Page 36
9. Replace Astragal Bottom Sealing Pad and Corner Pad
Page 37
10. Replace Door Bottom Sweep Page 38
11. Stapling Door Bottom to Panel Page 39
12. Replace Corner Pads Page 40
13. Check the Operation of the Door Page 40
Z-AC 2.0 to Z-AC 2.0 PAGE 28

ENDURAP RODU C T S >INS T R U C TIONS> Z - A C ™F IELD R E PLACEME N T INS T R U C TIONS
4
Z-Series Adjustable Sill (ZAI )
ZAI Features
• Flat Cap
• Screw Hole Covers
ZAI Sill
Screw Hole Cover
• Receiver Cup Under Cap
ZAI Receiver Cup
(French Doors Only)

ENDU R A P R ODU C T S >INS T R U C TIONS> Z - A C ™F IELD R E PLACEME N T INS T R U C TIONS
5
Remove the weatherstrip by pulling it
out of the kerf slot.
(If Present) Remove Simple Solution
Corner Pad from each jamb by peeling
it off.
Clean any residual debris and dirt from
the jamb.
Proceed to Step 2.
1. Remove Corner Pads (ZAI to Z-AC 2.0)
b)
c)
d)
b)
TOP DOWN
VIEW
of Simple
Solution
Corner Pad
Weather-
stripping
*Corner Pad may be look different.
Removal process will not change.
*
a)
a)

ENDURAP RODU C T S >INS T R U C TIONS> Z - A C ™F IELD R E PLACEME N T INS T R U C TIONS
6
2. Remove OLD Adjustable Cap (ZAI to Z-AC 2.0)
3. Install Z-End Base Mull Stiffeners (ZAI to Z-AC 2.0)
a)
b)
c)
d)
a)
b)
Protect aluminum sill deck with a
small wood block to prevent damage
when prying off sill cap.
Place a
front leg of sill cap at one end. Then pry
sill cap up with screwdriver, working
from one end to the other.
Pull sill cap out of channel.
Clean any debris out of sill channel and
on the jambs.
Proceed to Step 3.
Insert Z-End Base Mull Stiffeners 2L & 2R into each side of the
channel against the jambs
Proceed to Step 4.
NOTE: The Z-End Base Mull Stiffeners are handed and can only
be inserted one way. The back of the Z-End Base Mull Stiffener
a)
NOTE: Do not caulk or staple the Z-End Base Mull Stiffeners in
place.
NOTE: Do not remove the orange protective gasket label until
cap is fully installed into the door unit.
a)
b)
Jamb
Z-End Base Mull Stiffeners
2L
22
2R

ENDU R A P R ODU C T S >INS T R U C TIONS> Z - A C ™F IELD R E PLACEME N T INS T R U C TIONS
7
c)
c)
Proceed to step 5.
Proceed to step 5.
Measure the length of the sill (X).
Measure the length of the sill (X).
CAUTION: Measure
carefully and cut
precisely within 1/32'' to
ensure proper operation.
A cap cut too short will
not seal correctly.
CAUTION: Measure carefully and cut precisely within 1/32” to ensure
proper operation. A cap cut too short will not seal correctly.
4. Cut NEW Z-Articulating Cap to Length (ZAI to Z-AC 2.0)
a)
a)
b)
x
x
Measure and cut new cap 1s to match length of the sill minus 1/4".
Sill Length (X) 1/4"
b)
X/2 X/2
Cut 1/8"from each end
Pin Capture Notch
Cut 1/8"from each end
FOR FRENCH (DOUBLE) DOOR APPLICATIONS
FOR SINGLE, SIDELITE AND HINGED PATIO DOOR APPLICATIONS
Cut Here
If needed, move the bases at the end of the caps to the inside (1/2” from the end)
1S
1F
Measure and cut new cap 1F to match length of the sill (x) minus 1/8" on each side.
• Cut on both ends to ensure notch remains in center cap.
• Cap should be the same length on each side of the center of notch -
Approximately 1/2 of sill length (X/2) minus 1/8".

ENDURAP RODU C T S >INS T R U C TIONS> Z - A C ™F IELD R E PLACEME N T INS T R U C TIONS
8
a)
a)
b)
b)
5. Apply Spring-Loaded Cap Bases (ZAI to Z-AC 2.0)
SINGLE, SIDELITE AND HINGED PATIO DOORS ONLY
Ensure that all 8 spring-loaded bases are used and properly positioned.
Ensure that all 4 spring-loaded bases are used
and properly positioned.
• The spring-loaded bases at the ends of the cap should be 1"to 1-1/2"from the cap’s
edge.
• The 4 center spring-loaded bases should be evenly spaced between the 2 spring-loaded
bases at the ends of the cap, approximately 10"- 11"inches apart (Y).
• The spring-loaded bases at the ends of the
cap should be 1"to 1-1/2"from the cap’s
edge.
• The two spring-loaded center bases
should be evenly spaced between the 2
spring-loaded bases at the ends of the cap,
approximately 9"-10"inches apart (y).
Proceed to step 6.
Proceed to step 6.
FRENCH (DOUBLE) OPENING DOORS ONLY
1” to 1-1/2” Y Y Y 1” to 1-1/2”
1"to 1-1/2"
Bases
Pin Capture Notch 1"to 1-1/2"
YYY Y YY
1S
1F
Note: Bases in the center of the cap should be installed on either side of Pin Capture Notch leaving room for pin capture, which
will be installed in the next step

ENDU R A P R ODU C T S >INS T R U C TIONS> Z - A C ™F IELD R E PLACEME N T INS T R U C TIONS
9
a)
a)
b)
b)
c)
c)
d)
LOCATE AND DRILL PIN CAPTURE HOLE
6. Install New Z-AC Pin Capture When Converting From An Adjustable Sill
French Doors Only
(ZAI to Z-AC 2.0)
1/2X
X
7/8"
7/16"
Drill
7/8"x 17/32"Deep
INSTALL PIN CAPTURE
NOTE:If hole already exists from previous bolt receiver cup, the
old hole can be used, provided it is centered exactly in the sill
from end to end. Simply drill a 7/8" diameter hole deep through
the sill substrate in its place .
If the hole is not completely centered, Follow the below steps.
Measure sill length from jamb to jamb (X).
c)
c)
b)
b)
a)
a)
Mark the cap channel at exactly 1/2 the sill length and 7/16"from
the interior of the sill dam.
Drill 7/8"diameter hole deep through the sill substrate (17/32"
deep). This is where the pin capture 10 will be inserted.
Fill bottom of pin capture hole with exterior grade caulking.
Insert pin capture 10 into hole and tap into place with a rubber
mallet, if necessary.
Insert two provided screws 7 into mounting holes on pin
capture.
Proceed to step 7. 7
10
10
X/2
Orientation of Z-AC 2.0 Pin Capture
Z-AC 2.0 Pin Capture
Exterior

ENDURAP RODU C T S >INS T R U C TIONS> Z - A C ™F IELD R E PLACEME N T INS T R U C TIONS
10
7. Insert NEW Sill Cap (ZAI to Z-AC 2.0)
FOR SINGLE, SIDELITE, HINGED PATIO AND FRENCH DOOR UNITS
a)
b)
c)
Press one end of cap 1 into channel and
against Z-End Base/ Mull Stiffener 2 .
Depress the cap 1 , to gain access to the orange
protective labels on each Z-End base/ Mull Stiffener
(If Present).
Bend cap 1 slightly upward in center then and
press opposite end into channel and against
Z-End Base/ Z-End Base Mull Stiffener 2 .
Apply Pressure to the cap 1 to fully seat cap into
place along entire length of sill.
b)
d)
e)
Should
contact sill
deck
Grasp Tab Here
d)
a)
c)
Front leg of the cap should touch the deck
when seated.
A small portion of the active stiffener will be
removed with the label. This is normal.
f)
Grasp the inside tab of the orange protective label
on the Z-End base/ Mull Stiffener, shown here (If
Present), and lift up and away from the Z-End Base.
Insert weatherstrip by fully installing/placing leg fully
into frame kerf slot. Be sure that the Weatherstrip
contacts the Weatherstrip Locator on the Z-End
Base/ Mull Stiffener.
Proceed to step 8.
e)
f)
g)
Kerf Slot
Weatherstrip
Leg

ENDU R A P R ODU C T S >INS T R U C TIONS> Z - A C ™F IELD R E PLACEME N T INS T R U C TIONS
11
c)b)
a)
8. Drill Cap For Astragal Bolt
French Door Units Only
(ZAI to Z-AC 2.0)
a)
b)
c)
d)
7/8"
5/16"
FOR FRENCH DOOR UNITS
Close passive door until header weatherstrip
ush with the
opening. Engage astragal bolt to contact and
compress Z-AC to mark for drilling.
The center of the mark made should be
7/8"from the interior edge of the sill.
Depress the cap, and using a 5/16"drill bit,
drill a hole in the cap.
Stop drilling once you drill through the cap!
Proceed to step 9.

ENDURAP RODU C T S >INS T R U C TIONS> Z - A C ™F IELD R E PLACEME N T INS T R U C TIONS
12
f)
9. Replace Astragal Bottom Sealing Pad and Corner Pad
French Door Units Only
(ZAI to Z-AC 2.0)
a)
b)
c)
d)
e)
Corner Pad should
contact the top of the
Bottom Sealing Pad
New Corner Pad
Side View
b)
a)
c) d)
e)
Bottom Sealing Gasket Bottom Sealing Gasket
extends past bolt Sleeve
Bottom Sealing
Pad 8
Corner
Pad
4
New
Corner
Pad
New Lower
Trim Cap
Peel Off c2. Tip into place
c1. Install Pad
Side View
4
8
9
FOR FRENCH DOOR UNITS
Remove inactive door panel
off its hinges to gain access
to the bolt sleeve with
corner pad and bottom
sealing gasket.
Remove corner pad and
bottom sealing gasket by
peeling down and away
from the astragal.
Install new Z-AC Astragal
Bottom Sealing Gasket 8
with the hole in the pad c1
then install Simple Solution
Corner Pad 4 by tipping
into place c2.
The lip of the Bottom
Sealing Gasket should
extend out in front of the
astragal, and the Simple
Solution Corner Pad
top of the gasket.
Remove original Lower Trim
Cap by prying it off of the
bottom of the astragal.
Align the new Lower Trim
Cap 9 with the astragal
body, and Insert the Trim
cap into the bottom of the
astragal.
Use the trim cap that
matches astragals body
color. Discard the other.
Proceed to step 10.

ENDU R A P R ODU C T S >INS T R U C TIONS> Z - A C ™F IELD R E PLACEME N T INS T R U C TIONS
13
REMOVE DOOR FROM HINGES
a)
b)
c)
i)
j)
c)
lock side of the panel and insert
kerfs into slots on door.
Proceed to step 11.
i)
b)
Cut Line
X
Cut Line
X
a)
10. Replace Door Bottom Sweep (ZAI to ZAC 2.0)
FOR SINGLE, SIDELITE, HINGED PATIO AND FRENCH DOOR UNITS
Kerf Relief Slits
Z-AC Door Bottom Gasket
Solid Edge
1-1/4" or greater
1-1/4" or
greater
d) e) f)
1-1/4"
Cut Lines
1.
Cut Lines
2.
1.
d)
e)
f)
2.
*Remove any caulk from the panel and kerf slots using a scraping tool .
Align the Door Bottom 5 with the panel and mark cut line within 1/32". Cut line should
match length of panel (X).
Cut down the Door Bottom 5 to match the length of the panel (X).
Using a stiff scraping tool, remove the existing Door Bottom Gasket from the end of the
door bottom. If no Gasket is present or has been cut off completely, skip to step 2.
Be sure to completely remove all residue from the old gasket to assure the new
pad adheres properly.
Measure the location of the Kerf Legs. Kerf legs should be trimmed back 1-1/4" or more
from the edge of the door bottom. If 1-1/4" or greater notch is present, proceed to step 4,
If not proceed to step 3.
If less than a 1-1/4" notch is present, re-notch the Kerf Legs to at least 1-1/4" by
clipping the Kerf Legs.
Measure and mark the Kerf Legs at 1-1/4" from the edge of the Door Bottom. Cut
the Kerf Legs down with a cutting tool to the base of the Door Bottom.
BE CAREFUL NOT TO CUT INTO THE DOOR BOTTOM.
From the edge of the Door Bottom, trim the Kerf Legs at the base back to the cut
made in the previous step and remove.
h)
g)
Align and Apply New Door Bottom Gasket to Z-AC Door Bottom
• Align the Solid Edge of the Door Bottom Gasket with the outer edge of the Z-AC
ensuring that the Door Bottom Kerf Legs protrude through the Gasket Relief Slits,
Remove paper backing from the Door Bottom Gasket.
• Peel the protective paper layer covering the adhesive on the back of the Door
Bottom Gasket off and discard.
g)
Flush
Flush
Door Bottom
Kerf Legs
h)

ENDURAP RODU C T S >INS T R U C TIONS> Z - A C ™F IELD R E PLACEME N T INS T R U C TIONS
14
11. Stapling Door Bottom to Panel (ZAI to Z-AC 2.0)
Attach Door Bottom with two 1/2" crown staples and 80 PSI of
air pressure
STAPLE ON SWEEP- If using a staple-on door sweep, staple on
both sides approximately every 6"along the length of the door.
Proceed to step 12.
a)
b)
c)
1/4" Crown Staple 1/2" Crown Staple
Incorrect Size Staple Correct Size Staple
When stapling the Z-AC Door bottom to the panel, staples
should be inserted between the Rigid Ramp and Flex
Fins. Staples should be aimed away from the kerf slots in
the bottom of the panel to prevent cracking of the door
bottom, or damage to the kerfs.
The insertion of staples at an angle or in the wrong
location will result in damage to the Door Bottom.
Only 1/2" crown staples should be used to secure the door bottom
to the panel. The use of staples with a shorter crown such as
crown 1/4"staples will result in cracking and damage to the Door
Bottom.
a)
Rigid
Ramp
Rigid
Ramp
Flex Fins
Staples
b)
Wrong staple
location
Wrong staple
location
Angled into
kerf
Use 80 PSI of air pressure to
insert staples. Endura suggests
using an air pressure regulator
for best results.
Staple Position Along the Length of Panel
6”
6”
6”
6”
6”
6”
1/4"1/2"
PSI
Required Air Pressure
FOR SINGLE, SIDELITE, HINGED PATIO AND FRENCH DOOR UNITS

ENDU R A P R ODU C T S >INS T R U C TIONS> Z - A C ™F IELD R E PLACEME N T INS T R U C TIONS
15
NOTE: For best performance, Do not reapply
old/used corner pad. Replace with a new
Simple Solution Corner Pad for this step.
Ensure that the old corner pad has been
removed from each jamb. a)
a)
b)
d)
e)
c)
a) b)
c)
(4)
Remove backing paper from Simple Solution
Corner Pad (4) to expose adhesive.
Align Simple Solution Corner Pad with the top
of Z-End Base and inside edge of the jamb.
Ensure the Simple Solution Corner
Pad contacts the top surface of the
Z-End Base and attach to jamb.
Repeat Steps a - c for the second jamb.
Proceed to step 13.
Jamb Jamb
Weatherstrip
Corner Pad
Flush with interior side of jamb
Best Performance Good Performance
Contacting Weatherstrip
Weatherstrip
Corner Pad
Suggested for strike margins
of 1/8" or less
12. Replace Corner Pads (ZAI to Z-AC 2.0)
If you have any questions, please contact your Endura Sales Representative or call Customer Service: 1-800-334-2006
Ensure that the door opens and closes smoothly.
Ensure the cap operates properly up and down as the door is opened and closed.
Ensure that Door Bottom makes contact with the Z-AC as the door is closed.
Ensure the Panel makes contact with the Corner Pad and Z-End Bases.
13. Check the Operation of the Door
Close and open the door several times.
a)
b)
c)
d)
8817 W. Market St., Colfax, NC 27235
1.800.334.2006 www.enduraproducts.com
such information without the express written permission of Endura Products, Inc. is strictly prohibited. Endura Products, Inc. also owns any and all intellectual property rights
embodied in such information, including patent rights, copyrights, and trademark rights, and no license of any intellectual property right is intended, nor should any license
be implied, as a result of the receipt of this document.
US Patents: 6,789,358; 7,350,336; 8,522,483; 8,991,100; 8,991,101; D722,388; D638,958; D722,387; D722,388; D713,976 and Patents Pending.
Canadian Patents: 2,771,705; D139,250 and Canadian Patents Pending.
FOR SINGLE, SIDELITE, HINGED PATIO AND FRENCH DOOR UNITS

ENDURAP RODU C T S >INS T R U C TIONS> Z - A C ™F IELD R E PLACEME N T INS T R U C TIONS
16
Z-AC 1.1 Features
1.1 Slanted
End Base 1.0/ 1.1
Pin Capture
(French Doors Only )
• Slanted Cap
• End Bases with Slanted Rigid
Wall
• Exposed Pin Capture
Z-AC 1.0 Features
Z-Series Articulating Cap Sill 1.0/1.1 (Z-AC 1.0/1.1 )
1.0 Angular
End Base
Z-AC Sill 1.0/ 1.1 Sill
• Slanted Cap
• End Bases with Angular Rigid
Wall
• Exposed Pin Capture

ENDU R A P R ODU C T S >INS T R U C TIONS> Z - A C ™F IELD R E PLACEME N T INS T R U C TIONS
17
Remove the weatherstrip by pulling it
out of the kerf slot.
(If Present) Remove Simple Solution
Corner Pad from each jamb by peeling
it off.
Clean any residual debris and dirt from
the jamb.
Proceed to Step 2.
1. Remove Corner Pads (Z-AC 1.0/ 1.1 to Z-AC 2.0)
b)
c)
d)
b)
TOP DOWN
VIEW
of Simple
Solution
Corner Pad
Weather-
stripping
a)
a)

ENDURAP RODU C T S >INS T R U C TIONS> Z - A C ™F IELD R E PLACEME N T INS T R U C TIONS
18
3. Install Z-End Base Mull Stiffeners (Z-AC 1.0 / 1.1 to Z-AC 2.0)
2. Remove OLD Cap (Z-AC 1.0 / 1.1 to Z-AC 2.0)
Protect aluminum sill deck with a
small wood block to prevent damage
when prying off sill cap.
a)
b)
d)
c)
a)b)
front leg of sill cap at one end. Then pry
sill cap up with screwdriver, working
from one end to the other.
Pull sill cap out of channel.
Proceed to step 3.
Clean any debris out of sill channel and
on the jambs.
Note: The end bases may be stapled to
the frame, or stuck in the sill channel
after the cap is removed. If this occurs,
remove the bases from the channel
Insert Z-End Base Mull Stiffeners 2L & 2R into each side of the
channel against the jambs
Proceed to step 4.
NOTE: The Z-End Base Mull Stiffeners are handed and can only
be inserted one way. The back of the Z-End Base Mull Stiffener
NOTE: Do not remove the orange protective gasket label until
cap is fully installed into the door unit.
a)
b) Jamb
Z-End Base Mull Stiffeners
2L 2R
2
a)2

ENDU R A P R ODU C T S >INS T R U C TIONS> Z - A C ™F IELD R E PLACEME N T INS T R U C TIONS
19
c)
c)
Proceed to step 5.
Proceed to step 5.
Measure the length of the sill (x).
Measure the length of the sill (X).
CAUTION: Measure
carefully and cut
precisely within 1/32'' to
ensure proper operation.
A cap cut too short will
not seal correctly.
4. Cut NEW Z-Articulating Cap to Length (Z-AC 1.0/ 1.1 to Z-AC 2.0)
a)
a)
x
x
Sill Length (x)1/4"
X/2 X/2
Cut 1/8"from each end
Pin Capture Notch
Cut 1/8"from each end
FOR FRENCH (DOUBLE) DOOR APPLICATIONS
FOR SINGLE, SIDELITE & HINGED PATIO DOOR APPLICATIONS
Cut Here
If needed, move the bases at the end of the caps to the inside (1/2” from the end)
1S
1F
b) Measure and cut new cap 1s to match length of the sill minus 1/4".
CAUTION: Measure carefully and cut precisely within 1/32'' to ensure
proper operation. A cap cut too short will not seal correctly.
b) Measure and cut new cap 1F to match length of the sill (x) minus 1/8" on each side.
• Cut on both ends to ensure notch remains in center cap.
• Cap should be the same length on each side of the center of notch -
Approximately 1/2 of sill length (X/2) minus 1/8".

ENDURAP RODU C T S >INS T R U C TIONS> Z - A C ™F IELD R E PLACEME N T INS T R U C TIONS
20
a)
a)
b)
b)
5. Apply Spring-Loaded Bases (Z-AC 1.0 & 1.1 to Z-AC 2.0)
SINGLE SIDELITE, HINGED PATIO DOORS ONLY
Ensure that all 8 spring-loaded bases are used and properly positioned.
Ensure that all 4 spring-loaded bases are used
and properly positioned.
• The spring-loaded bases at the ends of the cap should be 1"to 1-1/2"from the cap’s
edge.
• The 4 center spring-loaded bases should be evenly spaced between the 2 spring-loaded
bases at the ends of the cap, approximately 10"- 11"inches apart (Y).
• The spring-loaded bases at the ends of the
cap should be 1"to 1-1/2"from the cap’s
edge.
• The two spring-loaded center bases should
be evenly spaced between the 2 spring-
loaded bases at the ends of the cap,
approximately 9"-10"inches apart (Y).
Proceed to step 6.
Proceed to step 6.
FRENCH (DOUBLE) OPENING DOORS ONLY
1" to 1-1/2" Y Y Y 1" to 1-1/2"
1"to 1-1/2"
Bases
Pin Capture Notch 1"to 1-1/2"
YYY Y YY
1S
1F
Note: Bases in the center of the cap should be installed on either side of Pin Capture Notch leaving room for pin capture,
which will be installed in the next step .
