Eneo MAM-5MF1001MTA User manual

EN
Quick Installation Guide
HD-TVI/AHD/HDCVI/CVBS with
RS485 Fiber Optical Extender
MAM-5MF1001MTA

2
Contents
Panel View......................................................................................................................5
HD-TVI/AHD/HDCVI/CVBS Fiber Optical Extender .....................................................6
Features ................................................................................................................................................................................6
Installation View ................................................................................................................................................................6
LED Indication....................................................................................................................................................................6
Cable & Transmission Distance.....................................................................................................................................6
Specications......................................................................................................................................................................7
Further information .........................................................................................................................................................7

3
EN
Safety instructions
General safety instructions
• Before switching on and operating the system, rst read this safety advice and the operating instructions.
• Keep the operating instructions in a safe place for later use.
• Installation, commissioning and maintenance of the system may only be carried out by authorised
individuals and in accordance with the installation instructions - ensuring that all applicable standards and
guidelines are followed.
• Protect the devices from water penetration and humidity, since these can cause lasting damage.
• Should moisture nevertheless enter the system, under no circumstance switch on the devices under these
conditions, instead send them for examination to an authorised specialist workshop.
• The system must never be used outside of the technical specications, since this can destroy it.
• The device must be protected from excesses of heat, dust, humidity and vibration.
• When separating the system from the voltage supply, only ever use the plug to pull out the cable. Never
pull directly on the cable itself.
• Lay the connecting cables carefully and check that they are not mechanically stressed, kinked or damaged
and that no humidity can penetrate into them.
• In the event of a malfunction, please inform your supplier.
• Maintenance and repairs may only be carried out by authorised specialist personnel.
• The system must be isolated from the power supply before opening the housing.
• The device may only be opened by qualied service personnel. Unauthorised access invalidates any
warranty claim.
• Connection cables should always be exchanged through Videor E. Hartig GmbH.
• Use only original spare parts and accessories from Videor E. Hartig GmbH.
• The housing should only be cleaned using a mild domestic cleaning agent. Never use solvents or petrol as
these can permanently damage the surface.
• During installation, it is essential to ensure that the seals provided are correctly installed and that they are
not displaced during installation. Damaged seals must not be installed and will invalidate any warranty.
• The installer is responsible for the maintenance of the enclosure as per the technical data, e.g. by sealing
the cable outlets with silicone.
• Wire end ferrules should be used when shortening the exible connection cables.
• The devices may only be operated in the temperature range indicated in the data sheet and within the
dened air humidity range.

4
WEEE (Waste Electronical & Electronic Equipment)
Correct Disposal of This Product (Applicable in the European Union and other European countries with separate
collection systems).
This marking shown on the product or its literature, indicates that it should not be disposed with
other household wastes at the end of its working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate this from other types of wastes
and recycle it responsibly to promote the sustainable reuse of material resources. Household users
should contact either the retailer where they purchased this product, or their local government
oce, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase
contract. This product should not be mixed with other commercial wastes for disposal.
Graphical symbols
Please pay attention to the safety instructions, and carefully read through this instruction guide before initial
operation.
Important points of warning are marked with a caution symbol.
iImportant points of advice are marked with a notice symbol.

5
EN
Panel View

6
HD-TVI/AHD/HDCVI/CVBS Fiber Optical Extender
MAM-5MF1001MTA support HD-TVI/AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video signal over
Fiber cable. Based on digital uncompressed HD composite video technologies which
convert the AHD, HDCVI, HD-TVI or CVBS composite signals to optical signals to reach
long distance up to 20 km.
Features
• Digital and non-compression coding technology
• Support HD-TVI/AHD/HDCVI/CVBS and RS485 data signal over ber optical cable
• Single mode: 20 km, Multimode: 2 km
• Support resolution: 720p/25,30,50,60 1080p/25,30
• Working distance up to 20 km
• Built in LED indication
• Plug and play, simple installation

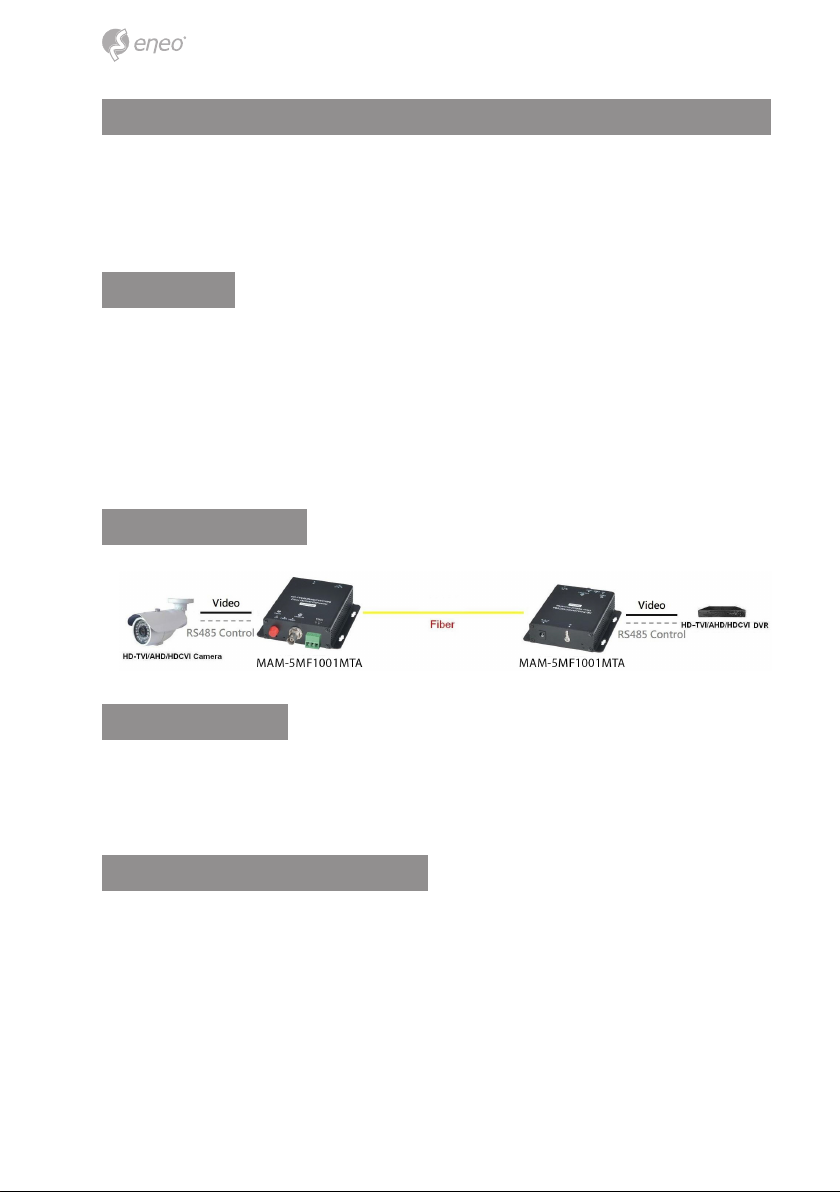

Installation View
LED Indication
• On: Power on
• Fiber: linking
• Video: input source detected
Cable & Transmission Distance
Link cable recommend use high quality FC Single – Mode Fiber optic cable. The trans-
mission distance will be aected by dierent quality of Camera, DVR and BNC connector,
cable, installation etc.

7
EN
Specications
Art.-No. MAM-5MF1001MTA (Transmitter) HD-TVI OUTPUT (Receiver)
Video Format HD-TVI/AHD/HDCVI/CVBS
Video Connector BNC 50 Mhz 75 ohm
Fiber Port FC, single ber, single/multimode mode
Distance 0-20 km
Input/output Wavelength TX1310, RX1550nm TX1550,RX1310nm
Input/output Level >500mVP-P 1Vp-p
TX Input Return Loss >15dB
Input/output Impedance 75Ω
Rx up/down time <0.8ns
Rx Max. Jitter <0.2UI
Video Capture Resolution 10 bits
Baud Rate 1200-9600bps
BER < 10-9
Operation Mode Half Duplex
Power DC5V 1A DC5V 1A
Power Consumption ≤5W ≤5W
Humidity Operation: -40 to 75°C, Storage: -20 to 85°C, Humidity: up to 95%
Weight 200 g
Further information
The manual is also available from the eneo web site at www.eneo-security.com.

Technical changes reserved
© Copyright by VIDEOR E. Hartig GmbH
Version 10/2018
