Quick Installation Guide
1/1.9” Network Dome,
1920x1080, Day&Night, PTZ,
6.0-180mm, Infrared, IP66
IPP-82A0030MHA

2
Components...................................................................................................................5
Installation.....................................................................................................................6
Installation...........................................................................................................................................................................6
Installation - Wall Mount ...........................................................................................................................................6
Installation - Ceiling Mount......................................................................................................................................7
Basic Configuration of Camera System.....................................................................................................................9
Micro-SD Card Insertion.............................................................................................................................................. 10
Connections..................................................................................................................................................................... 10
Connecting the Network........................................................................................................................................ 10
Connecting Audio .....................................................................................................................................................11
Connecting Alarms....................................................................................................................................................11
Connecting the Power .............................................................................................................................................11
Network Connection & IP assignment .............................................................................................................. 12
Operation.................................................................................................................... 13
Access from a browser.................................................................................................................................................. 13
Access from the internet.............................................................................................................................................. 14

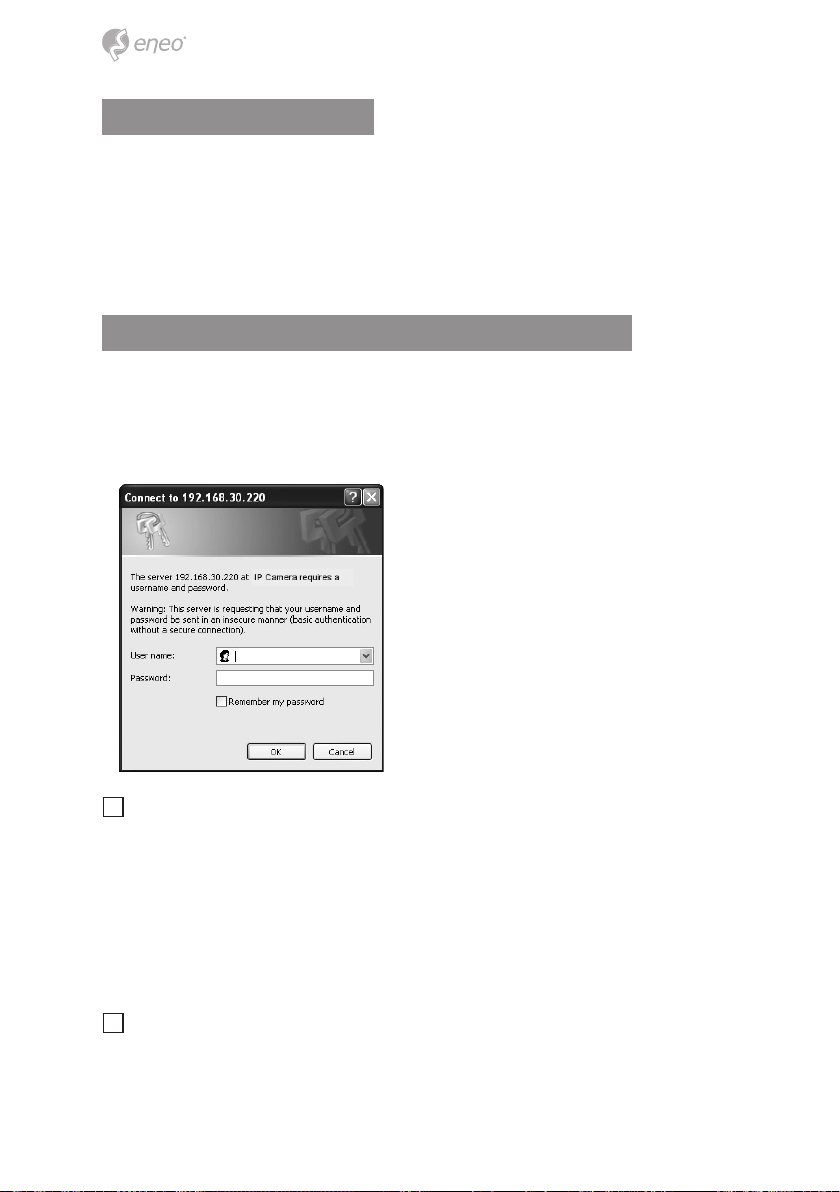

Setting the admin password over a secure connection................................................................................... 14

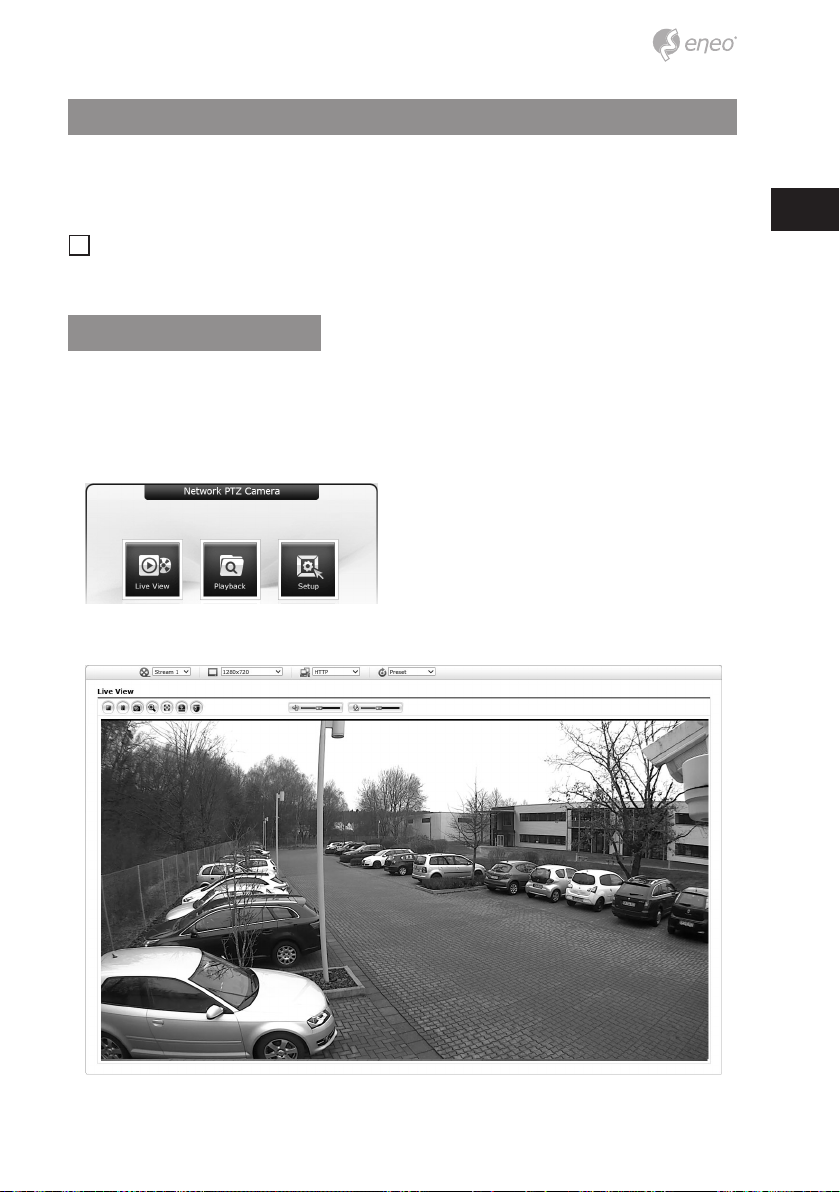

Live View Page................................................................................................................................................................. 15
General controls ........................................................................................................................................................ 15
Control toolbar........................................................................................................................................................... 15
Video Streams ............................................................................................................................................................ 16
Playback .............................................................................................................................................................................17
Network Camera Setup................................................................................................................................................ 19
Resetting to the factory default settings.......................................................................................................... 20
Further information .......................................................................................................................................................21

3
EN
Safety instructions
General safety instructions
• Before switching on and operating the system, rst read this safety advice and the operating instructions.
• Keep the operating instructions in a safe place for later use.
• Installation, commissioning and maintenance of the system may only be carried out by authorised
individuals and in accordance with the installation instructions - ensuring that all applicable standards and
guidelines are followed.
• Protect the devices from water penetration and humidity, since these can cause lasting damage.
• Should moisture nevertheless enter the system, under no circumstance switch on the devices under these
conditions, instead send them for examination to an authorised specialist workshop.
• The system must never be used outside of the technical specications, since this can destroy it.
• The device must be protected from excesses of heat, dust, humidity and vibration.
• When separating the system from the voltage supply, only ever use the plug to pull out the cable. Never
pull directly on the cable itself.
• Lay the connecting cables carefully and check that they are not mechanically stressed, kinked or damaged
and that no humidity can penetrate into them.
• In the event of a malfunction, please inform your supplier.
• Maintenance and repairs may only be carried out by authorised specialist personnel.
• The system must be isolated from the power supply before opening the housing.
• The device may only be opened by qualied service personnel. Unauthorised access invalidates any
warranty claim.
• Connection cables should always be exchanged through Videor E. Hartig GmbH.
• Use only original spare parts and accessories from Videor E. Hartig GmbH.
• The housing should only be cleaned using a mild domestic cleaning agent. Never use solvents or petrol as
these can permanently damage the surface.
• During installation, it is essential to ensure that the seals provided are correctly installed and that they are
not displaced during installation. Damaged seals must not be installed and will invalidate any warranty.
• The installer is responsible for the maintenance of the enclosure as per the technical data, e.g. by sealing
the cable outlets with silicone.
• Wire end ferrules should be used when shortening the exible connection cables.
• The devices may only be operated in the temperature range indicated in the data sheet and within the
dened air humidity range.
Product - Specic Safety Instructions
• The camera may never be pointed directly at the Sun with the aperture open (this will destroy the sensor).
• It is unavoidable that during manufacture and to a certain extent during later use, humidity will be present
in the ambient air within the device’s housing. In the event of large temperature uctuations, this humidity
may condense inside the housing.
• To avoid this condensation inside the very tightly sealed housing, the manufacturer has inserted silica gel
sachets in the housing of the various camera types.
• It is however a physical given, that these silica gel bags will reach saturation after a certain amount of time.
They should therefore be replaced with new silica gel sachets.
• During installation, it is essential to ensure that the seals provided are correctly installed and that they are
not displaced during installation. Damaged seals must not be installed and will invalidate any warranty.
• A multipolar, easily accessible isolation device should be installed in the proximity of the IR Spotlight, in
order to disconnect the device from the power supply for service work.
• The earth connection must be made according to the low impedance requirement of DIN VDE 0100.
• Subsequent painting of the equipment surface can impair the function.
• Any warranty claim is invalidated by subsequent painting.
• A safety margin of > 1m from the spotlight must be maintained when viewing directly into the IR Spotlight
in a darkened environment.
• Do not look directly at invisible LED radiation using optical instruments (e.g. a reading glass, magnifying
glass or microscope), since this can endanger the eyes, LED Class 1M.
• Operation of the IR spotlight with a defective cover or during repair is prohibited.

4
Class A device note
This is a Class A device. This device can cause malfunctions in the living area; in such an event, the operator may
need to take appropriate measures to compensate for these.
WEEE (Waste Electronical & Electronic Equipment)
Correct Disposal of This Product (Applicable in the European Union and other European countries with separate
collection systems).
This marking shown on the product or its literature, indicates that it should not be disposed with
other household wastes at the end of its working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate this from other types of wastes
and recycle it responsibly to promote the sustainable reuse of material resources. Household users
should contact either the retailer where they purchased this product, or their local government
oce, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase
contract. This product should not be mixed with other commercial wastes for disposal.
Graphical symbols
Please pay attention to the safety instructions, and carefully read through this instruction guide before initial
operation.
Important points of warning are marked with a caution symbol.
iImportant points of advice are marked with a notice symbol.

5
EN
Components
This system comes with the following components;
• Dome Camera
• Installation Guide/CD
• 2P screw type Connector
• 5P screw type Connector
• PoE Injector
• RJ-45 Waterproof Cover
• Install Adaptor

6
Installation
Installation
You need one optional mount kit of the wall mount and the ceiling mount to install.
The wall or ceiling mount must be attached to a structural object such as hard wood,
concrete that will support the weight of the mount and dome camera.
The use of a solid backboard is recommended when attaching to gypsum walls.
1. Remove the Protection pad and the tape from attached the dome camera.
2. Attach the mounting base to wall using the supplied M8 tapping screw and plas-
tic bushing. (Ceiling using the supplied M6 tapping screw and bushing)
3. Wind the both thread of the pipe end with Teflon tape about 20 times for sealing.
Then use a silicone rubber sealant to seal the area where the wall (ceiling) mount
and the pipe meet.
4. Place a bead of silicone sealant around the wall and ceiling mount mounting
flange, press it to the surface and line up the flange hole with drilled holes.
CAUTION 1: A silicone rubber sealant must be applied to seal the housing to secure
waterproofing.
CAUTION 2: When installing, a bracket must be applied.
CAUTION 3: Please reset the camera after 30 ~ 60 minutes when installing it in situations
colder than -10°C.
Installation - Wall Mount
The wall mounting plate must be attached to a structural object such as concrete that will
support the weight of the mount and Dome Camera.

7
EN
Select a suitable mounting location and verify there is sufficient cable to reach the mid-
dle of the Wall Mount.
1. Mark and drill mounting holes in the surface using the Wall Mount Flange.
2. Pull out cables required to connect to the dome camera from the wall.
3. Set and x wall mount bracket using plastic anchors and M8x35 screws.
4. Open the access plate and pull out cables through rectangular access hole of the
wall mount bracket.
5. Attach the 1.5 inch adapter to wall mount bracket and x it using set screw.
6. Attach the camera’s safety wire to the wall mount bracket and organize cables.
7. Close the access plate of the wall mount bracket
8. Push in and turn clockwise the camera into the adapter, and x it using set screw
of the adapter.
Installation - Ceiling Mount
The ceiling mounting plate must be attached to a structural object such as concrete that
will support the weight of the mount and Dome Camera.
Tapping Screw 8x35 (4x)
Mounting Bracket (1x)
Set Screw (1x)
Adapter
Set Screw (1x)
Safety Wire
Access Plate
Machine Screw 3x5 (2x)
Plastic Anchor (4x)

8
Start Point
(Long Indicator)
Set Point (Short
Indicator)
Plastic Anchor (3x)
Ceiling Mount (1x)
Set Screw (2x)
Locking Nut (1x)
Tapping Screw 6x35 (3x)
Socket (1xI)
Safety Wire (1x)
Screw Machine M5x6 (1x)
Pipe (1x)
Socket Pipe PF 1.5 inch (1x)
Set Screw (3x)
Adapter PT 1.5 inch (1x)
Set Screw (1x)
Seal using silicone rub-
ber around the circle

9
EN
1. Select a suitable mounting location and verify there is sufficient cable to connect
with cables from the housing.
2. Mark and drill mounting holes in the surface using the ceiling mount bracket.
3. Pull out cables required to connect to the dome camera from the ceiling.
4. Attach the ceiling mount bracket using plastic anchors and screws.
5. Attach 1.5 inch adapter to the pipe and x it using set screw of the adapter.
6. Pull out camera cables through the pipe and attach the camera to adapter and x
them using set screw of the adapter.
7. Attach the safety wire to the pipe to one of M6x35 screws of the ceiling mount
bracket.
8. Join every connectors and organize cables
9. Lock hexagonal nut of the ceiling mount bracket to x camera attached pipe and
ceiling mount bracket.
Basic Configuration of Camera System
No. Connector Wire Color Description
1Power Jack BLACK Camera Power
2RJ-45 BLACK Ethernet, RJ-45 port compatible with 10/100Mbps
3RCA BLACK Audio Input
4RCA GRAY Audio Output
55-pin Cable
YELLOW Alarm Input 1
WHITE Alarm Input 2
VIOLET Alarm Input 3
BROWN Alarm Input 4
GRAY GND
62-pin Cable
RED Alarm Out
BLACK GND

10
The camera must be installed by qualified service personnel in accordance with all local
and federal electrical and building codes.

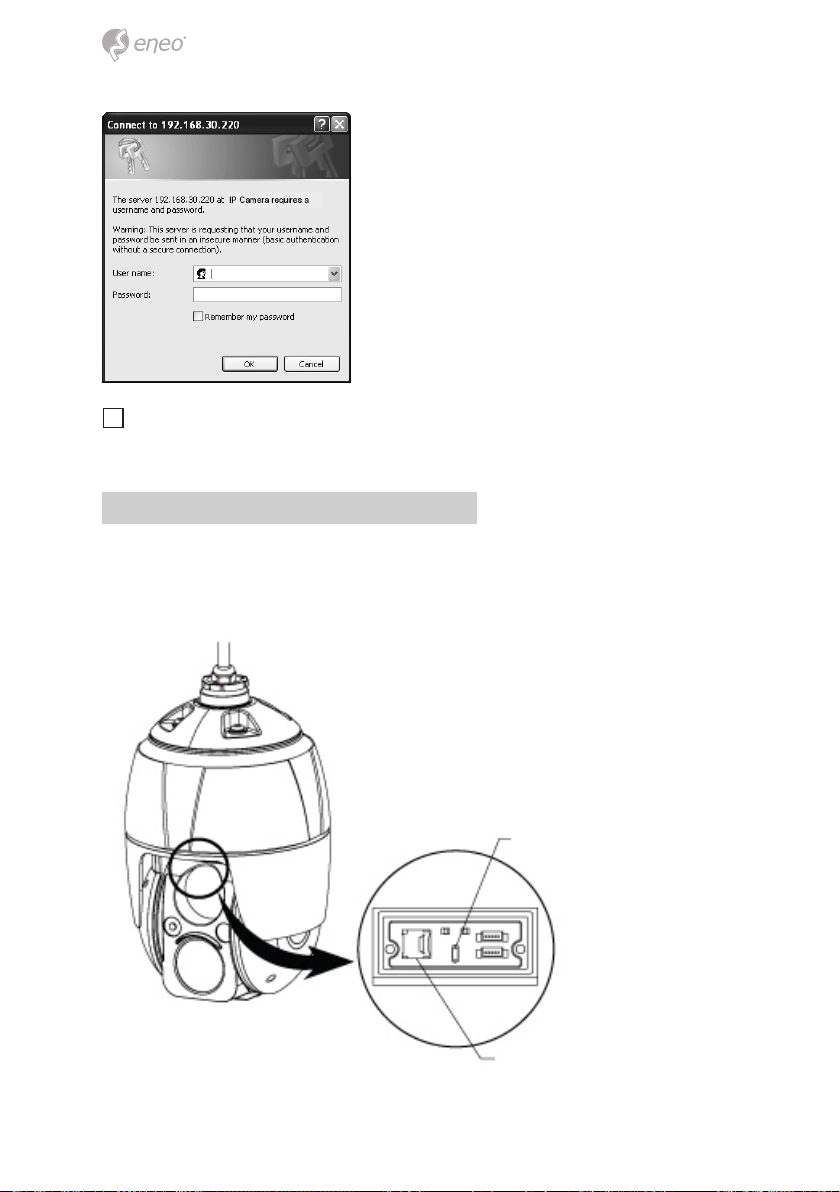

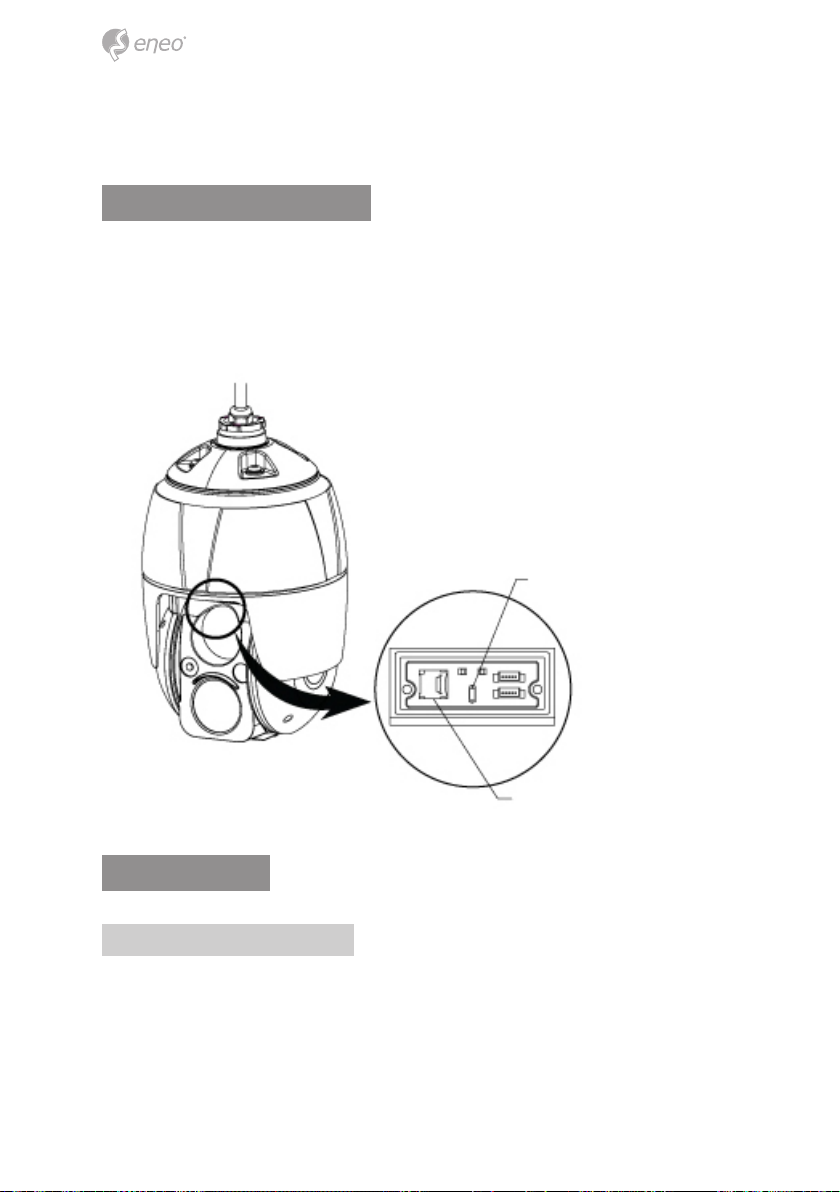

Micro-SD Card Insertion
User can install and change Micro-SD card as shown in the following picture.
1. Open the Micro-SD card cover.
2. Install or change Micro-SD card.
3. Tightly close the Micro-SD card cover to ensure waterproofness.
Connections
Connecting the Network
Connect a standard RJ-45 cable to the network port of the camera. Generally a crossover
cable is used for directly connection to PC, while a direct cable is used for connection to
a hub.
Reset Button
Micro-SD Card Slot

11
EN
Connecting Audio
Connect speaker to audio output line and external mic to audio input line.
Connecting Alarms
A1,A2,A3,A4 (Alarm Input 1,2,3,4)
You can use external devices to signal the camera to react on events. Mechanical or
electrical switches can be wired to the A1,A2,A3,A4 (Alarm Input 1,2,3,4) and G (Ground)
connectors.
G (Ground)
iNotice: All the connectors marked G or GND are common.
Connect the ground side of the alarm input and/or alarm output to the G (Ground)
connector.
AO (Alarm Output)
The camera can activate external devices such as buzzers or lights. Connect the device to
the AO (Alarm Output) and G (Ground) connectors.
Connecting the Power
Connect power of 12VDC for the camera.
When using a 12VDC adapter, connect the positive (+) pole to the ’ + ’ position and the
negative (-) pole to the ’- ’ position.
Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power source
only.
• Be careful not to reverse the polarity when you connect the power cable.
If you use PoE to supply power to the camera, you must use the PoE (Power over Ether-
net) injector provided with the camera.

12
Network Connection & IP assignment
The eneo scanning device tool is used to locate all eneo network cameras in a local net-
work. The tool does not need to be installed with a setup program. The program exe-le
can be started directly from the CD with a simple double click to use the program.
After pushing the button„Find eneo devices“ you will get a list of cameras connected to
the local network. Highlight your camera in the list and open a context menu with a click
of the right mouse button.
Select the „Editing the camera IP address“ option to open a window for setting the cam-
eras IP properties. When you are done click the„Activate“ button to update the camera
settings.
For further information, please refer to the eneo Scan Device Tool Quick Start Guide.

13
EN
Operation
The network camera can be used with Windows operating system and browsers. The
recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome
with Windows.
iNotice: To view streaming video in Microsoft Internet Explorer, set your browser to
allow ActiveX controls.
Access from a browser
1. Start a browser (Internet Explorer).
2. Enter the IP address or host name of the network camera in the Location/Address
field of your browser.
3. You can see a starting page. Click Live View, Playback, or Setup to enter web
page.
4. The network cameras Live View page appears in your browser.

14
Access from the internet
Once connected, the network camera is accessible on your local network (LAN). To access
the network camera from the Internet you must configure your broadband router to
allow incoming data traffic to the network camera. To do this, enable the NAT traversal
feature, which will attempt to automatically configure the router to allow access to the
network camera. This is enabled from Setup > System > Network > NAT. For more infor-
mation, please see ”System > Network > NAT”of User’s Manual.
Setting the admin password over a secure connection
To gain access to the product, the password for the default administrator user must be
set. This is done in the Admin Password dialog, which is displayed when the network
camera is accessed for the setup at the first time. Enter your admin name and password,
set by the administrator.
iNotice: The default administrator user name and password is admin. If the password
is lost, the network camera must be reset to the factory default settings. Please see ”Re-
setting to the factory default settings”.
To prevent network eavesdropping when setting the admin password, this can be done
via an encrypted HTTPS connection, which requires an HTTPS certificate (see Notice
below). To set the password via a standard HTTP connection, enter it directly in the first
dialog shown below. To set the password via an encrypted HTTPS connection, please see
System> Security > HTTPS of User’s Manual.
iNotice: HTTPS (Hypertext Transfer Protocol over SSL) is a protocol used to encrypt
the traffic between web browsers and servers. The HTTPS certificate controls the encrypt-
ed exchange of information.

15
EN
Live View Page
The Live View page comes in several screen modes: 1920x1080, 1280x1024,
1280x720(960), 1024x768, 704x480(576), 640x480(360) and 320x240. Users are allowed
to select the most suitable one out of those modes. Adjust the mode in accordance with
your PC specifications and monitoring purposes.
General controls
Live View Page Playback Page Setup Page Help Page
The video drop-down list allows you to select a customized or prepro-
grammed video stream on the Live View page. Stream profiles are configured under
Setup > Basic Configuration > Video & Image. For more information, please see ”Basic
Configuration > Video & Image”of Users Manual.
The resolution drop-down list allows you to select the most suitable
one out of video resolutions to be displayed on Live View page.
The protocol drop-down list allows you to select which combination of
protocols and methods to use depending on your viewing requirements, and on the
properties of your network.
The preset drop-down list allows you to select the preset number for the
PTZ camera being used. This icon is inactivated if the PTZ settings are not set.
Control toolbar
The live viewer toolbar is available in the web browser page only. It displays the following
buttons:
The Stop button stops the video stream being played. Pressing the key again toggles
the start and stop.
The Play button connects to the network camera or starts playing a video stream.
The Pause button pauses the video stream being played.

16
The Snapshot button takes a snapshot of the current image. The location where the
image is saved can be specified.
The Digital Zoom button activates a zoom-in or zoom-out function for video image
on the live screen.
The Full Screen button causes the video image to fill the entire screen area. No other
windows will be visible. Press the ’Esc’ button on the computer keyboard to cancel full
screen view.
The Manual Trigger button activates a pop-up window to manually start or stop the
event.
The PTZ button activates a pop-up window for Pan, Tilt and Zoom control.
The VCA button shows/hides VCA rule setting and detected objects.
The Face Detection button shows/hides detected faces.
The Speaker button activates/deactivates external speaker.
The Mic button activates/deactivates microphone input.
Use this scale to control the volume of the speakers and microphones.
iNotice: VCA and Face Detection buttons appear only when each function is
activated.
iNotice: VCA and Face Detection works exclusively to each other.
Video Streams
The network camera provides several images and video stream formats. Your require-
ments and the properties of your network will determine the type you use.
The Live View page in the network camera provides access to H.264 and Motion JPEG vid-
eo streams, and to the list of available video streams. Other applications and clients can
also access these video streams/images directly, without going via the Live View page.

17
EN
Playback
The Playback window contains a list of recordings made to the memory card. It shows
each recording’s start time, length, the event type used to start the recording, calendar
and time slice bar indicates if the recording is existed or not.
The description of playback window follows.
①Video Screen
You can see the video screen when playing the video clip in the Micro SD memory.
②Playback Buttons
To view a recording data in the SD local storage, select it from the list and click the Play-
back buttons.
Go to the first: go to the beginning of the video clip.
Fast backward play: fast play backward of the video clip.
Backward play: play backward of the video clip.
Step backward play: go back one frame of the video clip.
Pause: pause playback of the video clip.
Step forward play: go forward one frame of the video clip.

18
Forward Play: play forward the video clip.
Fast forward play: play fast forward of the video clip.
Go to the last: go to the end of the video clip.
Clip copy: copy the video clip.
Zoom In: zoom in the video clip.
Full Screen: display full screen of the video.
③Time Chart
Display an hour-based search screen for the chosen date. If there is recording data, a blue
section will be displayed on a 24-hour basis. If you select a particular hour in the chart, a
yellow square on the hour will be displayed.
④Speaker Control Bar
Use this scale to control the volume of the speakers.
⑤Search Calendar
Search results from the SD local storage in the network camera connected are displayed
monthly. If there is a recorded data for a particular date, a blue square on the date will be
displayed. If you select a particular date in the calendar, a yellow square on the date will
be displayed.
⑥Play Time
Displays time of the video playing.
⑦Event Search Window
Select a search option in the drop-down list and click GO button. You can also enter
the time period for searching. If you click Start Date or End Date zone, displays Search
Calendar.

19
EN
⑧Event List Window
Event List displays the event(s) that were recorded in the SD local storage. Select a list and
click the play button. The video clip will be played.
Network Camera Setup
This section describes how to configure the network camera.
Administrator has unrestricted access to all the Setup tools, whereas Operators have
access to the settings of Basic Configuration, which are Live View, Video & Image, Audio,
Event, Dome Configuration, and System.
You can configure the network camera by clicking Setup either in the first connection
page or the top second-right button of the Live View page. Accessing the network cam-
era from a computer for the first time opens the Admin Password dialog box. Enter your
administrator or operator id and password to get into setup page.

20
iNotice: If the password is lost, the network camera must be reset to the factory
default settings. Please see ”Resetting to the Factory Default Setting”.
Resetting to the factory default settings
To reset the network camera to the original factory settings, go to the Setup > System >
Maintenance web page (described in ”System > Maintenance”of Users Manual) or use the
Reset button on the network camera, as described below:
Reset Button
Micro-SD Card Slot
