1 MEB-62V2812M0A / MEB-52F0036M0A
1.1 Parts supplied

Operation Guide
Contents
v
1.2 Installation
1. Remove sun shield from camera to aid simpler installation (optional requirement).
2. Use drill template (D) as to guide to drill and attach camera to surface as required.
Holes on bracket are 120 degree apart, so three holes are required.
3. With camera attached you can now connect power, check device working.
4. Using the (C) L-Hex tool you position left-right up/down and lock into place. The
rear position rotation allows turning of angle turn anti-clockwise to loosen.
5. Adjust zoom & focus using small flat blade. (Vari-focal model only)
6. Replace the sun visor if removed from step 1. Check IR LEDs are working by cover
ing the photocell of camera, the IR LEDs will give a faint red glow.
Don’t look at IR LEDs for long periods of time, as you could damage your eyes!

Operation Guide
Contents
vi
2 MED-52F0036MBA / MED-62V2812MBA
2.1 Parts supplied

Operation Guide
Contents
vii
2.2 Installation
1. Use supplied template to drill holes for (A) plugs
2. Remove locking cover using supplied (C) L-key. Optional requirement
3. ttach base part to surface with (B) screws. Use conduit if required.
4. Re-attach Cover and position camera then lock cover screws with L-Key.
5. Adjust the zoom & focus using flat blade tool. (Vari-Focal models only)
6. Wipe clean the front glass to stop potential IR Led smear at night.
7. Connect power, feeding through conduit may require this stage to be completed before
adjustment is made. Check IR LEDs are working by covering the photocell of camera,
the IR LEDs will give a faint red glow.
Don’t look at IR LEDs for long periods of time, as you could damage your eyes!

Operation Guide
3 OSD Main Menu
1
3 OSD Main Menu
3.1 Procedure
3.1.1 Camera Control Using Five Buttons
If your camera has four arrow buttons and one SET button, you can use the buttons to operate
the OSD main menu. Figure 1-2 shows the five buttons.
Figure 3-1 Five-button layout
The buttons have the following functions:
SET: Press this button to open the OSD main menu or end setup.
UP/DOWN: Press the two buttons to select the upper or lower menu.
LEFT/RIGHT: Press the two buttons to select different modes.
Press and hold the LEFT button for 5s to switch to AHD mode for output of the 1080P
AHD signal.
Press and hold the RIGHT button for 5s to switch to TVI mode for output of the 1080P
TVI signal.
Press and hold the UP button for 5s to switch to CVBS mode for output of the 960H
analog signal.
Press and hold the DOWN button for 5s to switch to CVI mode for output of the 1080P
CVI signal.

Operation Guide
3 OSD Main Menu
2
----End
3.2 OSD Main Menu Interface
The OSD main menu interface includes LENS, EXPOSURE, BACKLIGHT, WHITE BAL,
DAY&NIGHT, NR, SPECIAL, and ADJUST, as shown in Figure 1-3.
Figure 3-2 OSD main menu interface
----End

Operation Guide
4 OSD Setting
3
4 OSD Setting
4.1 LENS
You can set LENS to MANUAL or DC.
Procedure
Step 1 Press the UP or DOWN button to select LENS.
Step 2 Press the LEFT or RIGHT button to set LENS to MANUAL or DC. The default value is
MANUAL.
----End
4.2 EXPOSURE
Exposure is intended to adjust image brightness by setting parameters such as aperture,
shutter, and gain. The EXPOSURE interface includes SHUTTER, AGC, SENS-UP,
BRIGHTNESS, D-DWR, and DEFOG.
Procedure
Step 1 Press the UP or DOWN button to select EXPOSURE.
Step 2 Press the OK button to open the EXPOSURE interface, as shown in Figure 2-1.

Operation Guide
4 OSD Setting
4
Figure 4-1 EXPOSURE interface
Step 1 Set exposure parameters.
Table 2-1 lists the exposure parameters.
Table 4-1 Exposure parameters
Parameter Meaning Setup
SHUTTER This parameter is used to adjust
shutter manually for the desired
image brightness. The greater the
shutter, the brighter the image,
given that aperture and gain remain
unchanged.
[Setting method]
Press the LEFT or RIGHT
button.
[Default value]
AUTO
AGC This parameter is used to adjust
image brightness and noise (two
factors that affect image quality).
The greater the gain, the brighter the
image and the higher the noise level.
Value range: 0–15
[Setting method]
Press the LEFT or RIGHT
button.
[Default value]
14
SENS-UP At low illuminance, the sensor
triggers frame reduction and the
exposure time is prolonged to
increase image brightness and
reduce the noise level.
[Setting method]
Press the LEFT or RIGHT
button.
[Default value]
OFF

Operation Guide
4 OSD Setting
5
Parameter Meaning Setup
BRIGHTNESS This parameter is used to adjust
image brightness.
Value range: 0–100
[Setting method]
Press the LEFT or RIGHT
button.
[Default value]
42
D-WDR Overexposure or missing dark
details may occur when areas of low
brightness and high brightness
coexist in the same image. You can
set D-WDR to ON to enhance dark
areas while tuning down bright
areas for improved effect.
[Setting method]
Press the LEFT or RIGHT
button.
[Default value]
OFF
DEFOG You can set this parameter to ON to
obtain images with enhanced
transparency in foggy environments.
[Setting method]
Press the LEFT or RIGHT
button.
[Default value]
OFF
Step 2 Press the UP or DOWN button to select RETURN.
Step 3 Press the LEFT or RIGHT button to select RETURN. The OSD setup interface is displayed.
Select SAVE&END to save the settings and exit the OSD setup interface.
----End
4.3 BACKLIGHT
You can set BACKLIGHT to HSBLC, BLC, or OFF.
Procedure
Step 1 Press the UP or DOWN button to select BACKLIGHT.
Step 2 Press the LEFT or RIGHT button to select a backlight mode. The options are HSBLC,
BLC, and OFF. The default value is OFF.
----End
4.3.1 HSBLC
You can select HSBLC to enable highlight compensation to make the target look clearer
when the backlight is too strong.
Step 1 Set BACKLIGHT to HSBLC and press the OK button to open the HSBLC interface, as
shown in Figure 2-2.

Operation Guide
4 OSD Setting
6
Figure 4-2 HSBLC interface
----End
Procedure
Step 1 Press the UP or DOWN button to select SELECT, and press the LEFT or RIGHT button to
select the desired area.
Step 2 Press the UP or DOWN button to select DISPLAY, and press the LEFT or RIGHT button
to set this parameter to ON or OFF.
Set DISPLAY to ON and press the OK button to open the area setup interface, as shown in
Figure 2-3.
Figure 4-3 Area setup interface

Operation Guide
4 OSD Setting
7
1. When POSITION is displayed, press the UP, DOWN, LEFT, and RIGHT buttons to
set the position of the area. Then press the OK button to complete the setting.
2. Press the OK button. When SIZE is displayed, press the UP, DOWN, LEFT, and
RIGHT buttons to set the size of the area. Then press the OK button to complete the
setting.
3. Press the OK button again. When AGAIN and REC are displayed, press the LEFT or
RIGHT button to select AGAIN to perform setup again. Then press REC to complete
the setting
Step 3 .Press the UP or DOWN button to select BLACK MASK, and press the LEFT or RIGHT
button to set this parameter to ON or OFF.
Step 4 Press the UP or DOWN button to select LEVEL, and press the LEFT or RIGHT button to
set this parameter.
Step 5 Press the UP or DOWN button to select MODE, and press the LEFT or RIGHT button to
set this parameter.
Set MODE to NIGHT and press the OK button to open the NIGHT MODE interface, as
shown in Figure 2-4.

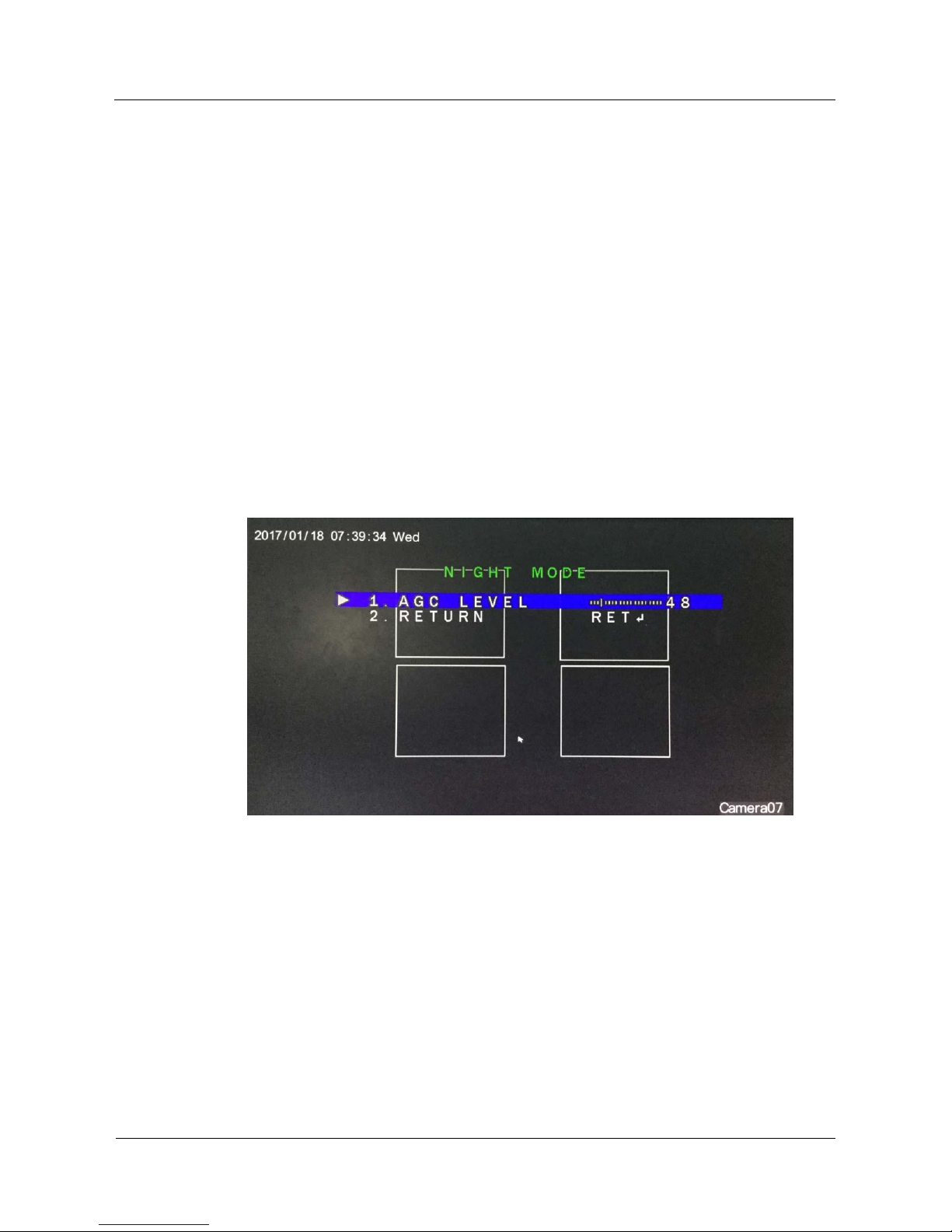

Figure 4-4 NIGHT MODE interface
1. Press the UP or DOWN button to select AGC LEVEL, and press the LEFT or RIGHT
button to set this parameter.
2. Press the UP or DOWN button to select RETURN after setup, and press the OK button
to return to the HSBLC interface.
Step 6 After all parameters are set, press the UP or DOWN button to select RETURN, and press the
OK button to return to the OSD setup interface.
----End

Operation Guide
4 OSD Setting
8
4.3.2 BLC
You can select BLC to enable backlight compensation to make the target look clearer when
the background is too dark.
Set BACKLIGHT to BLC and press the OK button to open the BLC interface, as shown in
Figure 2-5.
Figure 4-5 BLC interface
Procedure
Step 1 Press the UP or DOWN button to select LEVEL, and press the LEFT or RIGHT button to
set this parameter. The options are HIGH, MIDDLE, and LOW. The default value is
MIDDLE.
Step 2 Press the UP or DOWN button to select AREA, and press the OK button to open the area
setup interface, as shown in Figure 2-6.

Operation Guide
4 OSD Setting
9
Figure 4-6 Area setup interface
BLC area setup is the same as HSBLC area setup. For details, see "Step 2 of section 2.3.1
HSBLC."
4.4 WHITE BAL
White balance is intended to reproduce the actual colors of the observed scene when the
illuminance and color temperature of the target object are changed. You can set WHITEBAL
to ATW, AWG, MANUALWB, OUTDOOR, INDOOR, or AWC-SET.
Procedure
Step 1 Press the UP or DOWN button to select WHITE BAL.
Step 2 Press the LEFT or RIGHT button to set this parameter. The options are ATW, AWG,
MANUAL WB, OUTDOOR, INDOOR, and AWC-SET.
Step 3 Set WHITE BAL to MANUAL WB and press the OK button to open the MANUAL WB
interface, where you can set white balance parameters, as shown in Figure 2-7.

Operation Guide
4 OSD Setting
10
Figure 4-7 MANUALWB interface
1. Press the UP or DOWN button to select BLUE, and press the LEFT or RIGHT button
to set this parameter.
2. Press the UP or DOWN button to select RED, and press the LEFT or RIGHT button to
set this parameter.
3. Press the UP or DOWN button to select RETURN, and press the OK button to return to
the OSD setup interface.
4.5 Day&Night
You can set Day &Night to COLOR,D&N EXT,B/W, or D&NAUTO.
Procedure
Step 1 Press the UP or DOWN button to select Day &Night.
Step 2 Press the LEFT or RIGHT button to set this parameter.
----End
2.5.1 D&N EXT
Set Day &Night to D&N EXT and press the OK button to open the D&N EXT interface, as
shown in Figure 2-8.

Operation Guide
4 OSD Setting
11
Figure 4-8 D&N EXT interface
Procedure
Step 1 Press the UP or DOWN button to select D->N (DELAY), and press the LEFT or RIGHT
button to set this parameter.
Step 2 Press the UP or DOWN button to select N->D (DELAY), and press the LEFT or RIGHT
button to set this parameter.
Step 3 Press the UP or DOWN button to select RETURN, and press the OK button to return to the
OSD setup interface.
----End
4.5.2 B/W
Set Day &Night to B/W and press the OK button to open the B/W interface, as shown in
Figure 2-9.

Operation Guide
4 OSD Setting
12
Figure 4-9 B/W interface
WHITE BAL is unavailable when Day &Night is set to B/W.
Procedure
Step 1 Press the UP or DOWN button to select BURST, and press the LEFT or RIGHT button to
set this parameter to ON or OFF.
Step 2 Press the UP or DOWN button to select IR SMART, and press the LEFT or RIGHT button
to set this parameter to ON or OFF.
Set IR SMART to ON and press the OK button to open the IR SMART interface, as shown
in Figure 2-10.
Figure 4-10 IR SMART interface

Operation Guide
4 OSD Setting
13
1. Press the UP or DOWN button to select LEVEL, and press the LEFT or RIGHT button
to set this parameter.
2. Press the UP or DOWN button to select AREA, and press the OK button to open the area
setup interface, as shown in Figure 2-11.
Figure 4-11 Area setup interface
IR SMART area setup is the same as HSBLC area setup. For details, see "Step 2 of section
2.3.1 "HSBLC."
3. Press the UP or DOWN button to select RETURN, and press the OK button to return to
the B/W interface.
Step 3 Press the UP or DOWN button to select RETURN, and press the OK button to return to the
OSD setup interface.
----End
4.5.3 D&N AUTO
Set Day &Night to D&N AUTO and press the OK button to open the D&N AUTO interface,
as shown in Figure 2-12.
